Nissan GT-R (2007-2014 year). EXHAUST SYSTEM / EXTERIOR LIGHTING SYSTEM. Service Manual - part 1

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Aluminum Die-Casting Parts Handling

INFOID:0000000009161454

PROHIBITION OF WELDING OR BEATING REPAIR

• Material made of aluminum die-casting parts is heat-treated and looses strength when being exposed to

welding heat. Do not perform welding repair for cracks, damage or others.

• For aluminum die-casting parts deformation, do not perform repair by beating. Always repair by replacement

as an assembly.

CRACK CHECK

When the vehicle is damaged, always perform a visual deformation check and a crack check.

Crack Check Procedures

For a crack check, use dye penetrant inspection fluid (pre-cleaning fluid, penetrant fluid and developer fluid).

CAUTION:

Always perform a crack check in accordance with the procedures specified by the manufacturer of the
dye penetrant inspection fluid.
1.

Spray pre-cleaning fluid on the checking surface for cleaning.

Spray penetrant fluid on the checking surface and wait until the penetrant fluid soaks into any cracks.

Wipe off excessive penetrant fluid, and then also lightly wipe off penetrant fluid using a wet cloth.

Spray developer fluid on the checking surface.

Cracks, if any, are dyed red in color.

STRAY CURRENT CORROSION

• Corrosion occurs to aluminum die-casting parts by the stray current corrosion phenomenon, when directly

contacting other parts made of steel. Always apply anti-stray current corrosion paint (primer) on the mount-
ing surface.

• Clean mounting surface to prevent any foreign matter, steel powder or others from being mixed in. Always

apply the specified adhesive when installing.

• Corrosion by stray current corrosion may occur when installing with any other bolts than the specified bolt.

Always use the specified bolt that is surface treated.

• When loosening the specified bolt that is tightened, the treated surface may peel. Never reuse the specified

bolt that is tightened once.

TIGHTENING TORQUE CONTROL

Material made of aluminum die-casting parts is soft in term of hardness. Tightening torque must be controlled
exactly as specified. Always use a torque wrench to install any part to the specified tightening torque.

WARNING:

Never use a power tool to remove or tighten bolts for aluminum die-casting part to prevent damage to
aluminum die-casting parts.

Revision: 2012 November

2014 GT-R

EXHAUST SYSTEM

EX-3

< REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

Exploded View

INFOID:0000000009161457

Mounting bracket (No. 4)

Main muffler assembly

Bracket

Mounting bracket (No. 3) (RH)

Bracket

Mounting bracket (No. 2)

Gasket

Sub muffler

Gasket

10. Front cross bar assembly

11. Mounting bracket (No. 3) (LH)

Refer to

GI-4, "Components"

for symbols in the figure.

NNBIA0004GB

Revision: 2012 November

2014 GT-R

EXL-1

DRIVER CONTROLS

SECTION

EXL

EXL

CONTENTS

EXTERIOR LIGHTING SYSTEM

XENON TYPE

SYSTEM DESCRIPTION ..............................

HEADLAMP SYSTEM .........................................

System Diagram ........................................................

System Description ...................................................

Component Parts Location ........................................

Component Description ............................................

AUTO LIGHT SYSTEM .......................................

System Diagram ........................................................

System Description ...................................................

Component Parts Location ........................................

Component Description ............................................

DAYTIME RUNNING LIGHT SYSTEM ...............

System Diagram ........................................................

System Description ...................................................

Component Parts Location ........................................

Component Description ............................................

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM ...................................................

System Diagram ........................................................

System Description ...................................................

Component Parts Location ......................................

Component Description ..........................................

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM ................................................

System Diagram ......................................................

System Description .................................................

Component Parts Location ......................................

Component Description ..........................................

BACK-UP LAMP SYSTEM ................................

System Diagram ......................................................

System Description .................................................

Component Parts Location ......................................

Component Description ..........................................

EXTERIOR LAMP BATTERY SAVER SYS-
TEM ...................................................................

System Diagram ......................................................

System Description ..................................................

Component Parts Location ......................................

Component Description ..........................................

DIAGNOSIS SYSTEM (IPDM E/R) ...................

Diagnosis Description ..............................................

DTC/CIRCUIT DIAGNOSIS .........................

POWER SUPPLY AND GROUND CIRCUIT ....

BCM (BODY CONTROL MODULE) ..........................

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ................................................................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) ..............................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure ......................................................................

XENON HEADLAMP .........................................

Description ...............................................................

Diagnosis Procedure ...............................................

HAZARD SWITCH ............................................

Description ...............................................................

Diagnosis Procedure ...............................................

REAR SIDE MARKER LAMP CIRCUIT ............

Diagnosis Procedure ...............................................

BACK-UP LAMP CIRCUIT ...............................

Component Inspection .............................................

LICENSE PLATE LAMP CIRCUIT ....................

Diagnosis Procedure ...............................................

OPTICAL SENSOR ...........................................

Description ...............................................................

Revision: 2012 November

2014 GT-R

EXL-2

Diagnosis Procedure ..............................................

HEADLAMP SYSTEM .......................................

Wiring Diagram - HEADLAMP - ..............................

AUTO LIGHT SYSTEM ......................................

Wiring Diagram - AUTO LIGHT SYSTEM - ............

DAYTIME RUNNING LIGHT SYSTEM ..............

Wiring Diagram - DAYTIME LIGHT SYSTEM - ......

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM .................................................

Wiring Diagram - TURN AND HAZARD WARN-
ING LAMPS - ..........................................................

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM ...............................................

Wiring Diagram - PARKING LICENSE PLATE
AND TAIL LAMPS - ................................................

STOP LAMP ......................................................

Wiring Diagram - STOP LAMP - .............................

BACK-UP LAMP ................................................

Wiring Diagram - BACK-UP LAMP - .......................

SYMPTOM DIAGNOSIS .............................

NORMAL OPERATING CONDITION ................

Description ..............................................................

PRECAUTION .............................................

PRECAUTIONS .................................................

Precaution for Working Range at a Regular Deal-
ership ......................................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

Precaution for Battery Service ................................

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection .............................

Precautions For Xenon Headlamp Service ............

PERIODIC MAINTENANCE ........................

HEADLAMP AIMING ADJUSTMENT ...............

Description ..............................................................

Aiming Adjustment Procedure ................................

REMOVAL AND INSTALLATION ...............

FRONT COMBINATION LAMP .........................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

Disassembly and Assembly ....................................

Inspection After Installation (HID Control Unit) .......

DAYTIME RUNNING LIGHT .............................

Exploded View ........................................................

Removal and Installation .........................................

FRONT SIDE MARKER LAMP .........................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

LIGHTING & TURN SIGNAL SWITCH ..............

Exploded View ........................................................

HAZARD SWITCH .............................................

Exploded View ........................................................

REAR COMBINATION LAMP ...........................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

REAR SIDE MARKER LAMP ............................

Exploded View ........................................................

Removal and Installation .........................................

HIGH-MOUNTED STOP LAMP .........................

Exploded View ........................................................

Removal and Installation .........................................

LICENSE PLATE LAMP ....................................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

REAR FOG LAMP .............................................

Exploded View ........................................................

Removal and Installation .........................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Bulb Specifications ..................................................

Revision: 2012 November

2014 GT-R

HEADLAMP SYSTEM

EXL-3

< SYSTEM DESCRIPTION >

[XENON TYPE]

EXL

SYSTEM DESCRIPTION

HEADLAMP SYSTEM

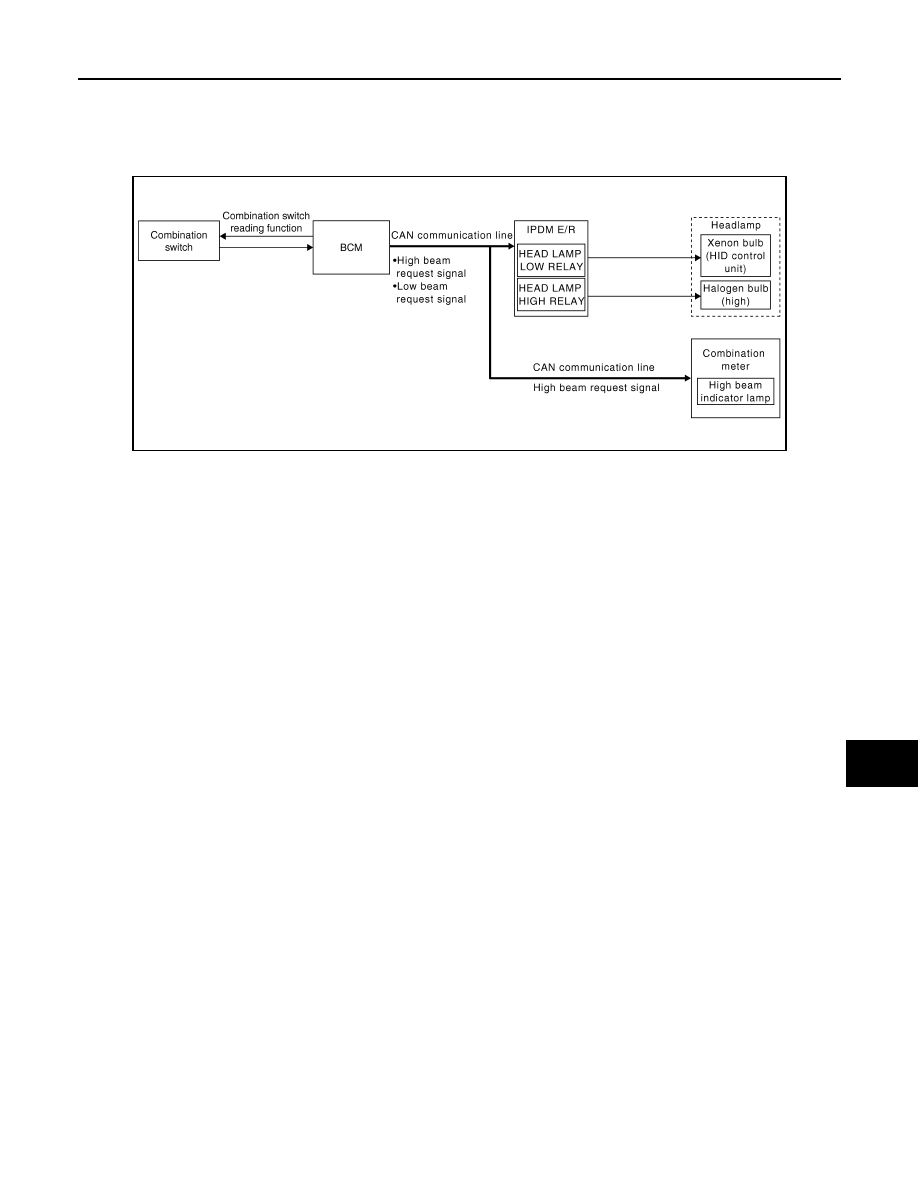

System Diagram

INFOID:0000000009160283

System Description

INFOID:0000000009160284

OUTLINE

Headlamp is controlled by combination switch reading function and headlamp control function of BCM, and
relay control function of IPDM E/R.

HEADLAMP (LO) OPERATION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM transmits the low beam request signal to IPDM E/R with CAN communication according to the head-

lamp (LO) ON condition.

Headlamp (LO) ON condition

- Lighting switch 2ND
- Lighting switch AUTO, and the auto light function ON judgement
• IPDM E/R turns the integrated headlamp low relay ON, and turns the headlamp ON according to the low

beam request signal.

HEADLAMP (HI) OPERATION

• BCM transmits the high beam request signal to IPDM E/R and the combination meter with CAN communica-

tion according to the headlamp (HI) ON condition.

Headlamp (HI) ON condition

- Lighting switch PASS
- Lighting switch HI and any of the following
• Lighting switch 2ND
• Lighting switch AUTO, and the auto light function on judgement
• Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
• IPDM E/R turns the integrated headlamp high relay ON, and turns the headlamp ON according to the high

beam request signal.

JPLIA0168GB

Revision: 2012 November

2014 GT-R

EXL-4

< SYSTEM DESCRIPTION >

[XENON TYPE]

HEADLAMP SYSTEM

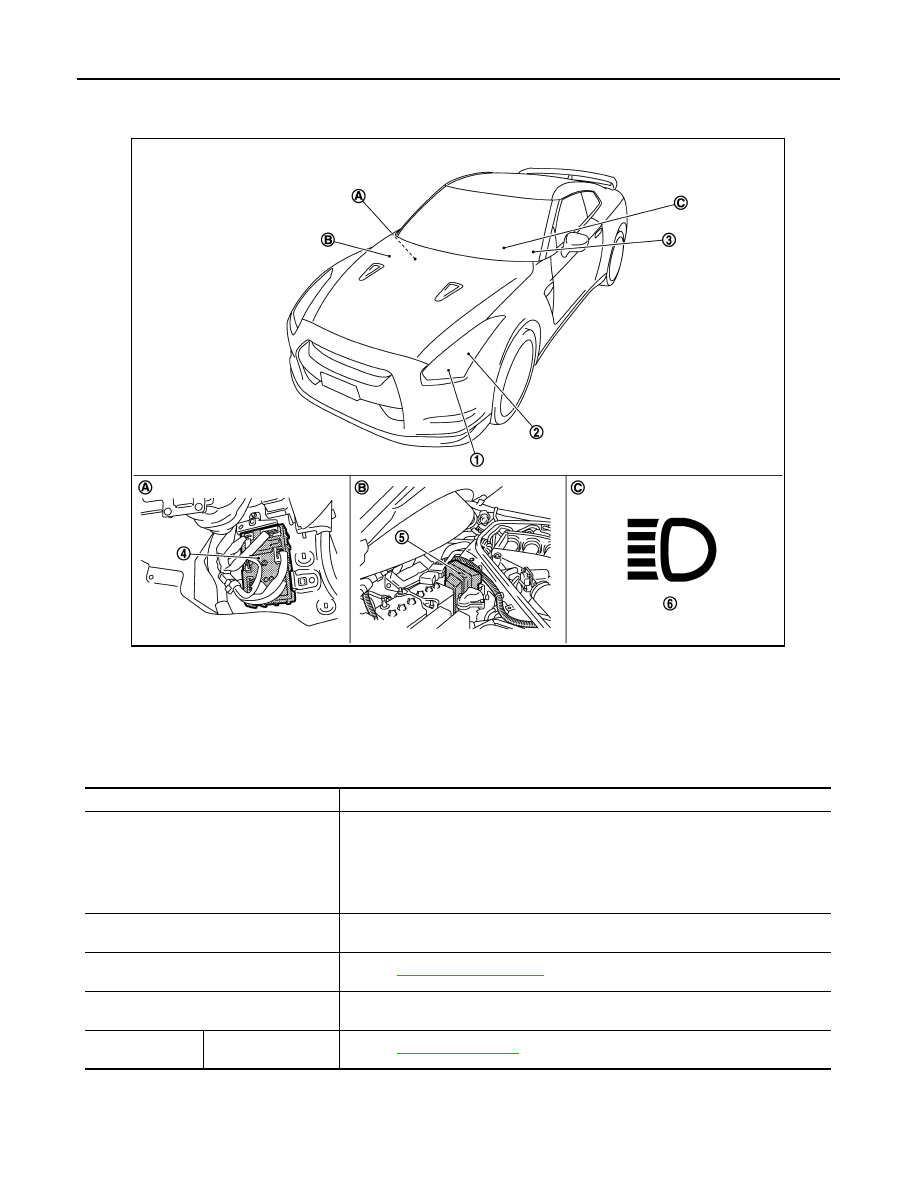

Component Parts Location

INFOID:0000000009160285

Component Description

INFOID:0000000009160286

Headlamp (HI)

Headlamp (LO)

Combination switch

BCM

IPDM E/R

High beam indicator lamp

Dash side lower (passenger side)

Engine room dash panel (RH)

On the combination meter

JPLIA1167ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the headlamp is turned ON according to the vehicle condition.
- Requests the headlamp relay (High/Low) ON to IPDM E/R (with CAN communica-

tion).

- Requests the high beam indicator lamp ON to the combination meter (with CAN

communication).

IPDM E/R

Controls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

Combination meter
(High beam indicator lamp)

Turns the high beam indicator lamp ON according to the request from BCM (with CAN
communication).

Front combination
lamp assembly

• HID control unit
• Xenon bulb

Refer to

EXL-21, "Description"

Revision: 2012 November

2014 GT-R

AUTO LIGHT SYSTEM

EXL-5

< SYSTEM DESCRIPTION >

[XENON TYPE]

EXL

AUTO LIGHT SYSTEM

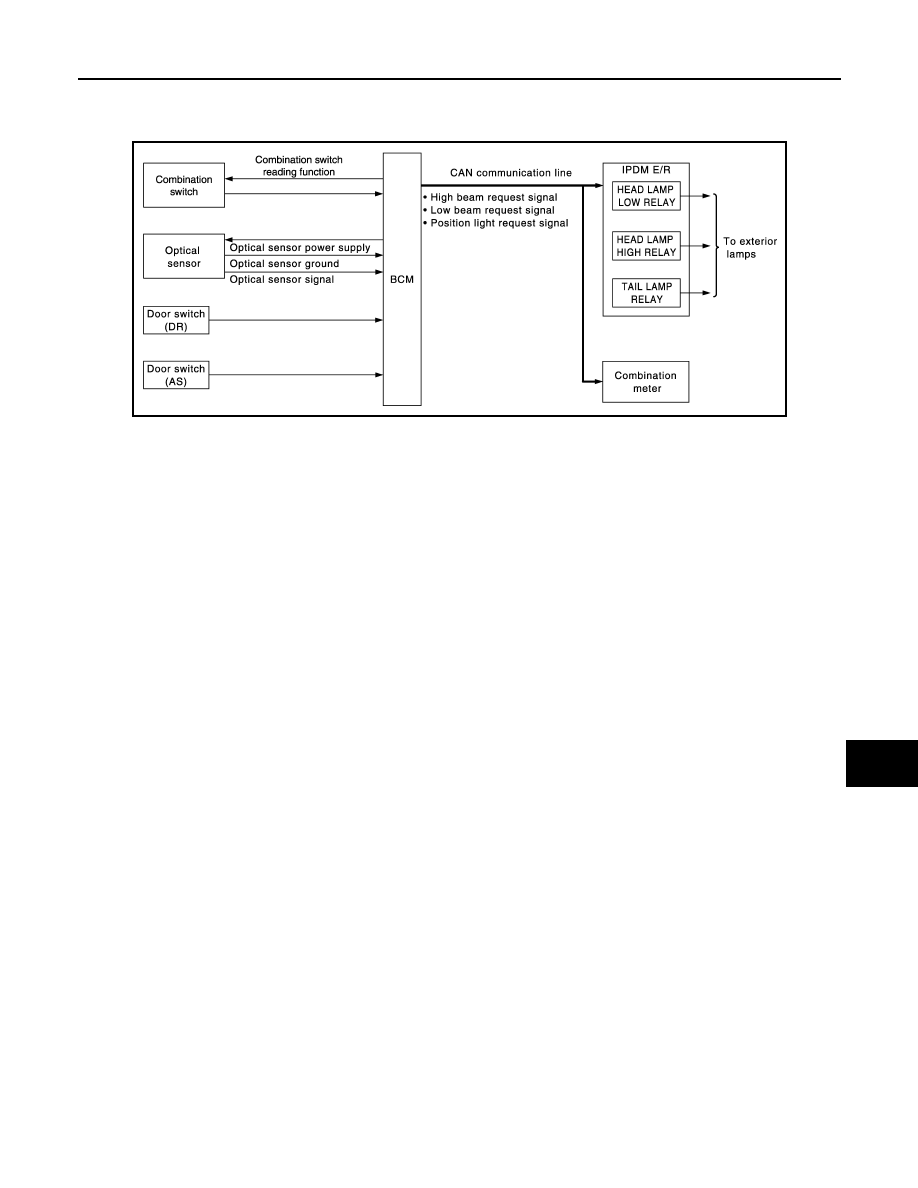

System Diagram

INFOID:0000000009160287

System Description

INFOID:0000000009160288

OUTLINE

• Auto light system is controlled by each function of BCM and IPDM E/R.

Control by BCM

- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function

Control by IPDM E/R

- Relay control function
• Auto light system has the auto light function and the delay timer function.
- Auto light function turns the exterior lamps* and each illumination ON/OFF automatically according to the

outside brightness.

- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns

the exterior lamps OFF depending on the vehicle condition with the auto light function after a certain period
of time.

*: Headlamp (LO/HI), parking lamp, tail lamp, side marker lamp and license plate lamp.
NOTE:
Headlamp HI depend on the combination switch condition.

AUTO LIGHT FUNCTION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM supplies voltage to optical sensor when the ignition switch is turned ON or ACC.
• Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
• BCM judges outside brightness from the optical sensor signal and judges ON/OFF condition of the exterior

lamp and each illumination according to the outside brightness.

• BCM transmits each request signal to IPDM E/R with CAN communication according to ON/OFF condition

by the auto light function.

DELAY TIMER FUNCTION

BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
• Turns the exterior lamp OFF 5 minutes after detecting that any door opens (Door switch ON).
• Turns the exterior lamp OFF a certain period of time* after closing all doors (Door switch ON

→

OFF).

• Turns the exterior lamp OFF with the ignition switch ACC or the light switch OFF.
NOTE:
When any position other than the light switch AUTO is set, the auto light system function switches to the exte-
rior lamp battery saver function.

JPLIA1775GB

Revision: 2012 November

2014 GT-R

EXL-6

< SYSTEM DESCRIPTION >

[XENON TYPE]

AUTO LIGHT SYSTEM

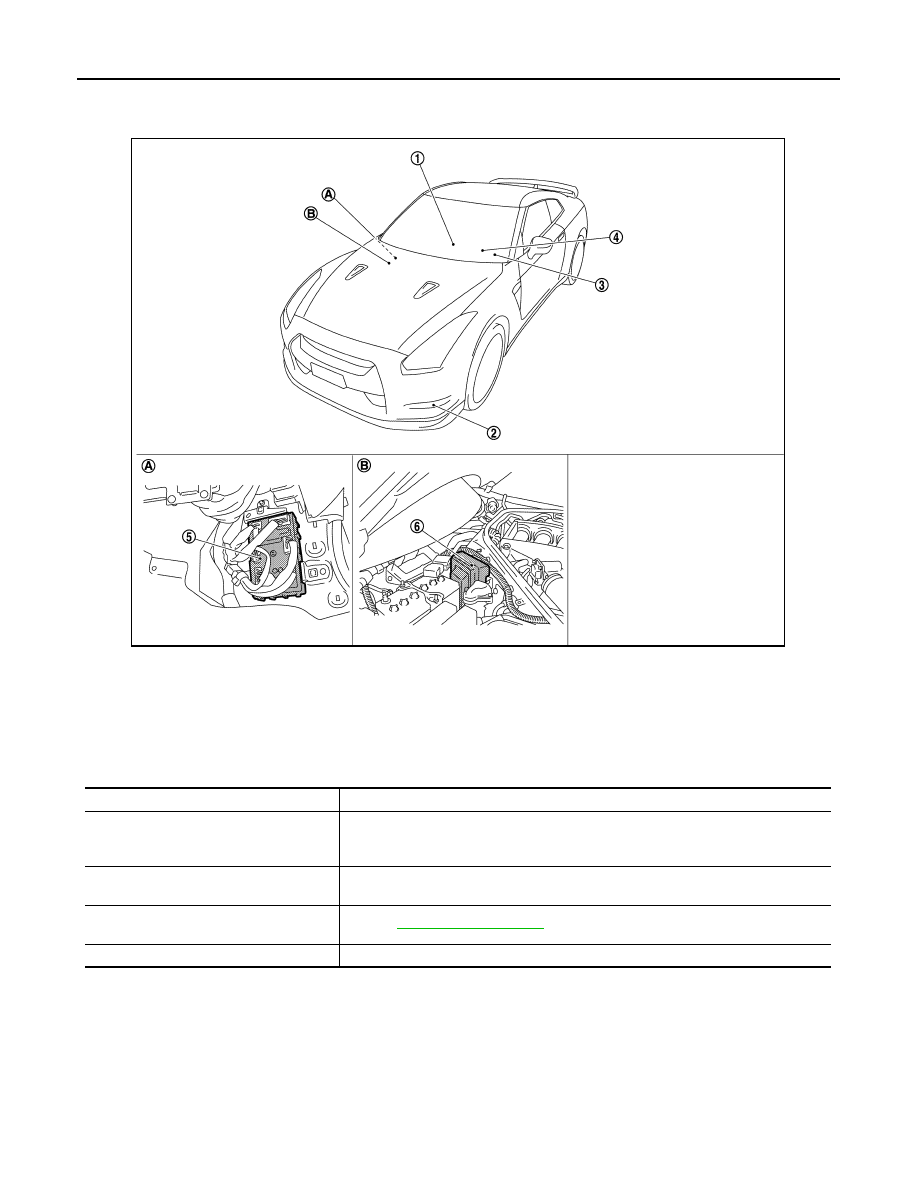

Component Parts Location

INFOID:0000000009160289

Component Description

INFOID:0000000009160290

Combination switch

Combination meter

Optical sensor

BCM

IPDM E/R

Instrument upper panel (RH)

Dash side lower (passenger side)

Engine room dash panel (RH)

NNLIB0015ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the outside brightness from the optical sensor signal.
• Judges the OFF timing according to the vehicle condition.
• Judges the ON/OFF status of the exterior lamp and each illumination according to the

outside brightness and the vehicle condition.
Requests ON/OFF of each relay to IPDM E/R (with CAN communication).

IPDM E/R

Controls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

Optical sensor

Refer to

EXL-28, "Description"

Revision: 2012 November

2014 GT-R

DAYTIME RUNNING LIGHT SYSTEM

EXL-7

< SYSTEM DESCRIPTION >

[XENON TYPE]

EXL

DAYTIME RUNNING LIGHT SYSTEM

System Diagram

INFOID:0000000009160291

System Description

INFOID:0000000009160292

OUTLINE

• Turns the following exterior lamps ON as the daytime running light.
• Daytime running light is controlled by daytime running light control function and combination switch reading

function of BCM, and relay control function of IPDM E/R.

DAYTIME RUNNING LIGHT OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM detects the engine condition by the engine status signal received from ECM with CAN communication.
• BCM detects the parking brake condition by the parking brake switch signal received from combination

meter with CAN communication.

• BCM transmits the daytime running light request signal to IPDM E/R with CAN communication according to

the daytime running light ON condition.

Daytime running light ON condition

- Engine running
- Lighting switch OFF
- Parking brake switch OFF
• IPDM E/R turns the integrated front fog lamp relay ON, and turns the daytime running light ON according to

the daytime running light request signal.

JMLIA2681GB

Revision: 2012 November

2014 GT-R

EXL-8

< SYSTEM DESCRIPTION >

[XENON TYPE]

DAYTIME RUNNING LIGHT SYSTEM

Component Parts Location

INFOID:0000000009160293

Component Description

INFOID:0000000009160294

Parking brake switch

Daytime running light

Combination switch

Combination meter

BCM

IPDM E/R

Dash side lower (passenger side)

Engine room dash panel (RH)

JMLIA2080ZZ

Part

Description

BCM

• Detects each switch condition with the combination switch reading function.
• Judges each lamps ON/OFF condition according to the vehicle condition.
- Requests the front fog lamp relay ON to IPDM E/R (with CAN communication).

IPDM E/R

Controls the relay and supplies voltage to the load according to the request from BCM
(with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

Combination meter

Transmits the parking brake switch signal to BCM (with CAN communication).

Revision: 2012 November

2014 GT-R

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-9

< SYSTEM DESCRIPTION >

[XENON TYPE]

EXL

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

System Diagram

INFOID:0000000009160295

System Description

INFOID:0000000009160296

OUTLINE

Turn signal and the hazard warning lamp is controlled by combination switch reading function and the flasher
control function of BCM.

TURN SIGNAL LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM supplies voltage to the right (left) turn signal lamp circuit when the ignition switch is turned ON and the

turn signal switch is in the right (left) position. BCM blinks the turn signal lamp.

HAZARD WARNING LAMP OPERATION

BCM supplies voltage to both turn signal lamp circuit when the hazard switch is turned ON. BCM blinks the
hazard warning lamp.

TURN SIGNAL INDICATOR LAMP AND TURN SIGNAL SOUND OPERATION

• BCM transmits the turn signal indicator lamp signal to the combination meter with CAN communication while

the turn signal lamp and the hazard warning lamp operating.

• Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal

indicator lamp according to the turn signal indicator lamp signal.

HIGH FLASHER OPERATION

• BCM detects the turn signal lamp circuit status by the terminal current value.
• BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-

nal lamp operating.
NOTE:
The blinking speed is normal while operating the hazard warning lamp.

JPLIA0180GB

Revision: 2012 November

2014 GT-R

EXL-10

< SYSTEM DESCRIPTION >

[XENON TYPE]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Component Parts Location

INFOID:0000000009160297

Component Description

INFOID:0000000009160298

Hazard switch

Front turn signal lamp

Combination switch

Rear turn signal lamp

BCM

Turn signal indicator lamp

Dash side lower (passenger side)

On the combination meter

JPLIA1165ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the blinks of the turn signal lamp and the hazard warning lamp from each

switch status. The applicable turn signal lamp blinks.

- Requests the turn signal indicator lamp blink to the combination meter (with CAN

communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

Hazard switch
(Set-up switch)

Refer to

EXL-23, "Description"

Combination meter
(Turn signal indicator lamp and buzzer)

Blinks the turn signal indicator lamp and outputs the turn signal operating sound with
integrated buzzer according to the request from BCM (with CAN communication).

Revision: 2012 November

2014 GT-R

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-11

< SYSTEM DESCRIPTION >

[XENON TYPE]

EXL

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

System Diagram

INFOID:0000000009160299

System Description

INFOID:0000000009160300

OUTLINE

Parking, license plate, side marker and tail lamps are controlled by combination switch reading function and
headlamp control function of BCM, and relay control function of IPDM E/R.

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the position light request signal to IPDM E/R with CAN communication according to the ON/

OFF condition of the parking, license plate, side marker and tail lamps.

Parking, license plate, side marker and tail lamps ON condition

- Lighting switch 1ST
- Lighting switch 2ND
- Lighting switch AUTO, and the auto light function ON judgment
• IPDM E/R turns the integrated tail lamp relay ON and turns the parking lamp, the license plate, side marker

and tail lamps ON according to the position light request signal.

• Combination meter turn the position lamp indicator lamp ON according to the position light request signal.

JMLIA2550GB

Revision: 2012 November

2014 GT-R

EXL-12

< SYSTEM DESCRIPTION >

[XENON TYPE]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Component Parts Location

INFOID:0000000009160301

Component Description

INFOID:0000000009160302

Parking lamp

Front side marker lamp

Combination switch

Rear side marker lamp

Tail lamp

License plate lamp

BCM

IPDM E/R

Position lamp indicator lamp

Dash side lower (passenger side)

Engine room dash panel (RH)

On the combination meter

JPLIA1164ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the ON/OFF status of the clearance, license plate, side marker and tail

lamps according to the vehicle condition.

- Requests the tail lamp relay ON to IPDM E/R (with CAN communication).

IPDM E/R

Controls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

Combination meter
(Position lamp indicator lamp)

Turns the position lamp indicator lamp ON according to the request from BCM (with
CAN communication).

Revision: 2012 November

2014 GT-R

BACK-UP LAMP SYSTEM

EXL-13

< SYSTEM DESCRIPTION >

[XENON TYPE]

EXL

BACK-UP LAMP SYSTEM

System Diagram

INFOID:0000000009160303

System Description

INFOID:0000000009160304

OUTLINE

Back-up lamp is controlled by back-up lamp relay control function of TCM.

BACK-UP LAMP OPERATION

• TCM detects the control device condition.
• TCM turns the back-up lamp relay ON according to the back-up lamp ON condition.

Back-up lamp ON condition.

- Ignition switch ON
- Shift position “R”

JPLIA1204GB

Revision: 2012 November

2014 GT-R

Content .. 1 2 ..

///////////////////////////////////////
