FRONT WASHER NOZZLE AND TUBE

Unit: mm (in)

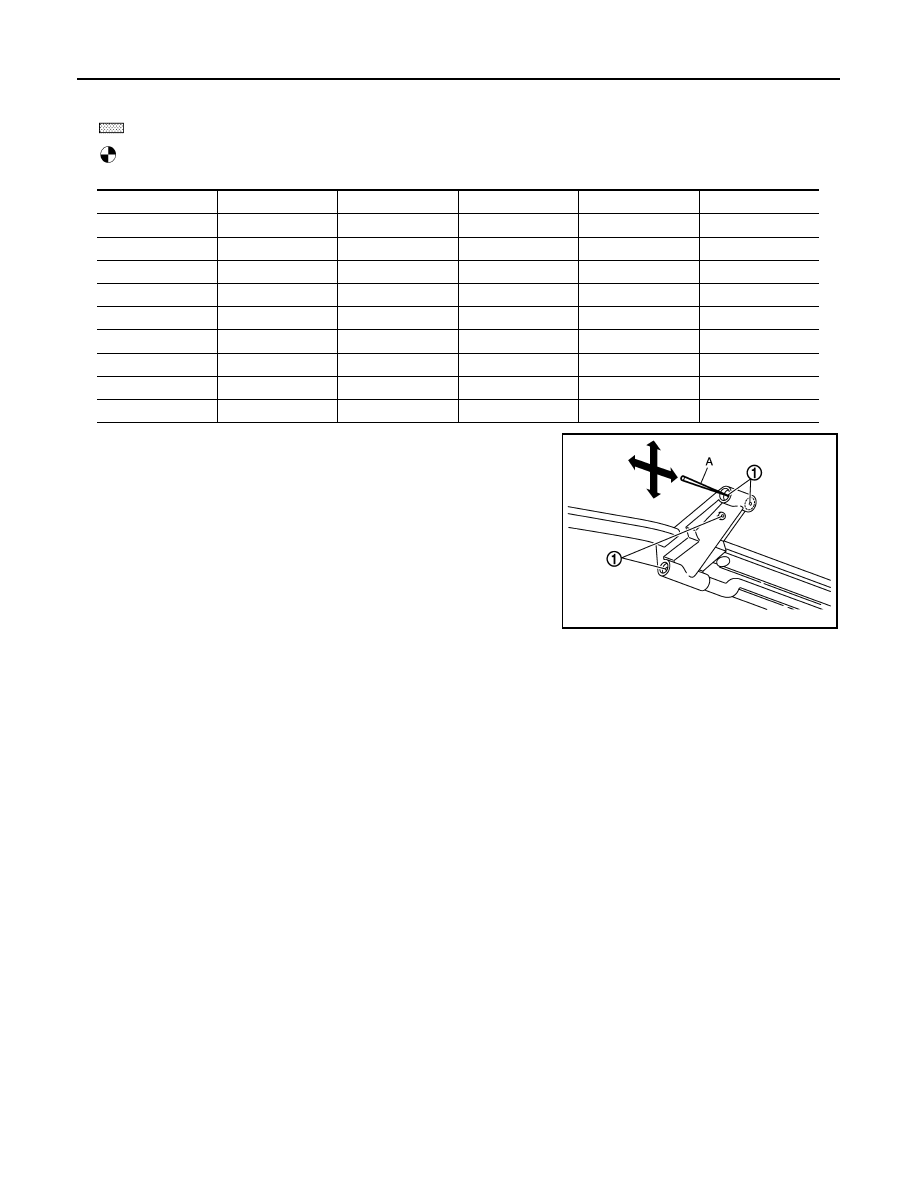

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

1.

Front washer nozzle

2.

Passenger side blade rubber end

3.

Driver side blade rubber end

: Spray area

: Target spray position

Spray position

T

L

X

Y

S

A

29 (1.14)

448 (17.64)

20 (0.79)

50 (1.97)

25 (0.98)

B

34 (1.34)

235 (9.25)

20 (0.79)

20 (0.79)

10 (0.39)

C

−

18 (

−

0.71)

112 (4.41)

20 (0.79)

20 (0.79)

10 (0.39)

D

29 (1.14)

115 (4.53)

20 (0.79)

20 (0.79)

10 (0.39)

E

30 (1.18)

304 (11.97)

20 (0.79)

30 (1.18)

15 (0.59)

F

−

40 (

−

1.57)

237 (9.33)

20 (0.79)

60 (2.36)

30 (1.18)

G

35 (1.38)

197 (7.76)

20 (0.79)

30 (1.18)

15 (0.59)

H

30 (1.18)

73 (2.87)

20 (0.79)

20 (0.79)

10 (0.39)

I

−

17 (

−

0.67)

68 (2.68)

20 (0.79)

20 (0.79)

10 (0.39)

NNLIA0046ZZ

FRONT WIPER ARM

WW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER ARM

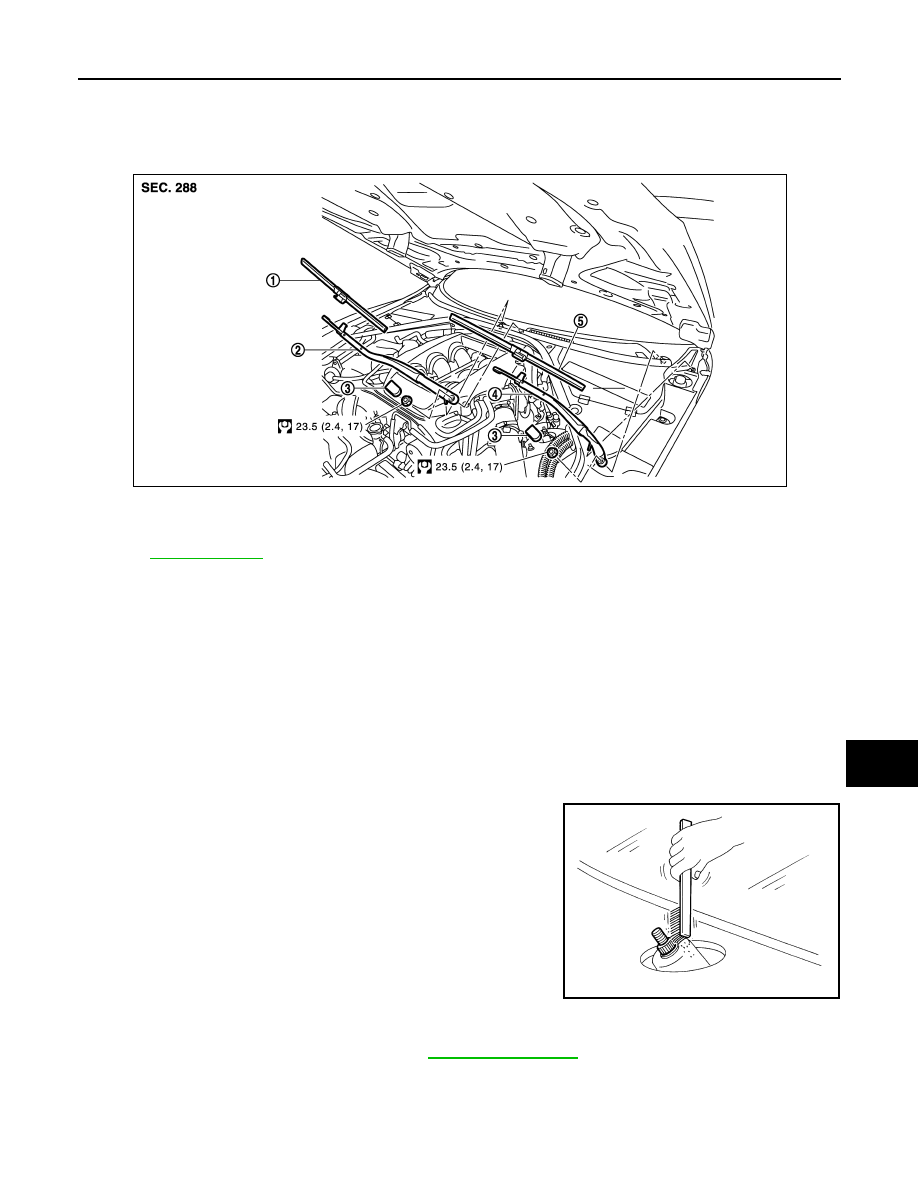

Exploded View

INFOID:0000000009161874

Removal and Installation

INFOID:0000000009161875

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove the front wiper arm caps.

4.

Remove the front wiper arm mounting nuts.

5.

Disconnect the front washer tube from the front washer joint.

6.

Raise front wiper arm, and remove front wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the front wiper to the auto stop position.

3.

Adjust the front wiper blade position. Refer to

WW-22, "Adjustment"

.

4.

Install the front wiper arm by tightening the mounting nuts.

5.

Connect the front washer tube to the front washer joint.

6.

Inject the washer fluid.

1.

Front wiper blade (RH)

2.

Front wiper arm (RH)

3.

Front wiper arm cap

4.

Front wiper arm (LH)

5.

Front wiper blade (LH)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1178GB

ELH0717D

WW-22

< REMOVAL AND INSTALLATION >

FRONT WIPER ARM

7.

Operate the front wiper to move it to the auto stop position.

8.

Check that the front wiper blades stop at the specified position.

9.

Install the front wiper arm caps.

Adjustment

INFOID:0000000009161876

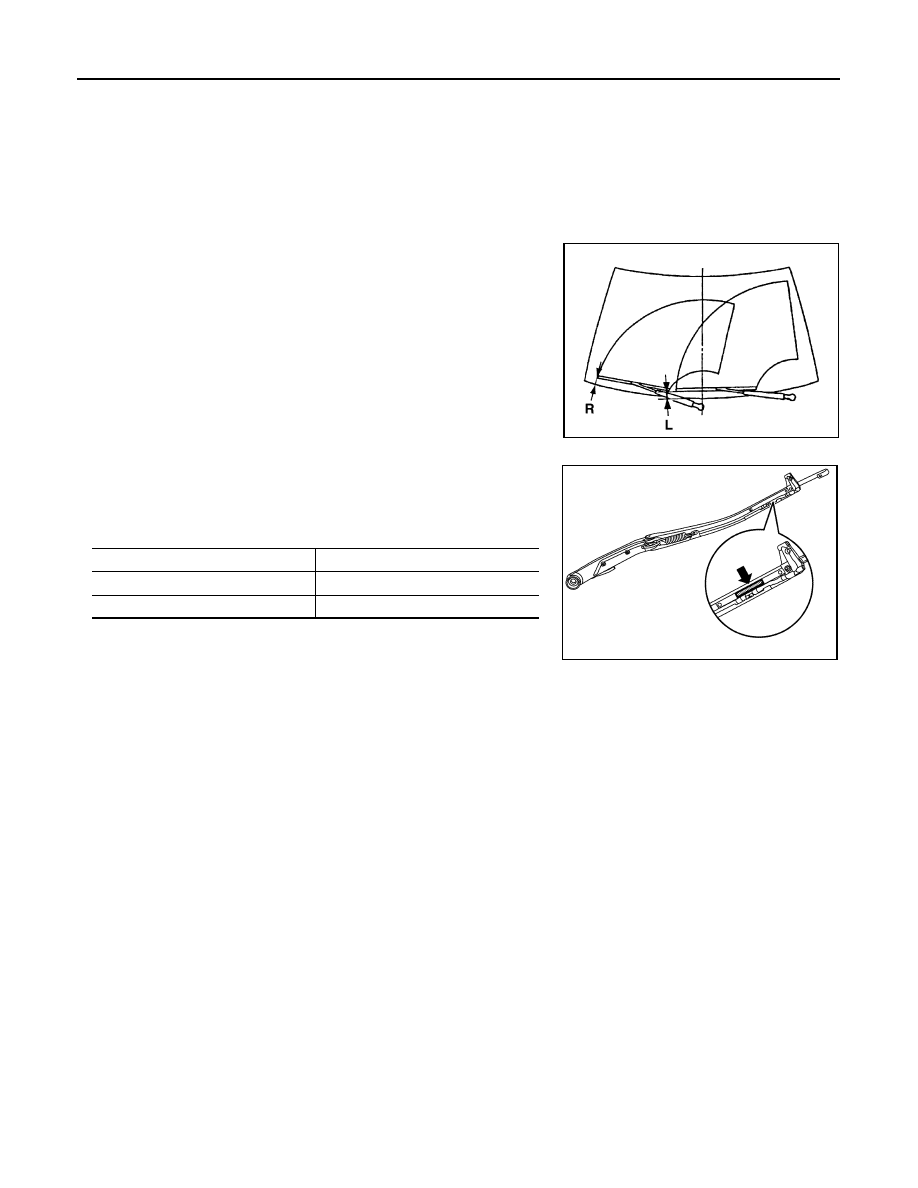

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover and the top of wiper blade center

Standard clearance

NOTE:
For the passenger side wiper arm the corresponding parts differ
according to the length of the wiper blade, and are distinguished by
the beginning number identification stamped on the portion indicated
by the arrow as shown in the figure.

R

: 35.1

±

7.5 mm (1.382

±

 0.295 in)

L

: 46.9

±

7.5 mm (1.846

±

 0.295 in)

JPLIA0082ZZ

Wiper blade

Beginning number

475 mm (18.70 in)

—

525 mm (20.67 in)

39

JMLIA3778ZZ

WIPER BLADE

WW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER BLADE

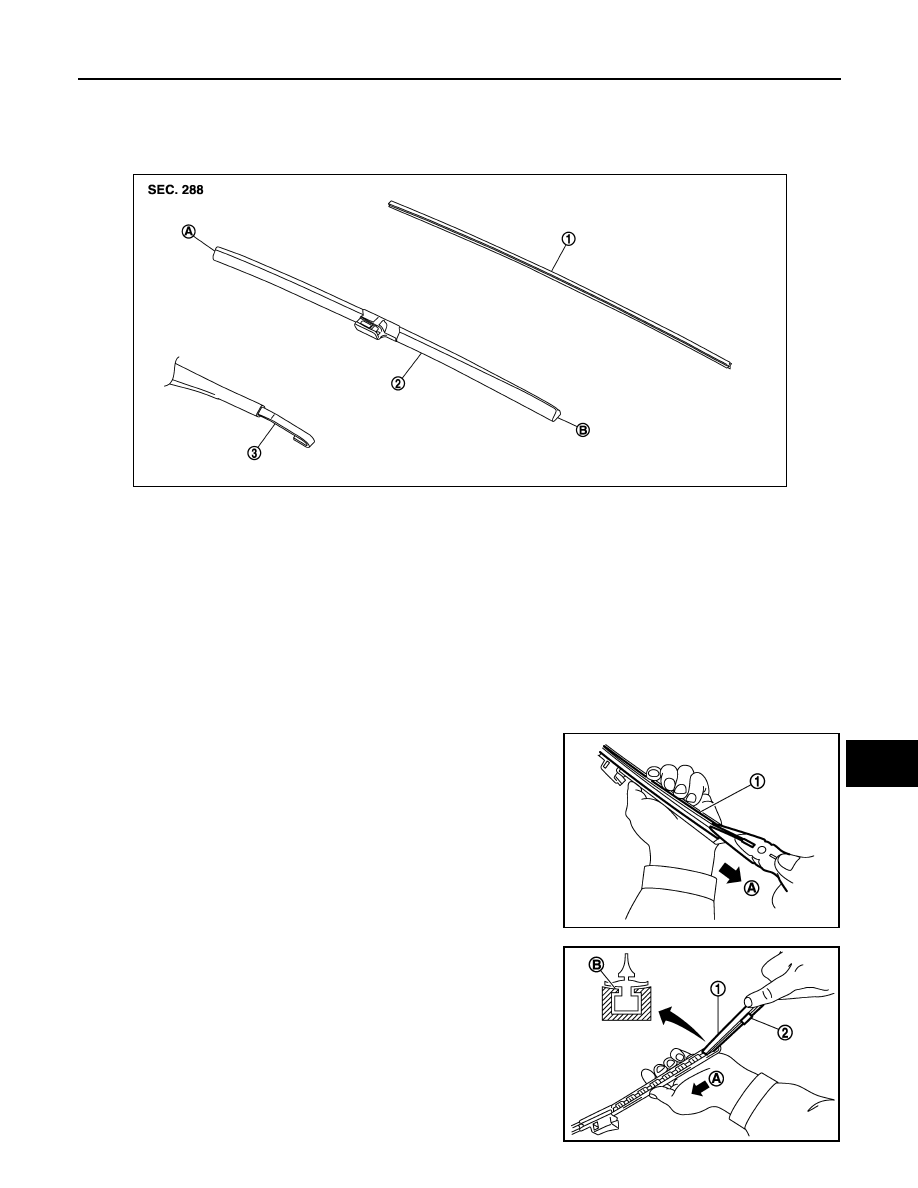

Exploded View

INFOID:0000000009161877

Removal and Installation

INFOID:0000000009161878

REMOVAL

Remove the wiper blade from the wiper arm.

INSTALLATION

Install the front wiper blade to the wiper arm.

Replacement

INFOID:0000000009161879

1.

Hold the rip of old wiper refill (1) at the rear end of the wiper
blade with long-nose pliers, and pull out the wiper refill to the
direction (A).

2.

Insert the tip of new wiper refill (1) into the rear end of wiper
blade. Slide the wiper refill to the direction (A) while pressing the
wiper refill onto the wiper blade rear end.
NOTE:
• Insert the wiper refill to be held securely by tab (B) of wiper

blade.

• After the wiper refill is fully inserted, remove the holder

*

 (2).

*

: Attached to service parts.

1.

Wiper refill

2.

Wiper blade

3.

Wiper arm

A.

Wiper blade end

B.

Wiper blade tip

JPLIA1587ZZ

JPLIA1583ZZ

JPLIA1584ZZ
