SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Tire

INFOID:0000000009161182

INTERNAL PRESSURE OF TIRES

Unit: kPa (kg/cm

2

, psi)

CAUTION:

• Fill with nitrogen gas.
• Adjust the tire pressure to the value listed above at normal temperature.

Item

Standard

Front

Rear

255/40ZRF20 (97Y)

200 (2.0, 29)

—

285/35ZRF20 (100Y)

—

200 (2.0, 29)

255/40RF20 97W

200 (2.0, 29)

—

285/35RF20 100W

—

200 (2.0, 29)

WW-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

WW

A

B

WW

N

O

P

CONTENTS

WIPER & WASHER

SYSTEM DESCRIPTION  ..............................

2

FRONT WIPER AND WASHER SYSTEM  ..........

2

System Diagram ........................................................

2

System Description  ...................................................

2

Component Parts Location ........................................

4

Component Description ............................................

5

DIAGNOSIS SYSTEM (IPDM E/R) ......................

6

Diagnosis Description  ...............................................

6

DTC/CIRCUIT DIAGNOSIS  ..........................

8

WIPER AND WASHER FUSE  .............................

8

Description ................................................................

8

Diagnosis Procedure .................................................

8

FRONT WIPER STOP POSITION SIGNAL
CIRCUIT ..............................................................

9

Diagnosis Procedure .................................................

9

FRONT WIPER MOTOR GROUND CIRCUIT ....

10

Diagnosis Procedure ...............................................

10

WASHER SWITCH  .............................................

11

Description ..............................................................

11

Component Inspection  ............................................

11

FRONT WIPER AND WASHER SYSTEM  .........

12

Wiring Diagram - FRONT WIPER AND WASHER
SYSTEM -  ...............................................................

12

SYMPTOM DIAGNOSIS  ..............................

13

NORMAL OPERATING CONDITION .................

13

Description ..............................................................

13

PRECAUTION ..............................................

14

PRECAUTIONS ..................................................

14

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

14

Precaution for Procedure without Cowl Top Cover ....

14

Precaution for Battery Service .................................

14

REMOVAL AND INSTALLATION  ...............

15

WASHER TANK ................................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

WASHER PUMP  ...............................................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

WASHER LEVEL SWITCH  ...............................

17

Removal and Installation  .........................................

17

FRONT WASHER NOZZLE AND TUBE  ..........

18

Hydraulic Layout ......................................................

18

Removal and Installation  .........................................

18

Inspection and Adjustment  ......................................

18

FRONT WIPER ARM  ........................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Adjustment ...............................................................

22

WIPER BLADE ..................................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

Replacement ...........................................................

23

FRONT WIPER DRIVE ASSEMBLY .................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

25

Disassembly and Assembly .....................................

26

WIPER AND WASHER SWITCH  ......................

27

Exploded View .........................................................

27

WW-2

< SYSTEM DESCRIPTION >

FRONT WIPER AND WASHER SYSTEM

SYSTEM DESCRIPTION

FRONT WIPER AND WASHER SYSTEM

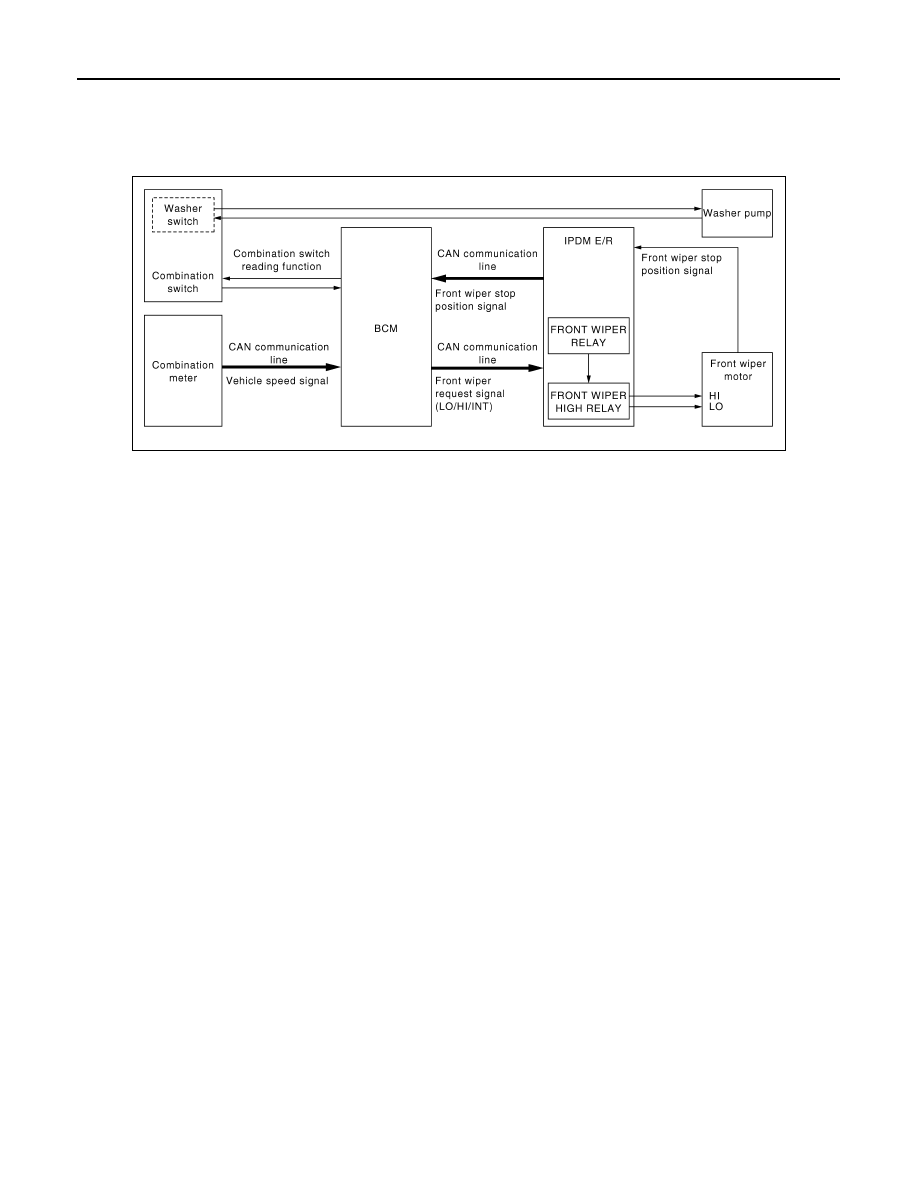

System Diagram

INFOID:0000000009161830

System Description

INFOID:0000000009161831

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function
• Front wiper control function

Control by IPDM E/R

• Front wiper control function
• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front wiper request signal to IPDM E/R with CAN communication depending on each

operating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper high relay according to the front

wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON
- Front wiper switch LO or front wiper switch MIST (while pressing)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).

FRONT WIPER HI OPERATION

• BCM transmits the front wiper request signal (HI) to IPDM E/R with CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON
- Front wiper switch HI
• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper

request signal (HI).

FRONT WIPER INT OPERATION

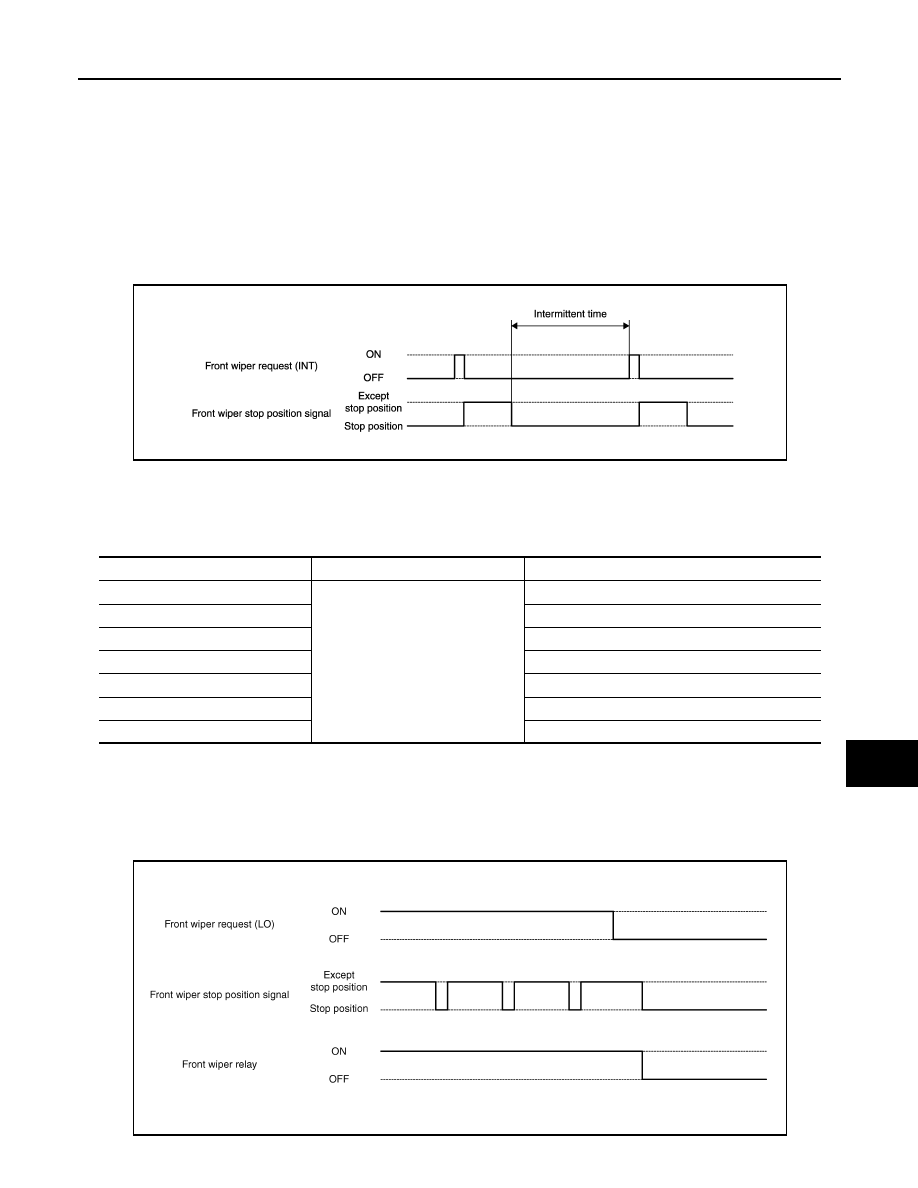

JPLIA1261GB

FRONT WIPER AND WASHER SYSTEM

WW-3

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication depending on the

front wiper INT operating condition and intermittent operation delay interval according to the wiper intermit-
tent dial position.

Front wiper INT operating condition

- Ignition switch ON
- Front wiper switch INT
• IPDM E/R turns ON the integrated front wiper relay so that the front wiper is operated only once according to

the front wiper request signal (INT).

• BCM detects stop position/except stop position of the front wiper motor according to the front wiper stop

position signal received from IPDM E/R with CAN communication.

• BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval.

NOTE:
Factory setting of the front wiper intermittent operation is the operation without vehicle speed.

Front wiper intermittent operation

BCM determines intermittent operation delay interval according to a wiper volume.

Unit: Second

FRONT WIPER AUTO STOP OPERATION

• BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF.
• IPDM E/R detects the front wiper stop position signal from the front wiper motor and detects the front wiper

motor position (stop position/except stop position).

• When the front wiper request signal is stopped, IPDM E/R turns ON the front wiper relay until the front wiper

motor returns to the stop position.

JPLIA1256GB

Wiper intermittent dial position

Intermittent operation interval

Intermittent operation delay Interval (s)

1

Short

↑

↓

Long

0.4

2

2

3

5

4

8

5

12

6

16

7

21

JPLIA0410GB
