FRONT SEAT BELT

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

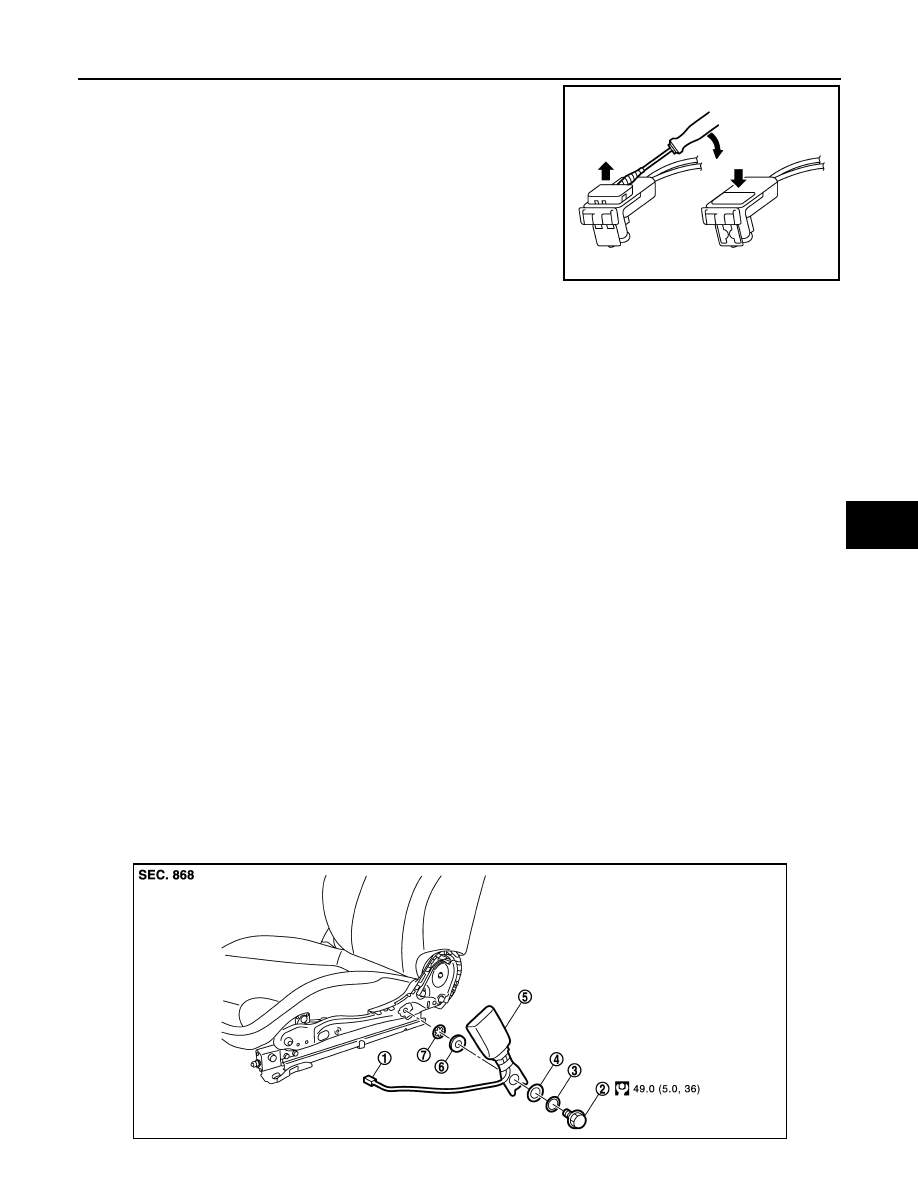

• Disconnect the seat belt pre-tensioner connector.

CAUTION:

• To disconnect or connect the seat belt pre-tensioner

connector, insert a screwdriver wrapped with tape into
the cutout, and raise the lock to disconnect the connec-
tor.

• Connect the connector while raising the lock, and push

the lock into the connector.

• After installing the connector, check that the lock is

pushed securely into it.

• Remove the seat belt pre-tensioner retractor mounting anchor bolt and screw.

6.

Remove the shoulder anchor bracket.
Remove the shoulder anchor bracket mounting bolts.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000009160075

Post-accident inspection

After a collision, check all parts of the installed seat belt assembly (including the retractor). Then, check the
installed seat belt portion for damage or deformation. When a collision occurs, damage/deformation is
detected, or operation is not normal, NISSAN recommends replacement of seat belt assembly. If replacement
is not performed, serious personal injury may occur.
If the following conditions occur, replace the seat belt:
• When the seat belt is damaged
• When the installed seat belt portion is damaged (before installing a new seat belt, check the installed portion

for damage or deformation)

• When an air bag is deployed in an accident whether it is used or not (only for models with seat belt pre-ten-

sioner)

• When the seat belt does not operate normally

Preliminary check

1.

Using the seat belt warning lamp, check that the seat belt buckle switch works normally.
When the ignition switch is turned ON with the seat belt not in use, the seat belt warning lamp turns ON.
When the seat belt is fastened, the seat belt warning lamp turns OFF.

2.

Check that anchor bolts on the seat belt retractor and buckle are securely tightened.

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009160076

PHIA0953J

NNHIA0047GB

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009160077

REMOVAL

1.

Remove the front seat from the vehicle. Refer to

SE-49, "Removal and Installation"

.

2.

Remove the seat belt buckle.
• Remove the seat cushion inner finisher. Refer to

SE-50, "Disassembly and Assembly"

.

• Disconnect the seat belt buckle switch connector and remove the harness clamp.
• Remove the seat belt buckle mounting anchor bolt.

INSTALLATION

Install in the reverse order of removal.

1.

Seat belt buckle switch connector

2.

Anchor bolt

3.

Wave washer

4.

Plain washer

5.

Seat belt buckle

6.

Spacer

7.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

REAR SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000009160078

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. If not
to do so could result in serious personal injury in an accident. Seat belt assemblies not in use during
a collision should also be replaced if either damage or improper operation was noted. Seat belt pre-
tensioners should be replaced even if the seat belts were not in use during a frontal collision in which
the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the
loops of that upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

3.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

SB-10

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.
1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the rear seat belt retractor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

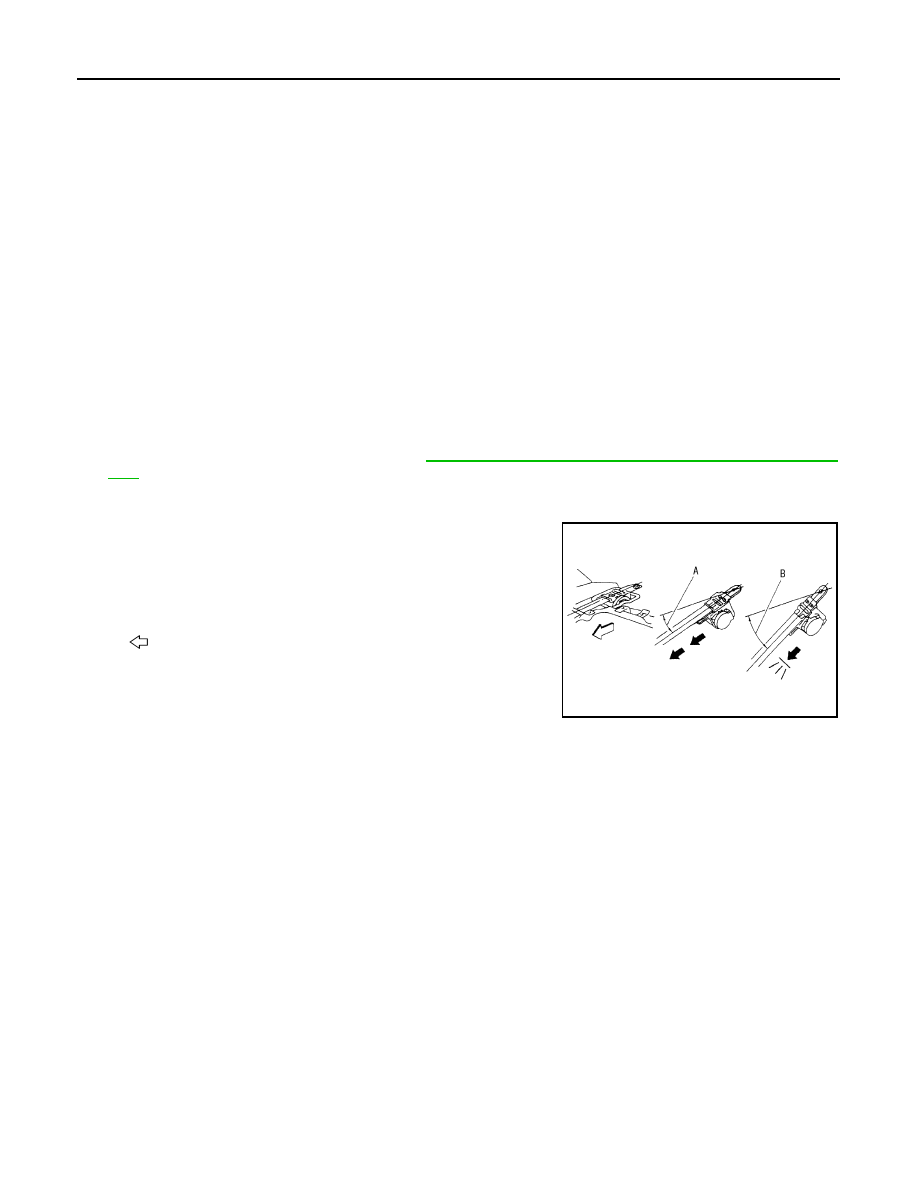

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.
• The webbing can be pulled out when the angle (A) is 15

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

A and B

: Tilting angles

: Vehicle front

PHIA0962J
