REAR WHEEL HUB AND HOUSING

PERIODIC MAINTENANCE

REAR WHEEL HUB AND HOUSING

Inspection

INFOID:0000000009163180

MOUNTING INSPECTION

Check the mounting conditions (looseness, back lash) of each component and component conditions (wear,
damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Check there is no looseness of wheel

bearing.

• Rotate wheel hub, and check that is no unusual noise or other irregular conditions. If there is any of abnor-

mal conditions, replace wheel hub and bearing assembly.

Axial end play

: 0.05 mm (0.002 in) or less

REAR DRIVE SHAFT

RAX-5

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REAR DRIVE SHAFT

Inspection

INFOID:0000000009163181

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occurs from drive shaft.

RAX-6

< REMOVAL AND INSTALLATION >

REAR WHEEL HUB AND HOUSING

REMOVAL AND INSTALLATION

REAR WHEEL HUB AND HOUSING

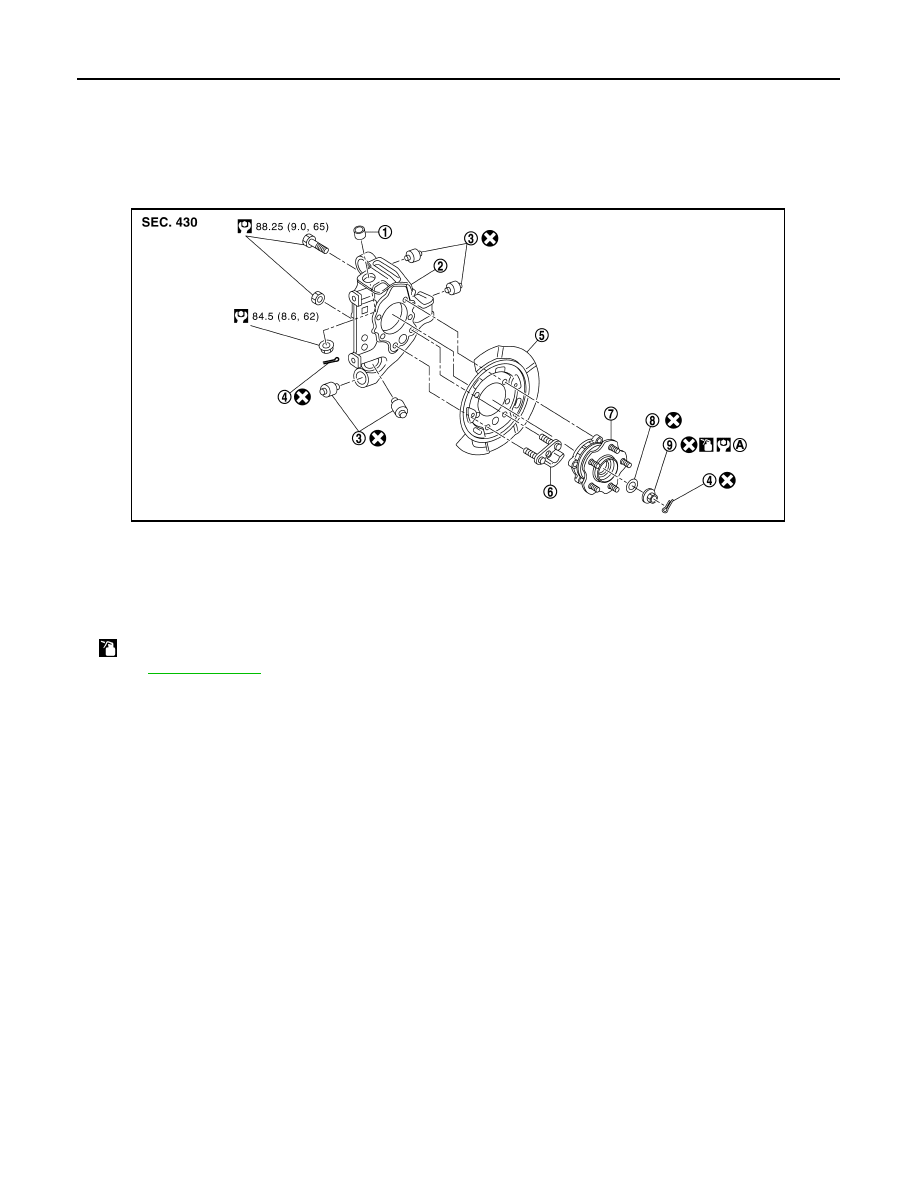

Exploded View

INFOID:0000000009163182

1.

Ball seat

2.

Axle housing

3.

Bushing

4.

Cotter pin

5.

Back plate

6.

Anchor block

7.

Wheel hub and bearing assembly

8.

Spring washer

9.

Wheel hub lock nut

A.

When tightening wheel hub lock nut, tighten the lock nut to 225 N·m (23 kg-m, 166 ft-lb), loosen it, and retighten it to 350 N·m
(36 kg-m, 258 ft-lb) to break in spring washer and the contact surface of wheel hub assembly.

: Apply anti-corrosion oil.

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSDIA3974GB
