PRECAUTIONS

MIR-13

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Battery Service

INFOID:0000000009159981

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

MIR-14

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

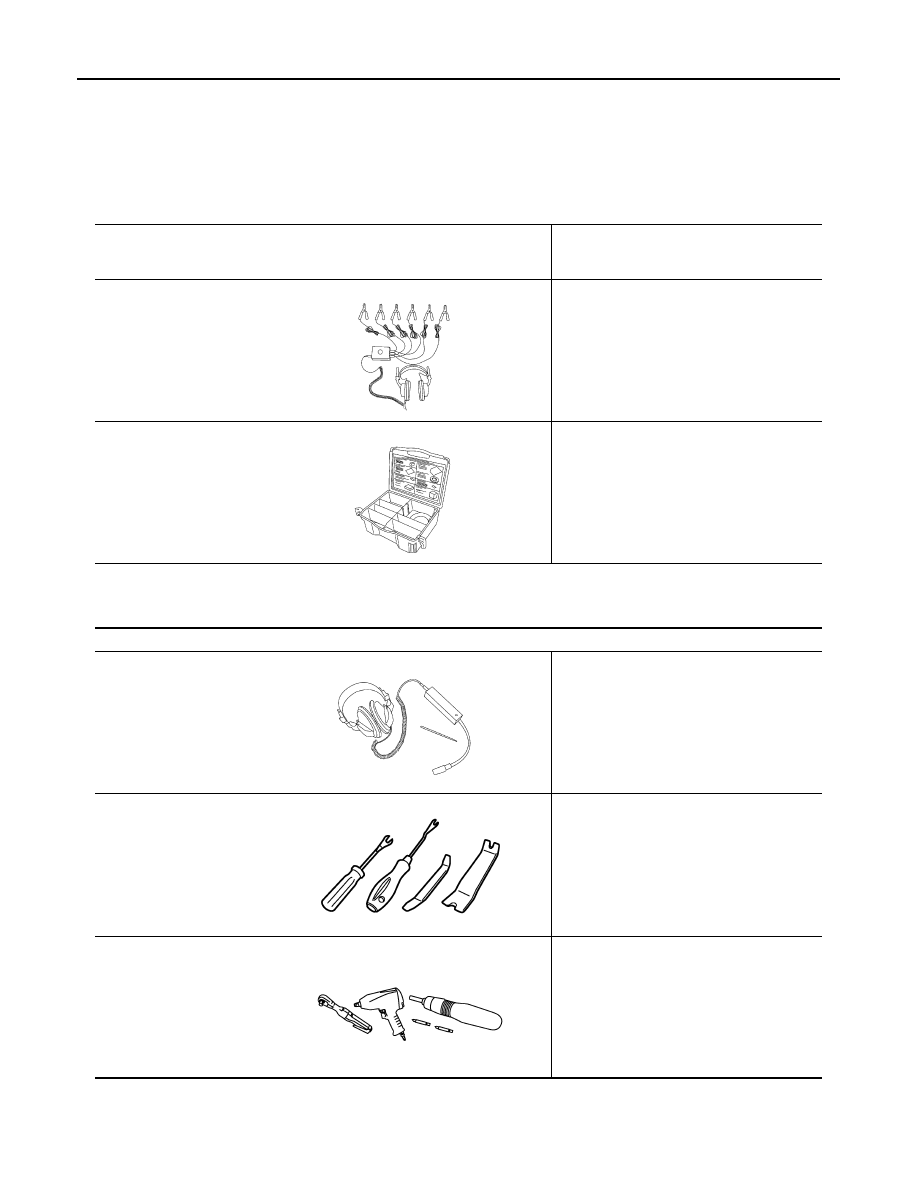

Special Service Tools

INFOID:0000000009159982

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009159983

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-43980)
NISSAN Squeak and Rat-
tle Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes the clips, pawls, and metal clips

Power tool

SIIA0995E

JMKIA3050ZZ

PIIB1407E

INSIDE MIRROR

MIR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

INSIDE MIRROR

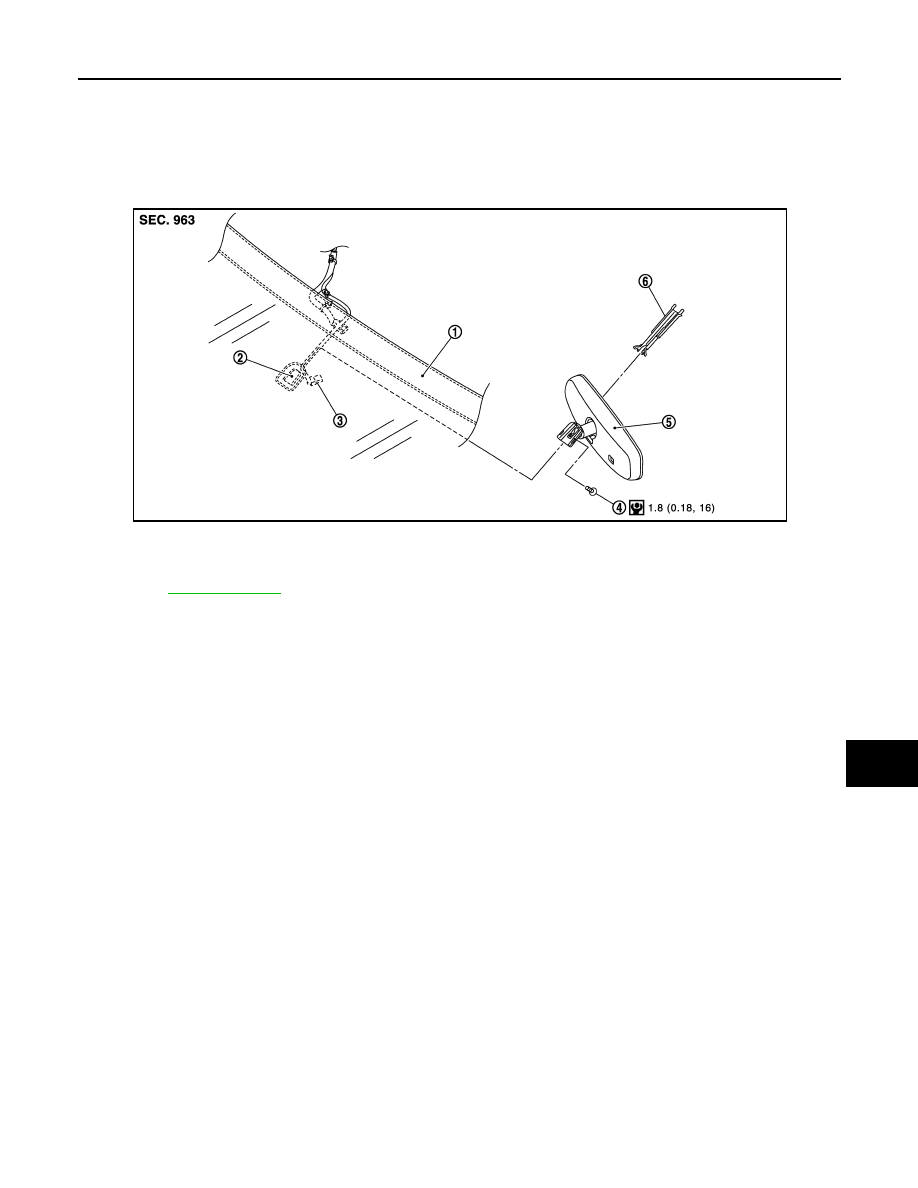

Exploded View

INFOID:0000000009159984

Removal and Installation

INFOID:0000000009159985

REMOVAL

1.

Remove the inside mirror cover.

2.

Remove the TORX bolt.

3.

Disconnect harness connector from inside mirror.

4.

Slide the inside mirror upward to remove.

INSTALLATION

Install in the reverse order of removal.

1.

Windshield glass

2.

Mirror base

3.

Harness connector

4.

TORX bolt

5.

Inside mirror

6.

Inside mirror cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0177GB

MIR-16

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY

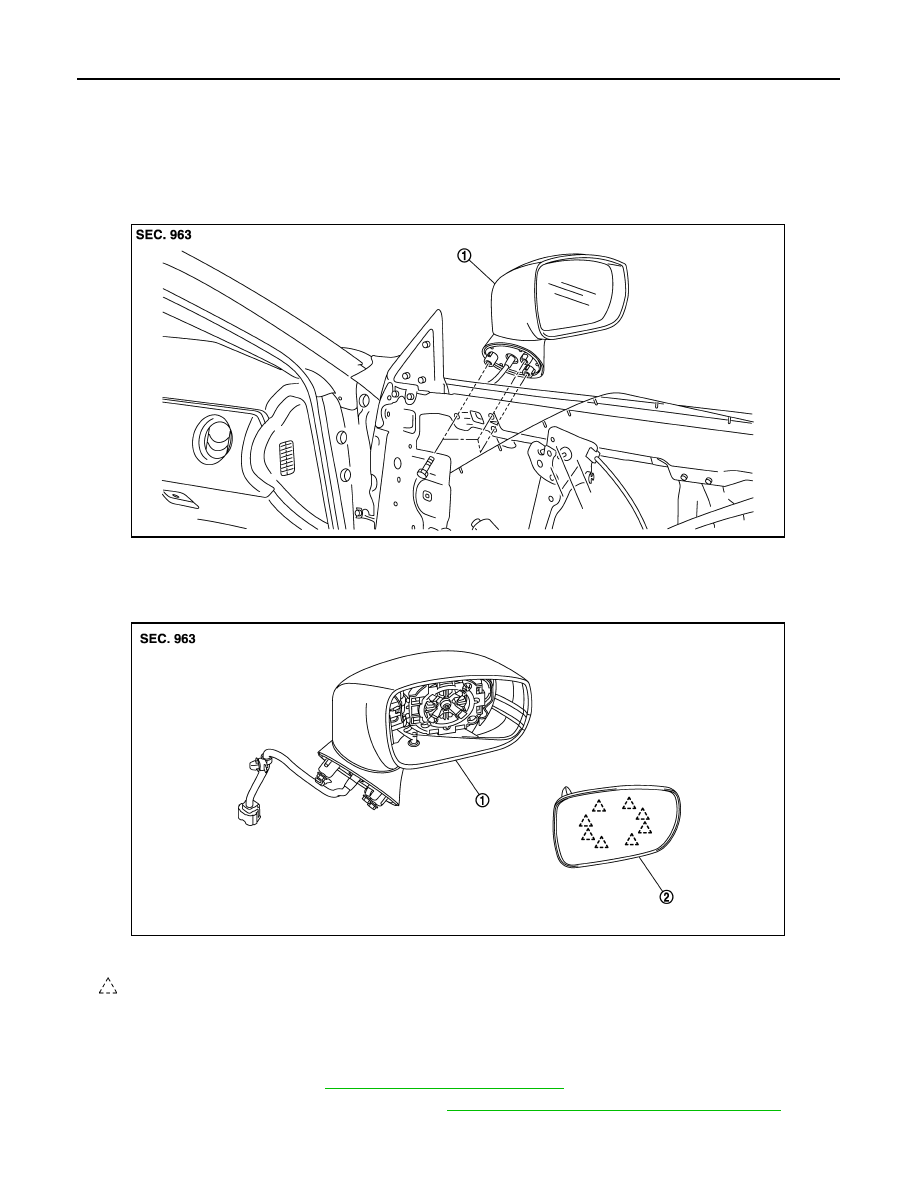

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000009159986

REMOVAL

DISASSEMBLY

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000009159987

REMOVAL

1.

Remove door finisher. Refer to

INT-12, "Removal and Installation"

.

2.

Remove door inner west reinforcement. Refer to

DLK-137, "DOOR ASSEMBLY : Exploded View"

.

3.

Disconnect door mirror harness connector.

1.

Door mirror assembly

JMLIA0203ZZ

1.

Mirror assembly

2.

Glass mirror

: Pawl

JMLIA0201ZZ
