EXT-50

< REMOVAL AND INSTALLATION >

DOOR PARTING SEAL

DOOR PARTING SEAL

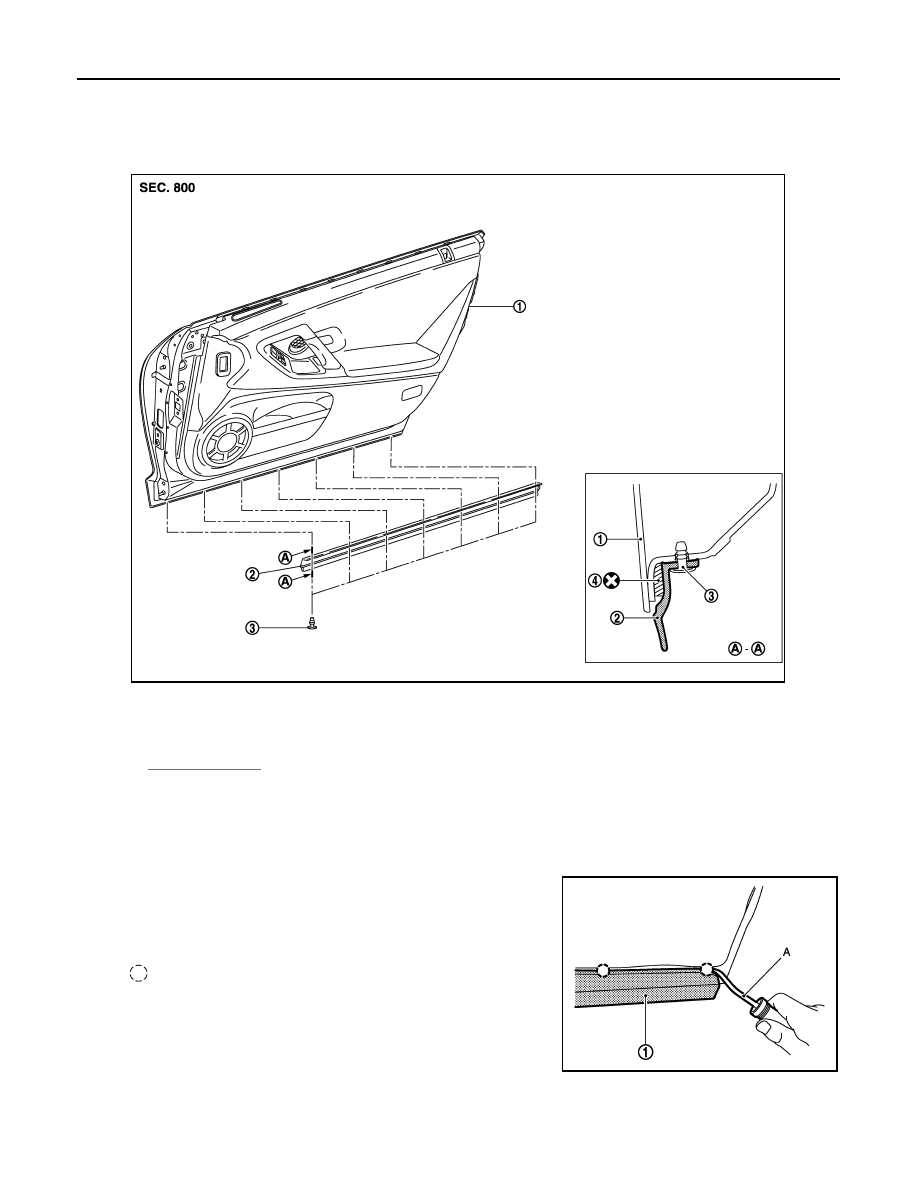

Exploded View

INFOID:0000000009161581

Removal and Installation

INFOID:0000000009161582

REMOVAL

1.

Fully open the door.

2.

Remove the clips (parting seal clip) of door parting seal (1) with
the remover tool (A).

CAUTION:

 Be careful no to damage the body.

3.

Remove the door parting seal from the door assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Door assembly

2.

Door parting seal

3.

Parting seal clip

4.

Double-faced adhesive tape
[t: 2.0mm (0.079in)]

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA1704ZZ

: Clip

NNKIA0155ZZ

DOOR PARTING SEAL

EXT-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

Visually check the clips for deformation and damage at installation. Replace with new ones if neces-
sary.

EXT-52

< REMOVAL AND INSTALLATION >

REAR WING

REAR WING

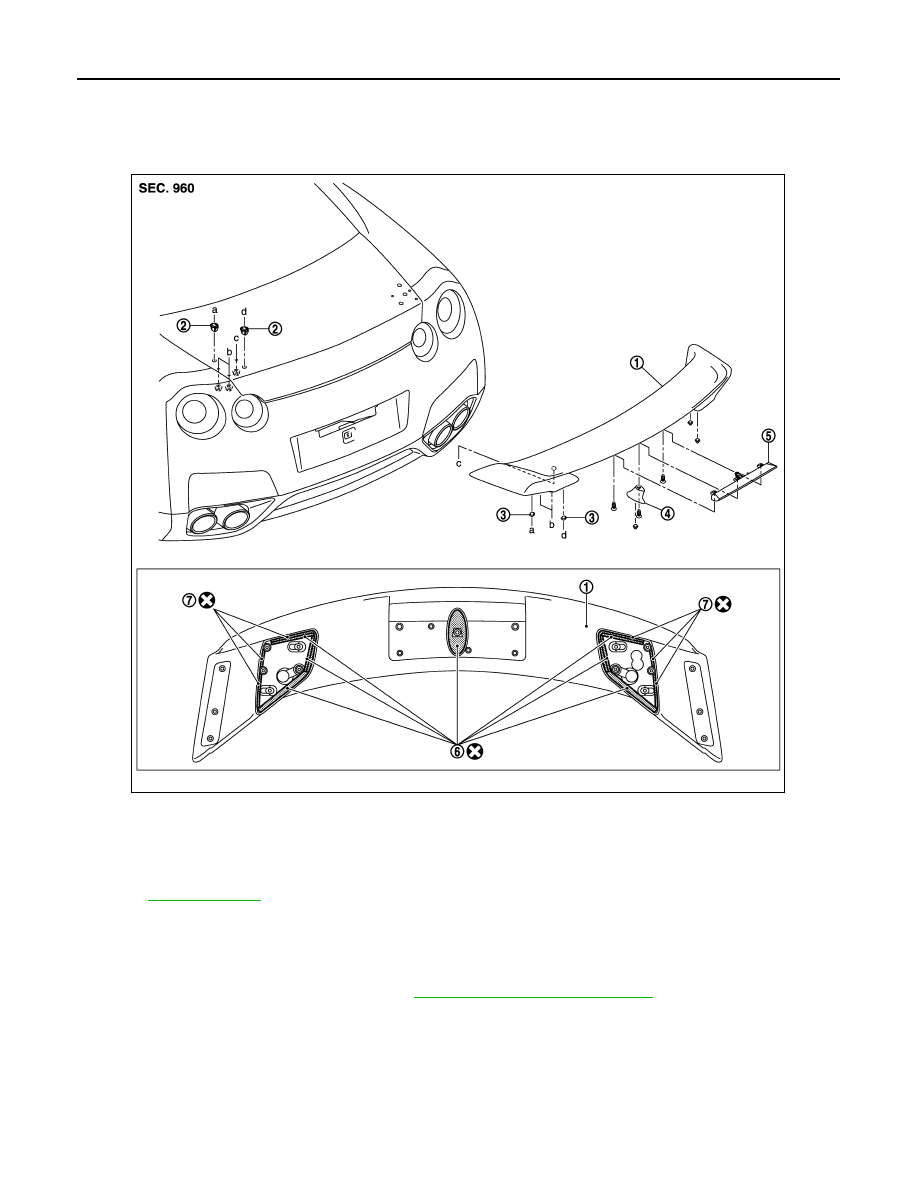

Exploded View

INFOID:0000000009161583

Removal and Installation

INFOID:0000000009161584

REMOVAL

1.

Remove the trunk lid finisher inner. Refer to

INT-29, "Removal and Installation"

.

1.

Rear wing assembly

2.

Grommet

3.

Rear wing clip

4.

Center leg bracket

5.

High-mounted stop lamp

6.

Double-faced adhesive tape
[t: 1.6 mm (0.063 in)]

7.

EPT sealer

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA1705ZZ

REAR WING

EXT-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

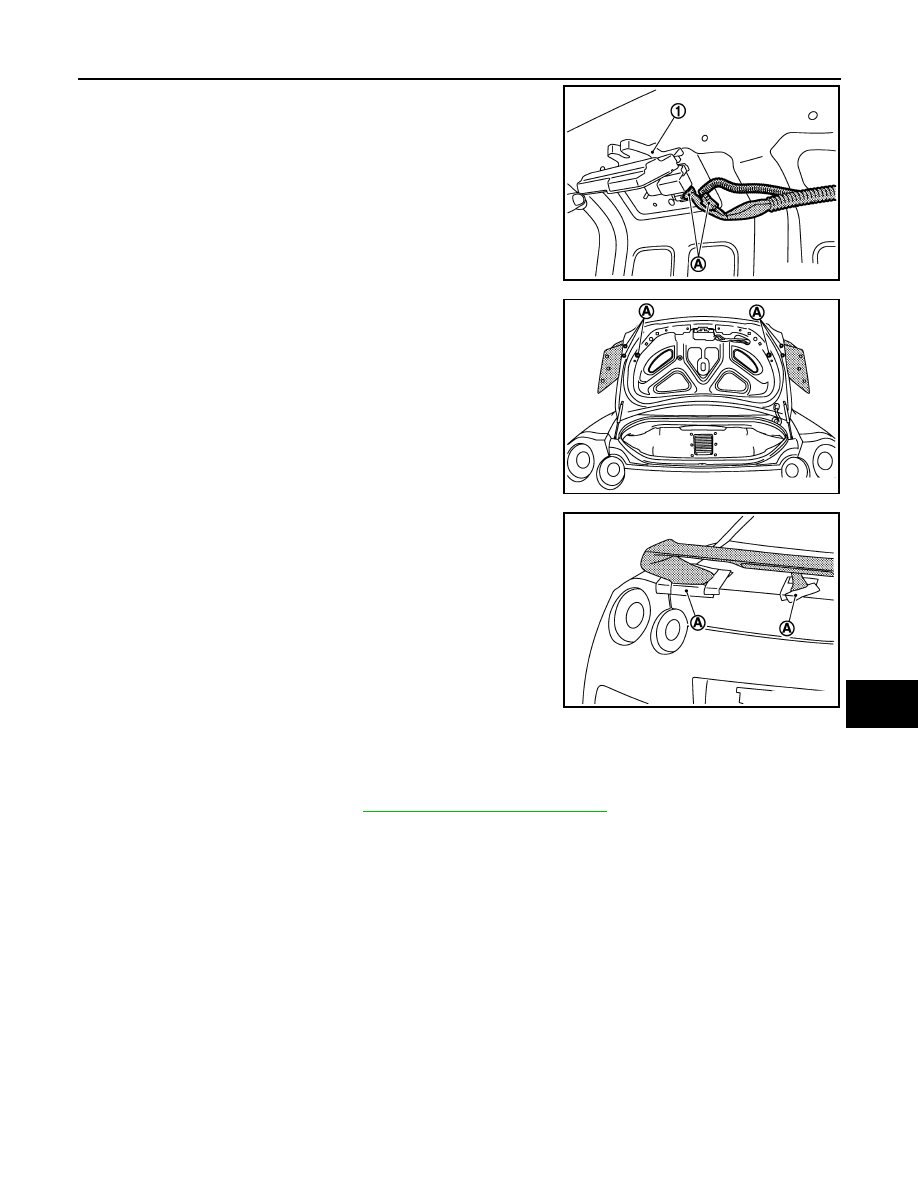

2.

Disconnect the harness connector of trunk lid lock assembly (1)
and the harness connectors (A) of high-mounted stop lamp.

3.

Remove the mounting nuts (A) of rear wing assembly.

4.

Apply protective tape (A) around the outer edge of mating sur-
face between rear wing assembly and trunk lid to prevent from
damage.

5.

Disengage the clips with the remover tool while peeling the double-faced adhesive tape with threads.

CAUTION:

Never bore the rear wing assembly with excessive power. It may cause cracks in the paint.

6.

Replace the following parts after removing the rear wing assembly.
• High-mounted stop lamp: Refer to

EXL-59, "Removal and Installation"

.

• Clip and grommet for rear wing assembly
• EPT sealer

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never disassemble the rear wing assembly.
• Replace the double-faced adhesive tape of the back surface with new tape when reusing the rear

wing assembly.

- Remove the double-faced adhesive tape remaining on the rear wing assembly with a double-faced

adhesive tape remover.

- Remove any double-faced adhesive tape remaining on the vehicle side in a similar manner, and then

apply the primer for painted surfaces (Nissan parts dealer).

- Heat the rear wing assembly application surface and panel surface to 20

°

C (68

°

F) or more.

- Press-fit the entire area of the double-faced adhesive tape with 5 kg/cm

2

 or more of pressure after

applying the rear wing assembly on the vehicle body.

• Replace the EPT sealer of the back surface with new sealer when reusing the rear wing assembly.

Remove the EPT sealer remaining on the rear wing assembly using a double-faced adhesive tape
remover.
