Nissan GT-R. Manual - part 59

BRAKE PIPING

BR-21

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE PIPING

FRONT

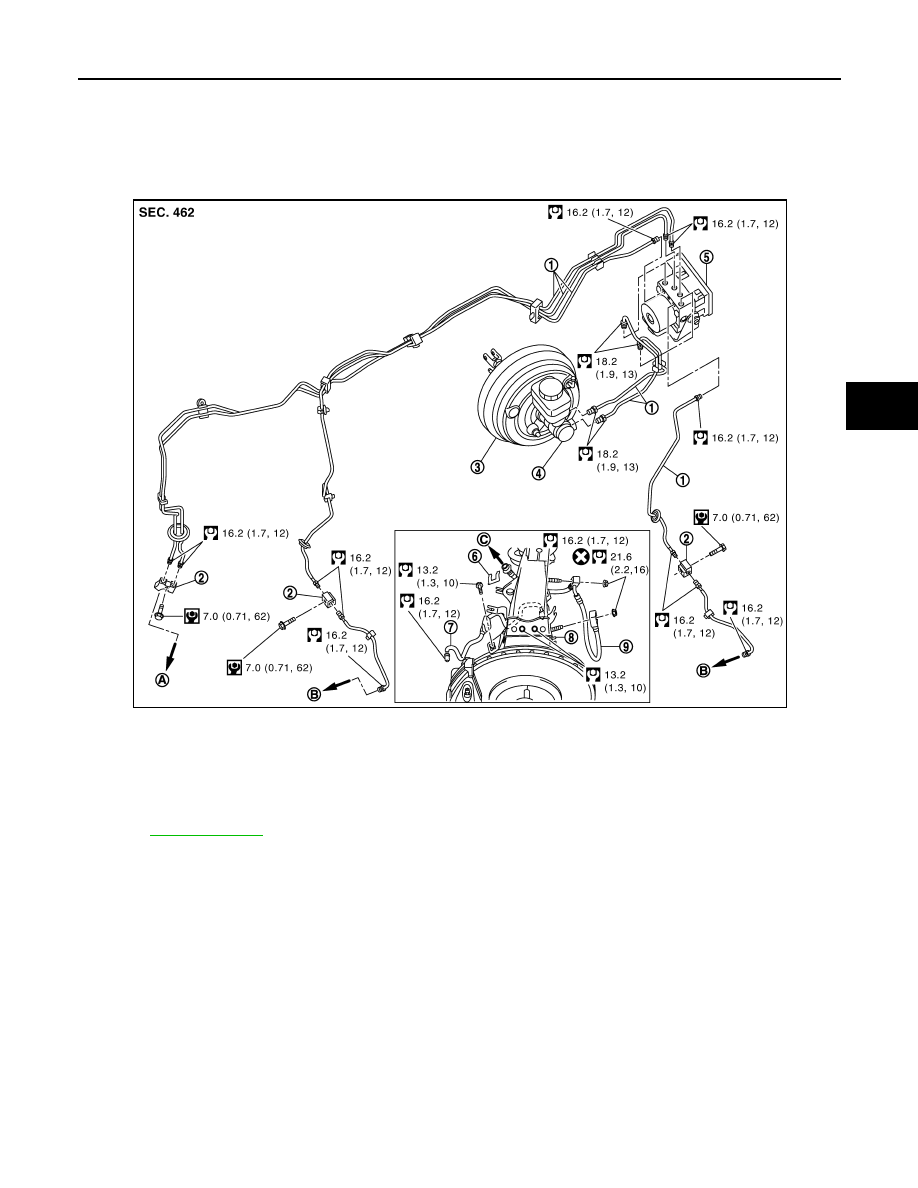

FRONT : Exploded View

INFOID:0000000009159851

REAR

1.

Brake tube

2.

Connector

3.

Brake booster

4.

Master cylinder

5.

ABS actuator and electric unit (con-
trol unit)

6.

Lock plate

7.

Brake tube

8.

Brake hose bracket

9.

Brake hose

A.

To rear brake tube

B.

To front brake hose

C.

To front brake tube

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPFIA0393GB

BR-22

< REMOVAL AND INSTALLATION >

BRAKE PIPING

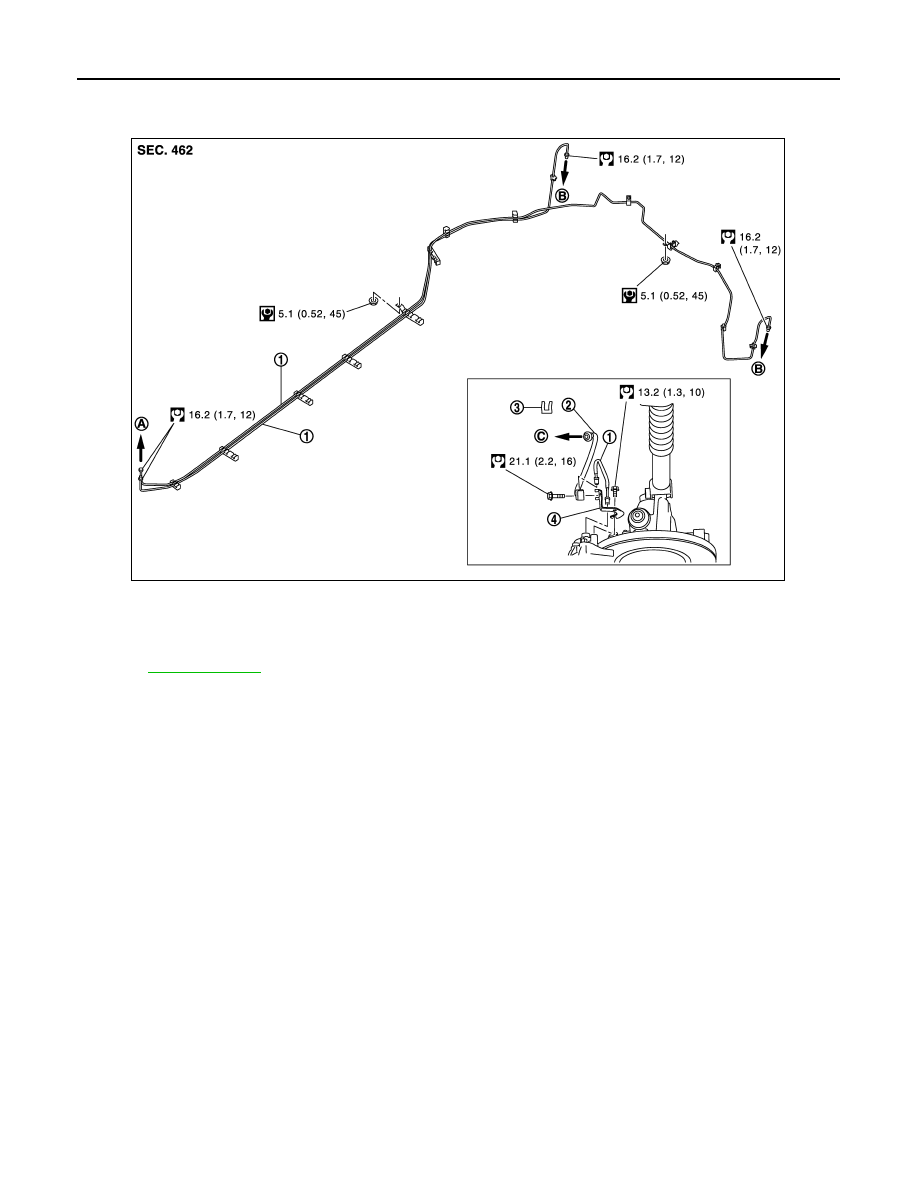

REAR : Exploded View

INFOID:0000000009159855

1.

Brake tube

2.

Brake hose

3.

Lock plate

4.

Brake hose bracket

A.

To connector

B.

To rear brake hose

C.

To rear brake tube

Refer to

GI-4, "Components"

 for the symbols in the figure.

NNFIA0049GB

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Brake Pedal

INFOID:0000000009159884

Unit: mm (in.)

Front Disc Brake

INFOID:0000000009159886

Unit: mm (in.)

Rear Disc Brake

INFOID:0000000009159887

Unit: mm (in.)

Item

Standard

Brake pedal height

169.0 – 179.0 (6.65 – 7.05)

Clearance between the stop lamp switch and ASCD brake switch threaded end and
the stopper rubber

0.2 – 1.96 (0.008 – 0.0772)

Brake pedal play

3.0 – 11.0 (0.118 – 0.433)

Depressed brake pedal height
[Depressing 490 N (50 kg, 110 lb) while turning the engine ON]

100 (3.94) or more

Item

Limit

Brake pad

Wear thickness

4.5 (0.177)

Disc rotor

Wear thickness

30.6 (1.205)

Item

Limit

Brake pad

Wear thickness

4.5 (0.177)

Disc rotor

Wear thickness

28.0 (1.102)
