POWER CONSUMPTION CONTROL SYSTEM

POWER CONSUMPTION CONTROL SYSTEM

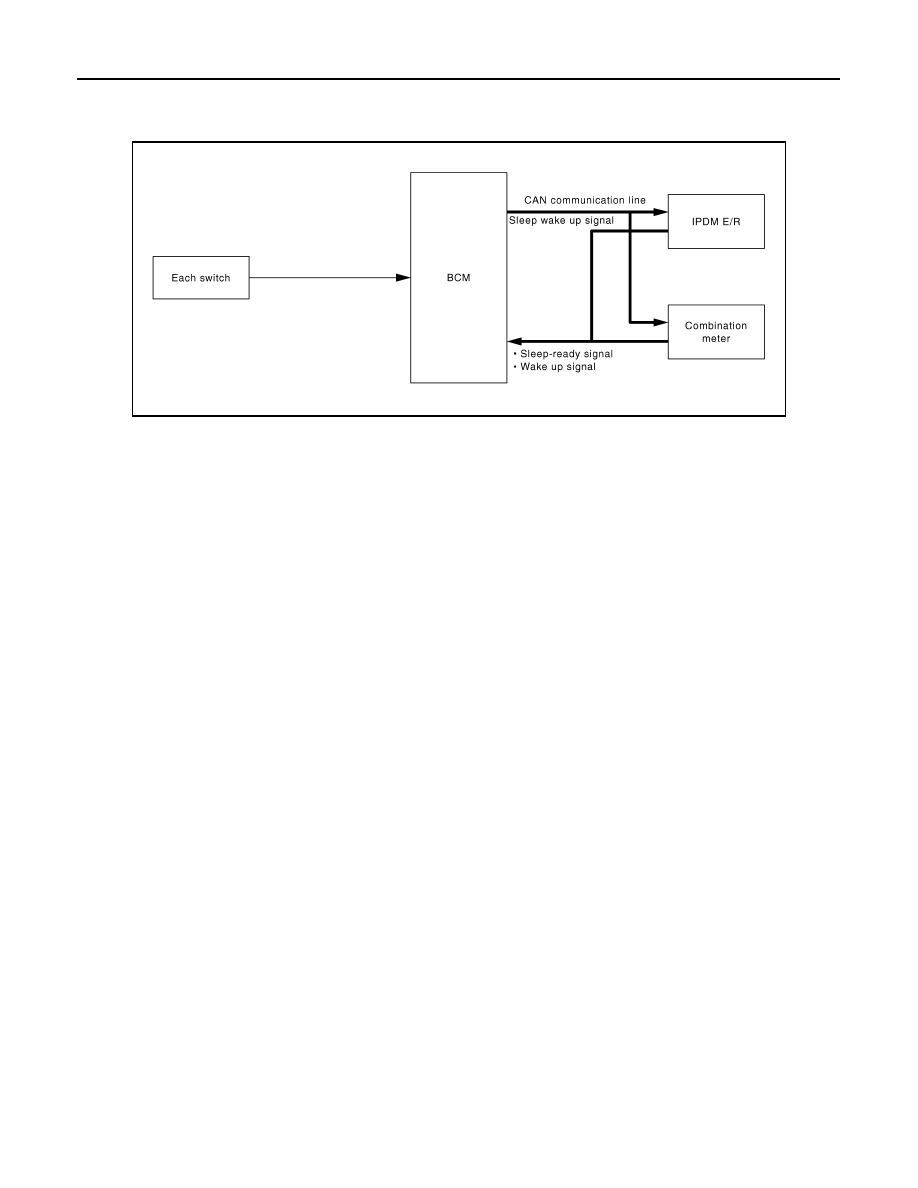

System Diagram

INFOID:0000000009160234

System Description

INFOID:0000000009160235

OUTLINE

• BCM incorporates a power saving control function that reduces the power consumption according to the

vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit (IPDM E/R and combination meter) that operates with the ignition switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units
- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped
- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active
- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 60 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-

tion.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

JSMIA0050GB

BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Sleep condition

Wake-up operation

• BCM changes from the low power consumption mode to the CAN communication sleep mode when the any

of the BCM wake-up conditions is fulfilled. Only the control with BCM is activated.

• BCM transmits the sleep wake up signal (wake up) to each unit when any of the CAN wake-up conditions is

fulfilled. It changes from the low power consumption mode or the CAN communication sleep mode to the
normal mode.

• Each unit starts the transmission of CAN communication with the sleep wake up signal. In addition, the com-

bination meter transmits the wake up signal to BCM via CAN communication to report the CAN communica-
tion start.

Wake-up condition

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system and panic alarm: Not operation
• Warning chime: Not operation
• Intelligent Key system buzzer: Not operation
• Trunk room lamp switch status: No change
• Stop lamp switch: OFF
• Key slot (card switch) status: No change
• Turn signal indicator lamp: Not operation
• Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: Not communication
• Meter display signal: Non-transmission
• Door switch status: No change
• Rear window defogger: OFF

• Interior room lamp battery saver: Time out
• RAP system: OFF
• Push-button ignition switch illumination: OFF
• Nissan Vehicle Immobilizer System (NVIS) - NATS: Not opera-

tion

• Remote keyless entry receiver communication status: No com-

munication

• LOCK indicator lamp: OFF
• ACC indicator lamp: OFF
• ON indicator lamp: OFF

BCM wake-up condition

CAN wake-up condition

• Trunk lid opener switch: OFF

→

 ON

• Remote keyless entry receiver: Receiving
• Door lock and unlock switch:

NEUTRAL

→

 LOCK, NEUTRAL

→

 UNLOCK

• Receiving the sleep-ready signal (Not-ready) from any units
• Key slot (key switch): OFF

→

 ON, ON

→

 OFF

• Push-button ignition switch (push switch): OFF

→

 ON

• Hazard switch: OFF

→

 ON

• PASSING switch: OFF

→

 ON, ON

→

 OFF

• TAIL LAMP switch: OFF

→

 ON

• Driver door switch: OFF

→

 ON, ON

→

 OFF

• Passenger door switch: OFF

→

 ON, ON

→

 OFF

• Trunk room lamp switch: OFF

→

 ON, ON

→

 OFF

• Driver door request switch: OFF

→

 ON

• Passenger door request switch: OFF

→

 ON

• Trunk lid request switch: OFF

→

 ON

• Stop lamp switch signal: ON

BCS-12

< SYSTEM DESCRIPTION >

POWER CONSUMPTION CONTROL SYSTEM

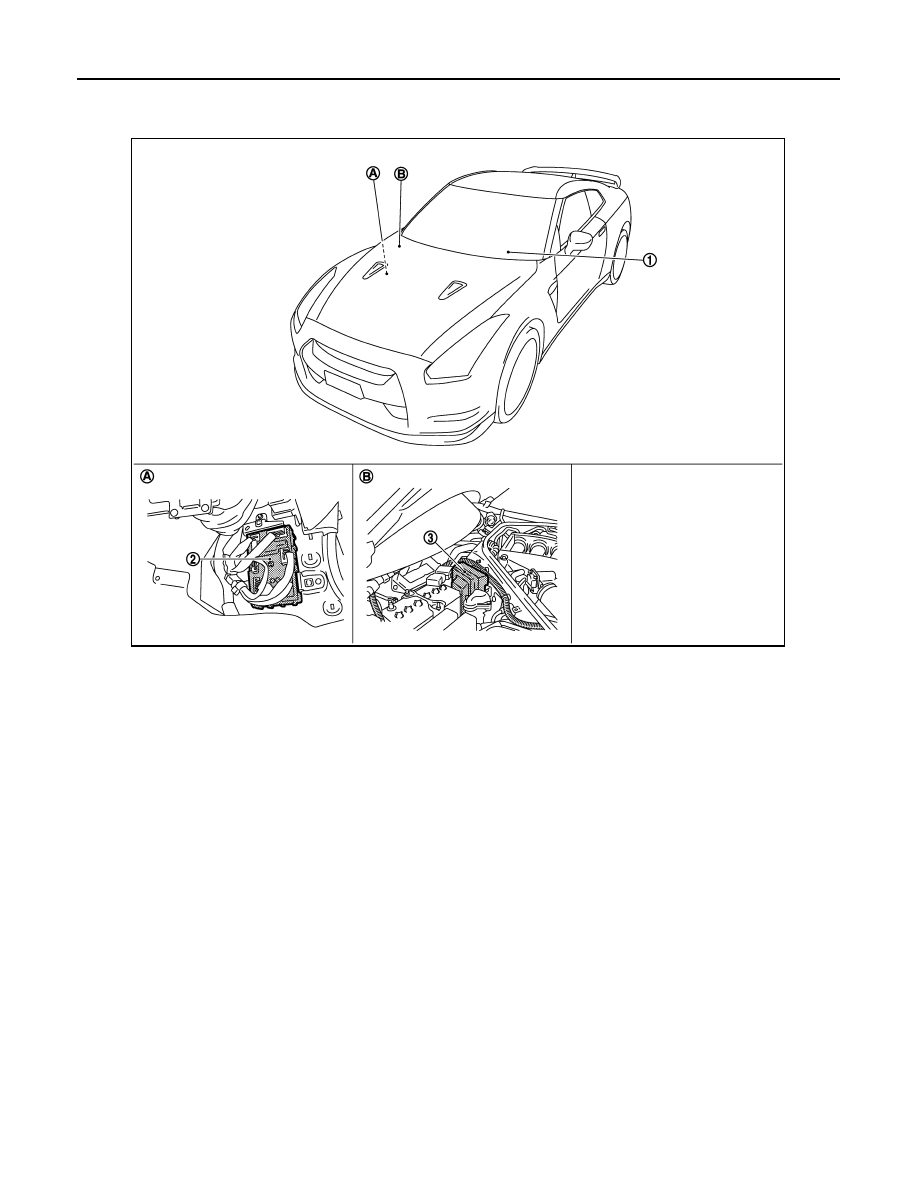

Component Parts Location

INFOID:0000000009160236

1.

Combination meter

2.

BCM

3.

IPDM E/R

A.

Dash side lower (passenger side)

B.

Engine room dash panel (RH)

JPMIA1144ZZ

BCS

POWER SUPPLY AND GROUND CIRCUIT

BCS-13

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000009160266

1.

CHECK FUSE AND FUSIBLE LINK

Check that the following fuse and fusible link are not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connectors.

3.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Signal name

Fuse and fusible link No.

Battery power supply

I

10

Terminals

Voltage

(Approx.)

(+)

(

−

)

BCM

Ground

Connector

Terminal

M118

1

Battery voltage

M119

11

BCM

Ground

Continuity

Connector

Terminal

M119

13

Existed
