MICROPHONE

Exploded View

INFOID:0000000009163456

Removal and Installation

INFOID:0000000009163457

REMOVAL

1.

Remove map lamp. Refer to

INL-18, "Exploded View"

.

2.

Remove the microphone from the map lamp.

INSTALLATION

Install in the reverse order of removal.

JSNIA0132ZZ

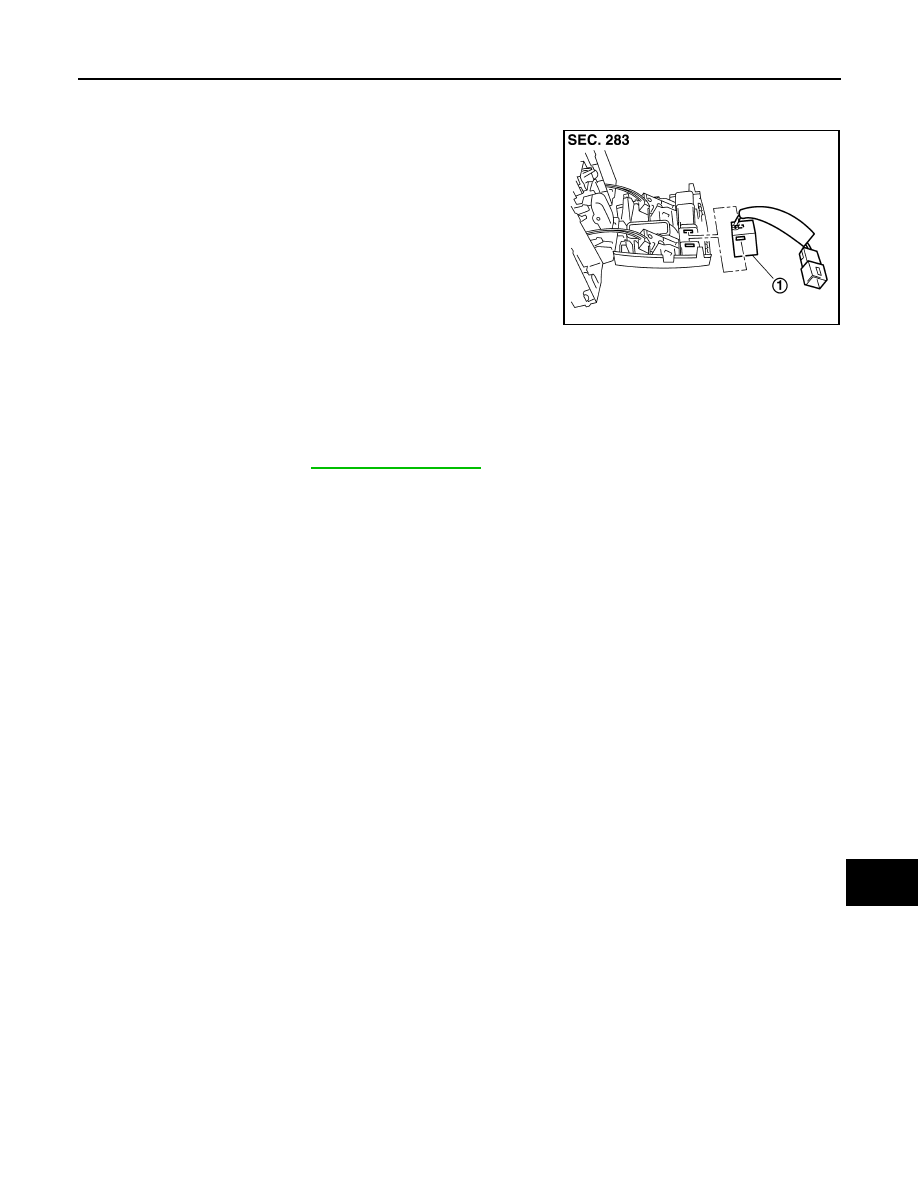

1.

Microphone

AV-184

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Exploded View

INFOID:0000000009163458

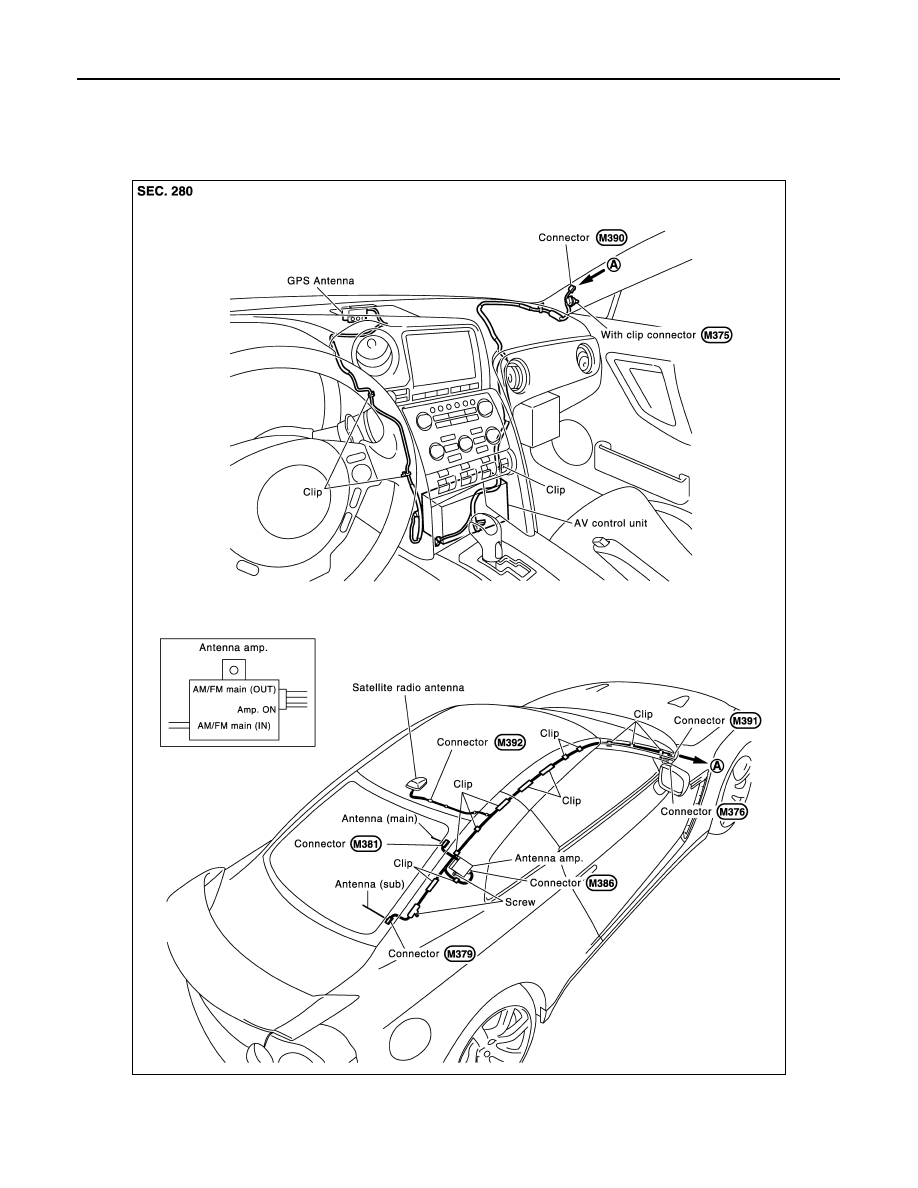

Feeder layout

Removal and Installation

INFOID:0000000009163459

REMOVAL

JSNIA2952GB

AV

GPS ANTENNA

AV-185

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1.

Remove the instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

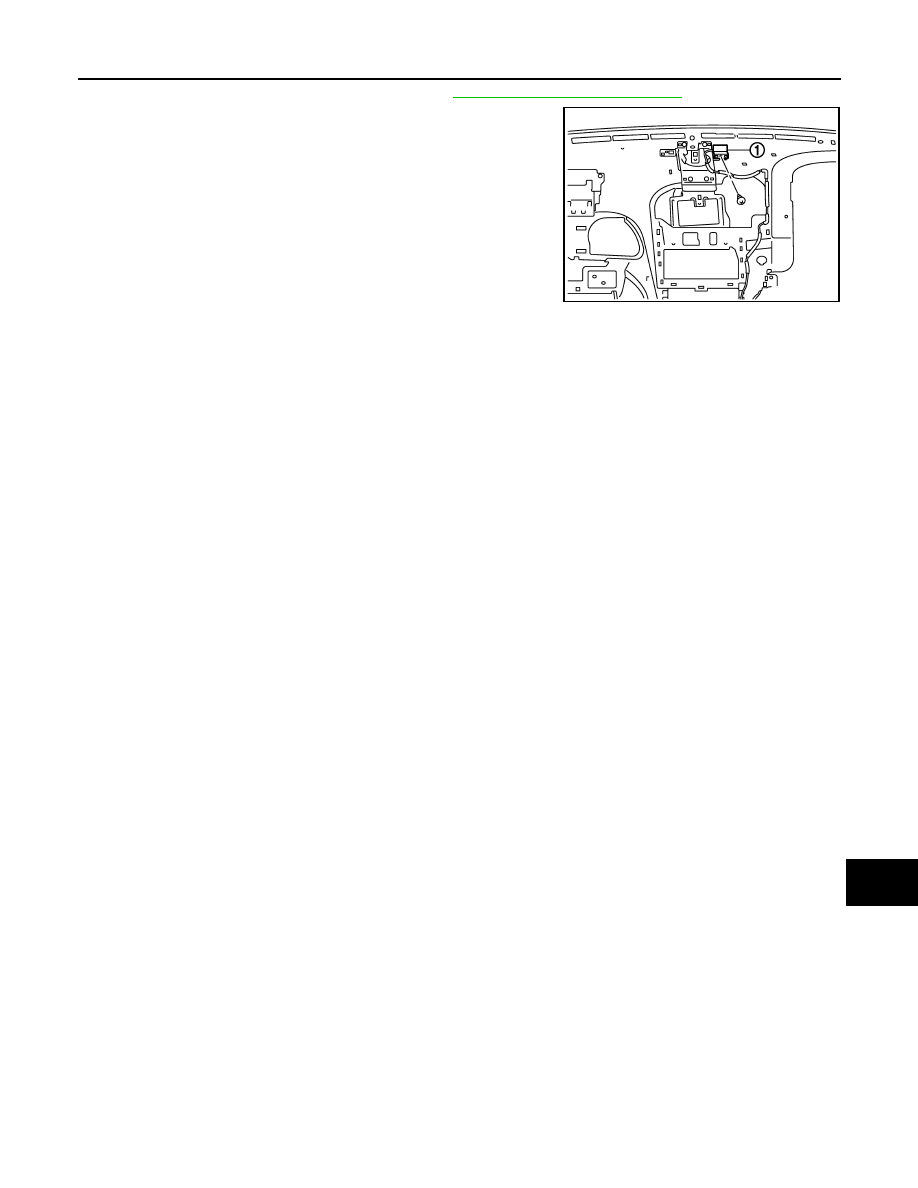

Remove the screws, and then remove GPS antenna (1) from the
instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

JPNIA1139ZZ

AV-186

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

ANTENNA FEEDER

ANTENNA FEEDER

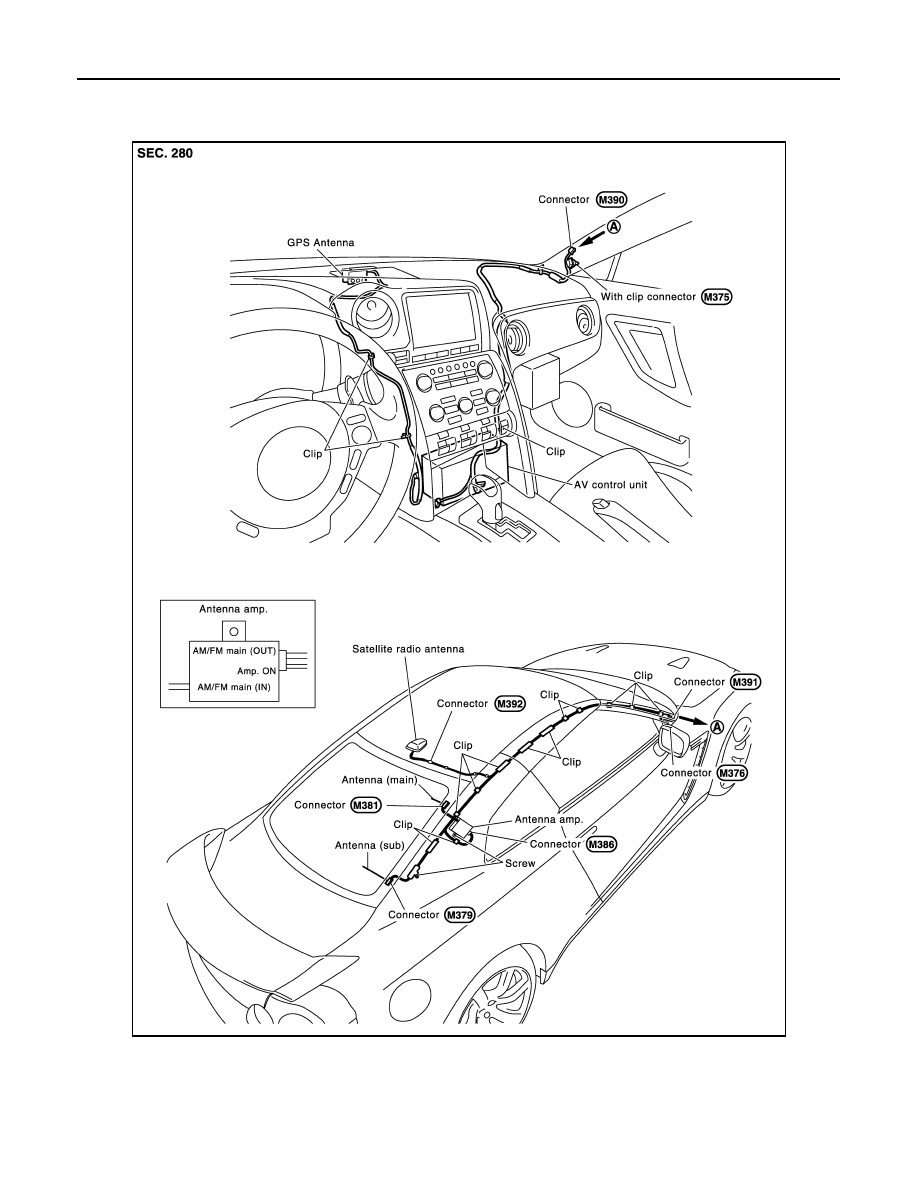

Feeder layout

INFOID:0000000009163460

JSNIA2952GB
