PRESET SWITCH

Exploded View

INFOID:0000000009163312

REMOVAL

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000009163313

REMOVAL

1.

Remove the instrument panel garnish (upper) and the instrument panel garnish LH/RH. Refer to

IP-13,

"Removal and Installation"

.

2.

Remove the screws and disconnect the connector, and then remove the preset switch.

INSTALLATION

Install in the reverse order of removal.

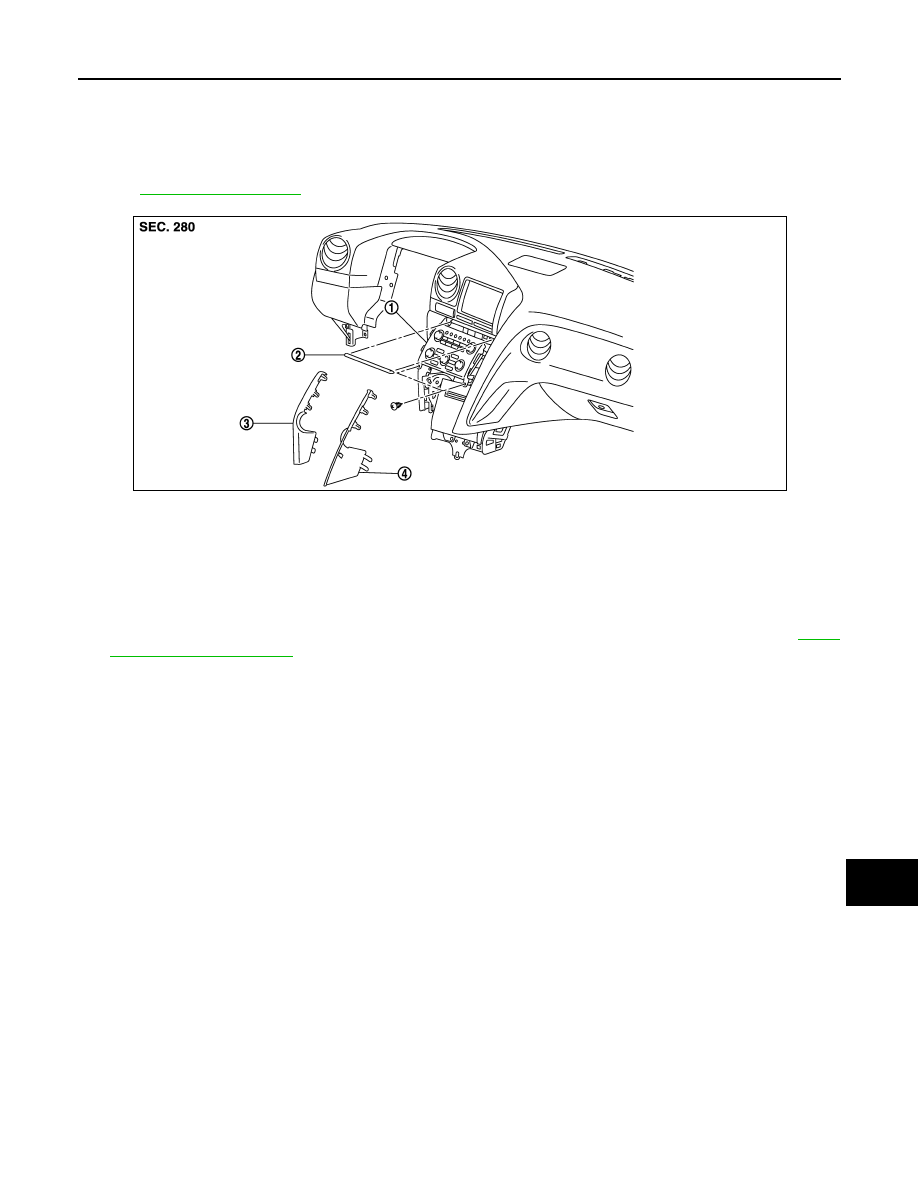

1.

Preset switch

2.

Instrument panel garnish (upper)

3.

Instrument panel garnish LH

4.

Instrument panel garnish RH

JPNIA1137ZZ

AV-88

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

DISK EJECT SWITCH

DISK EJECT SWITCH

Exploded View

INFOID:0000000009163314

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163315

REMOVAL

1.

Remove the cluster lid C (lower). Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws (A), and then remove the disk eject switch.

INSTALLATION

Install in the reverse order of removal.
NOTE:
When installing disk eject switch, do not allow the hard wire that connects disk eject switch and preset switch
to get caught in between AV control unit and disk eject switch.

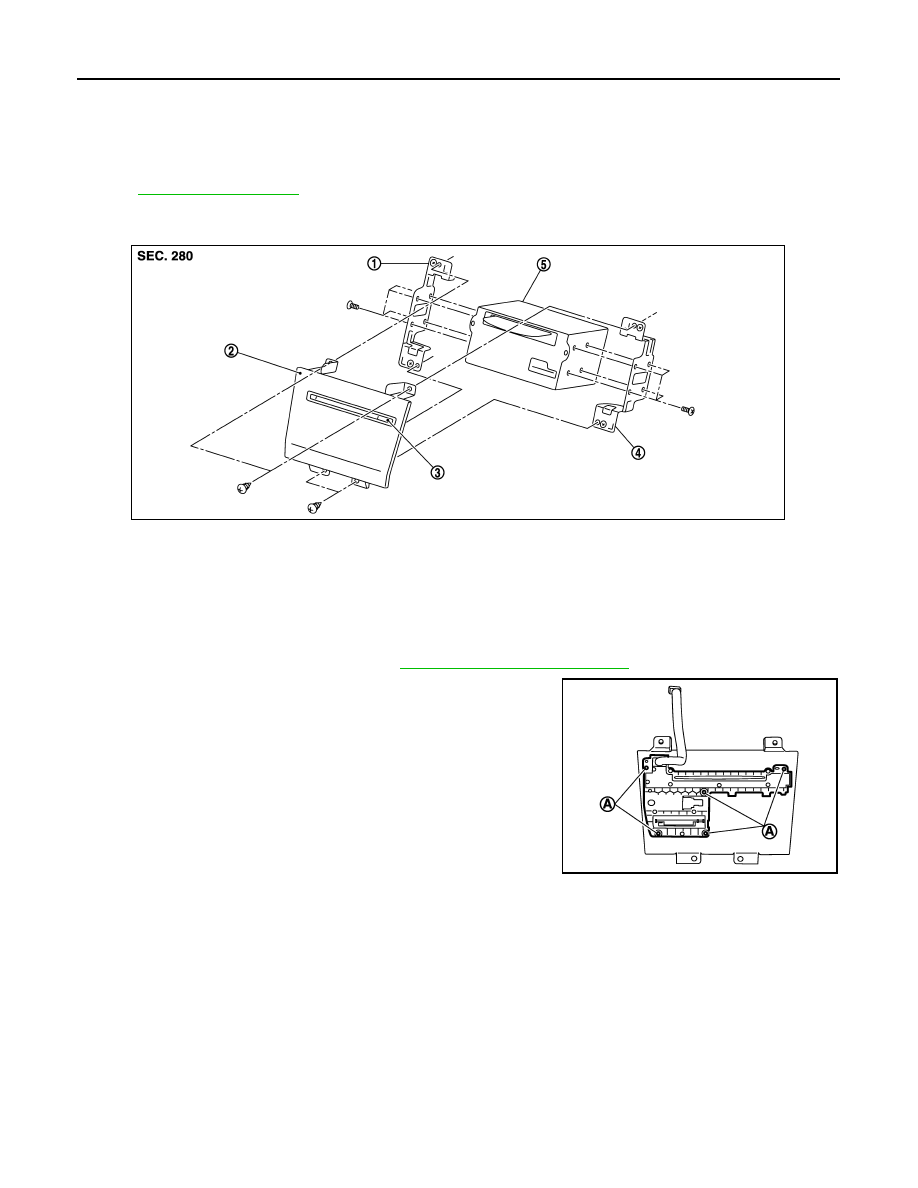

1.

Bracket LH

2.

Cluster lid C (lower)

3.

Disk eject switch

4.

Bracket RH

5.

AV control unit

NNNIA0171ZZ

NNNIA0091ZZ

AV

STEERING SWITCH

AV-89

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000009163316

Refer to

ST-10, "Exploded View"

.

Removal and Installation

INFOID:0000000009163317

REMOVAL

Refer to

ST-10, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-90

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000009163318

Removal and Installation

INFOID:0000000009163319

REMOVAL

1.

Remove map lamp. Refer to

INL-18, "Exploded View"

.

2.

Remove the microphone from the map lamp.

INSTALLATION

Install in the reverse order of removal.

JSNIA0132ZZ

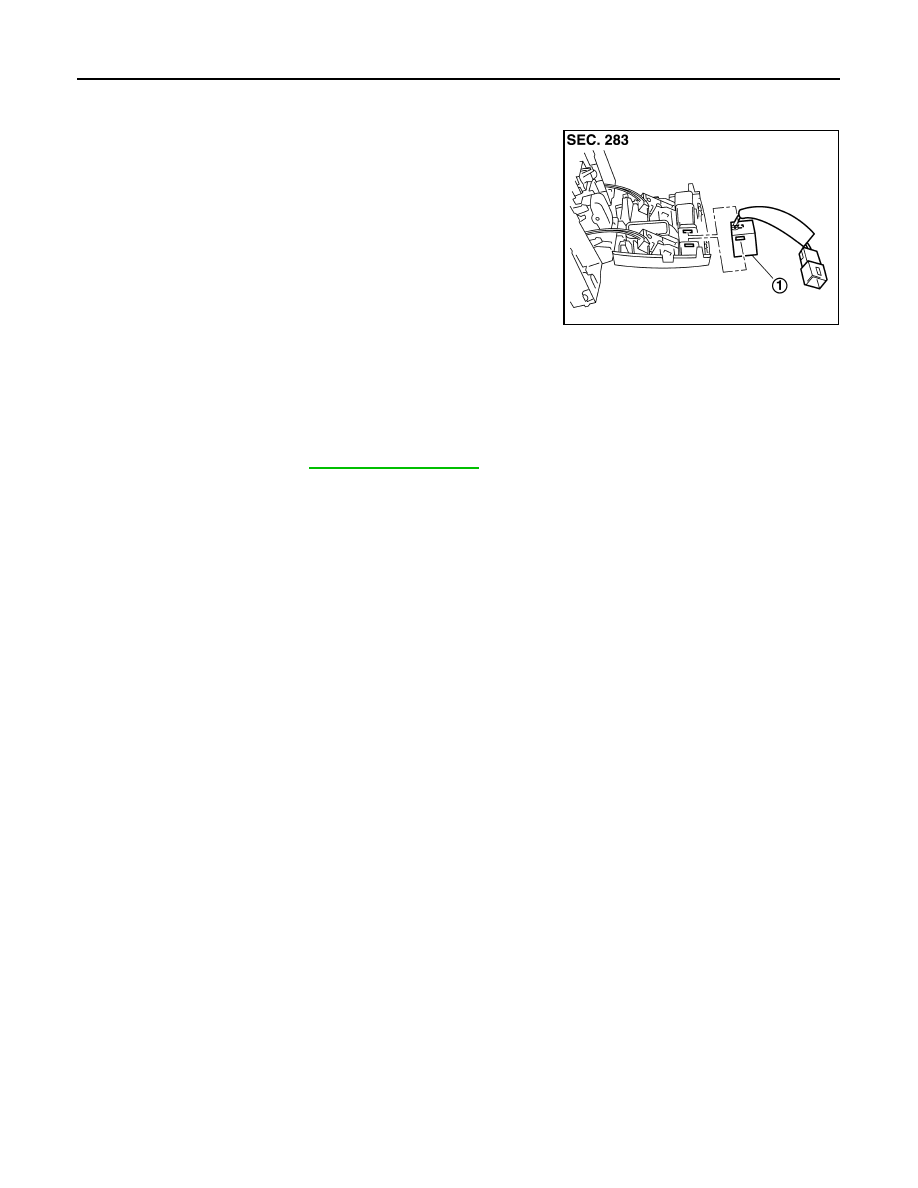

1.

Microphone
