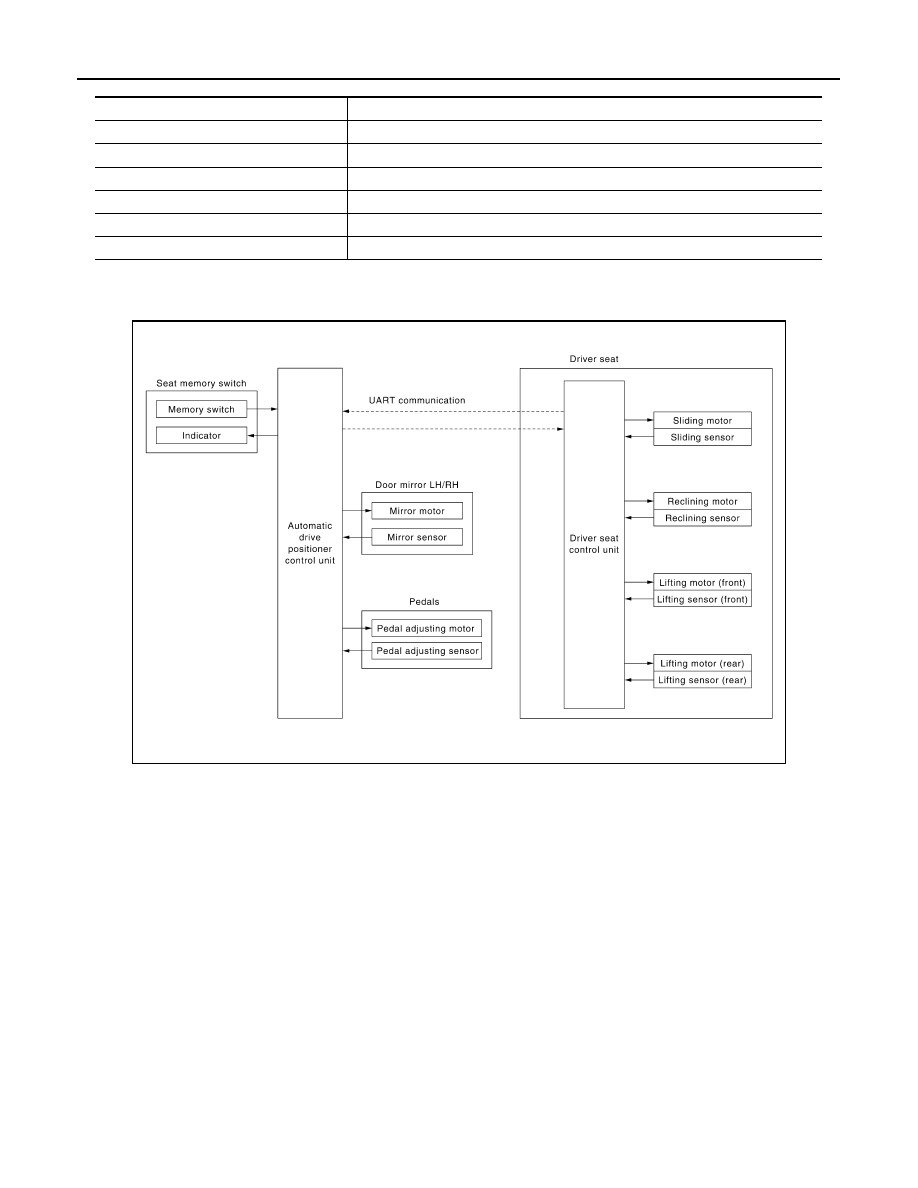

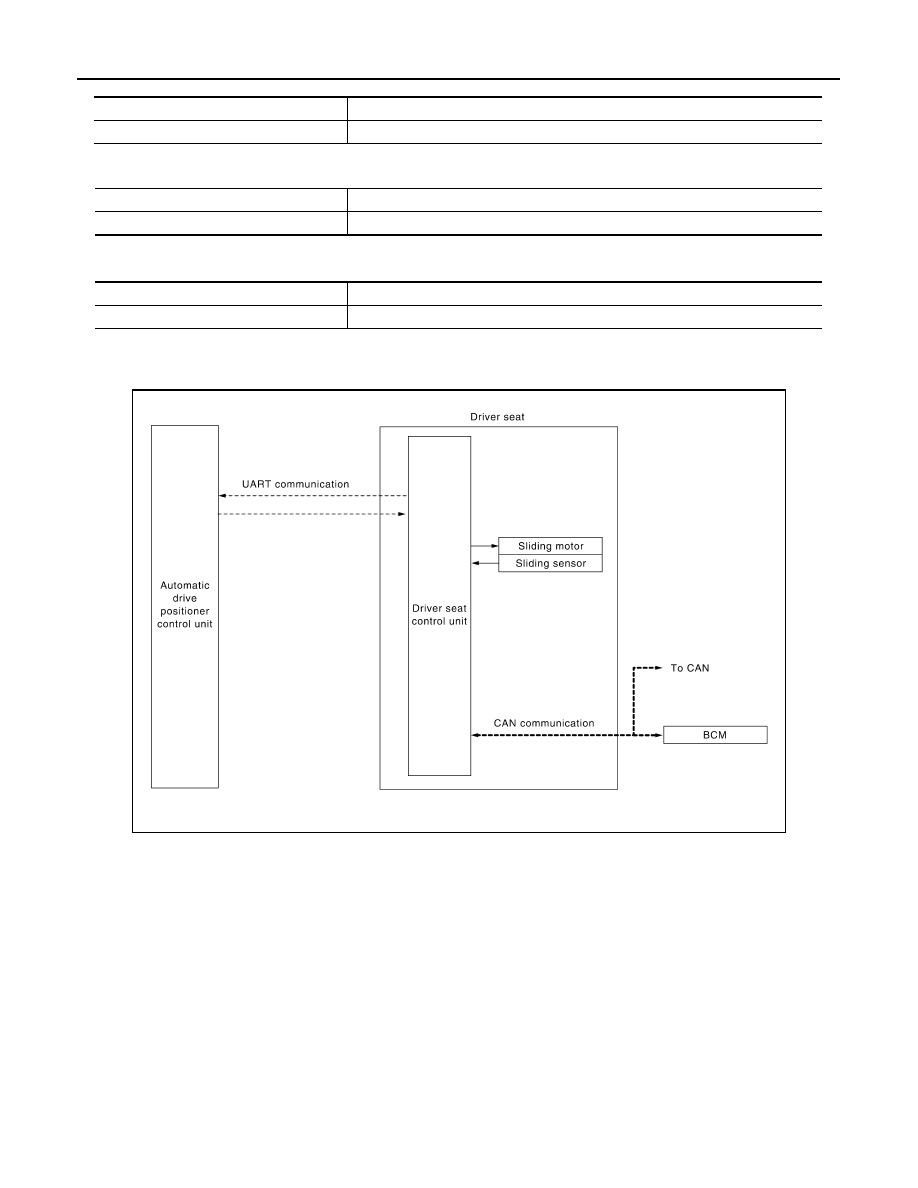

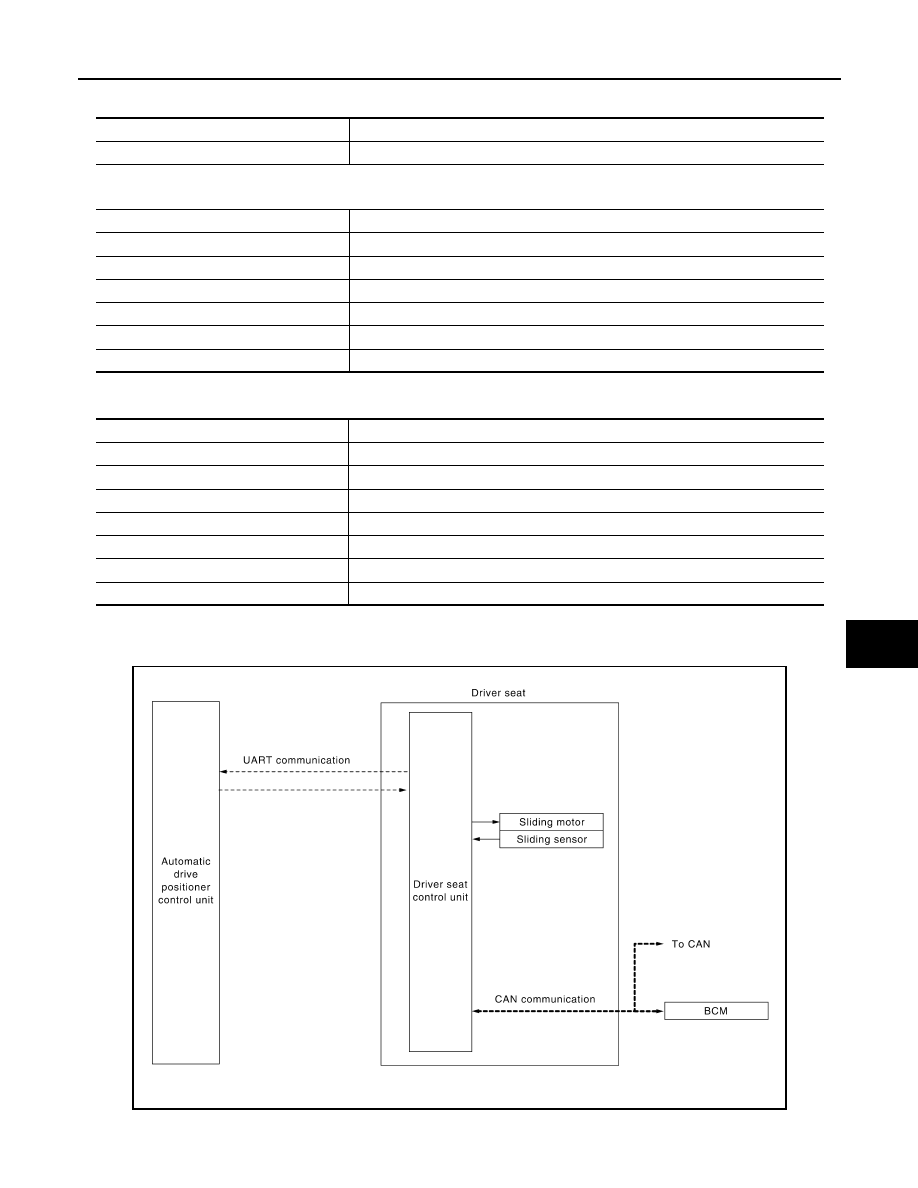

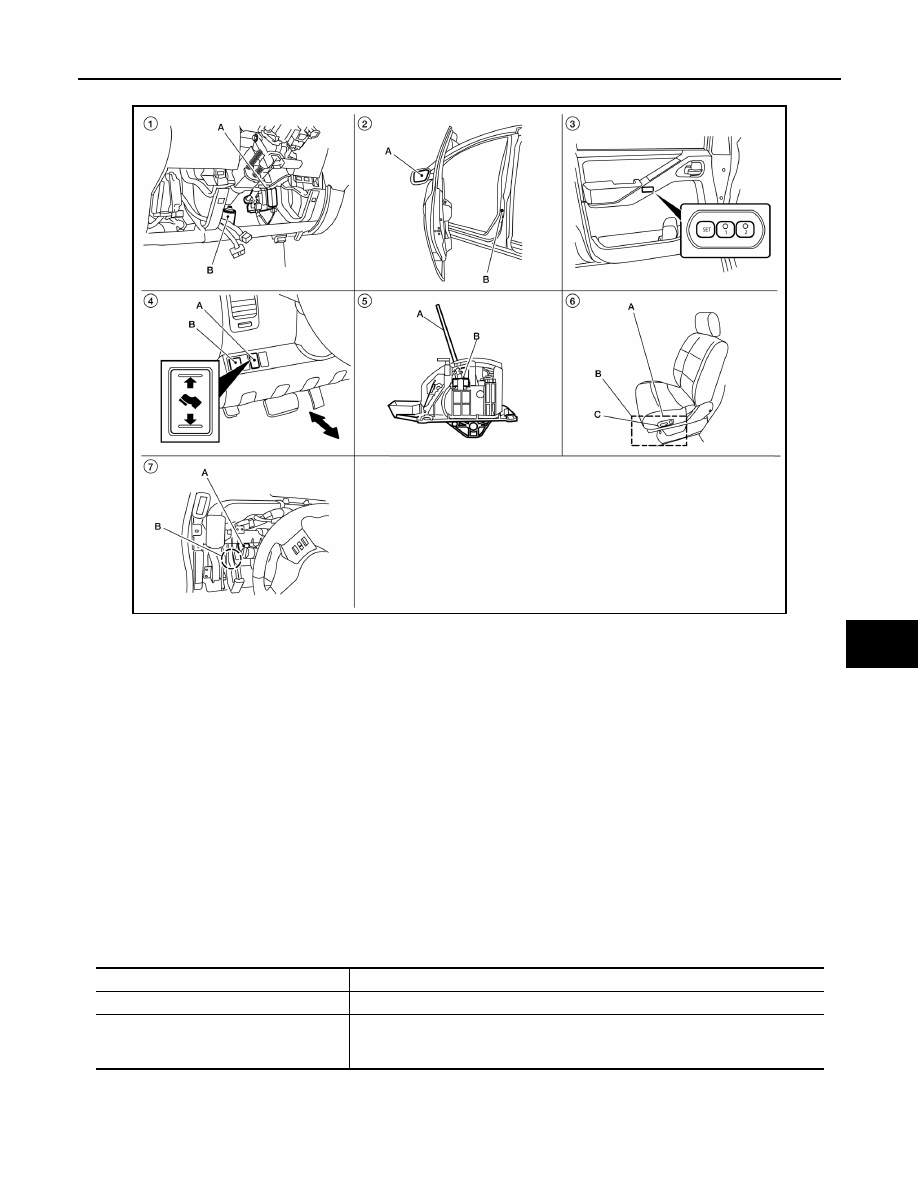

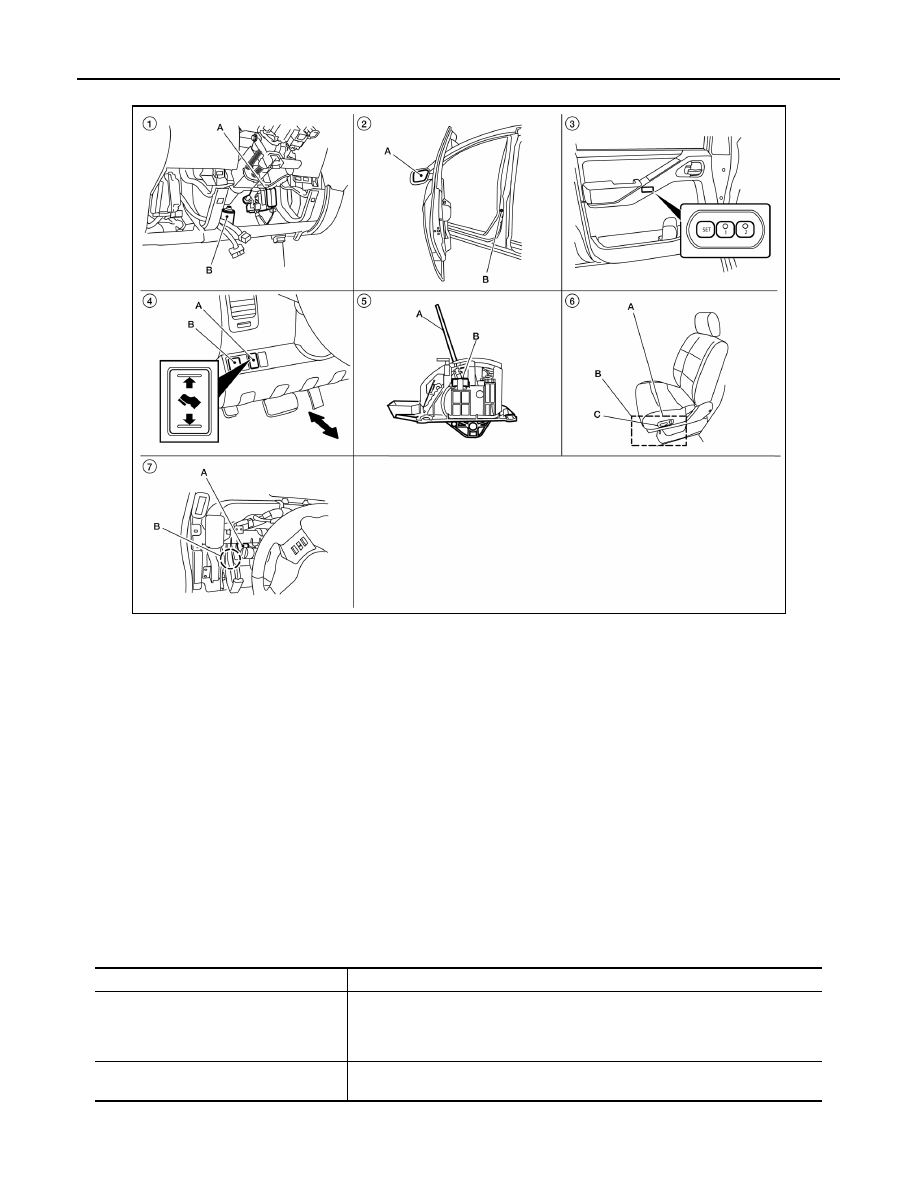

AUTOMATIC DRIVE POSITIONER SYSTEM ADP-17 < SYSTEM DESCRIPTION > C D E F G H I K L M A B ADP N O P MANUAL FUNCTION : Component Description INFOID:0000000007356090 CONTROL UNITS INPUT PARTS Switches Sensors OUTPUT PARTS 1. A. BCM M18, M19, M20 2. A. Door mirror LH D18, RH D118 3. Seat memory switch D5 4. A. Pedal adjusting switch M96 5. A. A/T selector lever 6. A. Sliding motor LH B204, reclining 7. A. Automatic drive positioner control Item Function Driver seat control unit • Operates the specific seat motor with the signal from the power seat switch. automatic drive positioner control unit. • Transmits the pedal adjusting switch signal via UART communication to the au- tomatic drive positioner control unit. Automatic drive positioner control unit Operates the specific motor with the signal from driver seat control unit or door mir- BCM Recognizes the following status and transmits it to the driver seat control unit via Item Function Power seat switch The following switch is installed. Pedal adjusting switch The following switch is installed. Door mirror remote control switch The following switch is installed. Item Function Pedal adjusting sensor Detect the forward/backward position of pedal assembly. August 2012 2012 Pathfinder |
