FRONT WIPER AND WASHER SYSTEM

WW-53

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ABLIA1650GB

2011 Pathfinder

WW-54

< WIRING DIAGRAM >

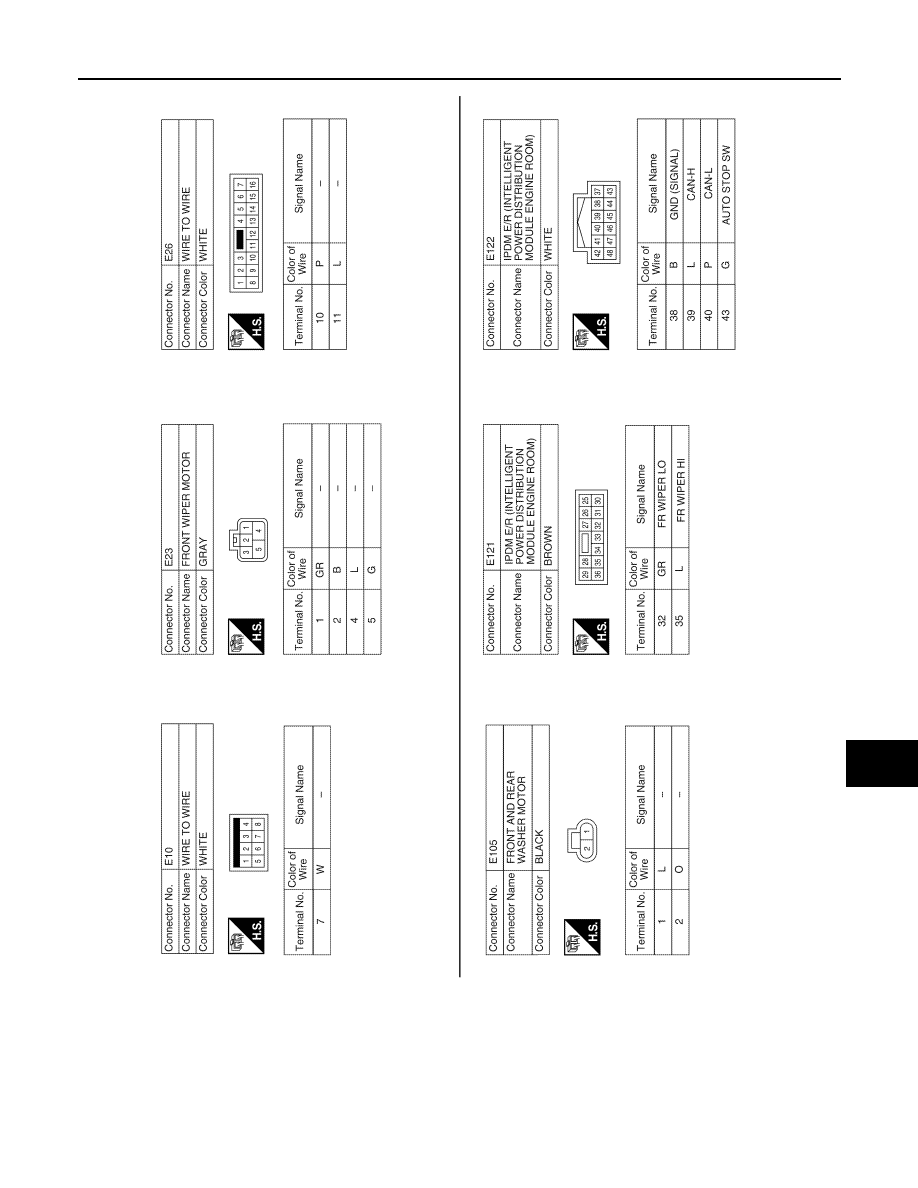

FRONT WIPER AND WASHER SYSTEM

ABLIA1651GB

2011 Pathfinder

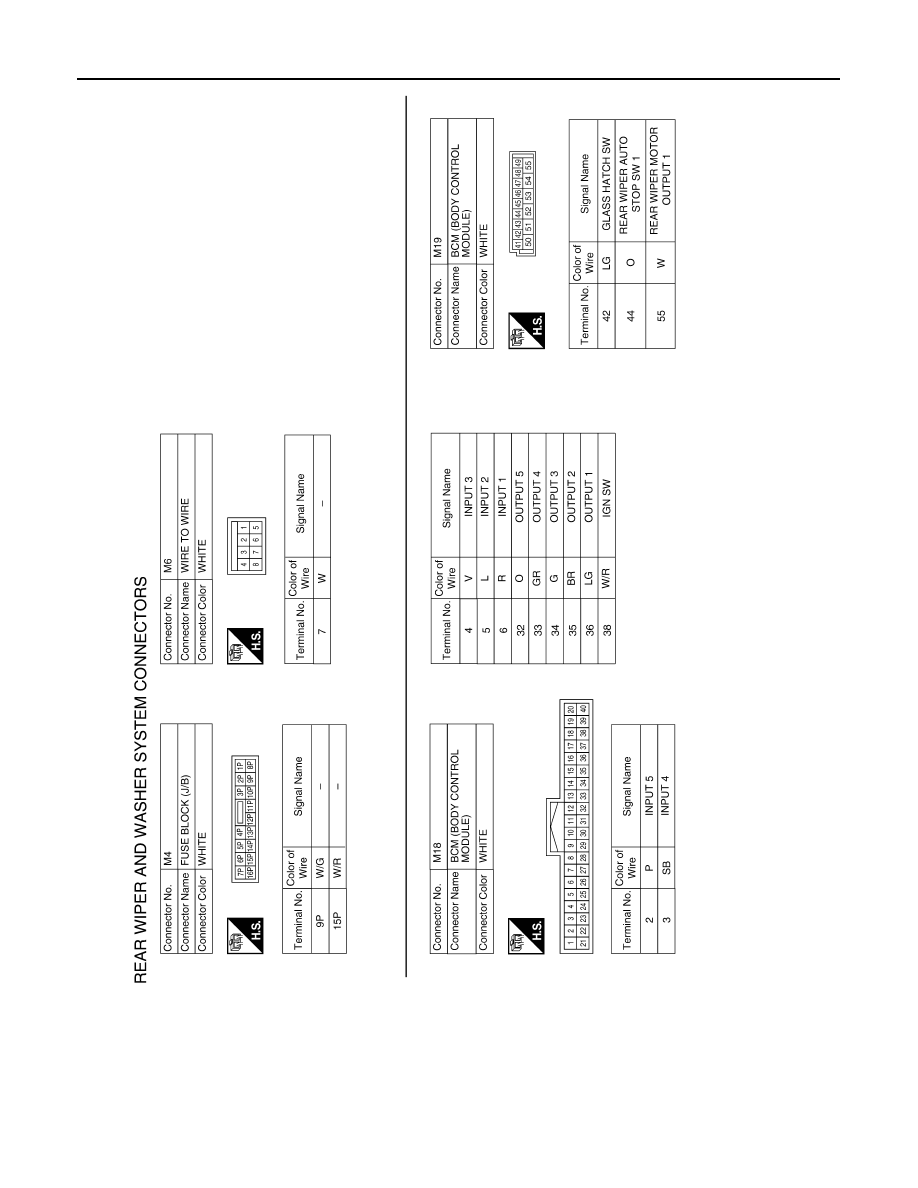

REAR WIPER AND WASHER SYSTEM

WW-55

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

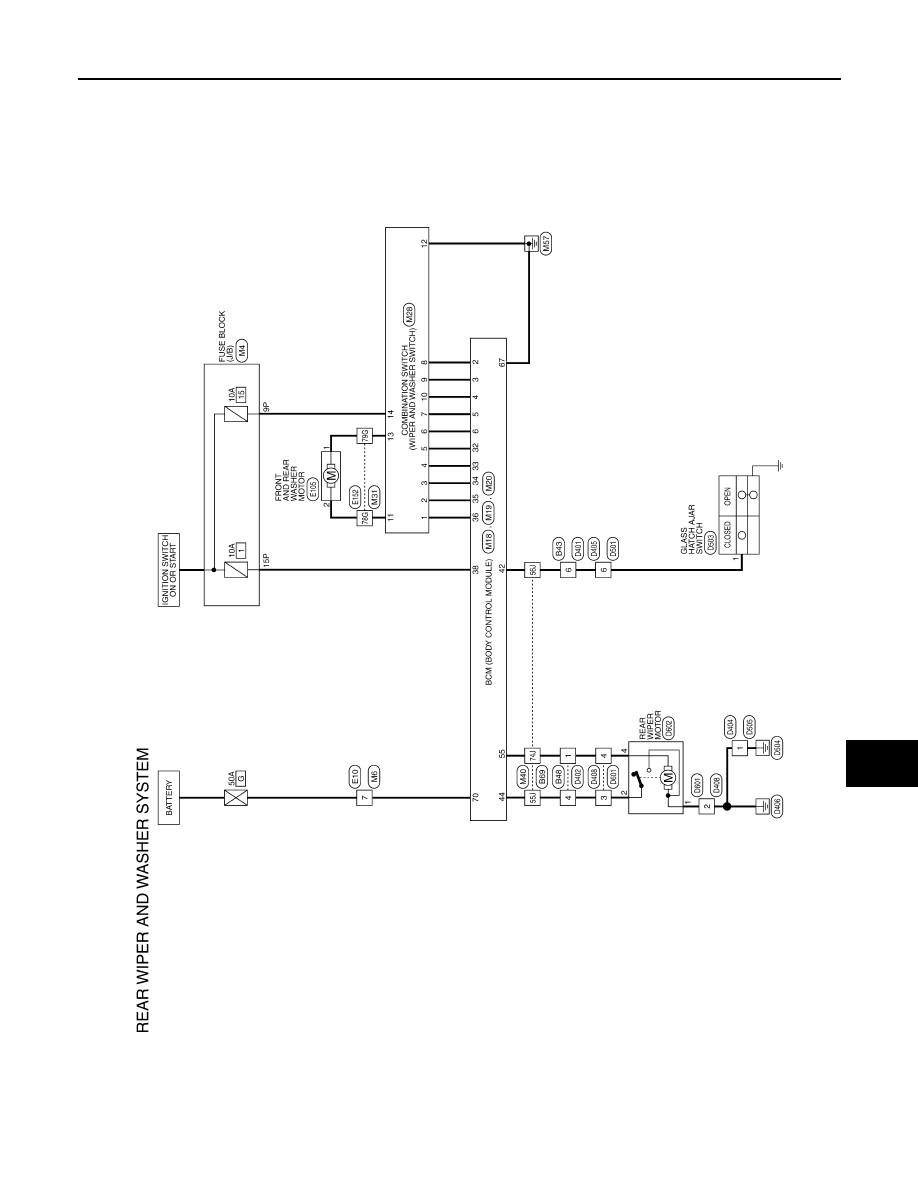

REAR WIPER AND WASHER SYSTEM

Wiring Diagram

INFOID:0000000006534927

ABLWA1196GB

2011 Pathfinder

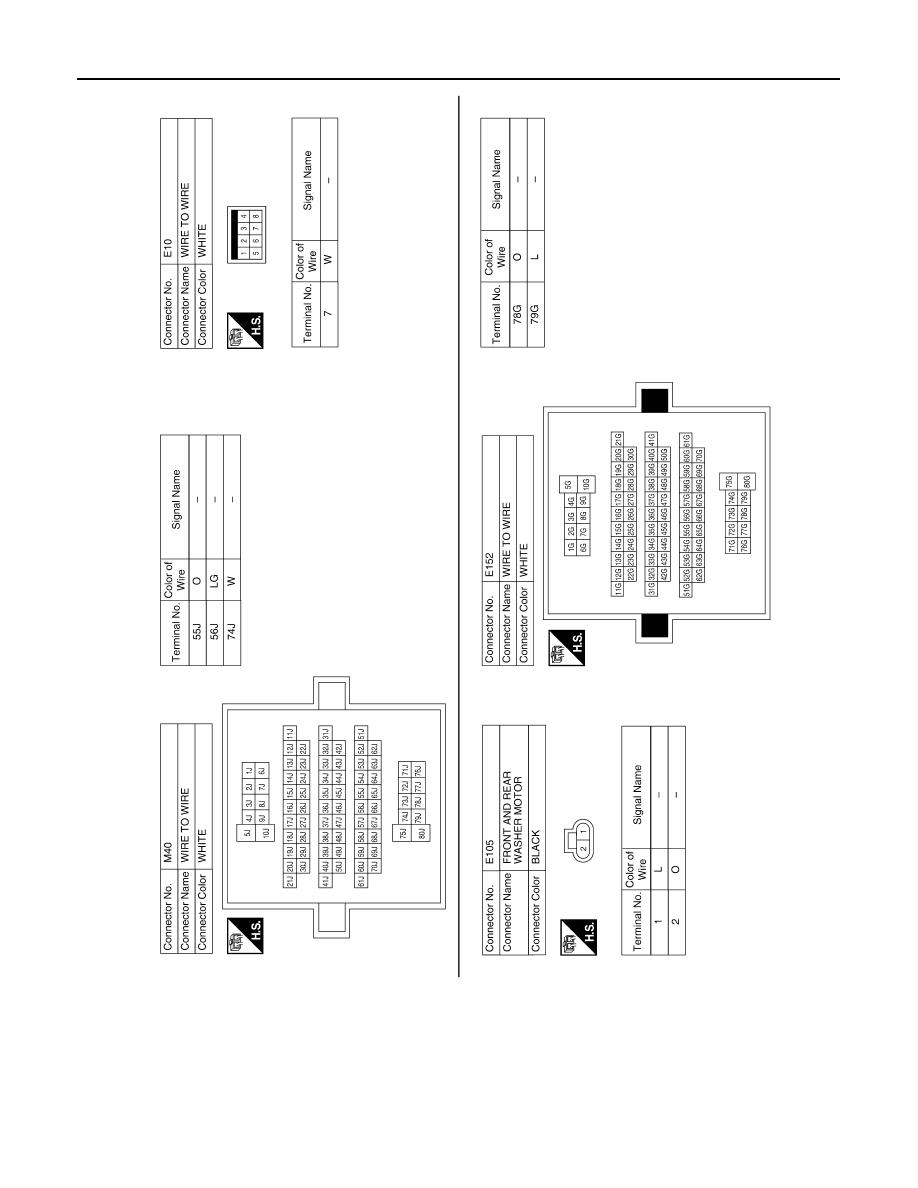

WW-56

< WIRING DIAGRAM >

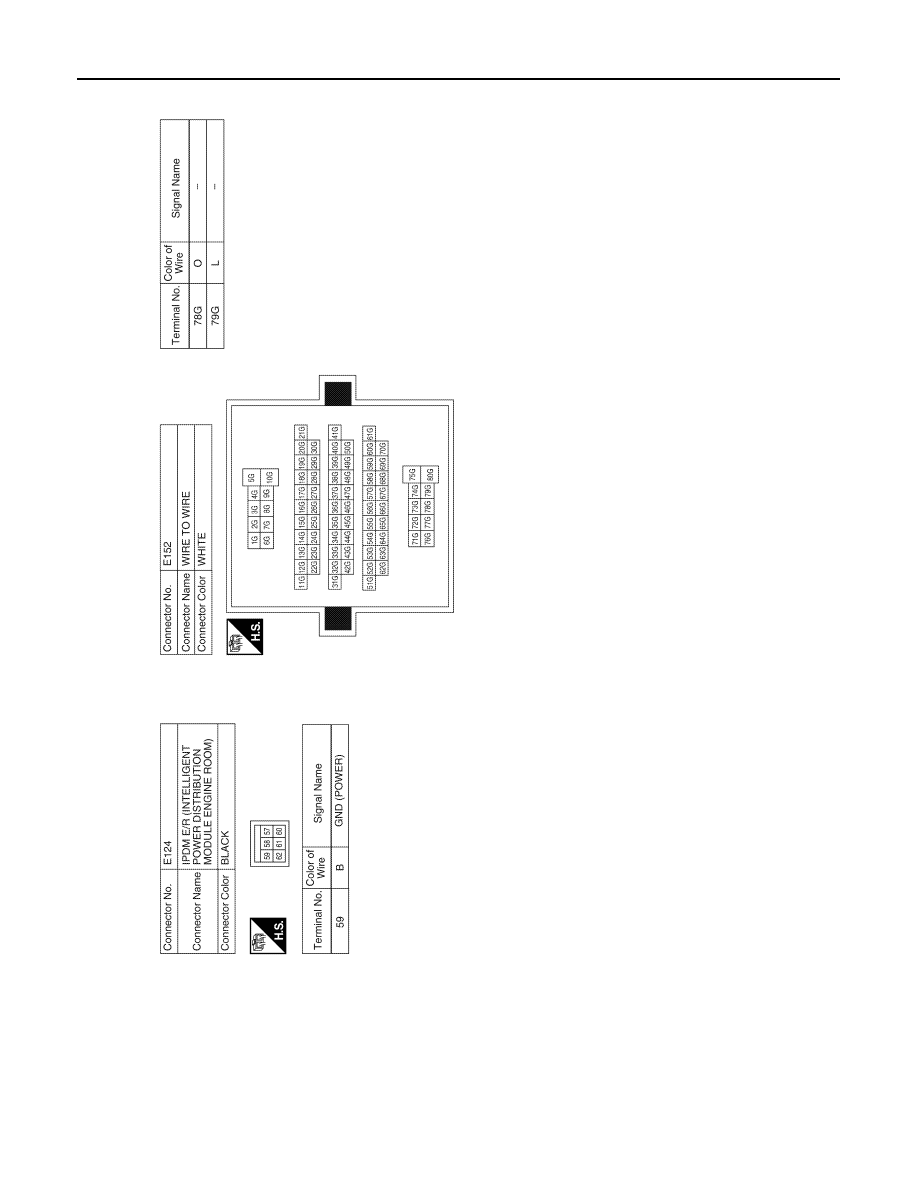

REAR WIPER AND WASHER SYSTEM

ABLIA0397GB

2011 Pathfinder

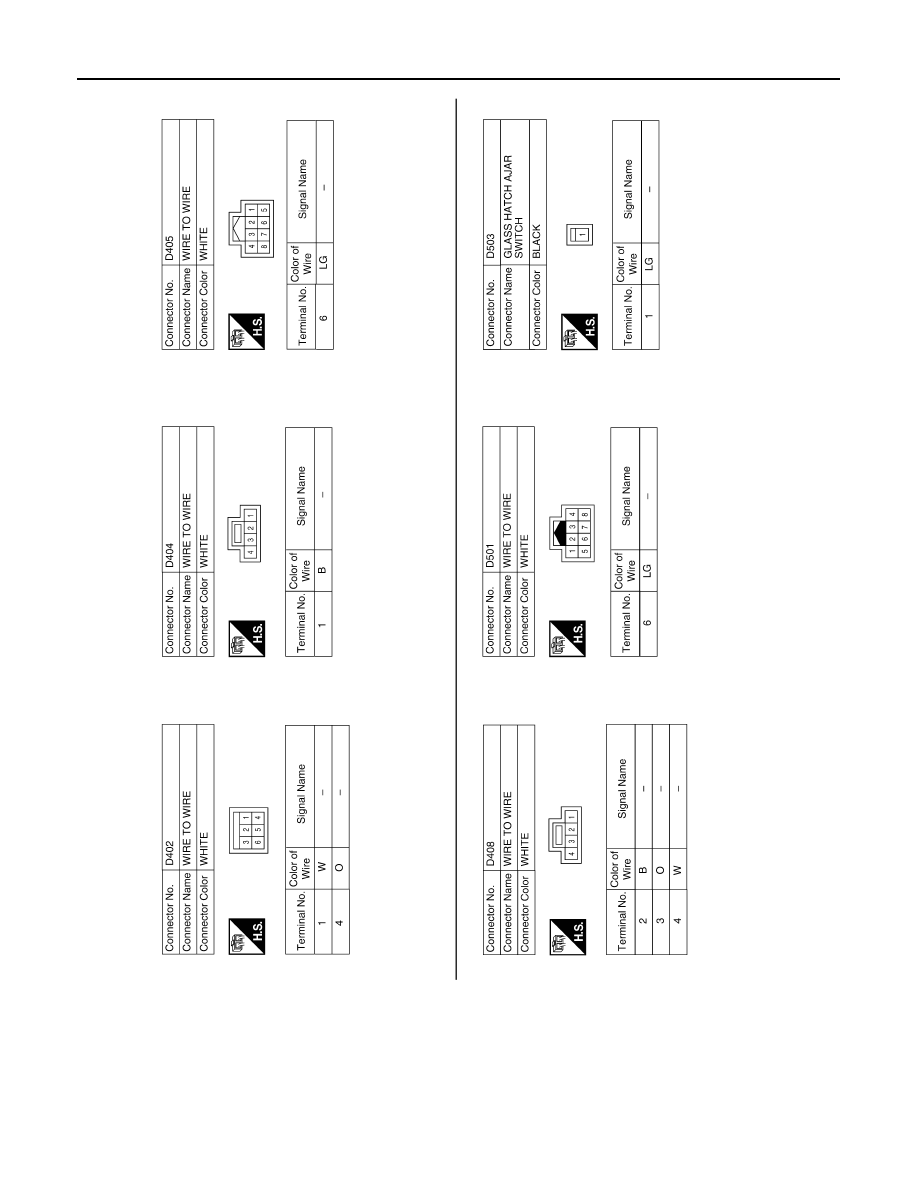

REAR WIPER AND WASHER SYSTEM

WW-57

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ABLIA0388GB

2011 Pathfinder

WW-58

< WIRING DIAGRAM >

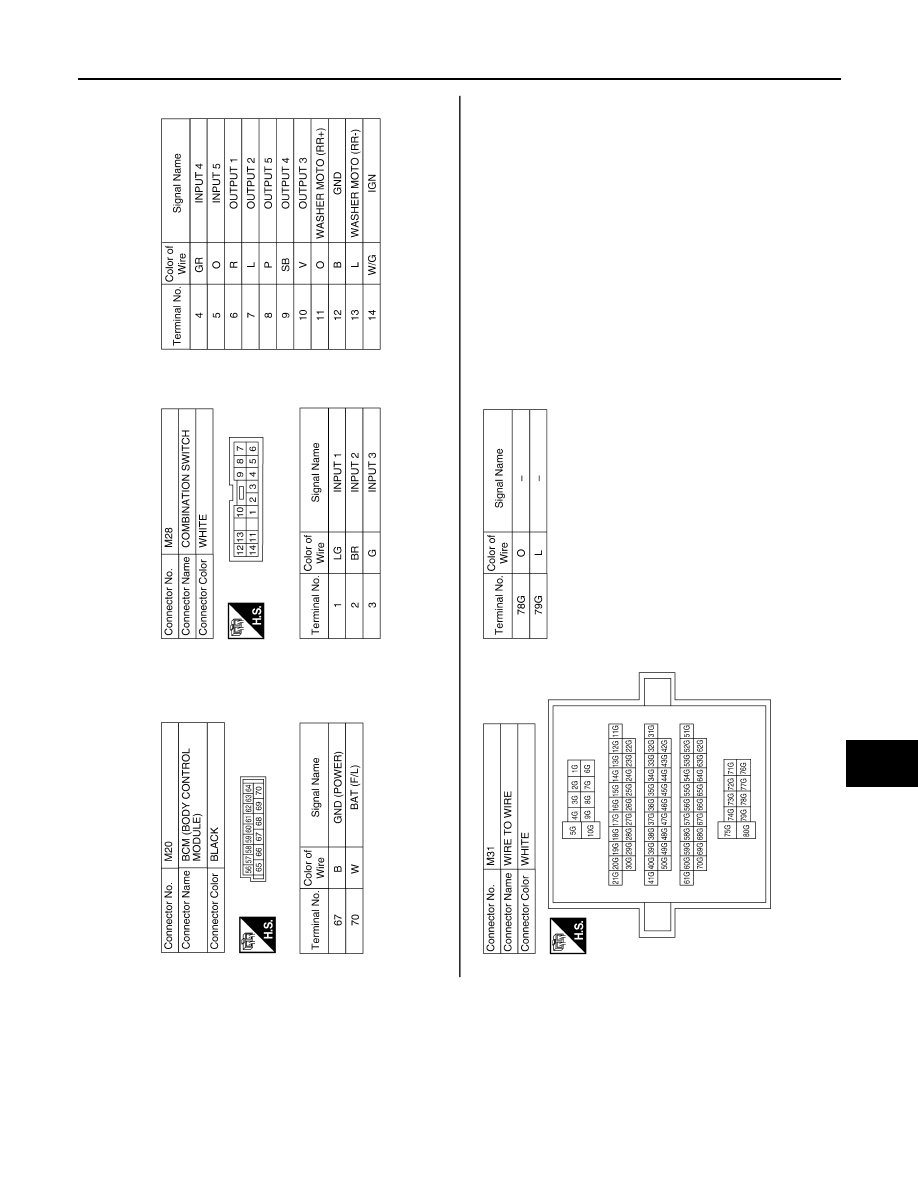

REAR WIPER AND WASHER SYSTEM

ABLIA0389GB

2011 Pathfinder

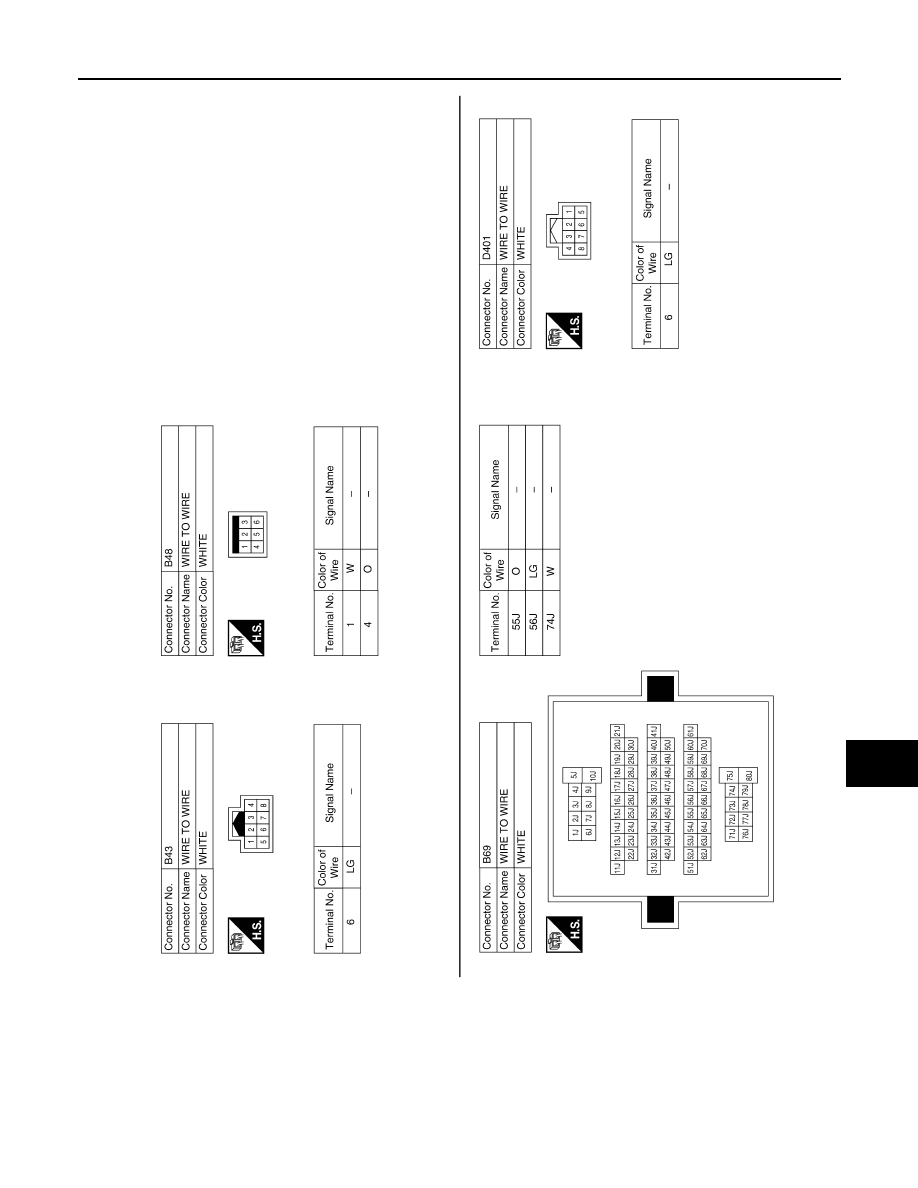

REAR WIPER AND WASHER SYSTEM

WW-59

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ABLIA0390GB

2011 Pathfinder

WW-60

< WIRING DIAGRAM >

REAR WIPER AND WASHER SYSTEM

ALLIA0312GB

2011 Pathfinder
