WHEEL AND TIRE ASSEMBLY

WT-51

< PERIODIC MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

4. If calculated balance weight value exceeds 50 g (1.76 oz), install

two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top another.

5. Start balancer machine again.

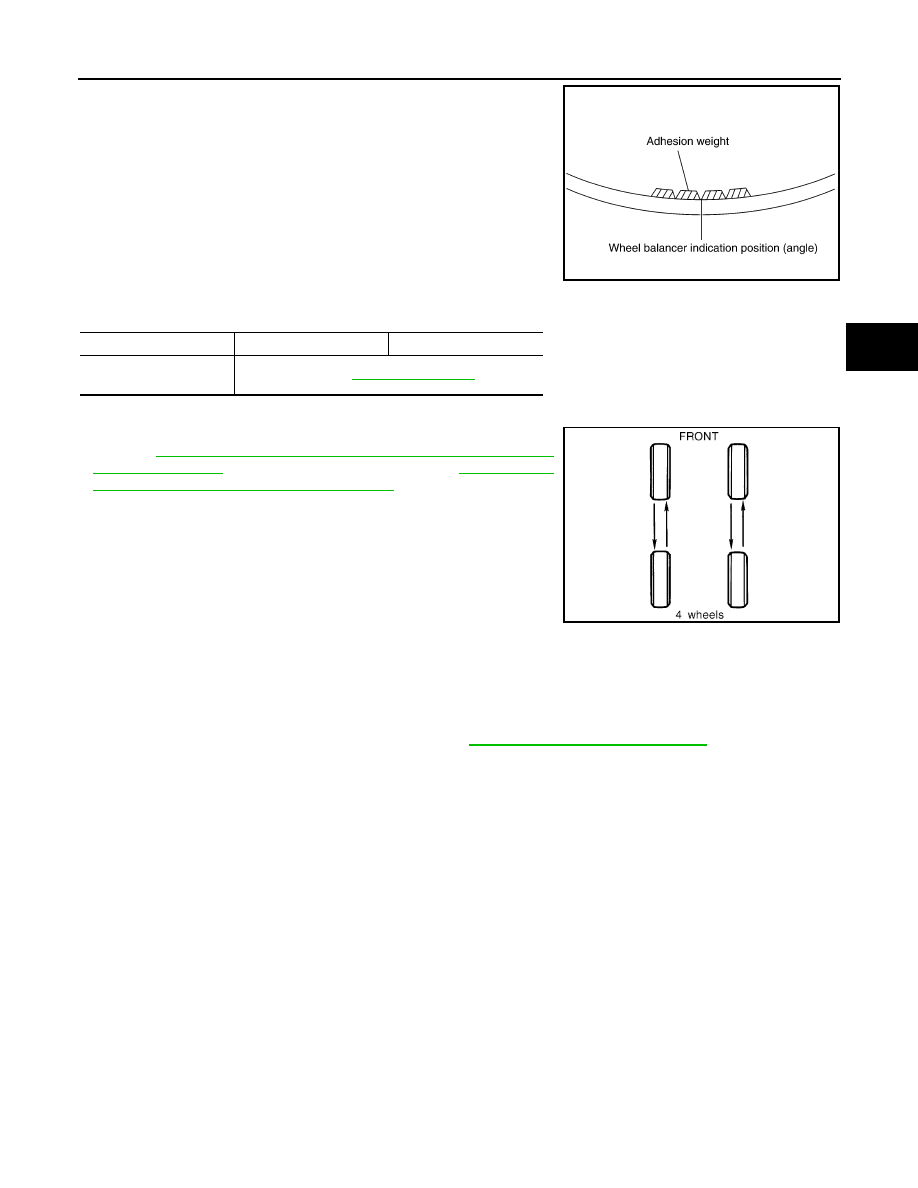

6. Install balance weight on inner side of road wheel in the bal-

ancer machine indication position (angle).

CAUTION:

Do not install more than two balance weights.

7. Start balancer machine. Make sure that inner and outer residual

imbalance values are 5 g (0.17 oz) each or below.

8. If either residual imbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

TIRE ROTATION

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-11, "FOR USA AND CANADA : Introduction to Peri-

odic Maintenance"

 (United States and Canada), or

MA-15, "FOR

MEXICO : Periodic Maintenance Schedule"

 (Mexico).

• When installing the wheel, tighten wheel nuts to the specified

torque.

CAUTION:

• Do not include the spare tire when rotating the tires.

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels

from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria for preventing strain of disc rotor.

• Use NISSAN genuine wheel nuts for aluminum wheels.

• Perform the ID registration, after tire rotation. Refer to

WT-6, "ID Registration Procedure"

.

Wheel balance

Dynamic (At flange)

Static (At flange)

Maximum allowable im-
balance

Refer to

WT-54, "Road Wheel"

.

PEIA0033E

Wheel nut tightening
torque

: 133 N·m (14 kg-m, 98 ft-lb)

SMA829C

2011 Pathfinder

WT-52

< UNIT REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

UNIT REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

Transmitter (Pressure Sensor)

INFOID:0000000006246407

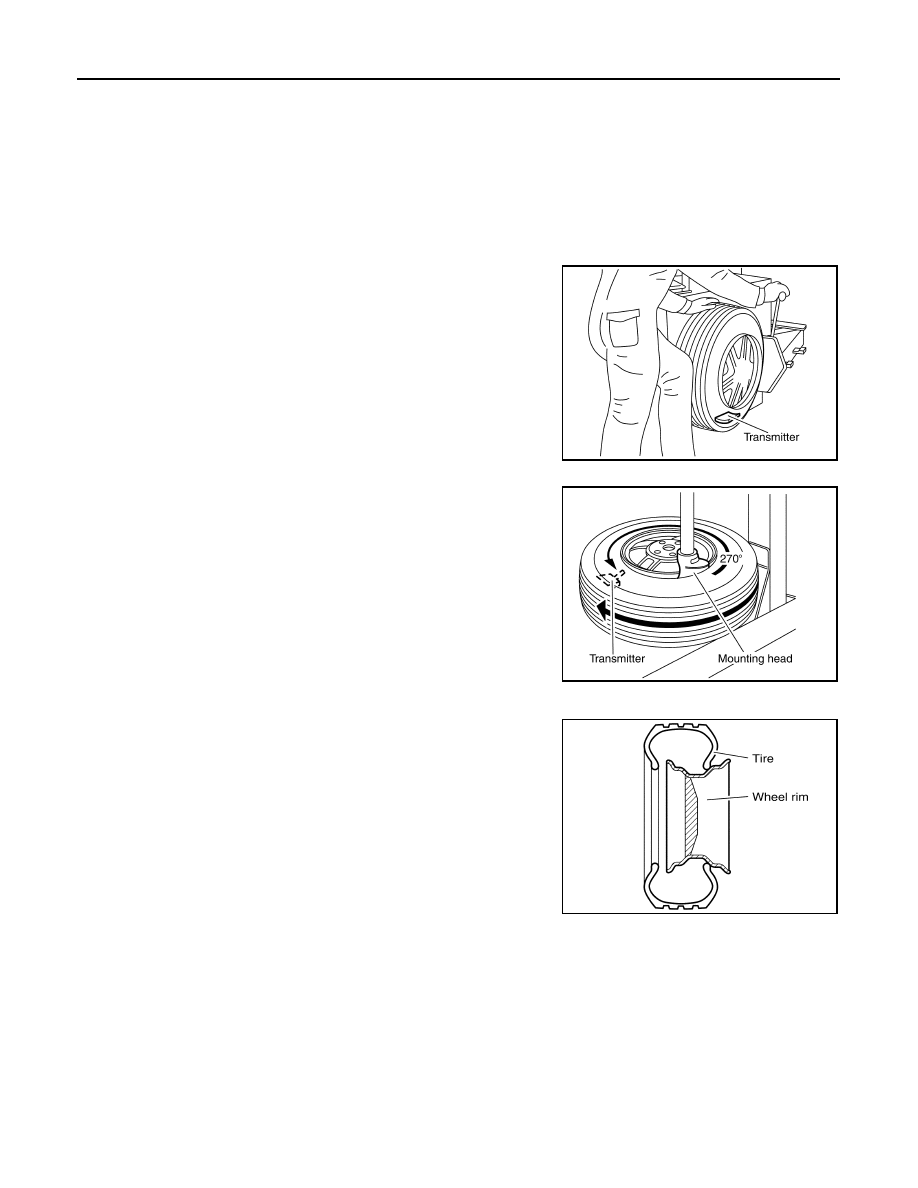

REMOVAL

1. Remove wheel and tire using power tool.
2. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
3. Gently bounce tire so that transmitter falls to bottom of tire.

Place wheel and tire assembly on tire changing machine and

break both tire beads. Ensure that the transmitter remains at the

bottom of the tire while breaking the bead.

4. Turn tire so that valve hole is at bottom, and gently bounce the

tire to ensure transmitter is near valve hole. Carefully lift tire onto

turntable and position valve hole (and transmitter) 270 degrees

from mounting/dismounting head.

5. Lubricate the tire well with a suitable non-silicone lubricant, and

remove top side of tire. Reach inside the tire and remove the

transmitter.

CAUTION:

Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

6. Remove the second side of the tire as normal.

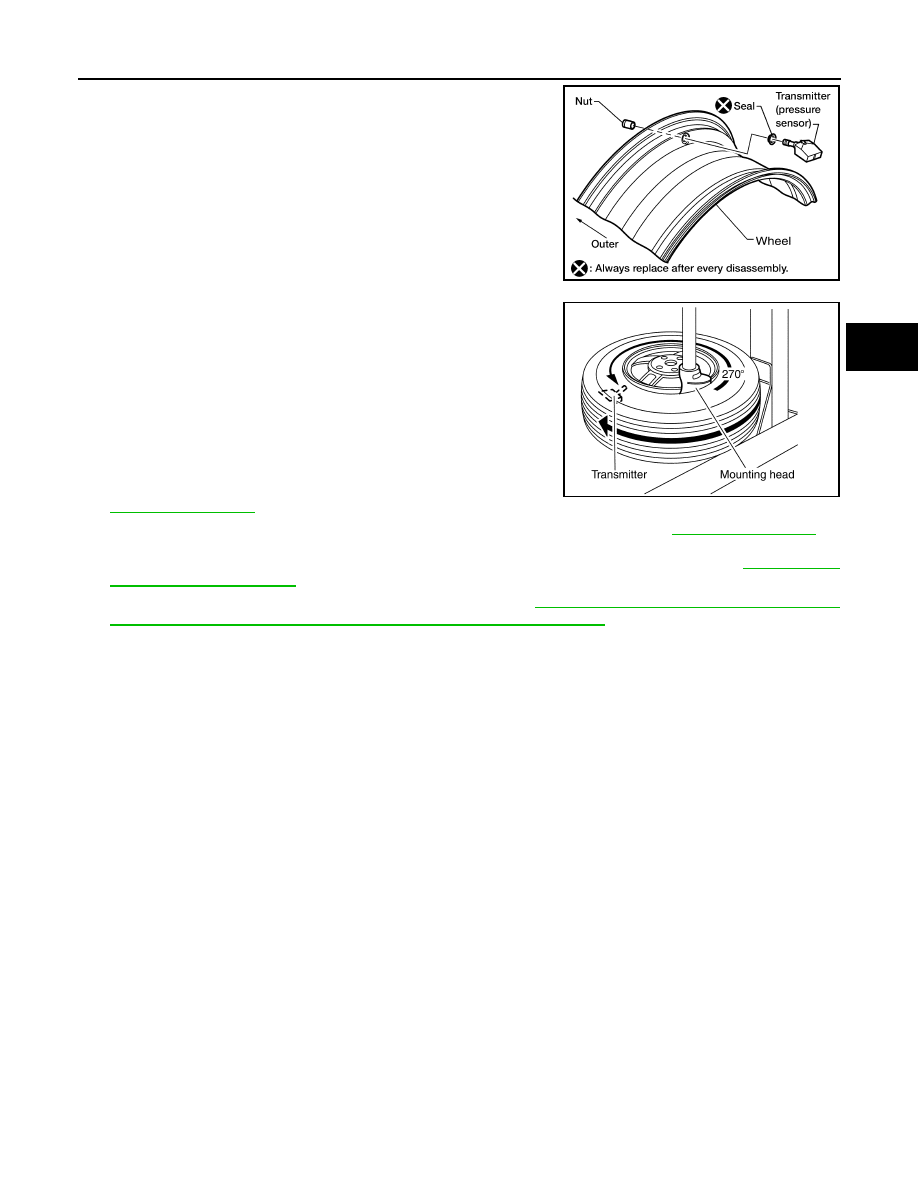

INSTALLATION

1. Place first side of tire onto rim.

2. Apply a suitable non-silicone lubricant to new transmitter seal then install seal on transmitter.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

• Do not reuse seal.

SEIA0047E

WEIA0046E

SEIA0049E

2011 Pathfinder

REMOVAL AND INSTALLATION

WT-53

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

3. Mount transmitter on rim and tighten nut at a maximum speed of

10 rpm.

NOTE:

Make sure no burrs exist in the valve stem hole of the wheel.

4. Place wheel on turntable of tire machine. Ensure that transmitter

is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

5. Lubricate the tire well with a suitable non-silicone lubricant, and

install second side of tire as normal. Ensure that tire does not

rotate relative to rim.

CAUTION:

Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

6. Inflate tire and balance the wheel and tire assembly. Refer to

WT-50, "Adjustment"

.

7. Install wheel and tire assembly in appropriate wheel position on vehicle. Refer to

WT-50, "Adjustment"

.

NOTE:

If replacing the transmitter, then transmitter wake up operation must be performed. Refer to

WT-5, "Trans-

mitter Wake Up Operation"

.

8. Adjust neutral position of steering angle sensor. Refer to

BRC-121, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

Transmitter nut
tightening torque

: 7.7 N·m (0.79 kg-m, 68 in-lb)

WEIA0137E

WEIA0046E

2011 Pathfinder

WT-54

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000006246408

Tire

INFOID:0000000006246409

Unit: kPa (kg/cm

2

, psi)

Wheel type

Aluminum

Steel

Inside

Outside

Maximum radial
runout limit

Lateral mm (in)

0.3 (0.012) or less

1.0 (0.039) or less

0.9 (0.035) or less

Radial mm (in)

0.3 (0.012) or less

0.8 (0.031) or less

0.4 (0.016) or less

Maximum allowable
imbalance

Dynamic (at rim flange)

Less than 5 g (0.18 oz) (per side)

Static (at rim flange)

Less than 10 g (0.35 oz)

Tire size

Air pressure

Conventional tire

Spare tire

P245/75R16

240 (2.4, 35)

240 (2.4, 35)

P265/70R16

240 (2.4, 35)

240 (2.4, 35)

P265/75R16

240 (2.4, 35)

240 (2.4, 35)

P265/65R17

240 (2.4, 35)

240 (2.4, 35)

P265/60R18

240 (2.4, 35)

240 (2.4, 35)

2011 Pathfinder

WW-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

WW

A

B

WW

N

O

P

CONTENTS

WIPER & WASHER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

SYSTEM DESCRIPTION  ..............................

4

FRONT WIPER AND WASHER SYSTEM  ..........

4

System Diagram ........................................................

4

System Description  ...................................................

4

Component Parts Location ........................................

7

Component Description ............................................

7

REAR WIPER AND WASHER SYSTEM  ............

8

System Diagram ........................................................

8

System Description  ...................................................

8

Component Parts Location ......................................

10

Component Description ..........................................

10

DIAGNOSIS SYSTEM (BCM)  ............................

11

COMMON ITEM .........................................................

11

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

11

WIPER .......................................................................

12

WIPER : CONSULT-III Function (BCM - WIPER) ....

12

DIAGNOSIS SYSTEM (IPDM E/R) .....................

13

Diagnosis Description  .............................................

13

CONSULT - III Function (IPDM E/R) .......................

15

DTC/CIRCUIT DIAGNOSIS  .........................

17

WIPER AND WASHER FUSE ............................

17

Description ..............................................................

17

Diagnosis Procedure ...............................................

17

FRONT WIPER MOTOR LO CIRCUIT ...............

18

Component Function Check ....................................

18

Diagnosis Procedure ...............................................

18

FRONT WIPER MOTOR HI CIRCUIT  ................

20

Component Function Check  ....................................

20

Diagnosis Procedure  ...............................................

20

FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................

22

Component Function Check  ....................................

22

Diagnosis Procedure  ...............................................

22

FRONT WIPER MOTOR GROUND CIRCUIT ...

24

Diagnosis Procedure  ...............................................

24

WASHER SWITCH ............................................

25

Description ...............................................................

25

Component Inspection .............................................

25

WASHER MOTOR CIRCUIT .............................

27

Diagnosis Procedure  ...............................................

27

REAR WIPER MOTOR CIRCUIT ......................

29

Component Function Check  ....................................

29

Diagnosis Procedure  ...............................................

29

REAR WIPER AUTO STOP SIGNAL CIRCUIT

...

31

Component Function Check  ....................................

31

Diagnosis Procedure  ...............................................

31

ECU DIAGNOSIS INFORMATION ..............

32

BCM (BODY CONTROL MODULE)  .................

32

Reference Value ......................................................

32

Terminal Layout .......................................................

35

Physical Values  .......................................................

35

Fail Safe ..................................................................

40

DTC Inspection Priority Chart ...............................

40

DTC Index ...............................................................

41

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

43

Reference Value ......................................................

43

Terminal Layout .......................................................

44

Physical Values  .......................................................

45

2011 Pathfinder

WW-2

Fail Safe .................................................................

48

DTC Index ..............................................................

49

WIRING DIAGRAM  .....................................

50

FRONT WIPER AND WASHER SYSTEM .........

50

Wiring Diagram  .......................................................

50

REAR WIPER AND WASHER SYSTEM ...........

55

Wiring Diagram  .......................................................

55

SYMPTOM DIAGNOSIS  .............................

62

WIPER AND WASHER SYSTEM SYMPTOMS

...

62

Symptom Table  ......................................................

62

NORMAL OPERATING CONDITION  ................

65

Description ..............................................................

65

FRONT WIPER DOES NOT OPERATE  ............

66

Description ..............................................................

66

Diagnosis Procedure  ..............................................

66

PRECAUTION .............................................

68

PRECAUTION ...................................................

68

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

68

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ..................................

68

REMOVAL AND INSTALLATION ..............

70

FRONT WIPER AND WASHER SYSTEM  ........

70

Removal and Installation .........................................

70

Washer Nozzle Adjustment .....................................

74

REAR WIPER AND WASHER SYSTEM ...........

75

Removal and Installation .........................................

75

Rear Washer Nozzle Adjustment ............................

78

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

79

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

79

Specifications ..........................................................

79

2011 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

WW-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006247886

DETAILED FLOW

1.

 LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-

tom occurs.

>> GO TO 2

2.

 VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

WW-13, "Diagnosis Description"

>> GO TO 3

3.

 GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis. Refer to

WW-62, "Symptom Table"

.

>> GO TO 4

4.

 REPAIR OR REPLACE

Repair or replace the specific parts.

>> GO TO 5

5.

 FINAL CHECK

Final check.
Is inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

GI-37, "Intermittent Incident"

.

2011 Pathfinder

WW-4

< SYSTEM DESCRIPTION >

FRONT WIPER AND WASHER SYSTEM

SYSTEM DESCRIPTION

FRONT WIPER AND WASHER SYSTEM

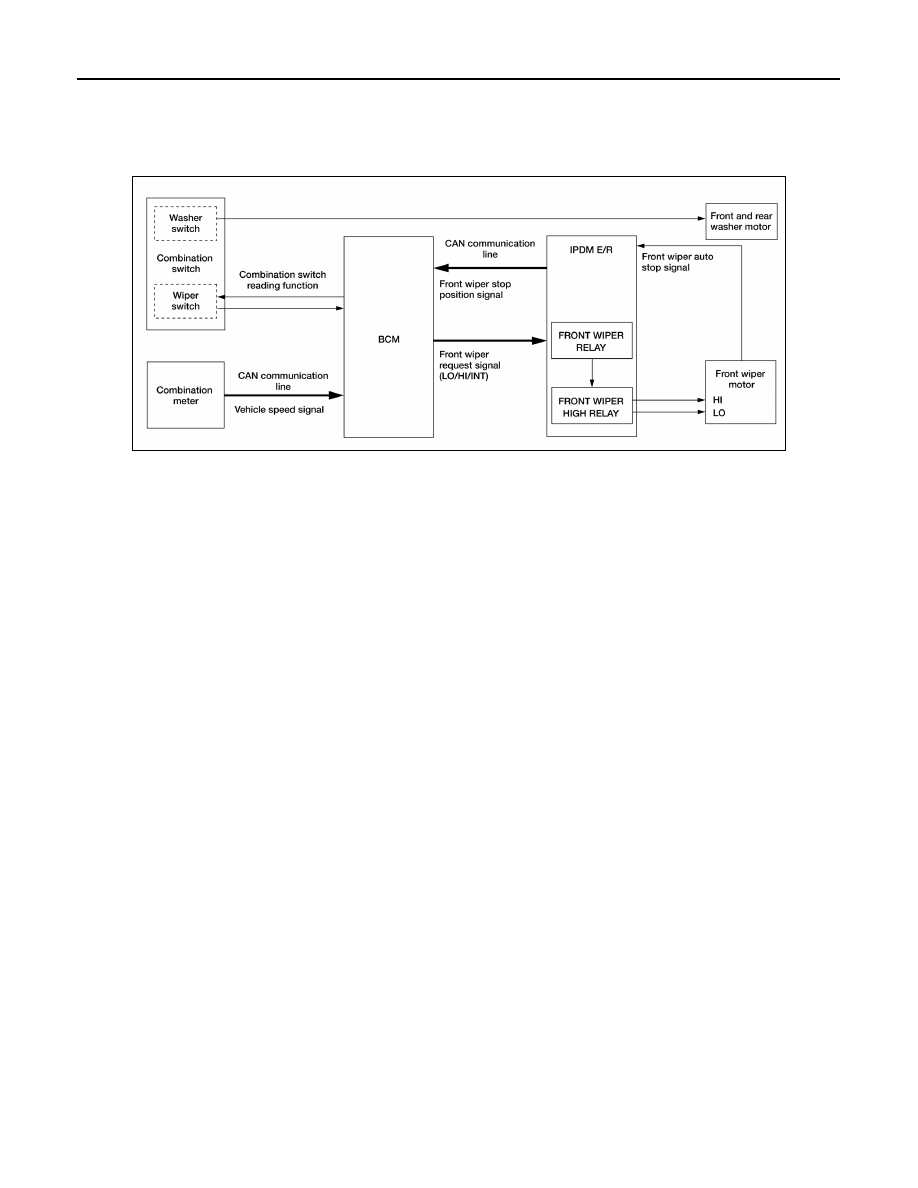

System Diagram

INFOID:0000000006247887

System Description

INFOID:0000000006247888

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function

• Front wiper control function

Control by IPDM E/R

• Front wiper control function

• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.

• BCM transmits the front wiper request signal to IPDM E/R with CAN communication depending on each

operating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper high relay according to the front

wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON

- Front wiper switch LO or front wiper switch MIST (while pressing)

• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).

FRONT WIPER HI OPERATION

• BCM transmits the front wiper request signal (HI) to IPDM E/R with CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON

- Front wiper switch HI

• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper

request signal (HI).

FRONT WIPER INT OPERATION (LINKED WITH VEHICLE SPEED)

ABLIA2789GB

2011 Pathfinder















Content      ..     632      633      634      635     ..
