DTC Index

INFOID:0000000006706254

NOTE:

“TIME” indicates the following.

• 0: Indicates that a malfunction is detected at present.

• 1-63: Indicates that a malfunction was detected in the past. (Displays number of ignition switch OFF

→

 ON

cycles after malfunction is detected. Self-diagnosis result is erased when “63” is exceeded.)

Warning lamp/indicator lamp

ABS warning lamp

Lamp turns on when communication is lost.

Brake warning lamp

VDC OFF indicator lamp

Malfunction indicator lamp

SLIP indicator lamp

Shift P warning lamp

Lamp turns off when communication is lost.

AT oil temp warning lamp

Low washer fluid warning lamp

Door ajar warning lamp

CRUISE indicator lamp

SET indicator lamp

A/T CHECK warning lamp (with man-
ual mode)

O/D OFF indicator lamp (without man-
ual mode)

Oil pressure warning lamp

Air bag warning lamp

High beam indicator

Turn signal indicator lamp

Intelligent Key system warning lamp

Driver and passenger seat belt warn-
ing lamp

Lamp turns off when disconnected.

Charge warning lamp

Security indicator lamp

4WD indicator lamp

ATP indicator lamp

Low tire pressure warning lamp

Lamp will flash every second for 1 minute and then stay on con-
tinuously thereafter.

Function

Specifications

CONSULT-III display

Malfunction

Reference

page

CAN COMM CIRC
[U1000]

Malfunction is detected in CAN communication.

CAUTION:

Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 sec-
onds) or 10A fuse [No. 19, located in the fuse block (J/B)] is disconnected.

MWI-29

VEHICLE SPEED
CIRC
[B2205]

Malfunction is detected when an erroneous speed signal is input.

CAUTION:

Even when there is no malfunction on speed signal system, malfunction may be misin-
terpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 seconds).

MWI-30

2011 Pathfinder

WCS-30

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000006706255

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Check Intelligent Key relative signal strength

• Confirm vehicle Intelligent Key antenna signal strength

• Test remote keyless entry keyfob relative signal strength

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BACK DOOR SW

Back door closed

Off

Back door opened

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On

2011 Pathfinder

WCS

BCM (BODY CONTROL MODULE)

WCS-31

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FAN ON SIG

Blower motor fan switch OFF

Off

Blower motor fan switch ON

On

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER LOW

Front wiper switch OFF

Off

Front wiper switch LO

On

FR WIPER HI

Front wiper switch OFF

Off

Front wiper switch HI

On

FR WIPER INT

Front wiper switch OFF

Off

Front wiper switch INT

On

FR WIPER STOP

Any position other than front wiper stop position

Off

Front wiper stop position

On

HAZARD SW

When hazard switch is not pressed

Off

When hazard switch is pressed

On

HEAD LAMP SW 1

Headlamp switch OFF

Off

Headlamp switch 1st

On

HEAD LAMP SW 2

Headlamp switch OFF

Off

Headlamp switch 1st

On

HI BEAM SW

High beam switch OFF

Off

High beam switch HI

On

ID REGST FL1

ID registration of front left tire incomplete

YET

ID registration of front left tire complete

DONE

ID REGST FR1

ID registration of front right tire incomplete

YET

ID registration of front right tire complete

DONE

ID REGST RL1

ID registration of rear left tire incomplete

YET

ID registration of rear left tire complete

DONE

ID REGST RR1

ID registration of rear right tire incomplete

YET

ID registration of rear right tire complete

DONE

IGN ON SW

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN SW CAN

Ignition switch OFF or ACC

Off

Ignition switch ON

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

I-KEY LOCK

1

LOCK button of Intelligent Key is not pressed

Off

LOCK button of Intelligent Key is pressed

On

I-KEY PANIC

1

PANIC button of Intelligent Key is not pressed

Off

PANIC button of Intelligent Key is pressed

On

I-KEY PW DWN

1

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed for greater than 3 sec-
onds and driver’s window operating in DOWN direction

On

I-KEY UNLOCK

1

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed

On

Monitor Item

Condition

Value/Status

2011 Pathfinder

WCS-32

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

1: With Intelligent Key
2: With remote keyless entry system

KEY CYL LK-SW

Door key cylinder LOCK position

Off

Door key cylinder other than LOCK position

On

KEY CYL UN-SW

Door key cylinder UNLOCK position

Off

Door key cylinder other than UNLOCK position

On

KEY ON SW

Mechanical key is removed from key cylinder

Off

Mechanical key is inserted to key cylinder

On

KEYLESS LOCK

2

LOCK button of key fob is not pressed

Off

LOCK button of key fob is pressed

On

KEYLESS PANIC

2

PANIC button of key fob is not pressed

Off

PANIC button of key fob is pressed

On

KEYLESS UNLOCK

2

UNLOCK button of key fob is not pressed

Off

UNLOCK button of key fob is pressed

On

LIGHT SW 1ST

Lighting switch OFF

Off

Lighting switch 1st

On

OIL PRESS SW

• Ignition switch OFF or ACC
• Engine running

Off

Ignition switch ON

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5V

Dark outside of the vehicle

Close to 0V

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

PUSH SW

1

Return to ignition switch to LOCK position

Off

Press ignition switch

On

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER INT

Rear wiper switch OFF

Off

Rear wiper switch INT

On

RR WIPER ON

Rear wiper switch OFF

Off

Rear wiper switch ON

On

RR WIPER STOP

Rear wiper stop position

Off

Other than rear wiper stop position

On

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

VEHICLE SPEED

While driving

Equivalent to speedometer reading

WARNING LAMP

Low tire pressure warning lamp in combination meter OFF

Off

Low tire pressure warning lamp in combination meter ON

On

Monitor Item

Condition

Value/Status

2011 Pathfinder

WCS

BCM (BODY CONTROL MODULE)

WCS-33

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

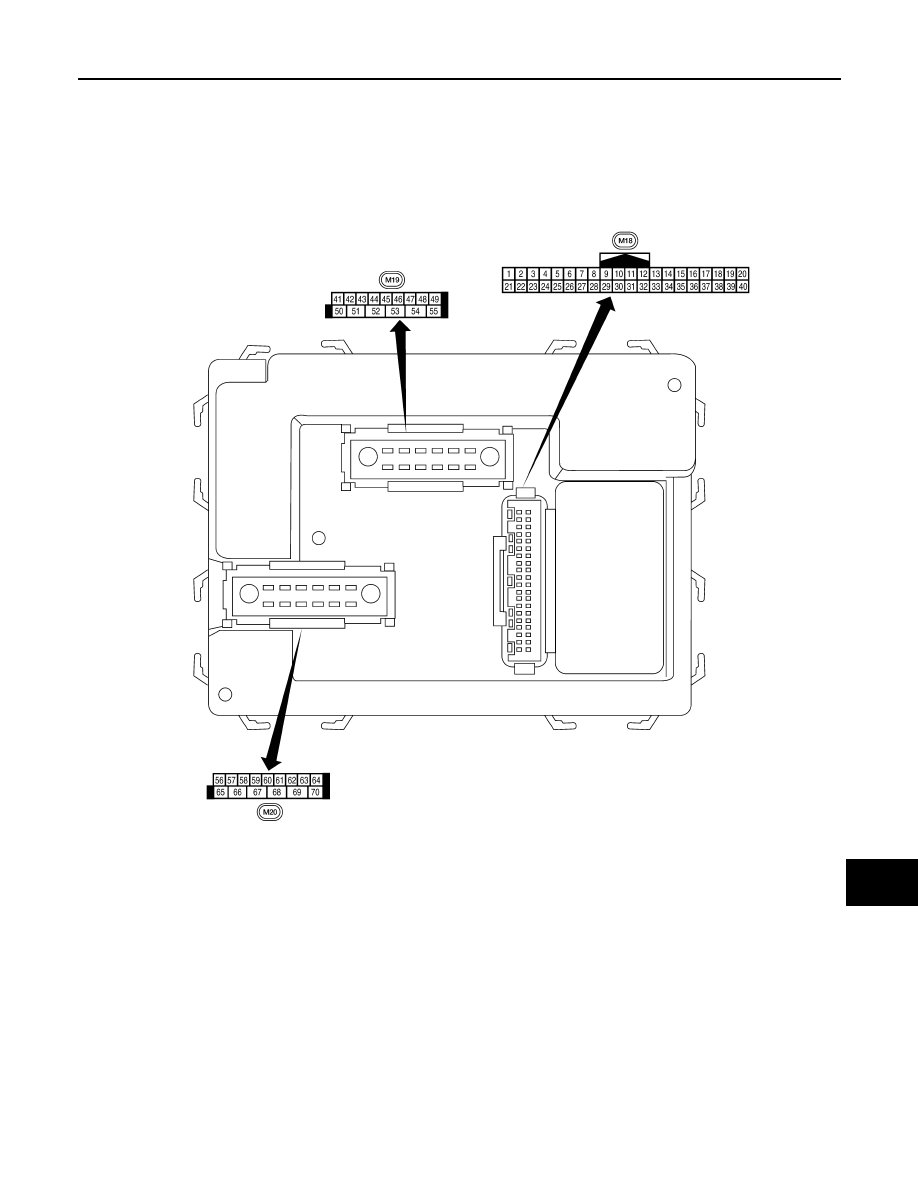

Terminal Layout

INFOID:0000000006706256

Physical Values

INFOID:0000000006706257

LIIA2443E

2011 Pathfinder

WCS-34

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

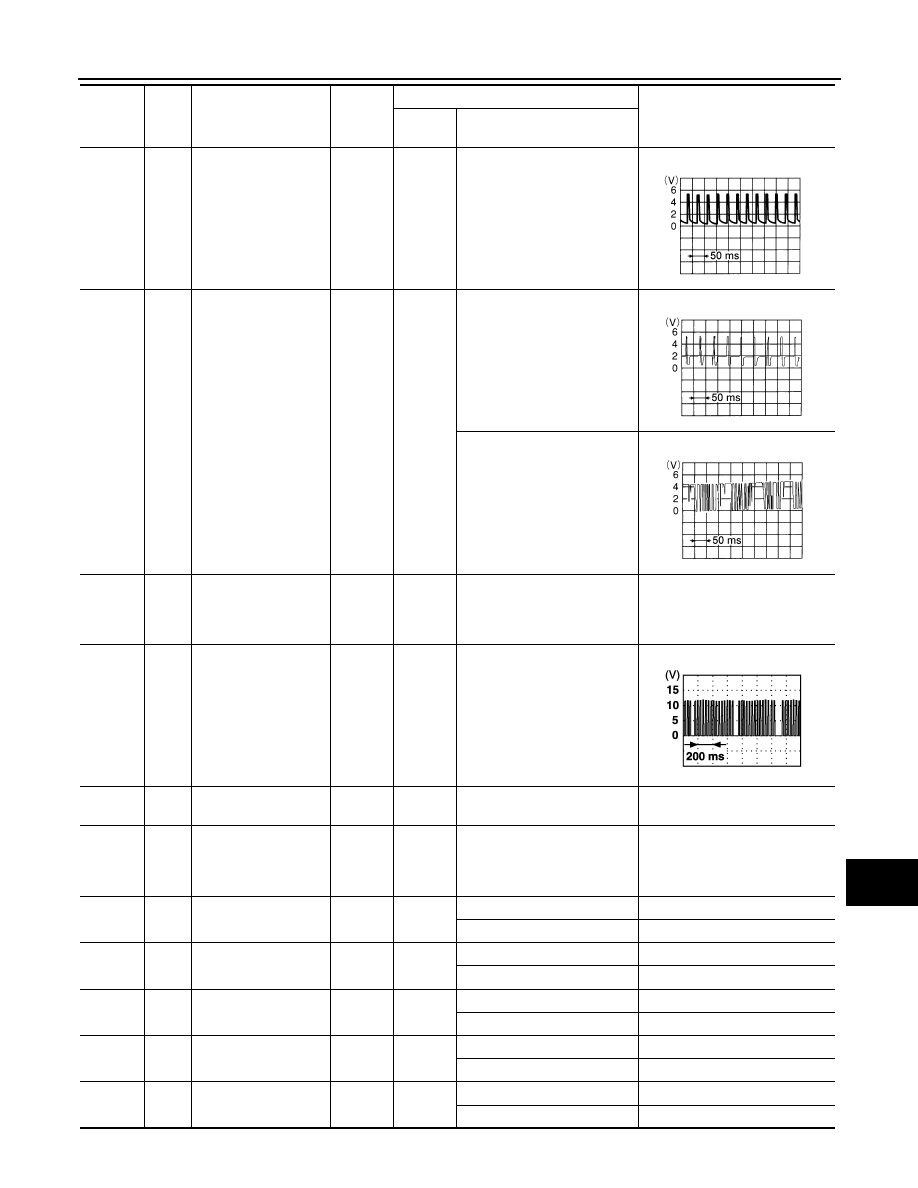

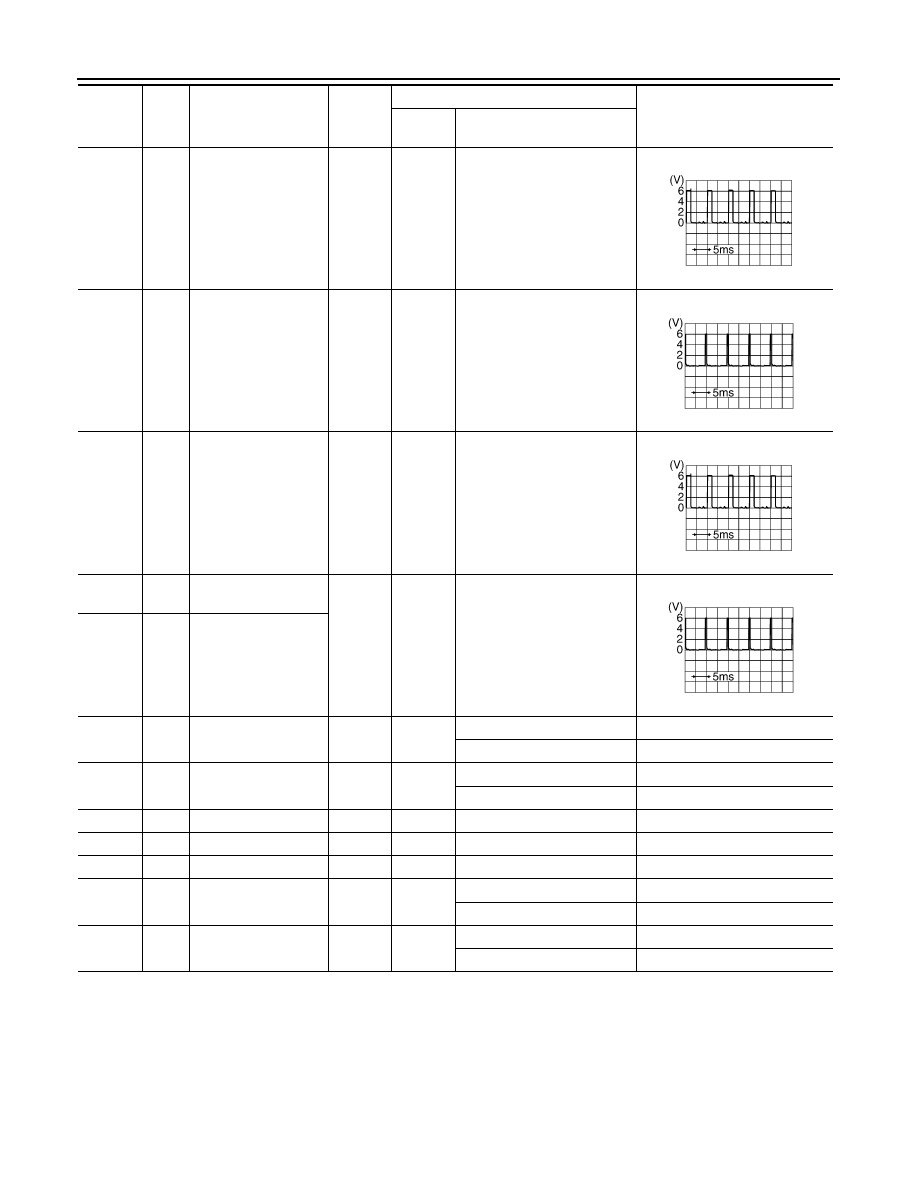

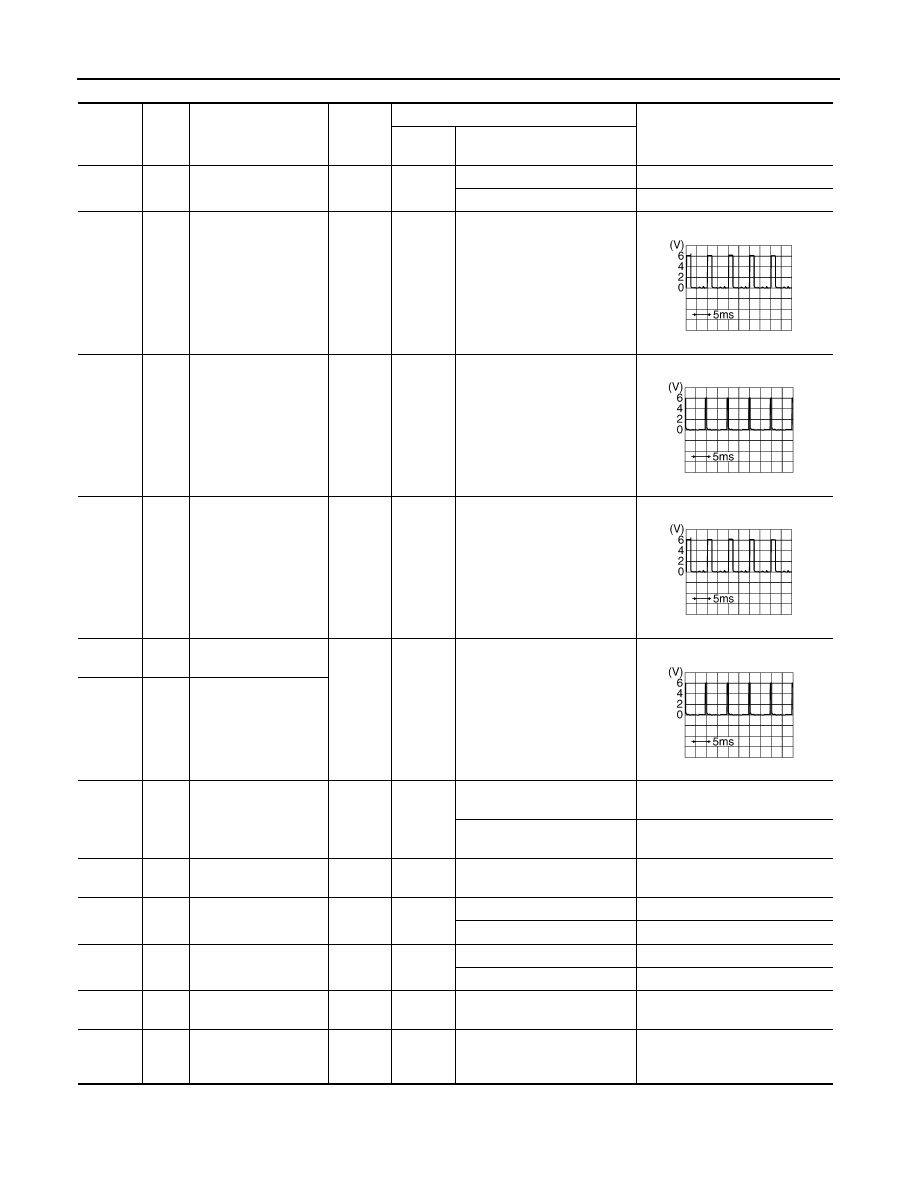

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

1

BR

Ignition keyhole illumi-
nation

Output

OFF

Door is locked (SW OFF)

Battery voltage

Door is unlocked (SW ON)

0V

2

P

Combination switch
input 5

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

3

SB

Combination switch
input 4

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

4

V

Combination switch
input 3

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

5

L

Combination switch
input 2

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

6

R

Combination switch
input 1

9

Y

Rear window defogger
switch

Input

ON

Rear window defogger switch
ON

0V

Rear window defogger switch
OFF

5V

11

G/B

Ignition switch (ACC
or ON)

Input

ACC or

ON

Ignition switch ACC or ON

Battery voltage

12

LG

Front door switch RH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

13

L

Rear door switch RH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

15

W

Tire pressure warning
check connector

Input

OFF

—

5V

18

BR

Remote keyless entry
receiver and optical
sensor (ground)

Output

OFF

—

0V

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

2011 Pathfinder

WCS

BCM (BODY CONTROL MODULE)

WCS-35

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

19

V

Remote keyless entry
receiver (power sup-
ply)

Output

OFF

Ignition switch OFF

20

G

Remote keyless entry
receiver (signal)

Input

OFF

Stand-by (keyfob buttons re-
leased)

When remote keyless entry
receiver receives signal from
keyfob (keyfob buttons
pressed)

21

GR

NATS antenna amp.

Input

OFF

→



ON

Ignition switch (OFF

→

 ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

22

V

BUS

—

—

Ignition switch ON or power
window timer operates

23

G

Security indicator
lamp

Output

OFF

Goes OFF

→

 illuminates (Ev-

ery 2.4 seconds)

Battery voltage

→

 0V

25

BR

NATS antenna amp.

Input

OFF

→



ON

Ignition switch (OFF

→

 ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

27

W

Compressor ON sig-
nal

Input

ON

A/C switch OFF

5V

A/C switch ON

0V

28

R

Front blower monitor

Input

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

29

G

Hazard switch

Input

OFF

ON

0V

OFF

5V

30

1

G

Back door opener
switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

30

2

SB

Back door opener
switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

LIIA1893E

LIIA1894E

LIIA1895E

PIIA2344E

2011 Pathfinder

WCS-36

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

32

O

Combination switch
output 5

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

33

GR

Combination switch
output 4

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

34

G

Combination switch
output 3

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

35

BR

Combination switch
output 2

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

36

LG

Combination switch
output 1

37

1

B

Key switch and key
lock solenoid

Input

OFF

Key inserted

Battery voltage

Key removed

0V

37

2

B

Key switch and igni-
tion knob switch

Input

OFF

Intelligent Key inserted

Battery voltage

Intelligent Key removed

0V

38

W/R

Ignition switch (ON)

Input

ON

—

Battery voltage

39

L

CAN-H

—

—

—

—

40

P

CAN-L

—

—

—

—

42

LG

Glass hatch ajar
switch

Input

ON

Glass hatch open

0V

Glass hatch closed

Battery voltage

43

P

Back door latch switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

2011 Pathfinder
