Nissan Pathfinder (2011 year). Manual - part 577





HYDRAULIC LINE

ST-27

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

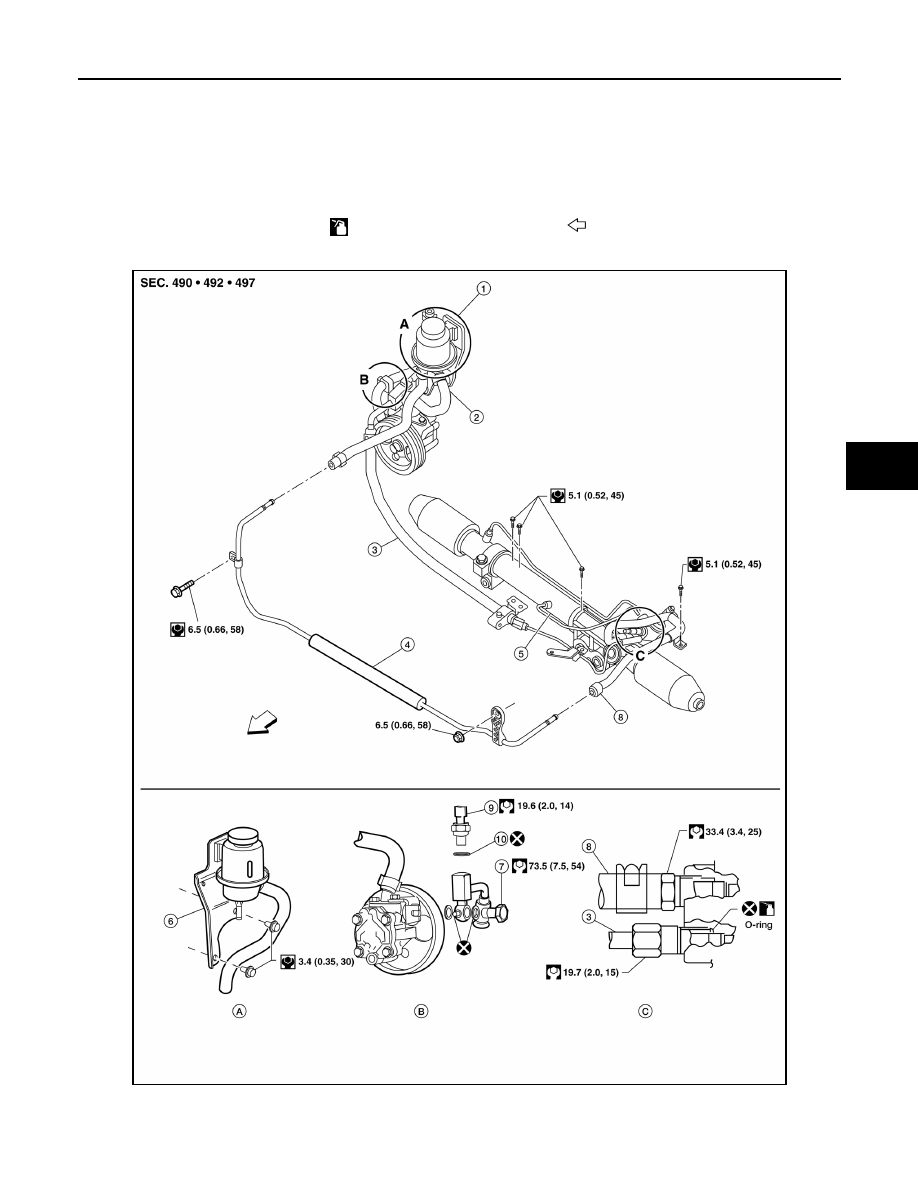

VK56DE ENGINE

1.

Reservoir tank

2.

Suction hose

3.

High pressure hose

4.

Oil cooler

5.

Steering gear assembly

6.

Reservoir tank

7.

Reservoir tank bracket

8.

Return hose

9.

Hose clamps

10. Suction hose

11. Connector bolts

12. Copper sealing washers

13. Power steering pressure

sensor

14. O-ring

D.

Low pressure hose

E.

High pressure hose

Genuine Nissan PSF or equivalent

Front

AWGIA0199GB

1.

Reservoir tank

2.

Suction hose

3.

High pressure hose

4.

Oil cooler

5.

Steering gear assembly

6.

Reservoir tank bracket

2011 Pathfinder

ST-28

< UNIT REMOVAL AND INSTALLATION >

HYDRAULIC LINE

7.

Eye bolt

8.

Return hose

9.

Power steering pressure sensor

10. O-ring

Genuine Nissan PSF or equivalent

Front

2011 Pathfinder

STEERING COLUMN

ST-29

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

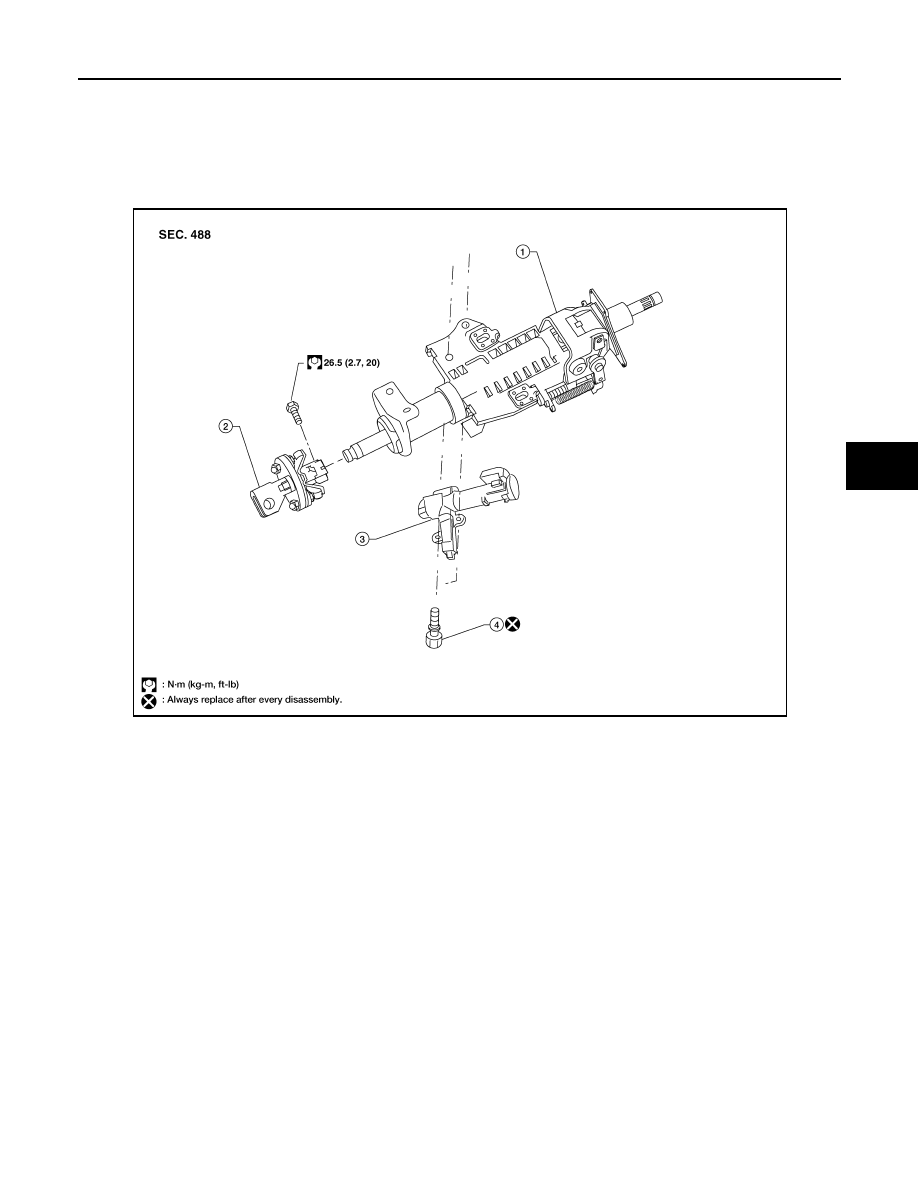

STEERING COLUMN

Disassembly and Assembly

INFOID:0000000006247249

DISASSEMBLY

1. Remove the bolt from the upper joint, then remove the upper joint from the steering column assembly.
2. Remove the ignition switch tamper resistant self-shear screws, using a drill.
3. Remove the ignition switch from the steering column.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

Any time the ignition switch has been removed and installed, the keys must be re-registered in the

BCM. Refer to CONSULT–III Operation Manual IVIS/NVIS.

NOTE:

1.

Steering column assembly

2. Upper joint

3.

Ignition switch

4.

Self-shear screw

WGIA0126E

2011 Pathfinder

ST-30

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING COLUMN

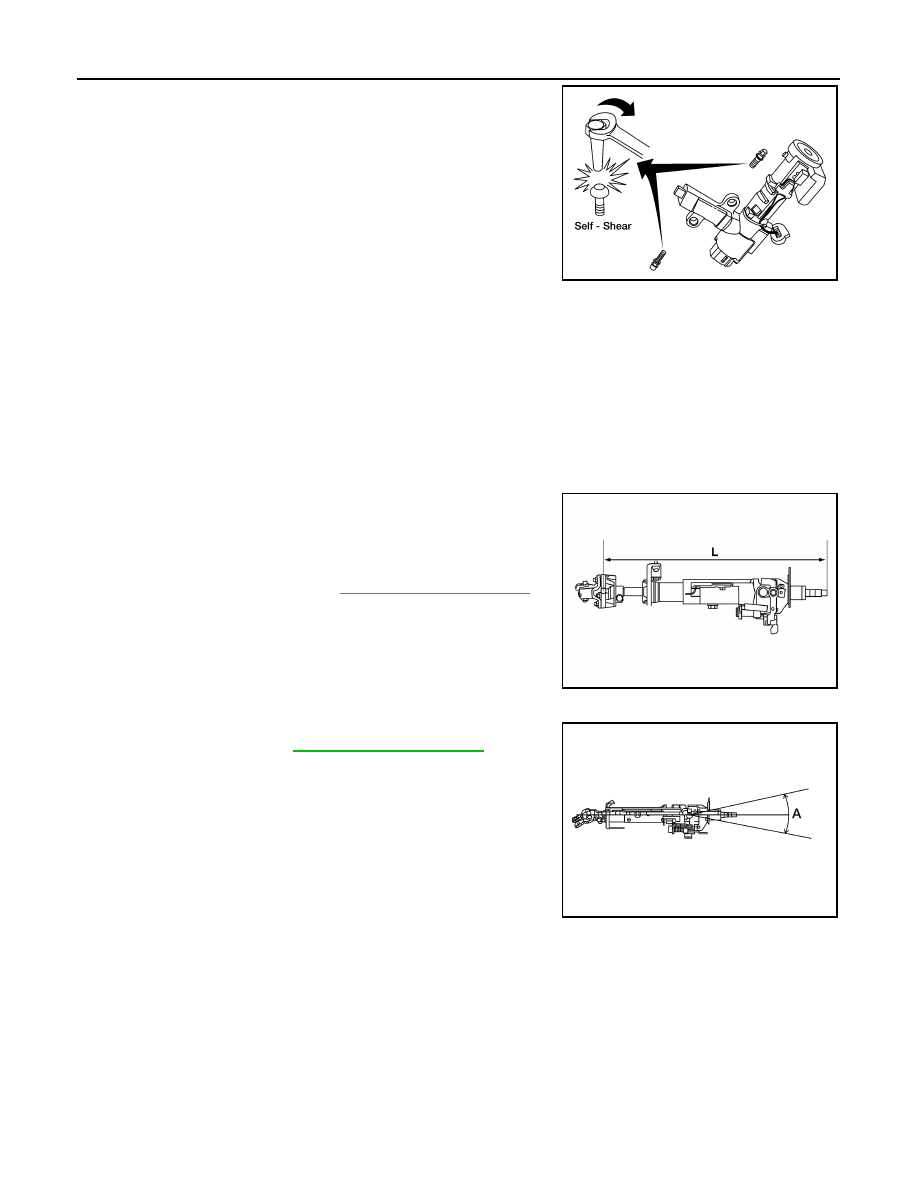

Install new tamper resistant self-shear screws.

INSPECTION AFTER ASSEMBLY

When the steering wheel does not turn smoothly, check as follows:
1. Check the steering column for the following:

• Damage to the column tube or bearings

• Wear around the seal edges

• Corrosion or pitting around the seal sliding area

Replace the steering column as an assembly, if necessary.

CAUTION:

• Do not exert any axial load or impact to the steering column.

• Replace the column if it is depleted of grease, worn, damaged, or if any scratches or coating

separation is present on the shaft seal area.

2. If the vehicle has been in a collision, or if noises are heard com-

ing from the steering column, check column length (L) as shown.

If out of specification, replace the steering column as an assem-

bly.

3. Check the tilt device for proper operation range.

WGIA0009E

Steering column
length (L)

Refer to

ST-36, "Steering Column"

.

AWGIA0147ZZ

Range (A)

Refer to

ST-36, "Steering Column"

.

WGIA0083E

2011 Pathfinder

POWER STEERING OIL PUMP

ST-31

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

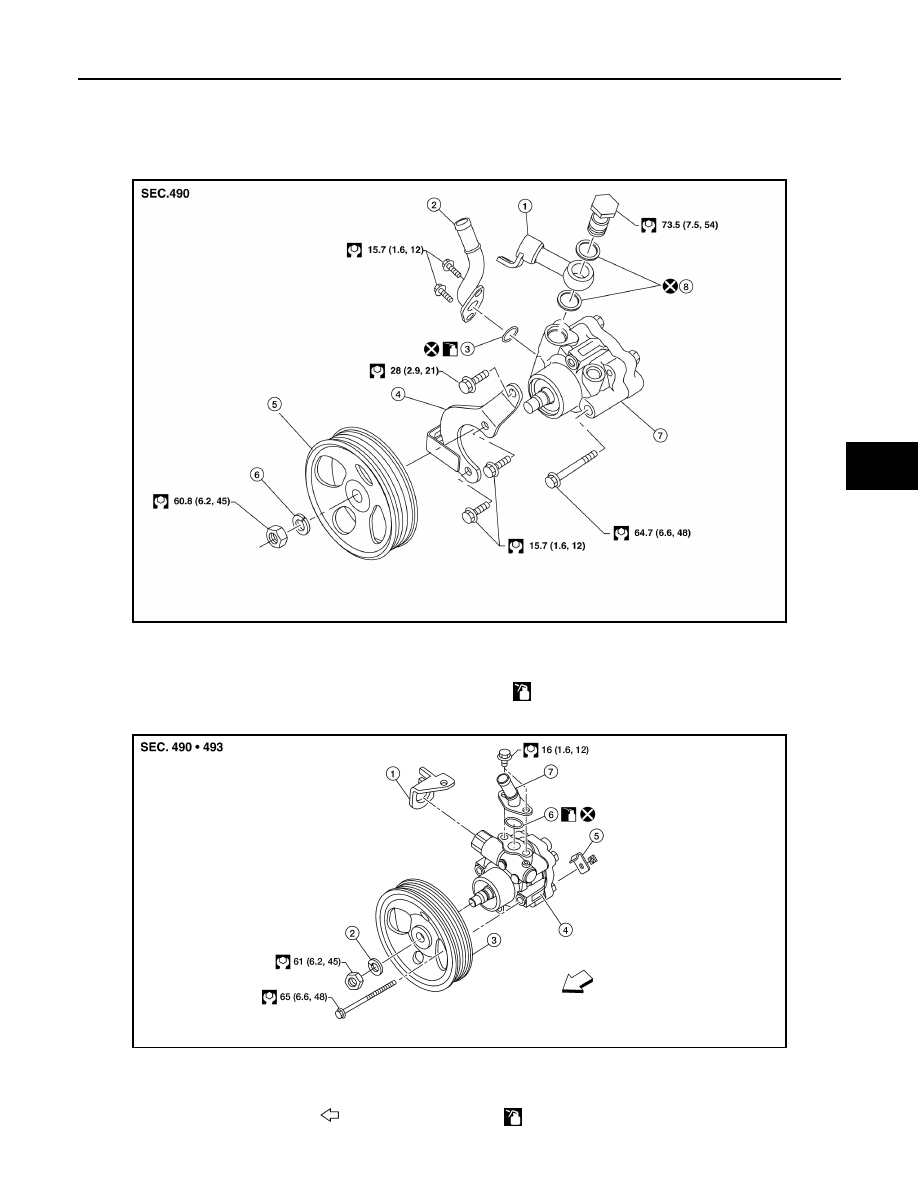

POWER STEERING OIL PUMP

Disassembly and Assembly

INFOID:0000000006247250

VQ40DE ENGINE

VK56DE ENGINE

AWGIA0137GB

1.

Connector

2.

Suction pipe

3.

O-ring

4.

Bracket

5.

Pulley

6.

Lock washer

7.

Body assembly

8.

Copper sealing washers

Apply Genuine NISSAN PSF or equivalent

LGIA0038E

1.

Bracket

2.

Spring washer

3.

Pulley

4.

Power steering pump

5.

High pressure bracket

6.

O-ring

7.

Suction pipe

Front

Apply Genuine NISSAN PSF or equivalent

2011 Pathfinder

ST-32

< UNIT DISASSEMBLY AND ASSEMBLY >

POWER STEERING OIL PUMP

INSPECTION BEFORE DISASSEMBLY

Disassemble the power steering oil pump only if the following items are found.

• Deformed or damaged pulley, bracket, connector or suction pipe

• Oil leakage from the suction pipe or connector.

DISASSEMBLY

NOTE:

Mount the power steering oil pump in a vise as needed.
1. Remove the connector bolt, connector and copper sealing washers.

CAUTION:

Do not reuse the copper sealing washers.

2. Remove the suction pipe and O-ring.

CAUTION:

Do not reuse the O-ring.

3. Remove the pulley nut and pulley.
4. Remove the bracket bolts and bracket(s).

INSPECTION AFTER DISASSEMBLY

Body Assembly Inspection

Check the power steering oil pump body assembly for damage. If any damage is found, replace with a new

power steering oil pump assembly.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

• Do not reuse O-rings or copper sealing washers.

• Do not reuse the O-ring. Apply a coat of Genuine NISSAN PSF or equivalent to the O-ring. Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubricants"

 (United States and Canada),

MA-20, "FOR

MEXICO : Fluids and Lubricants"

 (Mexico).

2011 Pathfinder

STEERING GEAR AND LINKAGE

ST-33

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

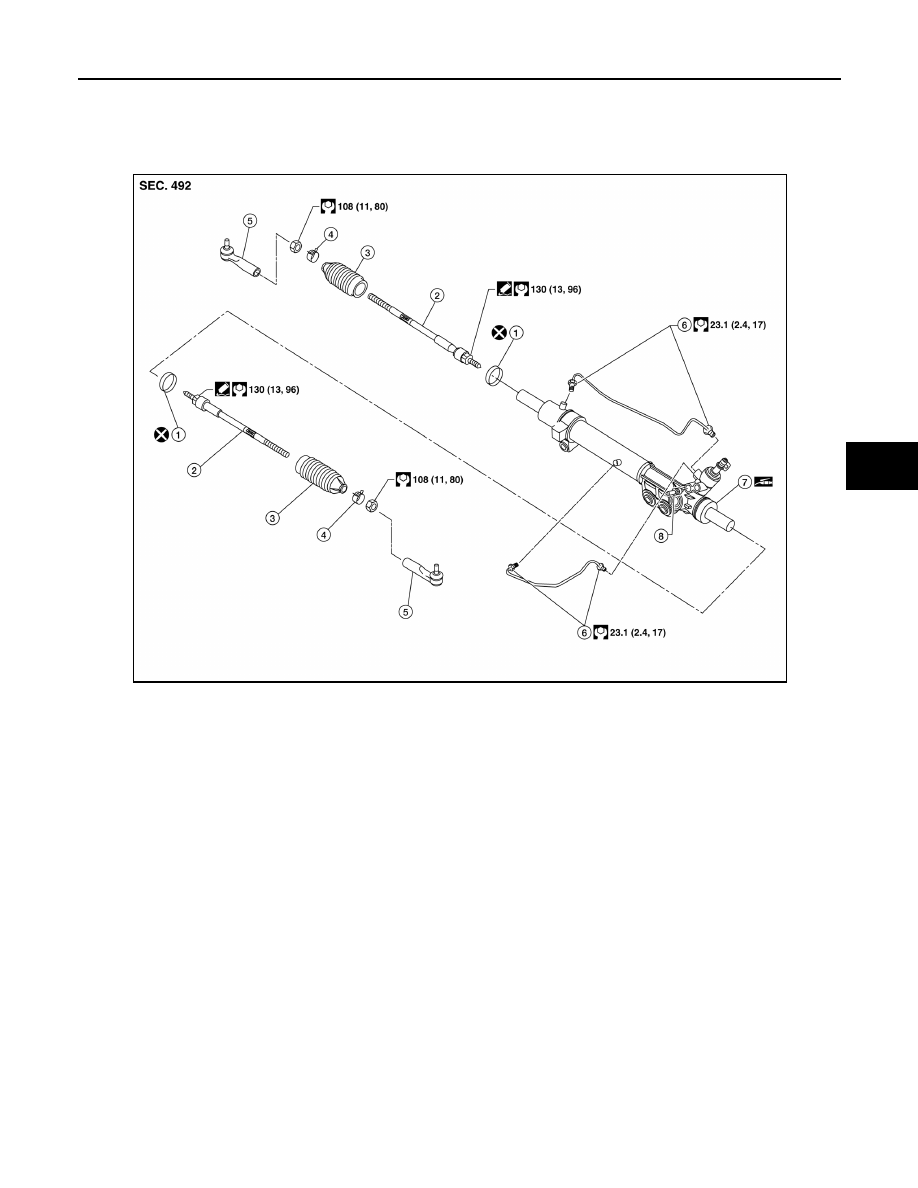

STEERING GEAR AND LINKAGE

Disassembly and Assembly

INFOID:0000000006247251

CAUTION:

• Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from

being damaged. Do not grip the cylinder with a vise.

• Before performing disassembly, clean the gear housing assembly. Be careful not to allow any

cleaner to contact the discharge and return port connectors.

DISASSEMBLY

1. Remove the cylinder tubes from the gear housing assembly.
2. Loosen the lock nuts of the outer sockets, then remove the outer sockets from the inner sockets.
3. Remove the boot clamps from the boots, then remove the boots from the inner sockets and gear housing

assembly.

CAUTION:

• Do not reuse the large-diameter boot clamps.

• Do not damage the boots, inner socket or gear housing assembly. If they are damaged, replace

them.

4. Remove the inner sockets.

INSPECTION AFTER DISASSEMBLY

Boot

Check boot for tears, cracks and deformation. Replace if necessary.

1.

Boot clamp

2.

Inner socket

3.

Boot

4.

Boot clamp

5.

Outer socket

6.

Cylinder tubes

7.

Gear housing assembly

8.

Connector

AWGIA0139GB

2011 Pathfinder

ST-34

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

Gear Housing Assembly

Check gear housing assembly for dents, cracks or damage. Replace as an assembly if necessary.

Outer Socket and Inner Socket

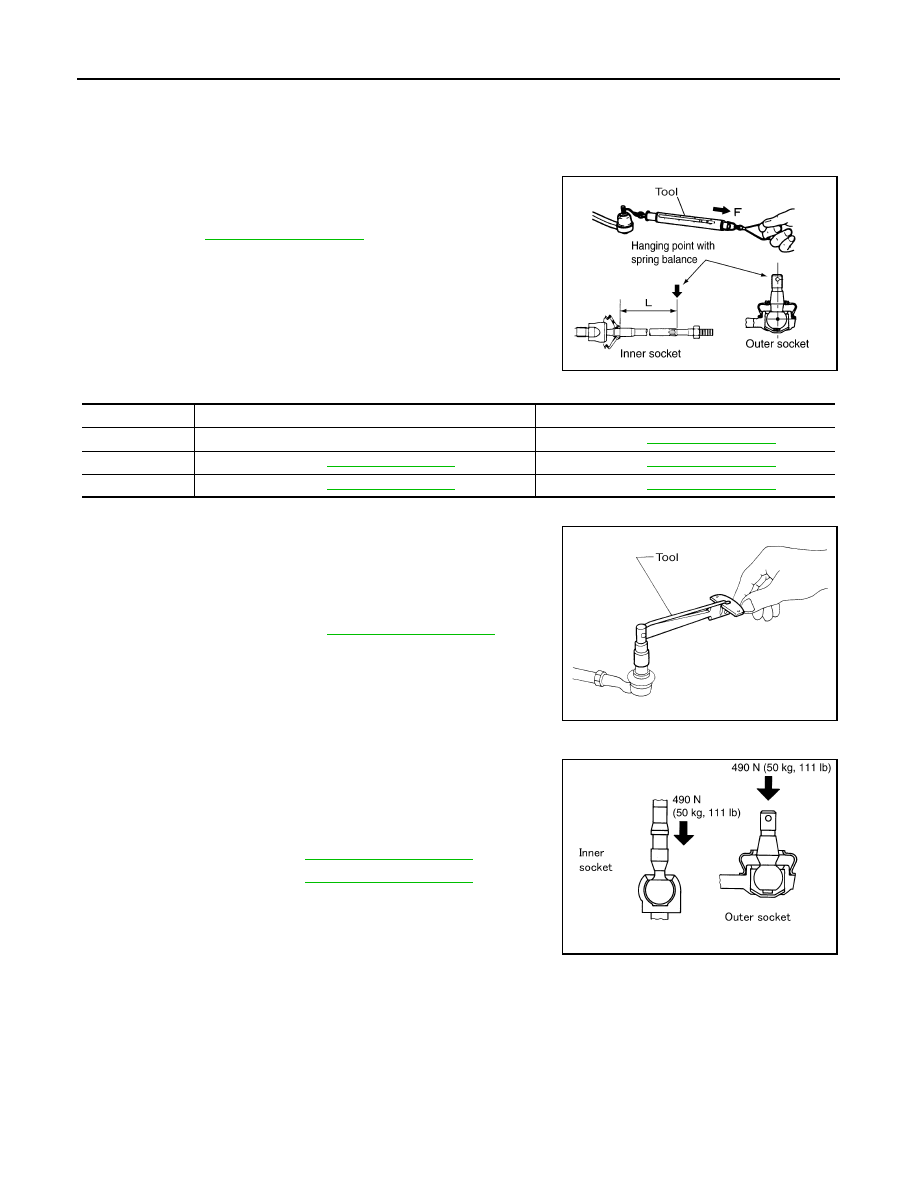

SWING TORQUE

• Measure the swing torque, using Tool. When ball stud and inner

socket start moving the measured value must be within the specifi-

cation. If the reading is outside the specification, replace the

socket. Refer to

ST-36, "Steering Gear"

.

ROTATING TORQUE

• Measure the rotating torque, using Tool. If the value is outside the

specification, replace the outer sockets.

AXIAL END PLAY

• Apply a load of 490 N (50 kg, 110 lb) to the ball stud axially. Use a

dial gauge to measure the amount of the movement that the stud

makes. If the value is outside the specification, replace the sock-

ets.

ASSEMBLY

1. Install the inner sockets.

Tool number

:

—

(J-44372)

AWGIA0153ZZ

Item

Outer socket

Inner socket

Measuring point

Cotter pin hole of stud

Refer to

ST-36, "Steering Gear"

Swing torque

Refer to

ST-36, "Steering Gear"

Refer to

ST-36, "Steering Gear"

Measuring value

Refer to

ST-36, "Steering Gear"

Refer to

ST-36, "Steering Gear"

Tool number

: ST3127S000 (J-25765-A)

Outer socket
rotating torque

Refer to

ST-36, "Steering Gear"

.

WGIA0132E

Outer socket Refer to

ST-36, "Steering Gear"

.

Inner socket

Refer to

ST-36, "Steering Gear"

.

SGIA0057E

2011 Pathfinder
