Nissan Pathfinder (2011 year). Manual - part 487

MA-20

< PERIODIC MAINTENANCE >

RECOMMENDED FLUIDS AND LUBRICANTS

FOR MEXICO
FOR MEXICO : Fluids and Lubricants

INFOID:0000000006243392

*1: For further details, refer to

MA-20, "FOR MEXICO : SAE Viscosity Number"

*2: Use Genuine NISSAN Engine Coolant or equivalent in its quality, in order to avoid possible aluminium corrosion within the
engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty period.

*3: If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used. Using automatic transmission
fluid other than Genuine NISSAN Matic S ATF or Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic
transmission durability, and may damage the automatic transmission, which is not covered by the warranty.
*4: See a NISSAN dealership for service for synthetic oil.

*5: DEXRON

VI type ATF may also be used.

*6: For further details, see “Air conditioner specification label”.
*7: Using fluid other than Genuine NISSAN Matic D ATF will cause deterioration in driveability and transfer durability, and may damage
the transfer, which is not covered by the warranty.

FOR MEXICO : SAE Viscosity Number

INFOID:0000000006243393

GASOLINE ENGINE

• 10W-30 is preferable.

Description

Capacity (Approximate)

Recommended Fluids/Lubricants

Metric

US measure

Imp measure

Fuel

21 1/8 gal

17 5/8 gal

Premium unleaded gasoline with an
octane rating of at least 91 AKI (RON
96)

Engine oil
Drain and refill

With oil filter change

5.1

5 3/8 qt

4 1/2 qt

Genuine NISSAN engine oil *1
API grade SL or SM *1
ILSAC grade GF-2, GF-3 or GF-4 *1
Viscosity SAE 10W-30

Without oil filter
change

4.8

5 1/8 qt

4 1/4 qt

Dry engine (engine overhaul)

6.3

6 5/8 qt

5 1/2 qt

Cooling system
(with reservoir at “MAX” level)

10.2

10 3/4 qt

9 qt

Genuine NISSAN Engine Coolant or
equivalent in its quality *2

Automatic transmission fluid (ATF)

10.3

10 7/8 qt

9 1/8 qt

Genuine NISSAN Matic S ATF *3

Rear final drive oil

1.4

3 pt

2 1/2 pt

API GL-5 synthetic gear oil, Viscosity
SAE 75W-90 or equivalent *4

Transfer fluid

ATX14B

3.0

3 1/8 qt

2 5/8 qt

Genuine NISSAN Matic D ATF recom-
mended *7

Front final drive oil

0.85

1 3/4 pt

1 1/2 pt

Genuine NISSAN Differential Oil Hy-
poid Super GL-5 80W-90 or API GL-5,
Viscosity SAE 80W-90 *1

Power steering fluid (PSF)

1.0

2 1/8 pt

1 3/4 pt

Genuine NISSAN PSF or equivalent *5

Brake fluid

—

Genuine NISSAN Brake Fluid, or
equivalent DOT 3

Multi-purpose grease

—

NLGI No. 2 (lithium soap base)

Windshield washer fluid

4.5

1 1/4 gal

1 gal

Genuine NISSAN Windshield Washer
Concentrate Cleaner & Anti-freeze or
equivalent

A/C system refrigerant

0.85

0.05 kg

1.87

0.11 lb

1.87

0.11 lb

HFC-134a (R134a) *6

A/C system oil

210 m

7.1 fl oz

7.4 fl oz

A/C System Oil Type S (DH-PS) *6

2011 Pathfinder

RECOMMENDED FLUIDS AND LUBRICANTS

MA-21

< PERIODIC MAINTENANCE >

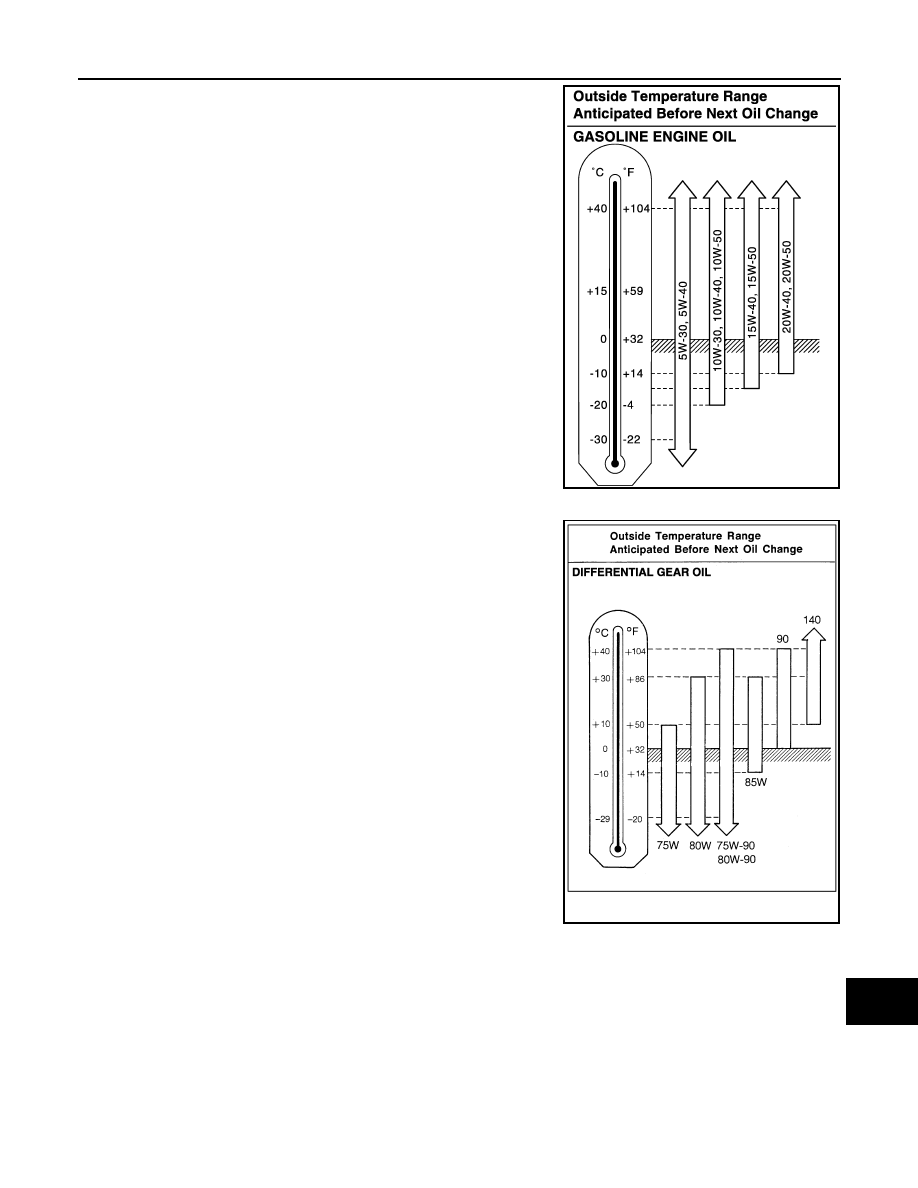

If 10W-30 is not available, select the viscosity, from the chart, that

is suitable for the outside temperature range.

DIFFERENTIAL GEAR OIL

• 80W-90 for the front final drive is preferable.

FOR MEXICO : Engine Coolant Mixture Ratio

INFOID:0000000006826782

The engine cooling system is filled at the factory with a high-quality, year-round and extended life engine cool-

ant. The high quality engine coolant contains the specific solutions effective for the anti-corrosion and the anti-

freeze function. Therefore, additional cooling system additives are not necessary.

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-

sure fluid escaping from the radiator. Wait until the engine and radiator cool down.

JPPIA0003GB

JPPIA0001GB

2011 Pathfinder

MA-22

< PERIODIC MAINTENANCE >

RECOMMENDED FLUIDS AND LUBRICANTS

Coolant Mixture Ratio

CAUTION:

• When adding or replacing coolant, be sure to use only Genuine NISSAN Engine Coolant or equiva-

lent in quality with the proper mixture ratio.

• The use of other types of engine coolant may damage your cooling system.

When checking the engine coolant mixture ratio by the coolant hydrometer, use the chart below to correct your

hydrometer reading (specific gravity) according to coolant temperature.

Mixed coolant specific gravity

Unit: specific gravity

Outside temperature down to

Composition

Engine coolant

(concentrated)

Demineralized water

or distilled water

– 15

30%

70%

– 35

– 30

50%

Engine coolant mixture

ratio

Coolant temperature

C (

15 (59)

25 (77)

35 (95)

45 (113)

30%

1.046 - 1.050

1.042 - 1.046

1.038 - 1.042

1.033 - 1.038

50%

1.076 - 1.080

1.070 - 1.076

1.065 - 1.071

1.059 - 1.065

2011 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-23

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

DRIVE BELTS

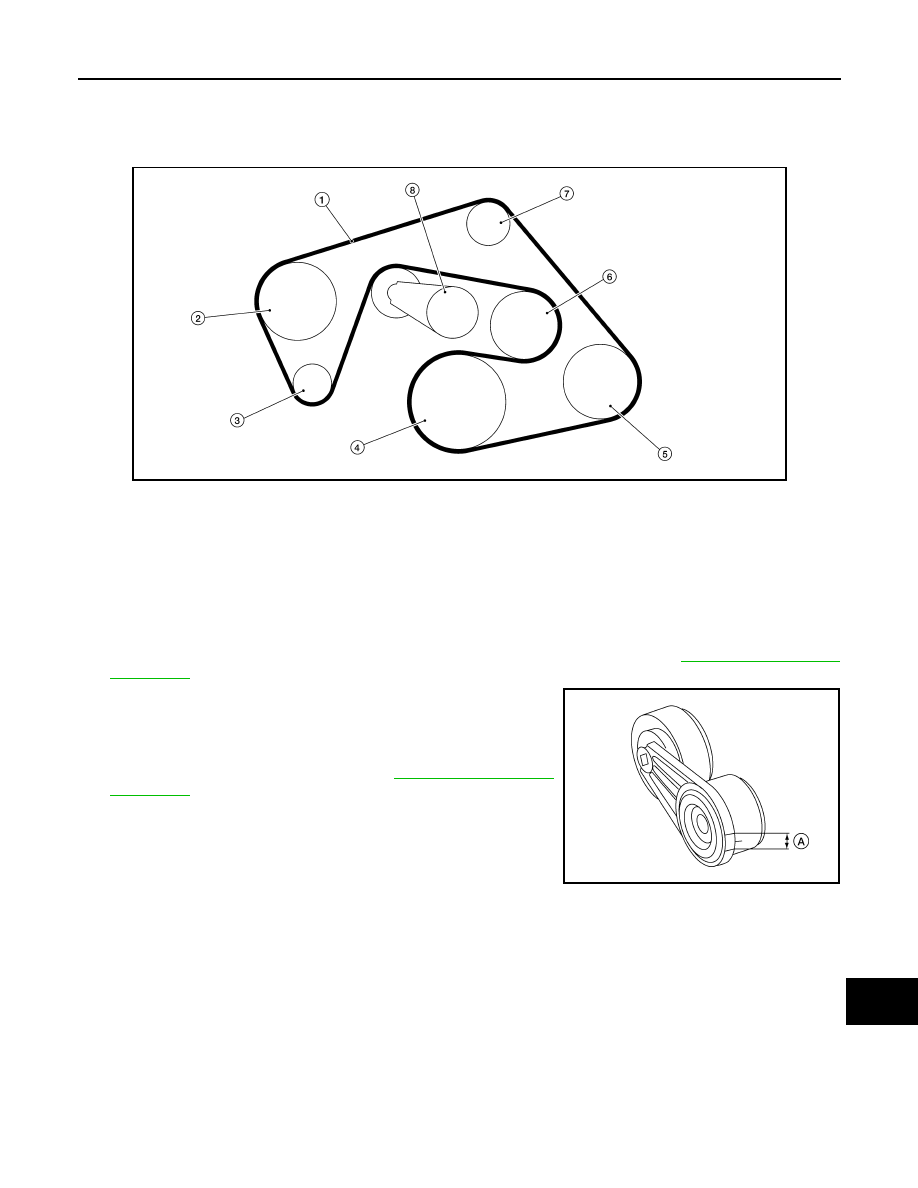

DRIVE BELTS : Exploded View

INFOID:0000000006827541

DRIVE BELTS : Checking Drive Belts

INFOID:0000000006827542

WARNING:

Be sure to perform when the engine is stopped.

1. Remove air duct and resonator assembly when inspecting drive belt. Refer to

EM-26, "Removal and

Installation"

2. Make sure that the auto tensioner indicator is within the allow-

able working range (A) as shown.

3. Visually check entire belt for wear, damage or cracks.
4. If the indicator is out of the allowable range or drive belt is dam-

aged, replace the drive belt. Refer to

EM-14, "Removal and

Installation"

ENGINE COOLANT
ENGINE COOLANT : System Inspection

INFOID:0000000006827543

WARNING:

• Never remove the radiator/reservoir cap when the engine is hot. Serious burns could occur from

high pressure fluid escaping from the radiator or reservoir.

• Wrap a thick cloth around the cap. Slowly push down and turn it a quarter turn to allow built-up pres-

sure to escape. Carefully remove the cap by pushing down and turning it all the way.

CHECKING COOLING SYSTEM HOSES

Check hoses for the following:

• Improper attachment

• Leaks

LBIA0427E

Drive belt

Power steering oil pump pulley

Generator pulley

Crankshaft pulley

A/C compressor

Cooling fan pulley

Idler pulley

Drive belt tensioner

AWBIA0723ZZ

2011 Pathfinder

MA-24

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

• Cracks

• Damage

• Loose connections

• Chafing

• Deterioration

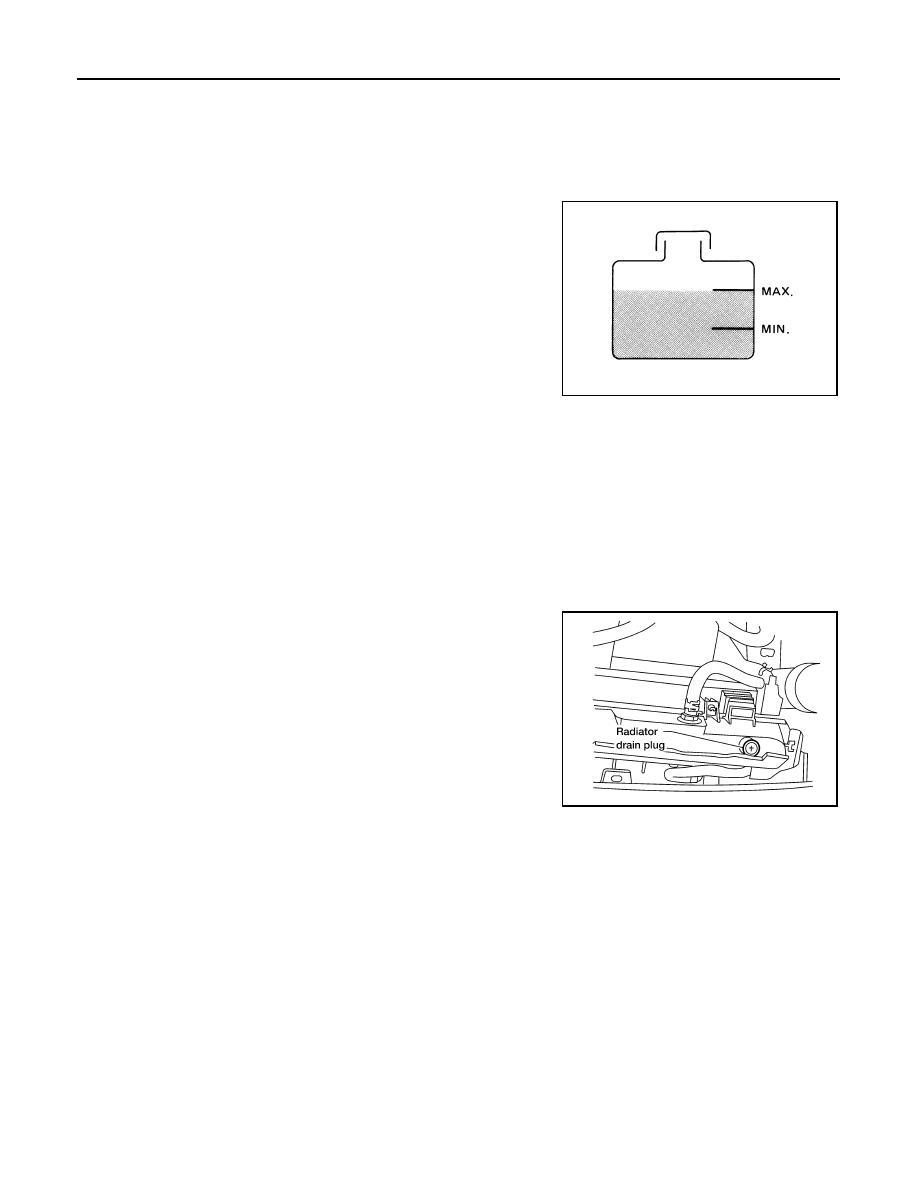

CHECKING RESERVOIR LEVEL

• Check if the engine coolant reservoir tank level is within MIN to

MAX when the engine is cool.

• Adjust engine coolant level as necessary.

ENGINE COOLANT : Changing Engine Coolant

INFOID:0000000006827544

WARNING:

• To avoid being scalded, never change the coolant when the engine is hot.

• Wrap a thick cloth around the cap to carefully remove the cap. First, turn the cap a quarter of a turn

to release any built-up pressure, then push down and turn the cap all the way to remove it.

DRAINING ENGINE COOLANT

1. Turn ignition switch ON and set temperature control lever all the way to HOT position or the highest tem-

perature position. Wait 10 seconds and turn ignition switch OFF.

2. Remove the engine under cover using power tool.
3. Open the radiator drain plug at the bottom of the radiator, and

remove the reservoir cap. This is the only step required when

partially draining the cooling system (radiator only).

CAUTION:

• Perform this step when the engine is cold.

• Do not allow the coolant to contact the drive belts.

SMA412B

LLIA0070E

2011 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-25

< PERIODIC MAINTENANCE >

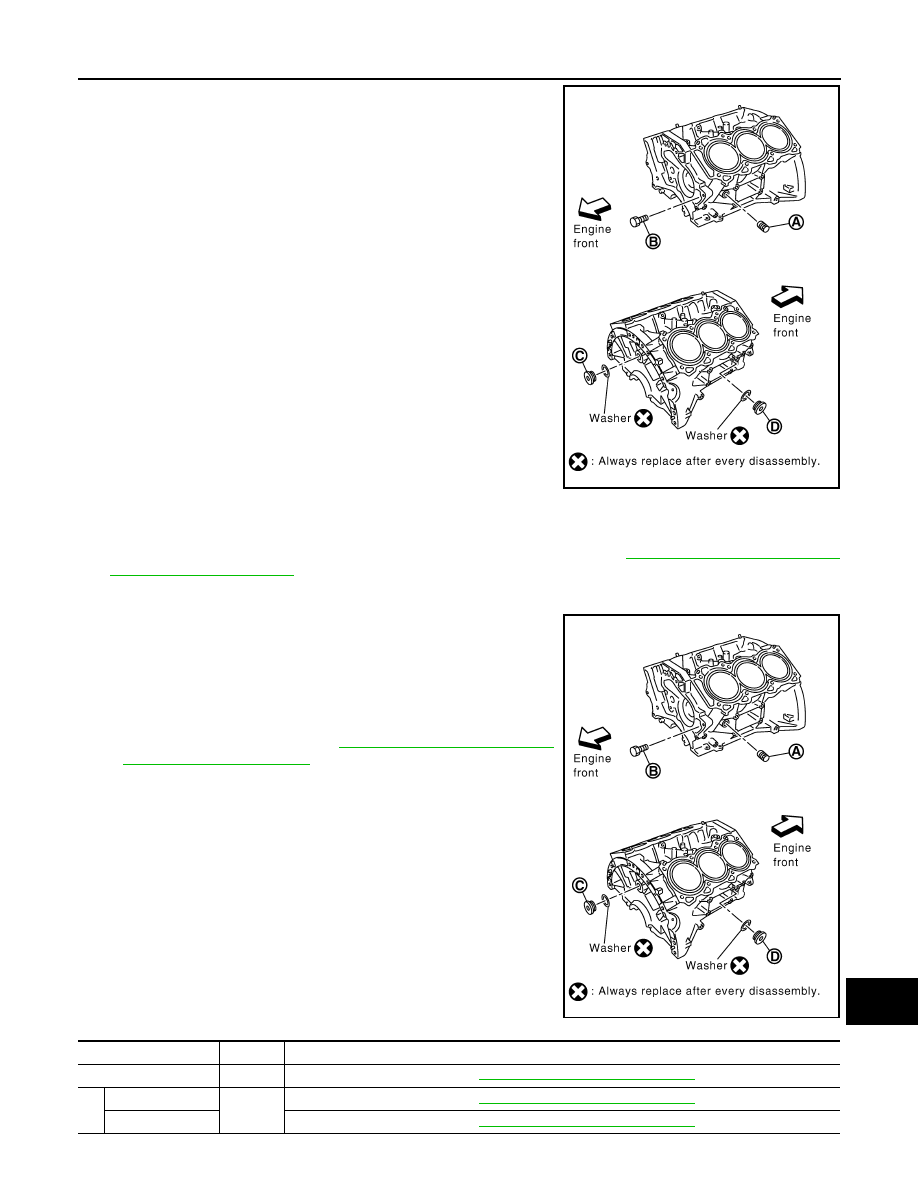

4. When draining all of the coolant in the system for engine

removal or repair, it is necessary to drain the cylinder block.

Remove the cylinder block drain plugs (A), (B), (C), (D) and

block heater if equipped, to drain the cylinder block as shown.

CAUTION:

Do not reuse copper sealing washers.

NOTE:

For Canada, the (D) cylinder block drain plug as shown, is not a

cylinder block drain plug but a block heater.

5. Remove the reservoir tank to drain the engine coolant, then clean the reservoir tank before installing it.
6. Check the drained coolant for contaminants such as rust, corrosion or discoloration.

If the coolant is contaminated, flush the engine cooling system. Refer to

MA-24, "ENGINE COOLANT :

Changing Engine Coolant"

REFILLING ENGINE COOLANT

1. Close the radiator drain plug. Install the reservoir tank, cylinder

block drain plugs (A), (B), (C), (D) and block heater if equipped,

if removed for a total system drain or for engine removal or

repair.

• The radiator must be completely empty of coolant and water.

• Apply sealant to the threads of the cylinder block drain plugs

(A), (B), (C), (D). Use Genuine High Performance Thread

Sealant or equivalent. Refer to

GI-14, "Recommended Chemi-

cal Products and Sealants"

CAUTION:

Do not reuse copper sealing washers.

Block Plug and Block Heater Installation

WLIA0020E

Part

Washer

Tightening Torque

Refer to

EM-106, "Disassembly and Assembly"

Reuse

Refer to

EM-106, "Disassembly and Assembly"

New

Refer to

EM-106, "Disassembly and Assembly"

2011 Pathfinder

MA-26

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

2. Set the vehicle heater controls to the full HOT and heater ON position. Turn the vehicle ignition ON with

the engine OFF as necessary to activate the heater mode.

3. Remove the vented reservoir cap and replace it with a non-vented reservoir cap before filling the cooling

system.

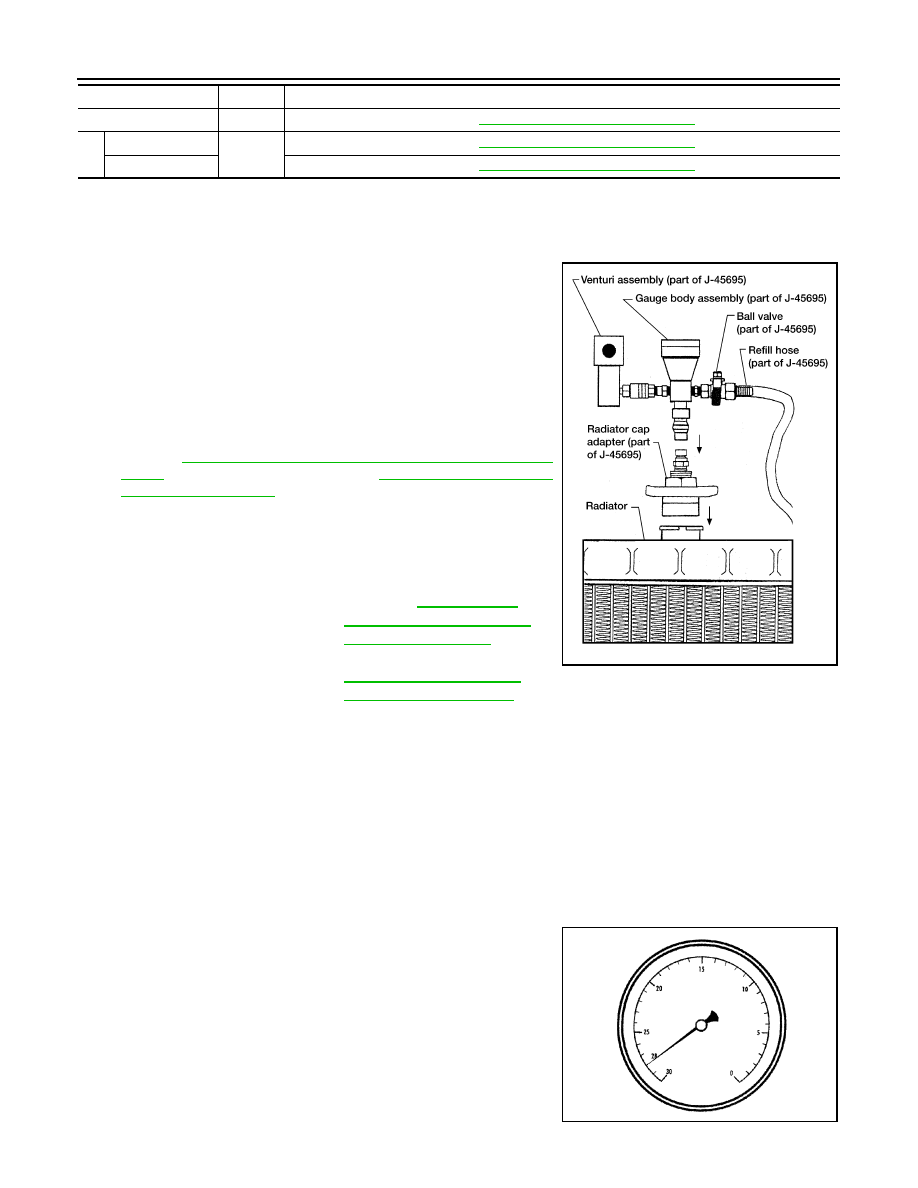

4. Install the Tool by installing the radiator cap adapter onto the

radiator neck opening. Then attach the gauge body assembly

with the refill tube and the venturi assembly to the radiator cap

adapter.

5. Insert the refill hose into the coolant mixture container that is

placed at floor level. Make sure the ball valve is in the closed

position.

• Use recommended coolant or equivalent.

Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubri-

cants"

(United States and Canada),

MA-20, "FOR MEXICO :

Fluids and Lubricants"

(Mexico).

CAUTION:

Never use any cooling system additives such as radiator

sealer. Additives may clog the cooling system and cause

damage to the engine, transmission and/or cooling system.

6. Install an air hose to the venturi assembly, the air pressure must be within specification.

CAUTION:

The compressed air supply must be equipped with an air dryer.

7. The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open

the ball valve on the refill hose slightly. Rising coolant will be visible in the refill hose. After the refill hose is

full of coolant, close the ball valve. This will purge air trapped in the refill hose.

8. Continue to draw the vacuum until the gauge reaches 28 inches

of vacuum. The gauge may not reach 28 inches in high altitude

locations. Refer to the following table for expected vacuum read-

ings.

Yes

Refer to

EM-106, "Disassembly and Assembly"

Plug

Yes

Refer to

EM-106, "Disassembly and Assembly"

Block heater

Refer to

EM-106, "Disassembly and Assembly"

Part

Washer

Tightening Torque

Tool number

: KV991J0070 (J-45695)

Cooling system capacity
(with reservoir)

: Refer to

MA-18, "FOR

USA AND CANADA : Flu-
ids and Lubricants"

(Unit-

ed States and Canada),

MA-20, "FOR MEXICO :
Fluids and Lubricants"

(Mexico).

Compressed air
supply pressure

: 549 - 824 kPa (5.6 - 8.4 kg/cm

80 - 119 psi)

LLIA0058E

Altitude above sea level

Vacuum gauge reading

0 - 100 m (328 ft)

: 28 inches of vacuum

300 m (984 ft)

: 27 inches of vacuum

500 m (1,641 ft)

: 26 inches of vacuum

1,000 m (3,281 ft)

: 24 - 25 inches of vacuum

LLIA0057E

2011 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-27

< PERIODIC MAINTENANCE >

9. When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds

to see if the system loses vacuum. If the vacuum level drops, perform necessary repairs to the system

and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for leaks.

10. Place the coolant container (with the refill hose inserted) at the same level as the top of the radiator. Then

open the ball valve on the refill hose so the coolant will be drawn up to fill the cooling system. The cooling

system is full when the vacuum gauge reads zero.

CAUTION:

Do not allow the coolant container to get too low when filling, to avoid air from being drawn into

the cooling system.

11. Remove the Tool from the radiator neck opening and install the radiator cap.
12. Remove the non-vented reservoir cap.
13. Fill the cooling system reservoir tank to the specified level. Run the engine to warm up the cooling system

and top up the system as necessary before installing the vented reservoir cap.

14. Install the engine under cover. Refer to

EXT-15, "Removal and Installation"

FLUSHING COOLING SYSTEM

1. Drain the water from the engine cooling system. Refer to

MA-24, "ENGINE COOLANT : Changing Engine

Coolant"

2. Fill the radiator and the reservoir tank (to the “MAX” line), with water. Reinstall the radiator cap and leave

the vented reservoir cap off.

3. Run the engine until it reaches normal operating temperature.
4. Press the engine accelerator two or three times under no-load.
5. Stop the engine and wait until it cools down.
6. Drain the water from the engine cooling system. Refer to

MA-24, "ENGINE COOLANT : Changing Engine

Coolant"

7. Repeat steps 2 through 6 until clear water begins to drain from the radiator.

FUEL LINES
FUEL LINES : Checking Fuel Line

INFOID:0000000006243398

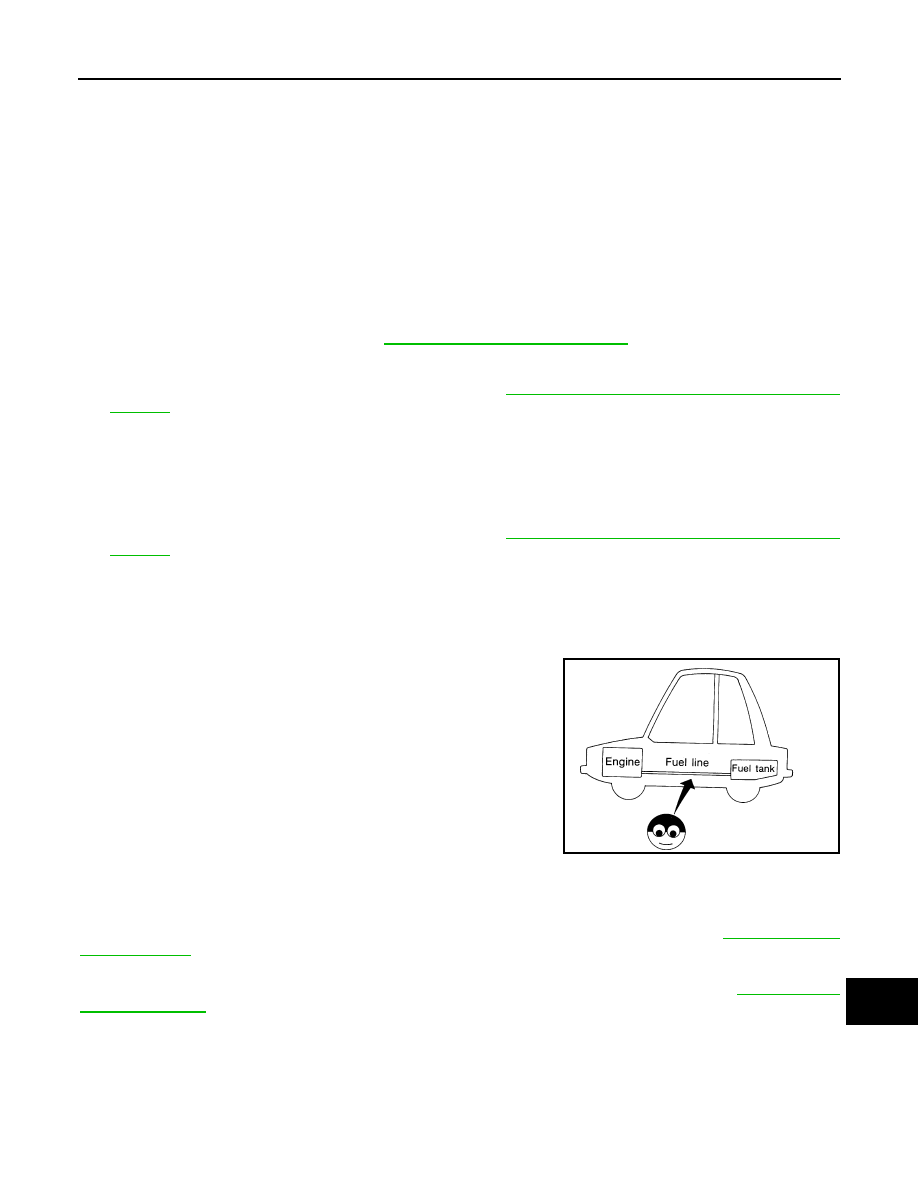

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-

ment, leaks, cracks, damage, loose connections, chafing or deterio-

ration.

If necessary, repair or replace damaged parts.

FUEL FILTER
FUEL FILTER : Changing Fuel Filter

INFOID:0000000006243399

The fuel filter is part of the fuel level sensor unit, fuel filter and fuel pump assembly. Refer to
