PRECAUTIONS

HA-9

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

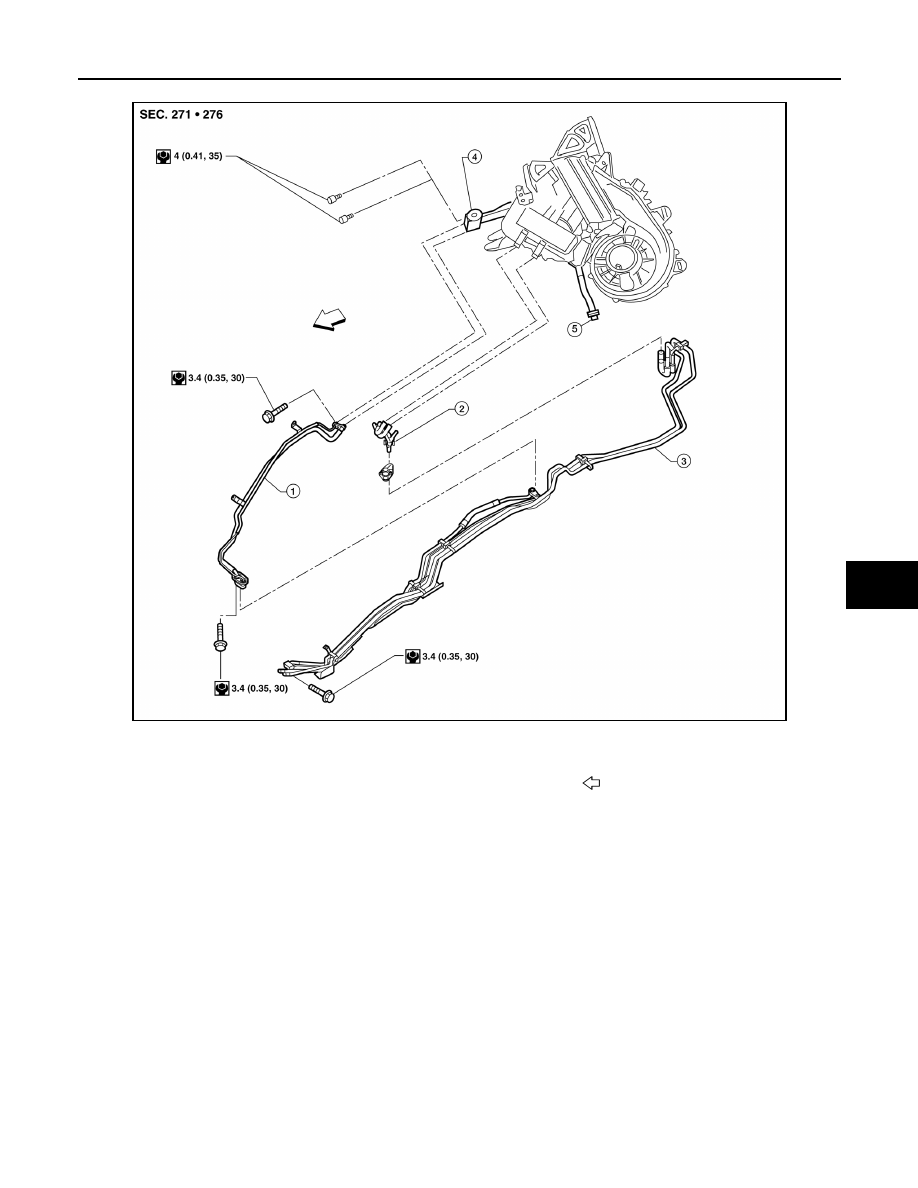

Rear A/C

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Do not confuse O-

rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or

around the connection.

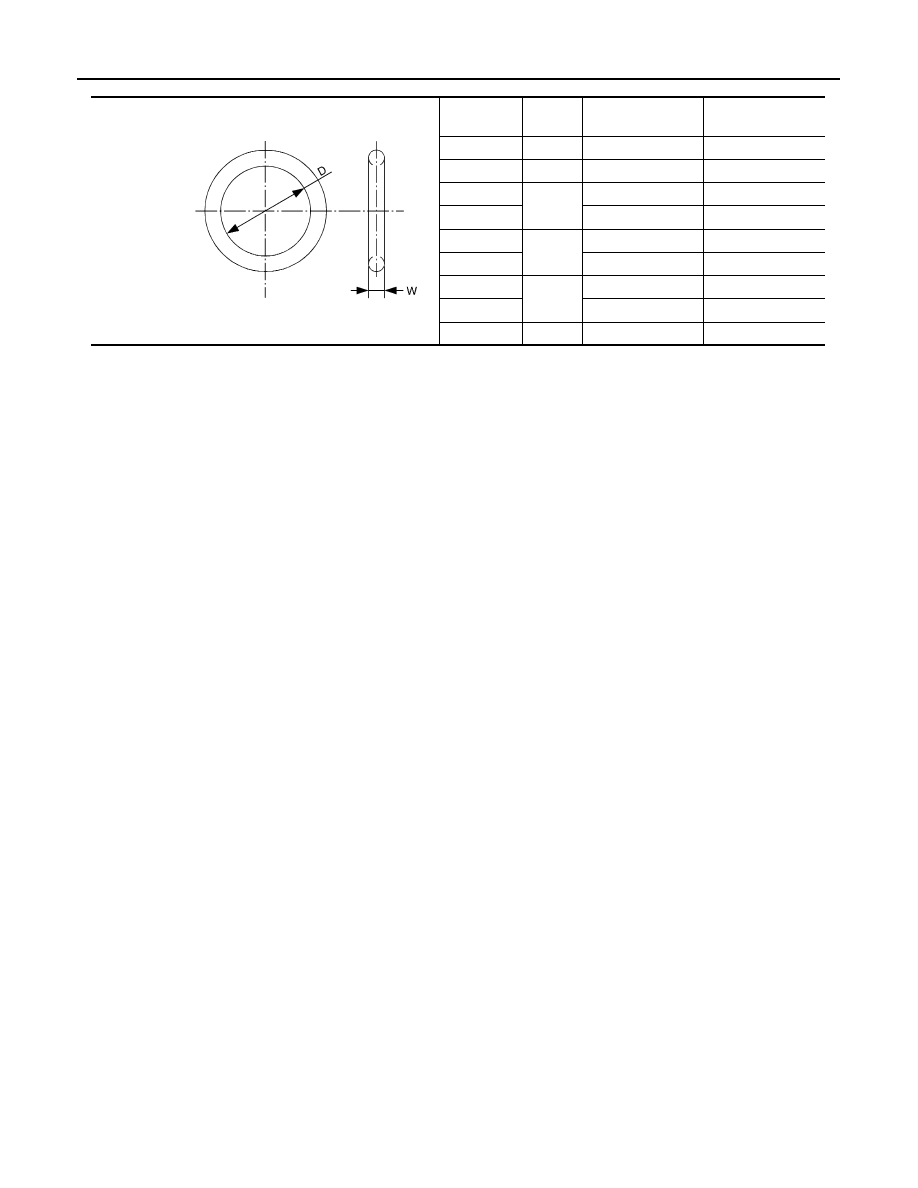

O-Ring Specifications

AWIIA1539GB

1.

Rear high- and low-pressure A/C pipes

2.

Rear heater core hoses

3.

Underfloor rear high- and low-pres-
sure A/C and heater core pipes

4.

Rear expansion valve

5.

Rear drain hose

Vehicle front

2011 Pathfinder

HA-10

< PRECAUTION >

PRECAUTIONS

*: Always check with the Parts Department for the latest parts information.

WARNING:

Make sure all refrigerant is discharged into the recycling equipment and the pressure in the system is

less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.

CAUTION:

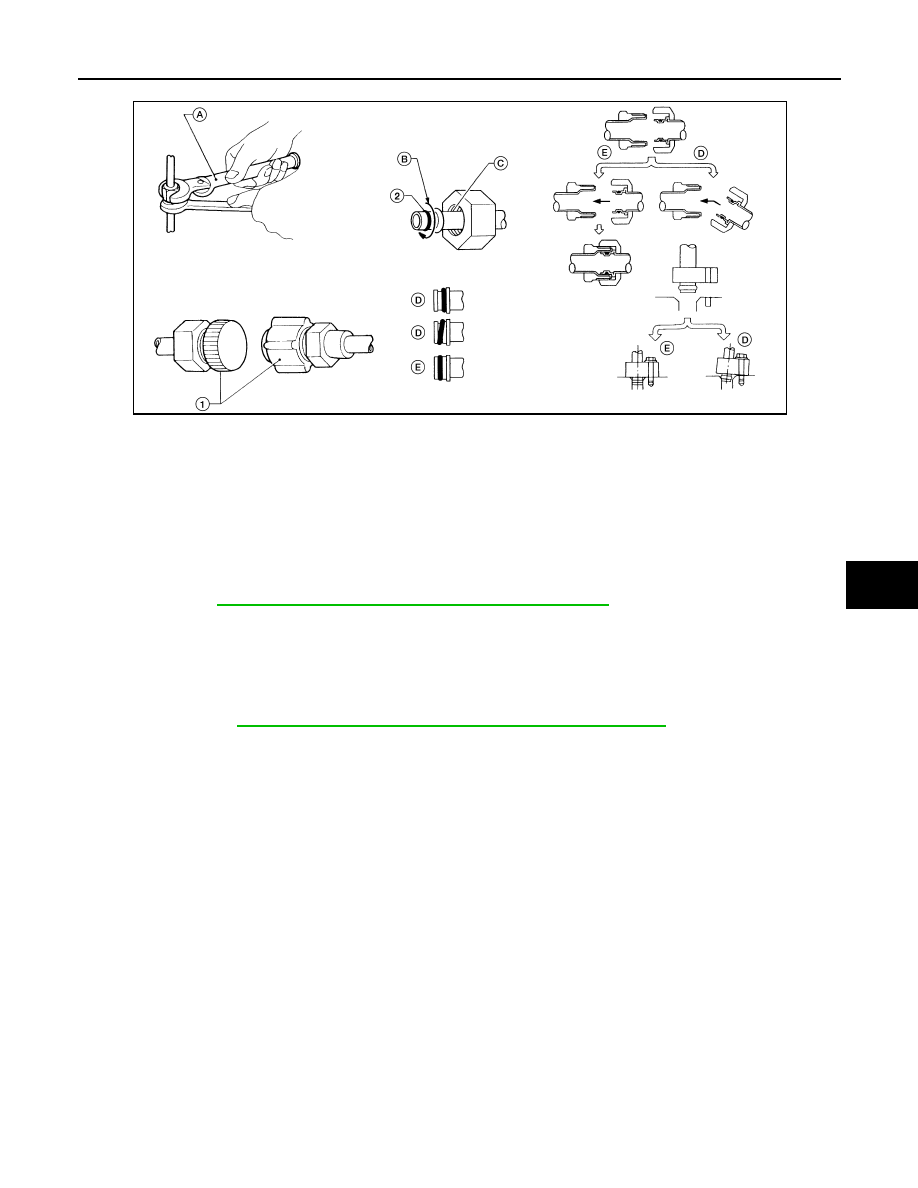

When replacing or cleaning refrigerant cycle components, observe the following.

• When the compressor is removed, store it in the same position as it is when mounted on the car.

Failure to do so will cause oil to enter the low pressure chamber.

• When connecting tubes, always use a torque wrench and a back-up wrench.

• After disconnecting tubes, immediately plug all openings to prevent entry of dirt and moisture.

• When installing an air conditioner in the vehicle, connect the pipes as the final stage of the opera-

tion. Do not remove the seal caps of pipes and other components until just before required for con-

nection.

• Allow components stored in cool areas to warm to working area temperature before removing seal

caps. This prevents condensation from forming inside A/C components.

• Thoroughly remove moisture from the refrigeration system before charging the refrigerant.

• Always replace used O-rings.

• When connecting tube, apply oil to circle of the O-rings shown in illustration. Be careful not to apply

oil to threaded portion.

Oil name: NISSAN A/C System Oil Type S or equivalent.

• O-ring must be closely attached to dented portion of tube.

• When replacing the O-ring, be careful not to damage O-ring and tube.

• Connect tube until you hear it click, then tighten the nut or bolt by hand until snug. Make sure that

the O-ring is installed to tube correctly.

• After connecting line, conduct leak test and make sure that there is no leakage from connections.

When the refrigerant leaking point is found, disconnect that line and replace the O-ring. Then tighten

connections of seal seat to the specified torque.

Connection

type

O-ring

size

D mm (in)

W mm (in)

New

8

6.8 (0.268)

1.85 (0.0728)

Former

10

9.25 (0.3642)

1.78 (0.0701)

New

12

10.9 (0.429)

2.43 (0.0957)

Former

11.0 (0.433)

2.4 (0.094)

New

16

13.6 (0.535)

2.43 (0.0957)

Former

14.3 (0.563)

2.3 (0.091)

New

19

16.5 (0.650)

2.43 (0.0957)

Former

17.12 (0.6740)

1.78 (0.0701)

New

24

21.8 (0.858)

2.4 (0.094)

SHA814E

2011 Pathfinder

PRECAUTIONS

HA-11

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Precaution for Service of Compressor

INFOID:0000000006243580

•

Plug all openings to prevent moisture and foreign matter from entering.

•

When the compressor is removed, store it in the same position as it is when mounted on the car.

•

When replacing or repairing compressor, follow “Maintenance of Oil Quantity in Compressor”

exactly. Refer to

HA-27, "Maintenance of Oil Quantity in Compressor"

.

•

Keep friction surfaces between clutch and pulley clean. If the surface is contaminated with oil, wipe

it off by using a clean waste cloth moistened with thinner.

•

After compressor service operation, turn the compressor shaft by hand more than 5 turns in both

directions. This will equally distribute oil inside the compressor. After the compressor is installed,

let the engine idle and operate the compressor for 1 hour.

•

After replacing the compressor magnet clutch, apply voltage to the new one and check for normal

operation. Refer to

HA-40, "Removal and Installation for Compressor Clutch"

.

Precaution for Service Equipment

INFOID:0000000006243581

RECOVERY/RECYCLING EQUIPMENT

Follow the manufacturer's instructions for machine operation and machine maintenance. Never introduce any

refrigerant other than that specified into the machine.

ELECTRONIC LEAK DETECTOR

Follow the manufacturer's instructions for tester operation and tester maintenance.

VACUUM PUMP

1.

Plug

2.

O-ring

A.

Torque wrench

B.

Apply oil

C.

Do not apply oil to thread

D.

No good

E.

Good

WJIA1994E

2011 Pathfinder

HA-12

< PRECAUTION >

PRECAUTIONS

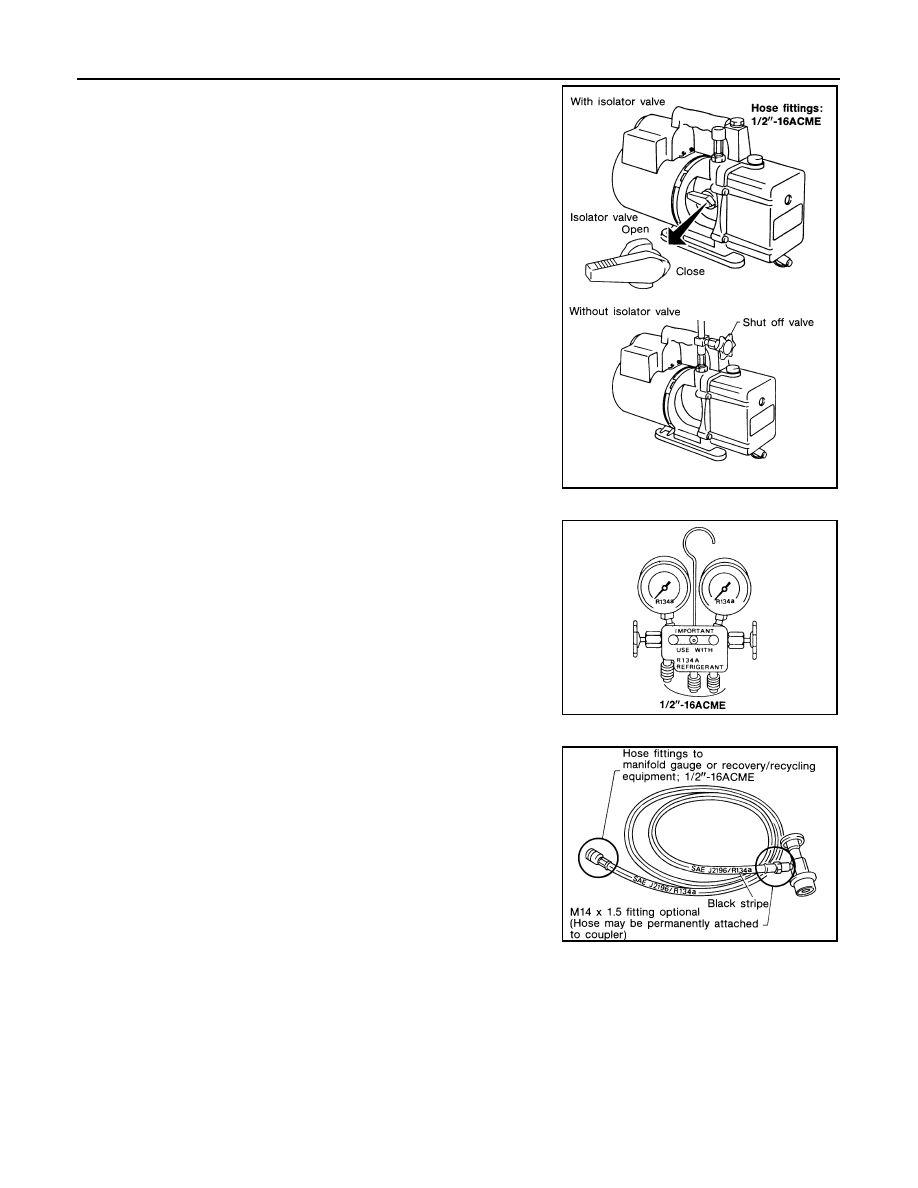

The oil contained inside the vacuum pump is not compatible with the

specified oil for HFC-134a (R-134a) A/C systems. The vent side of

the vacuum pump is exposed to atmospheric pressure so the vac-

uum pump oil may migrate out of the pump into the service hose.

This is possible when the pump is switched off after evacuation (vac-

uuming) and hose is connected to it.

To prevent this migration, use a manual valve situated near the

hose-to-pump connection, as follows.

• Usually vacuum pumps have a manual isolator valve as part of the

pump. Close this valve to isolate the service hose from the pump.

• For pumps without an isolator, use a hose equipped with a manual

shut-off valve near the pump end. Close the valve to isolate the

hose from the pump.

• If the hose has an automatic shut off valve, disconnect the hose

from the pump: as long as the hose is connected, the valve is open

and lubricating oil may migrate.

Some one-way valves open when vacuum is applied and close

under a no vacuum condition. Such valves may restrict the pump's

ability to pull a deep vacuum and are not recommended.

MANIFOLD GAUGE SET

Be certain that the gauge face indicates HFC-134a (R-134a). Make

sure the gauge set has 1/2

″

-16 ACME threaded connections for ser-

vice hoses. Confirm the set has been used only with refrigerant

HFC-134a (R-134a) along with specified oil.

SERVICE HOSES

Be certain that the service hoses display the markings described

(colored hose with black stripe). All hoses must include positive shut-

off devices (either manual or automatic) near the end of the hoses

opposite the manifold gauge.

SERVICE COUPLERS

RHA270D

SHA533D

RHA272D

2011 Pathfinder

PRECAUTIONS

HA-13

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

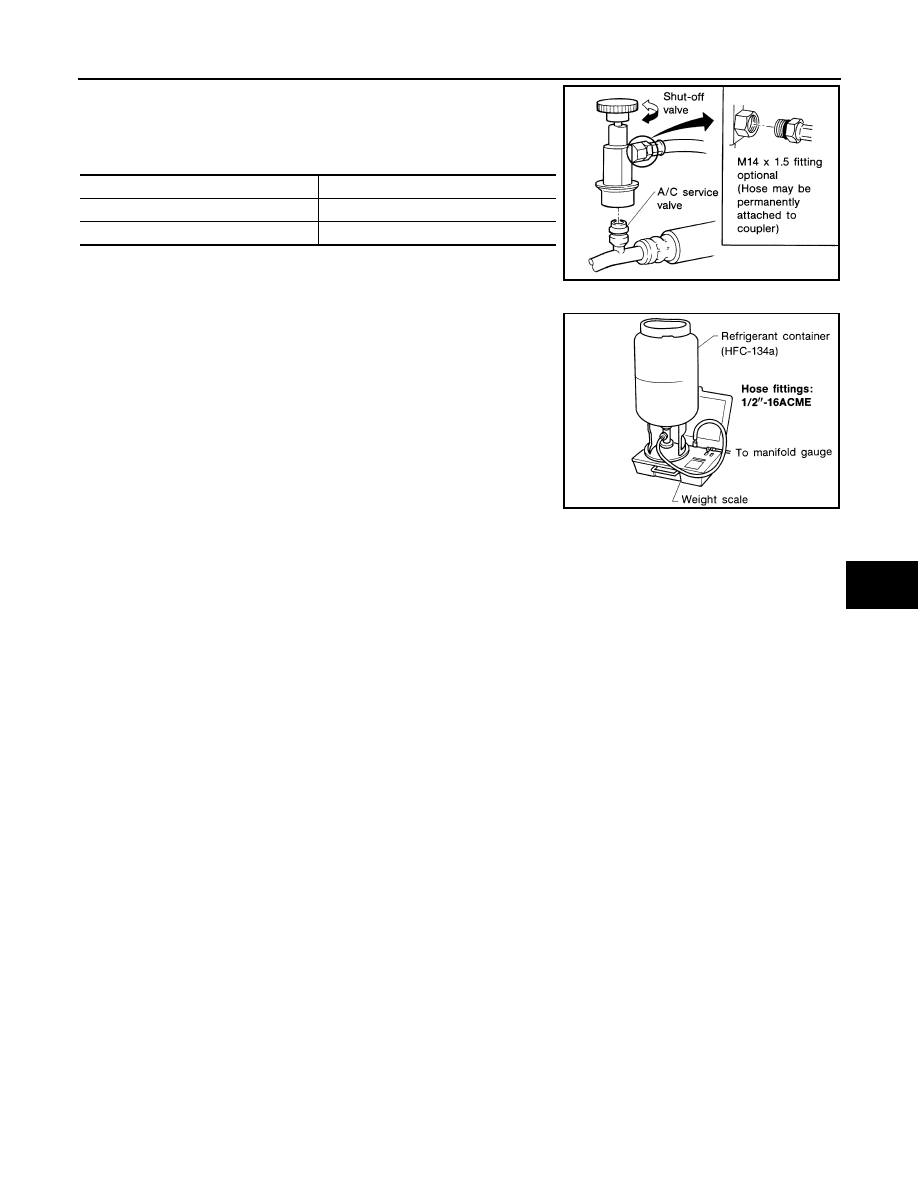

Never attempt to connect HFC-134a (R-134a) service couplers to a

CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will

not properly connect to the CFC-12 (R-12) system. If an improper

connection is attempted, discharging and contamination may occur.

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC134a (R-134a) and specified

oils have been used with the scale. If the scale controls refrigerant

flow electronically, the hose fitting must be 1/2”-16 ACME.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder's top valve

when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an

electronic scale or of quality recycle/recharge equipment.

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

RHA274D

2011 Pathfinder

HA-14

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

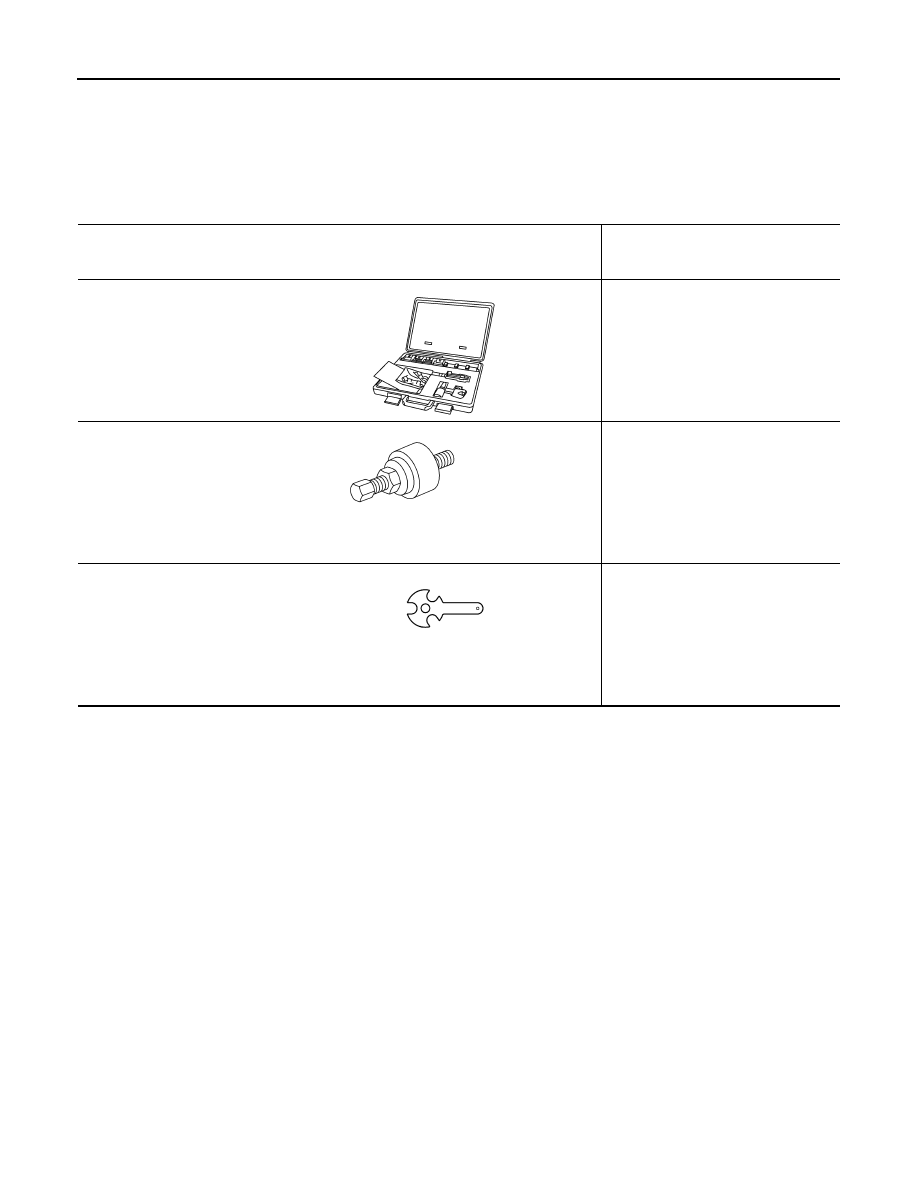

Special Service Tool

INFOID:0000000008197616

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000008197617

Never mix HFC-134a (R-134a) refrigerant and/or its specified oil with CFC-12 (R-12) refrigerant and/or its oil.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed

use of the refrigerants/oil.

Adapters that convert one size fitting to another must never be used refrigerant/oil contamination will occur

and compressor failure will result.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-41425-NIS)
Aluminum tube repair kit

Repairing leaks in A/C tubes

—

(J-38873-A)
Pulley installer

Installing pulley

—

(J-44614)
Clutch disc holding tool

Clutch disc holding tool

ALIIA0390ZZ

LHA171

WHA230

2011 Pathfinder

PREPARATION

HA-15

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

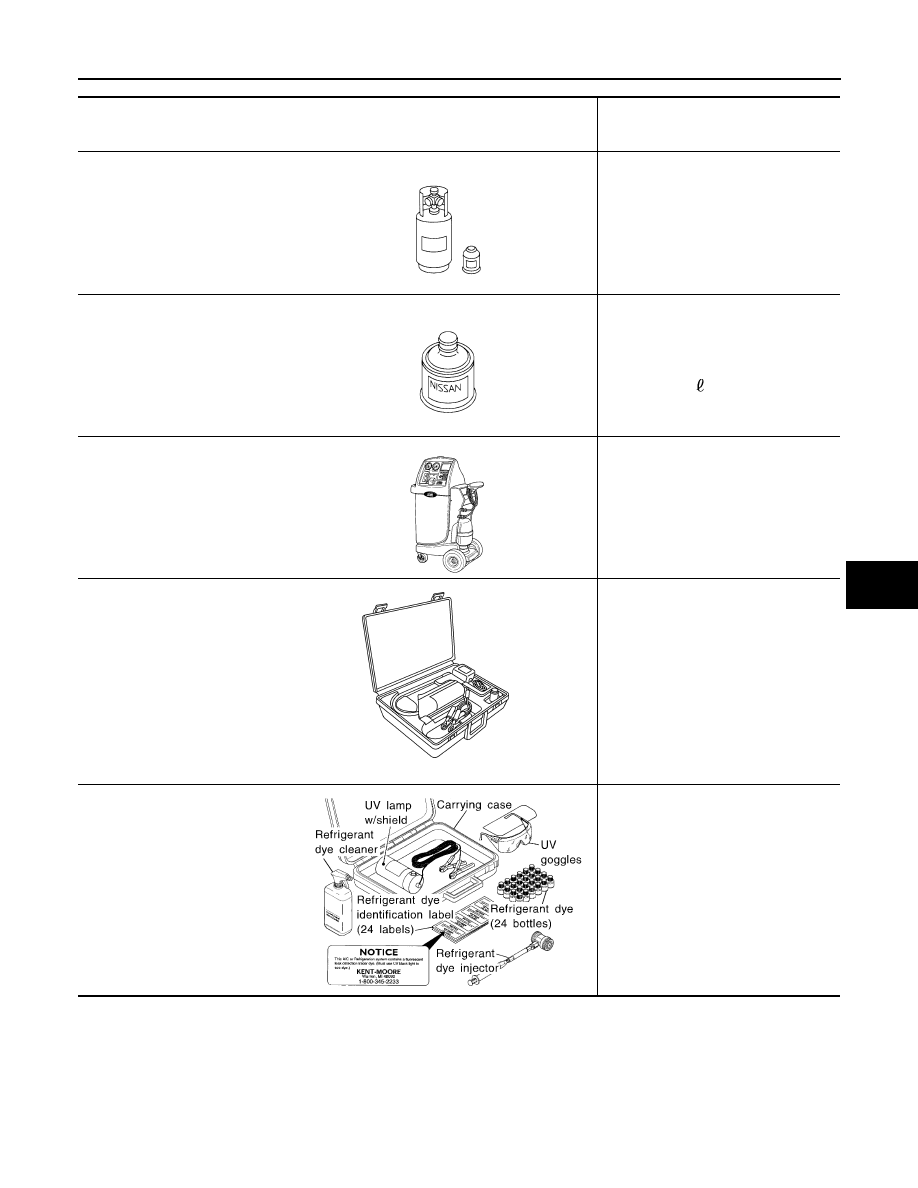

Tool number
(Kent-Moore No.)
Tool name

Description

—

( — )
HFC-134a (R-134a) Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

( — )
NISSAN A/C System Oil Type S

Type: Poly alkylene glycol oil (PAG),
type S
Application: HFC-134a (R-134a)
swash plate compressors (NISSAN
only)
Lubricity: 40 m  (1.4 US fl oz, 1.4 Imp
fl oz)

—

(J-48710)
NISSAN ACR2009 RRR Unit

Refrigerant Recovery and Recycling
and Recharging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:
• DC 12V (battery terminal)

—

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
Refrigerant dye injector
(J-41447)
Fluorescent leak detection dye
(box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
• DC 12V (battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

2011 Pathfinder

HA-16

< PREPARATION >

PREPARATION

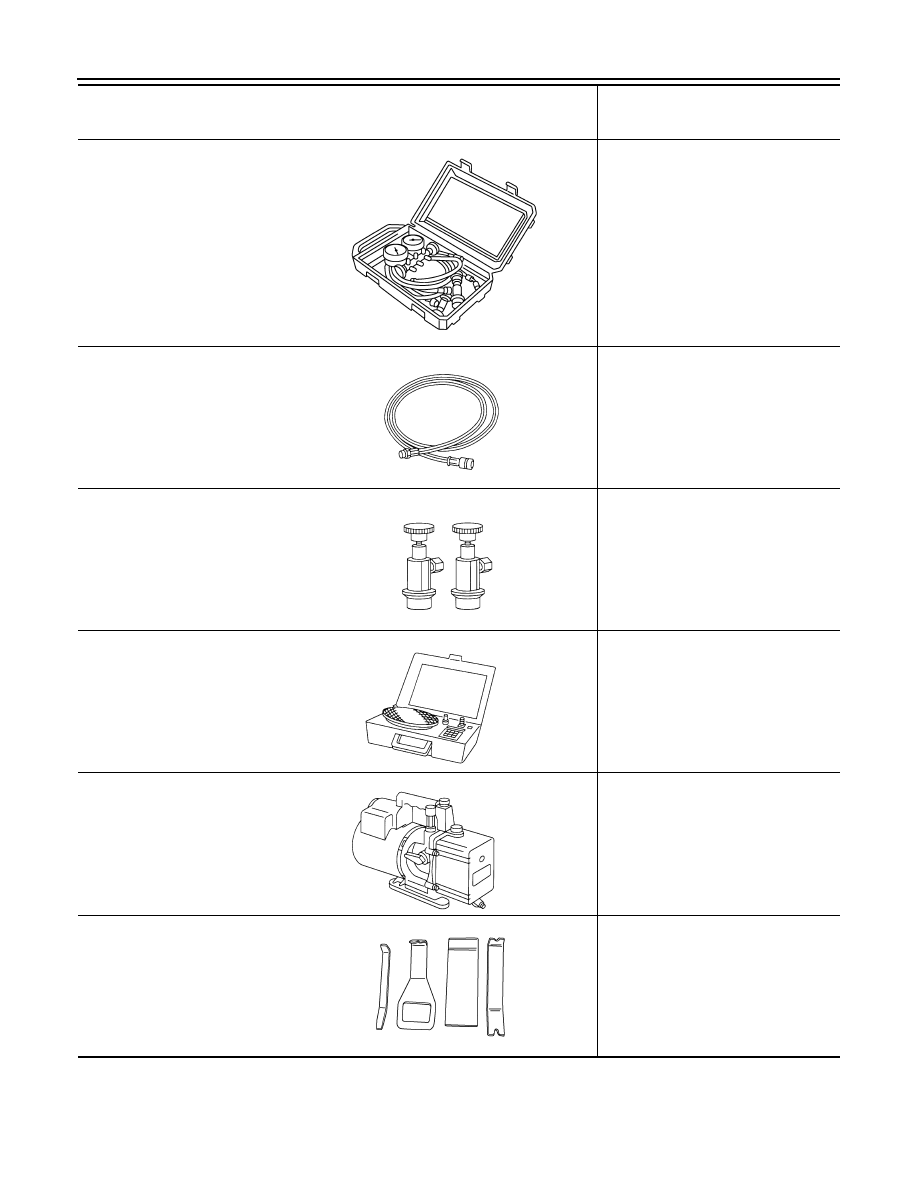

Commercial Service Tool

INFOID:0000000008197618

—

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

Service hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

—

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

—

(J-46534)
Trim tool set

For removing trim components

Tool number
(Kent-Moore No.)
Tool name

Description

RJIA0196E

S-NT201

S-NT202

S-NT200

S-NT203

AWJIA0483ZZ
