PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

ABLIA1892GB

2011 Pathfinder

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-111

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA1687GB

2011 Pathfinder

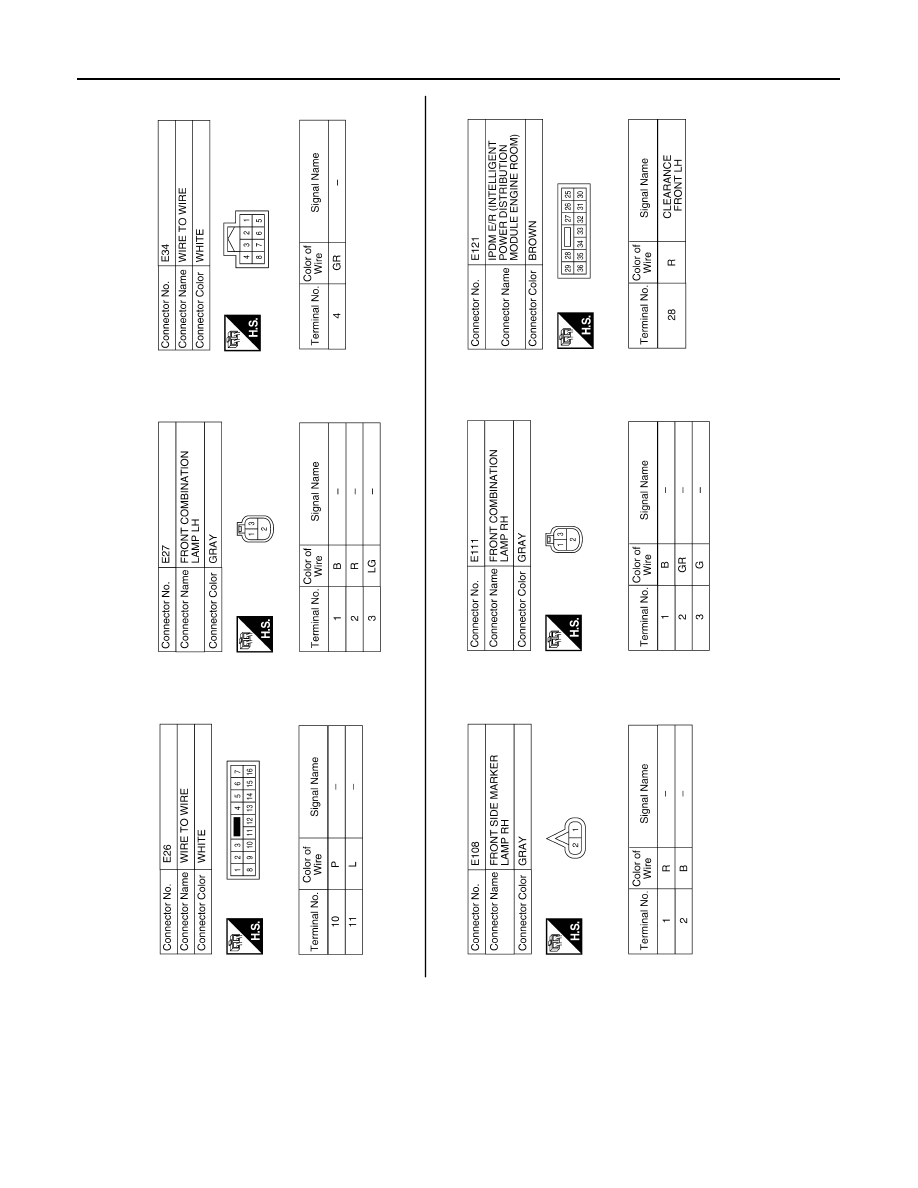

EXL-112

< WIRING DIAGRAM >

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

ABLIA0425GB

2011 Pathfinder

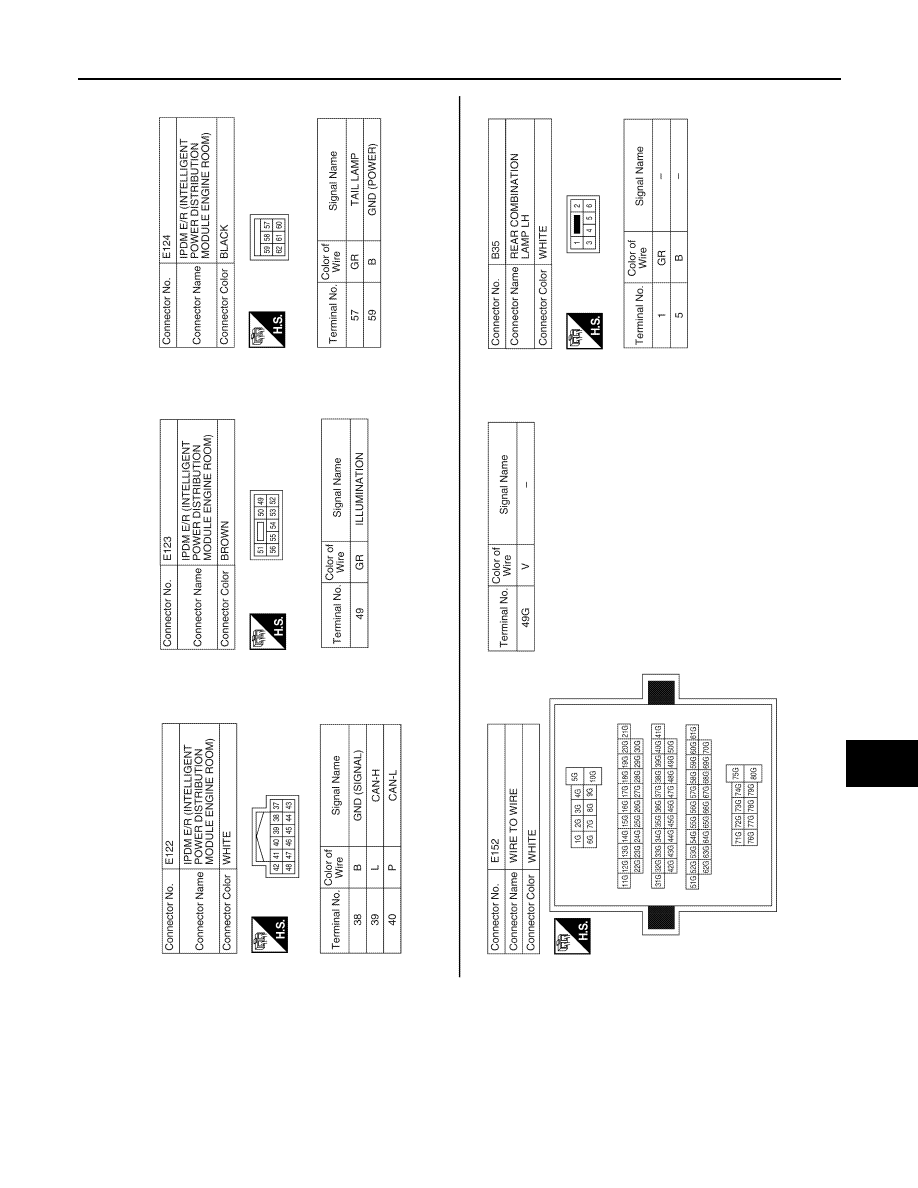

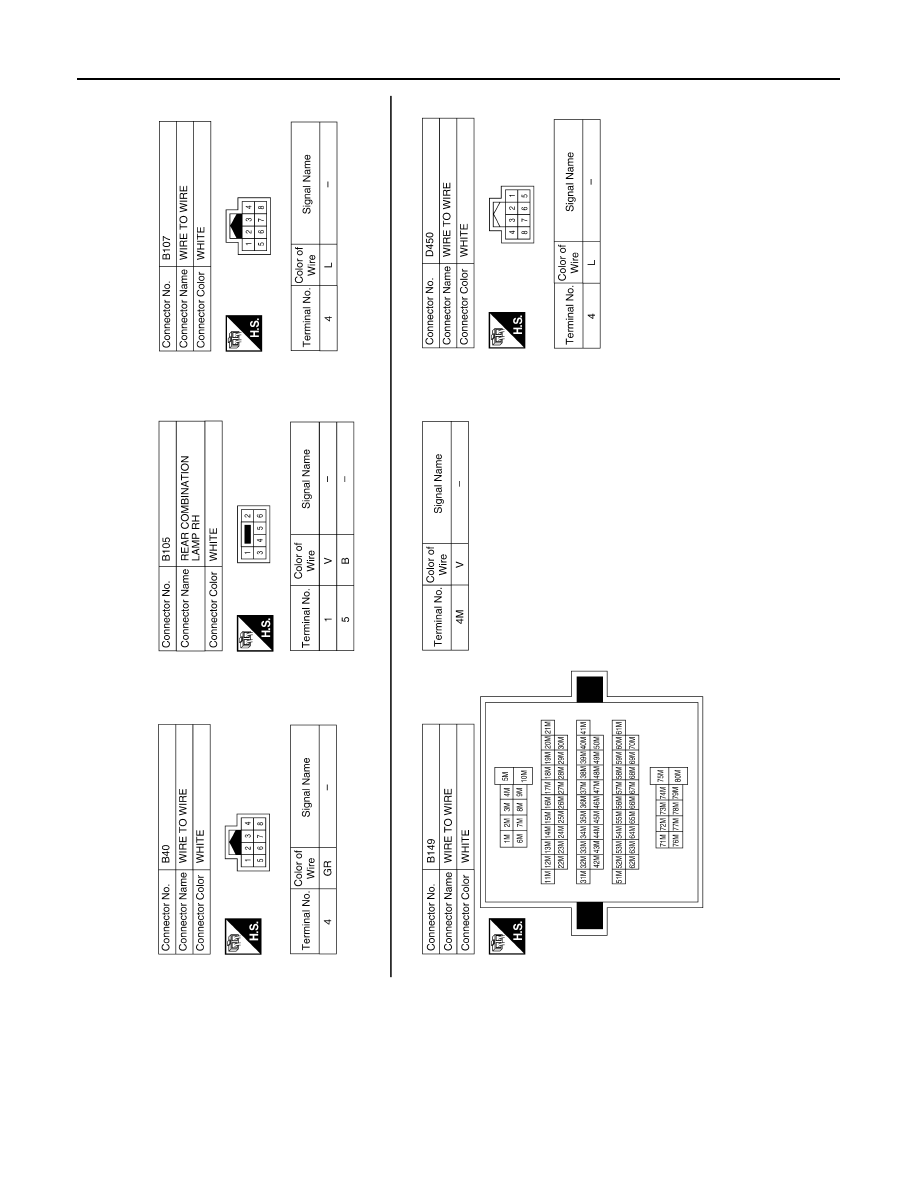

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-113

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA0426GB

2011 Pathfinder

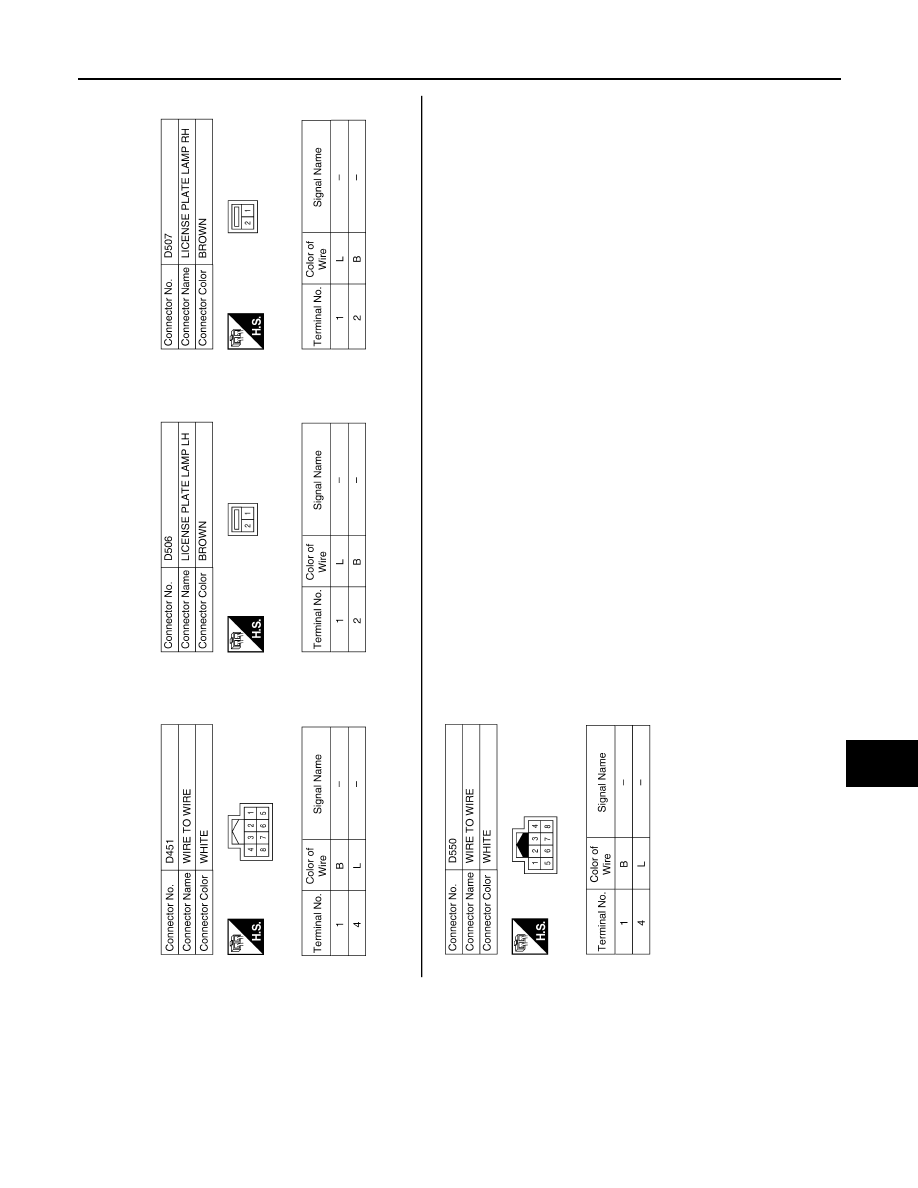

EXL-114

< WIRING DIAGRAM >

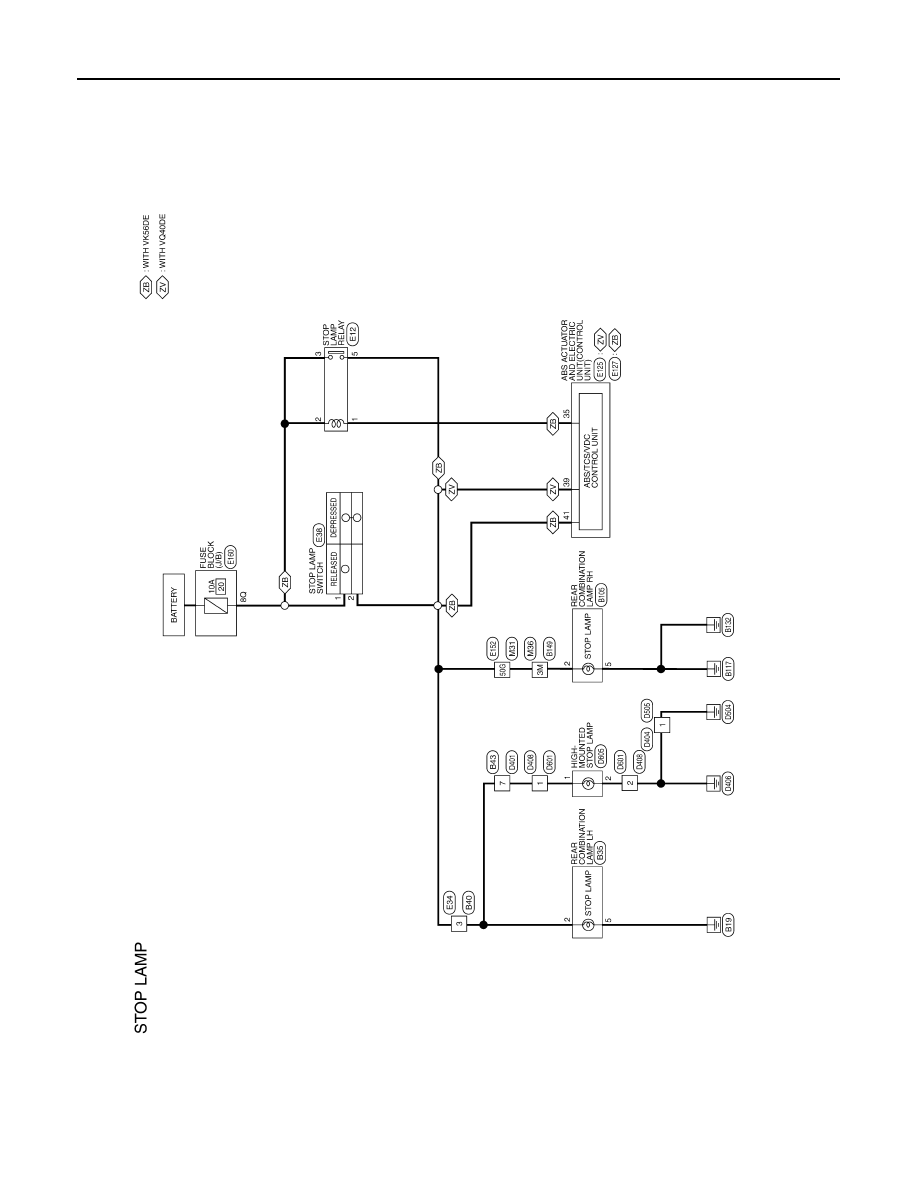

STOP LAMP

STOP LAMP

Wiring Diagram

INFOID:0000000006534921

ABLWA1204GB

2011 Pathfinder

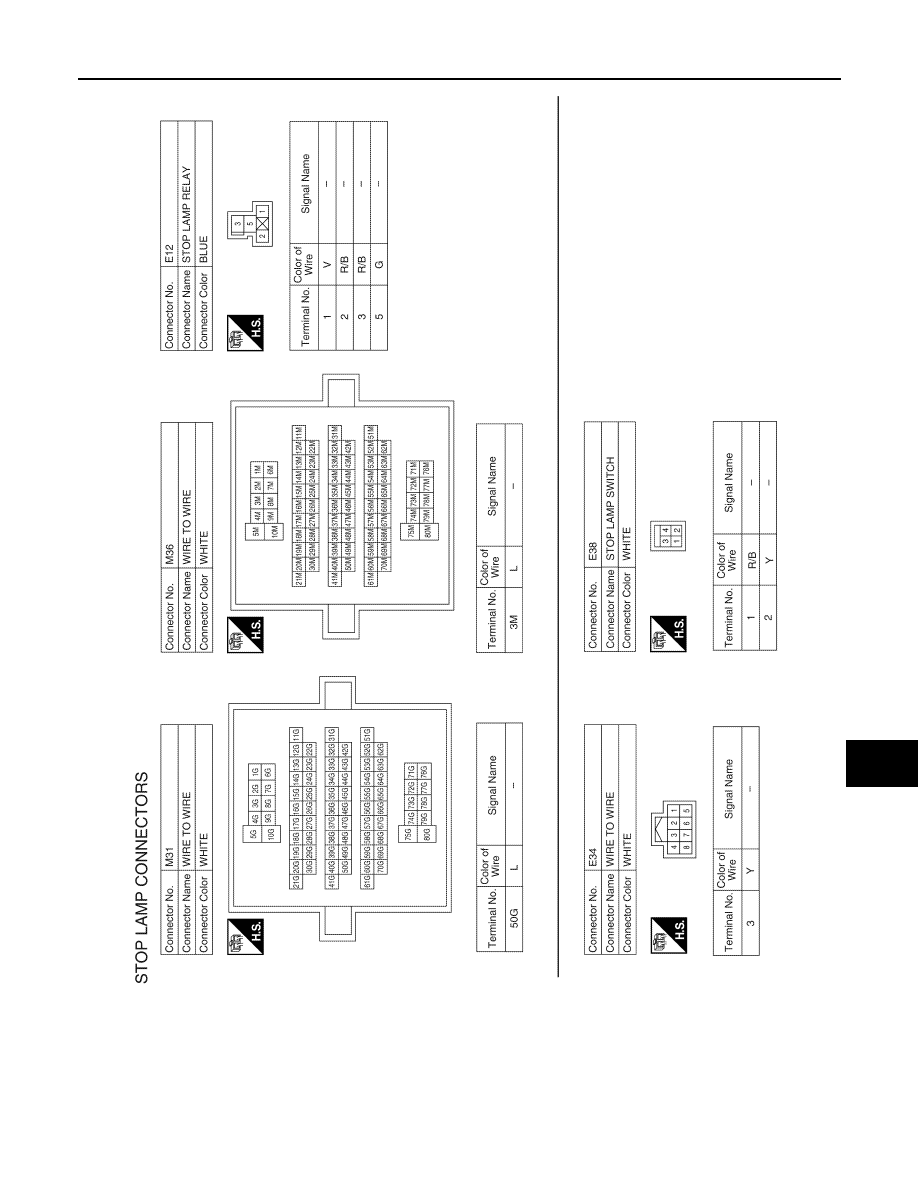

STOP LAMP

EXL-115

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA1678GB

2011 Pathfinder

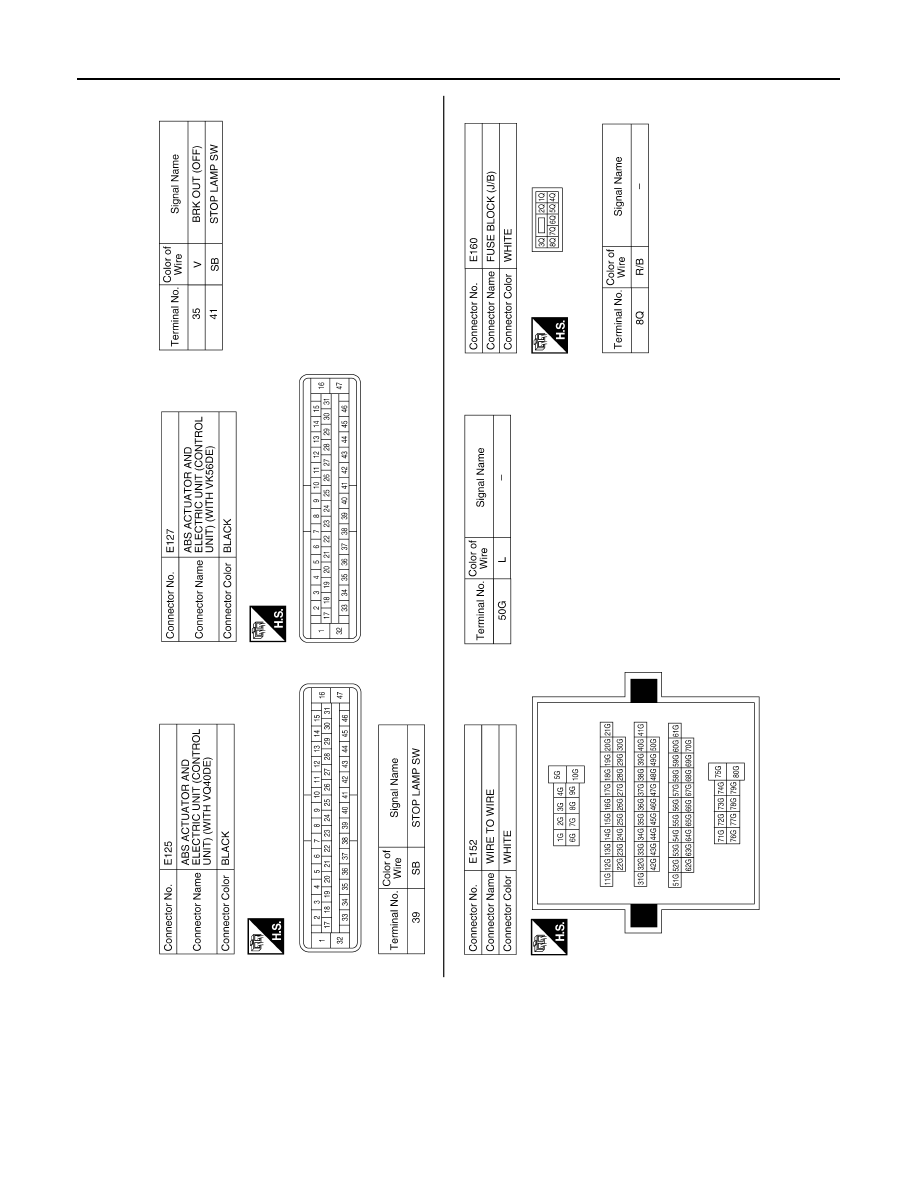

EXL-116

< WIRING DIAGRAM >

STOP LAMP

ABLIA2804GB

2011 Pathfinder

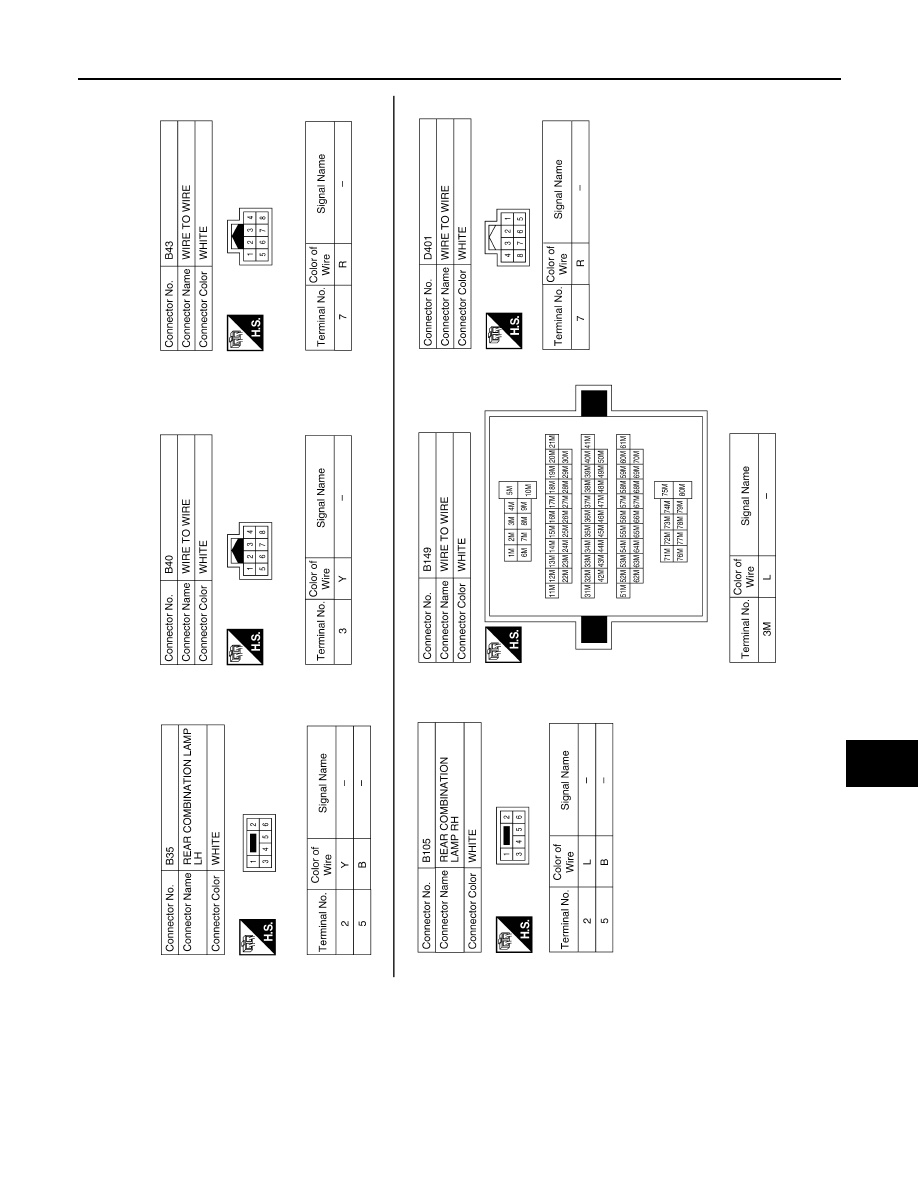

STOP LAMP

EXL-117

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA0430GB

2011 Pathfinder
