Nissan Pathfinder (2011 year). Manual - part 400





EXL-46

< DTC/CIRCUIT DIAGNOSIS >

DAYTIME LIGHT RELAY CIRCUIT

DAYTIME LIGHT RELAY CIRCUIT

Description

INFOID:0000000006823259

The BCM sends a daytime light request to the IPDM E/R via the CAN communication lines. The power flows

backward through fuse 45 located in IPDM E/R to daytime light relay 1 and LH high beam lamp to IPDM E/R,

through the high beam fuses, through the RH high beam lamp and on to ground. The high beam lamps are

wired in series which causes them to illuminate at a reduced intensity.

Diagnosis Procedure

INFOID:0000000006823260

Regarding Wiring Diagram information, refer to

EXL-82, "Wiring Diagram"

.

1.

CHECK DAYTIME LIGHT RELAY 1 FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not open.

Is the fuse open?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 2

2.

CHECK IPDM E/R OUTPUT SIGNAL

1. Turn the ignition switch OFF.

2. Disconnect the daytime light relay 1 connector.

3. Turn the ignition switch ON.

4. Check the voltage between the daytime light relay 1 harness connector and ground.

Is battery voltage present?

YES

>> GO TO 3

NO

>> GO TO 5

3.

CHECK DAYTIME LIGHT RELAY 1 CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E122.

3. Check continuity between the IPDM E/R harness connector and the daytime light relay 1 harness connec-

tor.

4. Check continuity between the daytime light relay 1 harness connector and ground.

Is the measurement value normal?

Unit

Location

Fuse No.

Capacity

Daytime light relay 1

IPDM E/R

45

10A

(+)

(

−

)

Voltage

Connector

Terminal

E103

2

Ground

Battery voltage

5

IPDM E/R

Daytime light relay 1

Continuity

Connector

Terminal

Connector

Terminal

E122

44

E103

1

Yes

Connector

Terminal

—

Continuity

E103

1

Ground

No

2011 Pathfinder

DAYTIME LIGHT RELAY CIRCUIT

EXL-47

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

4.

CHECK DAYTIME LIGHT RELAY 1

Check daytime light relay 1. Refer to

EXL-47, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check headlamp (HI) circuit. If OK, replace IPDM E/R. Refer to

PCS-29, "Removal and Installa-

tion of IPDM E/R"

. If NG, refer to

EXL-39, "Diagnosis Procedure"

.

NO

>> Replace daytime light relay1.

5.

CHECK DAYTIME LIGHT RELAY CIRCUIT FOR OPEN

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E119.

3. Check continuity between the IPDM E/R harness connector and the daytime light relay 1 harness connec-

tor.

Does continuity exist?

YES

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

NO

>> Repair the harnesses or connectors.

Component Inspection

INFOID:0000000006706800

1.

 CHECK DAYTIME LIGHT RELAY 1

1. Turn ignition switch OFF.

2. Remove daytime light relay 1.

3. Check the continuity between daytime light relay 1 terminals under the following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace daytime light relay 1

IPDM E/R

Daytime light relay 1

Continuity

Connector

Terminal

Connector

Terminal

E119

10

E103

2

Yes

5

Terminals

Condition

Continuity

3 and 5

12V direct current supply between terminals 1 and 2

Yes

No current supply

No

3 and 4

12V direct current supply between terminals 1 and 2

No

No current supply

Yes

2011 Pathfinder

EXL-48

< DTC/CIRCUIT DIAGNOSIS >

FRONT FOG LAMP CIRCUIT

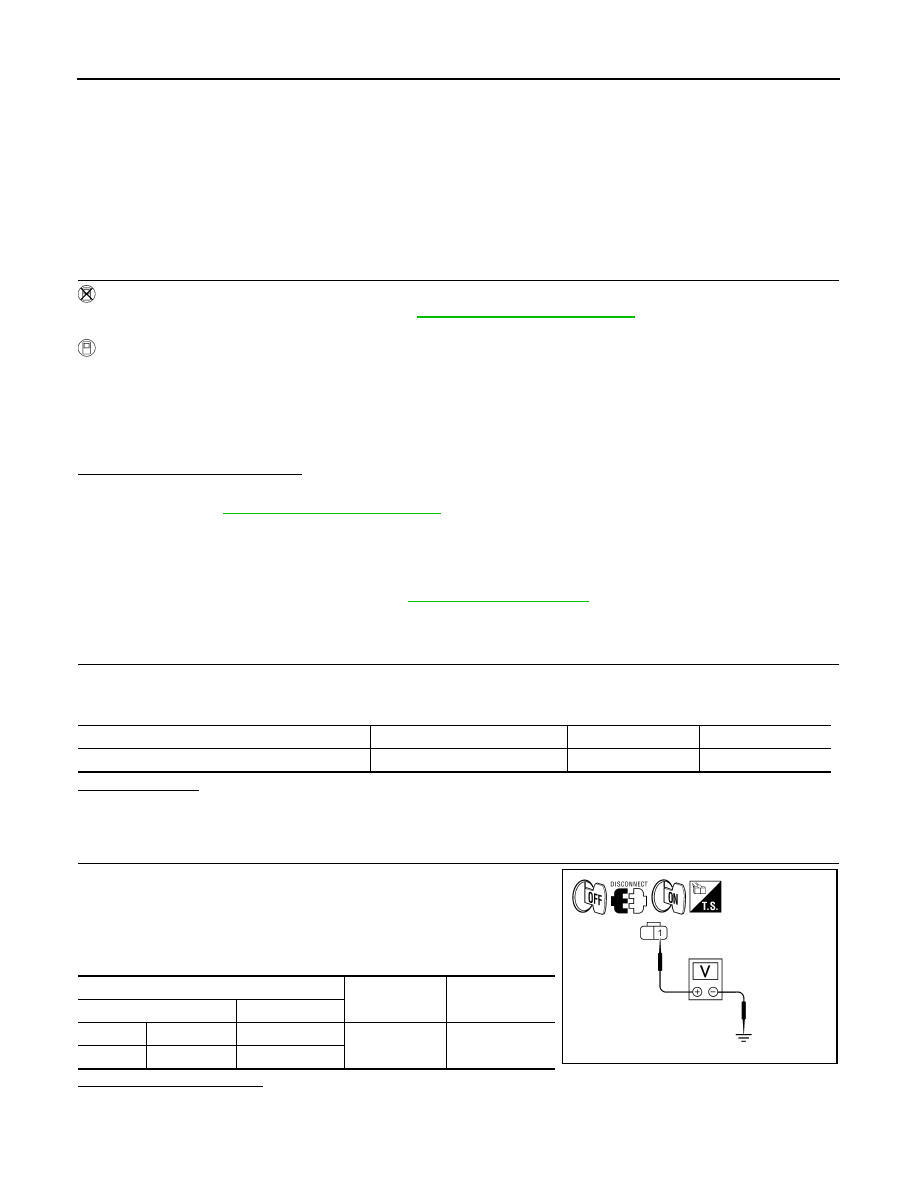

FRONT FOG LAMP CIRCUIT

Description

INFOID:0000000006247660

The IPDM E/R (intelligent power distribution module engine room) controls the front fog lamp relay based on

inputs from the BCM via the CAN communication lines. When the front fog lamp relay is energized, power

flows from the front fog lamp relay in the IPDM E/R to the front fog lamps.

Component Function Check

INFOID:0000000006247661

1.

CHECK FRONT FOG LAMP OPERATION

WITHOUT CONSULT-III

1. Activate IPDM E/R auto active test. Refer to

PCS-9, "Diagnosis Description"

.

2. Check that the front fog lamp is turned ON.

CONSULT-III

1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2. With operating the test items, Check that the front fog lamp is turned ON.

Is the front fog lamp turned ON?

YES

>> Front fog lamp circuit is normal.

NO

>> Refer to

EXL-48, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006247662

Regarding Wiring Diagram information, refer to

EXL-97, "Wiring Diagram"

.

1.

CHECK FRONT FOG LAMP FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 2

2.

CHECK FRONT FOG LAMP OUTPUT VOLTAGE

1. Turn the ignition switch OFF.

2. Disconnect the front fog lamp connector.

3. Turn the ignition switch ON.

4. Turn the front fog lamps ON.

5. Check the voltage between the fog lamp connector and ground.

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

Fog

: Front fog lamp ON

Off

: Front fog lamp OFF

Unit

Location

Fuse No.

Capacity

Front fog lamp

IPDM E/R

56

20A

(+)

(

−

)

Voltage

Connector

Terminal

LH

E101

1

Ground

Battery voltage

RH

E102

1

ALLIA0627GB

2011 Pathfinder

FRONT FOG LAMP CIRCUIT

EXL-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

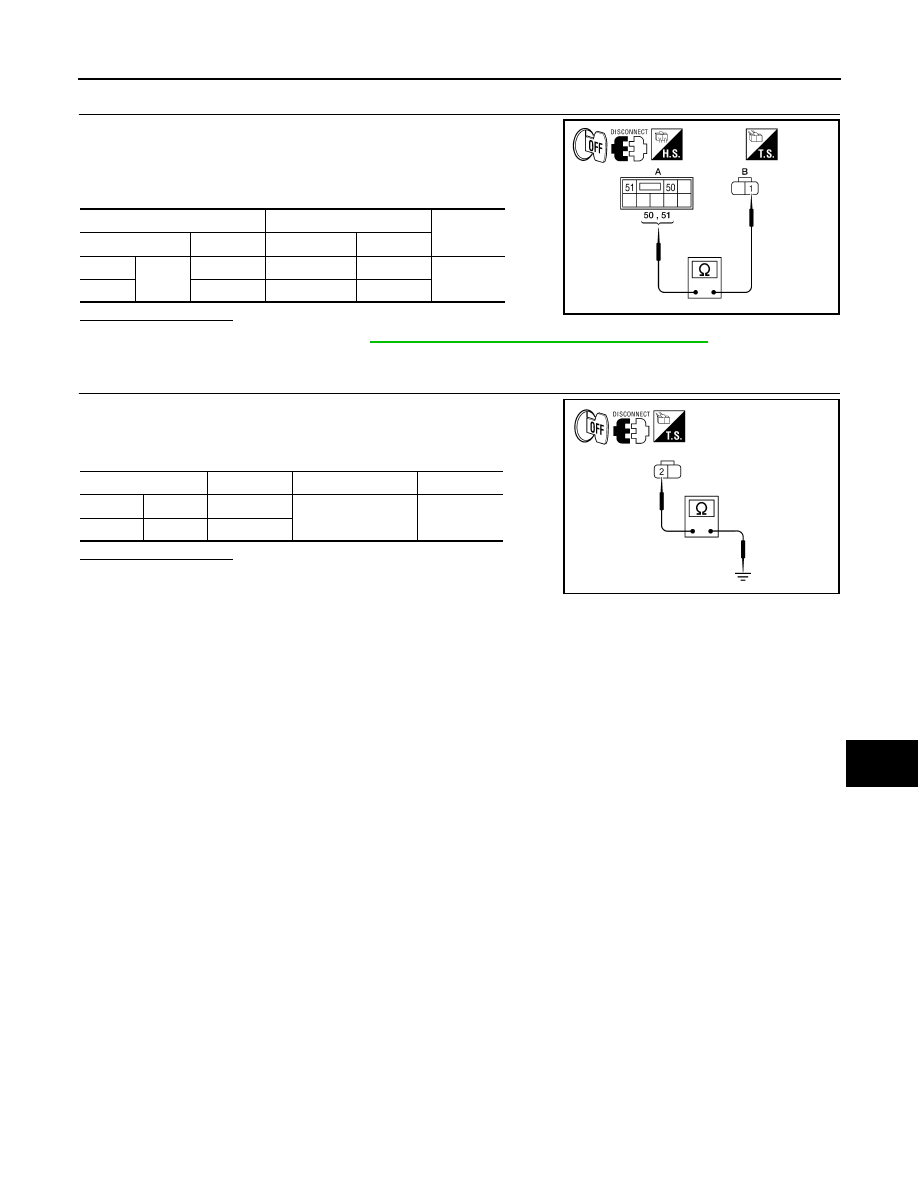

3.

CHECK FRONT FOG LAMP OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E123.

3. Check continuity between the IPDM E/R harness connector (A)

and the front fog lamp harness connector (B).

Does continuity exist?

YES

>> Replace  IDPM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

NO

>> Repair the harnesses or connectors.

4.

CHECK FRONT FOG LAMP GROUND CIRCUIT

1. Disconnect the front fog lamp connector.

2. Check continuity between the front fog lamp harness connector

terminal and ground.

Does continuity exist?

YES

>> Inspect the fog lamp bulb.

NO

>> Repair the harness.

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E123

50

E101

1

Yes

RH

51

E102

1

ALLIA0628GB

Connector

Terminal

—

Continuity

LH

E101

2

Ground

Yes

RH

E102

2

ALLIA0629GB

2011 Pathfinder

EXL-50

< DTC/CIRCUIT DIAGNOSIS >

PARKING LAMP CIRCUIT

PARKING LAMP CIRCUIT

Description

INFOID:0000000006247663

The IPDM E/R (intelligent power distribution module engine room) controls the tail lamp relay based on inputs

from the BCM via the CAN communication lines. When the tail lamp relay is energized, power flows through

fuse 36 and 37, located in the IPDM E/R. Power then flows to the front and rear combination lamps, license

plate lamps.

Component Function Check

INFOID:0000000006247664

1.

CHECK PARKING LAMP OPERATION

WITHOUT CONSULT-III

1. Activate IPDM E/R auto active test. Refer to

PCS-9, "Diagnosis Description"

.

2. Check that the parking lamp is turned ON.

CONSULT-III

1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2. With operating the test items, check that the parking lamp is turned ON.

Is the parking lamp turned ON?

YES

>> Parking lamp circuit is normal.

NO

>> Refer to

EXL-50, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006247665

Regarding Wiring Diagram information, refer to

EXL-107, "Wiring Diagram"

.

1.

CHECK PARKING LAMP FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 2

2.

CHECK TAIL LAMP RELAY OUTPUT (VOLTAGE)

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector, front side marker lamp connector, rear combination

lamp connector and license plate lamp connector.

3. Turn the ignition switch ON.

4. Turn the parking lamps ON.

TAIL

: Parking lamp ON

Off

: Parking lamp OFF

Unit

Location

Fuse No.

Capacity

Parking lamps

IPDM E/R

36

10A

37

10A

2011 Pathfinder

PARKING LAMP CIRCUIT

EXL-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

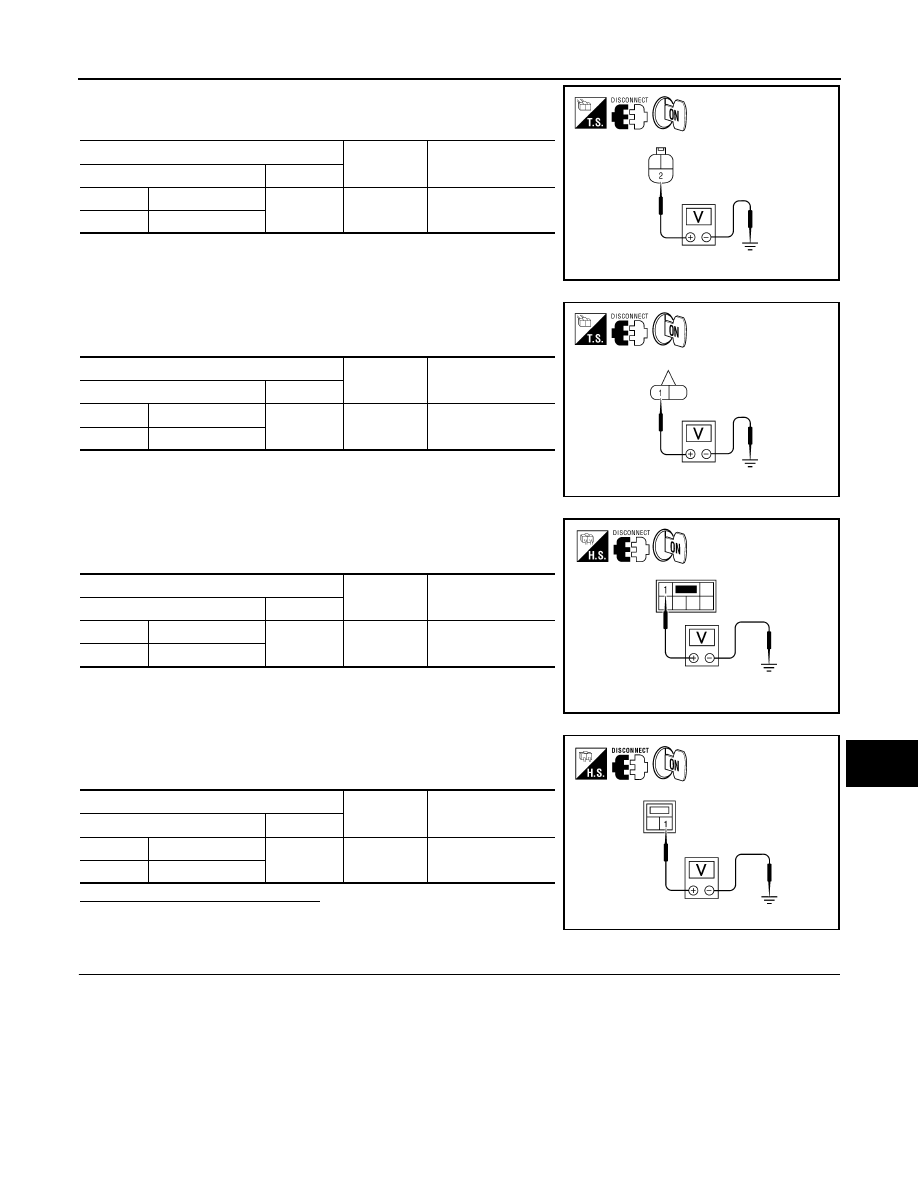

5. With the parking lamps ON, check voltage between the front

combination lamp connector and ground.

6. With the parking lamps ON, check voltage between the front

side marker lamp connector and ground.

7. With the parking lamps ON, check voltage between the rear

combination lamp connector and ground.

8. With the parking lamps ON, check voltage between the license

plate lamp connector and ground

Are voltage readings as specified?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK PARKING, LICENSE PLATE AND TAIL LAMP CIRCUIT (OPEN)

(+)

(

−

)

Voltage

Connector

Terminal

LH

E27

2

Ground

Battery voltage

RH

E111

AWLIA1671ZZ

(+)

(

−

)

Voltage

Connector

Terminal

LH

E17

1

Ground

Battery voltage

RH

E108

AWLIA1672ZZ

(+)

(

−

)

Voltage

Connector

Terminal

LH

B35

1

Ground

Battery voltage

RH

B105

ALLIA0632GB

(+)

(

−

)

Voltage

Connector

Terminal

LH

D506

1

Ground

Battery voltage

RH

D507

ALLIA0633GB

2011 Pathfinder

EXL-52

< DTC/CIRCUIT DIAGNOSIS >

PARKING LAMP CIRCUIT

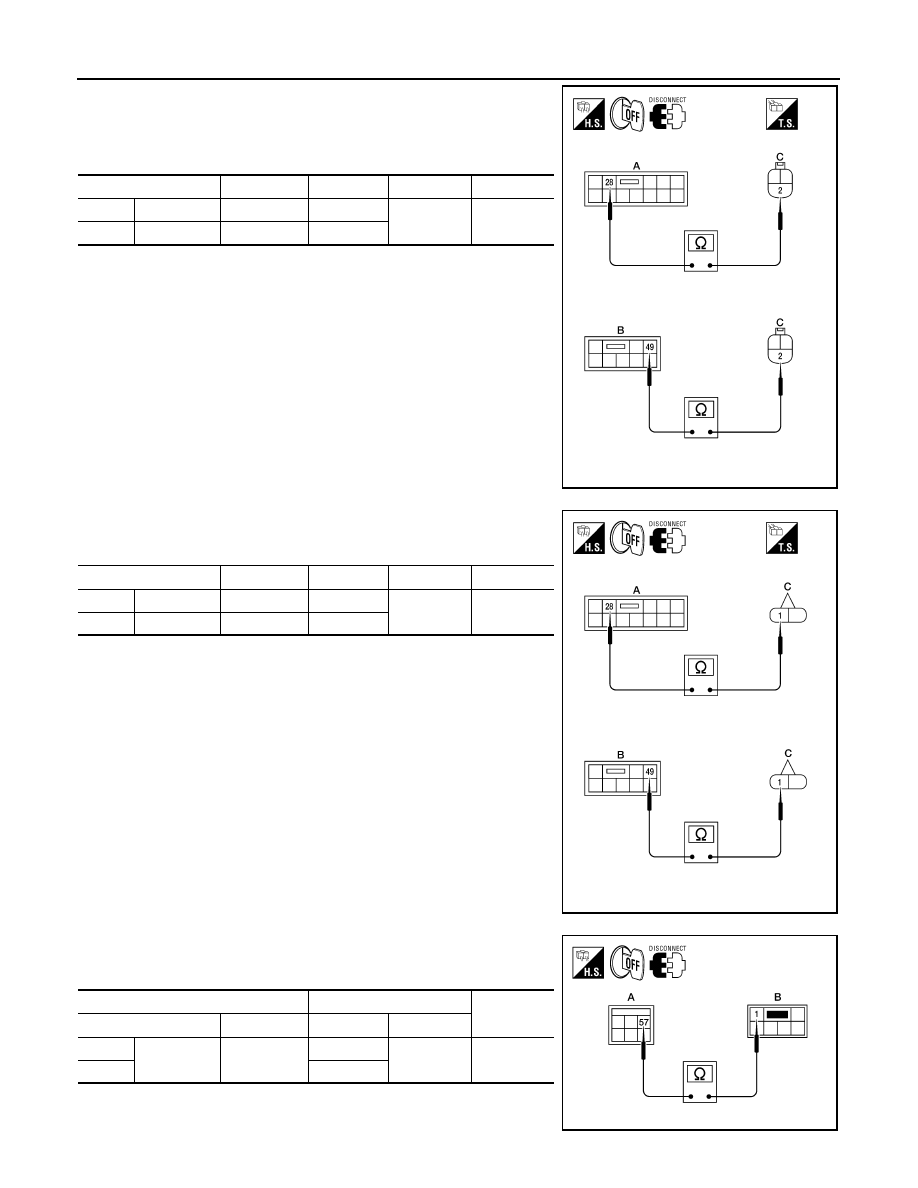

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector

(A)(B) and the front parking lamp harness connector (C).

4. Check continuity between the IPDM E/R harness connector

(A)(B) and the front side marker lamp harness connector (C).

5. Check continuity between the IPDM E/R harness connector (A)

and the rear combination lamp harness connector (B).

Connector

Terminal

Connector

Terminal

Continuity

LH

A: E121

28

C: E27

2

Yes

RH

B: E123

49

C: E111

AWLIA1673ZZ

Connector

Terminal

Connector

Terminal

Continuity

LH

A: E121

28

C: E17

1

Yes

RH

B: E123

49

C: E108

AWLIA1674ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

B35

1

Yes

RH

B105

ALLIA0637GB

2011 Pathfinder

PARKING LAMP CIRCUIT

EXL-53

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

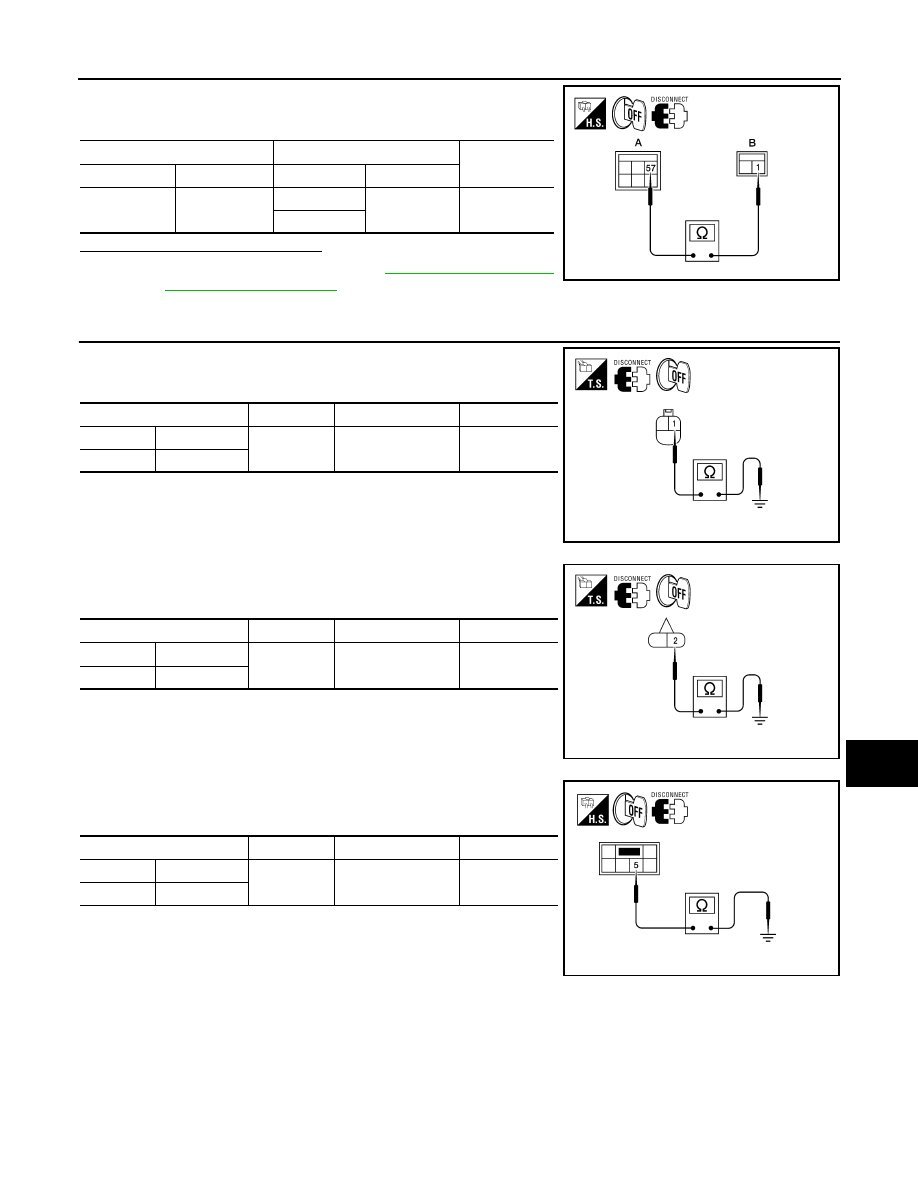

6. Check continuity between the IPDM E/R harness connector (A)

and license plate lamp connector (B).

Are continuity results as specified?

YES

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and

Installation of IPDM E/R"

.

NO

>> Repair the harnesses or connectors.

4.

CHECK PARKING, LICENSE AND TAIL LAMP GROUND CIRCUITS

1. Check continuity between the front parking lamp harness con-

nector and ground.

2. Check continuity between the front side marker lamp harness

connector and ground.

3. Check continuity between the rear combination lamp harness

connector and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

E124

57

D506

1

Yes

D507

ALLIA0638GB

Connector

Terminal

—

Continuity

LH

E27

1

Ground

Yes

RH

E111

AWLIA1676ZZ

Connector

Terminal

—

Continuity

LH

E17

2

Ground

Yes

RH

E108

AWLIA1677ZZ

Connector

Terminal

—

Continuity

LH

B35

5

Ground

Yes

RH

B105

ALLIA0641GB

2011 Pathfinder















Content      ..     398      399      400      401     ..
