Nissan Pathfinder (2011 year). Manual - part 383

OIL PAN AND OIL STRAINER

EM-175

< REMOVAL AND INSTALLATION >

[VK56DE]

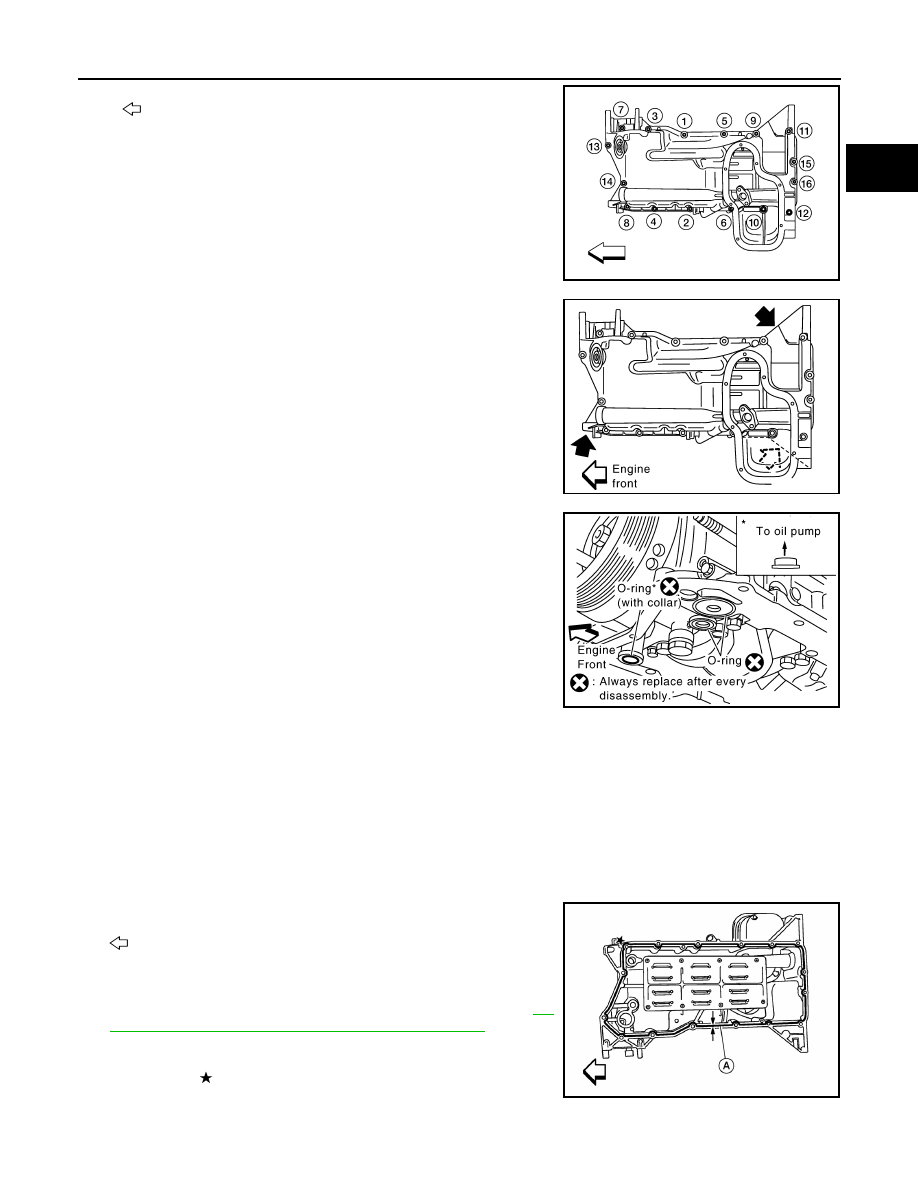

a. Remove the oil pan (upper) bolts in the reverse order shown.

•

: Engine front

b. Remove the oil pan (upper) from the cylinder block by prying it at

the points shown, using suitable tool.

CAUTION:

Do not damage mating surface.

23. Remove the O-rings from the oil pump and front cover.

CAUTION:

Do not reuse O-rings.

INSPECTION AFTER REMOVAL

Clean the oil strainer.

INSTALLATION

1. Install the oil pan (upper) using the following steps.
a. Using a scraper to remove old liquid gasket from mating surfaces.

• Also remove old liquid gasket from mating surface of oil pan (upper).

• Remove old liquid gasket from bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.

b. Apply a continuous bead of liquid gasket as shown using a suit-

able tool.

: Front

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-

CAUTION:

• Apply liquid gasket to outside of bolt hole for the hole

shown by .

• Installation should be done within 5 minutes after apply-

ing liquid gasket.

AWBIA0833ZZ

KBIA2468E

KBIA2469E

Bead diameter (A) : 4.0 - 5.0 mm (0.157 - 0.197 in)

AWBIA1075GB

2011 Pathfinder

EM-176

< REMOVAL AND INSTALLATION >

[VK56DE]

OIL PAN AND OIL STRAINER

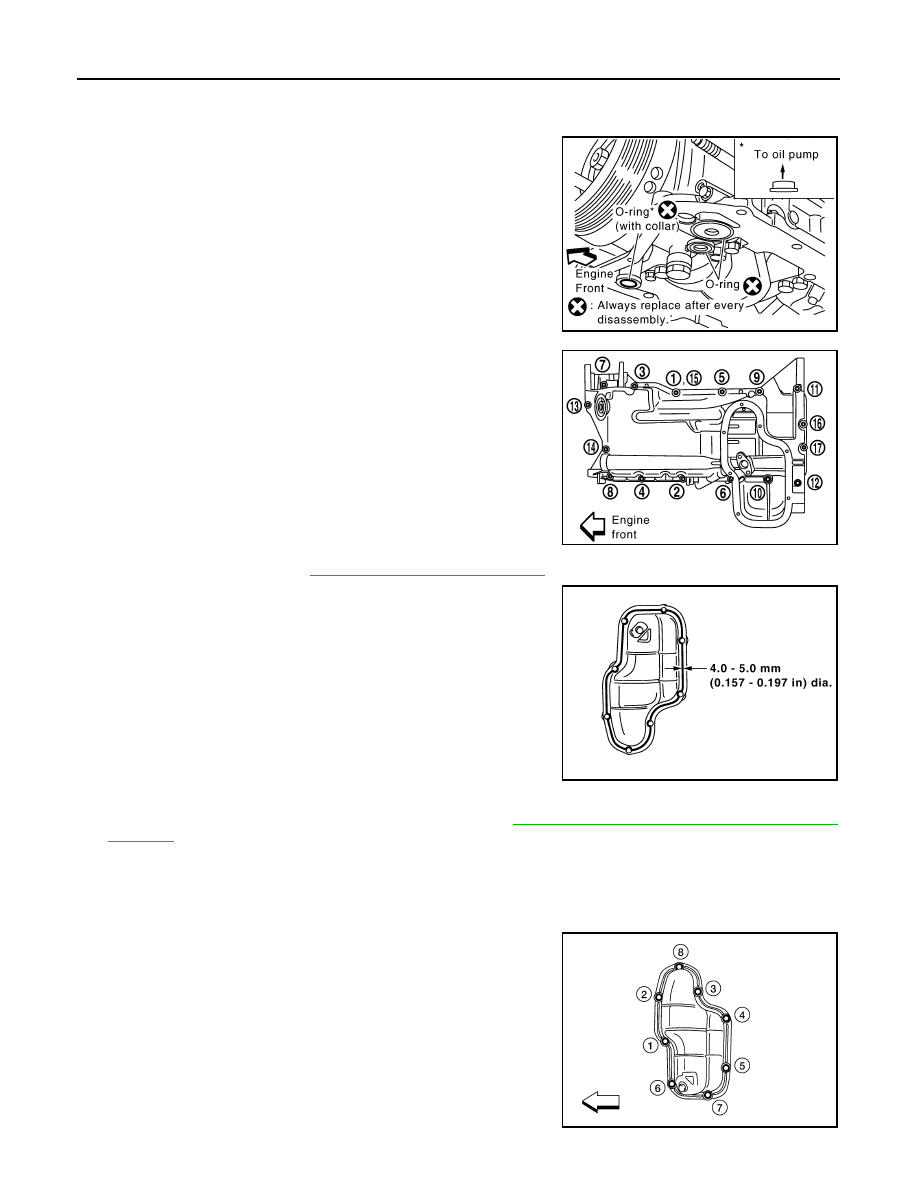

• Do not fill the engine with oil for at least 30 minutes after the oil pan is installed to allow the seal-

ant to cure.

Install new O-rings to the oil pump and front cover side.

CAUTION:

Do not reuse O-rings.

d. Tighten the bolts to the specified torque in numerical order as

shown.

2. Install the oil strainer to the oil pan (upper).

3. Install the oil cooler. Refer to

LU-30, "Removal and Installation"

4. Install the oil pan (lower).
a. Using a scraper to remove old liquid gasket from mating sur-

faces.

• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from bolt holes and thread.

CAUTION:

Do not scratch or damage the mating surfaces when clean-

ing off old liquid gasket.

b. Apply a continuous bead of liquid gasket using Tool as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

Sealants"

CAUTION:

Installation should be done within 5 minutes after applying liquid gasket.

Tighten the oil pan (lower) bolts to the specified torque in numerical order as shown.

CAUTION:

Do not fill the engine with oil for at least 30 minutes after oil

pan is installed to allow the sealant to cure.

KBIA2469E

30 mm (1.18 in)

: No. 16, 17

25 mm (0.98in)

: No. 1(15), 3, 5, 7, 9, 13

45 mm (1.77 in)

: No. 2, 4, 6, 8, 10, 14

123 mm (4.84in) : No. 11, 12

PBIC2553E

Tool number

: WS39930000 ( — )

KBIA2471E

AWBIA0832ZZ

2011 Pathfinder

OIL PAN AND OIL STRAINER

EM-177

< REMOVAL AND INSTALLATION >

[VK56DE]

5. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubricants"

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Exhaust gas

—

Leakage

—

2011 Pathfinder

EM-178

< REMOVAL AND INSTALLATION >

[VK56DE]

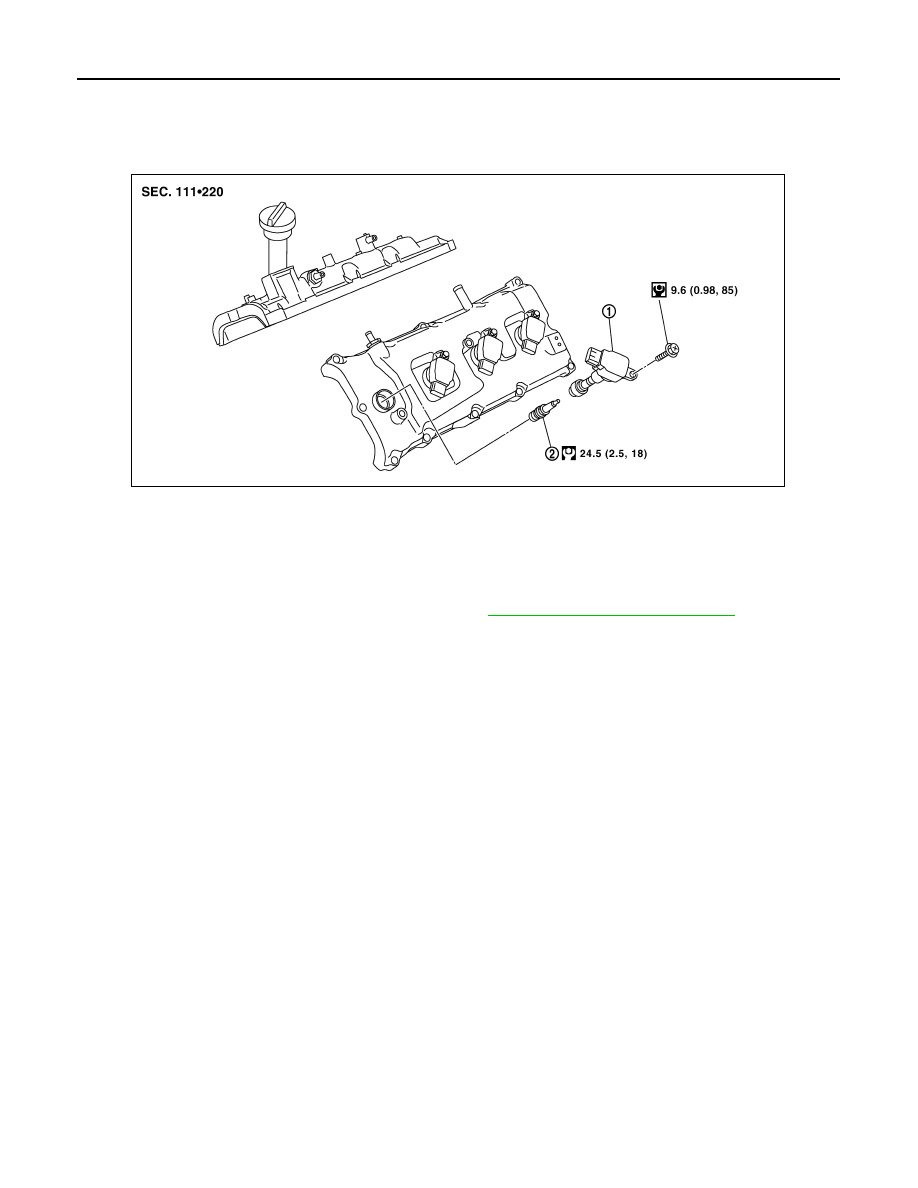

IGNITION COIL

IGNITION COIL

Exploded View

INFOID:0000000006247079

Removal and Installation

INFOID:0000000006247080

REMOVAL

1. Remove the air duct and resonator assembly. Refer to

EM-165, "Removal and Installation"

2. Remove crankcase ventilation hose from the rocker covers.
3. Disconnect the harness connector from the ignition coil.
4. Remove the ignition coil.

CAUTION:

Do not shock ignition coil.

INSTALLATION

Installation is in the reverse order of removal.

Ignition coil

Spark plug

WBIA0796E

2011 Pathfinder

ROCKER COVER

EM-179

< REMOVAL AND INSTALLATION >

[VK56DE]

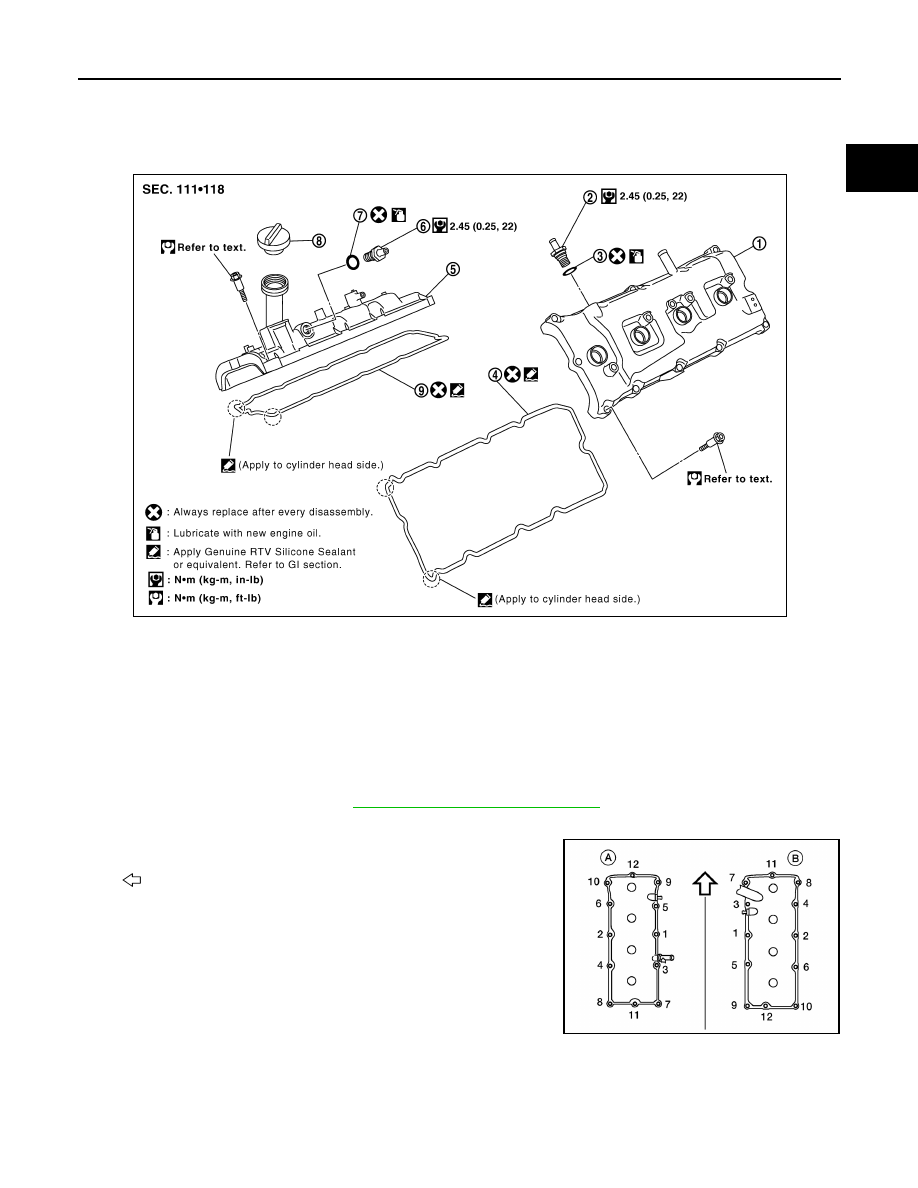

ROCKER COVER

Exploded View

INFOID:0000000006247081

Removal and Installation

INFOID:0000000006247082

REMOVAL

1. Move the harness on the upper rocker cover and its peripheral aside.
2. Remove the ignition coils. Refer to

EM-178, "Removal and Installation"

3. Remove the PCV hose from the PCV control valves.
4. Loosen the rocker cover bolts in reverse order shown using

power tool.
•

: Engine front

• A: Rocker cover (LH)

• B: Rocker cover (RH)

CAUTION:

Do not hold the rocker cover (RH) (B) by the oil filler neck.

INSTALLATION

Rocker cover (LH)

PCV control valve

O-ring

Rocker cover gasket (LH)

Rocker cover (RH)

PCV control valve

O-ring

Oil filler cap

Rocker cover gasket (RH)

KBIA2508E

AWBIA1059GB

2011 Pathfinder

EM-180

< REMOVAL AND INSTALLATION >

[VK56DE]

ROCKER COVER

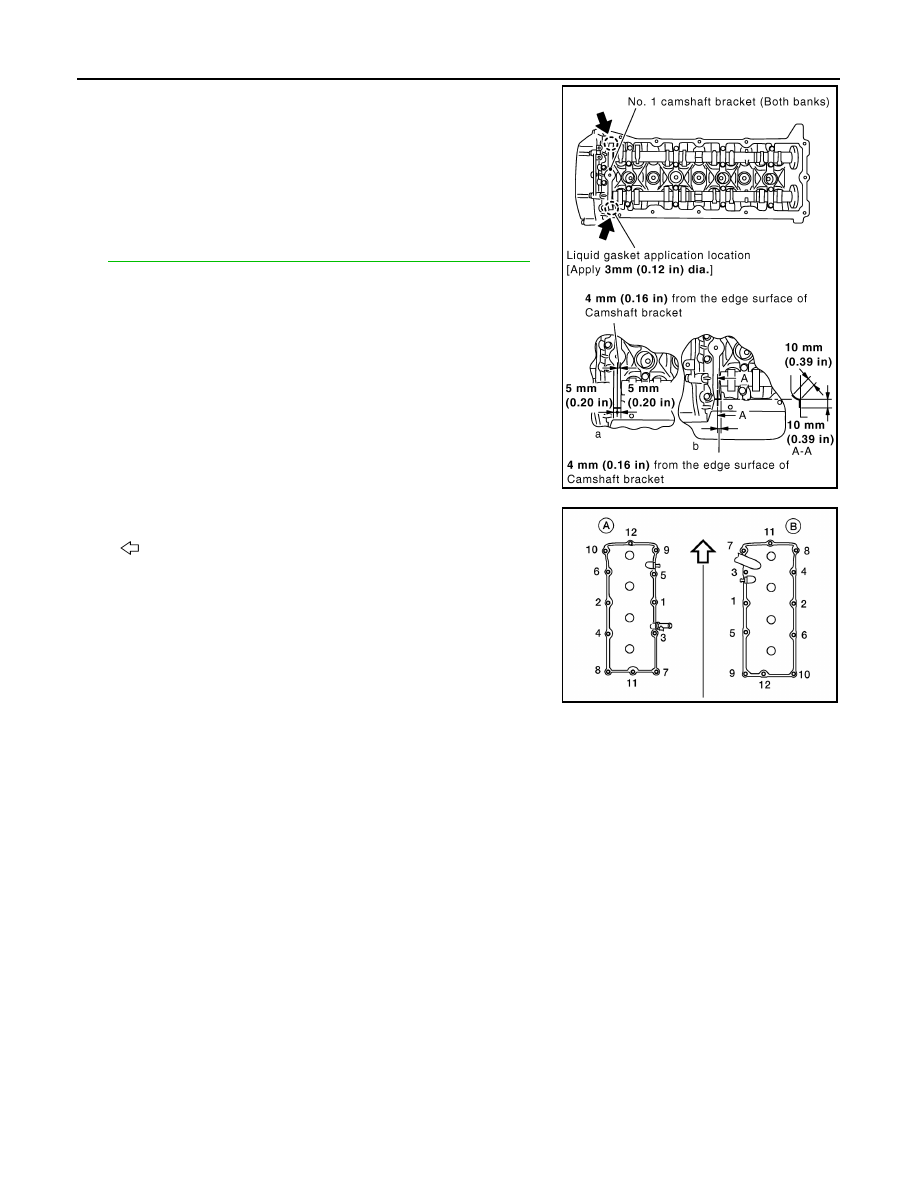

1. Apply liquid gasket to the joint part of the cylinder head and

camshaft bracket following the steps below.

NOTE:

Illustration shows an example of (LH) side (zoomed in shows

No.1 camshaft bracket).

a. Apply liquid gasket to the joint part of No.1 camshaft bracket and

cylinder head "a".

b. Apply liquid gasket 90

"b" to illustration

″

Use Genuine RTV Silicone Sealant or equivalent. Refer to

2. Install the rocker cover and tighten the bolts in two steps in the

order shown.
•

: Engine front

• A: Rocker cover (LH)

• B: Rocker cover (RH)

CAUTION:

• Do not hold the rocker cover (RH) (B) by the oil filler neck.

• Make sure the new rocker cover gasket is installed in the

groove of the rocker cover.

3. Install the PCV hoses.

NOTE:

• Remove foreign materials from inside the hose using compressed air.

• The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].

4. Installation of the remaining components is in the reverse order of removal.

KBIA2510E

1st step

: 2.0 N·m (0.2 kg-m, 18 in-lb)

2nd step

: 8.3 N·m (0.85 kg-m, 73 in-lb)

AWBIA1059GB

2011 Pathfinder

FUEL INJECTOR AND FUEL TUBE

EM-181

< REMOVAL AND INSTALLATION >

[VK56DE]

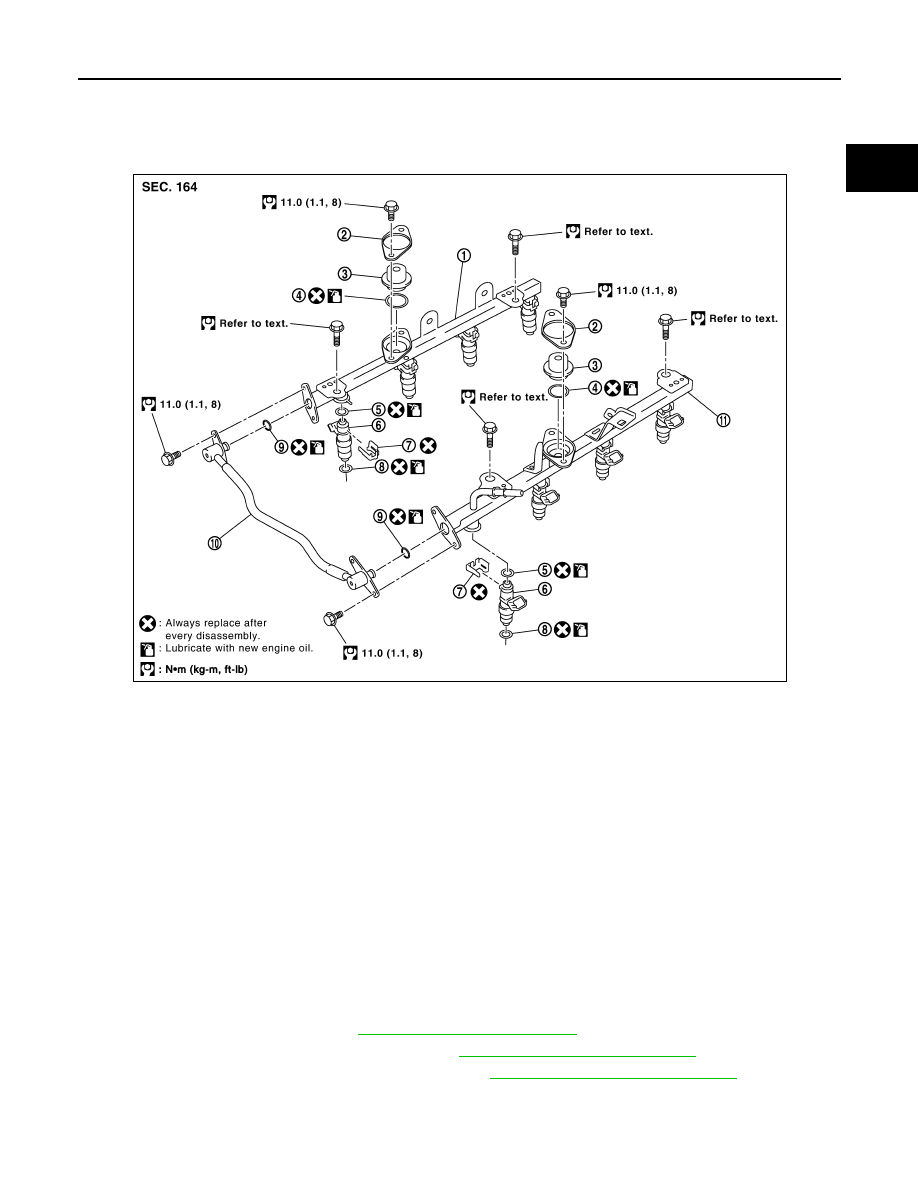

FUEL INJECTOR AND FUEL TUBE

Exploded View

INFOID:0000000006247083

Removal and Installation

INFOID:0000000006247084

WARNING:

• Put a “CAUTION FLAMMABLE” sign in the workshop.

• Be sure to work in a well ventilated area and furnish workshop with a CO

fire extinguisher.

• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

Do not remove or disassemble parts unless instructed as shown.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Release the fuel pressure. Refer to

EC-938, "Fuel Pressure Check"

2. Disconnect the battery negative terminal. Refer to

PG-76, "Removal and Installation"

3. Remove the air duct and resonator assembly. Refer to

EM-165, "Removal and Installation"

4. Disconnect the EVAP canister purge control solenoid valve harness connector.
5. Disconnect the fuel injector harness connectors.
6. Disconnect the fuel hose assembly from the fuel tubes (RH and LH).

Fuel tube (RH)

Cap

Fuel damper

O-ring

O-ring (blue)

Fuel injector

Clip

O-ring (brown)

O-ring

10. Fuel hose assembly

11. Fuel tube (LH)

KBIA2472E

2011 Pathfinder

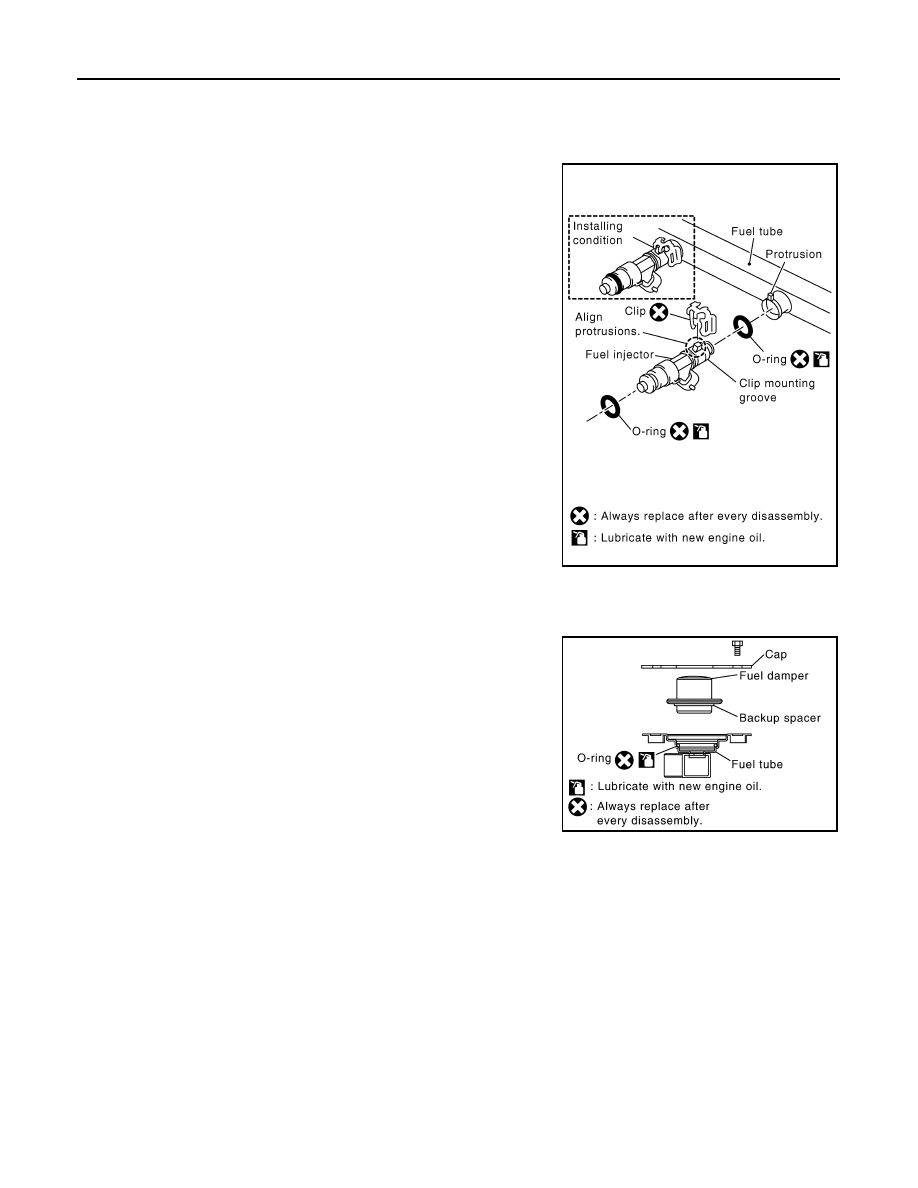

EM-182

< REMOVAL AND INSTALLATION >

[VK56DE]

FUEL INJECTOR AND FUEL TUBE

CAUTION:

• While hoses are disconnected, plug them to prevent fuel from draining.

• Do not separate the fuel connector and fuel hose.

7. Remove the fuel injectors with the fuel tube assembly.
8. Remove the fuel injector from the fuel tube.
a. Spread open to remove the clip.
b. Remove the fuel injector from the fuel tube by pulling straight

out.

CAUTION:

• Be careful with remaining fuel that may leak out from fuel

tube.

• Do not damage injector nozzles during removal.

• Do not bump or drop fuel injectors.

• Do not disassemble fuel injectors.

• Do not reuse O-rings.

9. Remove the fuel damper from each fuel tube, if necessary.

INSTALLATION

1. Install the fuel damper to each fuel tube, if removed.
a. Apply engine oil to the new O-ring and set it into the cup of the

fuel tube.

CAUTION:

• Handle O-ring with bare hands. Never wear gloves.

• Lubricate new O-ring with new engine oil.

• Do not clean O-ring with solvent.

• Make sure that O-ring and its mating part are free of for-

eign material.

• When installing O-ring, do not scratch it with tool or fin-

gernails.

• Do not twist or stretch the O-ring.

• Do not reuse O-rings.

b. Make sure that the backup spacer is in the O-ring connecting surface of the fuel damper.

NOTE:

The backup spacer is part of the fuel damper assembly.

Insert the fuel damper until it seats on the fuel tube.

CAUTION:

• Insert straight, making sure that the axis is lined up.

• Do not pressure-fit with excessive force.

d. Install the cap, and then tighten the bolts evenly.

• After tightening the bolts, make sure that there is no gap between the cap and fuel tube.

2. Install new O-rings to the fuel injector paying attention to the items below.

CAUTION:

• Do not reuse O-rings.

KBIA2506E

Reference value

:130 N (13.3 kg, 29.2 lb)

KBIA2473E

2011 Pathfinder
