P0643 SENSOR POWER SUPPLY

6.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1. Replace accelerator pedal position assembly. Refer to

ACC-4

.

2. Perform

EC-593, "Accelerator Pedal Released Position Learning"

.

3. Perform

EC-593, "Throttle Valve Closed Position Learning"

.

4. Perform

EC-593, "Idle Air Volume Learning"

.

>>

INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>>

INSPECTION END

2011 Pathfinder

P0850 PNP SWITCH

EC-823

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0850 PNP SWITCH

Component Description

INFOID:0000000006244487

When the selector lever position is P or N, park/neutral position (PNP) signal is sent to ECM from TCM via

combination meter (unified meter control unit).

ECM detects the position because the continuity of the line (the ON signal) exists.

On Board Diagnosis Logic

INFOID:0000000006244488

DTC Confirmation Procedure

INFOID:0000000006244489

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

 WITH CONSULT-III

1. Turn ignition switch ON.

2. Select “P/N POSI SW” in “DATA MONITOR” mode with CONSULT-III. Then check the “P/N POSI SW”

indication under the following conditions.

If NG, go to

EC-824, "Diagnosis Procedure"

.

If OK, go to following step.

3. Select “DATA MONITOR” mode with CONSULT-III.

4. Start engine and warm it up to normal operating temperature.

5. Maintain the following conditions for at least 60 consecutive seconds.

6. Check 1st trip DTC.

7. If 1st trip DTC is detected, go to

EC-824, "Diagnosis Procedure"

.

Overall Function Check

INFOID:0000000006244490

Use this procedure to check the overall function of the park/neutral position (PNP) signal circuit. During this

check, a 1st trip DTC might not be confirmed.

 WITH GST

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0850
0850

Park/neutral position
switch

The park/neutral position (PNP) signal does not
change during driving after engine is started.

• Harness or connectors

[The park/neutral position (PNP) signal
circuit is open or shorted.]

• Combination meter (unified meter control

unit)

• TCM

Selector lever position

Known-good signal

N or P position

ON

Except the above position

OFF

ENG SPEED

1,050 - 6,375 rpm

COOLAN TEMP/S

More than 70

°

C (158

°

F)

B/FUEL SCHDL

3.5 - 31.8 msec

VHCL SPEED SE

More than 64 km/h (40 MPH)

Selector lever

Suitable position

2011 Pathfinder

EC-824

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0850 PNP SWITCH

1. Turn ignition switch ON.

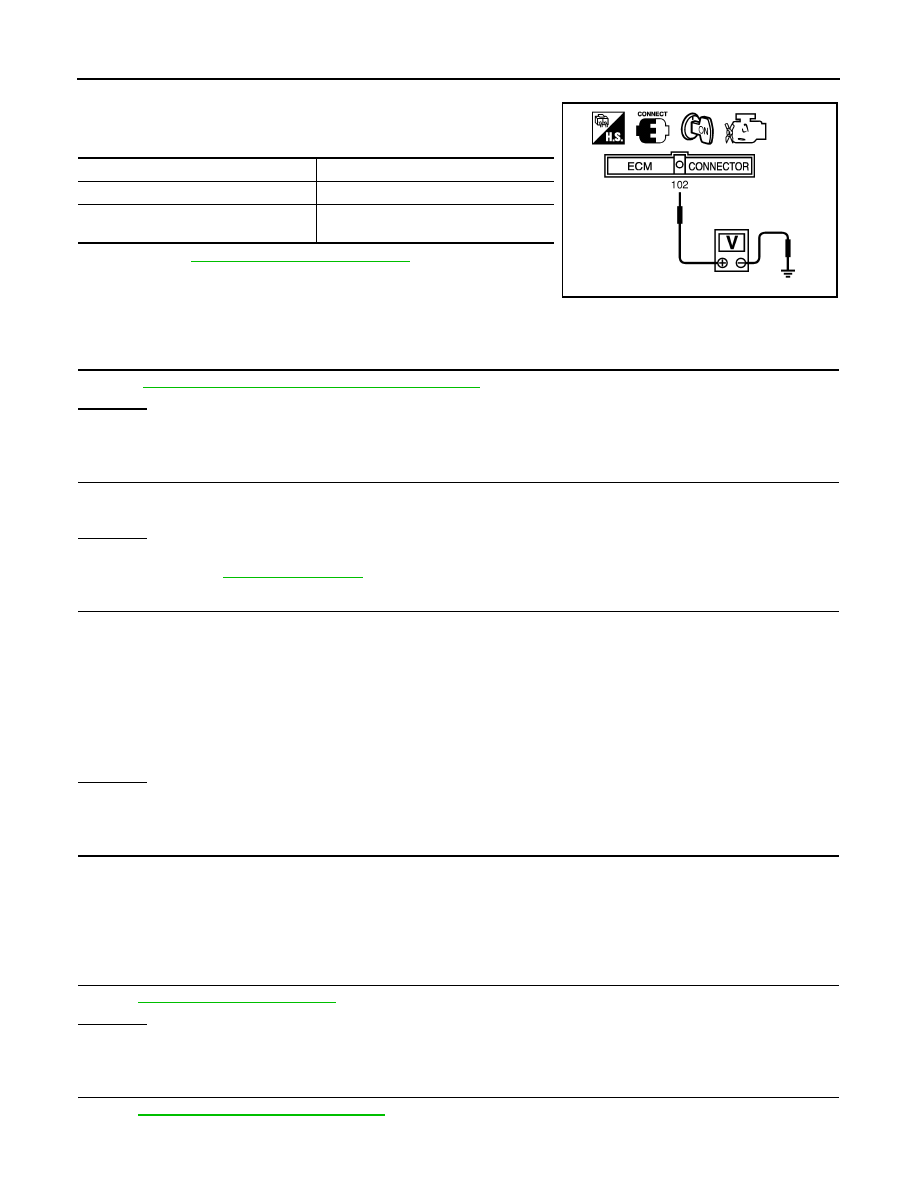

2. Check voltage between ECM terminal 102 (PNP signal) and

ground under the following conditions.

3. If NG, go to

EC-824, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006244491

1.

CHECK DTC WITH TCM

 Refer to

TM-34, "OBD-II Diagnostic Trouble Code (DTC)"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace malfunctioning part.

2.

CHECK STARTING SYSTEM

Turn ignition switch OFF, then turn it to START.

Does starter motor operate?

Yes or No

Yes

>> GO TO 3.

No

>> Refer to

STR-5, "Work Flow"

.

3.

CHECK PNP SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Disconnect combination meter harness connector.

4. Check harness continuity between ECM terminal 102 and combination meter terminal 7.

Refer to Wiring Diagram.

5. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

 DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors M31, E152

• Harness for open or short between ECM and combination meter

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace malfunctioning part.

6.

REPLACE COMBINATION METER FUNCTION

Refer to

MWI-88, "Removal and Installation"

.

Selector lever position

Voltage (Known good data)

P or N position

Approx. 0 V

Except the above position

BATTERY VOLTAGE

(11 - 14 V)

MBIB0043E

Continuity should exist.

2011 Pathfinder

P0850 PNP SWITCH

EC-825

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>>

INSPECTION END

2011 Pathfinder

EC-826

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P1140, P1145 IVT CONTROL POSITION SENSOR

P1140, P1145 IVT CONTROL POSITION SENSOR

Component Description

INFOID:0000000006244492

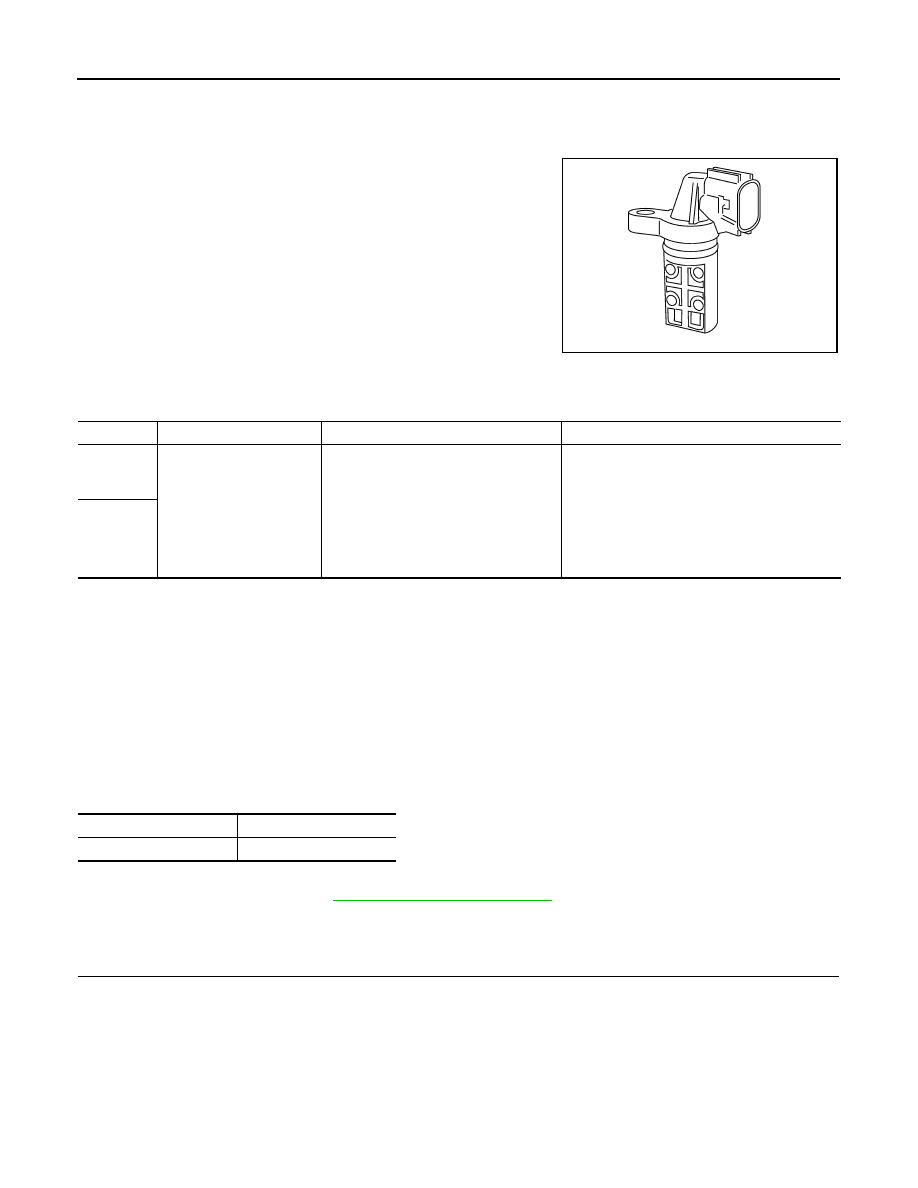

Intake valve timing control position sensors are located in the front of

cylinder heads in both bank 1 and bank 2.

This sensor uses a Hall IC.

The cam position is determined by the intake camshaft sprocket con-

cave (in four places). The ECM provides feedback to the intake valve

timing control for appropriate target valve open-close timing accord-

ing to drive conditions based on detected cam position.

On Board Diagnosis Logic

INFOID:0000000006244493

DTC Confirmation Procedure

INFOID:0000000006244494

1. If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next step.

a. Turn ignition switch OFF and wait at least 10 seconds.
b. Turn ignition switch ON.
c.

Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Maintain the following conditions for at least 10 seconds.

5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to

EC-826, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006244495

1.

CHECK GROUND CONNECTIONS

1. Turn ignition switch OFF.

2. Loosen and retighten ground screws on the body.

SEF359Z

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1140
1140
(Bank 1)

Intake valve timing control
position sensor circuit

An excessively high or low voltage from
the sensor is sent to ECM.

• Harness or connectors

(Intake valve timing control position sensor
circuit is open or shorted)

• Intake valve timing control position sensor
• Crankshaft position sensor (POS)
• Camshaft position sensor (PHASE)
• Accumulation of debris to the signal pick-up

portion of the camshaft sprocket

P1145
1145
(Bank 2)

Engine speed

More than idle speed

Selector lever

P or N position

2011 Pathfinder

P1140, P1145 IVT CONTROL POSITION SENSOR

EC-827

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Refer to

EC-612, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT

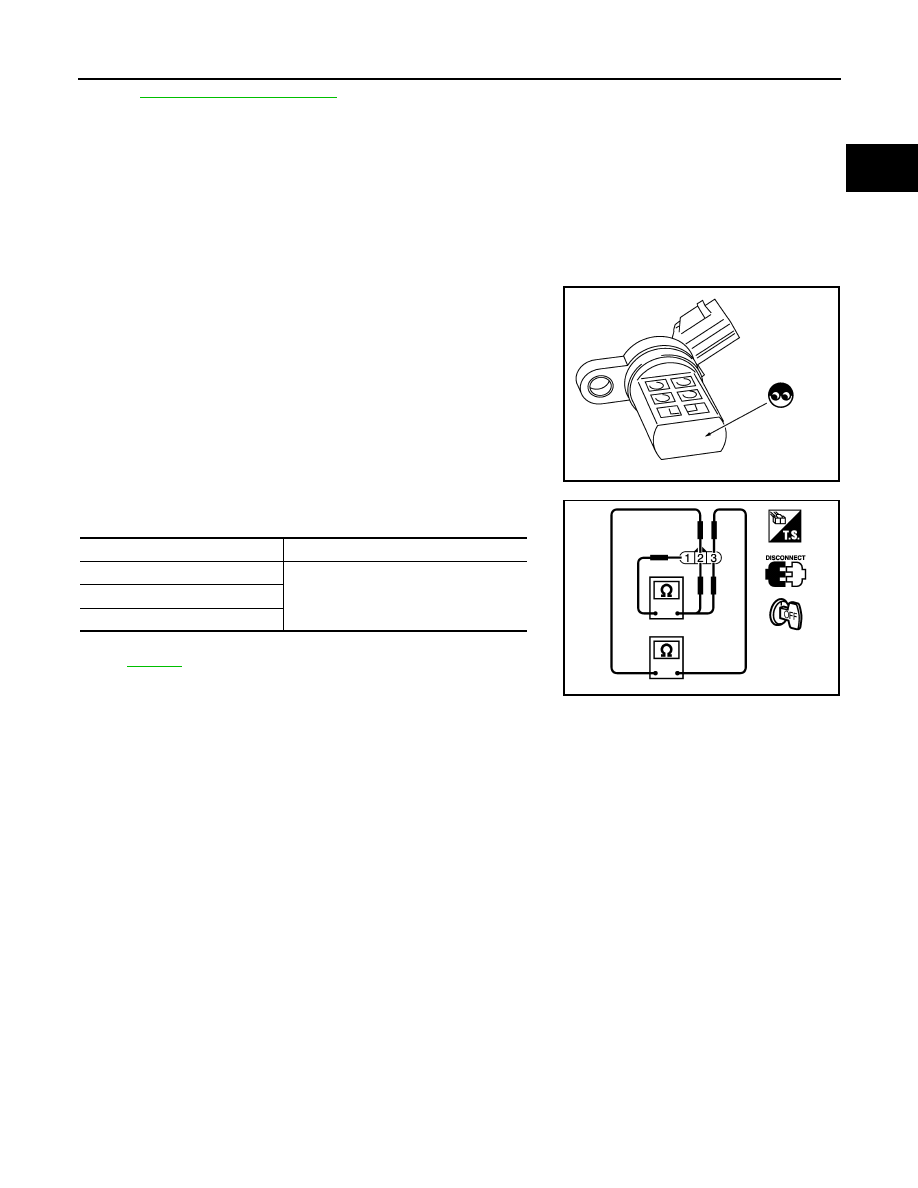

1. Disconnect intake valve timing control position sensor harness connector.

2. Turn ignition switch ON.

3. Check voltage between intake valve timing control position sen-

sor terminal 3 and ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors E2, F32

• IPDM E/R harness connector E19

• Harness for open or short between intake valve timing control position sensor and IPDM E/R

• Harness for open or short between intake valve timing control position sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND

SHORT

1. Turn ignition switch OFF.

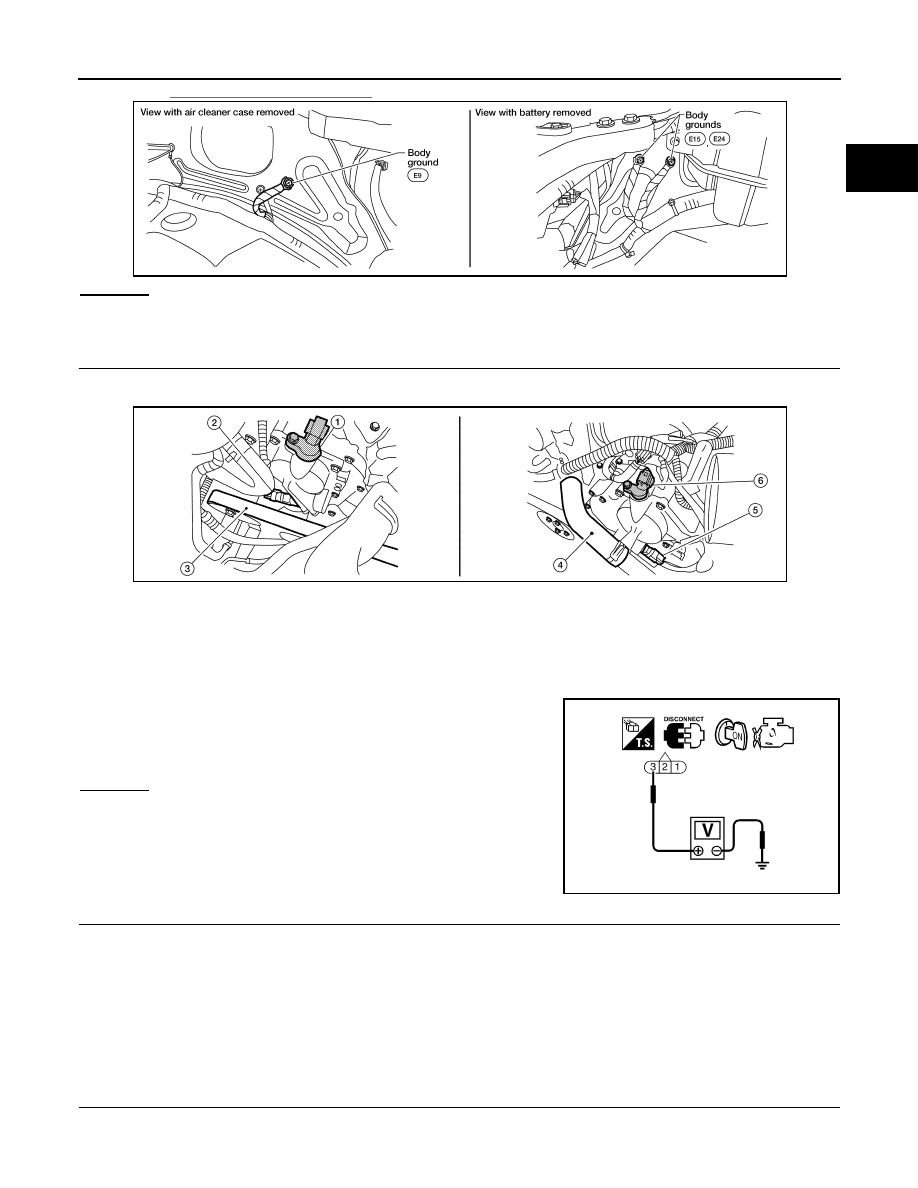

BBIA0539E
