DLN-482

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R230]

REAR FINAL DRIVE

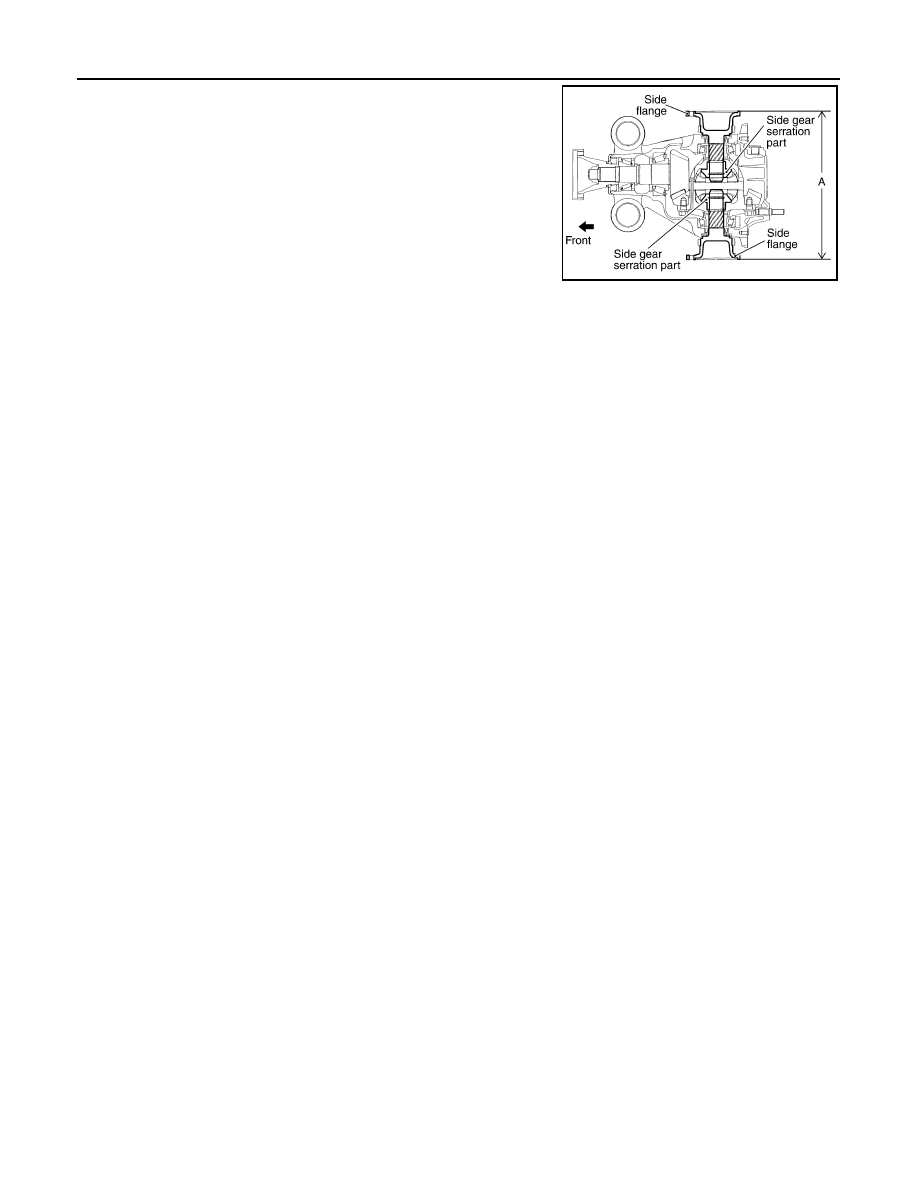

3. Check measurement (A) after the side flange installation is com-

plete as shown.

Measurement (A)

: 339.5 mm (13.37 in)

SDIA1039E

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-483

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006245235

Inspection and Adjustment

INFOID:0000000006245236

DRIVE GEAR RUNOUT

Unit: mm (in)

SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

SELECTIVE PARTS

Side Gear Thrust Washer

Applied model

VK56DE

Final drive model

R230

Gear ratio

2.937

Number of teeth (Drive gear/Drive pinion)

47 / 16

Oil capacity (Approx.)

1.75   (3 3/4 US pt, 3 1/8 Imp pt)

Number of pinion gears

2

Drive pinion adjustment spacer type

Collapsible

Item

Runout limit

Drive gear back face

0.05 (0.0020) or less

Item

Specification

Side gear back clearance
(Clearance limit between side gear and differential case for adjusting
side gear backlash)

0.20 (0.0079) or less

(Each gear should rotate smoothly without excessive resis-

tance during differential motion.)

Item

Specification

Drive pinion bearing preload torque

1.77

−

 2.64 N·m (0.18

−

 0.26 kg

−

m, 16

−

 23 in-lb)

Side bearing preload torque (reference value determined by drive
gear bolt pulling force)

0.20

−

 0.52 N·m (0.02

−

 0.05 kg

−

m, 2

−

 4 in-lb)

Drive gear bolt pulling force (by spring gauge)

34.2

−

 39.2 N-f (3.5

−

 4 kg-f, 7.7

−

 8.8 lb-f)

Total preload torque
(Total preload torque = drive pinion bearing preload torque + Side
bearing preload torque)

2.05

−

 4.11 N·m (0.21

−

 0.42 kg

−

m, 19

−

 36 in-lb)

Item

Specification

Drive gear to drive pinion gear

0.13

−

 0.18 (0.0051

−

 0.0070)

Item

Runout limit

Outer side of the companion flange

 0.08 (0.0031) or less

2011 Pathfinder

DLN-484

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R230]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Drive Pinion Height Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness

Part number*

1.75 (0.0688)
1.80 (0.0708)
1.85 (0.0728)

38424 7S000
38424 7S001
38424 7S002

Thickness

Part number*

Thickness

Part number*

2.59 (0.1020)
2.61 (0.1028)
2.63 (0.1035)
2.65 (0.1043)
2.67 (0.1051)
2.69 (0.1059)
2.71 (0.1067)
2.73 (0.1075)
2.75 (0.1083)
2.77 (0.1091)

38154 40P00
38154 40P01
38154 40P02
38154 40P03
38154 40P04
38154 40P05
38154 40P06
38154 40P07
38154 40P08
38154 40P09

2.79 (0.1098)

2.81 (0.1106)

2.83 (0.1114)

2.85 (0.1122)
2.87 (0.1130)
2.89 (0.1138)
2.91 (0.1146)
2.93 (0.1154)
2.95 (0.1161)
2.97 (0.1169)

38154 40P10

38154 40P11

38154 40P12
38154 40P13
38154 40P14
38154 40P15
38154 40P16
38154 40P17
38154 40P18
38154 40P19

Thickness

Part number*

Thickness

Part number*

2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906)

38453 40P00
38453 40P01
38453 40P02
38453 40P03
38453 40P04
38453 40P05
38453 40P06

2.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)

38453 40P07
38453 40P08
38453 40P09
38453 40P10

38453 40P11

38453 40P12

2011 Pathfinder

EC-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EC

A

EC

N

O

P

CONTENTS

ENGINE CONTROL SYSTEM

VQ40DE

BASIC INSPECTION  ...................................

14

DIAGNOSIS AND REPAIR WORKFLOW  .........

14

Trouble Diagnosis Introduction  ...............................

14

INSPECTION AND ADJUSTMENT ....................

20

Basic Inspection  ......................................................

20

Idle Speed and Ignition Timing Check  ....................

24

Procedure After Replacing ECM  .............................

24

VIN Registration  ......................................................

25

Accelerator Pedal Released Position Learning .......

25

Throttle Valve Closed Position Learning  .................

25

Idle Air Volume Learning .........................................

25

HOW TO SET SRT CODE ..................................

28

Description ..............................................................

28

SRT Set Driving Pattern ..........................................

29

Work Procedure  ......................................................

31

HOW TO ERASE PERMANENT DTC ................

34

Description ..............................................................

34

Work Procedure (Group A)  .....................................

35

Work Procedure (Group B)  .....................................

37

SYSTEM DESCRIPTION  .............................

40

ENGINE CONTROL SYSTEM ............................

40

System Diagram ......................................................

40

Engine Control Component Parts Location .............

41

MULTIPORT FUEL INJECTION SYSTEM .........

48

System Description  .................................................

48

ELECTRIC IGNITION SYSTEM  .........................

51

System Description  .................................................

51

AIR CONDITIONING CUT CONTROL  ...............

52

Input/Output Signal Chart ........................................

52

System Description  .................................................

52

AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ..............................................................

53

System Description ..................................................

53

Component Description  ...........................................

54

CAN COMMUNICATION ...................................

55

System Description ..................................................

55

COOLING FAN CONTROL ...............................

56

Description ...............................................................

56

EVAPORATIVE EMISSION SYSTEM ...............

57

Description ...............................................................

57

INTAKE VALVE TIMING CONTROL  ................

60

Description ...............................................................

60

FUEL FILLER CAP WARNING SYSTEM .........

61

System Diagram .....................................................

61

System Description ..................................................

61

VARIABLE INDUCTION AIR SYSTEM  ............

63

Description ...............................................................

63

Vacuum Hose Drawing ............................................

65

ON BOARD DIAGNOSTIC (OBD) SYSTEM  ....

66

Diagnosis Description ..............................................

66

GST (Generic Scan Tool)  ........................................

66

DIAGNOSIS SYSTEM (ECM)  ...........................

67

DIAGNOSIS DESCRIPTION ......................................

67

DIAGNOSIS DESCRIPTION : 1st Trip Detection
Logic and Two Trip Detection Logic  ........................

67

DIAGNOSIS DESCRIPTION : DTC and Freeze
Frame Data ..............................................................

67

DIAGNOSIS DESCRIPTION : Counter System  ......

68

DIAGNOSIS DESCRIPTION : Driving Pattern  ........

71

DIAGNOSIS DESCRIPTION : System Readiness
Test (SRT) Code  .....................................................

72

DIAGNOSIS DESCRIPTION : Malfunction Indica-
tor Lamp (MIL)  .........................................................

73

On Board Diagnosis Function ..................................

74

2011 Pathfinder

EC-2

CONSULT-III Function  ...........................................

77

DTC/CIRCUIT DIAGNOSIS .........................

86

TROUBLE DIAGNOSIS - SPECIFICATION
VALUE ...............................................................

86

Description ..............................................................

86

Testing Condition ....................................................

86

Inspection Procedure ..............................................

86

Diagnosis Procedure  ..............................................

86

POWER SUPPLY AND GROUND CIRCUIT  .....

94

Diagnosis Procedure  ..............................................

94

Ground Inspection  ..................................................

97

U0101 CAN COMM CIRCUIT  ............................

98

Description ..............................................................

98

On Board Diagnosis Logic ......................................

98

DTC Confirmation Procedure  .................................

98

Diagnosis Procedure  ..............................................

98

U1001 CAN COMM CIRCUIT  ............................

99

Description ..............................................................

99

On Board Diagnosis Logic ......................................

99

DTC Confirmation Procedure  .................................

99

Diagnosis Procedure  ..............................................

99

P0011, P0021 IVT CONTROL  .........................

100

On Board Diagnosis Logic .....................................

100

DTC Confirmation Procedure  ................................

100

Diagnosis Procedure  .............................................

101

Component Inspection ...........................................

102

P0031, P0032, P0051, P0052 A/F SENSOR 1
HEATER ...........................................................

103

Description .............................................................

103

On Board Diagnosis Logic .....................................

103

DTC Confirmation Procedure  ................................

103

Diagnosis Procedure  .............................................

103

Component Inspection ...........................................

105

P0037, P0038, P0057, P0058 HO2S2 HEAT-
ER ....................................................................

106

Description .............................................................

106

On Board Diagnosis Logic .....................................

106

DTC Confirmation Procedure  ................................

106

Diagnosis Procedure  .............................................

107

Component Inspection ...........................................

108

P0075, P0081 IVT CONTROL SOLENOID
VALVE .............................................................

110

Component Description  .........................................

110

On Board Diagnosis Logic .....................................

110

DTC Confirmation Procedure  ................................

110

Diagnosis Procedure  .............................................

110

Component Inspection ...........................................

111

P0101 MAF SENSOR  ......................................

113

Component Description  .........................................

113

On Board Diagnosis Logic .....................................

113

DTC Confirmation Procedure  ................................

113

Diagnosis Procedure .............................................

114

Component Inspection  ..........................................

116

P0102, P0103 MAF SENSOR  ..........................

118

Component Description  ........................................

118

On Board Diagnosis Logic  ....................................

118

DTC Confirmation Procedure ................................

118

Diagnosis Procedure .............................................

119

Component Inspection  ..........................................

120

P0111 IAT SENSOR .........................................

123

Component Description  ........................................

123

On Board Diagnosis Logic  ....................................

123

DTC Confirmation Procedure ................................

123

Component Function Check  .................................

124

Diagnosis Procedure .............................................

124

Component Inspection  ..........................................

125

P0112, P0113 IAT SENSOR  ............................

126

Component Description  ........................................

126

On Board Diagnosis Logic  ....................................

126

DTC Confirmation Procedure ................................

126

Diagnosis Procedure .............................................

126

Component Inspection  ..........................................

128

P0116 ECT SENSOR  .......................................

129

Component Description  ........................................

129

On Board Diagnosis Logic  ....................................

129

DTC Confirmation Procedure ................................

129

Component Function Check  .................................

130

Diagnosis Procedure .............................................

131

Component Inspection  ..........................................

131

P0117, P0118 ECT SENSOR  ...........................

132

Component Description  ........................................

132

On Board Diagnosis Logic  ....................................

132

DTC Confirmation Procedure ................................

133

Diagnosis Procedure .............................................

133

Component Inspection  ..........................................

134

P0122, P0123 TP SENSOR ..............................

136

Component Description  ........................................

136

On Board Diagnosis Logic  ....................................

136

DTC Confirmation Procedure ................................

136

Diagnosis Procedure .............................................

136

Component Inspection  ..........................................

138

P0125 ECT SENSOR  .......................................

140

Component Description  ........................................

140

On Board Diagnosis Logic  ....................................

140

DTC Confirmation Procedure ................................

140

Diagnosis Procedure .............................................

141

Component Inspection  ..........................................

141

P0127 IAT SENSOR .........................................

143

Component Description  ........................................

143

On Board Diagnosis Logic  ....................................

143

DTC Confirmation Procedure ................................

143

Diagnosis Procedure .............................................

144

Component Inspection  ..........................................

144

2011 Pathfinder

EC-3

C

D

E

F

G

H

I

J

K

L

M

EC

A

N

O

P

P0128 THERMOSTAT FUNCTION  ..................

146

On Board Diagnosis Logic  ....................................

146

DTC Confirmation Procedure ................................

146

Diagnosis Procedure .............................................

146

Component Inspection  ..........................................

147

P0130, P0150 A/F SENSOR 1  .........................

148

Component Description .........................................

148

On Board Diagnosis Logic  ....................................

148

DTC Confirmation Procedure ................................

148

Overall Function Check .........................................

149

Diagnosis Procedure .............................................

149

P0131, P0151 A/F SENSOR 1  .........................

152

Component Description .........................................

152

On Board Diagnosis Logic  ....................................

152

DTC Confirmation Procedure ................................

152

Diagnosis Procedure .............................................

153

P0132, P0152 A/F SENSOR 1  .........................

156

Component Description .........................................

156

On Board Diagnosis Logic  ....................................

156

DTC Confirmation Procedure ................................

156

Diagnosis Procedure .............................................

157

P0133, P0153 A/F SENSOR 1  .........................

160

Component Description .........................................

160

On Board Diagnosis Logic  ....................................

160

DTC Confirmation Procedure ................................

160

Diagnosis Procedure .............................................

161

P0137, P0157 HO2S2  ......................................

165

Component Description .........................................

165

On Board Diagnosis Logic  ....................................

165

DTC Confirmation Procedure ................................

165

Overall Function Check .........................................

166

Diagnosis Procedure .............................................

166

Component Inspection  ..........................................

169

P0138, P0158 HO2S2  ......................................

171

Component Description .........................................

171

On Board Diagnosis Logic  ....................................

171

DTC Confirmation Procedure ................................

172

Overall Function Check .........................................

172

Diagnosis Procedure .............................................

173

Component Inspection  ..........................................

177

P0139, P0159 HO2S2  ......................................

179

Component Description .........................................

179

On Board Diagnosis Logic  ....................................

179

DTC Confirmation Procedure ................................

179

Overall Function Check .........................................

181

Diagnosis Procedure .............................................

181

Component Inspection  ..........................................

183

P0171, P0174 FUEL INJECTION SYSTEM
FUNCTION .......................................................

185

On Board Diagnosis Logic  ....................................

185

DTC Confirmation Procedure ................................

185

Diagnosis Procedure .............................................

186

P0172, P0175 FUEL INJECTION SYSTEM
FUNCTION ......................................................

191

On Board Diagnosis Logic .....................................

191

DTC Confirmation Procedure  ................................

191

Diagnosis Procedure  .............................................

192

P0181 FTT SENSOR .......................................

197

Component Description  .........................................

197

On Board Diagnosis Logic .....................................

197

DTC Confirmation Procedure  ................................

197

Component Function Check  ..................................

199

Diagnosis Procedure  .............................................

199

Component Inspection ...........................................

201

P0182, P0183 FTT SENSOR  ..........................

202

Component Description  .........................................

202

On Board Diagnosis Logic .....................................

202

DTC Confirmation Procedure  ................................

202

Diagnosis Procedure  .............................................

202

Component Inspection ...........................................

204

P0222, P0223 TP SENSOR  ............................

205

Component Description  .........................................

205

On Board Diagnosis Logic .....................................

205

DTC Confirmation Procedure  ................................

205

Diagnosis Procedure  .............................................

205

Component Inspection ...........................................

207

P0300, P0301, P0302, P0303, P0304, P0305,
P0306 MISFIRE ...............................................

209

On Board Diagnosis Logic .....................................

209

DTC Confirmation Procedure  ................................

209

Diagnosis Procedure  .............................................

210

P0327, P0328, P0332, P0333 KS  ...................

216

Component Description  .........................................

216

On Board Diagnosis Logic .....................................

216

DTC Confirmation Procedure  ................................

216

Diagnosis Procedure  .............................................

216

Component Inspection ...........................................

218

P0335 CKP SENSOR (POS) ...........................

219

Component Description  .........................................

219

On Board Diagnosis Logic .....................................

219

DTC Confirmation Procedure  ................................

219

Diagnosis Procedure  .............................................

219

Component Inspection ...........................................

221

P0340, P0345 CMP SENSOR (PHASE)  .........

223

Component Description  .........................................

223

On Board Diagnosis Logic .....................................

223

DTC Confirmation Procedure  ................................

223

Diagnosis Procedure  .............................................

224

Component Inspection ...........................................

226

P0420, P0430 THREE WAY CATALYST
FUNCTION ......................................................

227

On Board Diagnosis Logic .....................................

227

DTC Confirmation Procedure  ................................

227

Overall Function Check  .........................................

228

2011 Pathfinder

EC-4

Diagnosis Procedure  .............................................

228

P0441 EVAP CONTROL SYSTEM ..................

232

System Description ................................................

232

On Board Diagnosis Logic .....................................

232

DTC Confirmation Procedure  ................................

232

Overall Function Check  .........................................

233

Diagnosis Procedure  .............................................

233

Component Inspection ...........................................

236

P0442 EVAP CONTROL SYSTEM ..................

237

On Board Diagnosis Logic .....................................

237

DTC Confirmation Procedure  ................................

238

Diagnosis Procedure  .............................................

238

Component Inspection ...........................................

243

P0443 EVAP CANISTER PURGE VOLUME
CONTROL SOLENOID VALVE .......................

244

Description .............................................................

244

On Board Diagnosis Logic .....................................

244

DTC Confirmation Procedure  ................................

245

Diagnosis Procedure  .............................................

246

Component Inspection ...........................................

248

P0444, P0445 EVAP CANISTER PURGE
VOLUME CONTROL SOLENOID VALVE  ......

250

Description .............................................................

250

On Board Diagnosis Logic .....................................

250

DTC Confirmation Procedure  ................................

251

Diagnosis Procedure  .............................................

251

Component Inspection ...........................................

252

P0447 EVAP CANISTER VENT CONTROL
VALVE .............................................................

253

Component Description  .........................................

253

On Board Diagnosis Logic .....................................

253

DTC Confirmation Procedure  ................................

253

Diagnosis Procedure  .............................................

253

Component Inspection ...........................................

255

P0448 EVAP CANISTER VENT CONTROL
VALVE .............................................................

257

Component Description  .........................................

257

On Board Diagnosis Logic .....................................

257

DTC Confirmation Procedure  ................................

257

Diagnosis Procedure  .............................................

258

Component Inspection ...........................................

259

P0451 EVAP CONTROL SYSTEM PRES-
SURE SENSOR  ...............................................

262

Component Description  .........................................

262

On Board Diagnosis Logic .....................................

262

DTC Confirmation Procedure  ................................

262

Diagnosis Procedure  .............................................

262

Component Inspection ...........................................

263

P0452 EVAP CONTROL SYSTEM PRES-
SURE SENSOR  ...............................................

265

Component Description  .........................................

265

On Board Diagnosis Logic .....................................

265

DTC Confirmation Procedure ................................

265

Diagnosis Procedure .............................................

266

Component Inspection  ..........................................

268

P0453 EVAP CONTROL SYSTEM PRES-
SURE SENSOR  ................................................

269

Component Description  ........................................

269

On Board Diagnosis Logic  ....................................

269

DTC Confirmation Procedure ................................

269

Diagnosis Procedure .............................................

270

Component Inspection  ..........................................

273

P0455 EVAP CONTROL SYSTEM  ..................

274

On Board Diagnosis Logic  ....................................

274

DTC Confirmation Procedure ................................

274

Diagnosis Procedure .............................................

275

Component Inspection  ..........................................

279

P0456 EVAP CONTROL SYSTEM  ..................

281

On Board Diagnosis Logic  ....................................

281

DTC Confirmation Procedure ................................

282

Overall Function Check .........................................

282

Diagnosis Procedure .............................................

283

Component Inspection  ..........................................

288

P0460 FUEL LEVEL SENSOR .........................

289

Component Description  ........................................

289

On Board Diagnosis Logic  ....................................

289

DTC Confirmation Procedure ................................

289

Diagnosis Procedure .............................................

289

P0461 FUEL LEVEL SENSOR .........................

291

Component Description  ........................................

291

On Board Diagnosis Logic  ....................................

291

Overall Function Check .........................................

291

Diagnosis Procedure .............................................

292

P0462, P0463 FUEL LEVEL SENSOR  ............

293

Component Description  ........................................

293

On Board Diagnosis Logic  ....................................

293

DTC Confirmation Procedure ................................

293

Diagnosis Procedure .............................................

293

P0500 VSS ........................................................

295

Description ............................................................

295

On Board Diagnosis Logic  ....................................

295

DTC Confirmation Procedure ................................

295

Overall Function Check .........................................

296

Diagnosis Procedure .............................................

296

P0506 ISC SYSTEM  .........................................

297

Description ............................................................

297

On Board Diagnosis Logic  ....................................

297

DTC Confirmation Procedure ................................

297

Diagnosis Procedure .............................................

297

P0507 ISC SYSTEM  .........................................

299

Description ............................................................

299

On Board Diagnosis Logic  ....................................

299

DTC Confirmation Procedure ................................

299

Diagnosis Procedure .............................................

299

2011 Pathfinder

EC-5

C

D

E

F

G

H

I

J

K

L

M

EC

A

N

O

P

P050A, P050E COLD START CONTROL  .......

301

Description ............................................................

301

On Board Diagnosis Logic  ....................................

301

DTC Confirmation Procedure ................................

301

Diagnosis Procedure .............................................

302

P0550 PSP SENSOR  .......................................

303

Component Description .........................................

303

On Board Diagnosis Logic  ....................................

303

DTC Confirmation Procedure ................................

303

Diagnosis Procedure .............................................

303

Component Inspection  ..........................................

305

P0603 ECM POWER SUPPLY .........................

306

Component Description .........................................

306

On Board Diagnosis Logic  ....................................

306

DTC Confirmation Procedure ................................

306

Diagnosis Procedure .............................................

306

P0605 ECM .......................................................

308

Component Description .........................................

308

On Board Diagnosis Logic  ....................................

308

DTC Confirmation Procedure ................................

308

Diagnosis Procedure .............................................

309

P0607 ECM .......................................................

310

Description ............................................................

310

On Board Diagnosis Logic  ....................................

310

DTC Confirmation Procedure ................................

310

Diagnosis Procedure .............................................

310

P0643 SENSOR POWER SUPPLY  .................

311

On Board Diagnosis Logic  ....................................

311

DTC Confirmation Procedure ................................

311

Diagnosis Procedure .............................................

311

P0850 PNP SWITCH  ........................................

314

Component Description .........................................

314

On Board Diagnosis Logic  ....................................

314

DTC Confirmation Procedure ................................

314

Overall Function Check .........................................

314

Diagnosis Procedure .............................................

315

P1148, P1168 CLOSED LOOP CONTROL  .....

316

On Board Diagnosis Logic  ....................................

316

P1211 TCS CONTROL UNIT  ...........................

317

Description ............................................................

317

On Board Diagnosis Logic  ....................................

317

DTC Confirmation Procedure ................................

317

Diagnosis Procedure .............................................

317

P1212 TCS COMMUNICATION LINE ..............

318

Description ............................................................

318

On Board Diagnosis Logic  ....................................

318

DTC Confirmation Procedure ................................

318

Diagnosis Procedure .............................................

318

P1217 ENGINE OVER TEMPERATURE  .........

319

On Board Diagnosis Logic  ....................................

319

Overall Function Check .........................................

319

Diagnosis Procedure  .............................................

320

Main 12 Causes of Overheating  ............................

321

P1225 TP SENSOR .........................................

323

Component Description  .........................................

323

On Board Diagnosis Logic .....................................

323

DTC Confirmation Procedure  ................................

323

Diagnosis Procedure  .............................................

323

P1226 TP SENSOR .........................................

325

Component Description  .........................................

325

On Board Diagnosis Logic .....................................

325

DTC Confirmation Procedure  ................................

325

Diagnosis Procedure  .............................................

325

P1550 BATTERY CURRENT SENSOR ..........

327

Component Description  .........................................

327

On Board Diagnosis Logic .....................................

327

DTC Confirmation Procedure  ................................

327

Diagnosis Procedure  .............................................

327

Component Inspection ...........................................

329

P1551, P1552 BATTERY CURRENT SEN-
SOR .................................................................

331

Component Description  .........................................

331

On Board Diagnosis Logic .....................................

331

DTC Confirmation Procedure  ................................

331

Diagnosis Procedure  .............................................

331

Component Inspection ...........................................

333

P1553 BATTERY CURRENT SENSOR ..........

335

Component Description  .........................................

335

On Board Diagnosis Logic .....................................

335

DTC Confirmation Procedure  ................................

335

Diagnosis Procedure  .............................................

335

Component Inspection ...........................................

337

P1554 BATTERY CURRENT SENSOR ..........

339

Component Description  .........................................

339

On Board Diagnosis Logic .....................................

339

Overall Function Check  .........................................

339

Diagnosis Procedure  .............................................

340

Component Inspection ...........................................

341

P1564 ASCD STEERING SWITCH .................

343

Component Description  .........................................

343

On Board Diagnosis Logic .....................................

343

DTC Confirmation Procedure  ................................

343

Diagnosis Procedure  .............................................

343

Component Inspection ...........................................

345

P1572 ASCD BRAKE SWITCH  ......................

347

Component Description  .........................................

347

On Board Diagnosis Logic .....................................

347

DTC Confirmation Procedure  ................................

347

Diagnosis Procedure  .............................................

348

Component Inspection ...........................................

351

P1715 INPUT SPEED SENSOR  .....................

352

Description .............................................................

352

On Board Diagnosis Logic .....................................

352

2011 Pathfinder
