Nissan Pathfinder (2011 year). Manual - part 238

DLN-442

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

REAR FINAL DRIVE

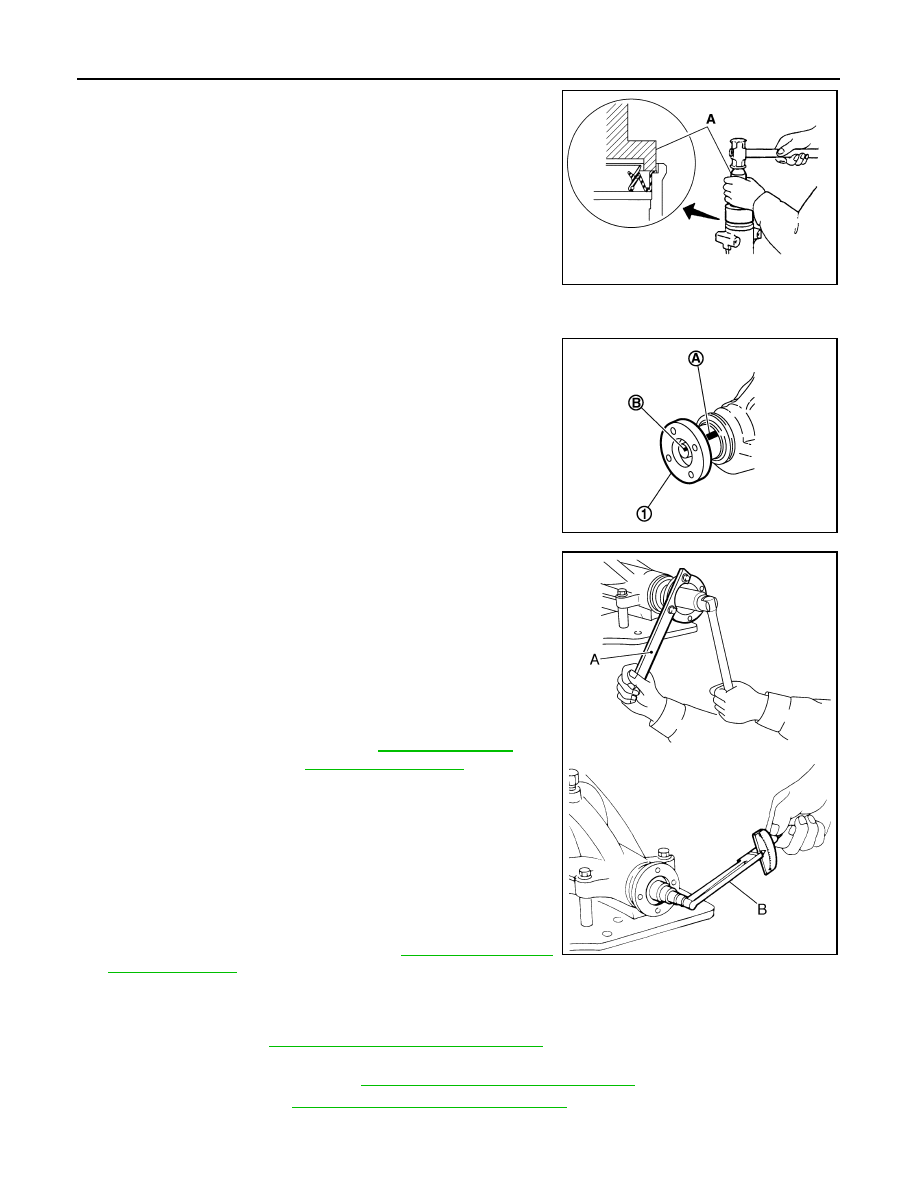

9. Install front oil seal as shown in figure using Tool (A).

CAUTION:

• Do not reuse oil seal.

• When installing, do not incline oil seal.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

10. Install companion flange.

NOTE:

When reusing drive pinion, align the matching mark (B) of drive

pinion with the matching mark (A) of companion flange, and then

install companion flange (1).

11. Apply anti-corrosion oil to the thread and seat of drive pinion

lock nut, and temporarily tighten drive pinion lock nut to drive

pinion using suitable tool (A).

CAUTION:

Do not reuse drive pinion lock nut.

12. Adjust to the drive pinion lock nut tightening torque and drive

pinion bearing preload torque using Tool (B).

CAUTION:

• Adjust to the lower limit of the drive pinion lock nut tight-

ening torque fist.

• If the preload torque exceeds the specified value, replace

collapsible spacer and tighten it again to adjust. Do not

loosen drive pinion lock nut to adjust the preload torque.

• After adjustment, rotate drive pinion back and forth 2 to 3

times to check for unusual noise, rotation malfunction,

and other malfunctions.

13. Install differential case assembly. Refer to

DLN-429, "Disassem-

bly and Assembly"

CAUTION:

Do not install rear cover at this time.

14. Check and adjust drive gear runout, tooth contact and drive gear to drive pinion backlash, and companion

flange runout. Refer to

DLN-429, "Disassembly and Assembly"

Recheck above items. Readjust the above description, if necessary.

15. Check total preload torque. Refer to

DLN-429, "Disassembly and Assembly"

16. Install rear cover. Refer to

DLN-429, "Disassembly and Assembly"

Differential Assembly

Tool number

(A): ST30720000 (J-25405)

PDIA0764J

JSDIA0038ZZ

Tool number

(B): ST3127S000 (J-25765-A)

Drive pinion bearing
preload torque

: Refer to

DLN-447, "Inspec-

tion and Adjustment"

WDIA0379E

2011 Pathfinder

REAR FINAL DRIVE

DLN-443

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

DLN

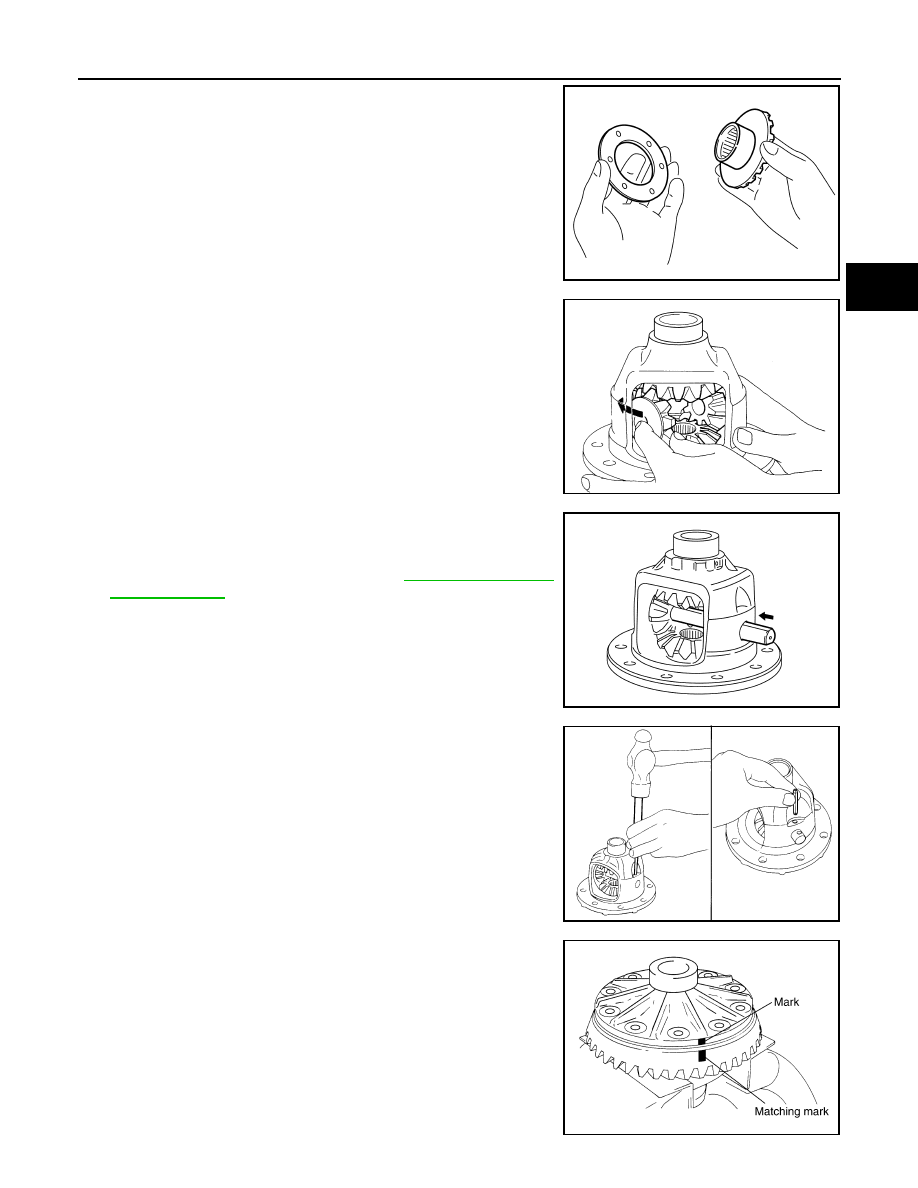

1. Install side gear thrust washers with the same thickness as the

ones installed prior to disassembly, or reinstall the old ones on

the side gears.

2. Install the side gears and side gear thrust washers into the dif-

ferential case.

CAUTION:

Make sure that the circular clip is installed to side gears.

3. Install the pinion mate thrust washers to the two pinion mate

gears. Then install the pinion mate gears with the pinion mate

thrust washers by aligning them in diagonally opposite positions

and rotating them into the differential case.

4. Align the lock pin hole on the differential case with the lock pin

hole on the pinion mate shaft, and install the pinion mate shaft.

5. Measure the side gear end play. If necessary, select the appro-

priate side gear thrust washers. Refer to

DLN-447, "Inspection

and Adjustment"

6. Drive a new lock pin into the pinion mate shaft until it is flush

with the differential case using suitable tool.

CAUTION:

Do not reuse lock pin.

7. Align the matching mark of the differential case with the mark of

the drive gear, then place the drive gear onto the differential

case.

SDIA0193J

SDIA2025E

SDIA0195J

WDIA0131E

SDIA2593E

2011 Pathfinder

DLN-444

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

REAR FINAL DRIVE

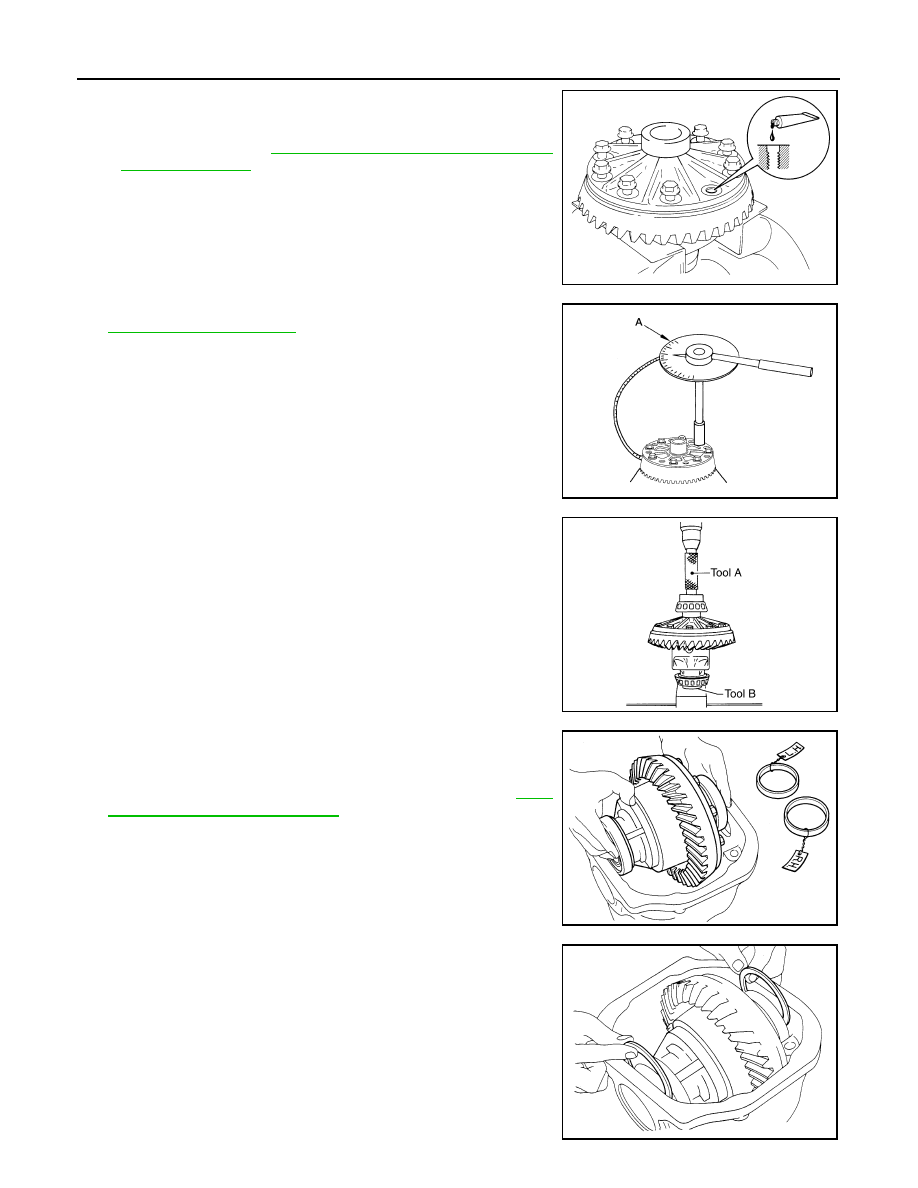

8. Apply thread locking sealant into the threaded holes of the drive

gear and install the bolts.

• Use Genuine Medium Strength Thread Locking Sealant or

equivalent. Refer to

GI-14, "Recommended Chemical Prod-

ucts and Sealants"

CAUTION:

Make sure the drive gear back and threaded holes are

clean.

9. Tighten the drive gear bolts to the specified torque. Refer to

DLN-428, "Exploded View"

. After tightening the drive gear bolts

to the specified torque, tighten an additional 31

to 36

using

Tool (A).

CAUTION:

• Always use Tool. Avoid tightening based on visual check

alone.

• Tighten drive gear bolts in a crisscross pattern.

10. Press the side bearing inner races into the differential case

using Tools.

CAUTION:

Do not reuse side bearing inner race.

11. Install the differential case assembly with the side bearing outer

races into the gear carrier.

12. Measure the side bearing preload torque. If necessary, select

the appropriate side bearing adjusting washers. Refer to

DLN-

447, "Inspection and Adjustment"

13. Insert the selected left and right side bearing adjusting washers

in place between the side bearings and gear carrier.

SDIA2594E

Tool number

A: KV10112100 (BT-8653-A)

AWBIA0722ZZ

Tool number

A: KV38100300 (J-25523)
B: ST33061000 (J-8107-2)

SPD353

SPD919

SPD924

2011 Pathfinder

REAR FINAL DRIVE

DLN-445

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

DLN

14. Install the side bearing caps with the matching marks aligned

and tighten the side bearing cap bolts to the specified torque.

Refer to

DLN-428, "Exploded View"

15. Check and adjust the drive gear runout, tooth contact, drive gear to drive pinion backlash, and total pre-

load torque. Refer to

DLN-447, "Inspection and Adjustment"

Recheck the above items.

16. Install the side flanges. Refer to

DLN-428, "Exploded View"

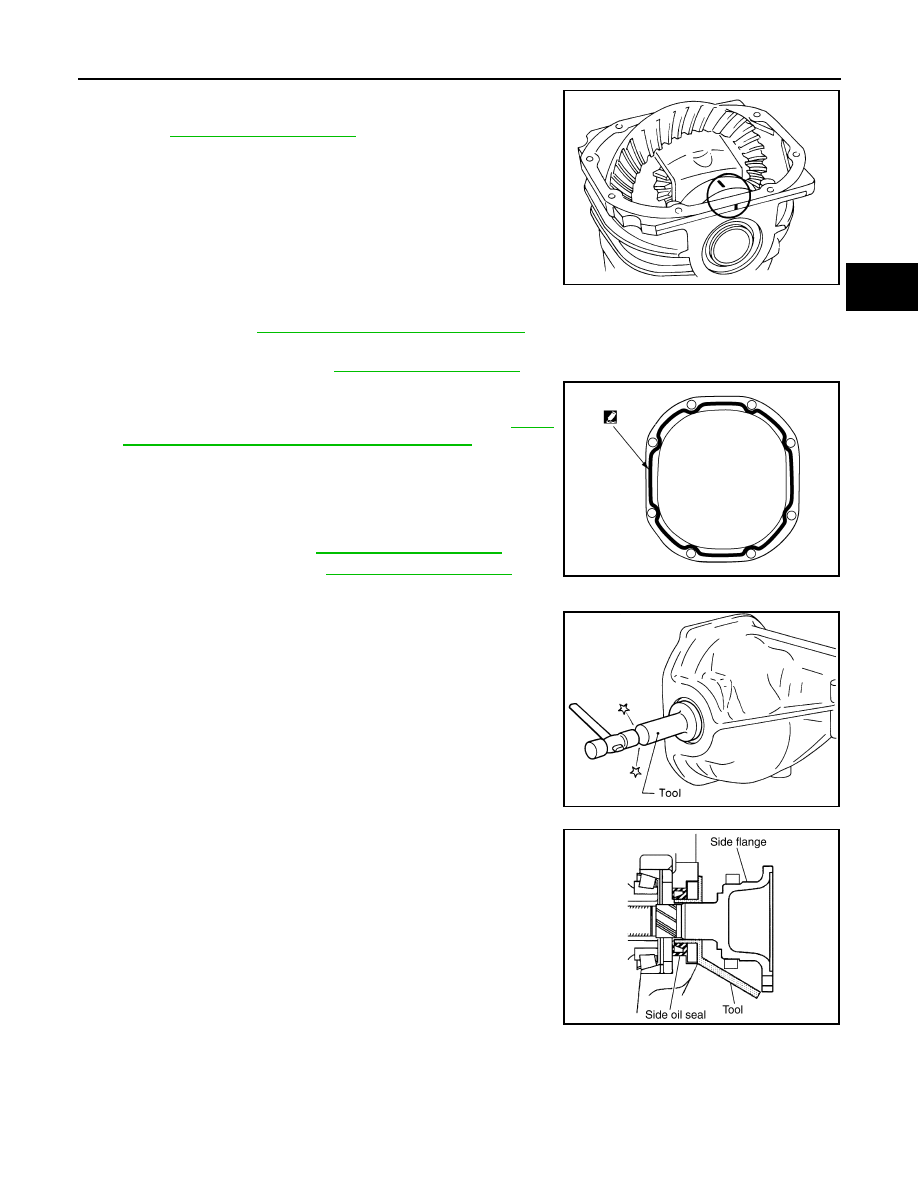

17. Apply a 3.2 mm (0.126 in) bead of sealant to the mating surface

of the carrier cover.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

18. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-428, "Exploded View"

19. Install the side flange. Refer to

DLN-428, "Exploded View"

Side Flange

1. Apply multi-purpose grease to the lips and differential gear oil to

the circumference of the new side oil seal. Then drive the new

side oil seal in evenly until it becomes flush with the gear carrier

using Tool.

CAUTION:

• Do not reuse side oil seal.

• Do not incline the new side oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new side oil seal.

2. Install the side flange using Tool.
a. Install the Tool to the side oil seal as shown.

b. Insert the side flange until the serrated part of the side flange

has engaged the serrated part of the side gear and remove the

Tool.

c. Drive in the side flange using suitable tool.

NOTE:

Installation is completed when the driving sound of the side

flange turns into a sound which seems to affect the whole rear

final drive assembly.

SPD889

WDIA0282E

Tool number

: KV38100200 (J-26233)

SPD560

Tool number

: KV38107900 (J-39352)

SDIA0822E

2011 Pathfinder

DLN-446

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

REAR FINAL DRIVE

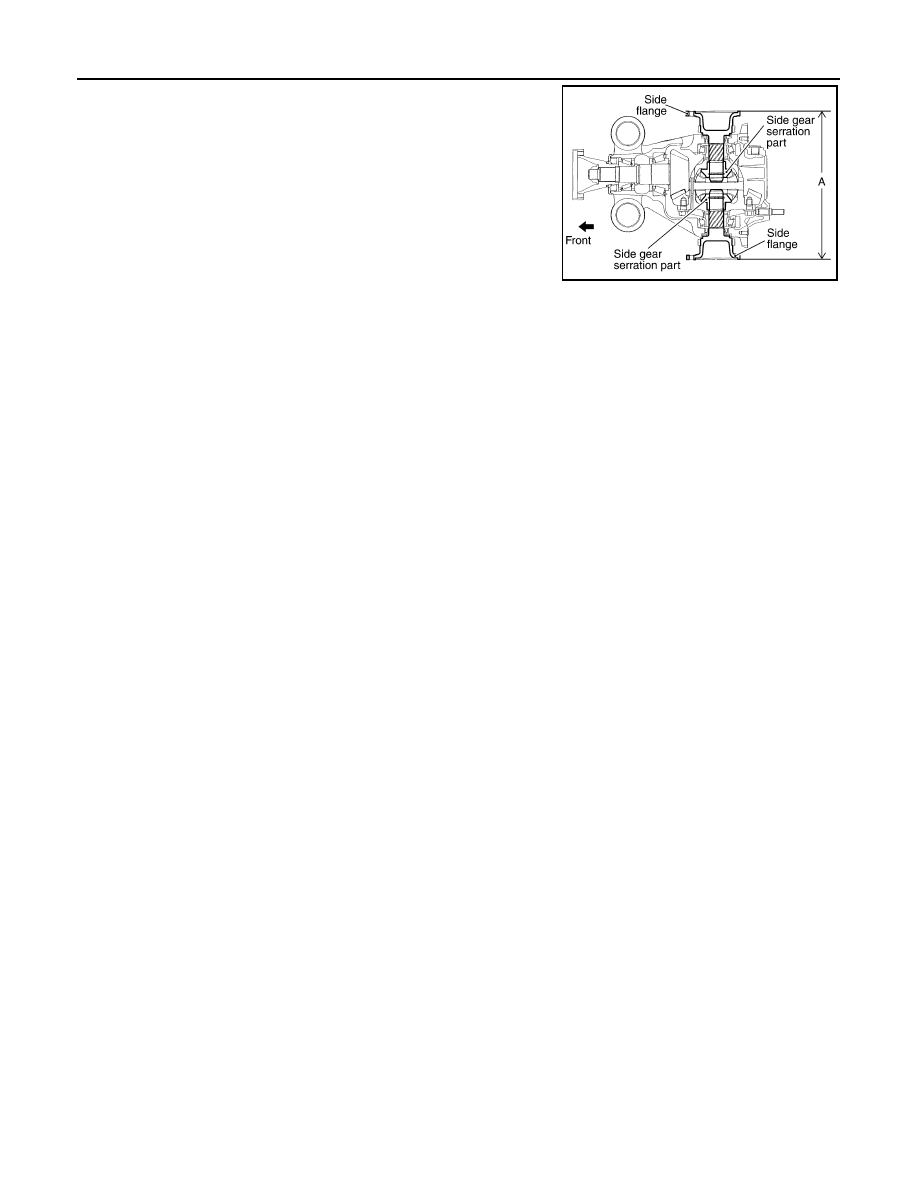

3. Check measurement (A) after the side flange installation is com-

plete as shown.

Measurement (A)

: 339.5 mm (13.37 in)

SDIA1039E

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-447

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R200]

DLN

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006245218

Inspection and Adjustment

INFOID:0000000006245219

DRIVE GEAR RUNOUT

Unit: mm (in)

SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

SELECTIVE PARTS

Side Gear Thrust Washer

Applied model

VQ40DE

2WD

4WD

Final drive model

R200

Gear ratio

3.133

3.357

Number of teeth (Drive gear/Drive pinion)

47/15

47/14

Oil capacity (Approx.)

1.4

(3 US pt, 2-1/2 lmp pt)

Number of pinion gears

Drive pinion adjustment spacer type

Collapsible

Item

Runout limit

Drive gear back face

0.05 (0.0020) or less

Item

Specification

Side gear back clearance
(Clearance between side gear and differential case for adjusting
side gear backlash)

0.2 (0.008) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Specification

Drive pinion bearing preload torque

2.65 - 3.23 N·m (0.27 - 0.32 kg

−

m, 24 - 28 in-lb)

Side bearing preload torque (reference value determined by drive
gear bolt pulling force)

0.20 - 0.52 N·m (0.02 - 0.05 kg

−

m, 2 - 4 in-lb)

Drive gear bolt pulling force (by spring gauge)

34.2

−

39.2 N (3.5

−

4 kg, 7.7

−

8.8 lb)

Total preload torque
(Total preload torque = drive pinion bearing preload torque + Side
bearing preload torque)

2.84 - 3.75 N·m (0.29 - 0.38 kg

−

m, 26 - 33 in-lb)

Item

Specification

Drive gear to drive pinion gear

0.10 - 0.15 (0.0039 - 0.0059)

Item

Runout limit

Outer side of the companion flange

0.08 (0.0031) or less

2011 Pathfinder

DLN-448

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R200]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Drive Pinion Height Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness Part

number*

Thickness Part

number*

0.75 (0.0295)
0.78 (0.0307)
0.81 (0.0319)
0.84 (0.0331)

38424 0C000
38424 0C001
38424 0C002
38424 0C003

0.87 (0.0343)
0.90 (0.0350)
0.93 (0.0366)

38424 0C004
38424 0C005
38424 0C006

Thickness

Part number*

Thickness

Part number*

3.05 (0.1201)
3.08 (0.1213)

3.11 (0.1224)

3.14 (0.1236)

38154 0C000
38154 0C001
38154 0C002
38154 0C003

3.17 (0.1248)
3.20 (0.1260)
3.23 (0.1272)
3.26 (0.1283)

38154 0C004
38154 0C005
38154 0C006
38154 0C007

Thickness

Part number*

Thickness

Part number*

2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906)

38453 N3100
38453 N3101
38453 N3102
38453 N3103
38453 N3104
38453 N3105
38453 N3106

2.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043)

38453 N3107
38453 N3108
38453 N3109

38453 N3110

38453 N3111

38453 N3112
38453 N3113

2011 Pathfinder

PRECAUTIONS

DLN-449

< PRECAUTION >

[REAR FINAL DRIVE: R230]

DLN

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006245220

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006245221

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2011 Pathfinder

Content .. 236 237 238 239 ..
