[TRANSFER: TX15B]

ATP SWITCH

Component Inspection

INFOID:0000000006245120

1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect ATP switch harness connector.
3. Remove ATP switch. Refer to

DLN-198, "Component Parts Location"

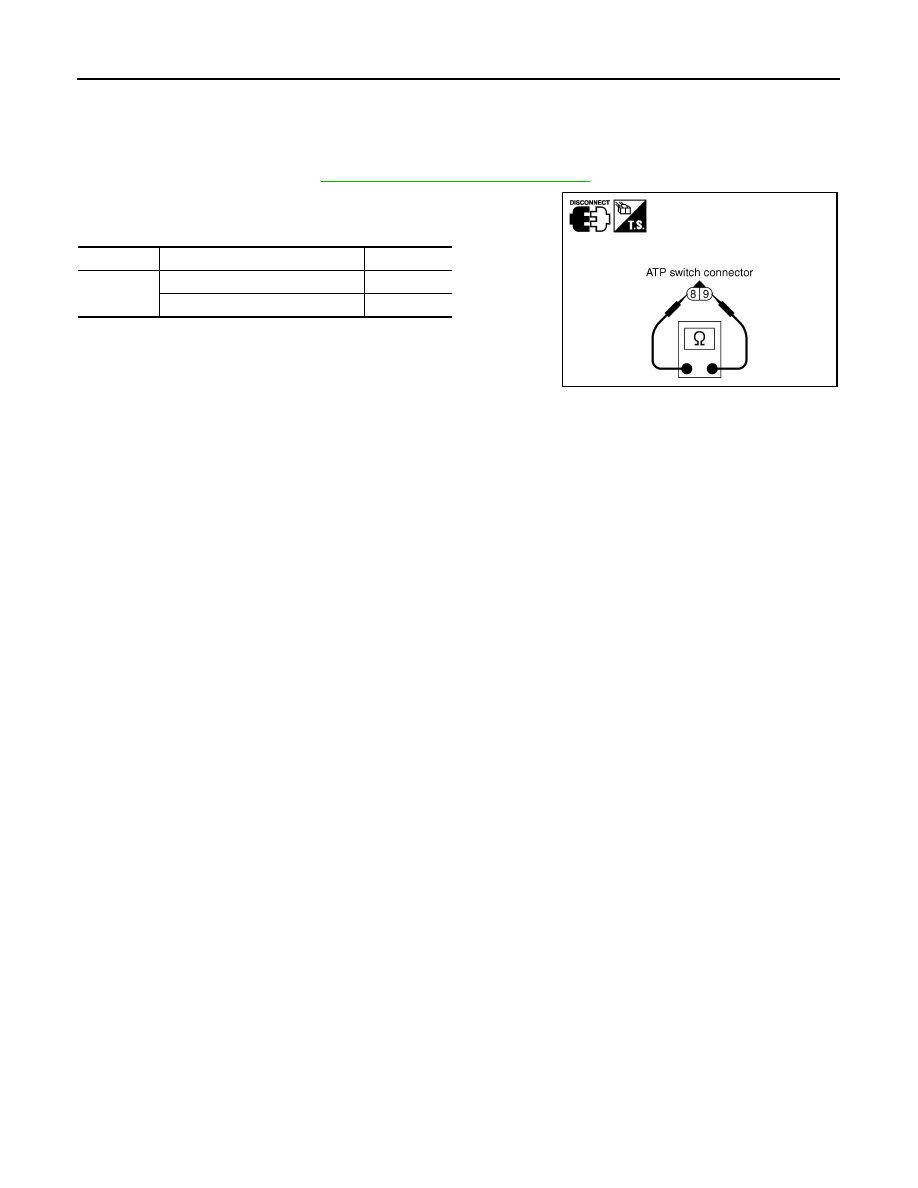

4. Push and release ATP switch and check continuity between ATP

switch terminals 8 and 9.

5. If the inspection results are abnormal replace the ATP switch.

Terminal

Condition

Continuity

8 - 9

Push ATP switch

Yes

Release ATP switch

SDIA2395E

2011 Pathfinder

PRECAUTIONS

DLN-267

< PRECAUTION >

[TRANSFER: TX15B]

DLN

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006245121

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006245122

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2011 Pathfinder

DLN-268

< PRECAUTION >

[TRANSFER: TX15B]

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Transfer Assembly and Transfer Control Unit Replacement

INFOID:0000000006245123

When replacing transfer assembly or transfer control unit, check the 4WD shift indicator pattern and adjust-

ment of the position between transfer assembly and transfer control unit if necessary.

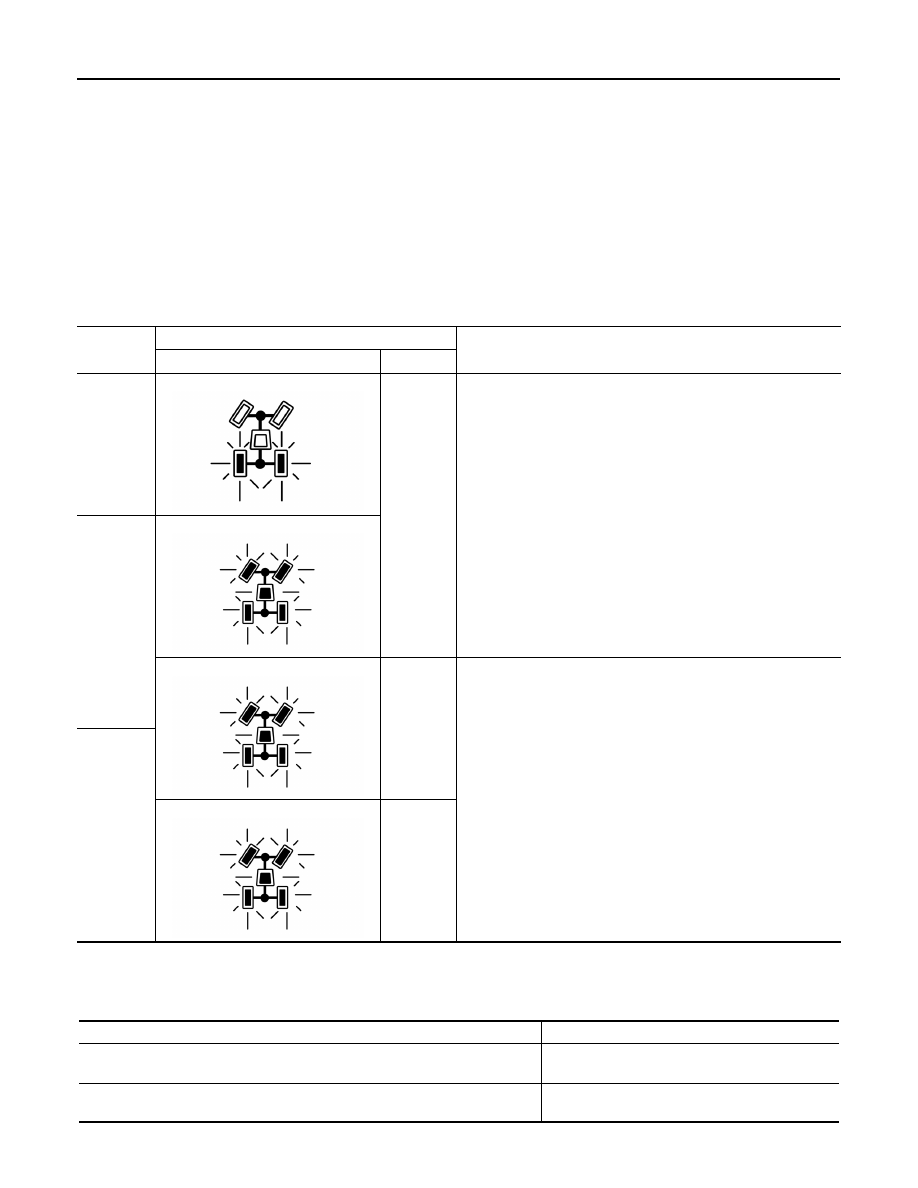

CHECK 4WD SHIFT INDICATOR PATTERN

1. Set 4WD shift switch to “2WD”, “4H”, “4LO”, “4H” and “2WD” in order. Stay at each switch position for at

least 2 seconds.

2. Confirm 4WD shift indicator lamp and 4LO indicator lamp are changed properly as follows.

• If OK, the position between transfer assembly and transfer control unit is correct.

• If NG, the position is different between transfer assembly and transfer control unit.

Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.

Transfer position adjustment pattern

NOTE:

4WD shift

switch

Indicator lamp

Operation of 4WD shift switch

4WD shift

4LO

2WD

OFF

2WD

⇔

4H switching can be done while driving. The indicator lamp

will change when the driving mode is changed. Gear shifting be-
tween 2WD

⇔

4H position must be performed at speeds below 100

km/h (60 MPH).

Flashing

To shift between 4H

⇔

4LO, stop vehicle and shift transmission

shift selector to the "N" position with brake pedal depressed.

4LO

The 4WD shift switch will not shift to the desired mode if the trans-
mission is not in "N" or the vehicle is moving.
You must wait for the 4LO indicator lamp to stop flashing and re-
main lit or turned off before shifting your transmission into gear or
releasing the clutch pedal.

AWDIA0872ZZ

AWDIA0873ZZ

4WD shift switch condition

Refer procedure

4WD shift switch is under “2WD” condition when engine is being stopped.

"METHOD FOR ADJUSTMENT WITH 4WD SHIFT

SWITCH AT “2WD”"

4WD shift switch is under “4H” or “4LO” condition when engine is being stopped.

"METHOD FOR ADJUSTMENT WITH 4WD SHIFT

SWITCH AT “4H” OR “4LO”"

2011 Pathfinder

PRECAUTIONS

DLN-269

< PRECAUTION >

[TRANSFER: TX15B]

DLN

Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “2WD”

Select Adjustment Pattern

1. Start engine. Run engine for at least 10 seconds.
2. Check 4WD shift indicator lamp and 4LO indicator lamp.

Pattern A

1. Stop vehicle and move A/T shift selector to “N” position with brake pedal depressed. Stay in "N" for at least

2 seconds.

2. Turn 4WD shift switch to “4LO” position. Stay in "4LO" for at least 2 seconds.
3. Turn ignition switch “OFF”.
4. Start engine.
5. Erase self-diagnosis. Refer to

DLN-202, "CONSULT-III Function (ALL MODE AWD/4WD)"

6. Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to "CHECK 4WD SHIFT INDICATOR

PATTERN".

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-

trol unit and retry the above check.

Pattern B

1. Stop vehicle and move A/T shift selector to “N” position with brake pedal depressed. Stay in "N" for at least

2 seconds.

2. Turn ignition switch “OFF”.
3. Start engine.
4. Erase self-diagnosis. Refer to

DLN-202, "CONSULT-III Function (ALL MODE AWD/4WD)"

5. Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to "CHECK 4WD SHIFT INDICATOR

PATTERN".

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-

trol unit and retry the above check.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “4H” OR “4LO”

1. Start engine. Run the engine for at least 10 seconds.
2. Stop vehicle and move A/T shift selector to “N” position with brake pedal depressed. Stay in "N" for at least

2 seconds.)

3. Turn 4WD shift switch to “2WD” position. Stay in "2WD" for at least 2 seconds.
4. Turn ignition switch “OFF”.
5. Start engine.
6. Erase self-diagnosis. Refer to

DLN-202, "CONSULT-III Function (ALL MODE AWD/4WD)"

7. Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to "CHECK 4WD SHIFT INDICATOR

PATTERN".

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-

trol unit and retry the above check.

Indicator lamp condition

Refer procedure

When 4WD shift indicator lamp or 4LO indicator lamp is flashing.

"Pattern A"

Except for above.

"Pattern B"

2011 Pathfinder

DLN-270

< PRECAUTION >

[TRANSFER: TX15B]

PRECAUTIONS

Precaution

INFOID:0000000006245124

•

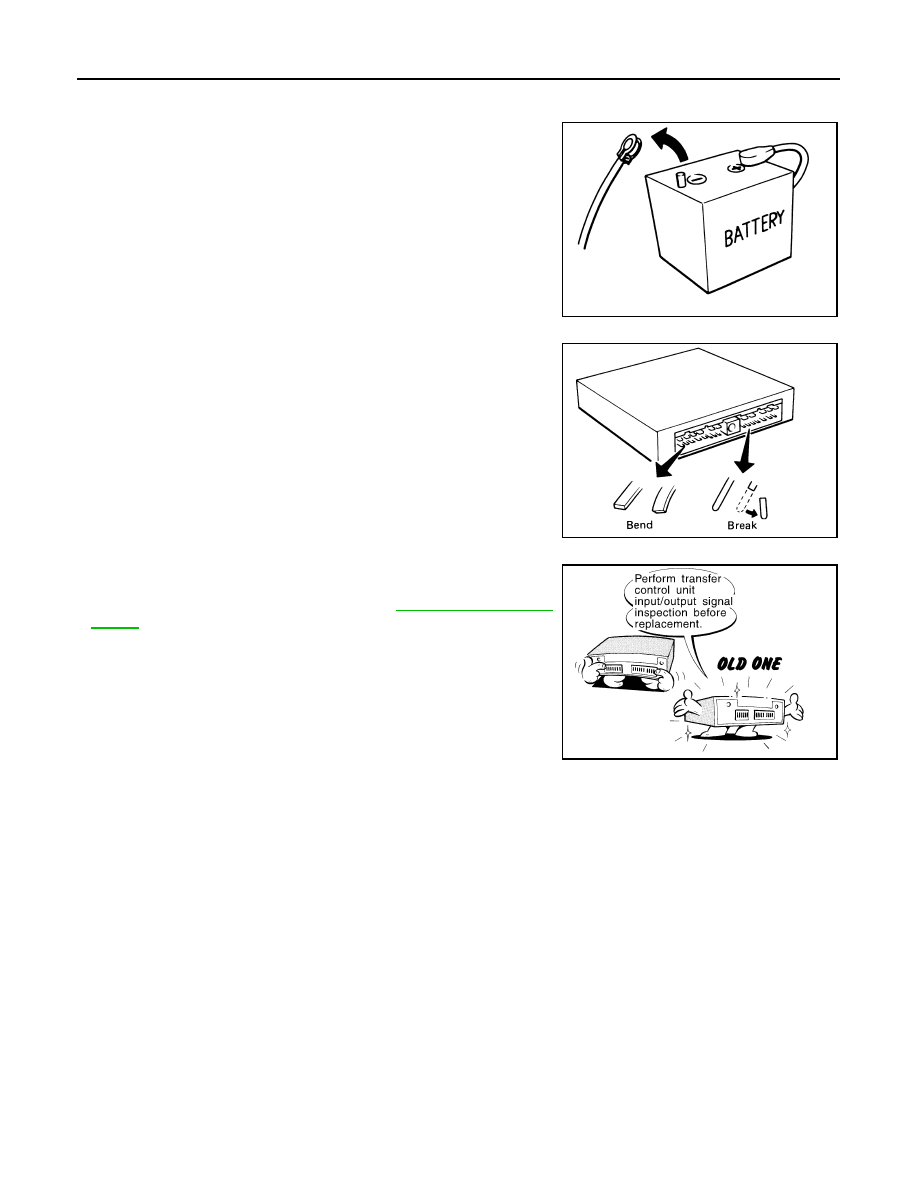

Before connecting or disconnecting the transfer control unit

harness connector, turn ignition switch “OFF” and disconnect

the battery cables. Battery voltage is applied to transfer con-

trol unit even if ignition switch is turned “OFF”.

•

When connecting or disconnecting pin connectors into or

from transfer control unit, take care not to damage pin termi-

nals (bend or break).

When connecting pin connectors make sure that there are not

any bends or breaks on transfer control unit pin terminals.

•

Before replacing transfer control unit, perform transfer con-

trol unit input/output signal inspection and make sure transfer

control unit functions properly. Refer to

DLN-238, "Reference

Value"

Service Notice

INFOID:0000000006245125

• After overhaul refill the transfer with new transfer fluid.

• Check the fluid level or replace the fluid only with the vehicle parked on level ground.

• During removal or installation, keep inside of transfer clear of dust or dirt.

• Disassembly should be done in a clean work area.

• Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal

parts from becoming contaminated by dirt or other foreign matter.

• Check for the correct installation status prior to removal or disassembly. If matchmarks are required, be cer-

tain they do not interfere with the function of the parts when applied.

• All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or

reassembly.

• Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them

with a new ones if necessary.

• Gaskets, seals and O-rings should replaced any time the transfer is disassembled.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If tight-

ening sequence is specified, use it.

• Observe the specified torque when assembling.

• Clean and flush the parts sufficiently and blow-dry them.

• Be careful not to damage sliding surfaces and mating surfaces.

SEF289H

SEF291H

MEF040DB

2011 Pathfinder

PRECAUTIONS

DLN-271

< PRECAUTION >

[TRANSFER: TX15B]

DLN

• Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere

with the operation of the transfer.

2011 Pathfinder

DLN-272

< PREPARATION >

[TRANSFER: TX15B]

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000006245126

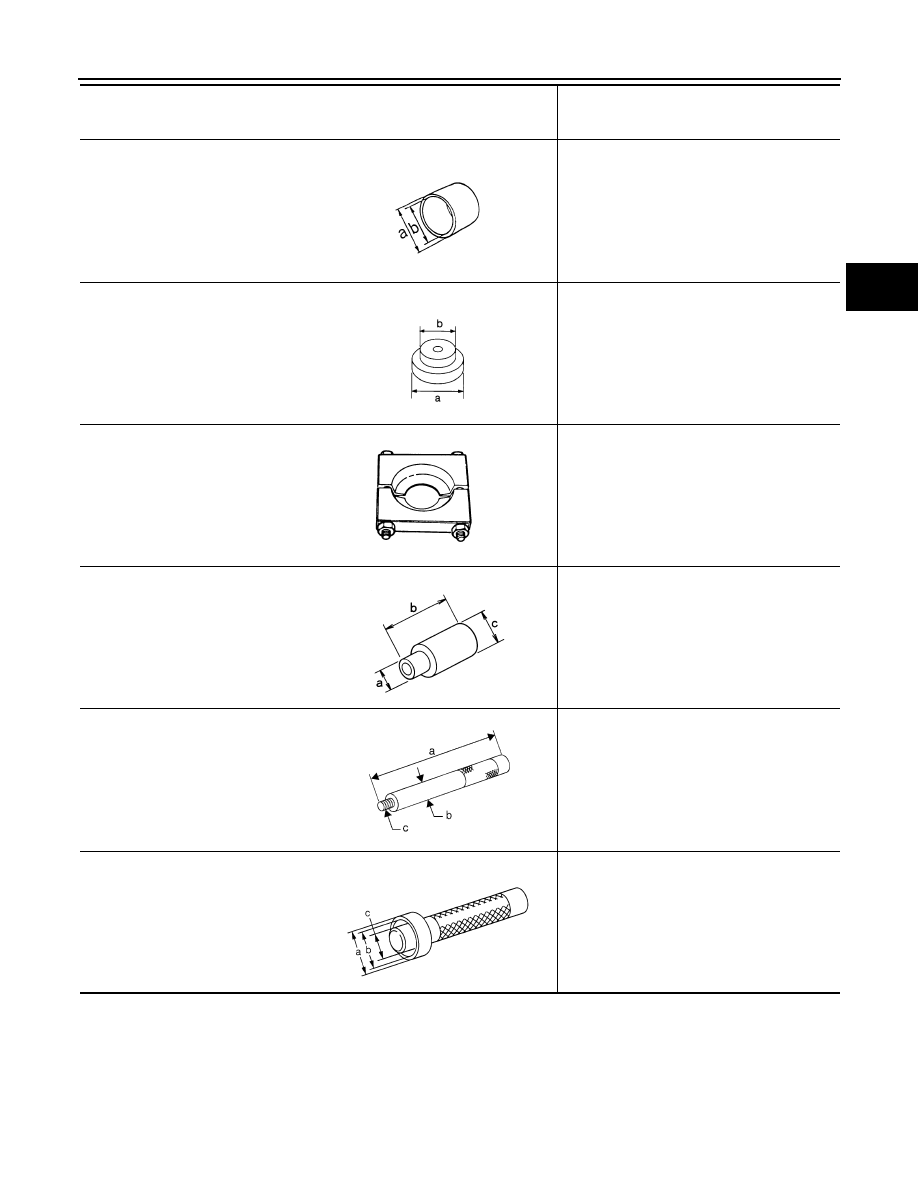

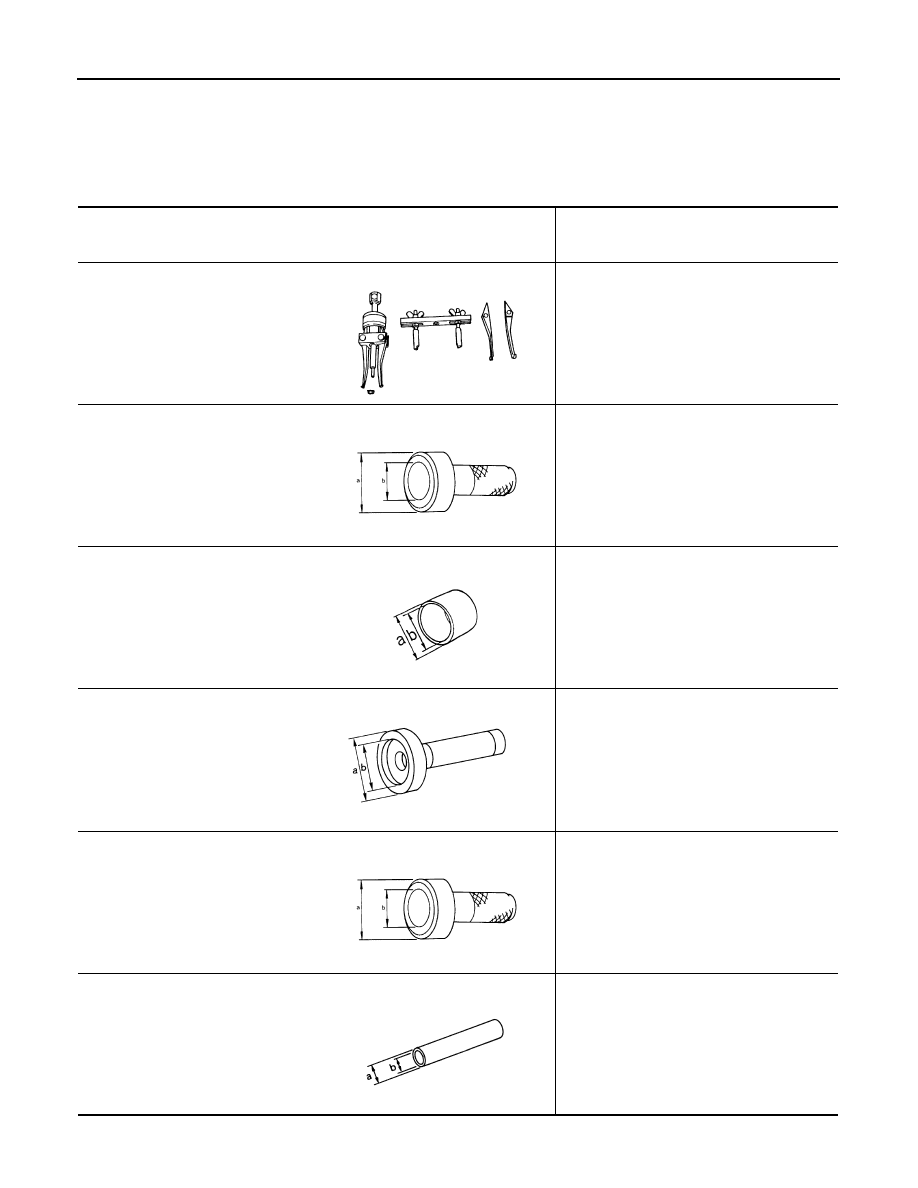

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST33290001
(J-34286)
Puller

• Removing front oil seal
• Removing rear oil seal
• Removing metal bushing

KV38100500
(

—

)

Drift

• Installing front oil seal
• Installing rear oil seal
• Installing rear bearing
• Installing front bearing

a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

KV40105310
(

—

)

Drift

• Installing dust cover

a: 89 mm (3.50 in) dia.
b: 80.7 mm (3.17 in) dia.

KV38100200
(

—

)

Drift

• Removing sun gear assembly and planetary

carrier assembly

• Removing input bearing
• Installing sun gear assembly and planetary

carrier assembly

a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

ST30720000
(J-25405)
Drift

• Installing input bearing
• Installing input oil seal
• Installing carrier bearing

a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

KV32102700
(

—

)

Drift

• Installing mainshaft rear bearing

a: 48 mm (1.89 in) dia.
b: 41 mm (1.61 in) dia.

ZZA0601D

ZZA0811D

ZZA1003D

ZZA1143D

ZZA0811D

ZZA0534D

2011 Pathfinder

PREPARATION

DLN-273

< PREPARATION >

[TRANSFER: TX15B]

DLN

KV40104830
(

—

)

Drift

• Installing input oil seal

a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.50 in) dia.

ST35300000
(

—

)

Drift

• Removing carrier bearing
• Installing metal bushing
• Removing front bearing

a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

ST30021000
(J-22912-01)
Puller

• Removing carrier bearing
• Removing front bearing
• Removing rear bearing

ST33710000
(

—

)

Drift

• Removing needle bearing
• Removing metal bushing
• Removing rear bearing

a: 89 mm (3.5 in)
b: 30 mm (1.18 in) dia.
c: 24 mm (0.94 in) dia.

ST35325000
(

—

)

Drift bar

• Removing metal bushing

a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

1.5P

ST33220000
(

—

)

Drift

• Installing needle bearing

a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

NT073

ZZA0537D

ZZA1057D

NT663

ZZA1046D

2011 Pathfinder

Content .. 214 215 216 217 ..
