Nissan Pathfinder (2011 year). Manual - part 200

DLN-138

< PERIODIC MAINTENANCE >

[TRANSFER: ATX14B]

TRANSFER OIL FILTER

TRANSFER OIL FILTER

Removal and Installation

INFOID:0000000006245039

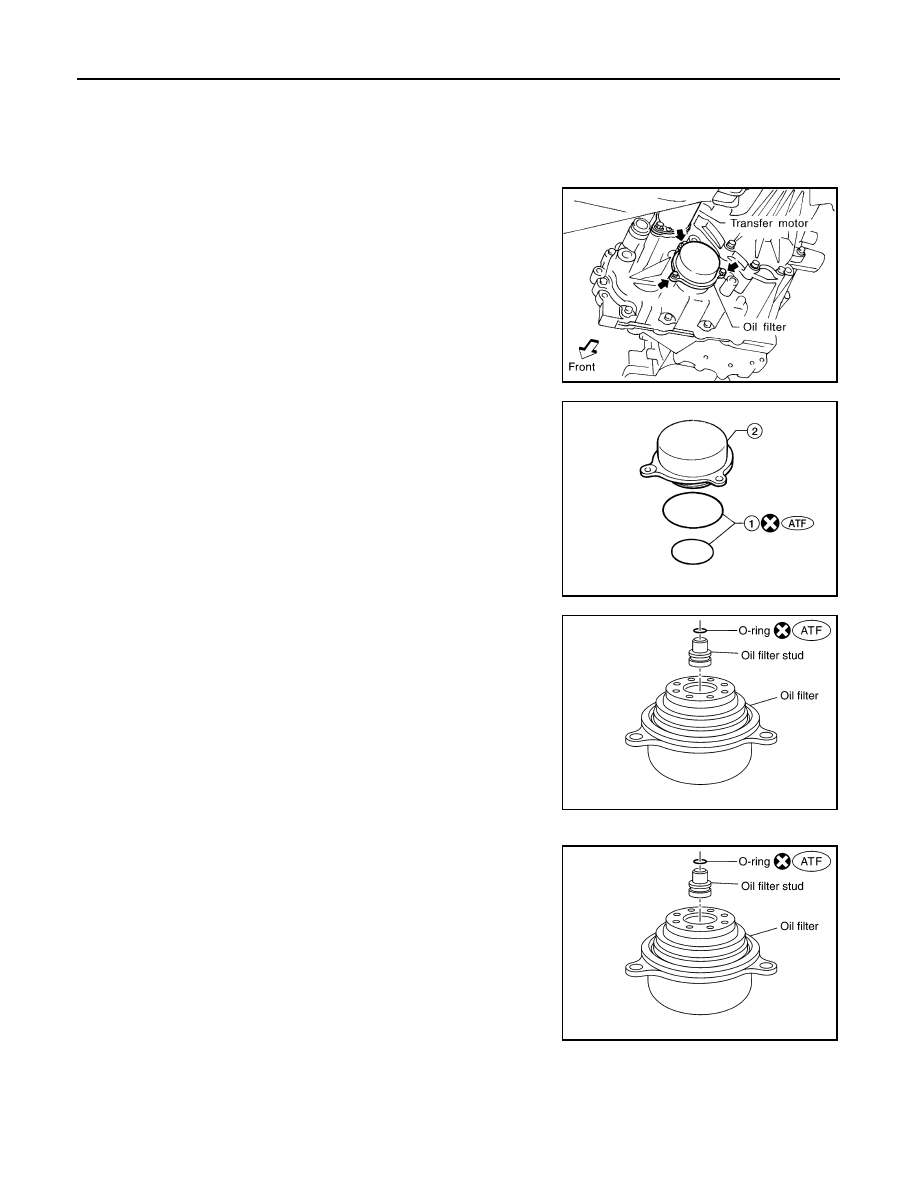

REMOVAL

1. Remove the oil filter bolts and oil filter.

CAUTION:

• Do not damage center case or oil filter.

• Loosen bolts and detach oil filter evenly.

2. Remove the O-rings (1) from the oil filter (2).

3. Remove the oil filter stud from the oil filter.
4. Remove the O-ring from the oil filter stud.

INSTALLATION

1. Apply ATF to the new O-ring, and install it on the oil filter stud.

CAUTION:

Do not reuse O-ring.

2. Install the oil filter stud to the oil filter.

SMT875C

WDIA0285E

SDIA3180E

2011 Pathfinder

TRANSFER OIL FILTER

DLN-139

< PERIODIC MAINTENANCE >

[TRANSFER: ATX14B]

DLN

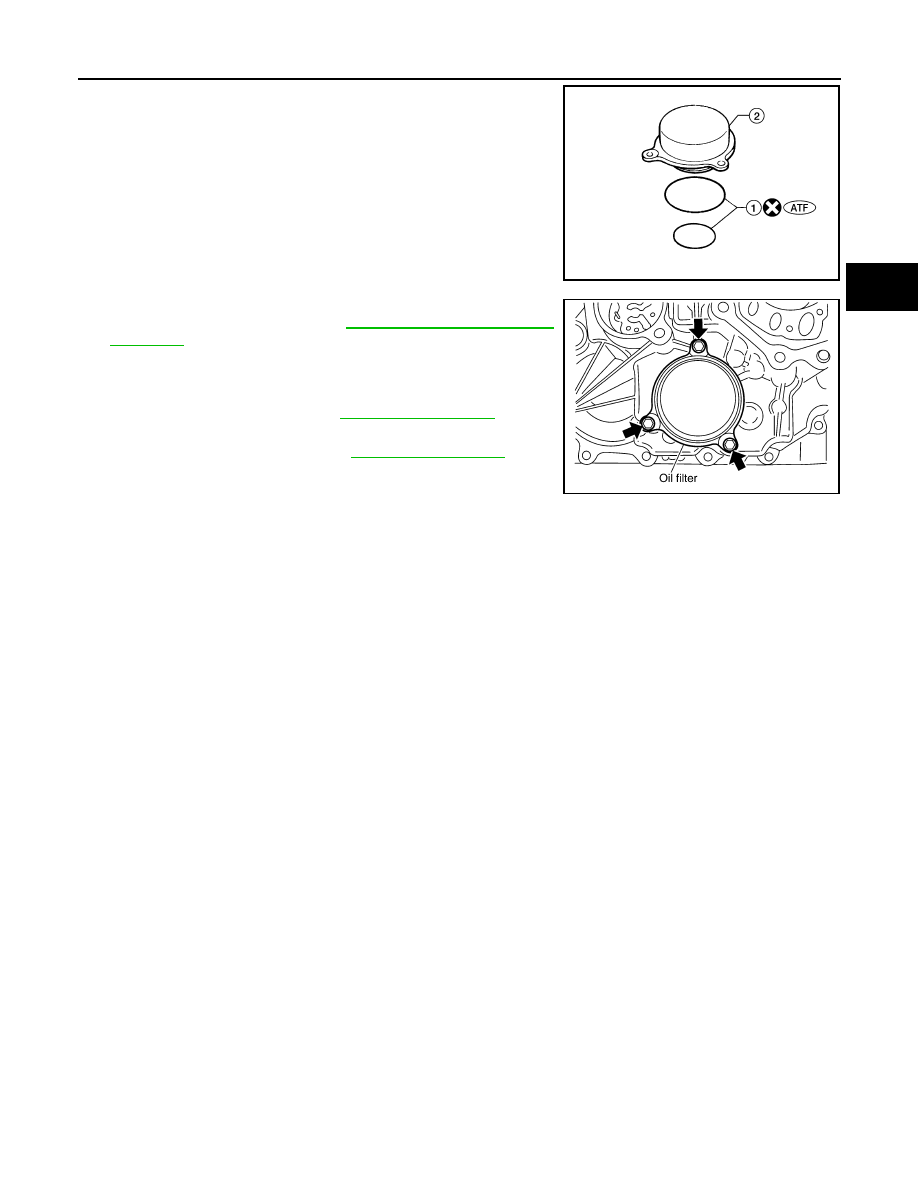

3. Apply ATF to the two new O-rings (1), and install them on the oil

filter (2).

CAUTION:

Do not reuse O-rings.

4. Install the oil filter to the transfer assembly. Tighten the bolts to

the specified torque. Refer to

DLN-156, "Disassembly and

Assembly"

CAUTION:

• Do not damage oil filter.

• Attach oil filter and tighten bolts evenly.

5. Check the transfer fluid. Refer to

DLN-136, "Inspection"

6. Start the engine for one minute. Then stop the engine and

recheck the transfer fluid. Refer to

DLN-136, "Inspection"

WDIA0285E

SDIA2136E

2011 Pathfinder

DLN-140

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

TRANSFER CONTROL UNIT

REMOVAL AND INSTALLATION

TRANSFER CONTROL UNIT

Removal and Installation

INFOID:0000000006245040

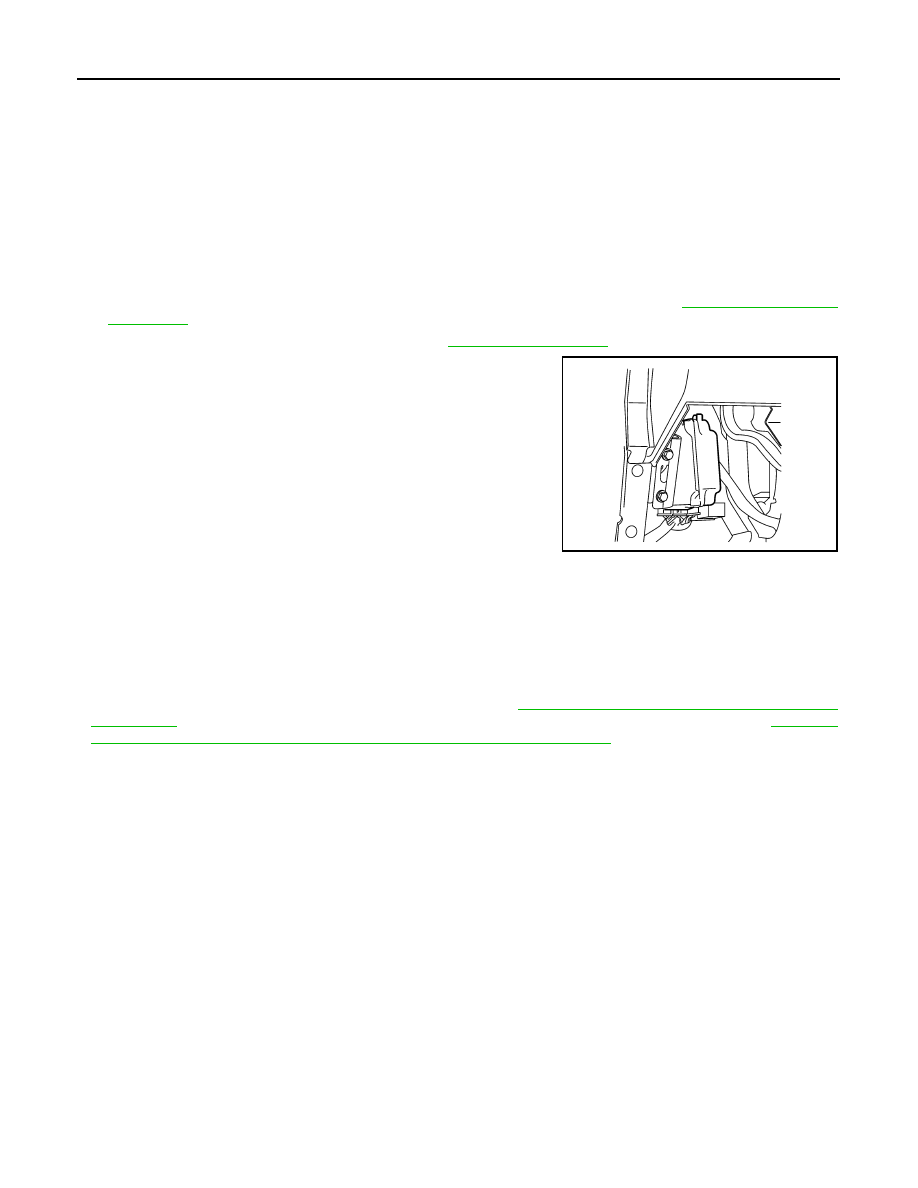

REMOVAL

1. Set transfer state as 2WD when 4WD shift switch is at 2WD, or as AUTO when 4WD shift switch is at

AUTO.

CAUTION:

When removing transfer control unit, transfer state must be at 2WD or AUTO.

2. Turn the ignition switch OFF and disconnect negative battery terminal. Refer to

PG-76, "Removal and

Installation"

3. Remove the instrument lower panel LH. Refer to

IP-11, "Exploded View"

4. Disconnect the two transfer control unit connectors.
5. Remove the transfer control unit bolts.
6. Remove the transfer control unit.

INSTALLATION

Installation is in the reverse order of removal.

• When installing the transfer control unit, tighten bolts to the specified torque.

CAUTION:

Do not connect harness connector to transfer control unit when 4WD shift switch is at 4LO.

• After the installation, check perform self-diagnosis. Refer to

DLN-23, "CONSULT-III Function (ALL MODE

AWD/4WD)"

. If NG, adjust position between transfer assembly and transfer control unit. Refer to

DLN-130,

"Precaution for Transfer Assembly and Transfer Control Unit Replacement"

LDIA0168E

Transfer control unit bolts : 3.4 N·m (0.35 kg-m, 30 in-lb)

2011 Pathfinder

FRONT OIL SEAL

DLN-141

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

DLN

FRONT OIL SEAL

Removal and Installation

INFOID:0000000006245041

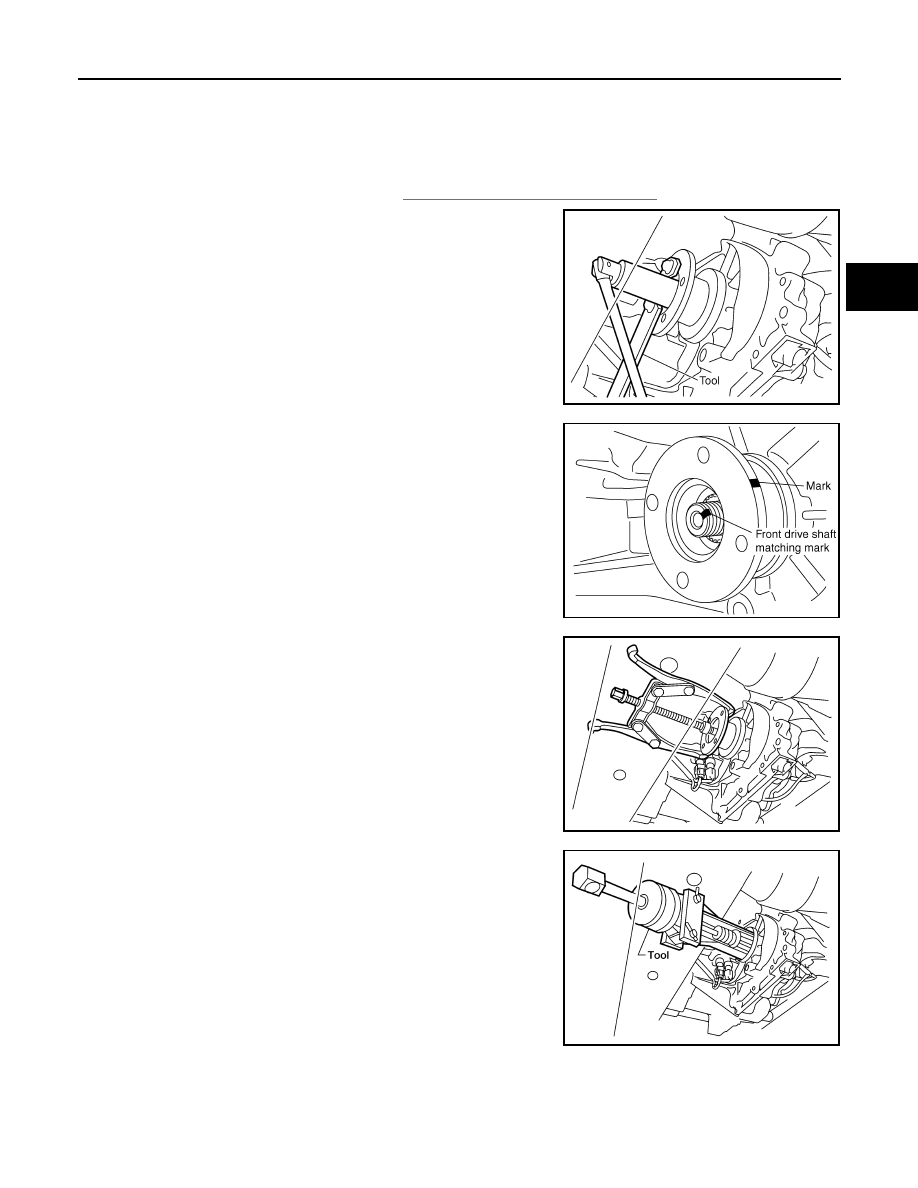

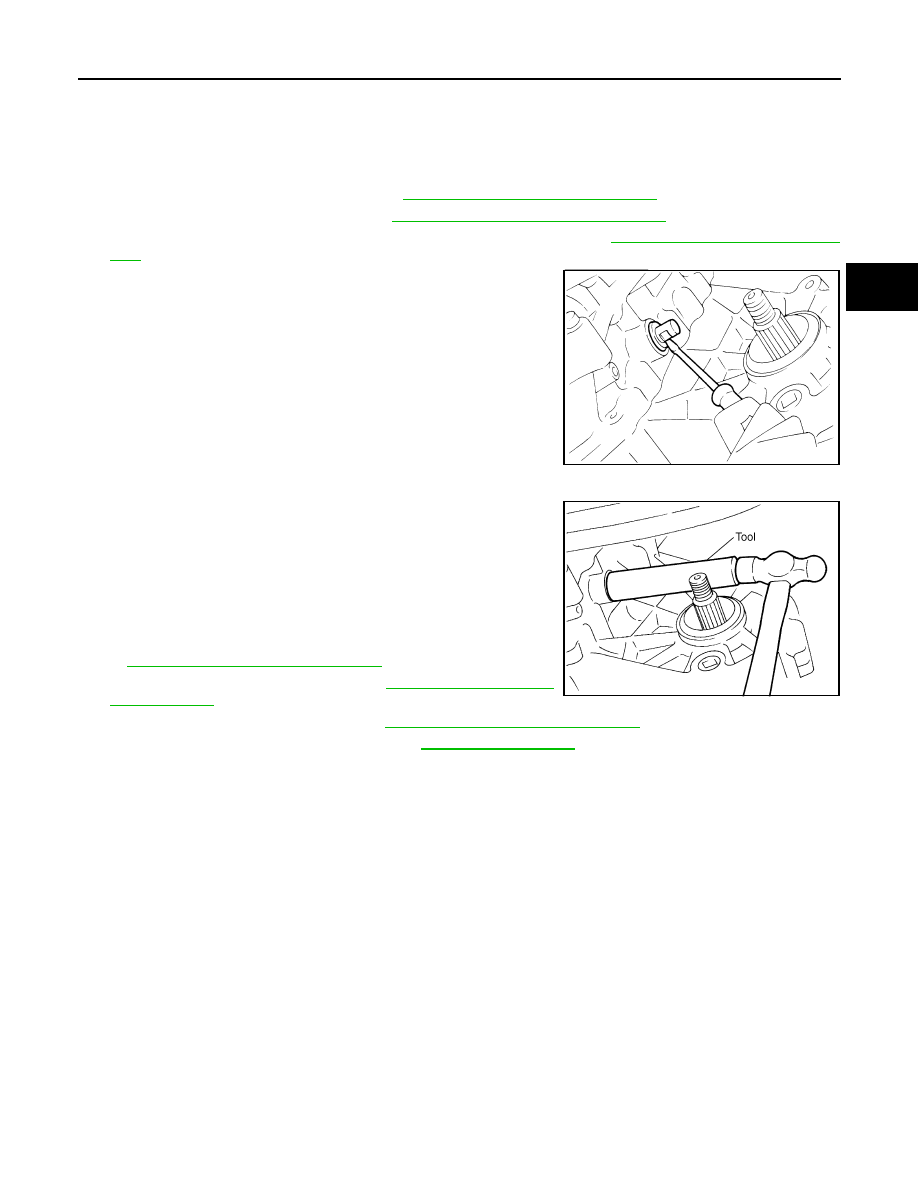

REMOVAL

1. Remove the front propeller shaft. Refer to

DLN-318, "Removal and Installation"

2. Remove the companion flange self-lock nut using suitable tool.

3. Put a matching mark on top of the front drive shaft in line with

the mark on the companion flange.

CAUTION:

Use paint to make the matching mark on the front drive

shaft. Do not damage the front drive shaft.

4. Remove the companion flange using suitable tool.

5. Remove the front oil seal from the front case using Tool.

CAUTION:

Do not damage front case.

INSTALLATION

SDIA2657E

SDIA2658E

WDIA0193E

Tool number

: ST33290001 (J-34286)

LDIA0144E

2011 Pathfinder

DLN-142

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

FRONT OIL SEAL

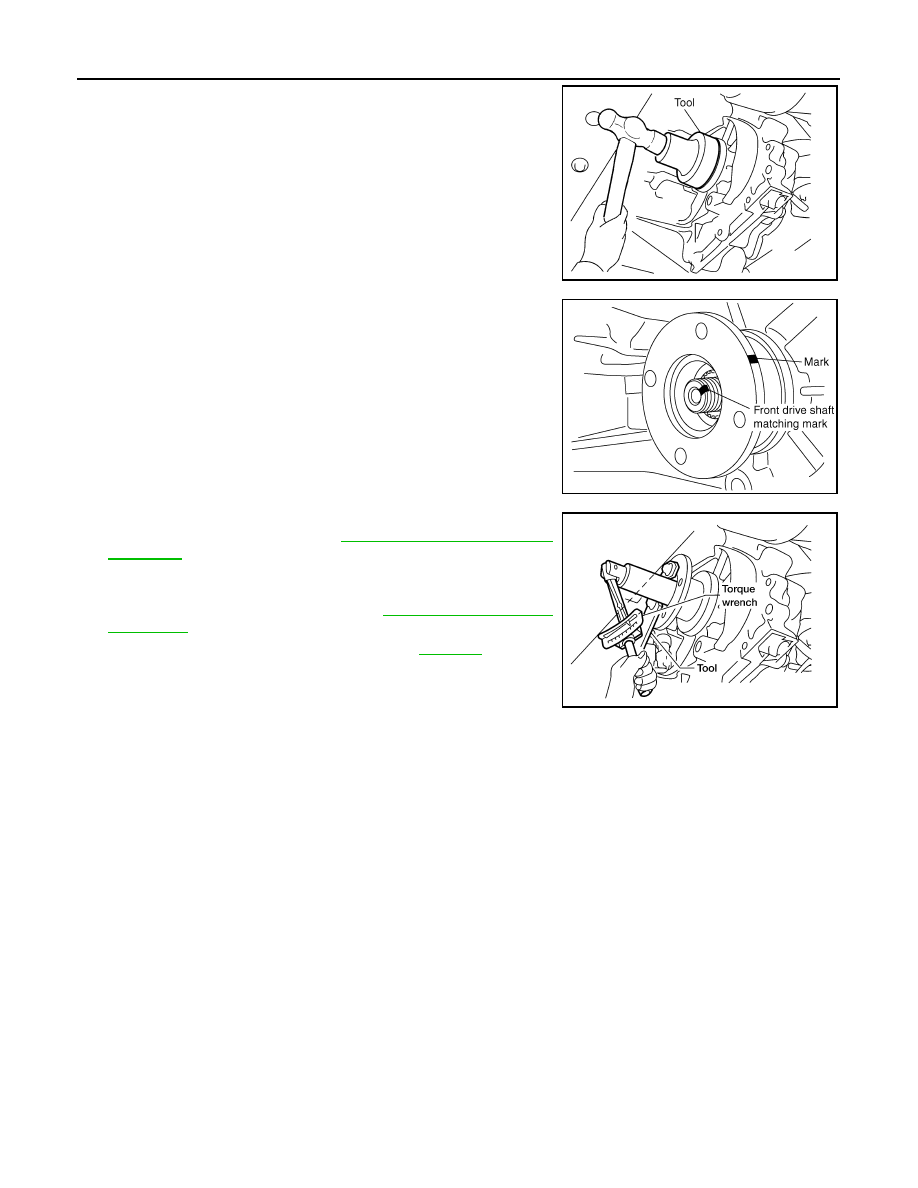

1. Install the new front oil seal until it is flush with the end face of

the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Align the matching mark of the front drive shaft with the match-

ing mark of the companion flange, then install the companion

flange.

3. Install the new self-lock nut. Tighten to the specified torque

using suitable tool. Refer to

DLN-156, "Disassembly and

Assembly"

CAUTION:

Do not reuse self-lock nut.

4. Install the front propeller shaft. Refer to

DLN-318, "Removal and

Installation"

5. Check for fluid leaks and fluid level. Refer to

DLN-136

Tool number

: KV38100500 ( — )

SDIA2662E

SDIA2658E

LDIA0147E

2011 Pathfinder

REAR OIL SEAL

DLN-143

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

DLN

REAR OIL SEAL

Removal and Installation

INFOID:0000000006245042

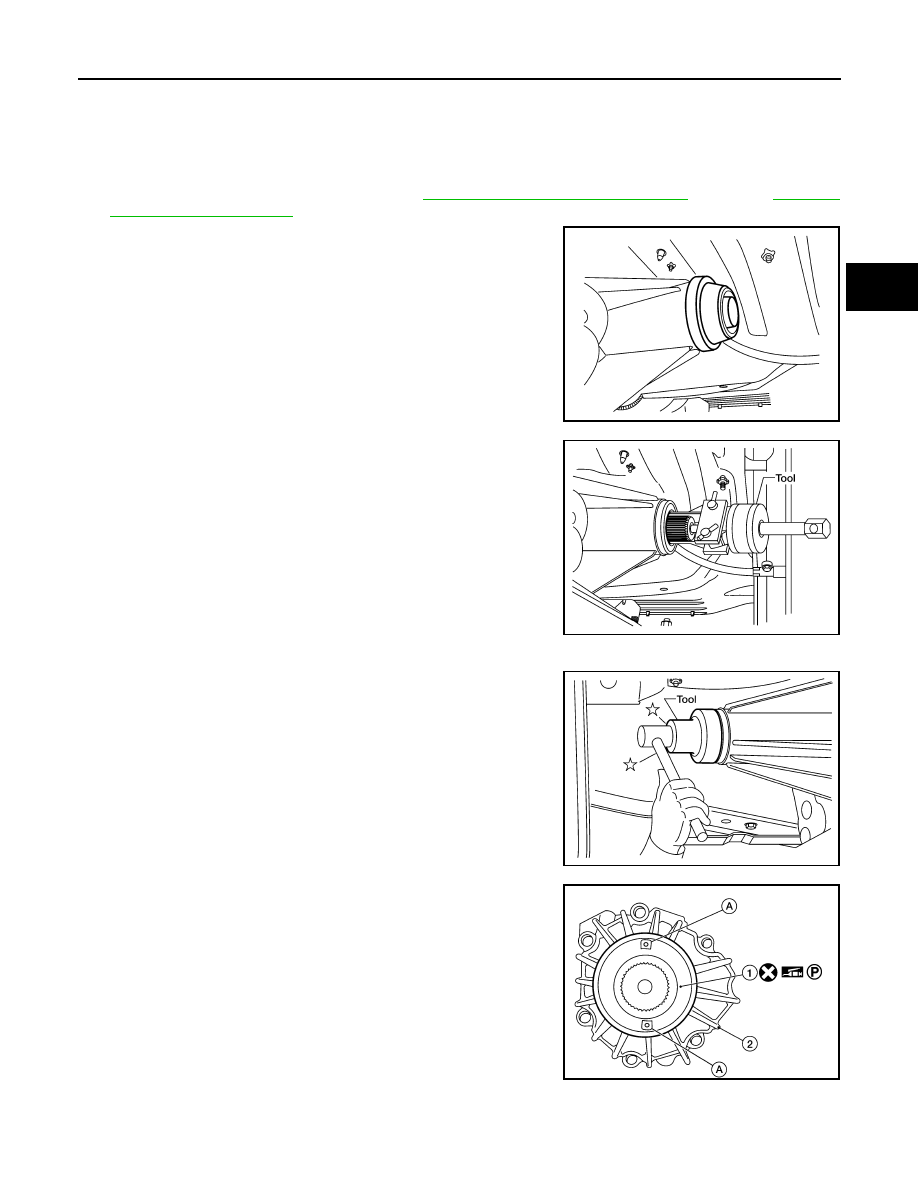

REMOVAL

1. Remove the rear propeller shaft. Refer to

DLN-328, "Removal and Installation"

(2S1330),

DLN-339,

"Removal and Installation"

(2S1350).

2. Remove the dust cover from the rear case.

CAUTION:

Do not damage the rear case.

3. Remove the rear oil seal from the rear case using Tool.

CAUTION:

Do not damage the rear case.

INSTALLATION

1. Install the new rear oil seal until it is flush with the end face of the

rear case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Apply petroleum jelly to the circumference of the new dust cover.

Position the new dust cover as shown.

CAUTION:

• Do not reuse dust cover.

• Position the protursion at the position shown.

• 1: Dust cover

• 2: Rear case assembly

• A: Protrusions

WDIA0127E

Tool number

: ST33290001 (J-34286)

LDIA0139E

Tool number

: ST30720000 (J-25405)

LDIA0140E

AWDIA0550GB

2011 Pathfinder

DLN-144

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

REAR OIL SEAL

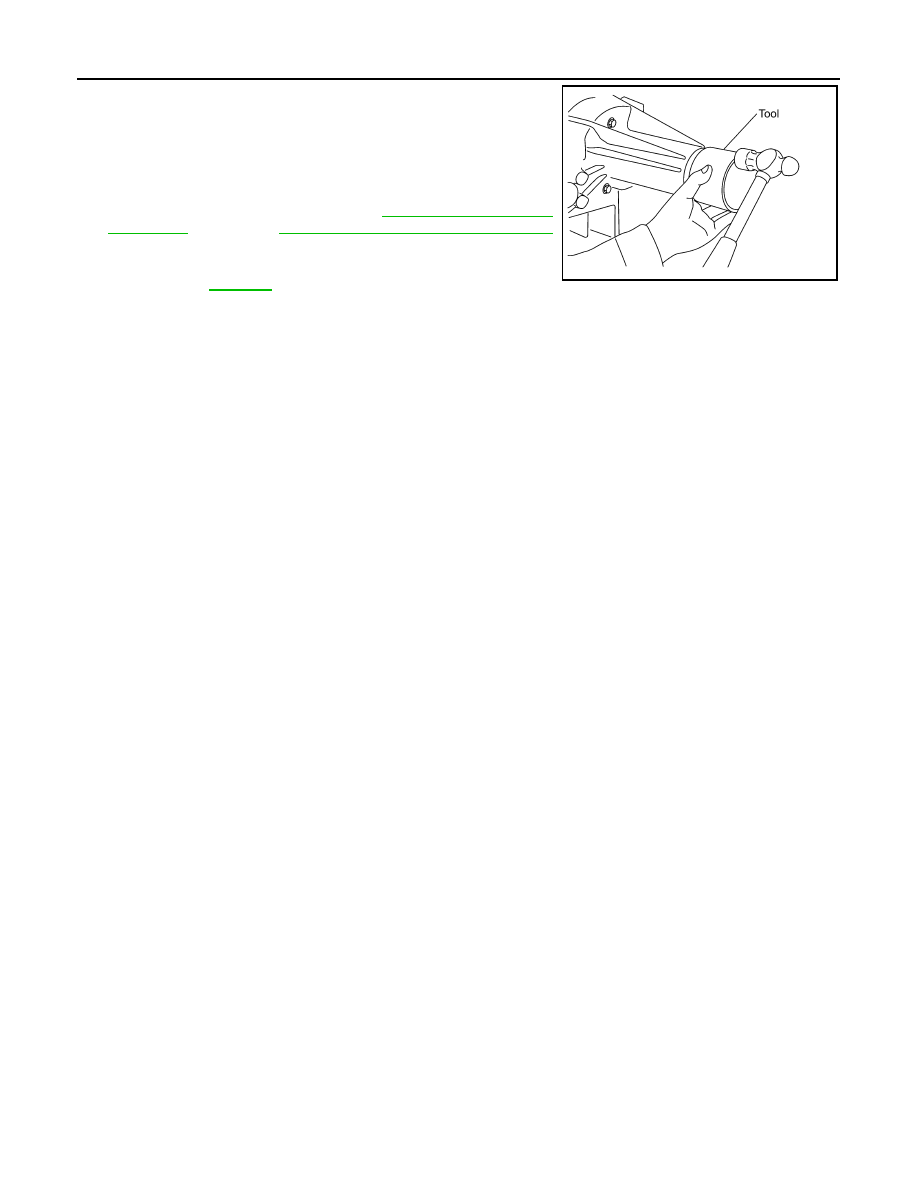

3. Install the new dust cover to the rear case using Tool.

CAUTION:

• Do not reuse dust cover.

• Apply petroleum jelly to dust cover.

4. Install the rear propeller shaft. Refer to

DLN-328, "Removal and

Installation"

(2S1330),

DLN-339, "Removal and Installation"

(2S1350).

5. Refill the transfer with fluid and check for fluid leakage and fluid

level. Refer to

DLN-136

Tool number

: KV40105310 ( — )

PDIA0116E

2011 Pathfinder

SIDE OIL SEAL

DLN-145

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

DLN

SIDE OIL SEAL

Removal and Installation

INFOID:0000000006245043

REMOVAL

1. Remove the front propeller shaft. Refer to

DLN-318, "Removal and Installation"

2. Remove the companion flange. Refer to

DLN-288, "Disassembly and Assembly"

3. Remove the transfer control device from the transfer assembly. Refer to

DLN-282, "Removal and Installa-

tion"

4. Remove the side oil seal using suitable tool.

CAUTION:

Do not damage shift cross.

INSTALLATION

1. Install the new side oil seal until it is flush with the end face of

case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Install the transfer control device to the transfer assembly. Refer

DLN-282, "Removal and Installation"

3. Install the companion flange. Refer to

DLN-288, "Disassembly

and Assembly"

4. Install the front propeller shaft. Refer to

DLN-318, "Removal and Installation"

5. Check for fluid leaks and fluid level. Refer to

DLN-136, "Inspection"

SDIA2666E

Tool number

: ST22360002 (J-25679-01)

SDIA2665E

2011 Pathfinder
