Nissan Pathfinder (2011 year). Manual - part 178

DLK-290

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER DOOR LOCK SYSTEM

ABKIA1780GB

2011 Pathfinder

REMOTE KEYLESS ENTRY SYSTEM

DLK-291

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

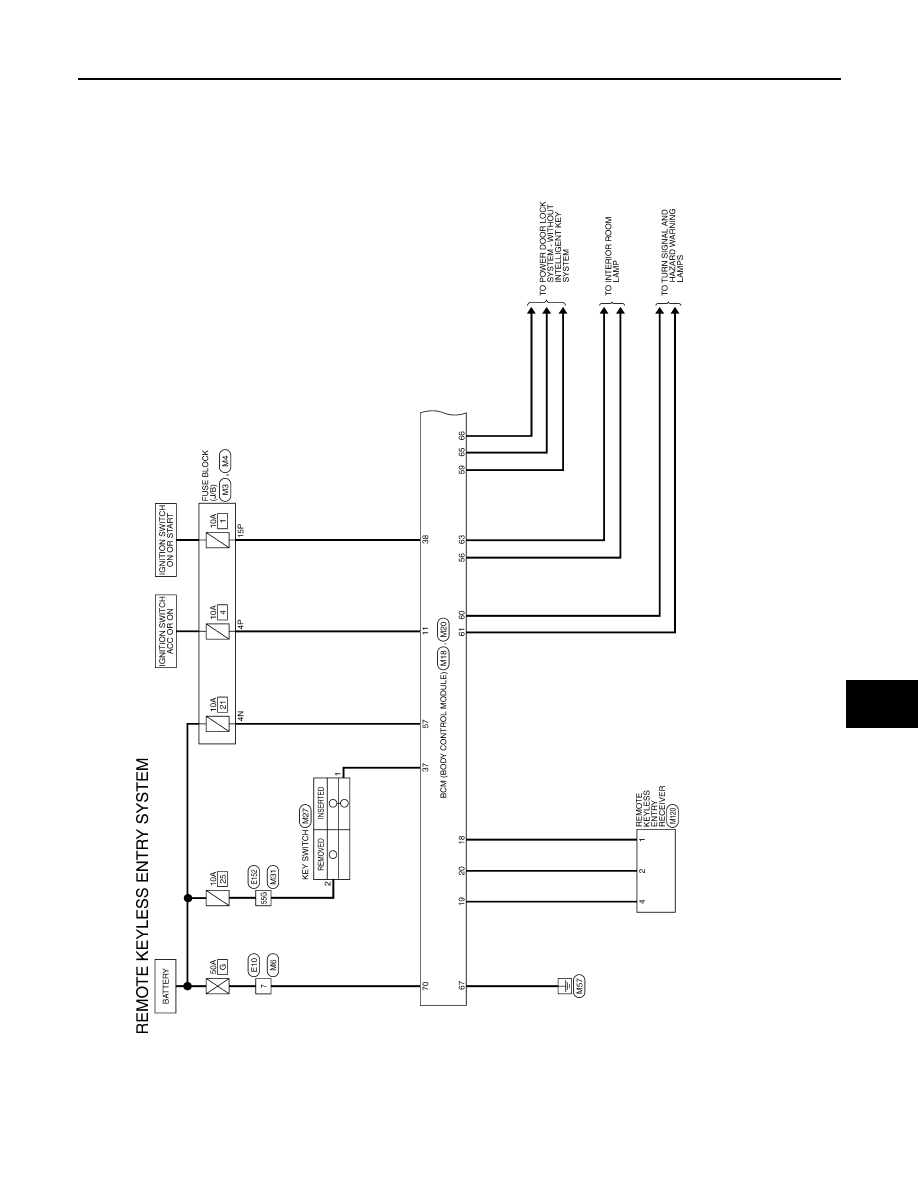

REMOTE KEYLESS ENTRY SYSTEM

Wiring Diagram

INFOID:0000000006545108

ABKWA1707GB

2011 Pathfinder

DLK-292

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

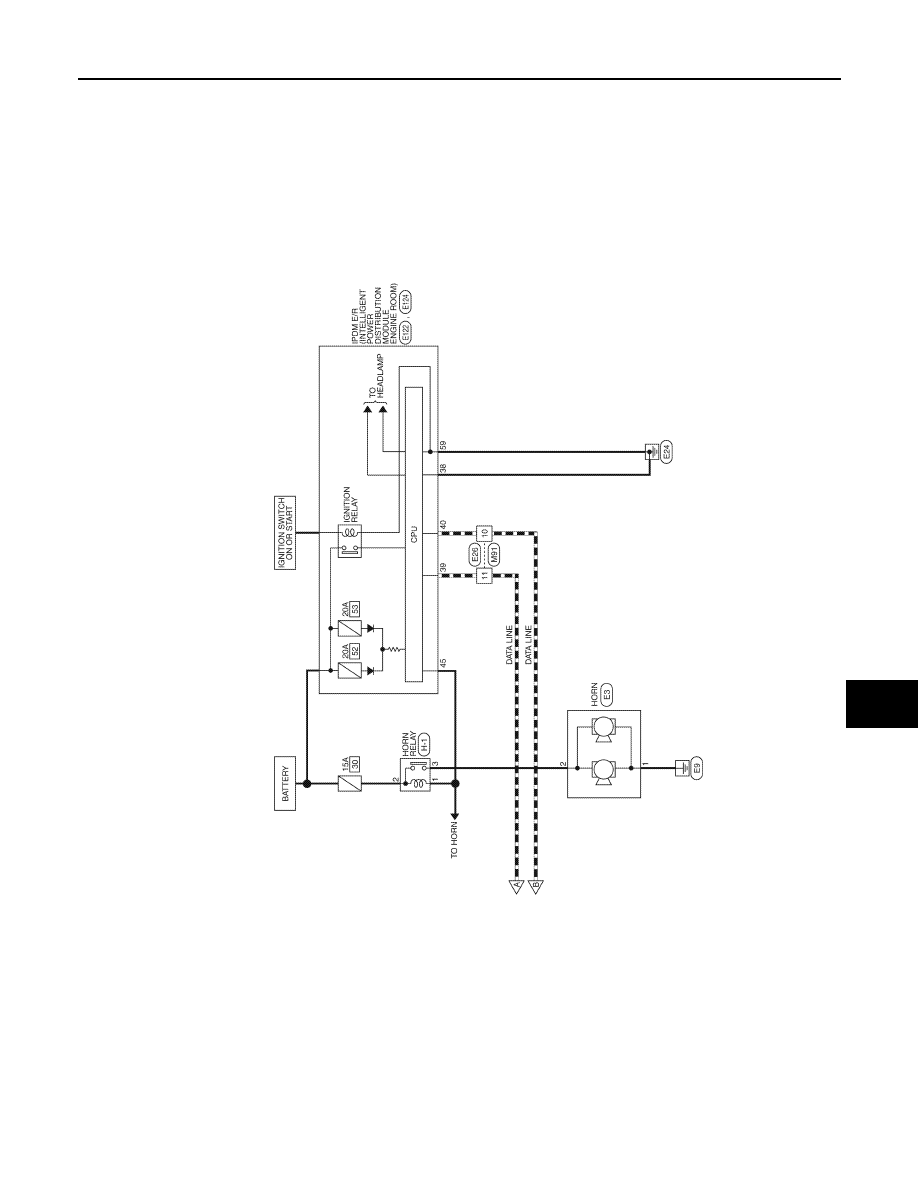

REMOTE KEYLESS ENTRY SYSTEM

ABKWA0594GB

2011 Pathfinder

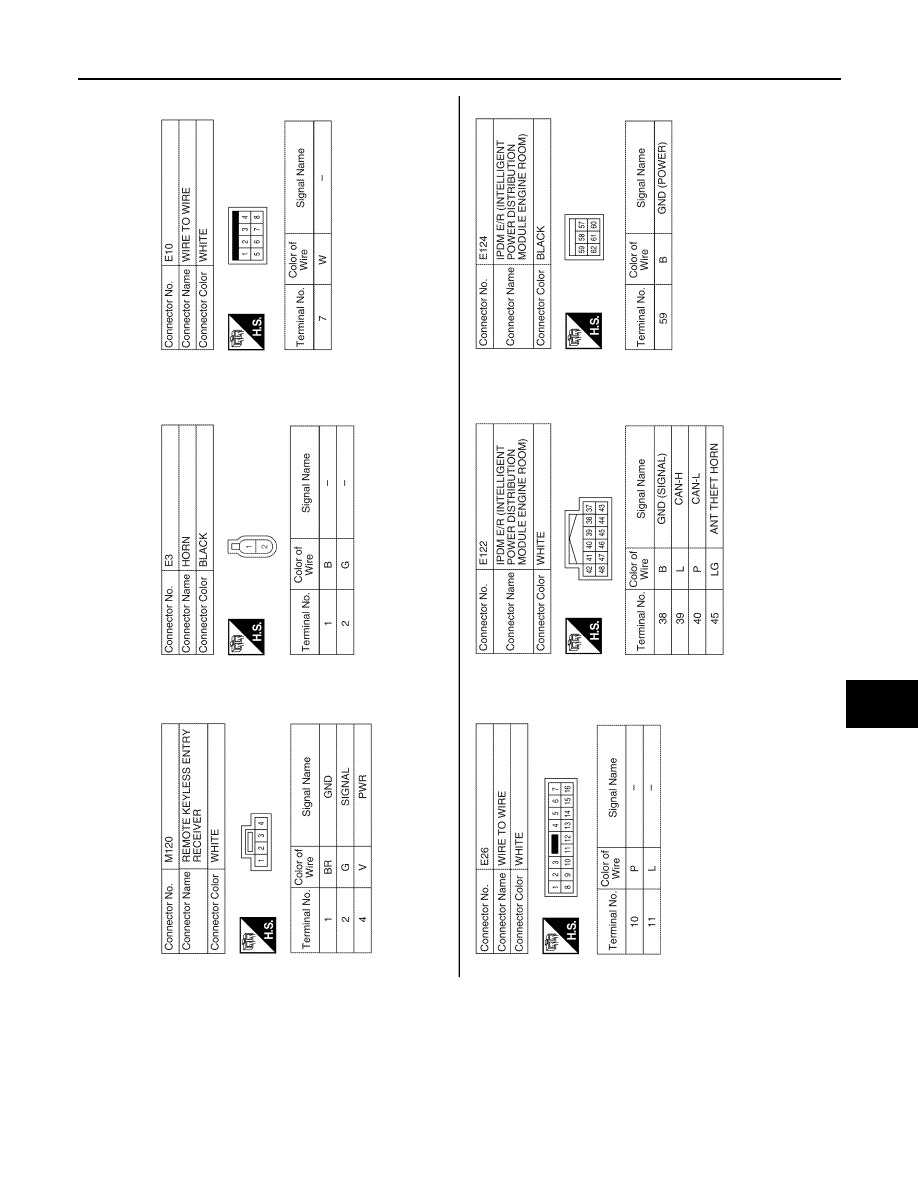

REMOTE KEYLESS ENTRY SYSTEM

DLK-293

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKWA0595GB

2011 Pathfinder

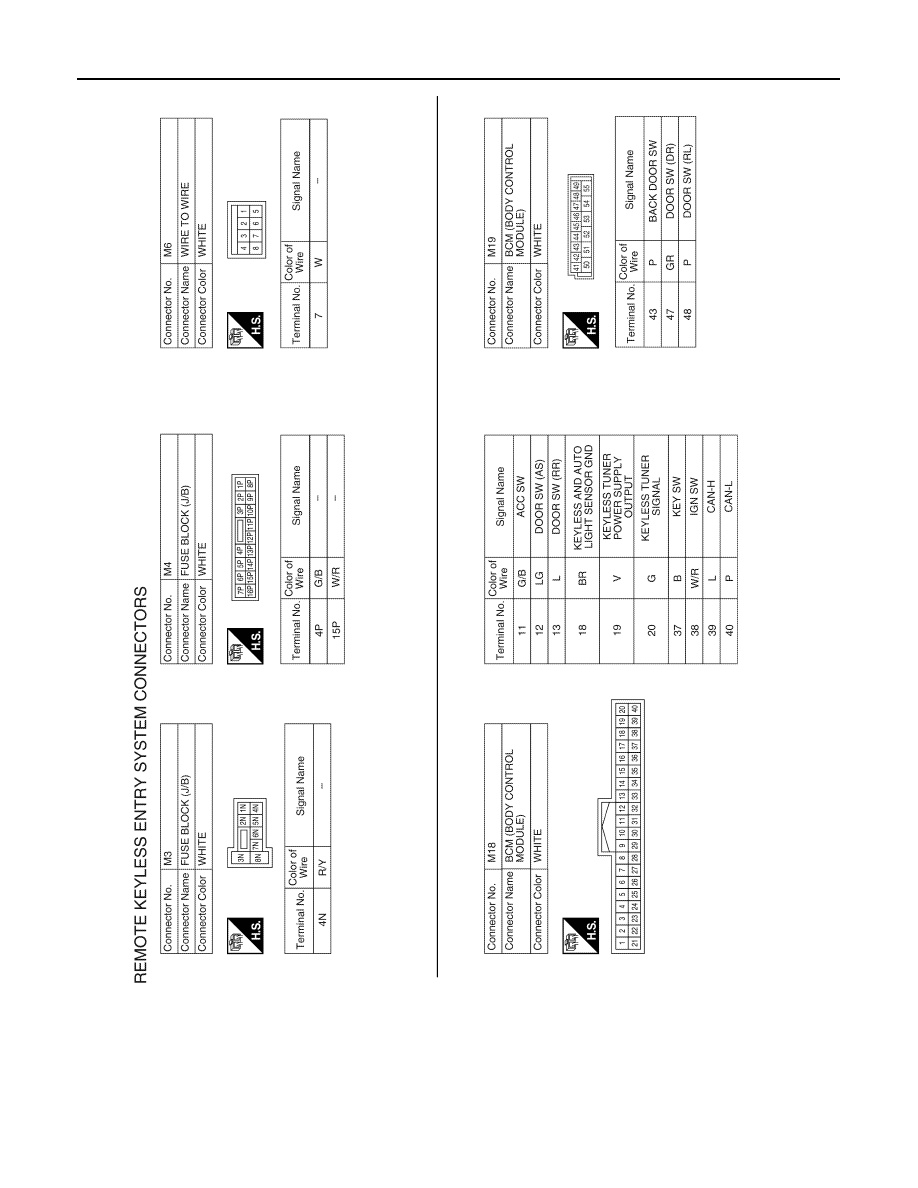

DLK-294

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

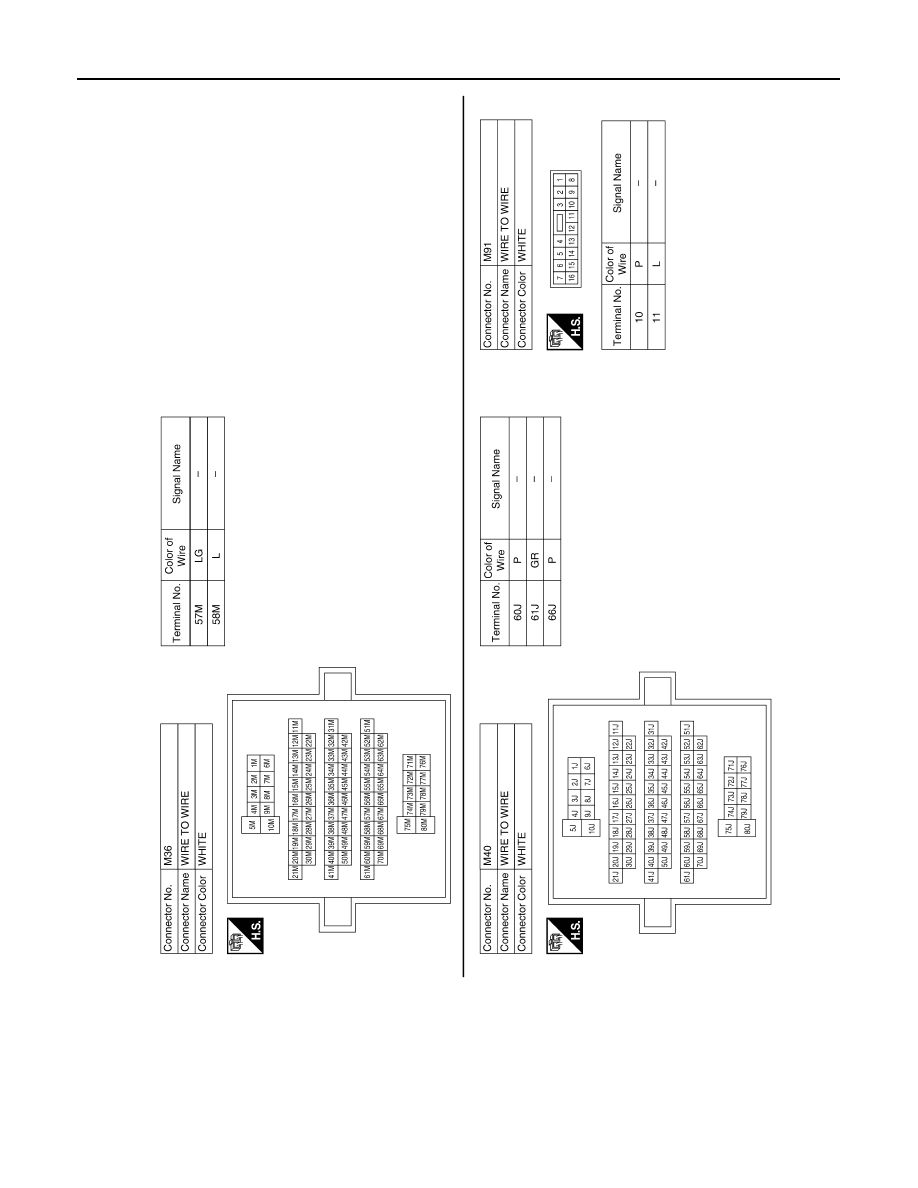

REMOTE KEYLESS ENTRY SYSTEM

ABKIA1741GB

2011 Pathfinder

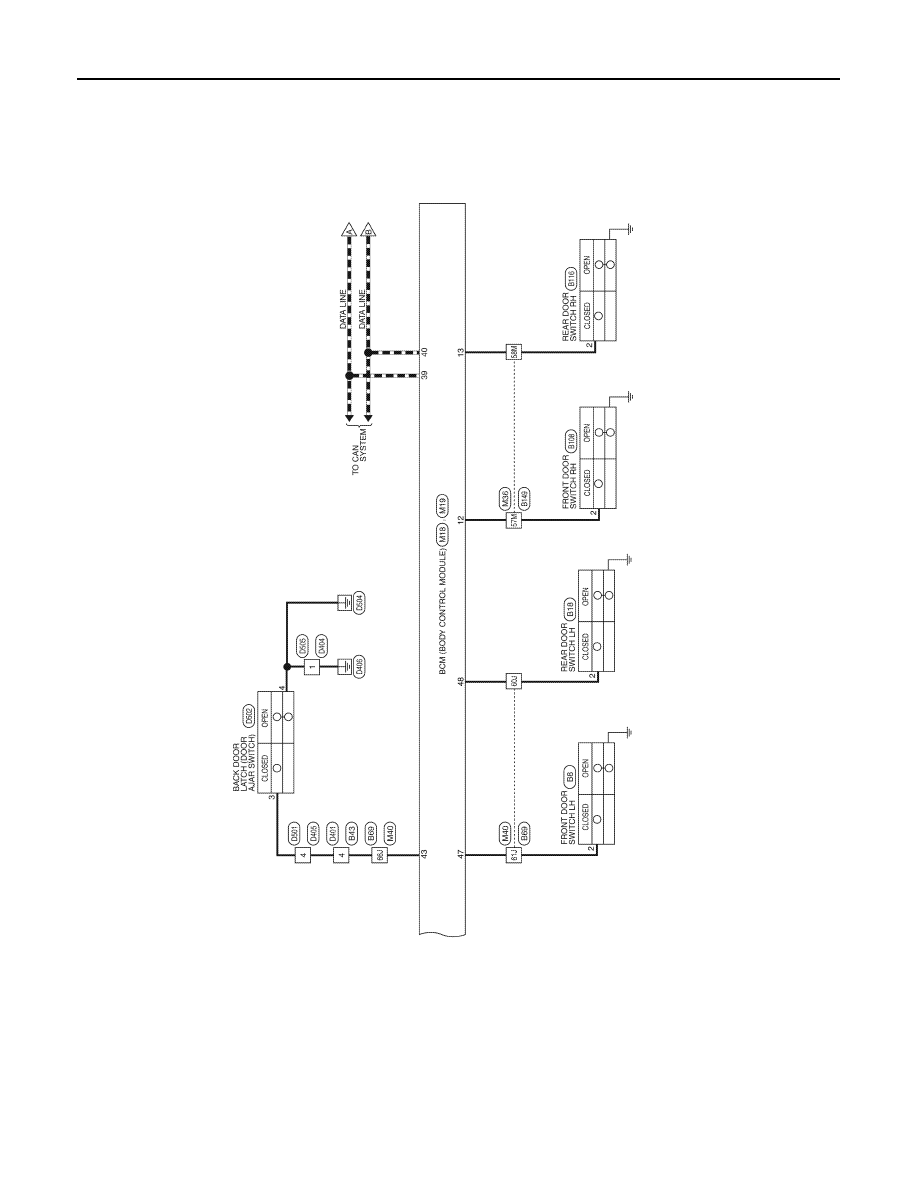

REMOTE KEYLESS ENTRY SYSTEM

DLK-295

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA1742GB

2011 Pathfinder

DLK-296

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

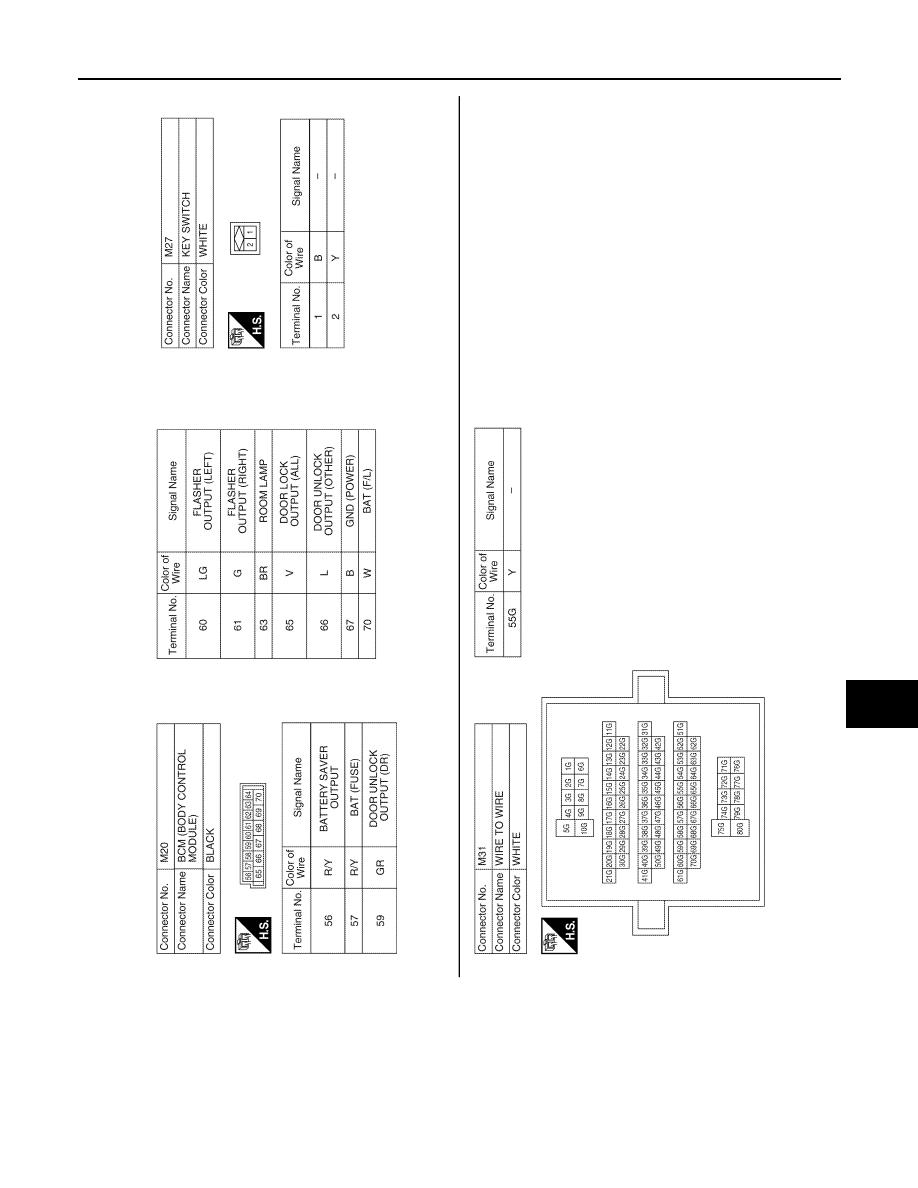

REMOTE KEYLESS ENTRY SYSTEM

ABKIA0389GB

2011 Pathfinder

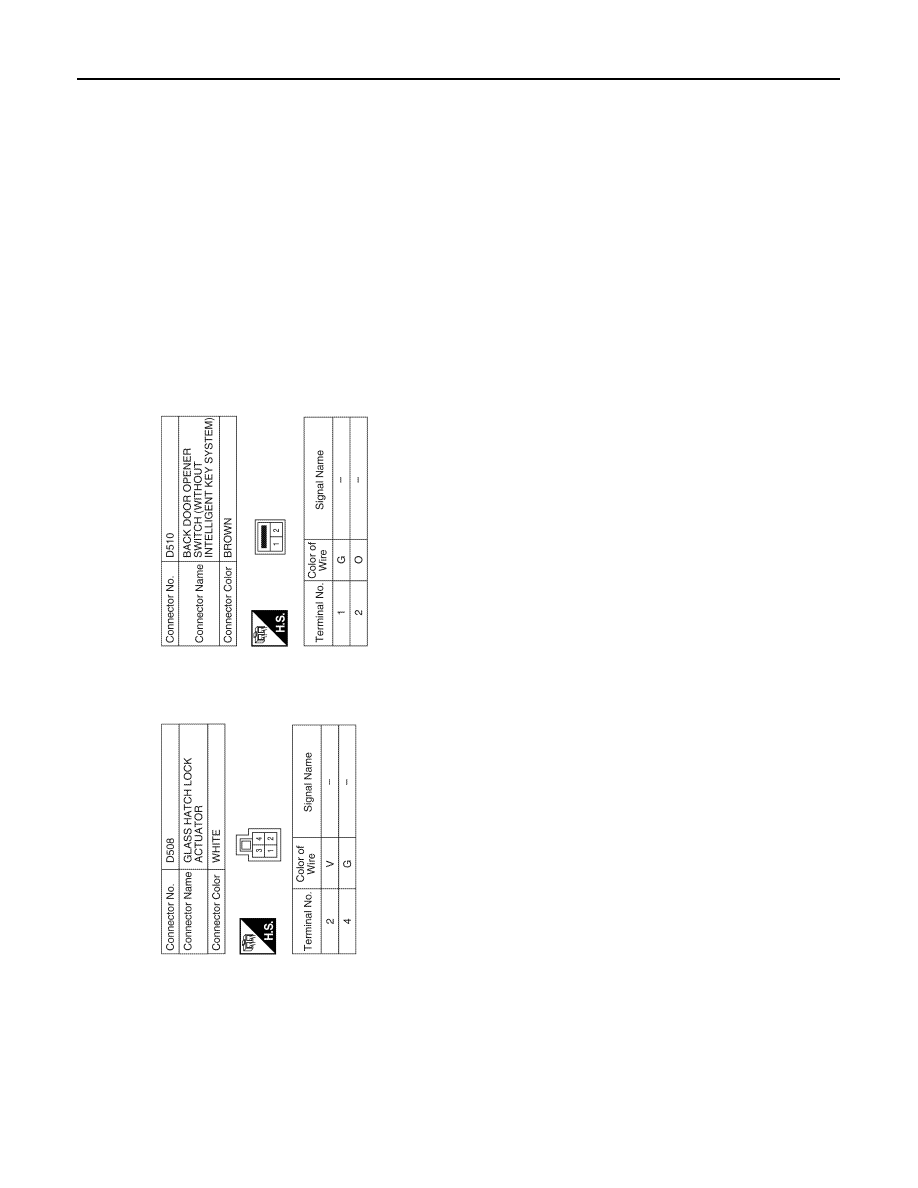

REMOTE KEYLESS ENTRY SYSTEM

DLK-297

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA1743GB

2011 Pathfinder
