BODY REPAIR

BRM-39

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

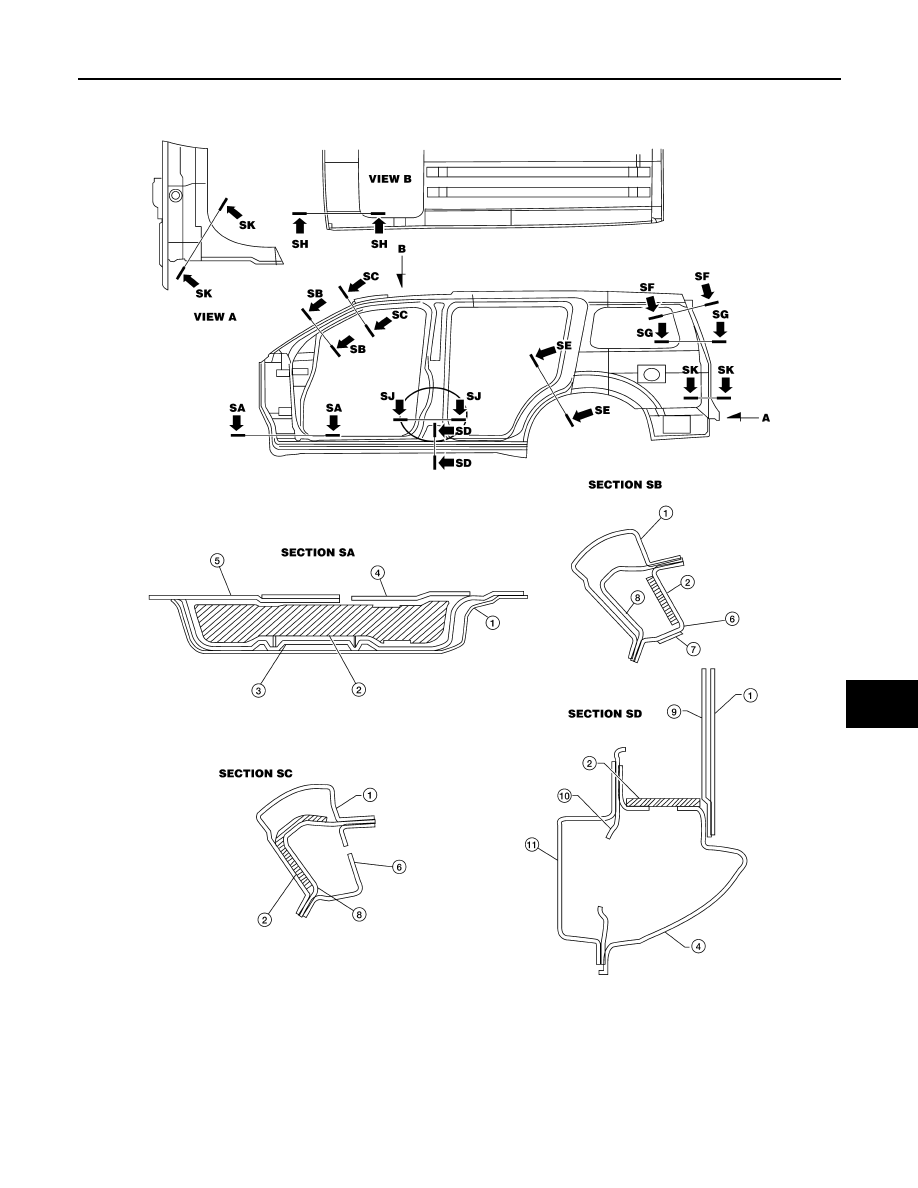

1.

Body side outer

2.

Body side insulation (foam)

3.

A-pillar lower hinge brace

4.

Sill outer reinforcement

5.

front sill outer reinforcement

6.

Inner A-pillar upper

7.

A-pillar inner bracket

8.

A-pillar upper hinge brace

9.

B-pillar hinge brace

10. Inner B-pillar

11. Inner sill extension

LIIA1807E

2011 Pathfinder

BRM-40

< SERVICE INFORMATION >

BODY REPAIR

1. Fill procedures after installation of service part.

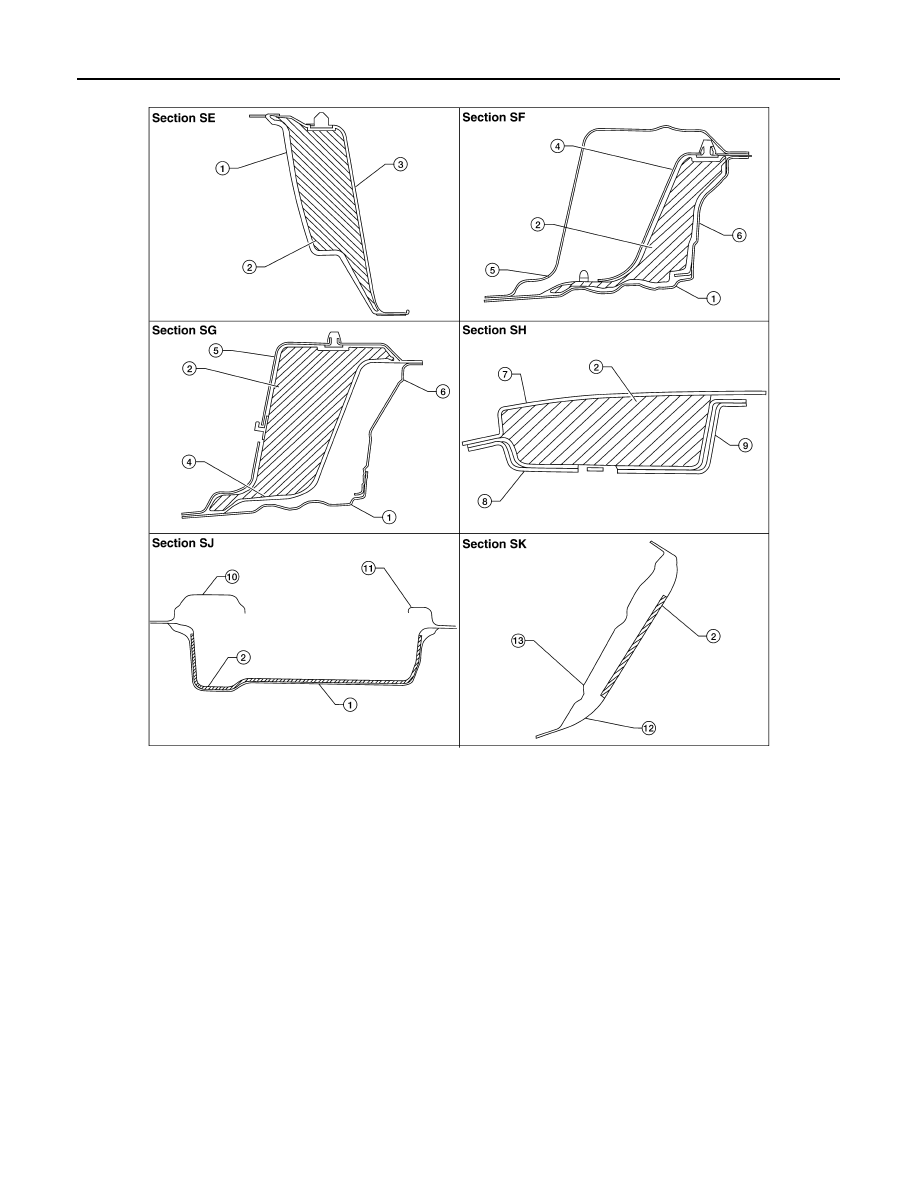

1.

Body side outer

2.

Body side insulation (foam)

3.

Rear wheel outer

4.

Side panel inner

5.

D-pillar inner reinforcement

6.

D-pillar outer reinforcement

7.

Roof

8.

Front roof rail

9.

Front roof rail brace

10. B-pillar inner

11. B-pillar hinge brace

12. Rear side inner extension

13. D-pillar mail lower

LIIA1817E

2011 Pathfinder

BODY REPAIR

BRM-41

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

-

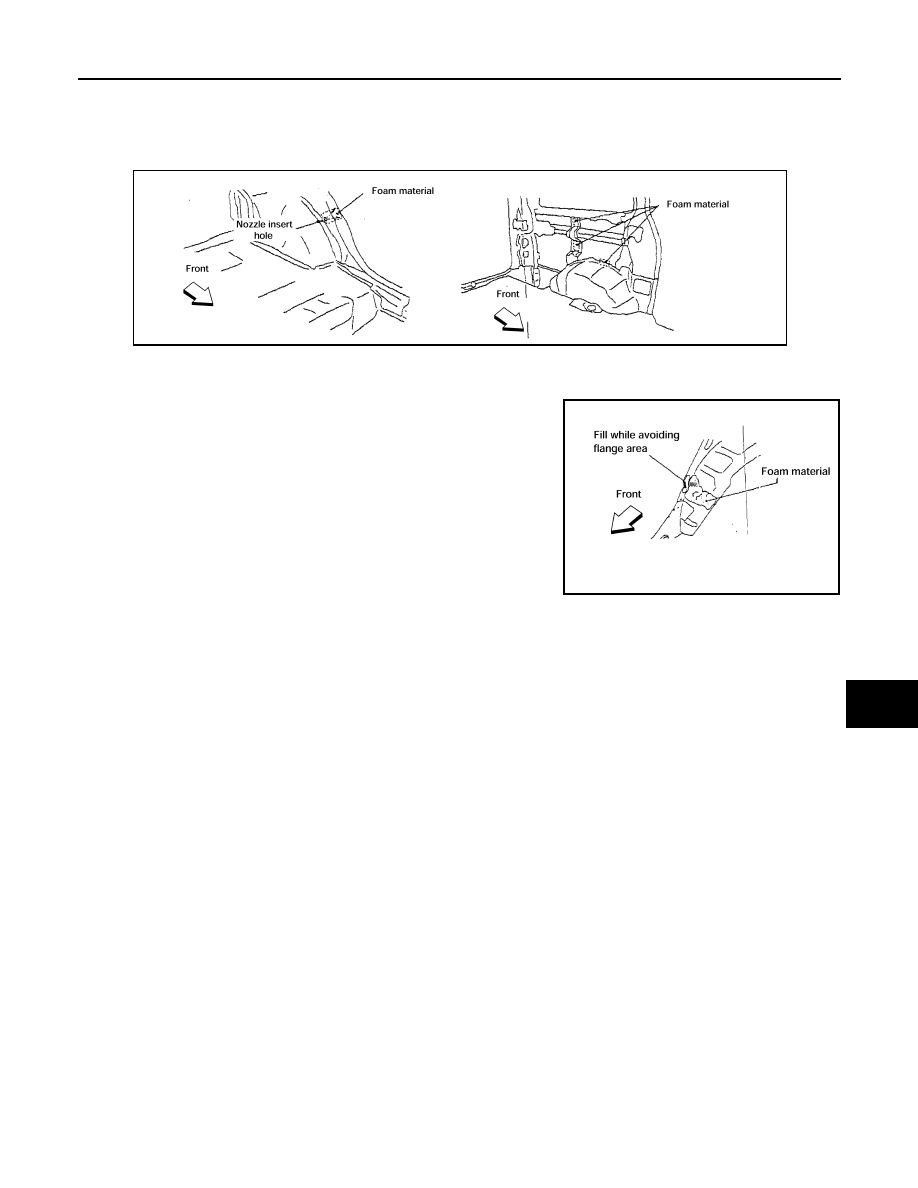

Remove foam material remaining on vehicle side.

-

Clean area in which foam was removed.

-

Install service part.

-

Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service

part.

2. Fill procedures before installation of service part.

-

Remove foam material remaining on vehicle side.

-

Clean area in which foam was removed.

-

Fill foam material on wheelhouse outer side.

NOTE:

Fill in enough to close gap with service part while avoiding flange

area.

-

Install service part.

NOTE:

Refer to label for information on working times.

Replacement Operation

INFOID:0000000006245357

DESCRIPTION

This section is prepared for technicians who have attained a high level of skill and experience in repairing col-

lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body

repair techniques should not attempt to repair collision-damaged vehicles by using this section.

Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the orig-

inal functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains

additional information, including cautions and warnings, that are not including in this manual. Technicians

should refer to both manuals to ensure proper repairs.

Please note that this information is prepared for worldwide usage, and as such, certain procedures may not

apply in some regions or countries.

LIIA1081E

LIIA1082E

2011 Pathfinder

BRM-42

< SERVICE INFORMATION >

BODY REPAIR

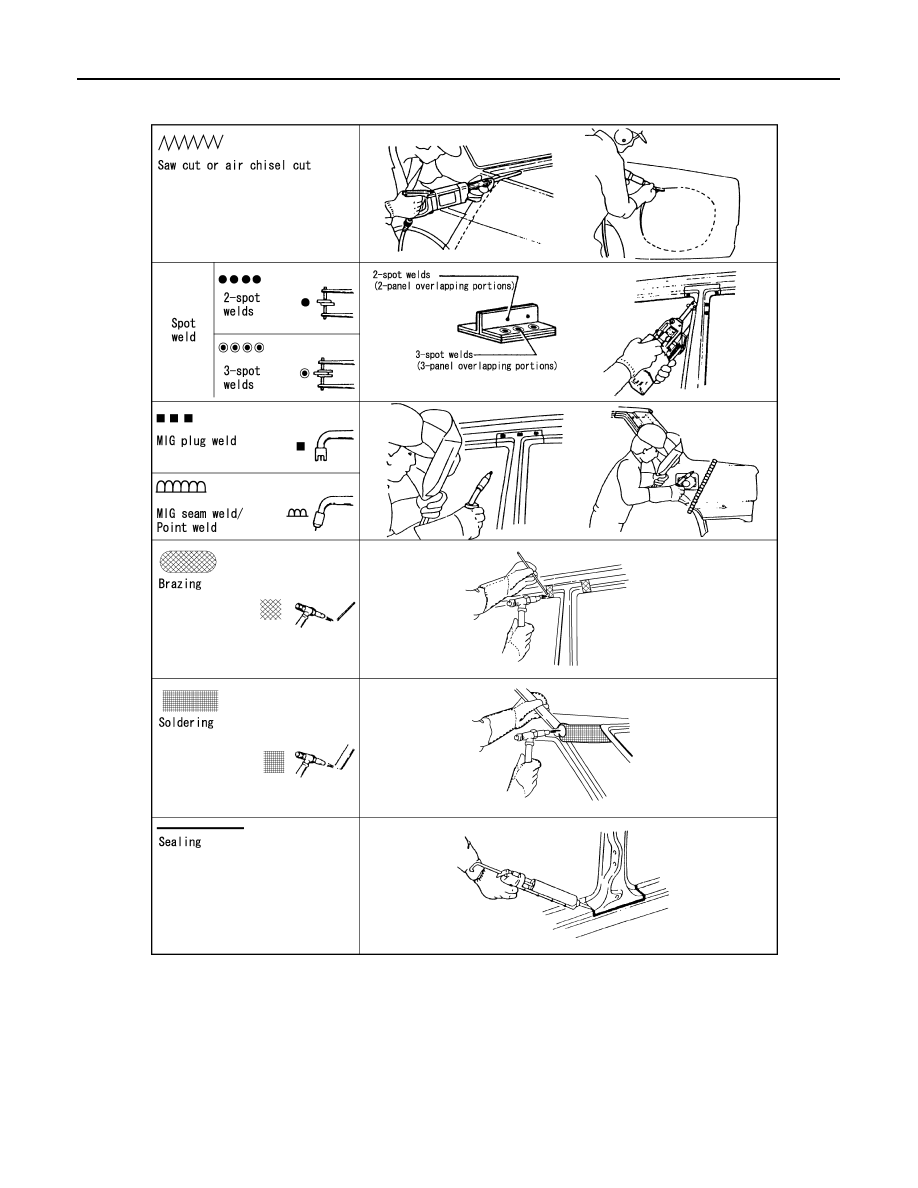

The symbols used in this section for cutting and welding / brazing operations are shown below.

PIIA0149E

2011 Pathfinder

BODY REPAIR

BRM-43

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

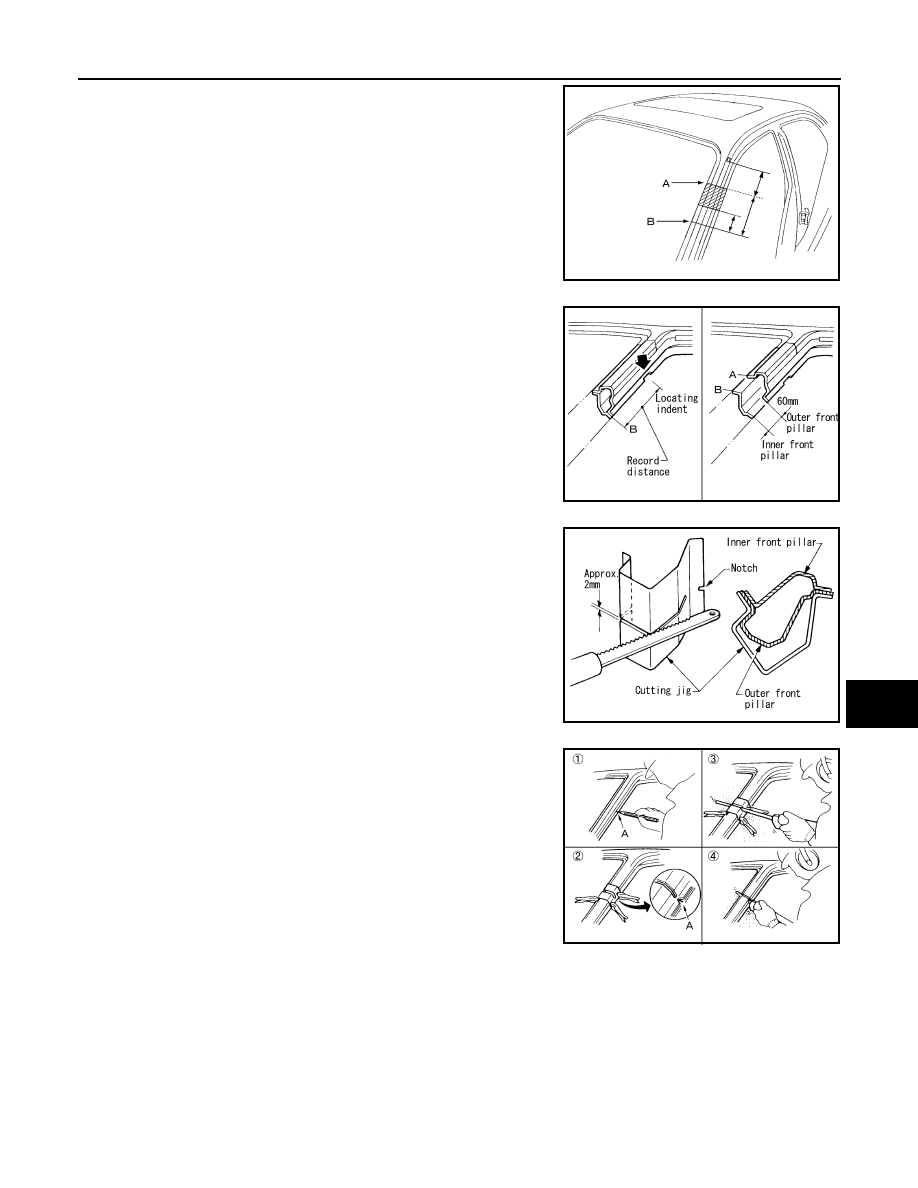

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at

position A due to the construction of the vehicle. Refer to the front

pillar section.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer

front pillar over 60 mm above inner front pillar cut position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit service part to be accurately cut at joint position.

• An example of cutting operation using a cutting jig is as follows.

1. Mark cutting lines.

A: Cut position of outer pillar

B: Cut position of inner pillar

2. Align cutting line with notch on jig. Clamp jig to pillar.

3. Cut outer pillar along groove of jig. (At position A)

4. Remove jig and cut remaining portions.

5. Cut inner pillar at position B in same manner.

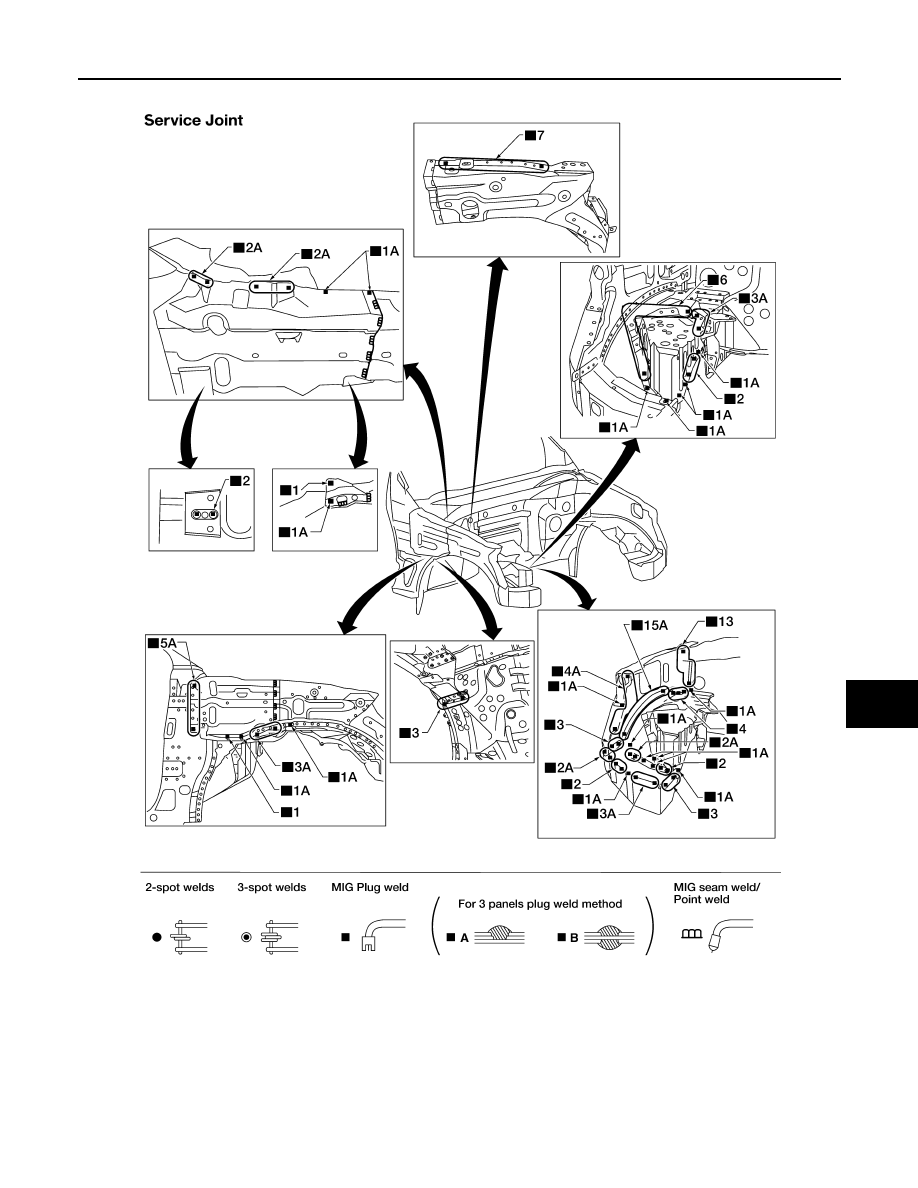

HOODLEDGE

LH

PIIA0150E

PIIA0151E

PIIA0152E

PIIA0153E

2011 Pathfinder

BRM-44

< SERVICE INFORMATION >

BODY REPAIR

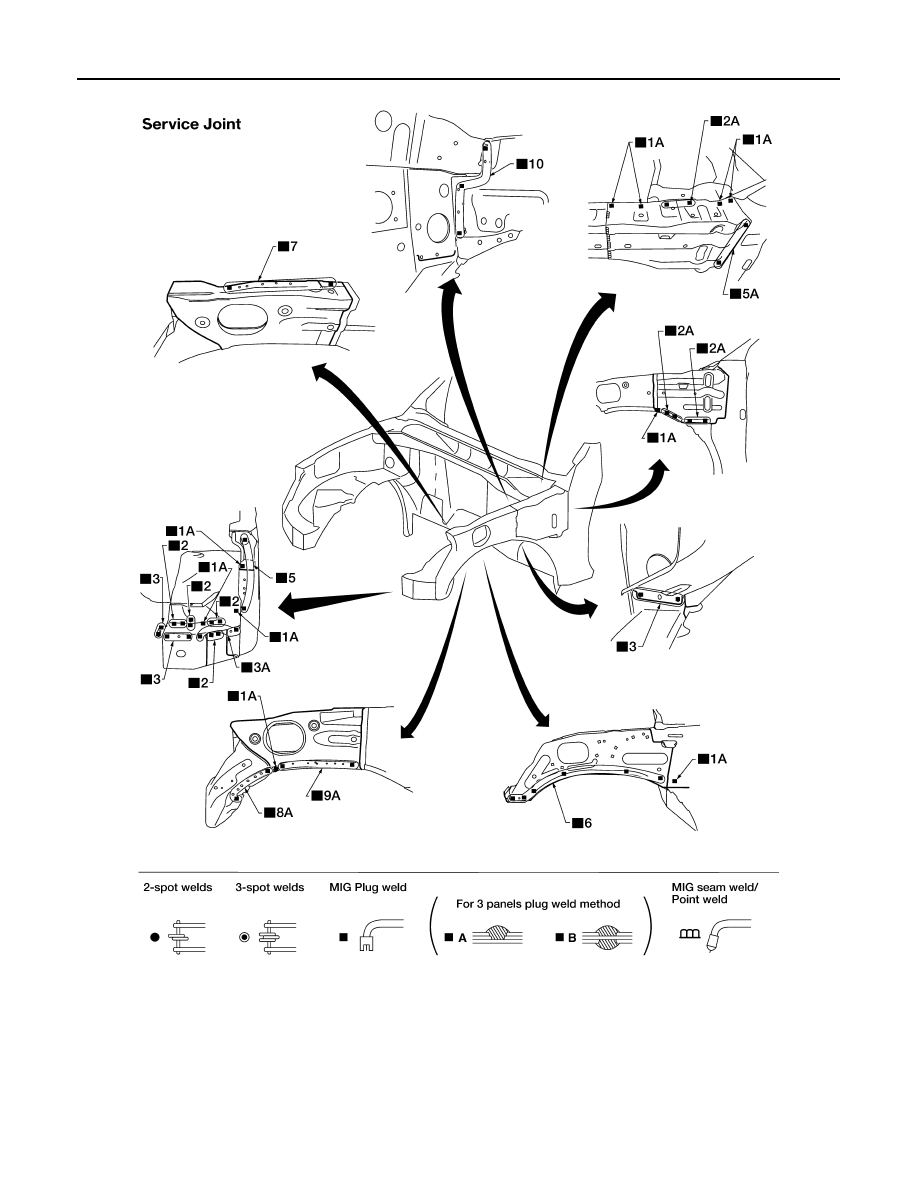

• Work after radiator core support has been removed.

RH

LIIA1808E

2011 Pathfinder

BODY REPAIR

BRM-45

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• Work after radiator core support has been removed.

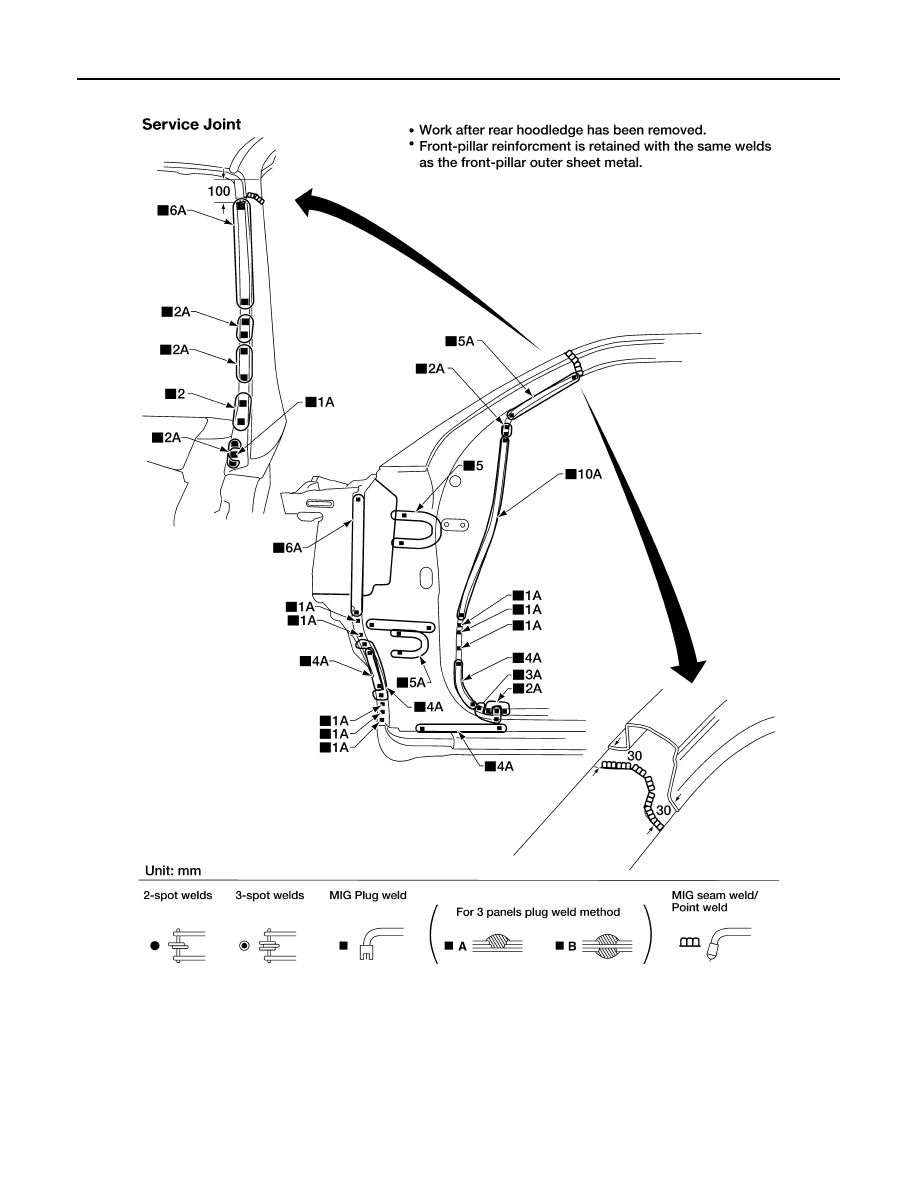

FRONT PILLAR

LIIA1809E

2011 Pathfinder

BRM-46

< SERVICE INFORMATION >

BODY REPAIR

• Work after rear hoodledge reinforcement has been removed.

LIIA1810E
