FRONT DISC BRAKE

BR-7

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BASIC INSPECTION

FRONT DISC BRAKE

BRAKE PAD

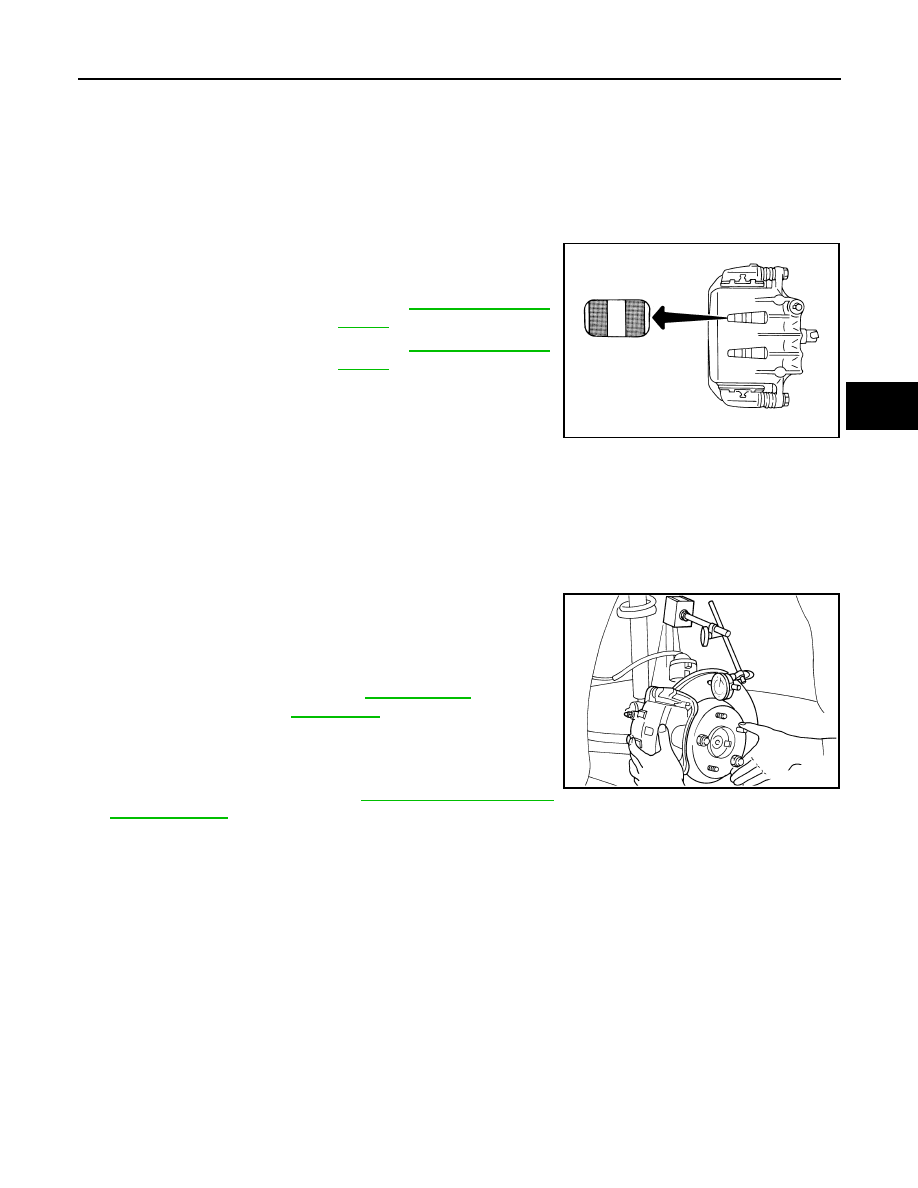

BRAKE PAD : Inspection

INFOID:0000000006245700

PAD WEAR

Check pad thickness from the inspection holes on cylinder body.

Check using a scale if necessary.

DISC ROTOR
DISC ROTOR : Inspection

INFOID:0000000006245701

VISUAL

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace as necessary.

RUNOUT

1. Attach disc rotor to wheel hub using wheel nuts at two or more

positions.

2. Inspect runout using a dial gauge placed at 10 mm (0.39 in)

inside the disc edge.

NOTE:

Before measuring, make sure that wheel bearing axial end play

is within the specification. Refer to

FAX-6, "On-Vehicle Inspec-

tion and Service"

.

3. When runout exceeds limit value, displace mounting positions of disc rotor by one hole. And then find a

position of the minimum value for runout.

4. If runout is outside the specified value after performing the above operation, turn disc rotor using Tool.

THICKNESS

Standard thickness (new) : Refer to

BR-62, "Front Disc

Brake"

.

Minimum thickness

: Refer to

BR-62, "Front Disc

Brake"

.

WFIA0522E

Runout limit

: Refer to

BR-62, "Front

Disc Brake"

.

(with it attached to the vehicle)

Tool number

: 38-PFM90.5 ( — )

BRA0580D

2011 Pathfinder

BR-8

< BASIC INSPECTION >

FRONT DISC BRAKE

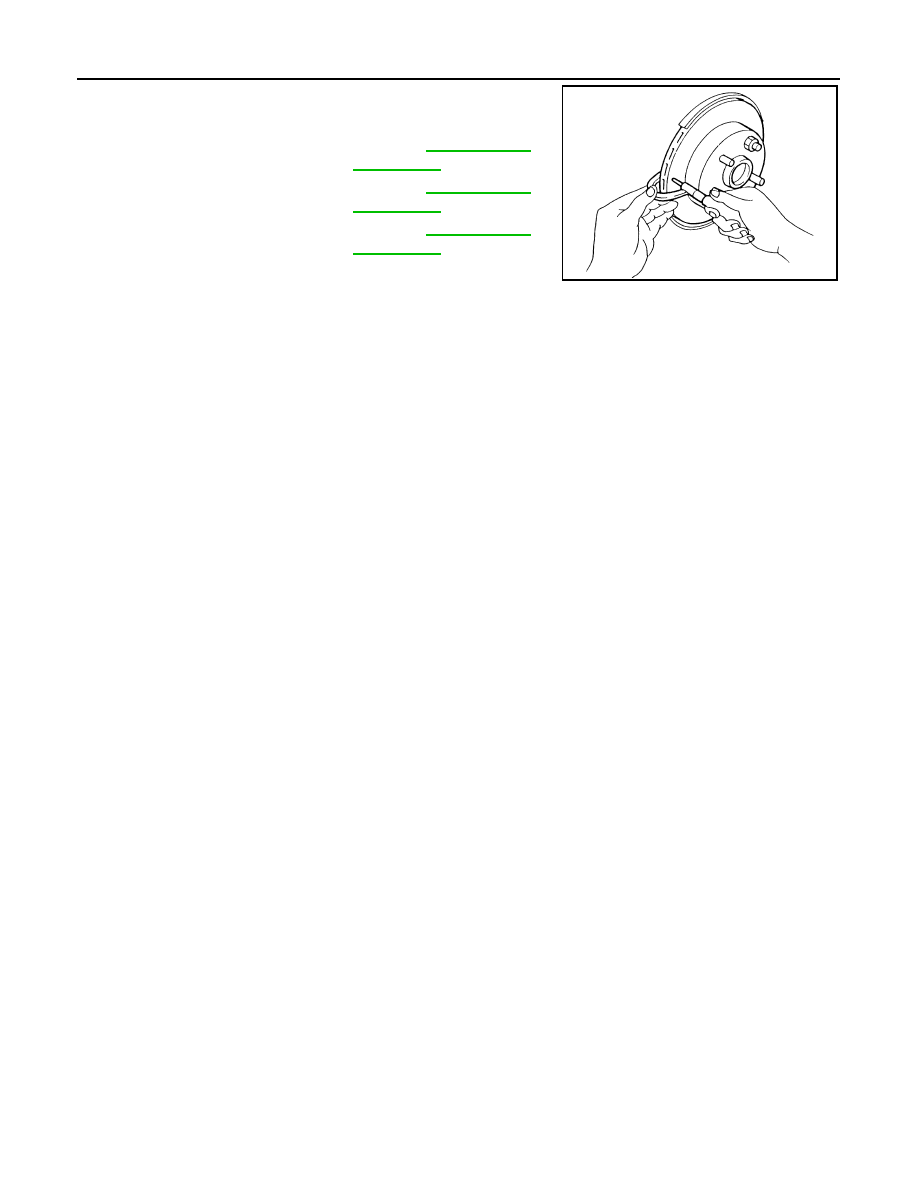

Check thickness of the disc rotor using a micrometer. Replace disc

rotor if thickness is less then the minimum thickness.

Standard thickness (new)

: Refer to

BR-62, "Front

Disc Brake"

.

Minimum thickness

: Refer to

BR-62, "Front

Disc Brake"

.

Maximum uneven wear
(measured at 8 positions)

: Refer to

BR-62, "Front

Disc Brake"

.

SBR020B

2011 Pathfinder

REAR DISC BRAKE

BR-9

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DISC BRAKE

BRAKE PAD

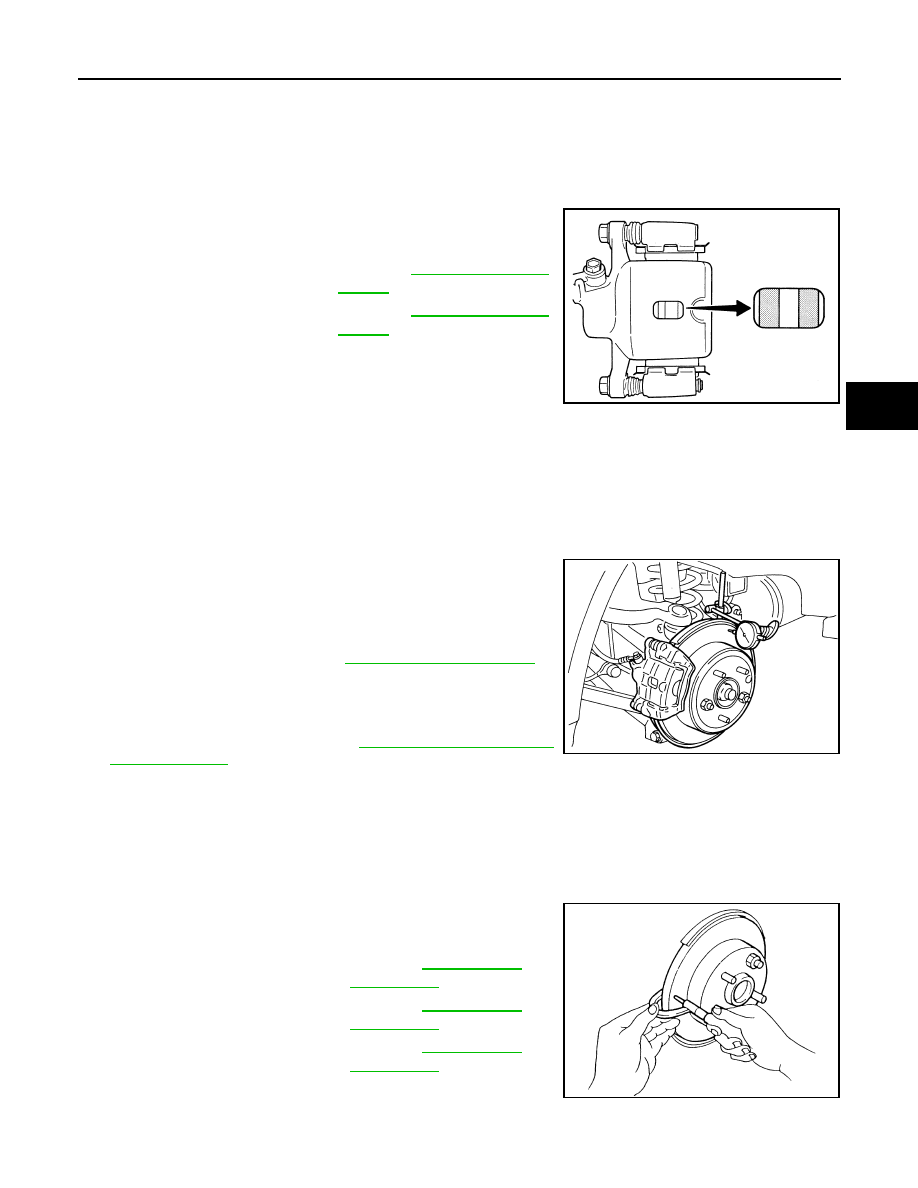

BRAKE PAD : Inspection

INFOID:0000000006245702

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.

Check using a scale if necessary.

DISC ROTOR
DISC ROTOR : Inspection

INFOID:0000000006245703

VISUAL

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace as necessary.

RUNOUT

1. Attach disc rotor to wheel hub using wheel nuts at two or more

positions.

2. Inspect runout using dial gauge placed at 10 mm (0.39 in) inside

disc edge.

NOTE:

Before measuring, make sure that wheel bearing axial end play

is within the specification. Refer to

RAX-6, "On-Vehicle Inspec-

tion and Service"

.

3. When runout exceeds limit value, displace mounting positions of disc rotor by one hole. And then find a

position of the minimum value for runout.

4. If runout is outside the specified value after performing the above operation, turn disc rotor using Tool.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace

disc rotor if the thickness is less then the minimum thickness.

Standard thickness (new) : Refer to

BR-62, "Rear Disc

Brake"

.

Minimum thickness

: Refer to

BR-62, "Rear Disc

Brake"

.

BRA0010D

Runout limit

: Refer to

BR-62, "Rear Disc Brake"

.

(with it attached to the vehicle)

Tool number

: 38-PFM90.5 ( — )

BRA0697D

Standard thickness (new)

: Refer to

BR-62, "Rear

Disc Brake"

.

Minimum thickness

: Refer to

BR-62, "Rear

Disc Brake"

.

Maximum uneven wear
(measured at 8 positions)

: Refer to

BR-62, "Rear

Disc Brake"

.

SFIA2284E

2011 Pathfinder

BR-10

< BASIC INSPECTION >

BRAKE BOOSTER

BRAKE BOOSTER

Inspection

INFOID:0000000006245704

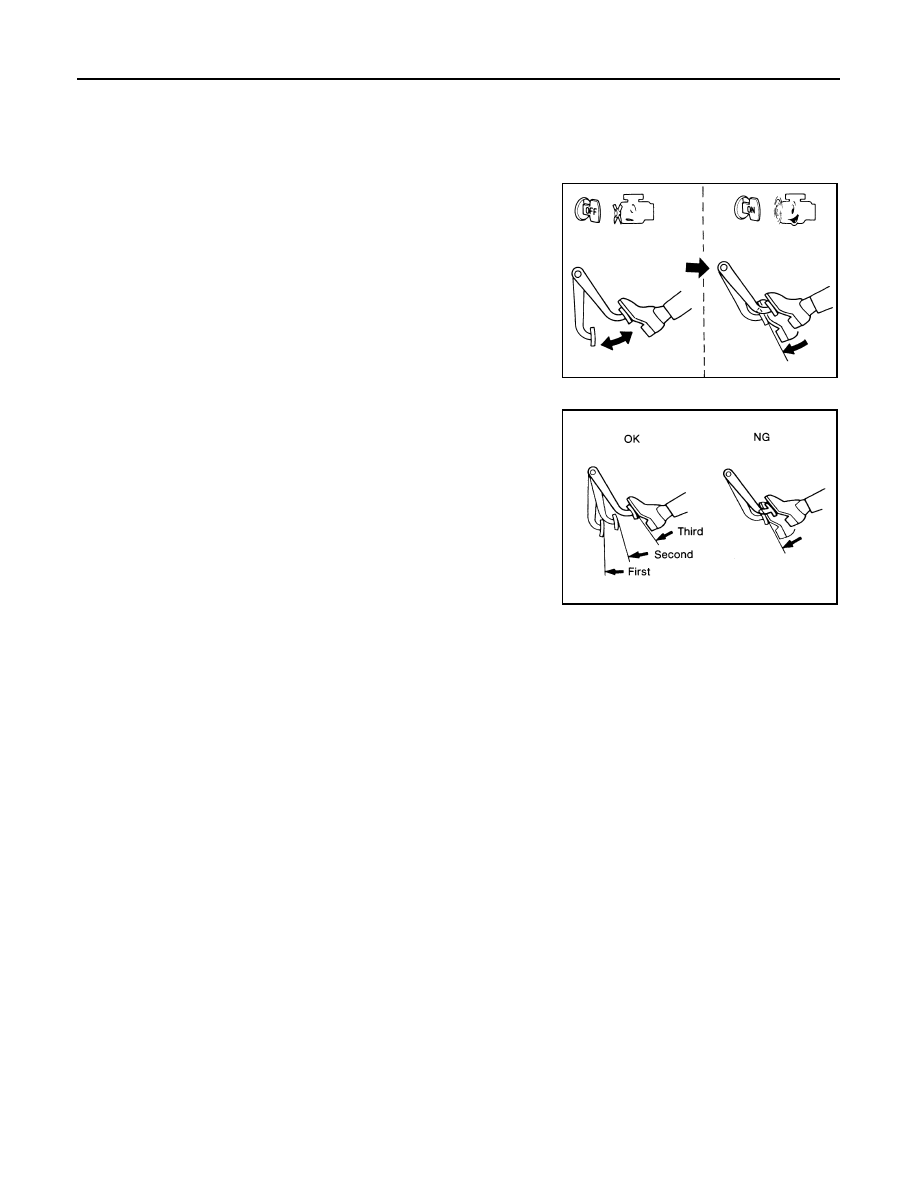

OPERATION

With engine stopped, change vacuum to atmospheric pressure by

depressing brake pedal several times. Then with brake pedal fully

depressed, start engine and when vacuum pressure reaches the

standard, make sure that clearance between brake pedal and floor

panel decreases.

AIR TIGHT

• Run engine at idle for approximately 1 minute, and stop it after

applying vacuum to booster. Depress brake pedal normally to

change vacuum to atmospheric pressure. Make sure that distance

at intervals of 5 seconds between brake pedal and floor panel

gradually increases.

• Depress brake pedal while engine is running, and stop engine with pedal depressed. The pedal stroke

should not change after holding pedal down for 30 seconds.

BRA0037D

SBR365AA

2011 Pathfinder

VACUUM LINES

BR-11

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

VACUUM LINES

Inspection

INFOID:0000000006245705

VISUAL INSPECTION

Check for improper assembly, damage and deterioration. Replace as necessary.

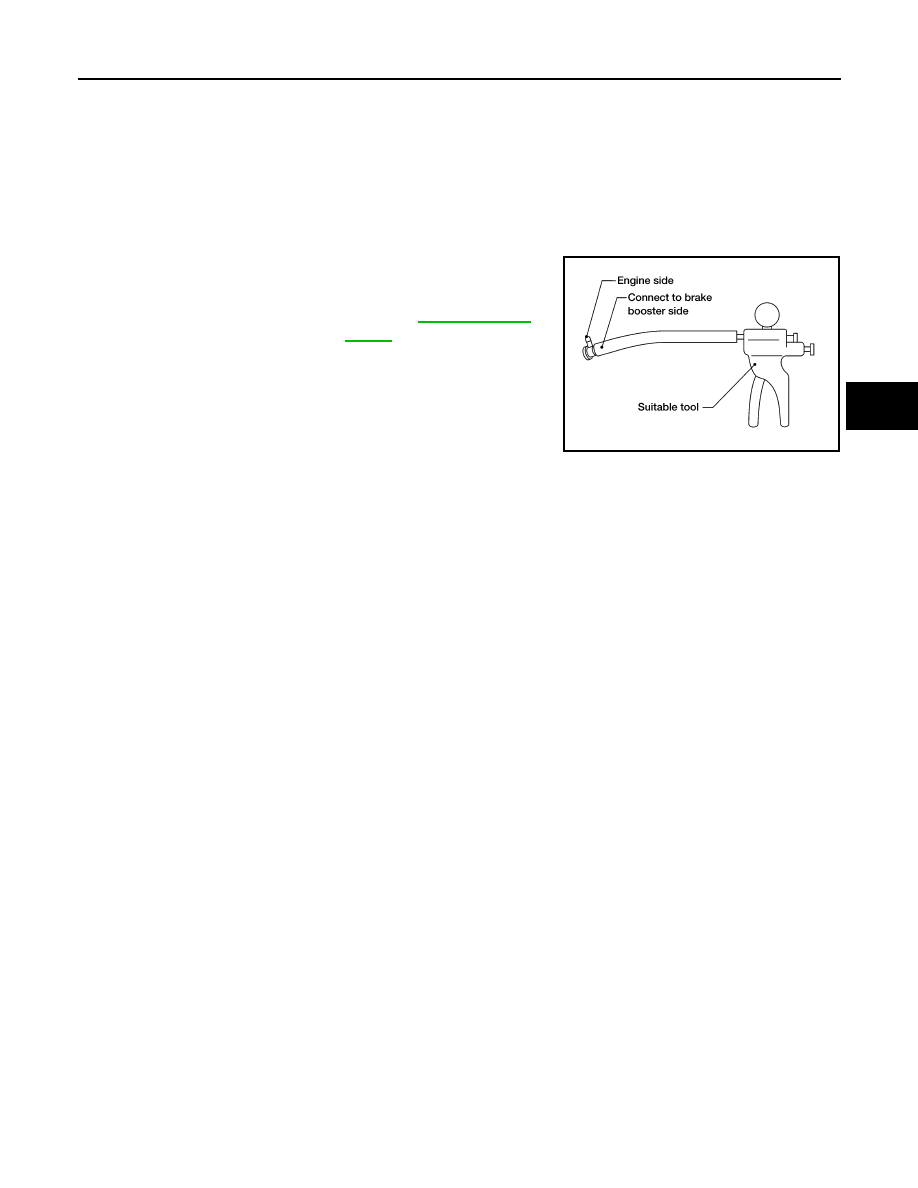

CHECK VALVE INSPECTION

Airtightness Inspection

Use a suitable tool to check the vacuum check valve. Connect to

brake booster side of check valve.

Check valve specification

: Refer to

BR-61, "Check

Valve"

.

LFIA0217E

2011 Pathfinder

BR-12

< BASIC INSPECTION >

BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

On Board Inspection

INFOID:0000000006245706

LEAK INSPECTION

Check for leaks at master cylinder to brake booster attachment point, reservoir tank, and brake tube connec-

tions.

2011 Pathfinder

BRAKE TUBE AND HOSE

BR-13

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE TUBE AND HOSE

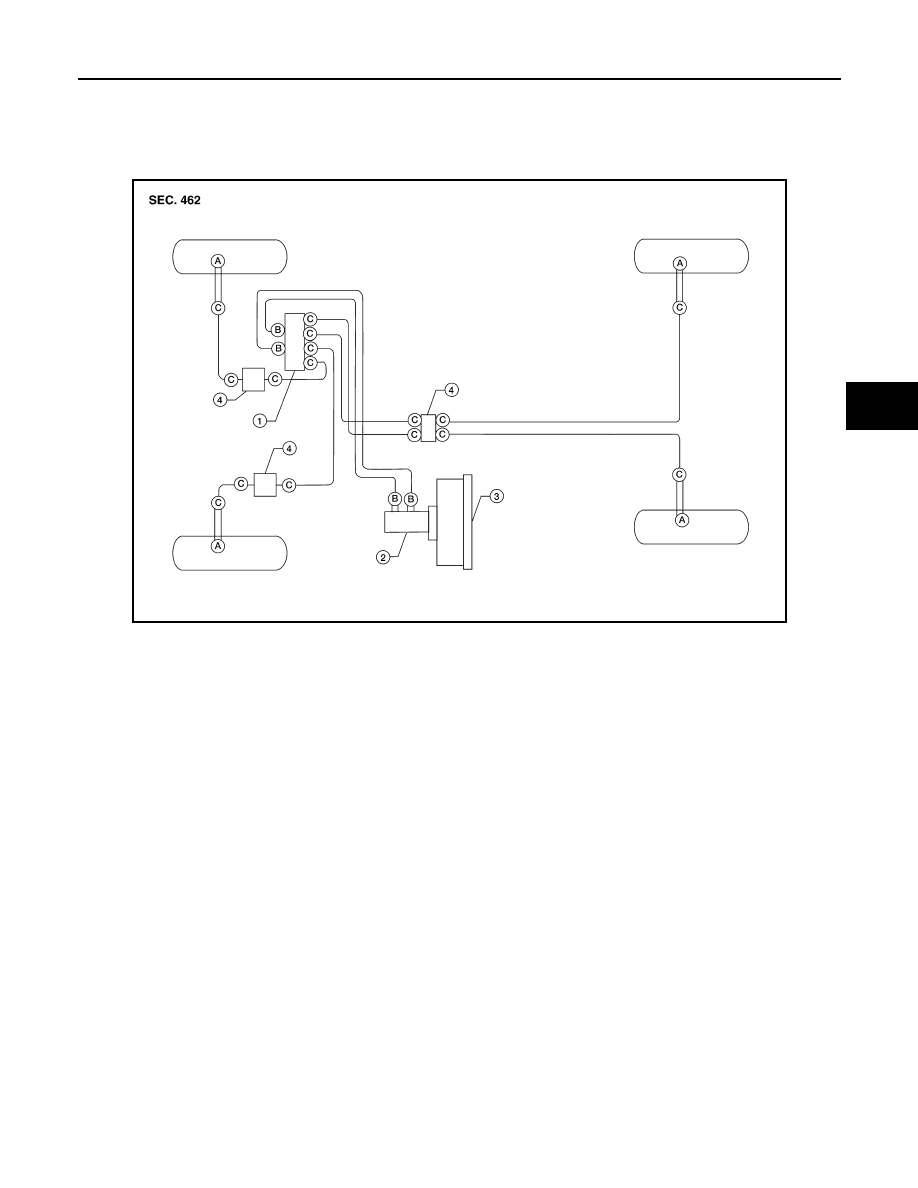

Hydraulic Circuit

INFOID:0000000006245707

Brake Tube and Hose Connections

AWFIA0411ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

A.

Union bolt
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

2011 Pathfinder

BR-14

< BASIC INSPECTION >

BRAKE TUBE AND HOSE

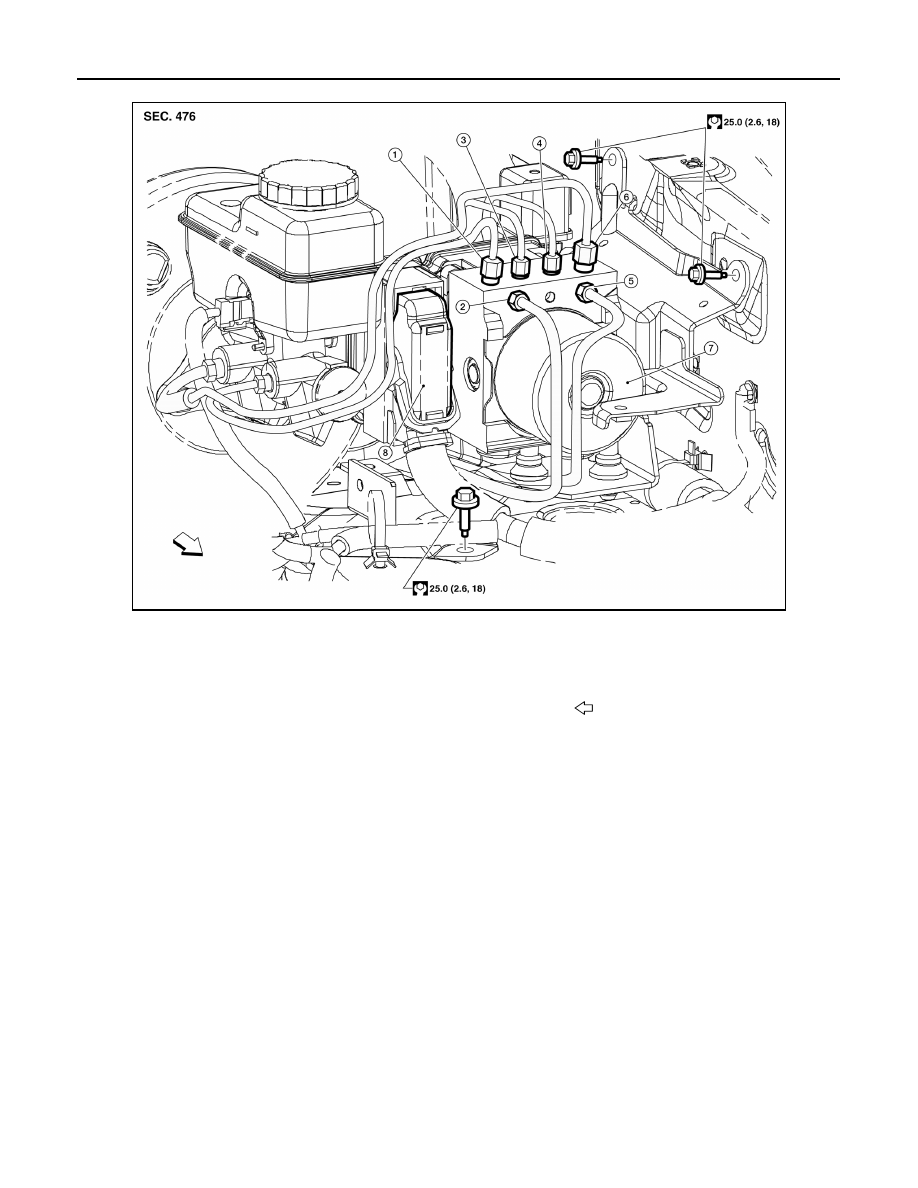

ABS Actuator and Electric Unit Brake Pipe Connections for VQ40DE

AWFIA0743GB

1.

From the master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

2.

To rear right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To rear left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

5.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

6.

From the master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

7.

ABS actuator and electric unit (control unit) 8.

Harness connector

Front
