AV

STEERING SWITCH

AV-83

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NO

>> Repair harness.

3.

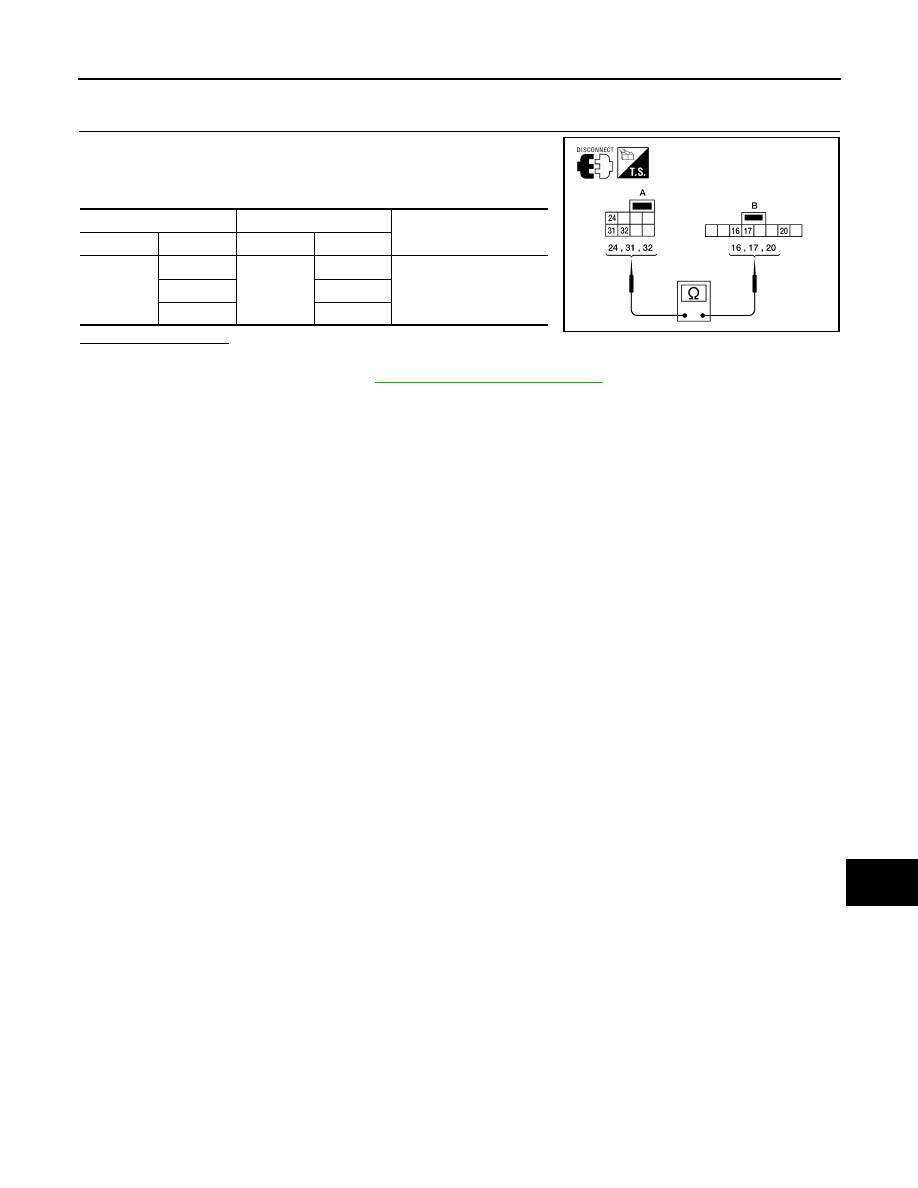

SPIRAL CABLE CHECK

1. Disconnect spiral cable connector M102.

2. Check continuity between spiral cable harness connector M30

(A) and M102 (B).

Is continuity present?

YES

>> Inspection End.

NO

>> Replace spiral cable. Refer to

SR-7, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M30

24

M102

20

Yes

31

17

32

16

AWNIA1600ZZ

2011 Pathfinder

AV-84

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

REAR VIEW CAMERA IMAGE SIGNAL CIRCUIT

REAR VIEW CAMERA IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000006709620

Rear view camera signals are transmitted from the rear view camera to the AV control unit using the camera

signal circuits.

Diagnosis Procedure

INFOID:0000000006709621

Regarding Wiring Diagram information, refer to

AV-94, "Wiring Diagram"

.

1.

CHECK CAMERA IMAGE SIGNAL CIRCUIT CONTINUITY

NOTE:

Apply parking brakes before proceeding.

1. Turn ignition switch OFF.

2. Disconnect AV control unit connector M134 and rear view camera connector D551.

3. Check continuity between AV control unit harness connector M134 terminals 64, 65, 72 and rear view

camera harness connector D551 terminals 3, 5 and 6.

4. Check continuity between AV control unit harness connector M134 terminals 64, 65, 72 and ground.

Is inspection result OK?

YES

>> GO TO 2

NO

>> Repair harness or connector.

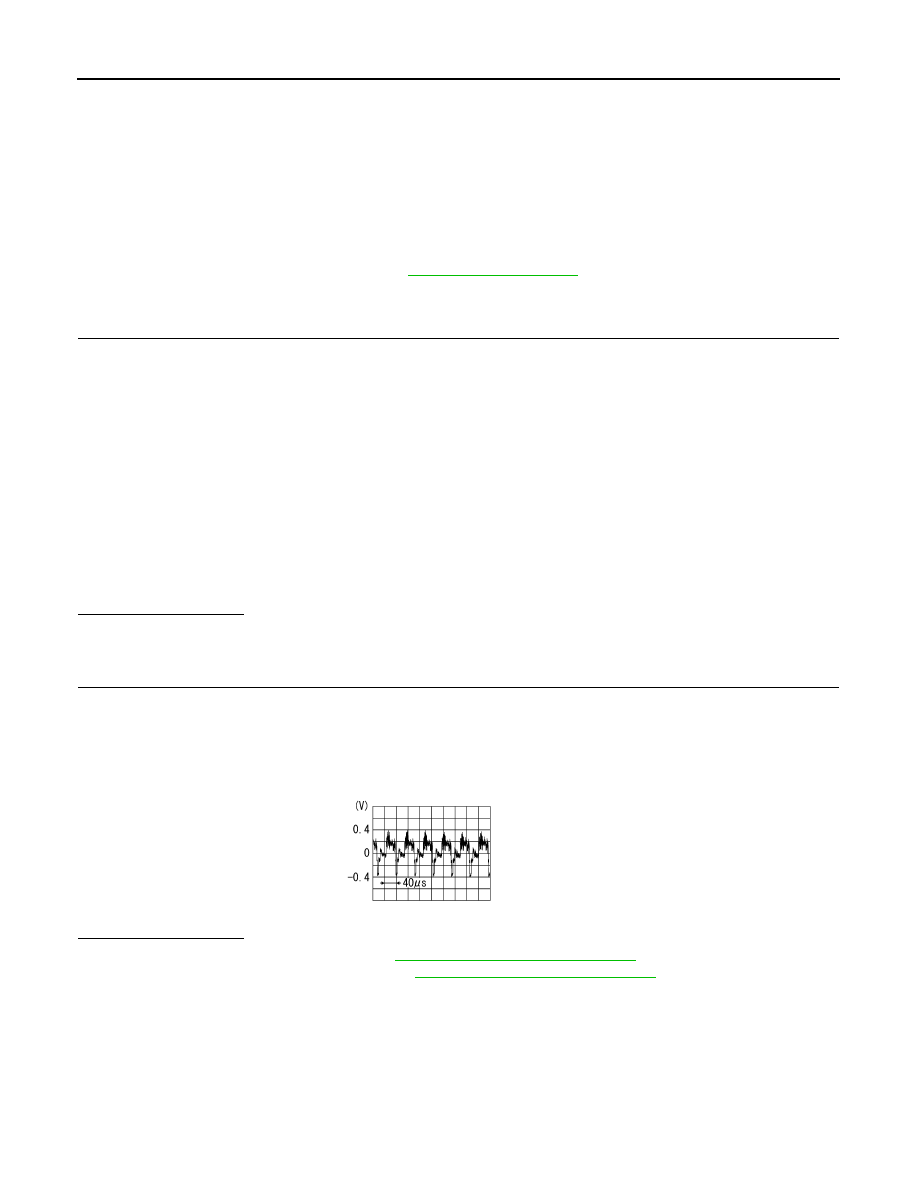

2.

CHECK CAMERA IMAGE SIGNAL

1. Connect AV control unit connector M134 and rear view camera connector D551.

2. Turn ignition switch ON.

3. Shift transmission into reverse.

4. Check signal between AV control unit harness connector M134 terminals 64 and 65.

Is inspection result OK?

YES

>> Replace AV control unit. Refer to

AV-113, "Removal and Installation"

.

NO

>> Replace rear view camera. Refer to

AV-126, "Removal and Installation"

.

64 - 5

: Continuity should exist.

65 - 6

: Continuity should exist.

72 - 3

: Continuity should exist.

64, 65, 72 - Ground

: Continuity should not exist.

64 - 65

:

SKIB2251J

2011 Pathfinder

AV

AV CONTROL UNIT

AV-85

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

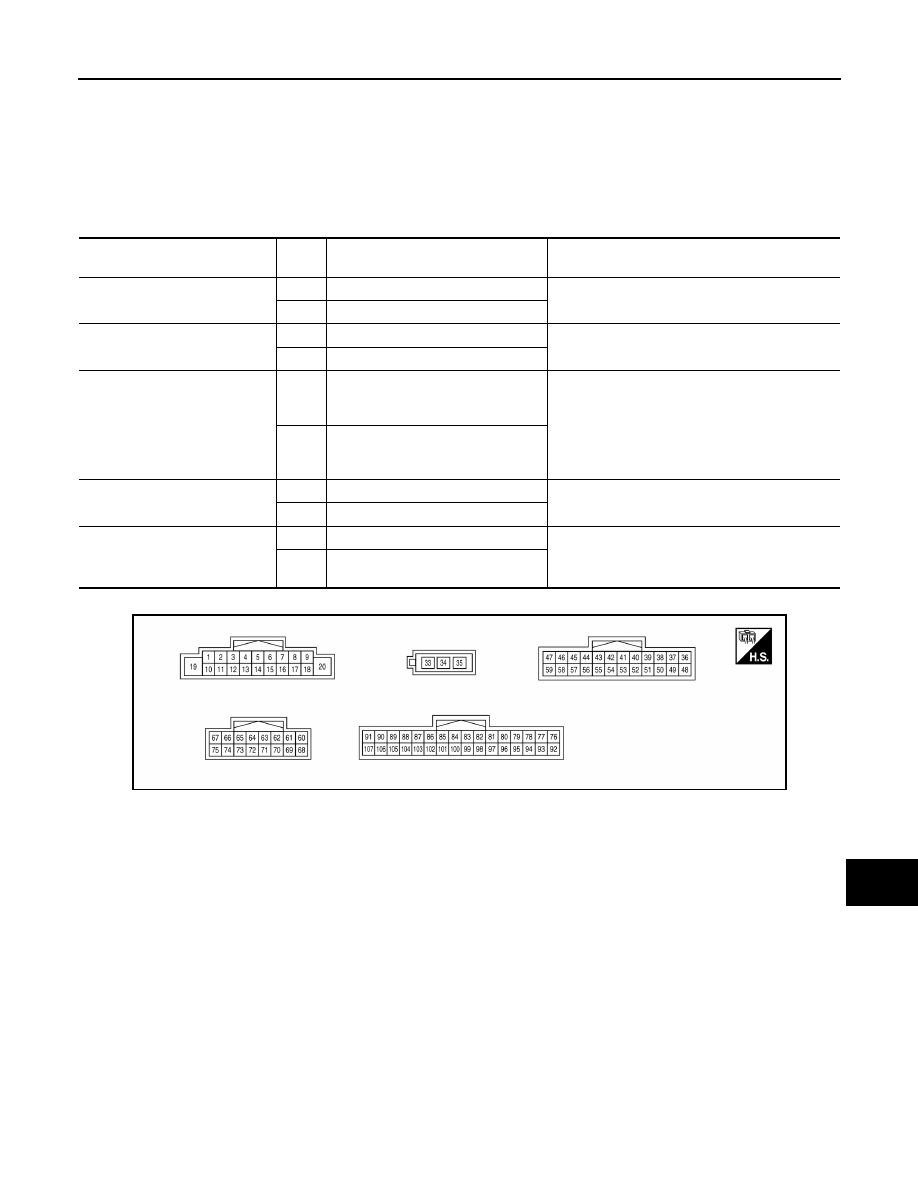

AV CONTROL UNIT

Reference Value

INFOID:0000000006246510

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III data monitor item

TERMINAL LAYOUT

PHYSICAL VALUES

Display Item

Dis-
play

Vehicle status

Remarks

VHCL SPD SIG

ON

Vehicle speed >0 km/h (0 MPH)

Changes in indication may be delayed. This is nor-
mal.

OFF

Vehicle speed =0 km/h (0 MPH)

PKB SIG

ON

Parking brake is applied.

Changes in indication may be delayed. This is nor-
mal.

OFF

Parking brake is released.

ILLUM SIG

ON

Block the light beam from the auto
light optical sensor when the light SW
is ON .

—

OFF

Expose the auto light optical sensor
to light when the light SW is OFF or
ON.

IGN SIG

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

REV SIG

ON

Selector lever in R position

Changes in indication may be delayed. This is nor-
mal.

OFF

Selector lever in any position other
than R

AWNIA2297ZZ

2011 Pathfinder

AV-86

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO]

AV CONTROL UNIT

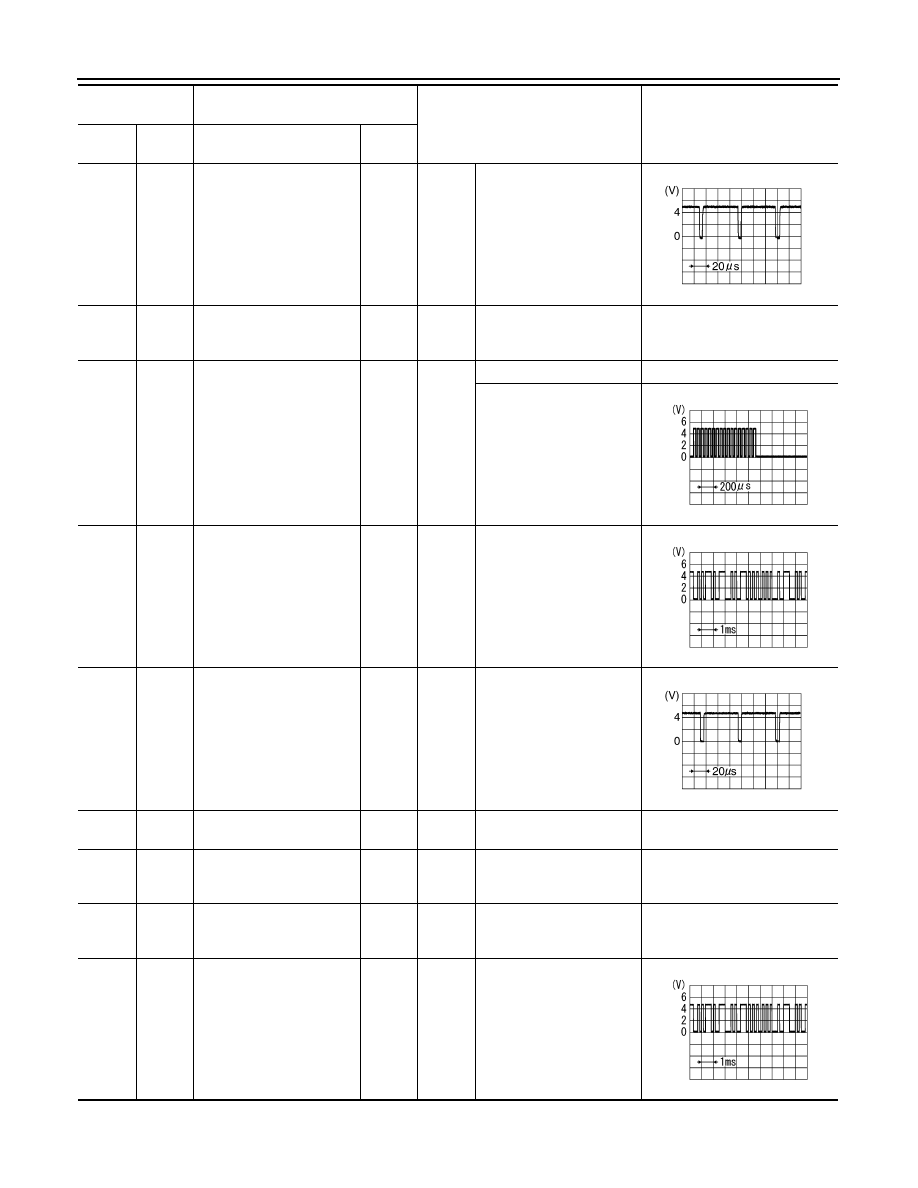

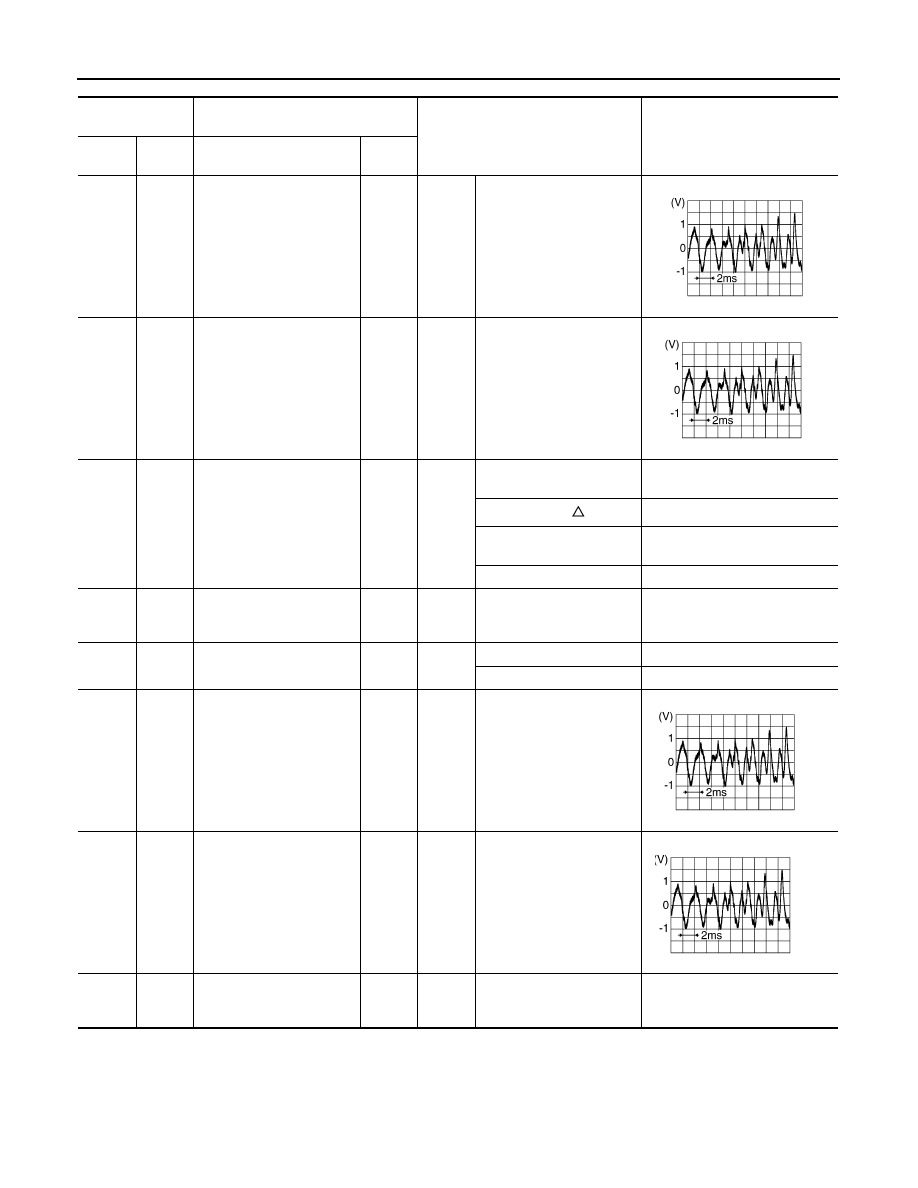

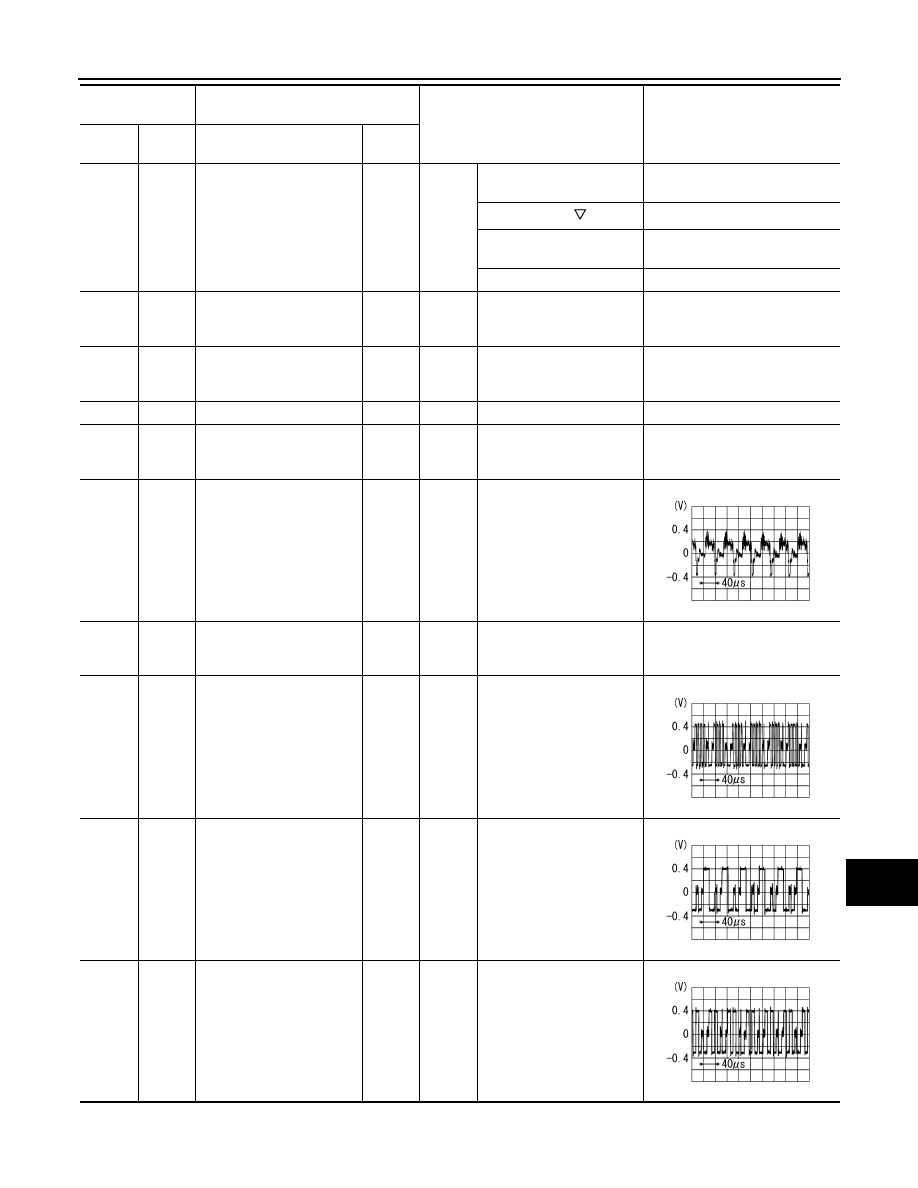

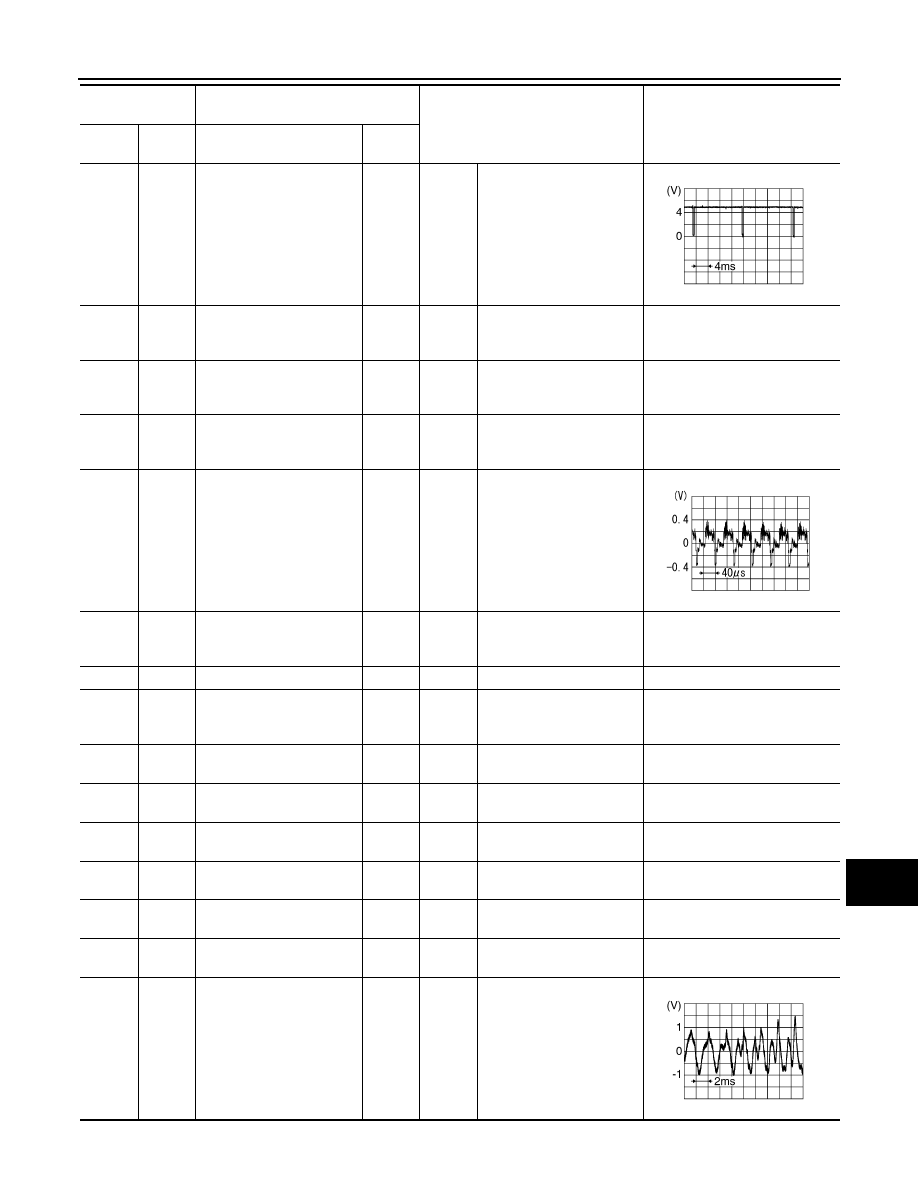

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(BR)

3

(L)

Sound signal front door
speaker and front tweeter
LH

Output

Ignition

switch

ON

Audio output

4

(G)

5

(B)

Sound signal rear door
speaker and rear tweeter
LH

Output

Ignition

switch

ON

Audio output

6

(Y)

15

(L)

Steering switch signal A

Input

Ignition

switch

ON

Press and hold MODE
switch.

 0V

Press and hold   switch.

0.75V

Press and hold VOL up
switch

2V

Except for above.

5V

7

(G/Y)

Ground ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

9

(V)

Ground Illumination signal

Input

OFF

Lighting switch is OFF.

0V

Lighting switch is ON.

Battery voltage

11

(LG)

12

(R)

Sound signal front door
speaker and front tweeter
RH

Output

Ignition

switch

ON

Voice output

13

(GR)

14

(O)

Sound signal rear door
speaker and rear tweeter
RH

Output

Ignition

switch

ON

Voice output

15

(L)

Ground Steering switch signal GND

—

Ignition

switch

ON

—

0V

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

2011 Pathfinder

AV

AV CONTROL UNIT

AV-87

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

16

(G)

15

(L)

Steering switch signal B

Input

Ignition

switch

ON

Press and hold POWER
switch

0V

Press and hold   switch

0.75V

Press and hold VOL down
switch

2V

Except for above

5V

19

(Y)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

20

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

34

—

Antenna main

—

—

—

—

35

—

Antenna power

Output

Ignition

switch

ON

With AM/FM radio selected

12V

36

(G)

Ground AUX image signal

Output

Ignition

switch

ON

When AUX mode is select-
ed

37

(R)

Ground AUX image ground

—

Ignition

switch

ON

—

0V

38

(R)

Ground RGB signal (B: blue)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

39

(B)

Ground RGB signal (G: green)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

40

(W)

Ground RGB signal (R: red)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB2251J

SKIB2237J

SKIB2236J

SKIB2238J

2011 Pathfinder

AV-88

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO]

AV CONTROL UNIT

41

(R)

Ground RGB synchronizing signal

Output

Ignition

switch

ON

—

42

—

RGB synchronizing ground

—

Ignition

switch

ON

—

0V

43

(G)

Ground RGB area (YS) signal

Output

Ignition

switch

ON

RGB image

5V

AUX image

44

(LG)

Ground

Communication signal
(DISP

→

CONT)

Input

Ignition

switch

ON

When adjusting display
brightness

45

(B)

Ground

Horizontal synchronizing
(HP) signal

Input

Ignition

switch

ON

—

46

(BR)

Ground Signal ground

—

Ignition

switch

—

0V

47

(R)

Ground Signal VCC

Output

Ignition

switch

ACC

—

9V

54

(B)

Ground

Ground

—

Ignition
switch
ON

—

0V

56

(V)

Ground

Communication signal
(CONT

→

DISP)

Output

Ignition

switch

ON

When adjusting display
brightness

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3603E

PKIB4948J

PKIB5039J

SKIB3601E

PKIB5039J

2011 Pathfinder

AV

AV CONTROL UNIT

AV-89

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

57

(W)

Ground

Vertical synchronizing (VP)
signal

Input

Ignition

switch

On

—

58

(SB)

Ground Inverter ground

—

Ignition

switch

ON

—

0V

59

(O)

Ground Inverter VCC

Output

Ignition

switch

ACC

—

9V

64

(W)

Ground

Rear view camera video
signal ground

—

Ignition
switch
ON

—

0V

65

(B)

Ground

Rear view camera video in
(+)

Input

Ignition
switch
ON

With rear view camera ON

68

(B)

Ground

Rear view camera signal
(ground)

—

Ignition
switch
ON

—

0V

72

—

Shield

—

—

—

—

85

(B)

Ground

Ground

—

Ignition
switch
ON

—

0V

86

(L)

—

CAN–H

Input/

Output

—

—

—

87

(P)

—

CAN–L

Input/

Output

—

—

—

88

(L)

—

AV communication signal 1
(H)

Input/

Output

—

—

—

89

(P)

—

AV communication signal 1
(L)

Input/

Output

—

—

—

90

(L)

—

AV communication signal 2
(H)

Input/

Output

—

—

—

91

(P)

—

AV communication signal 2
(L)

Input/

Output

—

—

—

95

(B)

97

(R)

AUX audio signal RH

Input

Ignition

switch

ON

When AUX mode is select-
ed

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3598E

SKIB2251J

SKIB3609E

2011 Pathfinder

AV-90

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO]

AV CONTROL UNIT

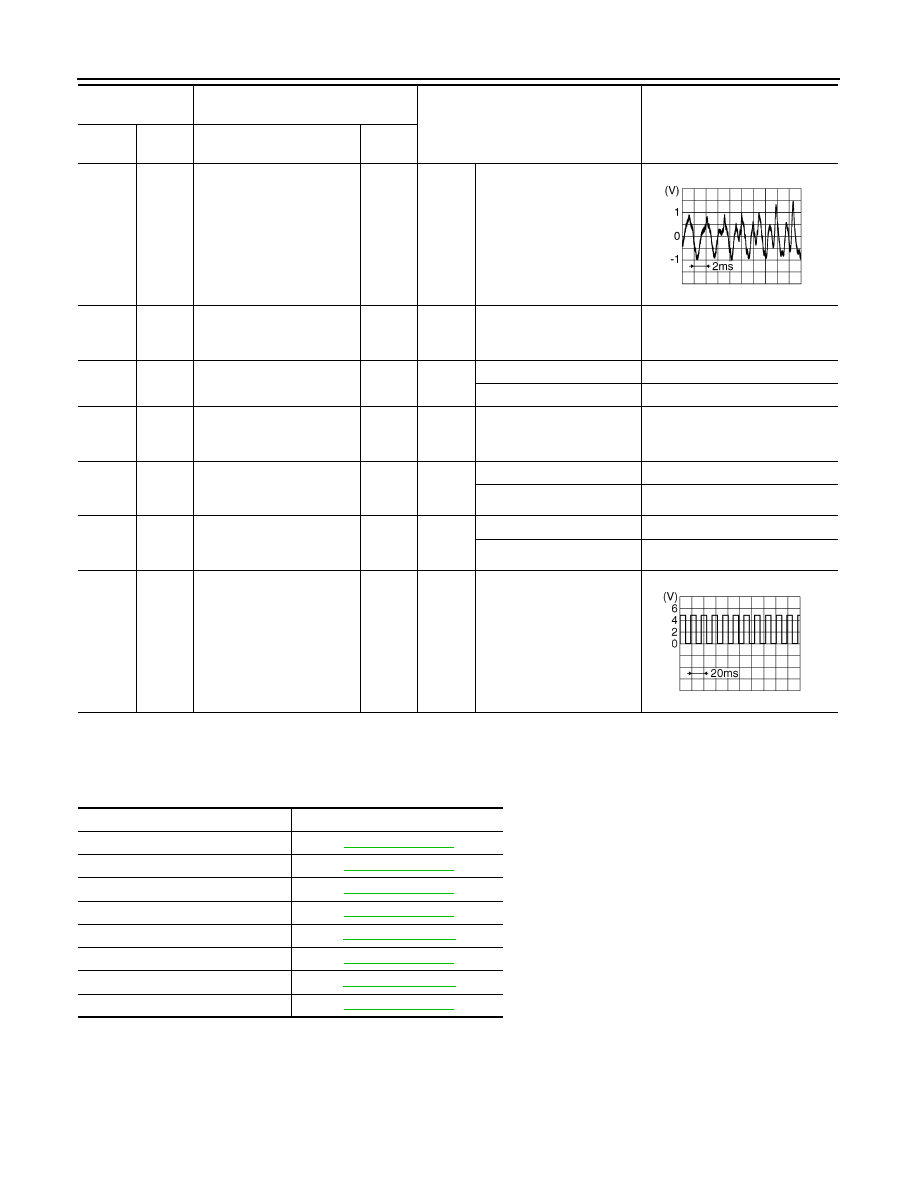

DTC Index

INFOID:0000000006246512

Self-diagnosis results display item

96

(W)

97

(R)

AUX audio signal LH

Input

Ignition

switch

ON

When AUX mode is select-
ed

101

(GR)

Ground

A/C and AV switch assem-
bly ground

—

Ignition

switch

ON

—

0V

103

(SB)

Ground CD eject signal

Input

—

Pressing the eject switch

0V

Except for above

3.3V

104

(W/G)

Ground Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

105
(W)

Ground Reverse signal

Input

Ignition

switch

ON

R position

Battery voltage

Other than R position

0V

106

(G)

Ground Parking brake signal

Input

Ignition

switch

ON

Parking brake ON

0V

Parking brake OFF

Battery voltage

107

(LG)

Ground

Vehicle speed signal
 (8-pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25MPH)

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIA6649J

Error item

Refer to

CAN COMM CIRCUIT [U1000]

AV-55, "DTC Logic"

CONTROL UNIT (CAN) [U1010]

AV-56, "DTC Logic"

Control Unit FLASH-ROM [U1200]

AV-57, "DTC Logic"

CAN CONT [U1216]

AV-58, "DTC Logic"

SWITCH CONN [U1240]

AV-59, "Description"

FRONT DISP CONN [U1243]

AV-60, "DTC Logic"

AV COMM CIRCUIT [U1300]

AV-62, "Description"

CONTROL UNIT (AV) [U1310]

AV-63, "DTC Logic"

2011 Pathfinder
