WIPER AND WASHER SYSTEM SYMPTOMS

WW-71

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Front wiper does not
stop.

HI only

• Combination switch
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

IPDM E/R

—

LO only

• Combination switch
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

IPDM E/R

—

INT only

• Combination switch
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

Front wiper does not
operate normally.

Intermittent adjustment
cannot be performed.

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

BCM

—

Intermittent control
linked with vehicle
speed cannot be per-
formed.

Check the vehicle speed detection wiper setting.
Refer to

BCS-23, "WIPER : CONSULT-III Function (BCM - WIPER)"

.

Wiper is not linked to
the washer operation.

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

BCM

—

Does not return to stop
position (Repeatedly
operates for 10 sec-
onds and then stops
for 20 seconds. After
that, it stops the opera-
tion).

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper auto stop signal
circuit
Refer to

WW-22, "Compo-

nent Function Check"

.

Rear wiper does not
operate.

ON only

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

INT only

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

ON and INT

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

• BCM
• Harness between rear wiper motor and BCM
• Harness between rear wiper motor and ground
• Rear wiper motor
• Glass hatch ajar switch

Combination switch
Refer to

WW-27, "Compo-

nent Function Check"

.

Symptom

Probable malfunction location

Inspection item

2010 Pathfinder

WW-72

< SYMPTOM DIAGNOSIS >

WIPER AND WASHER SYSTEM SYMPTOMS

Rear wiper does not
stop.

ON only

• Combination switch
• BCM

Rear wiper motor circuit
Refer to

WW-27, "Compo-

nent Function Check"

.

INT only

• Combination switch
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

Rear wiper does not
operate normally.

Wiper is not linked to
the washer operation.

• Combination switch
• Harness between rear wiper motor and BCM
• BCM

Combination switch
Refer to

BCS-56, "Symptom

Table"

.

BCM

—

Rear wiper does not
return to the Stop posi-
tion (Stops after a five-
second operation).

• BCM
• Harness between rear wiper motor and BCM
• Rear wiper motor

Rear wiper auto stop signal
circuit
Refer to

WW-29, "Compo-

nent Function Check"

.

Rear wiper stops after
operating for five sec-
onds when ignition
switch is turned ON.

Symptom

Probable malfunction location

Inspection item

2010 Pathfinder

NORMAL OPERATING CONDITION

WW-73

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000005256390

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds

or more and reactivate the front wiper. The wiper will operate normally.

REAR WIPER MOTOR PROTECTION FUNCTION

• BCM may stop rear wiper to protect the rear wiper motor when the rear wiper is stopped for 5 seconds or

more due to a snowfall.

• Rear wiper operates normally one minute after the obstacles are removed with rear wiper OFF.

2010 Pathfinder

WW-74

< SYMPTOM DIAGNOSIS >

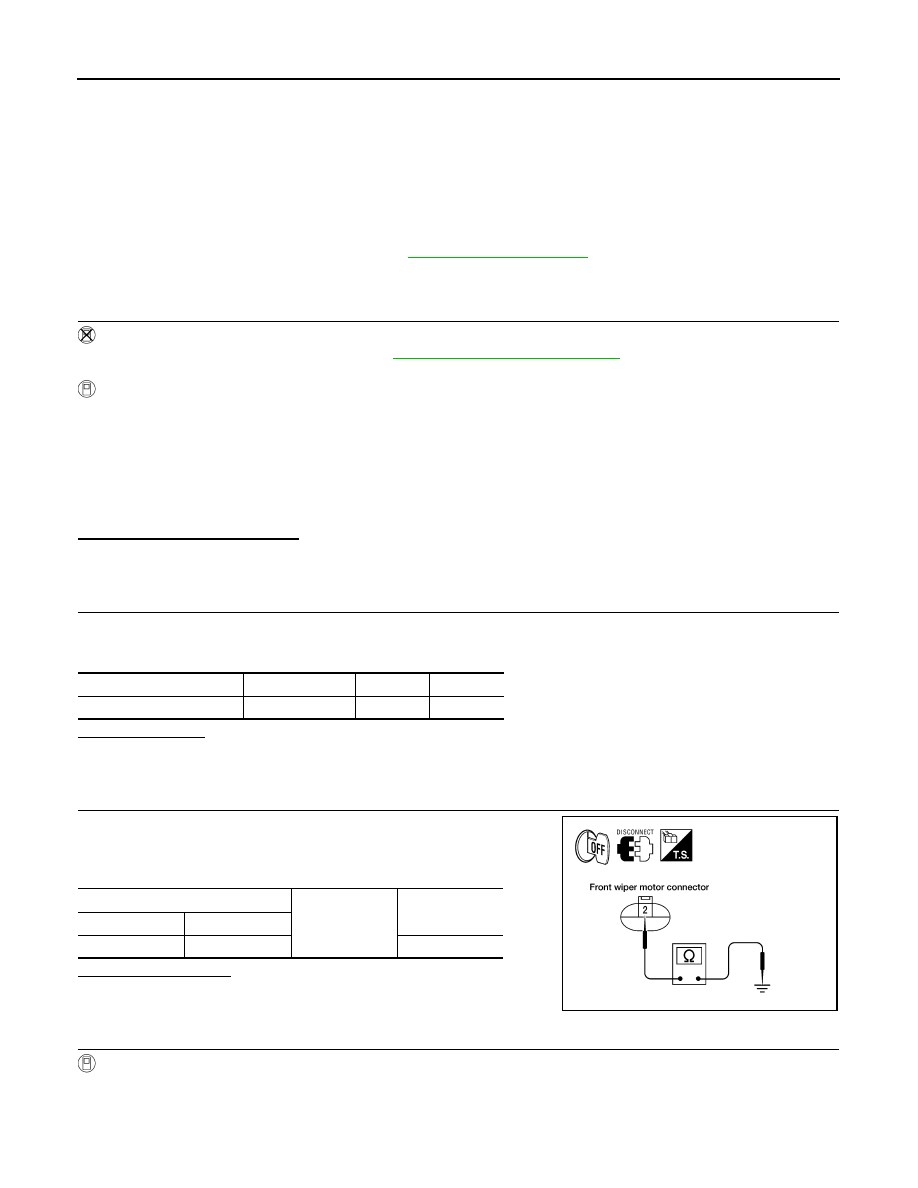

FRONT WIPER DOES NOT OPERATE

FRONT WIPER DOES NOT OPERATE

Description

INFOID:0000000005256391

The front wiper does not operate under any operation conditions.

Diagnosis Procedure

INFOID:0000000005256392

Regarding Wiring Diagram information, refer to

WW-30, "Wiring Diagram"

.

1.

 CHECK WIPER RELAY OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-12, "Diagnosis Description"

.

2. Check that the front wiper operates at the LO/HI operation.

CONSULT-III ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check front wiper operation.

Is front wiper operation normal?

YES

>> GO TO 5

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Replace the fuse after repairing the applicable circuit.

NO

>> GO TO 3

3.

 CHECK FRONT WIPER MOTOR GROUND OPEN CIRCUIT

1. Disconnect front wiper motor.

2. Check continuity between front wiper motor harness connector

and ground.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

LO

: Front wiper LO operation

HI

: Front wiper HI operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Front wiper motor

Ground

Continuity

Connector

Terminal

E23

2

Yes

WKIA3194E

2010 Pathfinder

FRONT WIPER DOES NOT OPERATE

WW-75

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

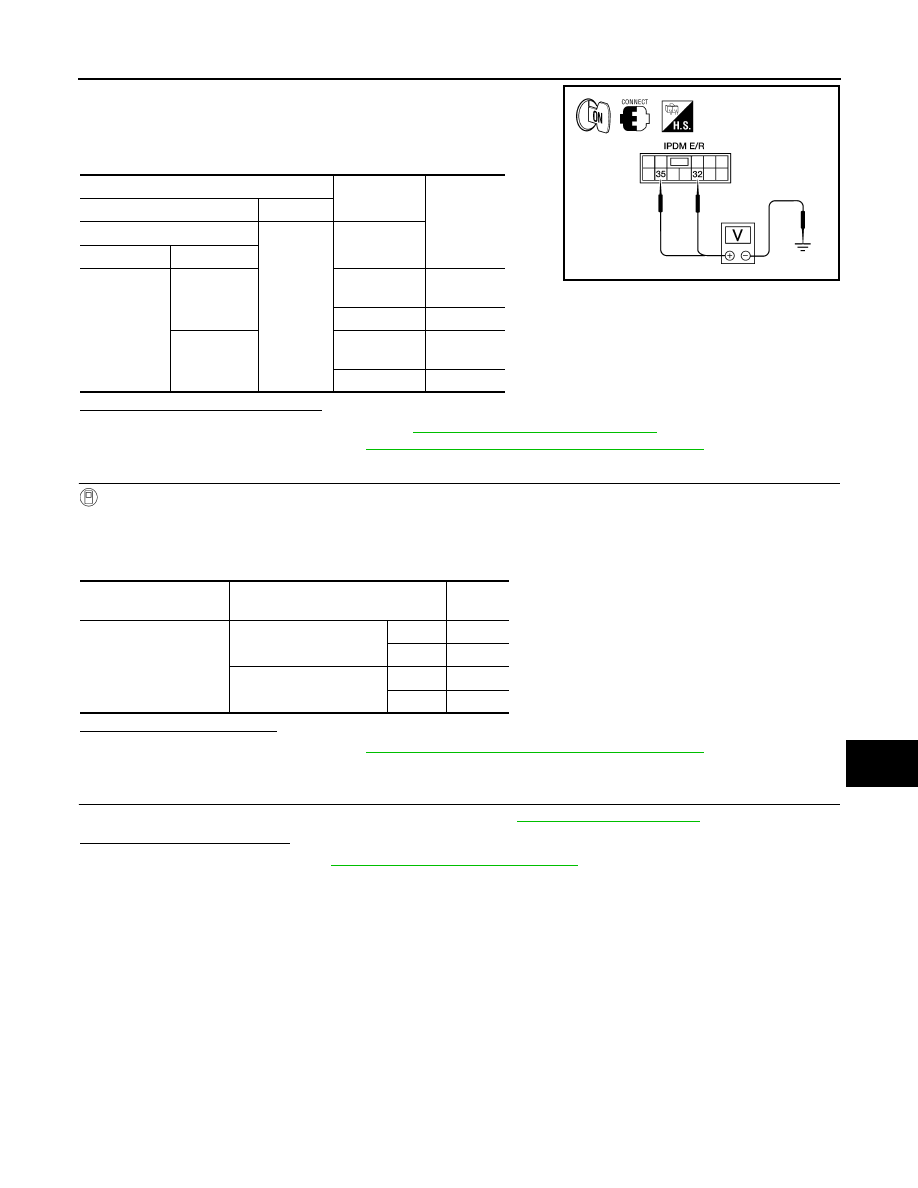

1. Turn the ignition switch ON.

2. Select "FRONT WIPER" of IPDM E/R active test item.

3. With operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement value normal?

YES

>> Replace front wiper motor. Refer to

WW-78, "Removal and Installation"

.

NO

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR WIP REQ" of IPDM E/R data monitor item.

2. Switch the front wiper switch to HI and LO.

3. With operating the front wiper switch, check the status of "FR WIP REQ".

Is the status of item normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> GO TO 6

6.

 CHECK COMBINATION SWITCH

1. Perform the inspection of the combination switch. Refer to

BCS-56, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

NO

>> Repair or replace the applicable parts.

Terminals

Test item

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Ground

FRONT WIP-

ER

Connector

Terminal

E121

32

LO

Battery
voltage

OFF

0 V

35

HI

Battery
voltage

OFF

0 V

WKIA1427E

Monitor item

Condition

Monitor

status

FR WIP REQ

Front wiper switch HI

HI

ON

STOP

OFF

Front wiper switch LO

1LOW

ON

STOP

OFF

2010 Pathfinder

WW-76

< PRECAUTION >

PRECAUTION

PRECAUTION

PRECAUTION

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005511851

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000005548425

NOTE:

• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.

If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.

If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure

below before starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Carry the Intelligent Key or insert it to the key slot and turn the push-button ignition switch to ACC position.

(At this time, the steering lock will be released.)

3. Disconnect both battery cables. The steering lock will remain released with both battery cables discon-

nected and the steering wheel can be turned.

4. Perform the necessary repair operation.

2010 Pathfinder

PRECAUTION

WW-77

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

5. When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn

the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering

wheel will lock when the push-button ignition switch is turned to LOCK position.)

6. Perform self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

WW-78

< ON-VEHICLE REPAIR >

FRONT WIPER AND WASHER SYSTEM

ON-VEHICLE REPAIR

FRONT WIPER AND WASHER SYSTEM

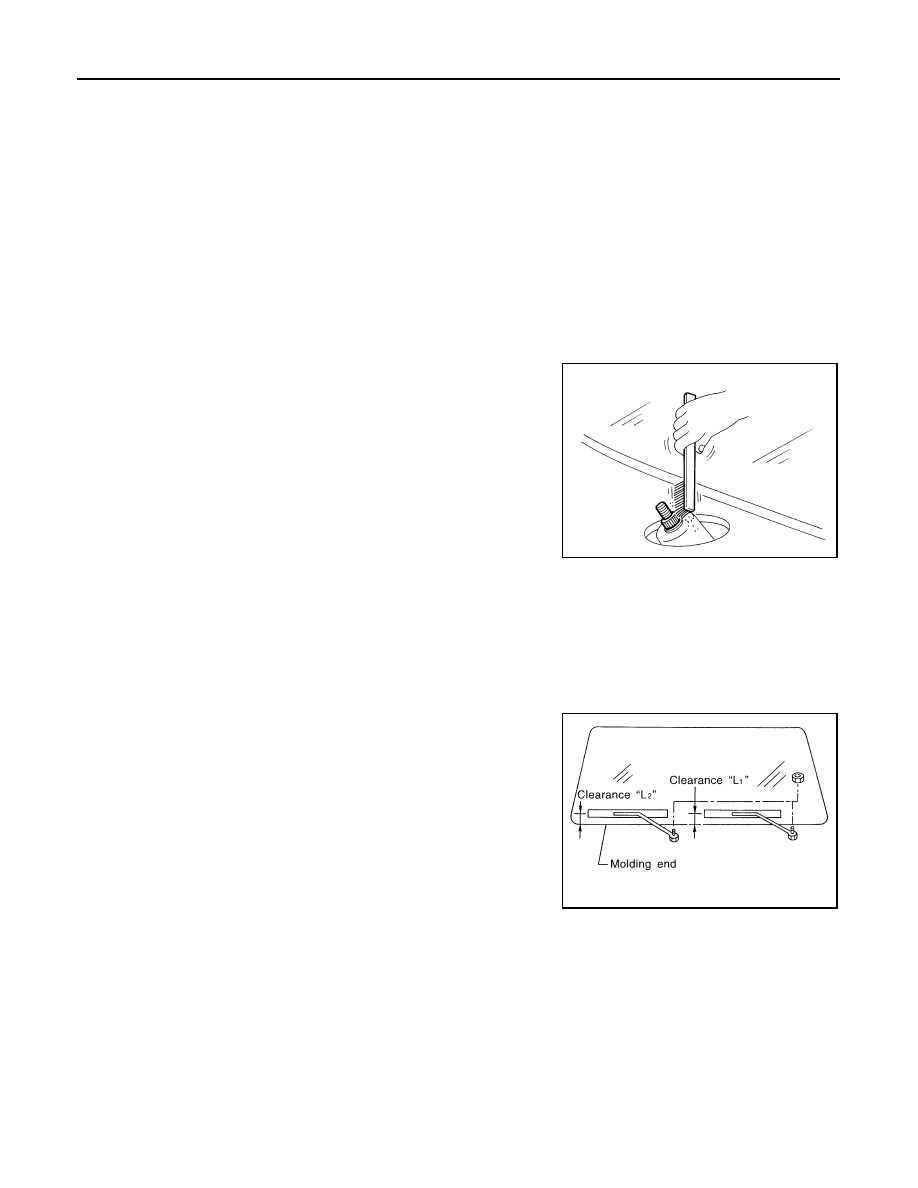

Removal and Installation

INFOID:0000000005256394

FRONT WIPER ARMS

Removal

1. Remove wiper arm covers and wiper arm nuts.
2. Remove front RH wiper arm and front LH wiper arm.
3. Remove front RH and LH blade assembly from the front RH and LH arm assembly.

Installation

1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Clean up the pivot area as shown. This will reduce possibility of

wiper arm looseness.

3. Install front RH and LH blade assembly on the front RH and LH arm.
4. Install front RH wiper arm and front LH wiper arm.
5. Ensure that wiper blades stop within proper clearance.

FRONT WIPER ARM ADJUSTMENT

1. Operate windshield washer and wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Lift the wiper blade up and then rest it onto glass surface, check

the blade clearance "L1" and "L2".

3. Remove wiper arm covers and wiper arm nuts.
4. Adjust front wiper arms on wiper motor pivot shafts to obtain

above specified blade clearances.

5. Tighten wiper arm nuts to specified torque, and install wiper arm

covers.

SEL024J

Clearance "L1"

: 24.5 - 39.5 mm (0.965 - 1.555 in)

Clearance "L2"

: 23.5 - 38.5 mm (0.925 - 1.516 in)

Front wiper arm nuts : 23.6 N·m (2.4 kg-m, 17 ft-lb)

SEL543TA

2010 Pathfinder
