EXL-154

< REMOVAL AND INSTALLATION >

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

High-Mounted Stop Lamp

INFOID:0000000005259801

BULB REPLACEMENT

The high-mounted stop lamp bulbs are not serviceable.

REMOVAL AND INSTALLATION

Removal

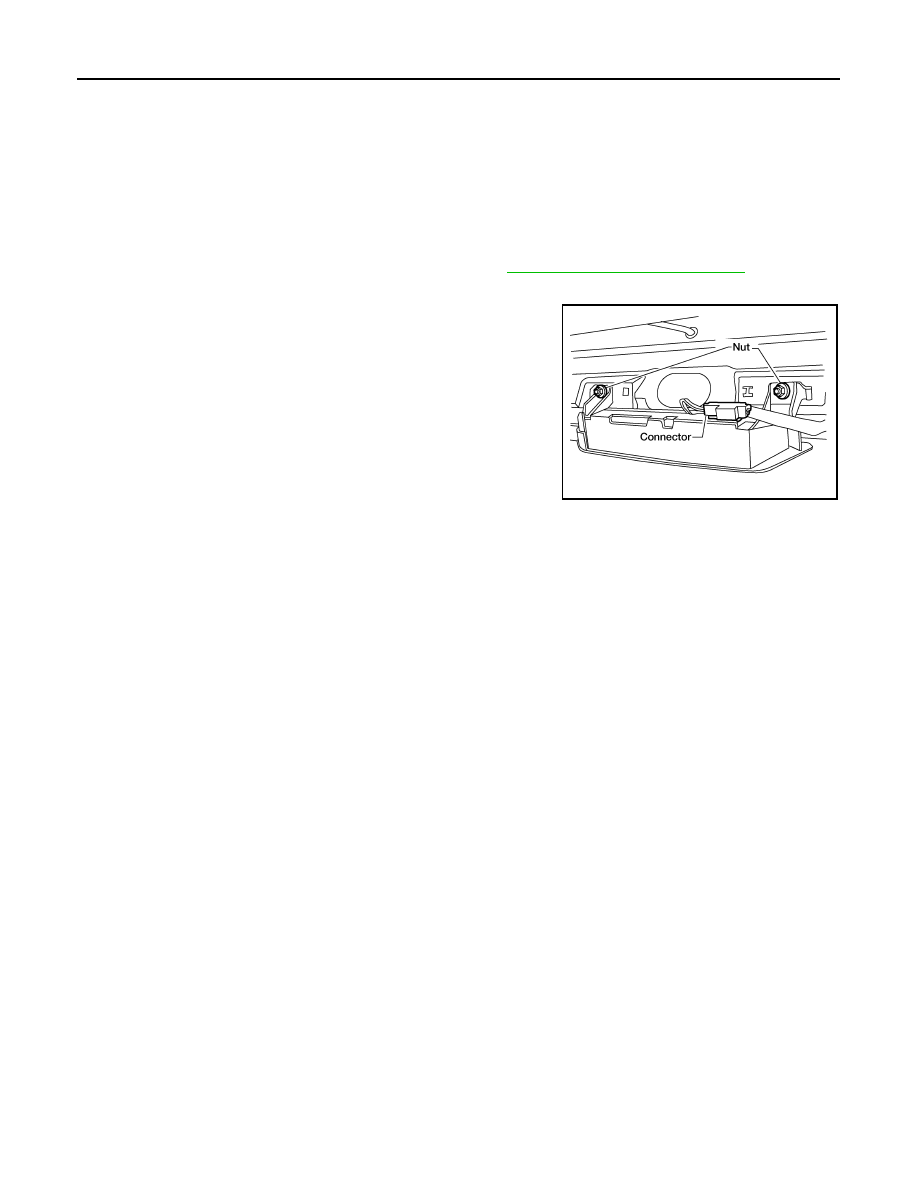

1. Remove back door finisher and window garnish. Refer to

INT-24, "Removal and Installation"

.

2. Disconnect high-mounted stop lamp connector.
3. Remove nuts and remove high-mounted stop lamp.

Installation

Installation is in the reverse order of removal.

LKIA0576E

2010 Pathfinder

LICENSE PLATE LAMP

EXL-155

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000005259802

LICENSE PLATE LAMP

Removal

1. Remove back door finisher. Refer to

EXT-21, "Removal and Installation"

.

2. Turn bulb socket counterclockwise and remove bulb socket.
3. Remove license plate lamp bulb.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005259803

LICENSE PLATE LAMP

Removal

1. Remove license lamp finisher. Refer to

EXT-21, "Removal and Installation"

.

2. Disconnect license plate lamp harness connector.
3. Remove license plate lamp screw and remove license plate lamp.

Installation

Installation is in the reverse order of removal.

2010 Pathfinder

EXL-156

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

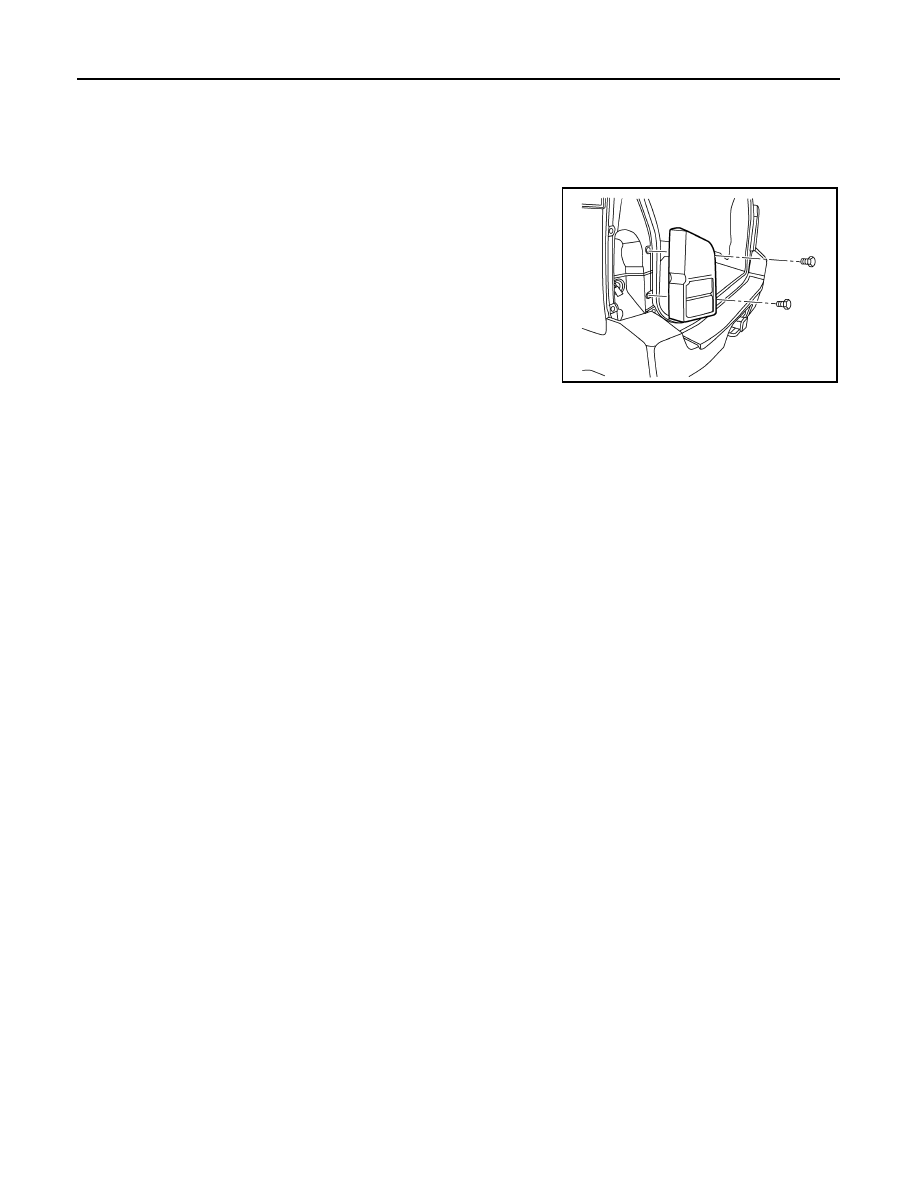

Bulb Replacement

INFOID:0000000005259804

REMOVAL

1. Remove rear combination lamp bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005259805

REMOVAL

1. Remove rear combination lamp bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Disconnect rear combination lamp connector.

INSTALLATION

Installation is in the reverse order of removal.

WKIA4168E

2010 Pathfinder

BULB SPECIFICATIONS

EXL-157

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Headlamp

INFOID:0000000005259806

*: Always check with the Parts Department for the latest parts information.

Exterior Lamp

INFOID:0000000005259807

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Low/High

55/65

Item

Wattage (W)*

Front combination lamp

Turn signal lamp/parking lamp

28/8

Side marker

3.8

Rear combination lamp

Stop/Tail lamp

27/8

Turn signal lamp

27

Back-up lamp

18

Front fog lamp

55

License plate lamp

5

High-mounted stop lamp

*

2010 Pathfinder

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

2

Service Notice  ...........................................................

3

Precaution for Procedure without Cowl Top Cover

......

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

ON-VEHICLE MAINTENANCE .....................

5

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

5

Work Flow  .................................................................

5

Generic Squeak and Rattle Troubleshooting  ............

7

Diagnostic Worksheet  ...............................................

9

CLIP AND FASTENER .......................................

11

Clip and Fastener ....................................................

11

ON-VEHICLE REPAIR .................................

14

FRONT BUMPER  ...............................................

14

Removal and Installation .........................................

14

REAR BUMPER  ................................................

16

Removal and Installation  .........................................

16

FRONT GRILLE  ................................................

18

Removal and Installation  .........................................

18

COWL TOP  .......................................................

19

Removal and Installation  .........................................

19

FRONT FENDER ...............................................

20

Removal and Installation  .........................................

20

LICENSE LAMP FINISHER  ..............................

21

Removal and Installation  .........................................

21

FENDER PROTECTOR  ....................................

22

Component ..............................................................

22

Removal and Installation of Front Fender Protec-
tor ............................................................................

23

Removal and Installation of Rear Fender Protector

....

23

RUNNING BOARDS  .........................................

24

Removal and Installation  .........................................

24

ROOF RACK  .....................................................

25

Removal and Installation  .........................................

25

DOOR OUTSIDE MOLDING  .............................

26

Removal and Installation  .........................................

26

SIDE GUARD MOLDING ..................................

27

Removal and Installation  .........................................

27

2010 Pathfinder

EXT-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005548002

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005259104

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

PRECAUTIONS

EXT-3

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Service Notice

INFOID:0000000005259105

• When removing or installing various parts, place a cloth or padding on the vehicle body to prevent scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil or

damage them.

• Apply sealing compound where necessary when installing parts.

• When applying sealing compound, be careful that the sealing compound does not protrude from parts.

• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

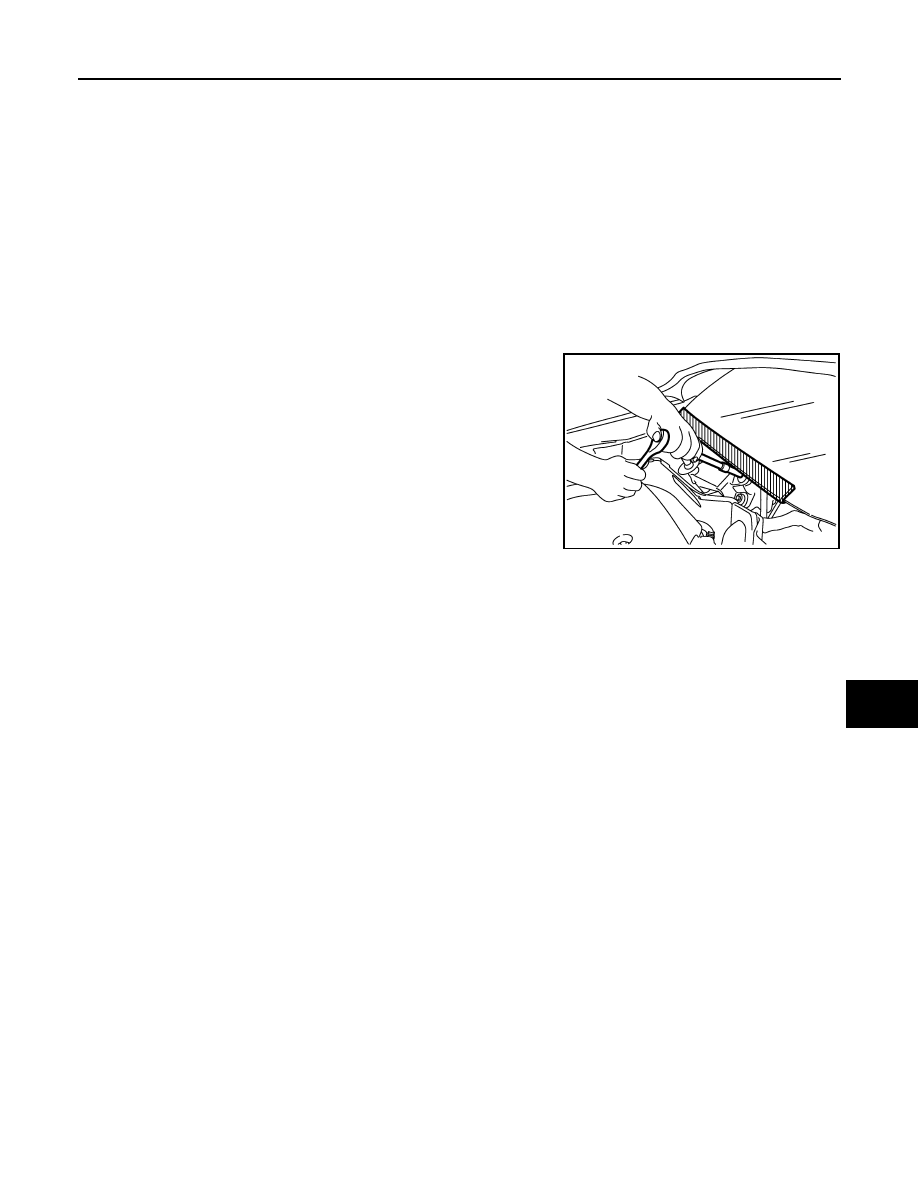

Precaution for Procedure without Cowl Top Cover

INFOID:0000000005259106

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc.

PIIB3706J

2010 Pathfinder

EXT-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

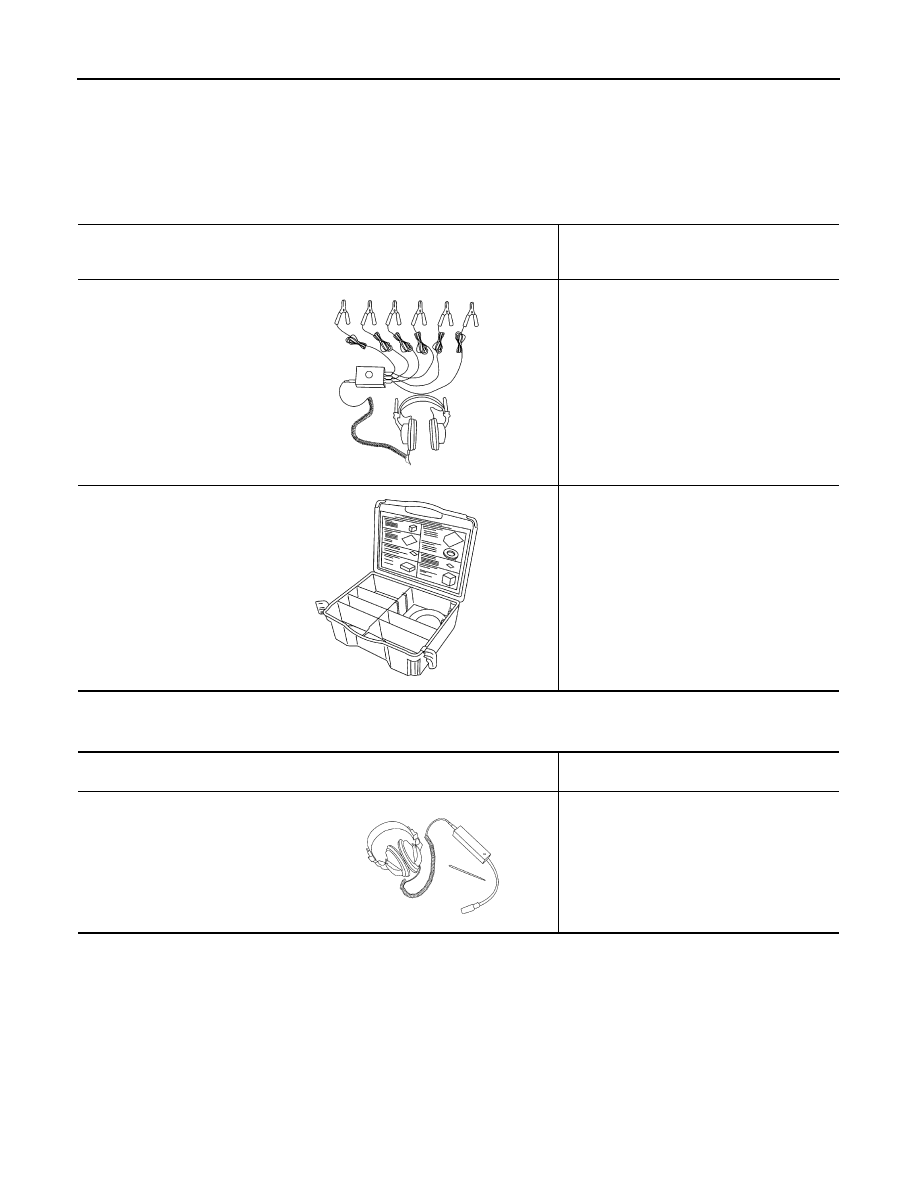

Special Service Tool

INFOID:0000000005259107

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005259108

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle kit

Repairing the cause of noise

SBT839

SBT840

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E
