Nissan Pathfinder (2010 year). Manual - part 392

EXL-2

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

36

HEADLAMP (HI) CIRCUIT  ................................

38

Description ..............................................................

38

Component Function Check  ...................................

38

Diagnosis Procedure  ..............................................

38

HEADLAMP (LO) CIRCUIT  ...............................

40

Description ..............................................................

40

Component Function Check  ...................................

40

Diagnosis Procedure  ..............................................

40

FRONT FOG LAMP CIRCUIT  ...........................

42

Description ..............................................................

42

Component Function Check  ...................................

42

Diagnosis Procedure  ..............................................

42

PARKING LAMP CIRCUIT  ................................

44

Description ..............................................................

44

Component Function Check  ...................................

44

Diagnosis Procedure  ..............................................

44

TURN SIGNAL LAMP CIRCUIT  ........................

49

Description ..............................................................

49

Component Function Check  ...................................

49

Diagnosis Procedure  ..............................................

49

OPTICAL SENSOR  ...........................................

52

Description ..............................................................

52

Component Function Check  ...................................

52

Diagnosis Procedure  ..............................................

52

HEADLAMP .......................................................

54

Wiring Diagram  .......................................................

54

DAYTIME LIGHT SYSTEM ................................

58

Wiring Diagram  .......................................................

58

AUTO LIGHT SYSTEM ......................................

66

Wiring Diagram  .......................................................

66

FRONT FOG LAMP SYSTEM  ...........................

73

Wiring Diagram  .......................................................

73

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM  .................................................

77

Wiring Diagram  .......................................................

77

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM  ...............................................

83

Wiring Diagram  .......................................................

83

STOP LAMP  ......................................................

90

Wiring Diagram  .......................................................

90

BACK-UP LAMP ................................................

95

Wiring Diagram  .......................................................

95

TRAILER TOW  ..................................................

99

Wiring Diagram  .......................................................

99

ECU DIAGNOSIS  ......................................

108

BCM (BODY CONTROL MODULE) .................

108

Reference Value  ...................................................

108

Terminal Layout  ....................................................

111

Physical Values .....................................................

111

Wiring Diagram  .....................................................

117

Fail Safe ...............................................................

120

DTC Inspection Priority Chart .............................

121

DTC Index ............................................................

121

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................

123

Reference Value  ...................................................

123

Terminal Layout  ....................................................

124

Physical Values .....................................................

125

Wiring Diagram  .....................................................

129

Fail Safe ...............................................................

133

DTC Index ............................................................

135

SYMPTOM DIAGNOSIS  ...........................

136

EXTERIOR LIGHTING SYSTEM SYMPTOMS ..

136

Symptom Table .....................................................

136

NORMAL OPERATING CONDITION ...............

138

Description ............................................................

138

BOTH SIDE HEADLAMPS DO NOT SWITCH
TO HIGH BEAM ................................................

139

Description ............................................................

139

Diagnosis Procedure .............................................

139

BOTH SIDE HEADLAMPS (LO) ARE NOT
TURNED ON .....................................................

140

Description ............................................................

140

Diagnosis Procedure .............................................

140

PARKING, LICENSE PLATE AND TAIL
LAMPS ARE NOT TURNED ON  ......................

141

Description ............................................................

141

Diagnosis Procedure .............................................

141

BOTH SIDE FRONT FOG LAMPS ARE NOT
TURNED ON .....................................................

142

Description ............................................................

142

Diagnosis Procedure .............................................

142

PRECAUTION ...........................................

143

PRECAUTIONS  ................................................

143

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

143

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ................................

143

ON-VEHICLE REPAIR  ..............................

145

ADJUSTMENT AND INSPECTION ..................

145

2010 Pathfinder

E X L -3

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP .............................................................

145

HEADLAMP : Aiming Adjustment  .........................

145

FRONT FOG LAMP .................................................

146

FRONT FOG LAMP : Aiming Adjustment  .............

146

REMOVAL AND INSTALLATION .............

148

HEADLAMP ......................................................

148

Bulb Replacement .................................................

148

Removal and Installation .......................................

148

Disassembly and Assembly  ..................................

149

OPTICAL SENSOR  ..........................................

150

Removal and Installation .......................................

150

FRONT FOG LAMP ..........................................

151

Bulb Replacement .................................................

151

Removal and Installation .......................................

151

LIGHTING & TURN SIGNAL SWITCH  ............

152

Removal and Installation .......................................

152

HAZARD SWITCH  ..........................................

153

Removal and Installation  .......................................

153

HIGH-MOUNTED STOP LAMP  ......................

154

High-Mounted Stop Lamp ......................................

154

LICENSE PLATE LAMP  .................................

155

Bulb Replacement  .................................................

155

Removal and Installation  .......................................

155

REAR COMBINATION LAMP .........................

156

Bulb Replacement  .................................................

156

Removal and Installation  .......................................

156

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

157

BULB SPECIFICATIONS ................................

157

Headlamp ..............................................................

157

Exterior Lamp  ........................................................

157

2010 Pathfinder

EXL-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

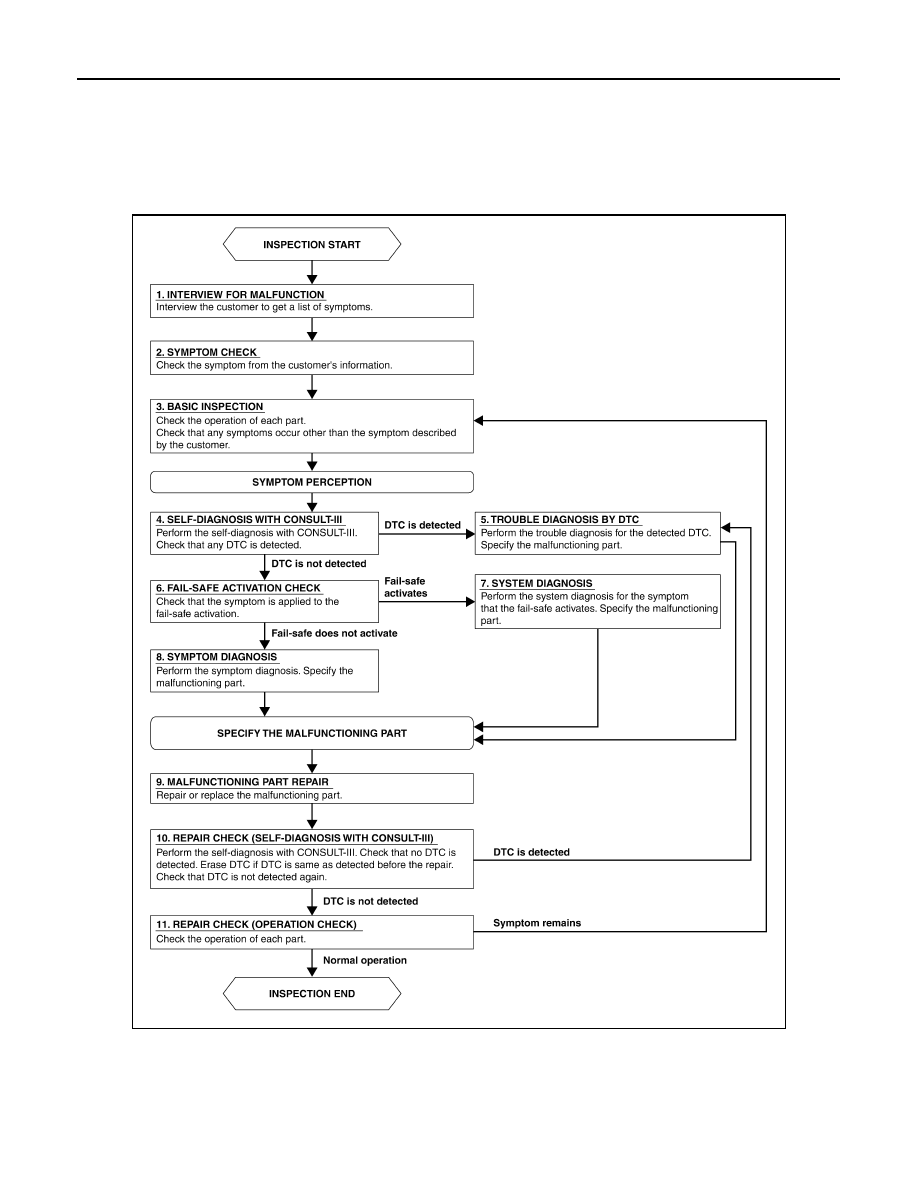

Work Flow

INFOID:0000000005259705

OVERALL SEQUENCE

AWLIA1661GB

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

EXL-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7

NO

>> GO TO 8

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self diagnosis with CONSULT-III. Verified that no DTCs are detected. Erase all DTCs detected

prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?

2010 Pathfinder

EXL-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

YES

>> GO TO 5

NO

>> GO TO 11

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 3

2010 Pathfinder

HEADLAMP

EXL-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FUNCTION DIAGNOSIS

HEADLAMP

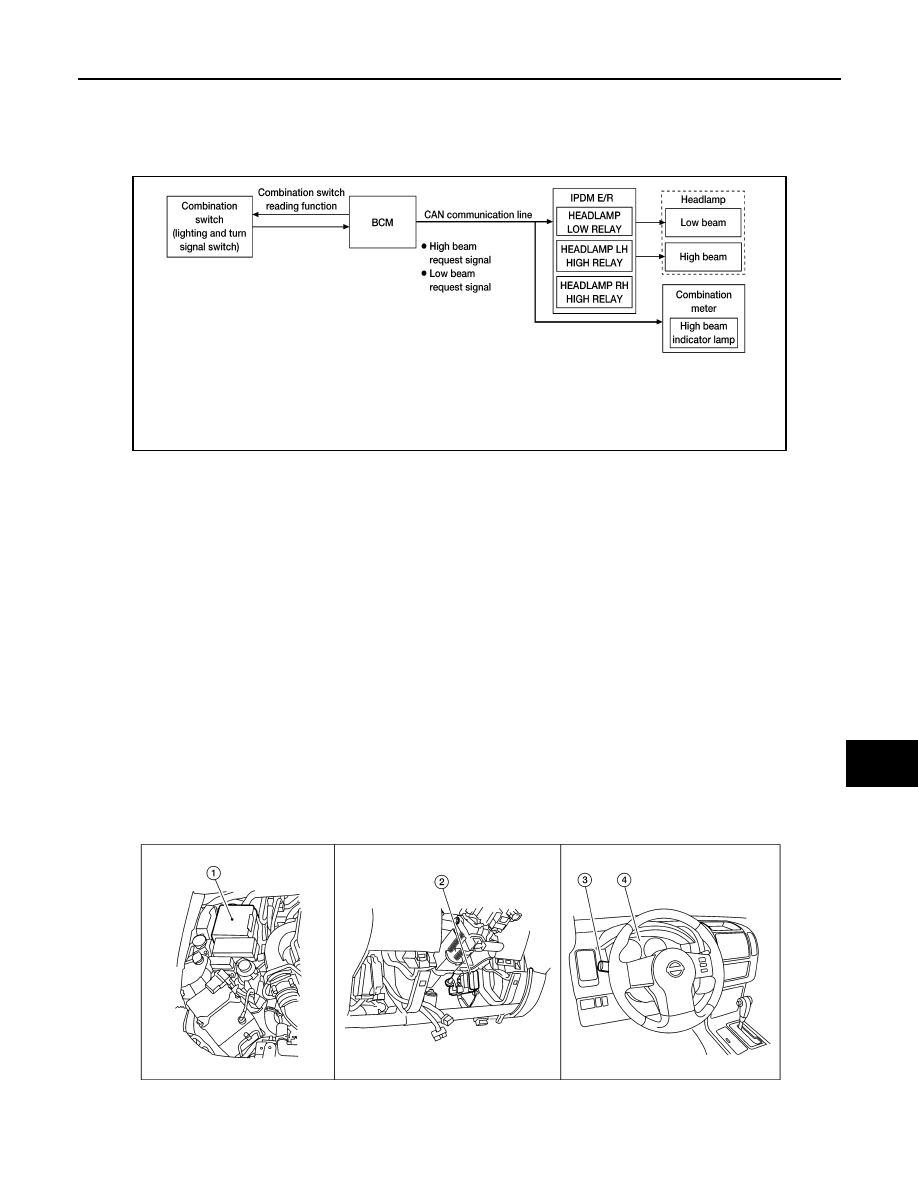

System Diagram

INFOID:0000000005259706

System Description

INFOID:0000000005259707

Control of the headlamp system operation is dependent upon the position of the lighting switch (combination

switch). When the lighting switch is placed in the 2nd position, the BCM (body control module) receives input

requesting the headlamps and park lamps to illuminate. This input is communicated to the IPDM E/R (intelli-

gent power distribution module engine room) via the CAN communication lines. The CPU (central processing

unit) of the IPDM E/R controls the headlamp LH high, headlamp RH high and headlamp low relay coils. When

energized, these relays direct power to the respective headlamps, which then illuminate.

HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION

With the lighting switch in the 2ND position and placed in HIGH position, the BCM receives input requesting

the headlamp high beams to illuminate. The flash to pass feature can be used any time and also sends a sig-

nal to the BCM. This input is communicated to the IPDM E/R via the CAN communication lines. The CPU of

the combination meter controls the ON/OFF status off the HIGH BEAM indicator. The CPU of the IPDM E/R

controls the headlamp high relay coil which supplies power to the high beam headlamps.

The combination meter receives a high beam request signal (ON) via the CAN communication lines and turns

the high beam indicator lamp ON.

Component Parts Location

INFOID:0000000005259708

AWLIA1715GB

WKIA4957E

2010 Pathfinder

EXL-8

< FUNCTION DIAGNOSIS >

HEADLAMP

Component Description

INFOID:0000000005259709

1.

IPDM E/R E122, E123, E124

2.

BCM M18, M20 (view with lower instru-
ment panel LH removed)

3.

Combination switch (lighting and turn
signal switch) M28

4.

Combination meter M24

Part name

Description

BCM

• Receives lighting switch requests via BCM combination switch

reading function.

• Sends headlamp high/low request signal to the IPDM E/R.

IPDM E/R

Activates the headlamp high and headlamp low relays upon re-
quest from the BCM.

Combination switch (lighting and turn signal switch)

Outputs lighting requests to the BCM.

2010 Pathfinder

DAYTIME RUNNING LIGHT SYSTEM

EXL-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DAYTIME RUNNING LIGHT SYSTEM

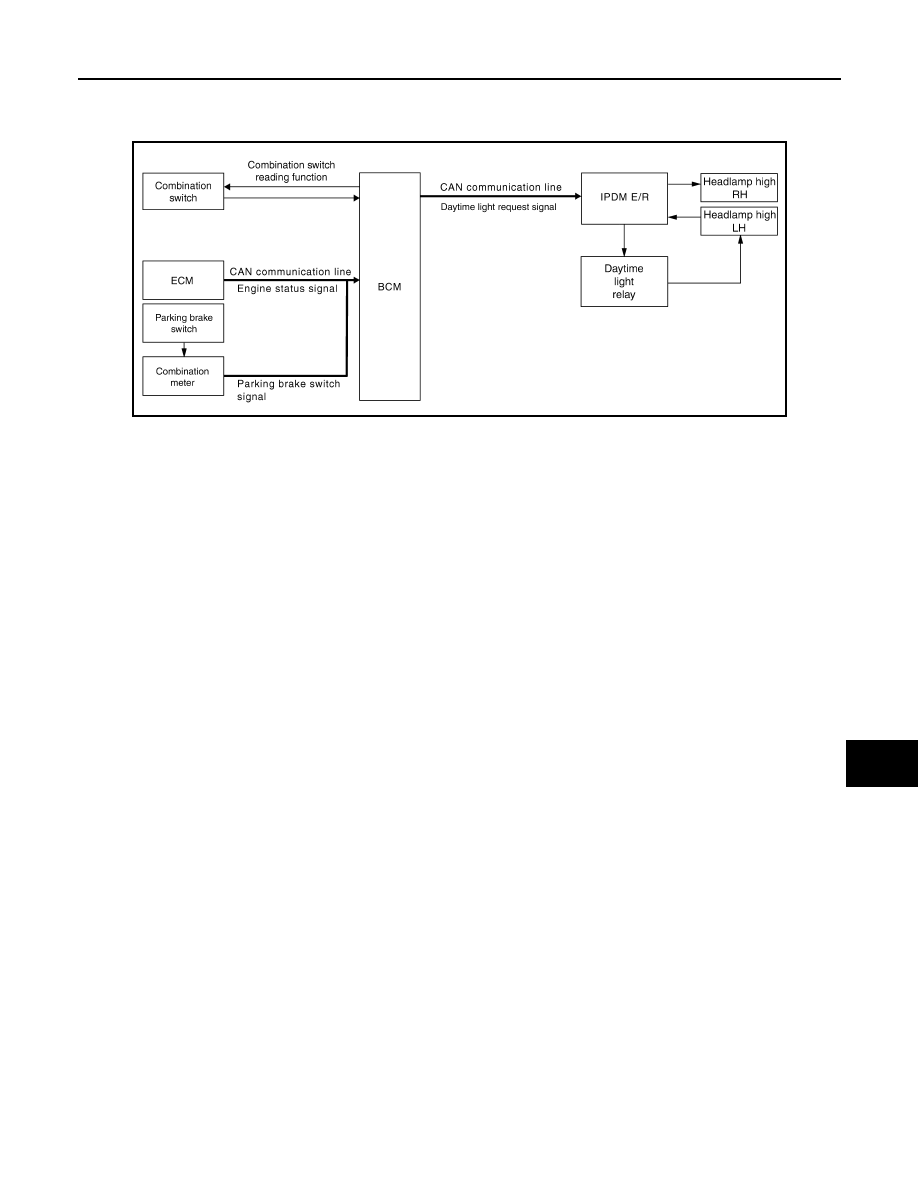

System Diagram

INFOID:0000000005259710

System Description

INFOID:0000000005259711

The headlamp system for Canada vehicles is equipped with a daytime light control that activates the high

beam headlamps at approximately half illumination whenever the engine is operating. If the parking brake is

depressed before the engine is started the daytime lights will not be illuminated. The daytime lights will illumi-

nate once the parking brake is released. Thereafter, the daytime lights will continue to operate when the park-

ing brake is depressed.

OPERATION

The BCM monitors inputs from the parking brake switch and the combination switch to determine when to acti-

vate the daytime light system.  The BCM sends a daytime light request to the IPDM E/R via the CAN commu-

nication lines.  The IPDM E/R grounds the daytime light relay which in turn, provides power to the ground side

of the LH high beam lamp.  Power flows backward through the LH high beam lamp to the IPDM E/R, through

the high beam fuses, through the RH high beam lamp circuit to the RH high beam lamp and on to ground.  The

high beam lamps are wired in series which causes them to illuminate at a reduced intensity.

ALLIA0621GB

2010 Pathfinder
