Nissan Pathfinder (2010 year). Manual - part 192





4WD SYSTEM SYMPTOMS

DLN-109

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYMPTOM DIAGNOSIS

4WD SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000005258317

If 4WD warning lamp turns ON, perform self-diagnosis. Refer to

DLN-23, "CONSULT-III Function (ALL MODE AWD/4WD)"

.

NOTE:

• Light tight-corner braking symptom may occur depending on driving conditions in AUTO mode.  This is not a

malfunction.

• Heavy tight-corner braking symptom occurs when vehicle is driven in the following conditions: 4WD shift

switch is 4H or 4LO, steering wheel is turned fully to either side.

Symptom

Condition

Reference page

4WD shift indicator lamp and 4LO indicator lamp do not turn ON
(4WD shift indicator lamp and 4LO indicator lamp check)

Ignition switch: ON

DLN-110

4WD warning lamp does not turn ON
(4WD warning lamp check)

Ignition switch: ON

DLN-113

4WD shift indicator lamp or 4LO indicator lamp does not change

Engine running

DLN-116

ATP warning lamp does not turn ON

Engine running

DLN-118

4WD shift indicator lamp keeps flashing

Engine running

DLN-120

4WD warning lamp flashes rapidly (2 times/second)

While driving

DLN-121

4WD warning lamp flashes slowly
(1 time/2 seconds)

While driving

DLN-122

Heavy tight-corner braking symptom occurs
(See NOTE.)

• While driving
• AUTO  mode
• Steering wheel is turned fully

to either side

DLN-123

ATP switch does not operate

Engine running

DLN-125

4WD system does not operate

While driving

DLN-127

2010 Pathfinder

DLN-110

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT TURN ON

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT
TURN ON

Description

INFOID:0000000005258318

4WD shift indicator lamp and 4LO indicator lamp do not turn ON for approx. 1 second when turning ignition

switch to ON.

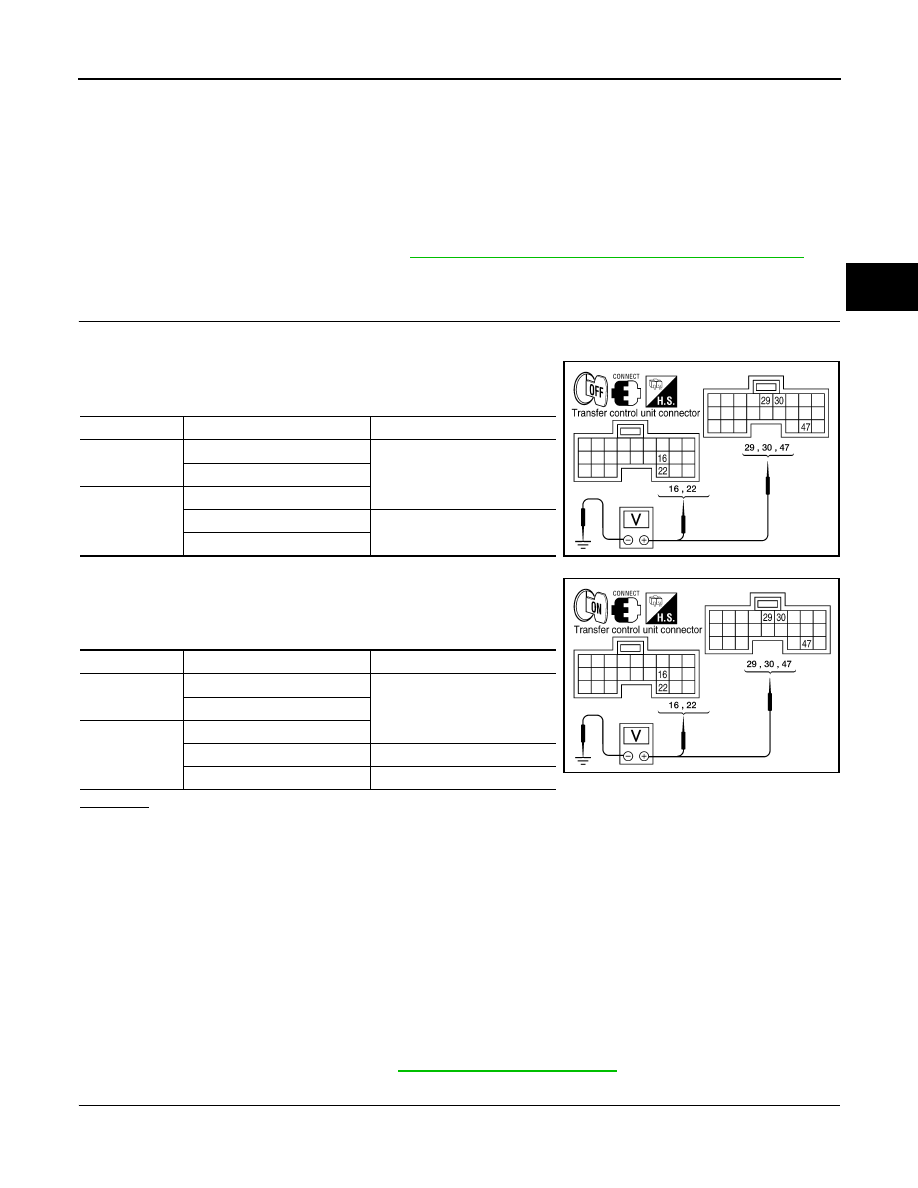

Diagnosis Procedure

INFOID:0000000005258319

Regarding Wiring Diagram information, refer to

DLN-95, "Wiring Diagram - ALL-MODE 4WD SYSTEM -"

.

1.

CHECK TRANSFER CONTROL UNIT POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2. Connect transfer control unit harness connector.

3. Check voltage between transfer control unit harness connector

terminals and ground.

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between transfer control unit harness connector

terminals and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following. If any items are damaged, repair or replace damaged parts.

• 10A fuses [No. 21 located in fuse block (J/B) and No. 59 (located in the fuse and relay box)].

• Harness for short or open between battery and transfer control unit harness connector M153

terminals 47.

• Harness for short or open between ignition switch and transfer control unit harness connector

M153 terminal 29.

• Harness for short or open between battery and transfer shut off relay harness connector E155

terminal 1 and 3.

• Harness for short or open between transfer shut off relay harness connector E155 terminal 2

and transfer control unit harness connector M153 terminal 30.

• Harness for short or open between transfer shut off relay harness connector E155 terminal 5

and transfer control unit harness connector M152 terminals 16 and 22.

• Battery and ignition switch.

• Transfer shut off relay. Refer to

DLN-28, "Diagnosis Procedure"

.

Connector

Terminal

Voltage (Approx.)

M152

16 - Ground

0V

22 - Ground

M153

29 - Ground

30 - Ground

Battery voltage

47 - Ground

WDIA0165E

Connector

Terminal

Voltage (Approx.)

M152

16 - Ground

Battery voltage

22 - Ground

M153

29 - Ground

30 - Ground

0V

47 - Ground

Battery voltage

WDIA0166E

2010 Pathfinder

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT TURN ON

DLN-111

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

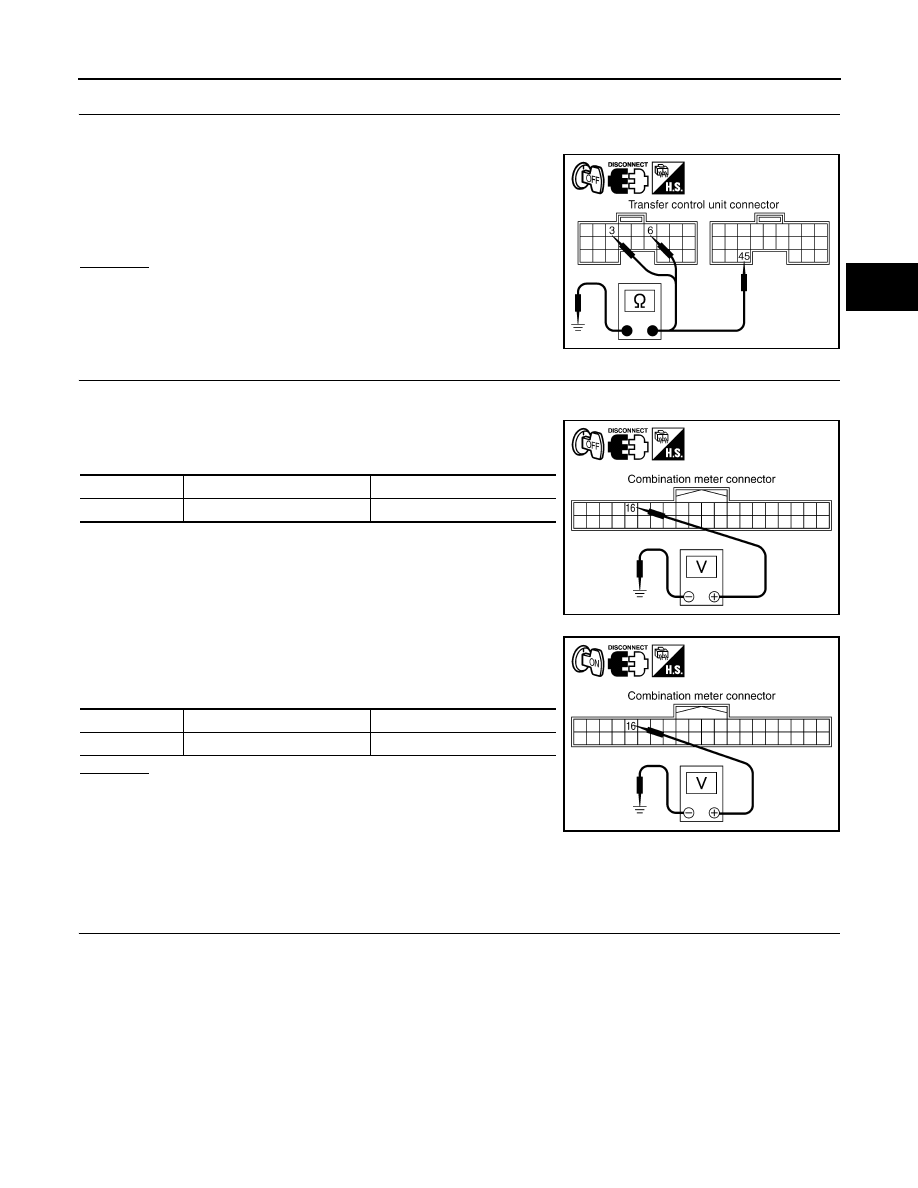

2.

CHECK TRANSFER CONTROL UNIT GROUND CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector.

3. Check continuity between transfer control unit harness connec-

tor M152 terminals 3 and 6, and M153 terminal 45 and ground.

Also check harness for short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to power in harness or con-

nectors.

3.

CHECK COMBINATION METER POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector.

3. Check voltage between combination meter harness connector

terminal and ground.

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between combination meter harness connector

terminal and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check the following. If any items are damaged, repair

or replace damaged parts.

• 10A fuse [No. 14, located in the fuse block (J/B)].

• Harness for short or open between ignition switch and combination meter harness connector

M24 terminal 16.

• Ignition switch.

4.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector and combination meter harness connector.

Continuity should exist.

SDIA2691E

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

0V

SDIA2762E

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

Battery voltage

SDIA2763E

2010 Pathfinder

DLN-112

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT TURN ON

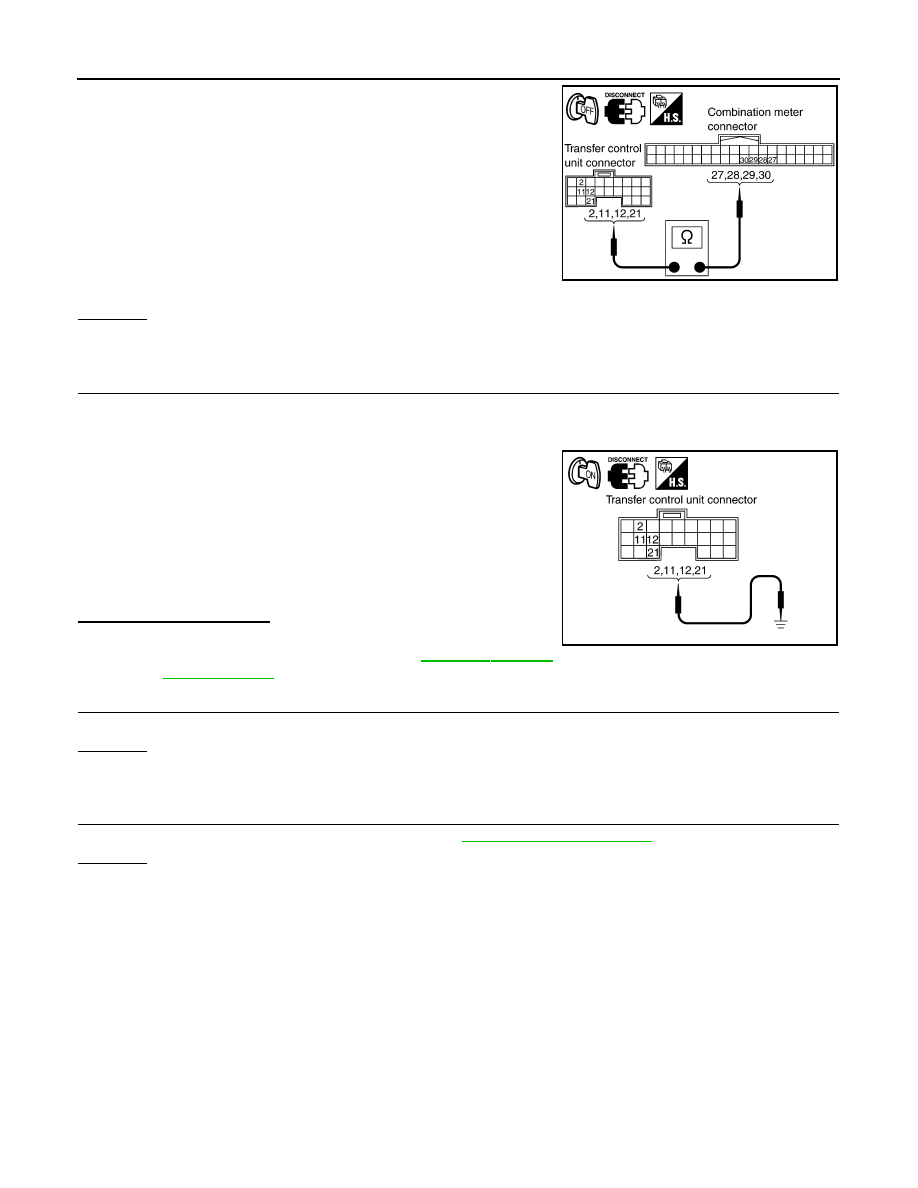

3. Check continuity between the following terminals.

-

Transfer control unit harness connector M152 terminal 2 and

combination meter harness connector M24 terminal 30.

-

Transfer control unit harness connector M152 terminal 11 and

combination meter harness connector M24 terminal 27.

-

Transfer control unit harness connector M152 terminal 12 and

combination meter harness connector M24 terminal 29.

-

Transfer control unit harness connector M152 terminal 21 and

combination meter harness connector M24 terminal 28.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK INDICATOR LAMP CIRCUIT

1. Connect combination meter harness connector.

2. Disconnect transfer control unit harness connector.

3. Turn ignition switch “ON”.

4. Ground the following terminals using suitable wiring.

-

Transfer control unit harness connector M152 terminal 2 and

ground.

-

Transfer control unit harness connector M152 terminal 11 and

ground.

-

Transfer control unit harness connector M152 terminal 12 and

ground.

-

Transfer control unit harness connector M152 terminal 21 and

ground.

Do indicator lamps turn on?

OK

>> GO TO 6.

NG

>> Replace combination meter. Refer to

MWI-96, "Removal

and Installation"

.

6.

SYMPTOM CHECK

Check again.
OK or NG

OK

>> Inspection End.

NG

>> GO TO 7.

7.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-87, "Reference Value"

.

OK or NG

OK

>> Inspection End.

NG

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

Continuity should exist.

SDIA2771E

SDIA2772E

2010 Pathfinder

4WD WARNING LAMP DOES NOT TURN ON

DLN-113

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4WD WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000005258320

4WD warning lamp does not turn ON when turning ignition switch to ON.

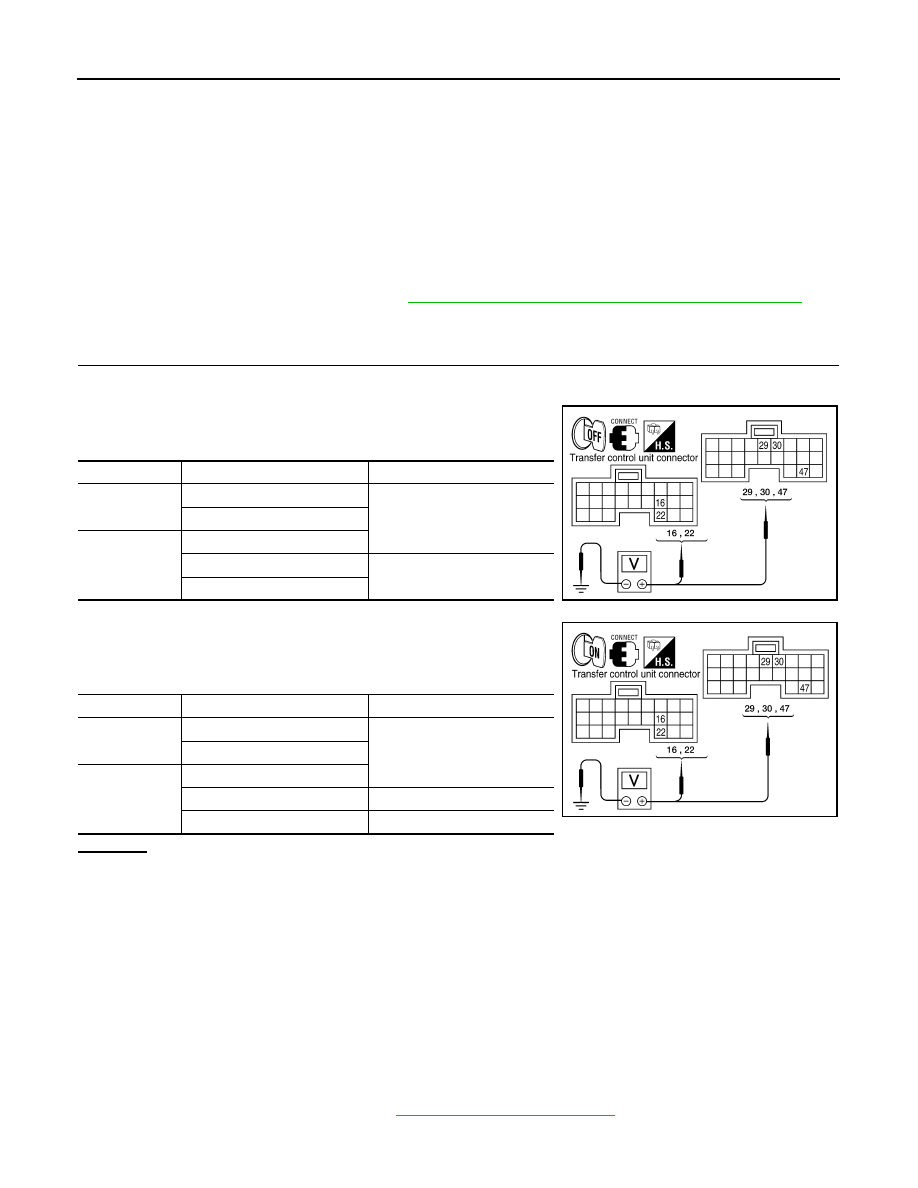

Diagnosis Procedure

INFOID:0000000005258321

Regarding Wiring Diagram information, refer to

DLN-95, "Wiring Diagram - ALL-MODE 4WD SYSTEM -"

.

1.

CHECK TRANSFER CONTROL UNIT POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2. Connect transfer control unit harness connector.

3. Check voltage between transfer control unit harness connector

terminals and ground.

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between transfer control unit harness connector

terminals and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following. If any items are damaged, repair or replace damaged parts.

• 10A fuses [No. 21 located in fuse block (J/B) and No. 59 (located in the fuse and relay box)].

• Harness for short or open between battery and transfer control unit harness connector M153

terminals 47.

• Harness for short or open between ignition switch and transfer control unit harness connector

M153 terminal 29.

• Harness for short or open between battery and transfer shut off relay harness connector E155

terminal 1 and 3.

• Harness for short or open between transfer shut off relay harness connector E155 terminal 2

and transfer control unit harness connector M153 terminal 30.

• Harness for short or open between transfer shut off relay harness connector E155 terminal 5

and transfer control unit harness connector M152 terminals 16 and 22.

• Battery and ignition switch.

• Transfer shut off relay. Refer to

DLN-28, "Diagnosis Procedure"

  .

2.

CHECK TRANSFER CONTROL UNIT GROUND CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector.

Connector

Terminal

Voltage (Approx.)

M152

16 - Ground

0V

22 - Ground

M153

29 - Ground

30 - Ground

Battery voltage

47 - Ground

WDIA0165E

Connector

Terminal

Voltage (Approx.)

M152

16 - Ground

Battery voltage

22 - Ground

M153

29 - Ground

30 - Ground

0V

47 - Ground

Battery voltage

WDIA0166E

2010 Pathfinder

DLN-114

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

4WD WARNING LAMP DOES NOT TURN ON

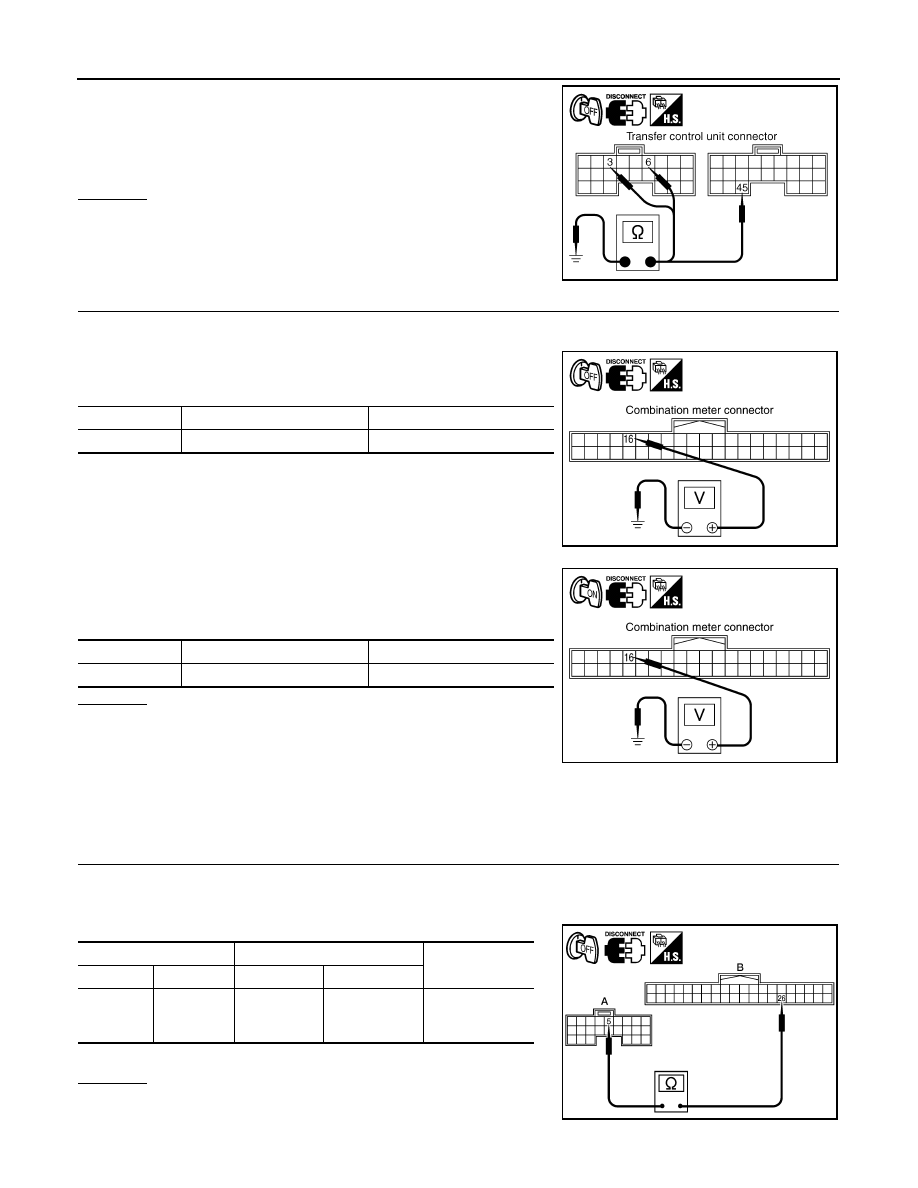

3. Check continuity between transfer control unit harness connec-

tor M152 terminals 3 and 6, and M153 terminal 45 and ground.

Also check harness for short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to power in harness or con-

nectors.

3.

CHECK COMBINATION METER POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector.

3. Check voltage between combination meter harness connector

terminal and ground.

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between combination meter harness connector

terminal and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check the following. If any items are damaged, repair

or replace damaged parts.

• 10A fuse [No. 14, located in the fuse block (J/B)].

• Harness for short or open between ignition switch and combination meter harness connector

M24 terminal 16.

• Ignition switch.

4.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector and combination meter harness connector.

3. Check continuity between transfer control unit and combination meter.

-

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

Continuity should exist.

SDIA2691E

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

0V

SDIA2762E

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

Battery voltage

SDIA2763E

A

B

Continuity

Connector

Terminal

Connector

Terminal

Transfer

control

unit: M152

5

Combination

meter: M24

26

Yes

WDIA0293E

2010 Pathfinder

4WD WARNING LAMP DOES NOT TURN ON

DLN-115

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

5.

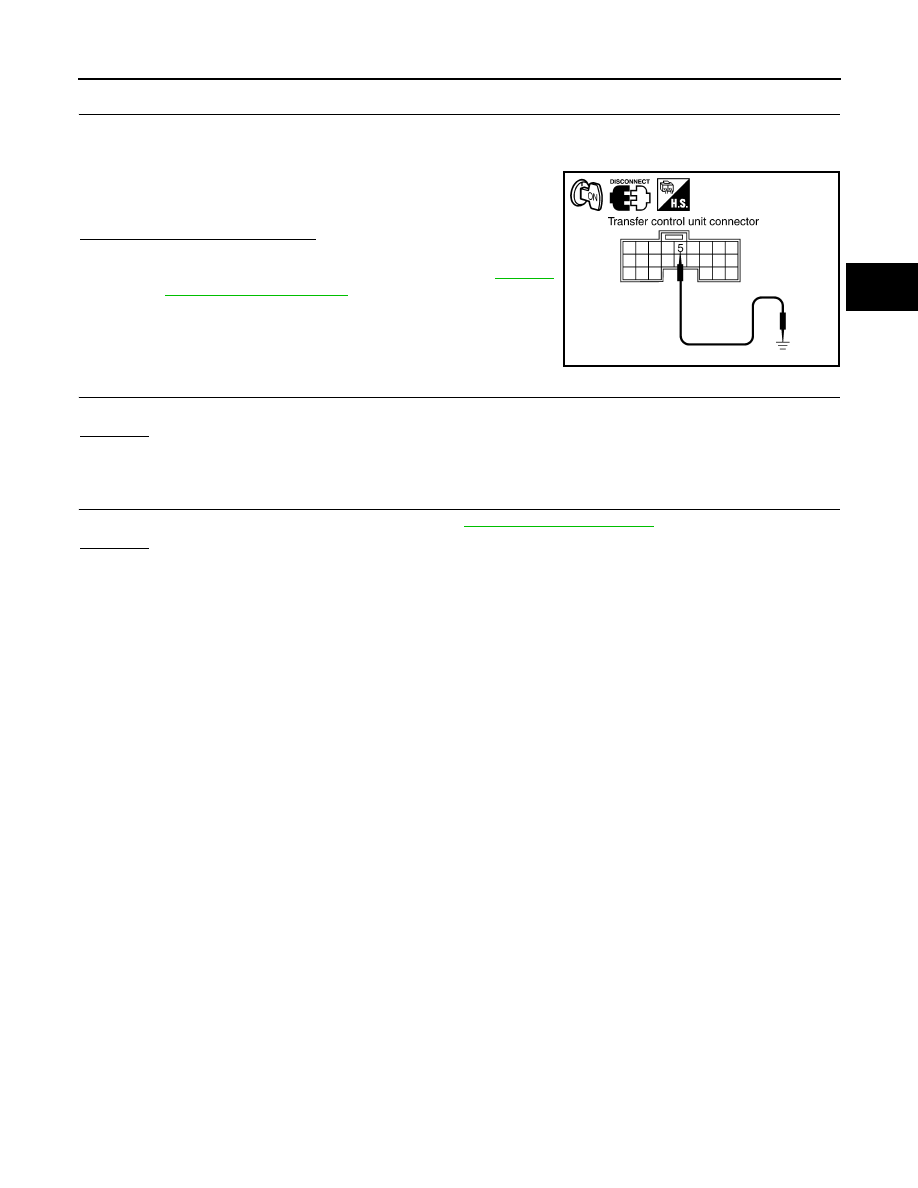

CHECK INDICATOR LAMP CIRCUIT

1. Connect combination meter harness connector.

2. Disconnect transfer control unit harness connector.

3. Turn ignition switch “ON”. (Do not start engine.)

4. Ground the following terminal using suitable wiring.

-

Transfer control unit harness connector M152 terminal 5 and

ground.

Does 4WD warning lamp turn on?

OK

>> GO TO 6.

NG

>> Replace combination meter.  Refer to

MWI-96,

"Removal and Installation"

.

6.

SYMPTOM CHECK

Check again.
OK or NG

OK

>> Inspection End

NG

>> GO TO 7.

7.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-87, "Reference Value"

.

OK or NG

OK

>> Inspection End.

NG

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

SDIA2774E

2010 Pathfinder

DLN-116

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX14B]

4WD SHIFT INDICATOR LAMP OR 4LO INDICATOR LAMP DO NOT CHANGE

4WD SHIFT INDICATOR LAMP OR 4LO INDICATOR LAMP DO NOT
CHANGE

Description

INFOID:0000000005258322

4WD shift indicator lamp or 4LO indicator lamp do not change when switching the 4WD shift switch.

Diagnosis Procedure

INFOID:0000000005258323

1.

CONFIRM THE SYMPTOM

Confirm 4WD shift indicator lamp and 4LO indicator lamp turn on when ignition switch is turned to ON.
Do 4WD shift indicator lamp and 4LO indicator lamp turn on?

YES

>> GO TO 2.

NO

>> Refer to

DLN-110, "Diagnosis Procedure"

.

2.

CHECK SYSTEM FOR 4WD SHIFT SWITCH

Perform trouble diagnosis for 4WD shift switch system. Refer to

DLN-38, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK SYSTEM FOR WAIT DETECTION SWITCH

Perform trouble diagnosis for wait detection switch system. Refer to

DLN-42, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK SYSTEM FOR NEUTRAL-4LO SWITCH

Perform trouble diagnosis for neutral-4LO switch system. Refer to

DLN-35, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 5.

NO

>> Repair or replace damaged parts.

5.

CHECK SYSTEM FOR ATP SWITCH

Perform trouble diagnosis for ATP switch system. Refer to

DLN-125, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 6.

NO

>> Repair or replace damaged parts.

6.

CHECK SYSTEM FOR 2-4WD SOLENOID

Perform trouble diagnosis for 2-4WD solenoid system. Refer to

DLN-64, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 7.

NO

>> Repair or replace damaged parts.

7.

CHECK SYSTEM FOR TRANSFER CONTROL DEVICE

Perform trouble diagnosis for transfer control device system. Refer to

DLN-55, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 8.

NO

>> Repair or replace damaged parts.

8.

CHECK SYSTEM FOR ACTUATOR MOTOR

Perform trouble diagnosis for actuator motor system. Refer to

DLN-46, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 9.

NO

>> Repair or replace damaged parts.

2010 Pathfinder















Content      ..     190      191      192      193     ..
