AV

AUXILIARY INPUT JACK

AV-151

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000005570797

Removal

1. Remove the A/T finisher. Refer to

IP-12, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

2010 Pathfinder

2010 Pathfinder

AV-152

< ON-VEHICLE REPAIR >

[MID AUDIO]

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000005550740

REMOVAL

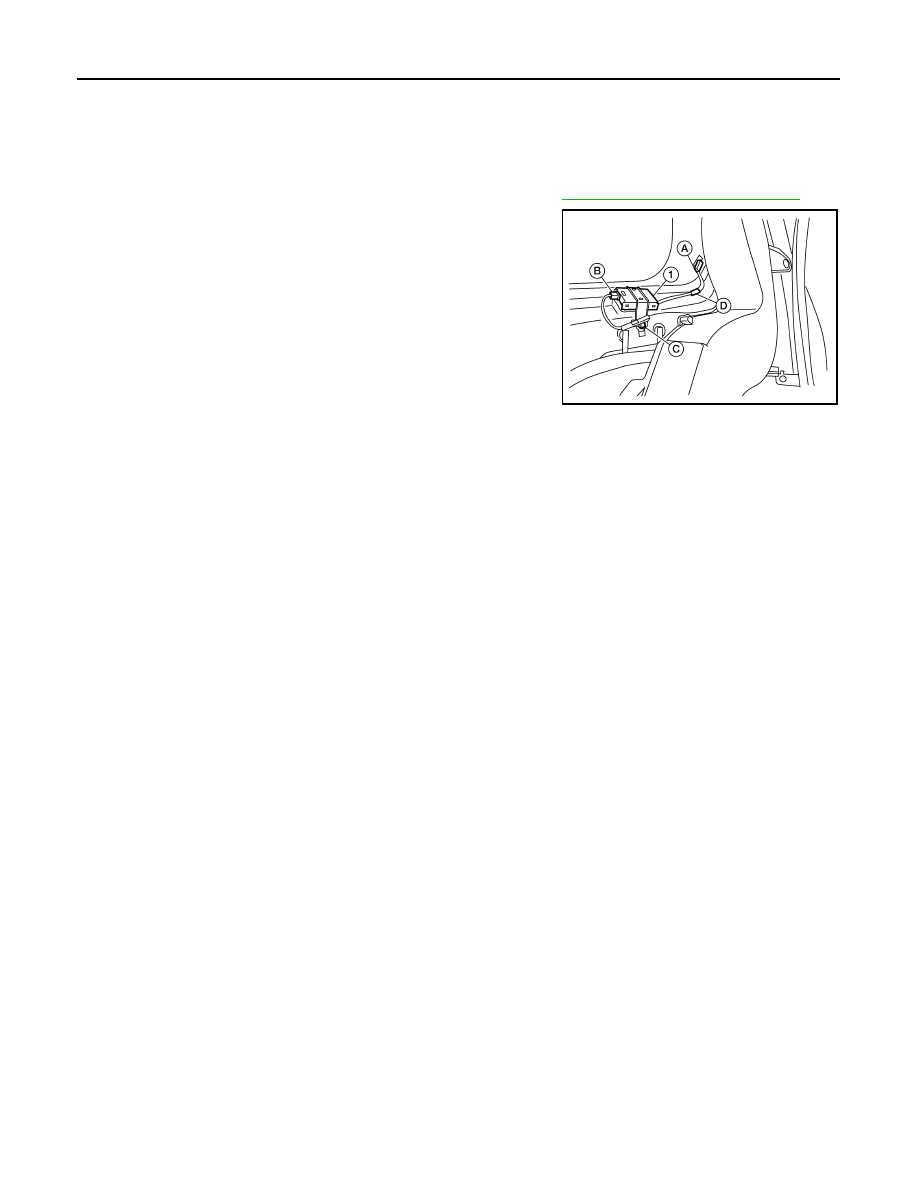

1. Remove the luggage side upper and lower RH finishers. Refer to

INT-22, "Removal and Installation"

.

2. Detach the antenna amp. harness clip (D), disconnect the

antenna amp. connector (A), harness connector (B), then

remove the antenna amp. screw (C) and remove the antenna

amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1228ZZ

2010 Pathfinder

2010 Pathfinder

AV

SATELLITE RADIO ANTENNA

AV-153

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000005259365

REMOVAL

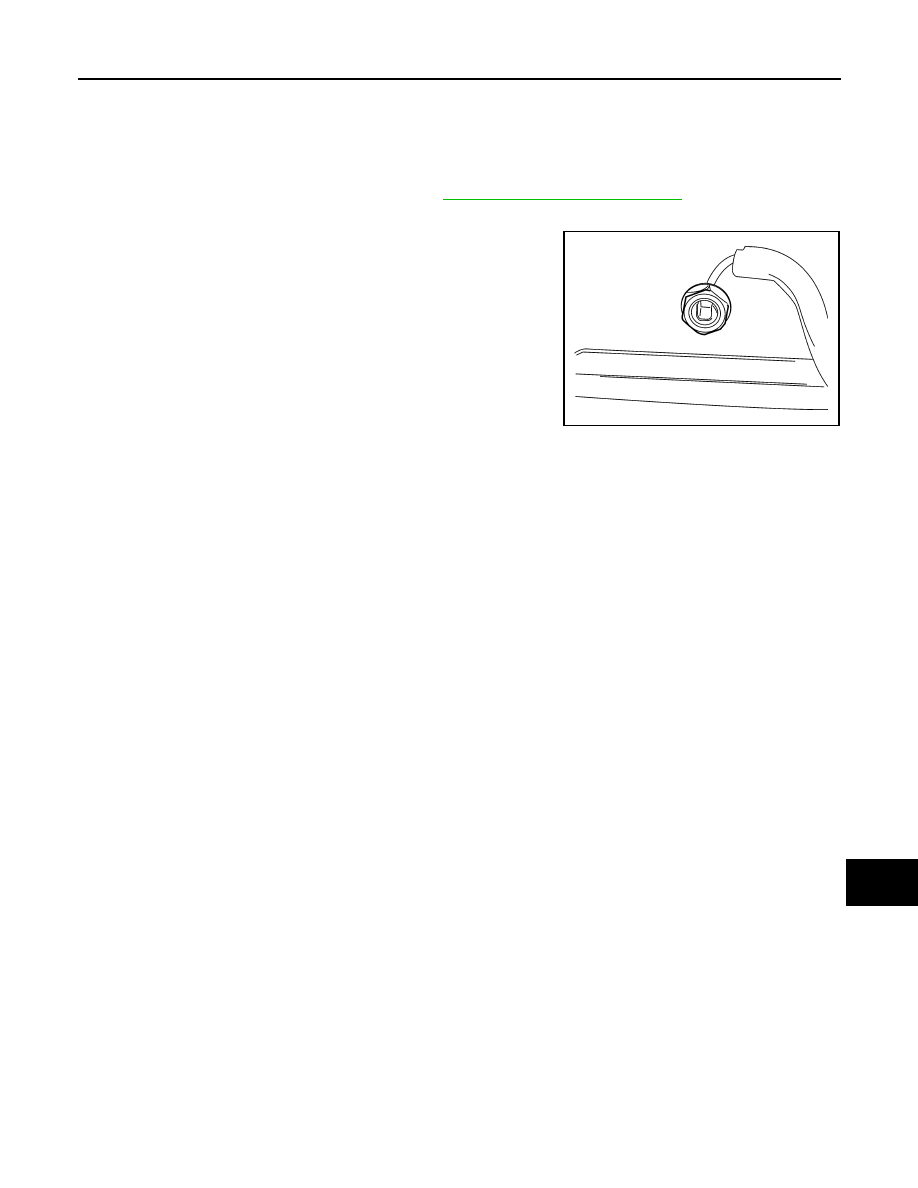

1. Remove the front roof console finisher. Refer to

INT-19, "Removal and Installation"

.

2. Disconnect the satellite antenna connector.
3. Remove the satellite antenna nut.
4. Remove the satellite antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

2010 Pathfinder

2010 Pathfinder

AV-154

< ON-VEHICLE REPAIR >

[MID AUDIO]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000005259366

REMOVAL

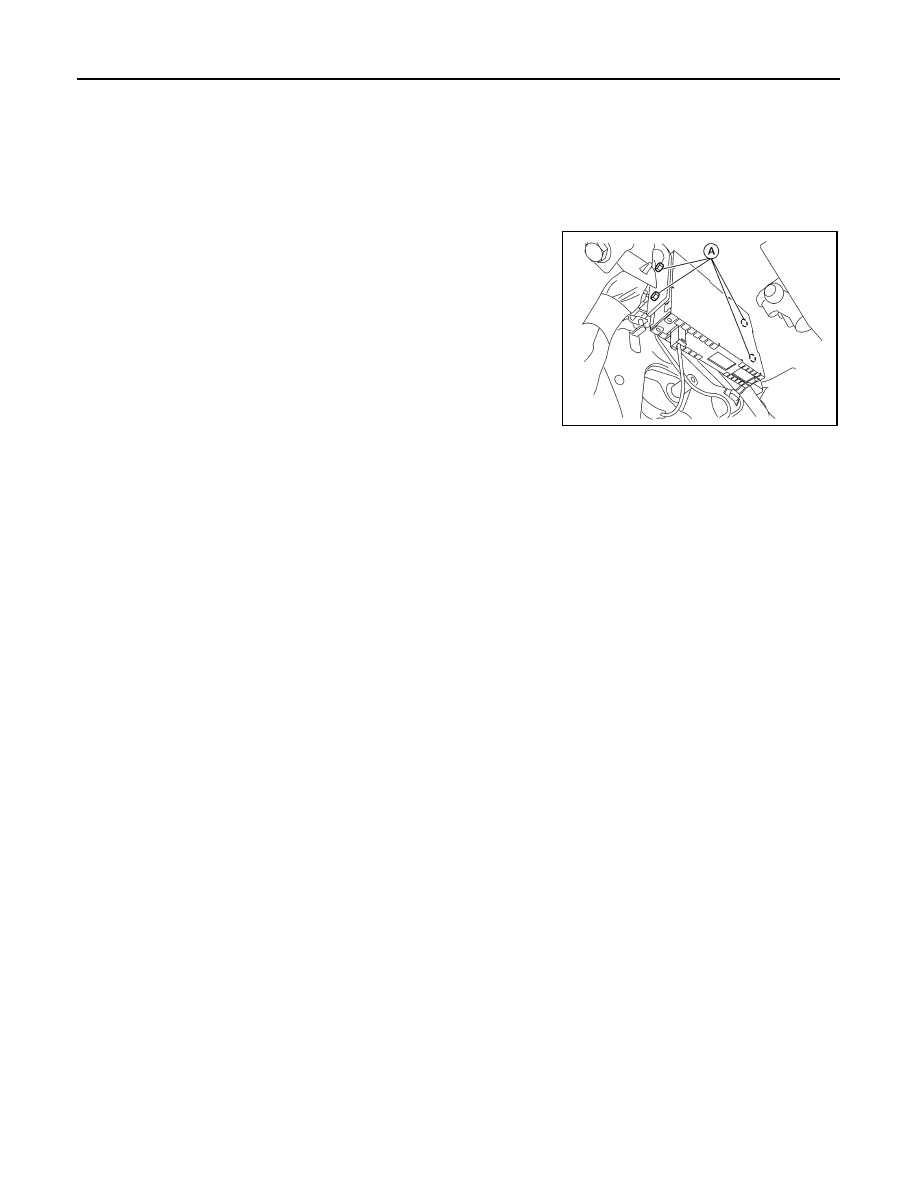

1. Disconnect the battery negative terminal.
2. Disconnect the satellite radio tuner connectors.
3. Remove satellite radio tuner screws (A), and remove satellite

radio tuner from above the parking brake pedal.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0684E

2010 Pathfinder

AV

REAR VIEW CAMERA

AV-155

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000005259367

Rear View Camera

REMOVAL

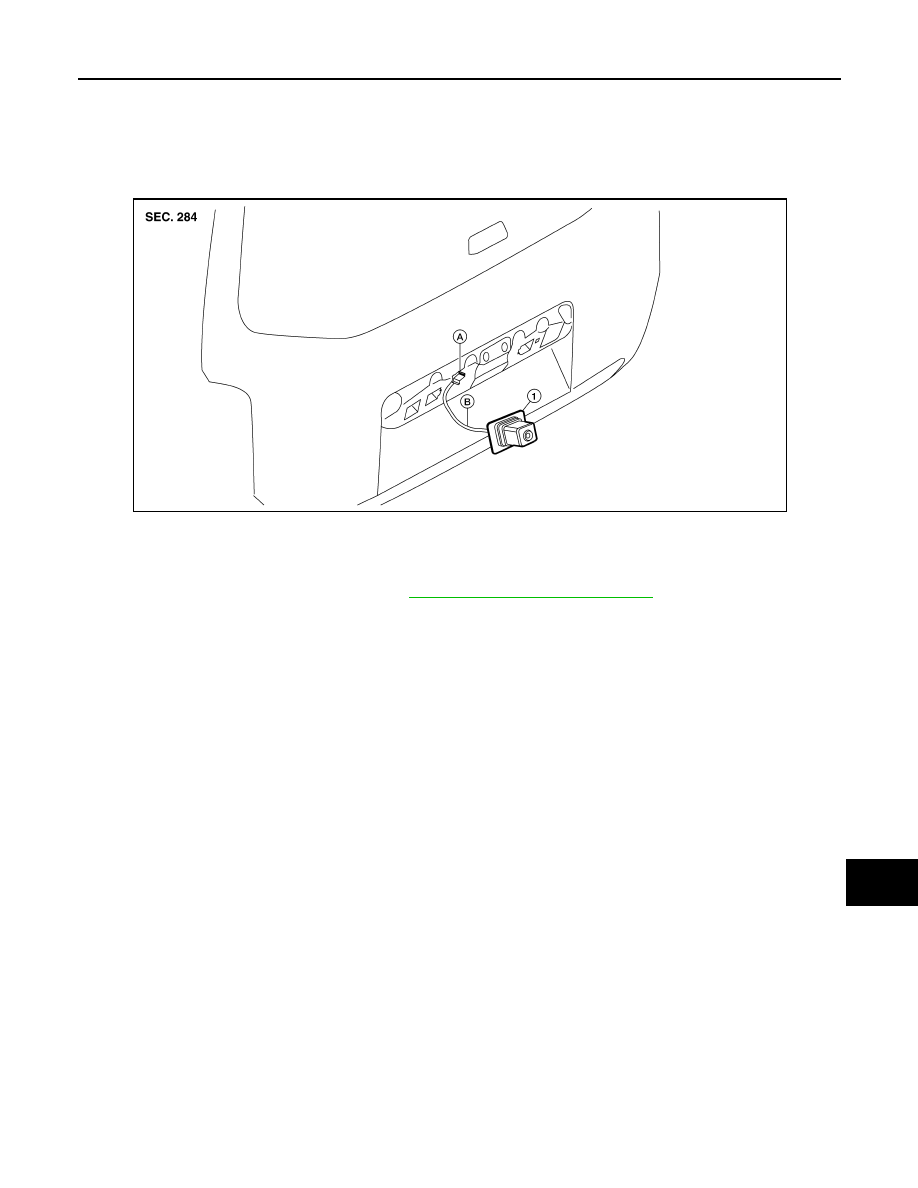

1. Remove the license lamp finisher. Refer to

EXT-21, "Removal and Installation"

.

2. Disconnect the rear view camera connector.
3. Detach the rear view camera harness clip.
4. Detach the rear view camera to release, then pull out to remove the rear view camera while feeding the

rear view camera harness and connector through the back door.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear view camera

A.

Rear view camera connector

B.

Rear view camera harness clip

ALNIA1182ZZ

2010 Pathfinder

2010 Pathfinder

AV-156

< ON-VEHICLE REPAIR >

[MID AUDIO]

REAR VIEW CAMERA CONTROL UNIT

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000005259368

REMOVAL

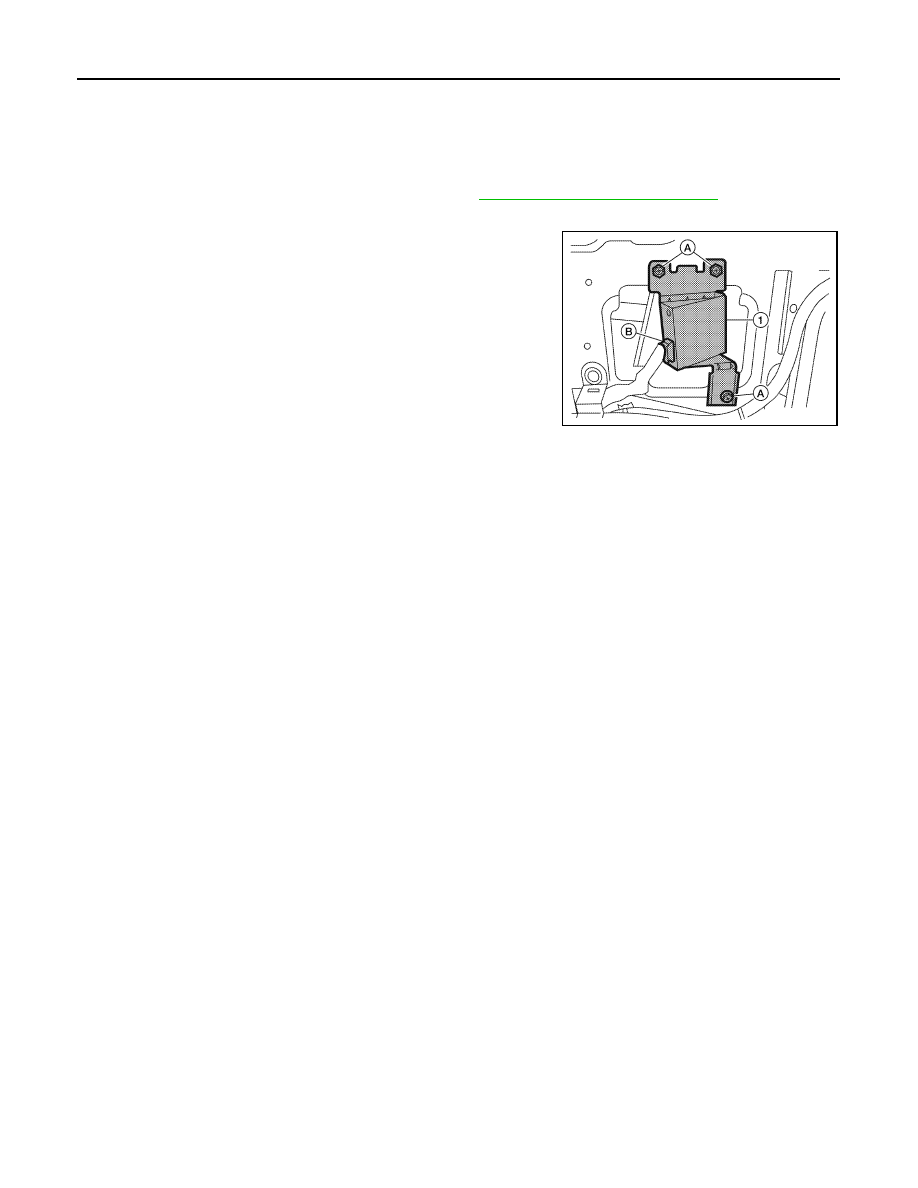

1. Remove the luggage side lower finisher RH. Refer to

INT-22, "Removal and Installation"

.

2. Remove the rear HVAC duct tube (C103) fastener and remove the HVAC duct tube.
3. Remove the rear view camera control unit screws (A), discon-

nect the rear view camera control unit connector (B) and remove

the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0377ZZ

2010 Pathfinder

2010 Pathfinder

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-157

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005259369

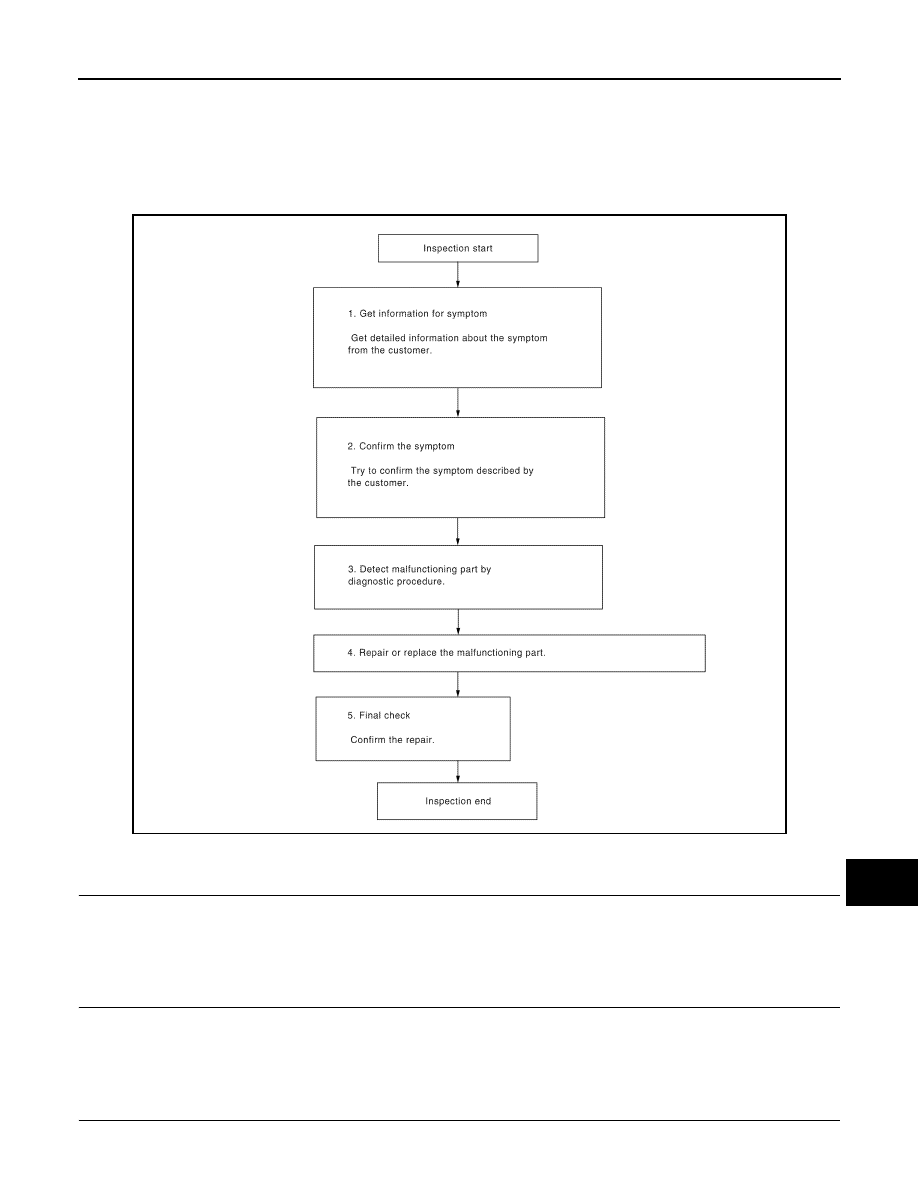

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

2010 Pathfinder

2010 Pathfinder

AV-158

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2
