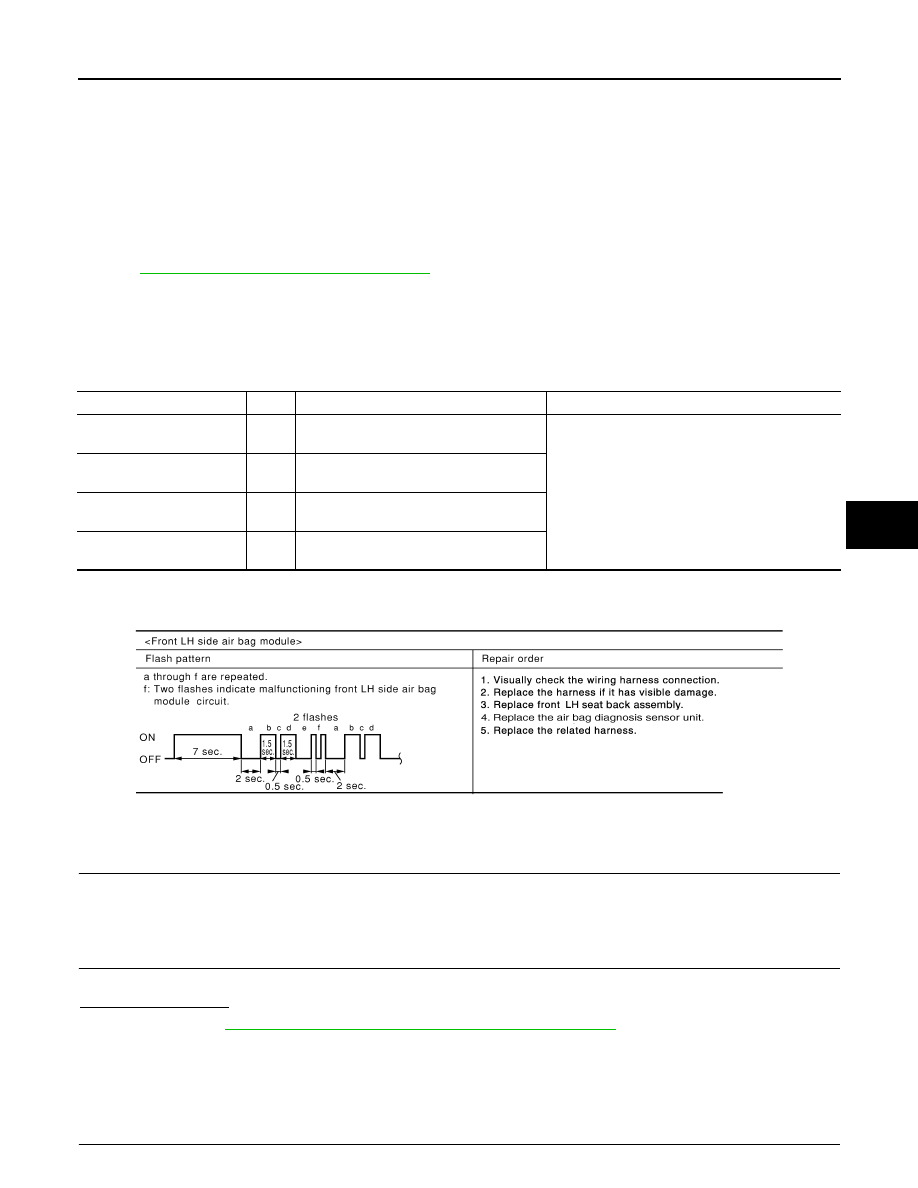

B1134 – B1137 SIDE AIRBAG MODULE LH SRC-23 < COMPONENT DIAGNOSIS > C D E F G I J K L M A B SRC N O P B1134 – B1137 SIDE AIRBAG MODULE LH Description INFOID:0000000003937593 DTC B1134 – B1137 FRONT LH SIDE AIR BAG MODULE The front LH side air bag module is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000003937594 DTC DETECTION LOGIC With CONSULT-lll Without CONSULT-lll DTC CONFIRMATION PROCEDURE (With CONSULT-lll) 1. INSPECTION START Turn ignition switch ON. >> GO TO 2. 2. CHECK SELF-DIAG RESULT Check for the DTC on CONSULT-lll. YES >> Refer to SRC-24, "Diagnosis Procedure (Component Diagnosis)" . NO >> Inspection End. DTC CONFIRMATION PROCEDURE (Without CONSULT-lll) NOTE: 1. IGNITION SWITCH CONSULT-III name DTC DTC detecting condition Repair order SIDE MODULE LH [OPEN] B1134 Front LH side air bag module circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front LH seat back assembly. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. SIDE MODULE LH [VB-SHORT] B1135 Front LH side air bag module circuit is SIDE MODULE LH [GND-SHORT] B1136 Front LH side air bag module circuit is SIDE MODULE LH [SHORT] B1137 Front LH side air bag module circuits are WHIA0265E 2009 Pathfinder |
