FRONT SEAT

SE-37

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

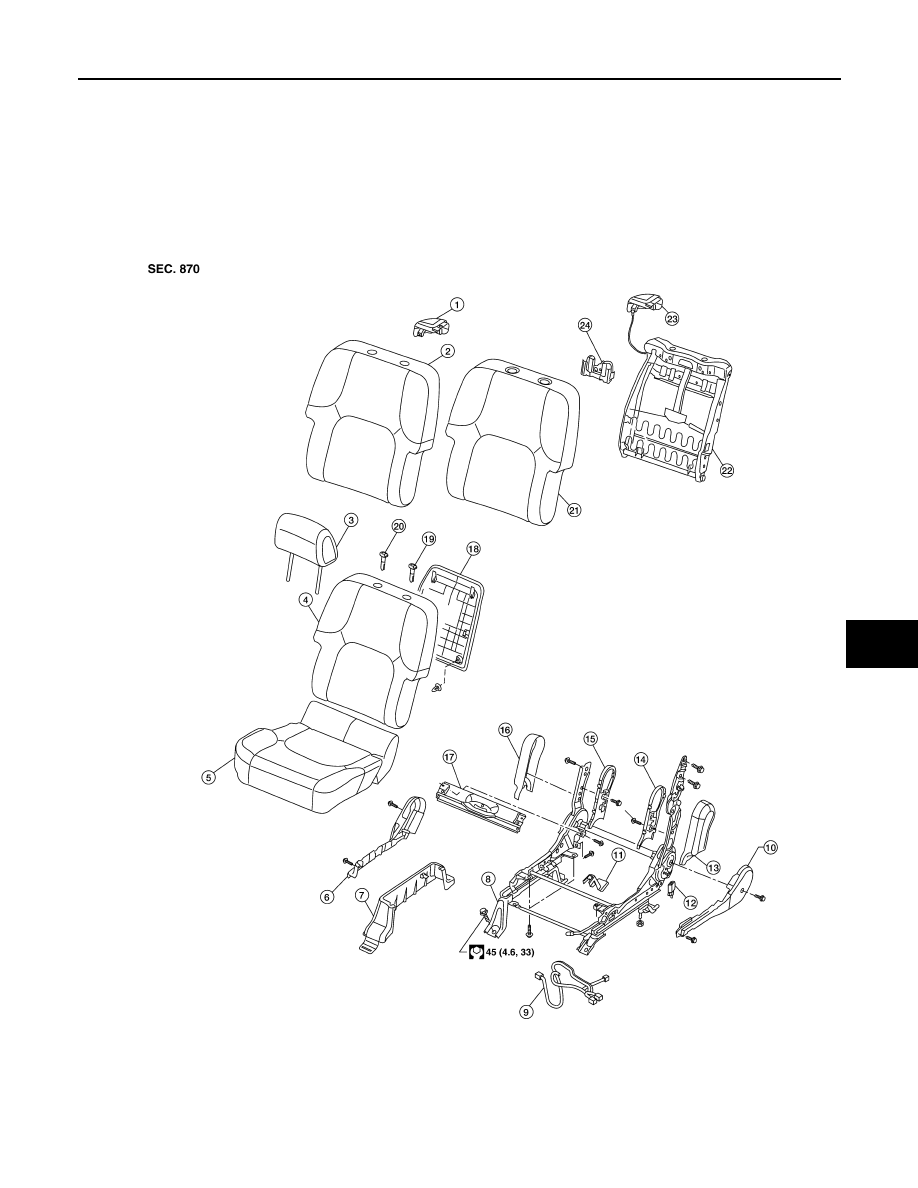

Fold Flat Passenger Seat

10. Leg cover

11. Seat cushion front finisher

12. Passenger seat wiring harness

13. Power seat frame assembly

14. Seat cushion inner finisher

15. Seat belt buckle assembly

16. Leg cover

17. Seat cushion rear finisher

18. Manual seat frame assembly

19. Recline lever

20. Seat cushion rear finisher

21. Seatback board

22. Headrest holder with multi position

lock

23. Headrest holder

24. Seatback pad without side air bag

25. Seatback frame without side air bag

26. Damper assembly

27. Seatback heating element

LIIA2409E

2009 Pathfinder

SE-38

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

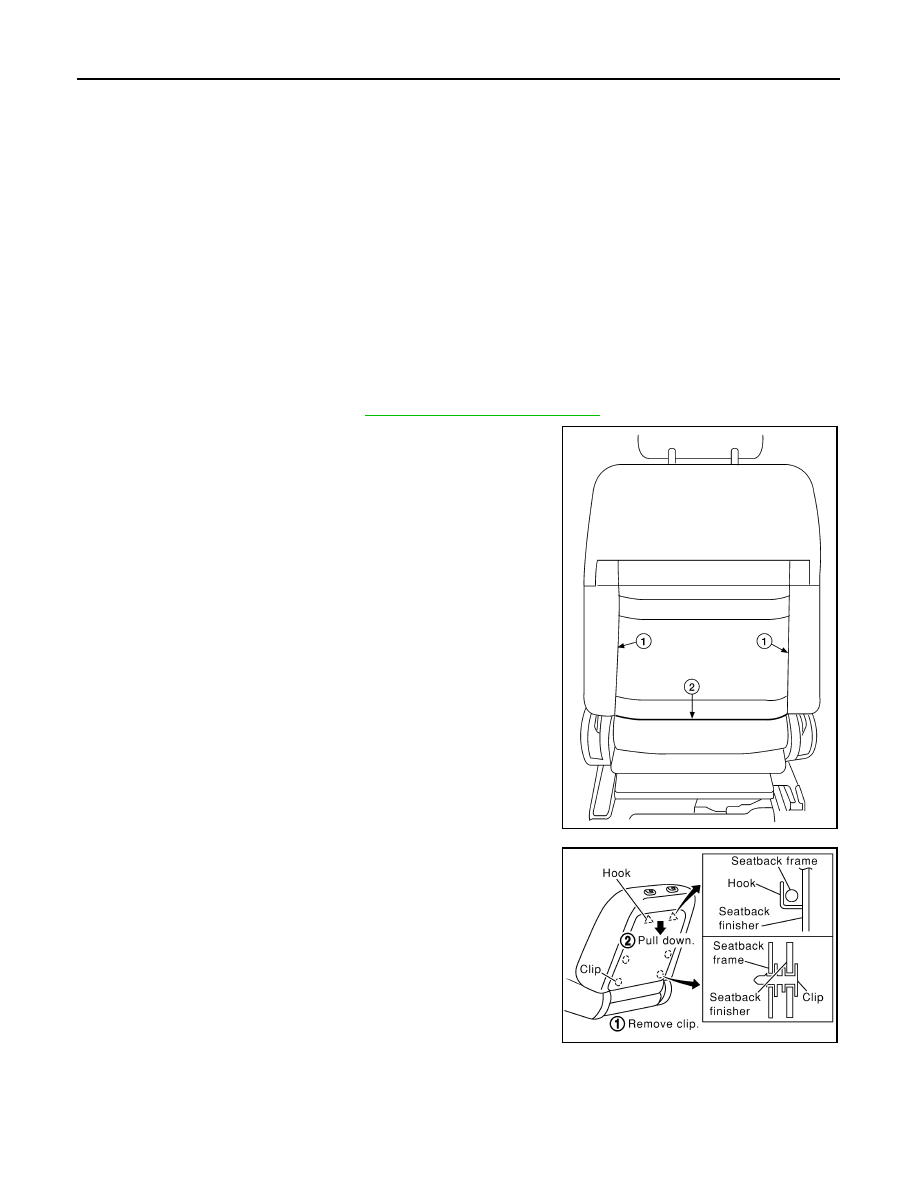

Seatback Assembly

INFOID:0000000003935865

REMOVAL

NOTE:
On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
1.

Remove the seat assembly. Refer to

SE-30, "Removal and Installation"

.

2.

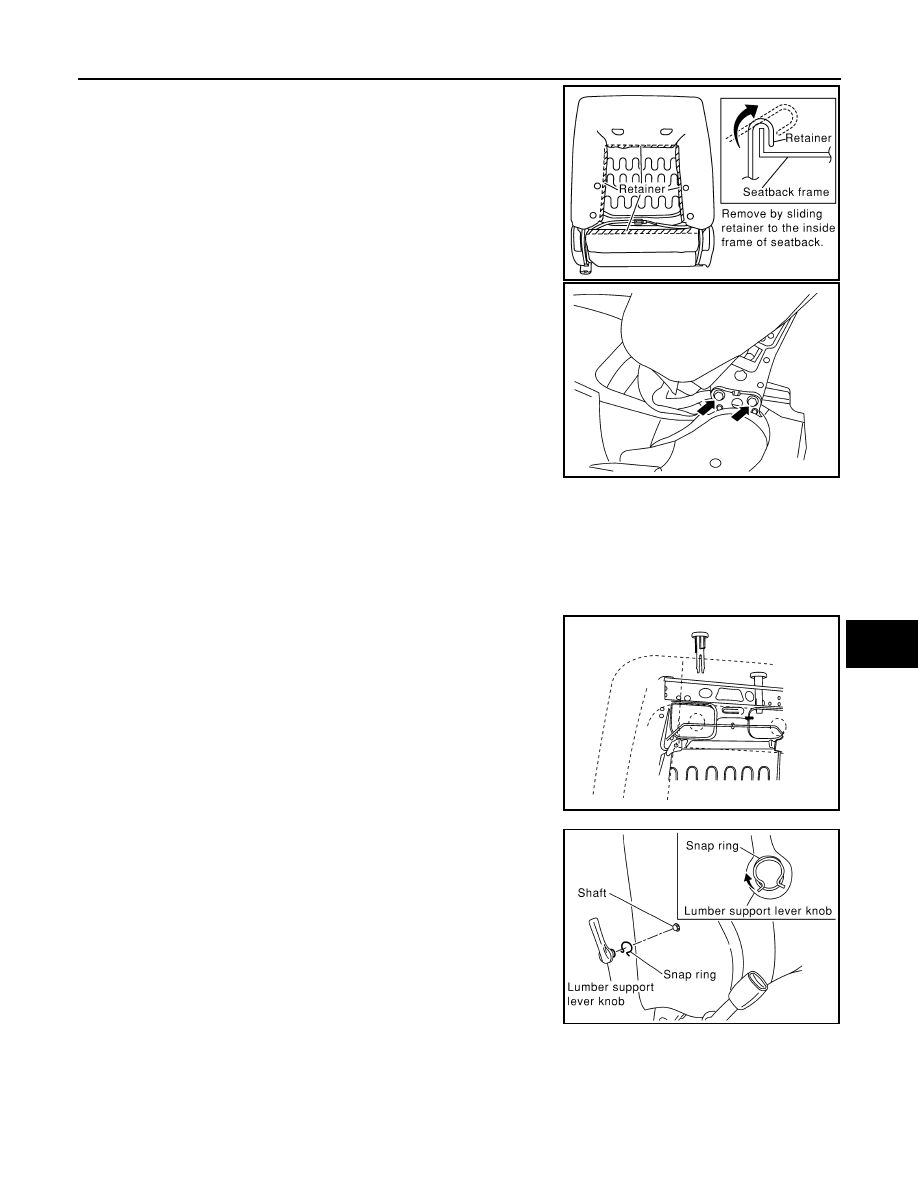

Unzip the seatback trim flap (1).

3.

Unclip the lower retainer (2).

4.

If equipped, remove the seatback board from the back of the
seatback and remove the retainers.

1.

Front seatback lever

2.

Seatback trim without side air bag

3.

Headrest

4.

Seatback assembly with side air bag 5.

Seat cushion assembly

6.

Seat cushion outer finisher

7.

Leg cover

8.

Seat frame assembly

9.

Passenger seat wiring harness

10. Seat cushion inner cover

11. Leg cover

12. Seat belt buckle assembly

13. Inboard reclining arm outer cover

14. Inboard reclining arm inner cover

15. Outboard reclining arm inner cover

16. Outboard reclining arm outer cover

17. Seat cushion rear finisher

18. Seatback board

19. Headrest holder with multi position

lock

20. Headrest holder

21. Seatback pad without side air bag

22. Seatback frame without side air bag

23. Seatback fold flat release lever as-

sembly

24. Damper assembly

LIIA2419E

PIIA0163E

2009 Pathfinder

FRONT SEAT

SE-39

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

5.

Remove the bolts (2 for each side) and the seatback assembly.

DISASSEMBLY

NOTE:
On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.

1.

Remove the seatback assembly.

2.

Remove the headrest.

3.

From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).

4.

Remove the snap ring and the lumbar support lever knob.

5.

Remove the seatback trim and pad assembly.

6.

Remove the hog ring to separate the seatback trim from the pad and the heating element (if equipped).

ASSEMBLY

Assembly is in the reverse order of disassembly.

SIIA0113E

LIIA2420E

LRS023

PIIA1156E

2009 Pathfinder

SE-40

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

INSTALLATION

Installation is in the reverse order of removal.

Seat Cushion Trim and Pad

INFOID:0000000003935866

REMOVAL

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.
• When removed, the passenger seat cushion must always be placed pan side UP to prevent damage.
• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

• The Occupant Classification System control module can only be replaced as part of the seat cushion

assembly.

1.

Remove the front seat assembly. Refer to

SE-30, "Removal and Installation"

.

2.

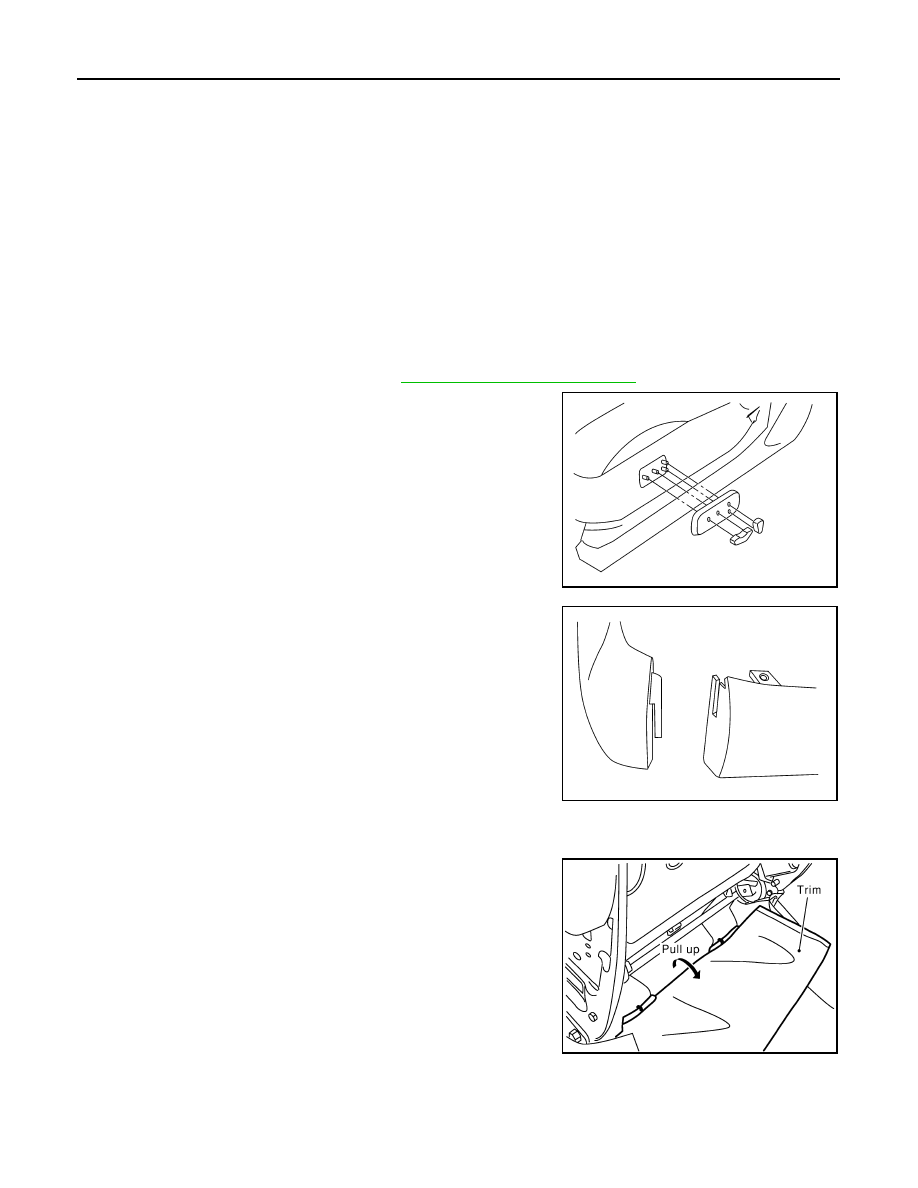

Remove the power seat switch knobs and power seat switch
escutcheon (if equipped)(or lift knobs on manual seats).

3.

Remove the seat cushion outer finisher.

4.

Remove the power seat switch screws.

5.

Remove four bolts and the seat cushion assembly.
• On the fold flat passenger seat it is necessary to unclip the

rear flap j-clip from the seat pan.

6.

Remove the retainer on the seat cushion frame, then remove the harness connector for the seat cushion
heater (if equipped).

DISASSEMBLY

LIIA0681E

LIIA0285E

SIIA0503E

2009 Pathfinder

FRONT SEAT

SE-41

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

1.

Remove the seat cushion assembly.

2.

On the drivers seat only, remove the hog rings to separate the trim cover from the pad and seat cushion
heater unit.

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

PASSENGER SEATBACK BOARD - SOFT SEATBACK

Removal

1.

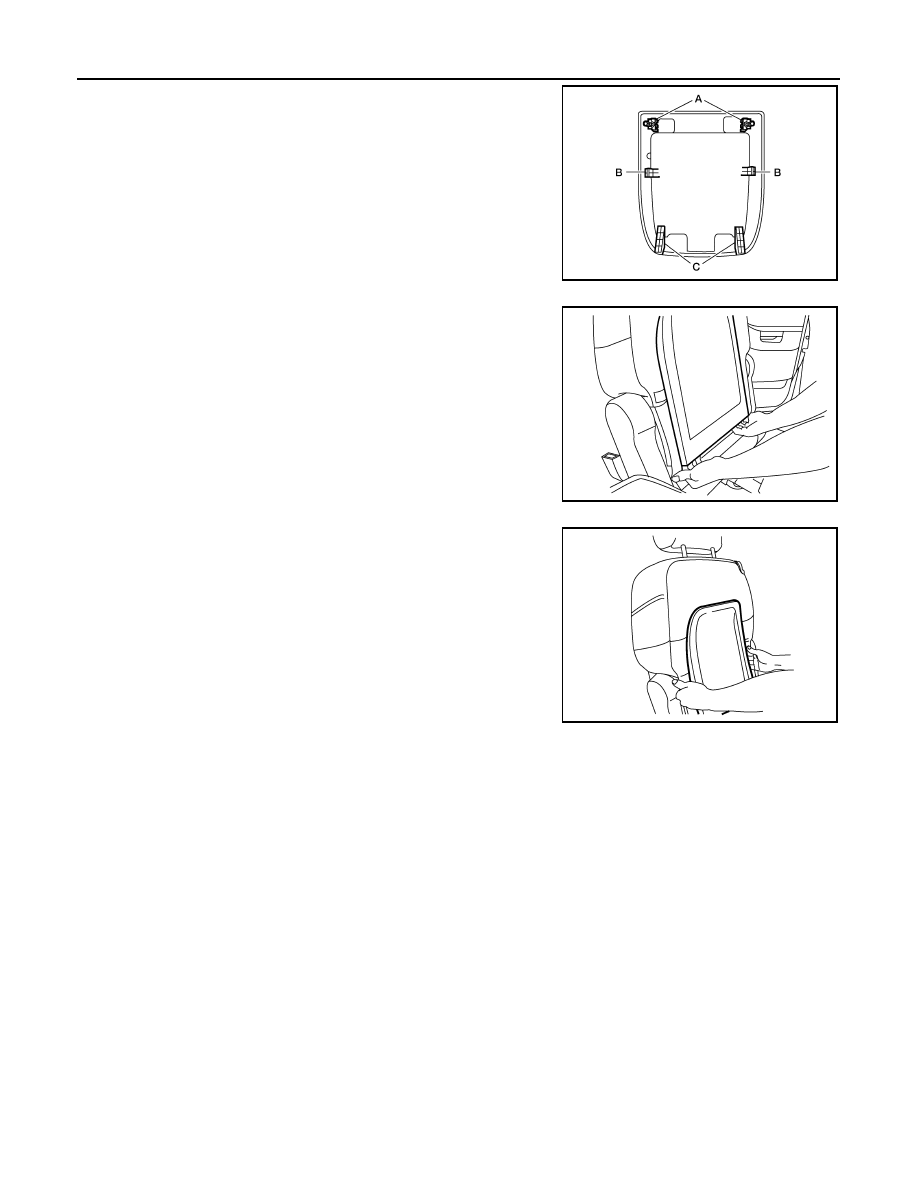

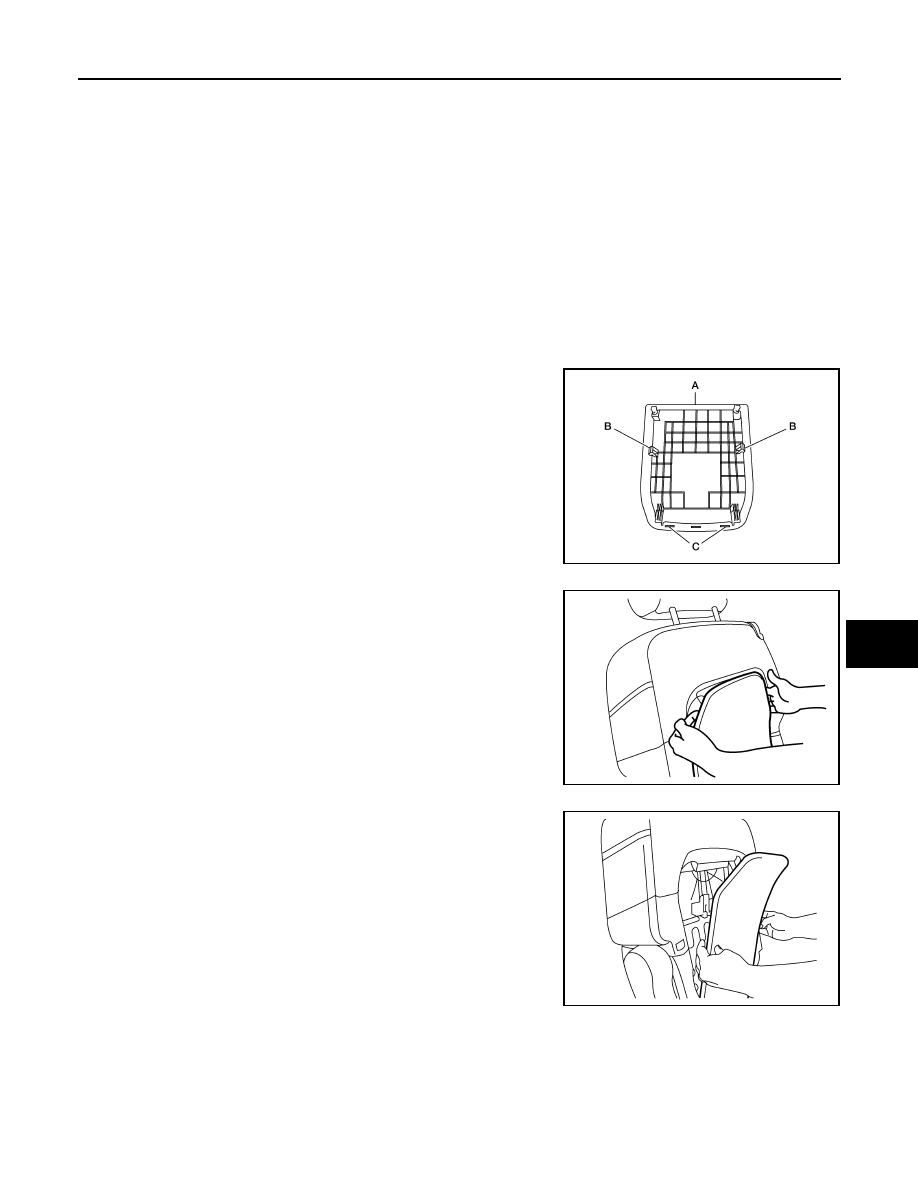

The seatback board is attached to the seat frame with the follow-
ing:
• 2 top tabs (A)
• 2 side tabs (B)
• 2 bottom clips (C) (must be replaced)

2.

Move seat to forward position.

3.

Hold the seatback board as shown and pull the top of the seat-
back board away from the seat back frame.

4.

Pull the middle part of the seatback board to disengage the side
tabs (A) from the seatback frame.

5.

Pull the lower part of the seatback board to disengage the bot-
tom clips from the seatback frame.

Installation

Installation is in the reverse order of removal.

PASSENGER SEATBACK BOARD - HARD SEATBACK

Removal

ALIIA0366ZZ

ALIIA0368ZZ

ALIIA0367ZZ

2009 Pathfinder

SE-42

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

1.

The seatback board is attached to the seat frame with the follow-
ing:
• 2 top tabs (A)
• 2 side tabs (B)
• 2 bottom clips (C) (must be replaced)

2.

Move seat to forward position.

3.

Hold the seatback board as shown and pull the bottom of the
seatback board away from the seat back frame.

4.

Pull the middle part of the seatback board to disengage the side
tabs (A) from the seatback frame.

5.

Lift the upper part of the seatback board to disengage the top
tabs from the seatback frame.

Installation

Installation is in the reverse order of removal.

ALIIA0369ZZ

ALIIA0370ZZ

ALIIA0371ZZ

2009 Pathfinder

REAR SEAT

SE-43

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

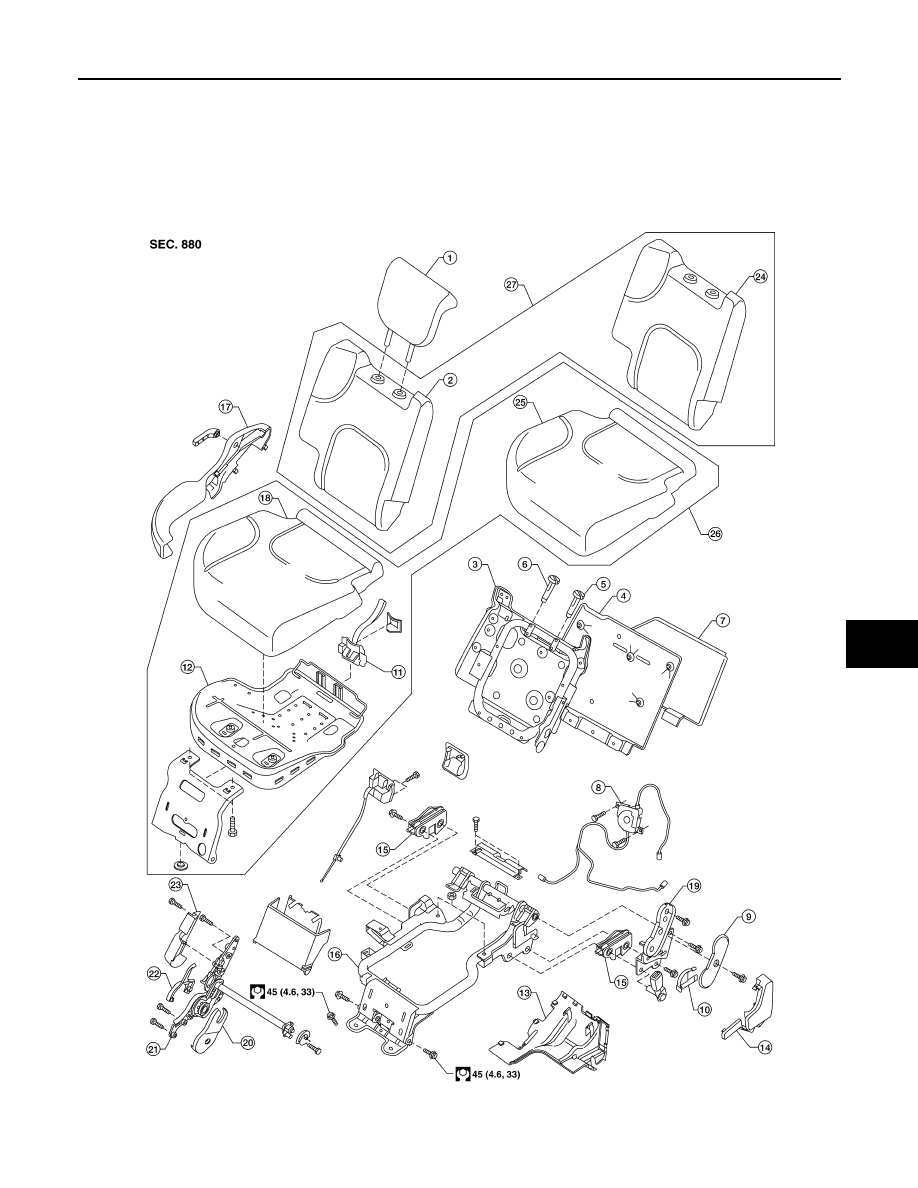

Exploded View

INFOID:0000000003935867

Disassembly and Assembly

INFOID:0000000003935868

Second Row Outer

ALJIA0227GB

2009 Pathfinder

SE-44

< DISASSEMBLY AND ASSEMBLY >

REAR SEAT

1.

Headrest

2.

Seatback pad

3.

Seatback frame

4.

Seatback panel

5.

LH Headrest locking guide

6.

RH Headrest guide

7.

Flipper panel

8.

Seat actuator assembly

9.

Reclining device inner cover

10. Reclining device inner mid cover

11.

Latch assembly

12. Seat cushion frame assembly

13. Lower rear seat cover

14.

Lower rear seat cover inner

15. Cushion floor latch

16. Seat cushion support frame assem-

bly

17.

Lower rear seat cover outer

18. Seat cushion pad

19. Inner inboard reclining device cover

20.

Inner outboard reclining device cover  21. Reclining device lever

22. Reclining device outer mid cover

23.

Reclining device outer cover

24. Seatback trim cover

25. Seat cushion trim cover

26.

Seat cushion assembly

27. Seatback assembly
