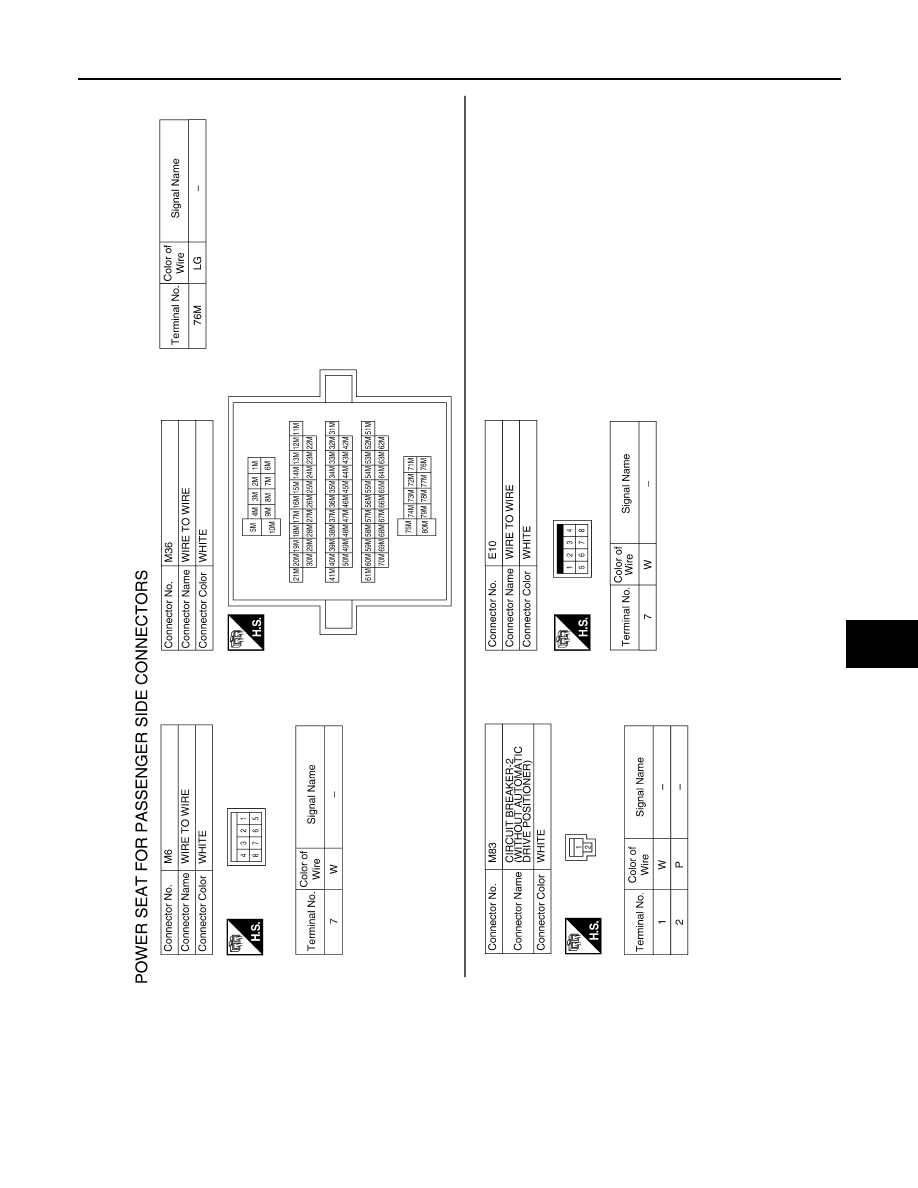

POWER SEAT

SE-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0020GB

2009 Pathfinder

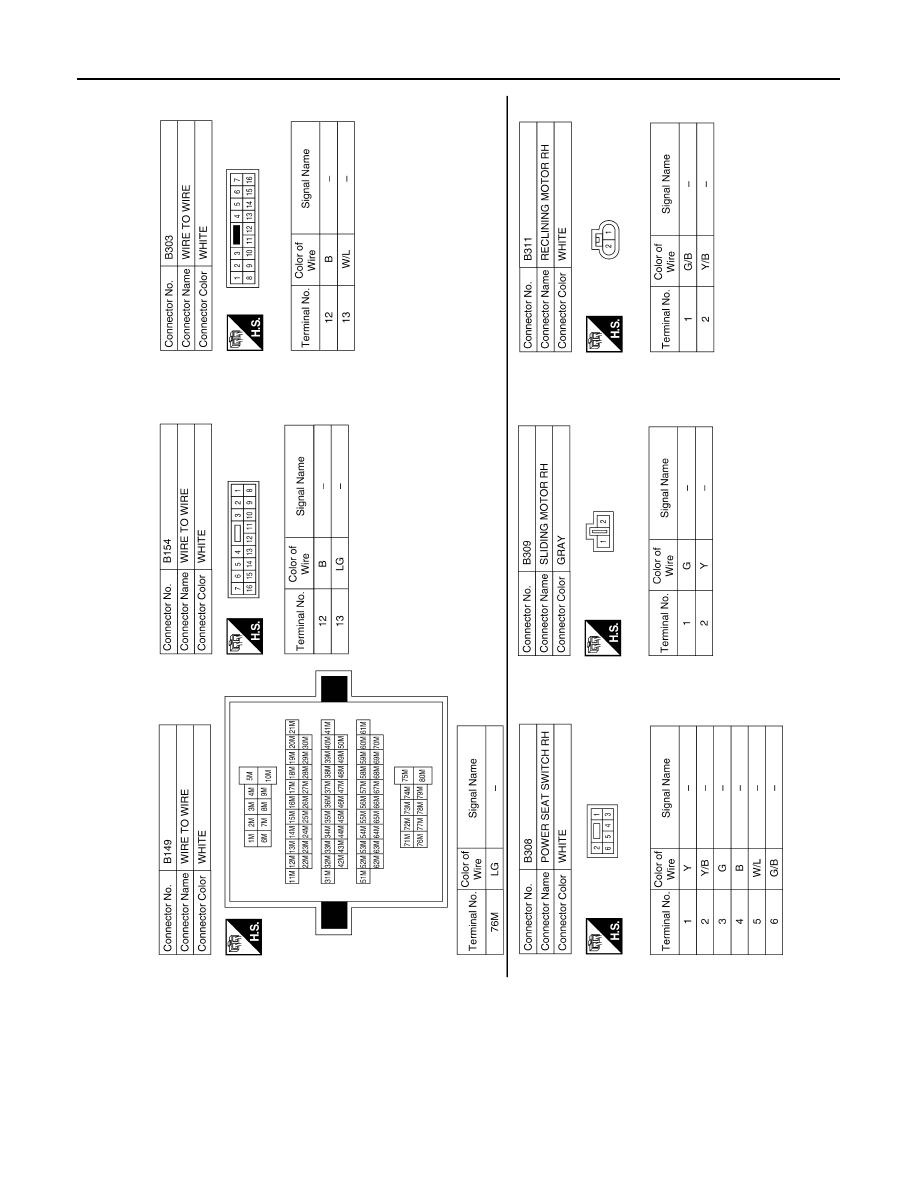

SE-14

< COMPONENT DIAGNOSIS >

POWER SEAT

ABJIA0007GB

2009 Pathfinder

HEATED SEAT

SE-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT

Description

INFOID:0000000003935855

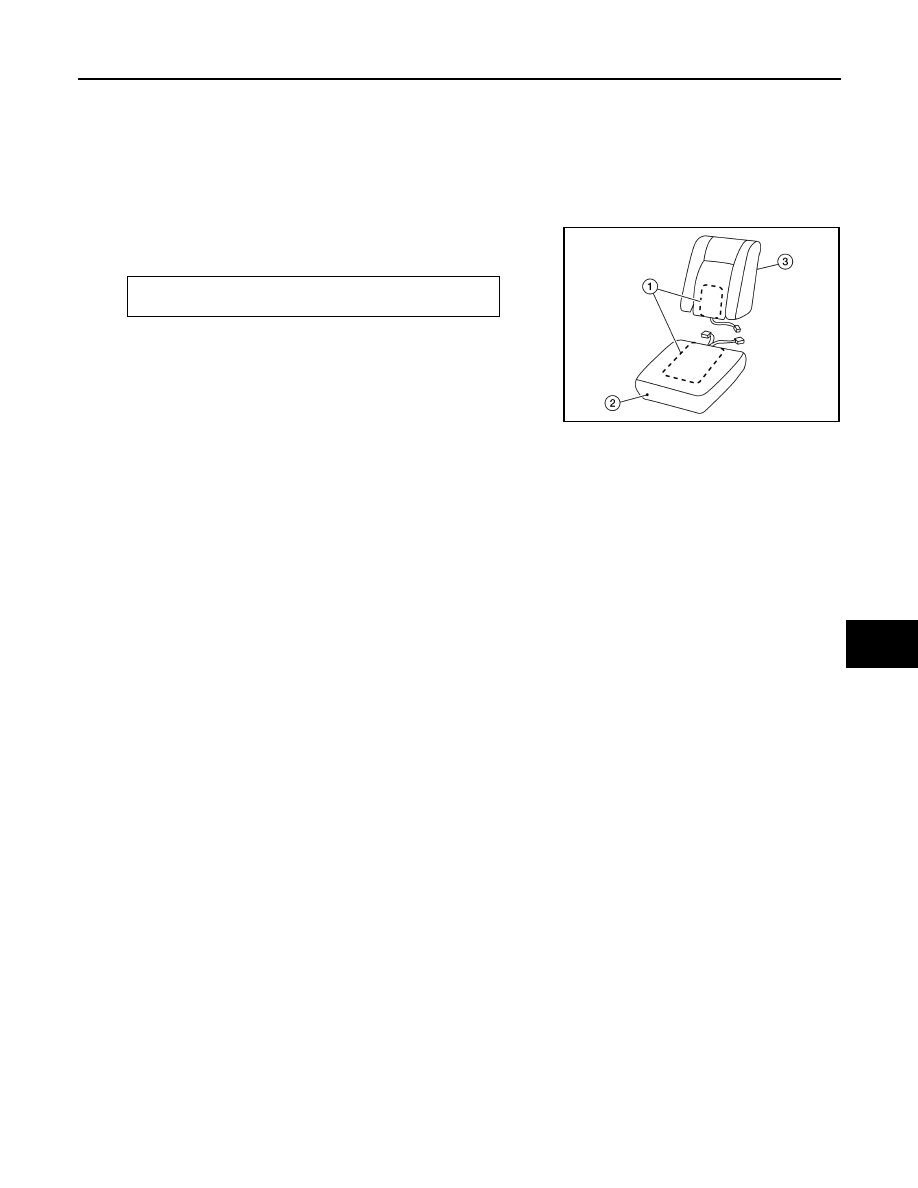

• When handling seat, be extremely careful not to scratch heating unit (1).
• To replace heating unit for vehicles without side air bags, seat trim and pad should be separated. For vehi-

cles equipped with side air bags, seat trim and pad should be separated for the front seat cushion LH. For
seatback and front seat cushion RH, complete cushion (2) or seatback assembly (3) must be replaced.

• Do not use any organic solvent, such as thinner, benzene, alcohol,

etc. to clean trim.

Thermostat operation

ON

OFF

Trim temperature

°

C (

°

F)

25 -35 (77 - 95)

35 - 45 (95 - 113)

AWJIA0054ZZ

2009 Pathfinder

SE-16

< COMPONENT DIAGNOSIS >

HEATED SEAT

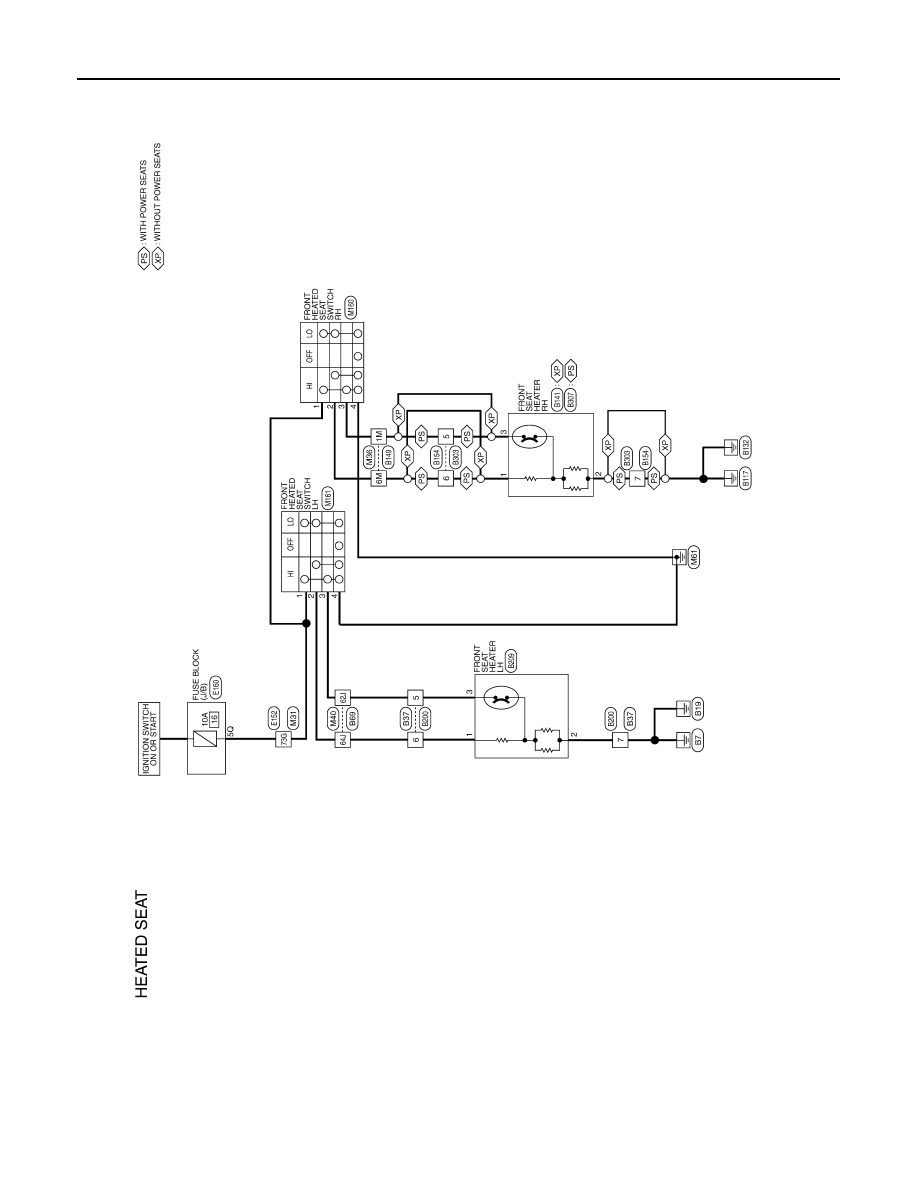

Wiring Diagram

INFOID:0000000003935856

ABJWA0005GB

2009 Pathfinder

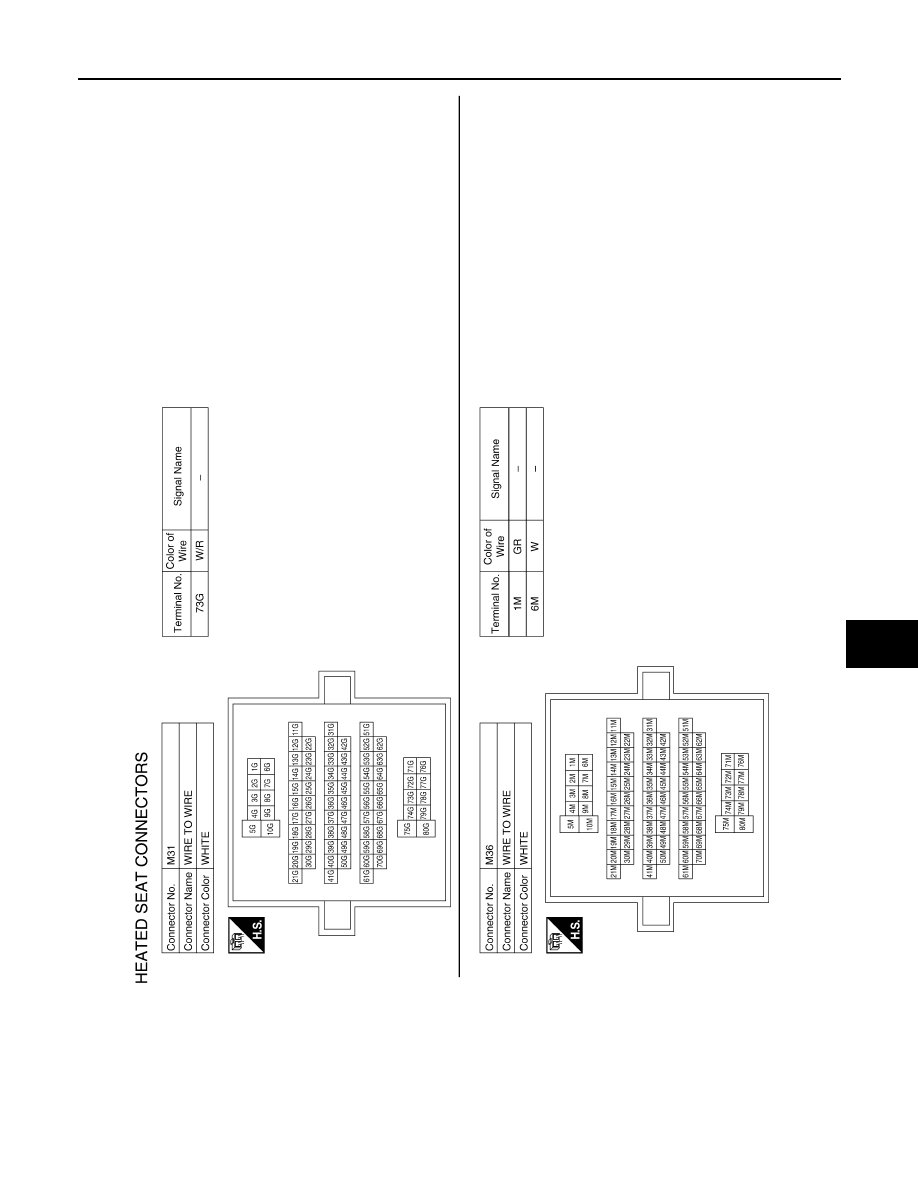

HEATED SEAT

SE-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0021GB

2009 Pathfinder

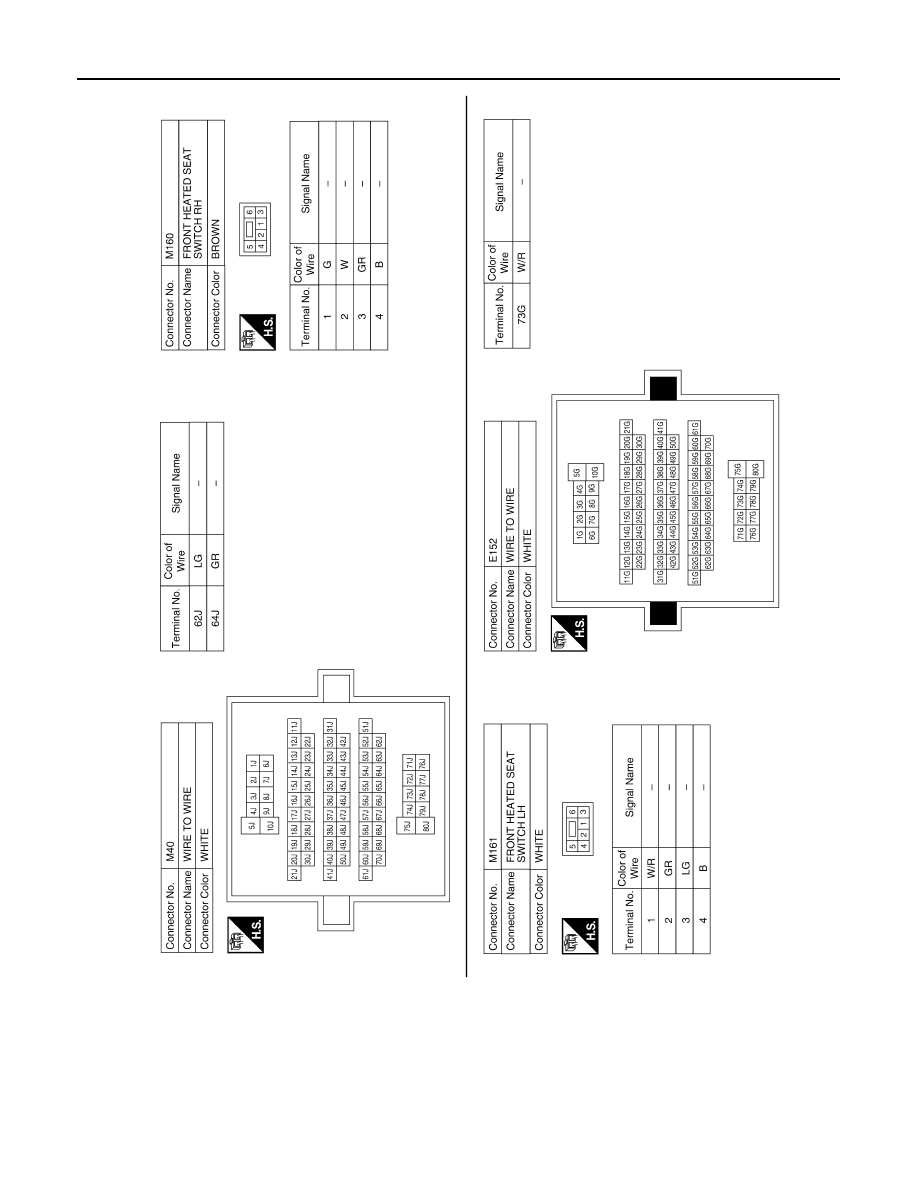

SE-18

< COMPONENT DIAGNOSIS >

HEATED SEAT

ABJIA0022GB

2009 Pathfinder

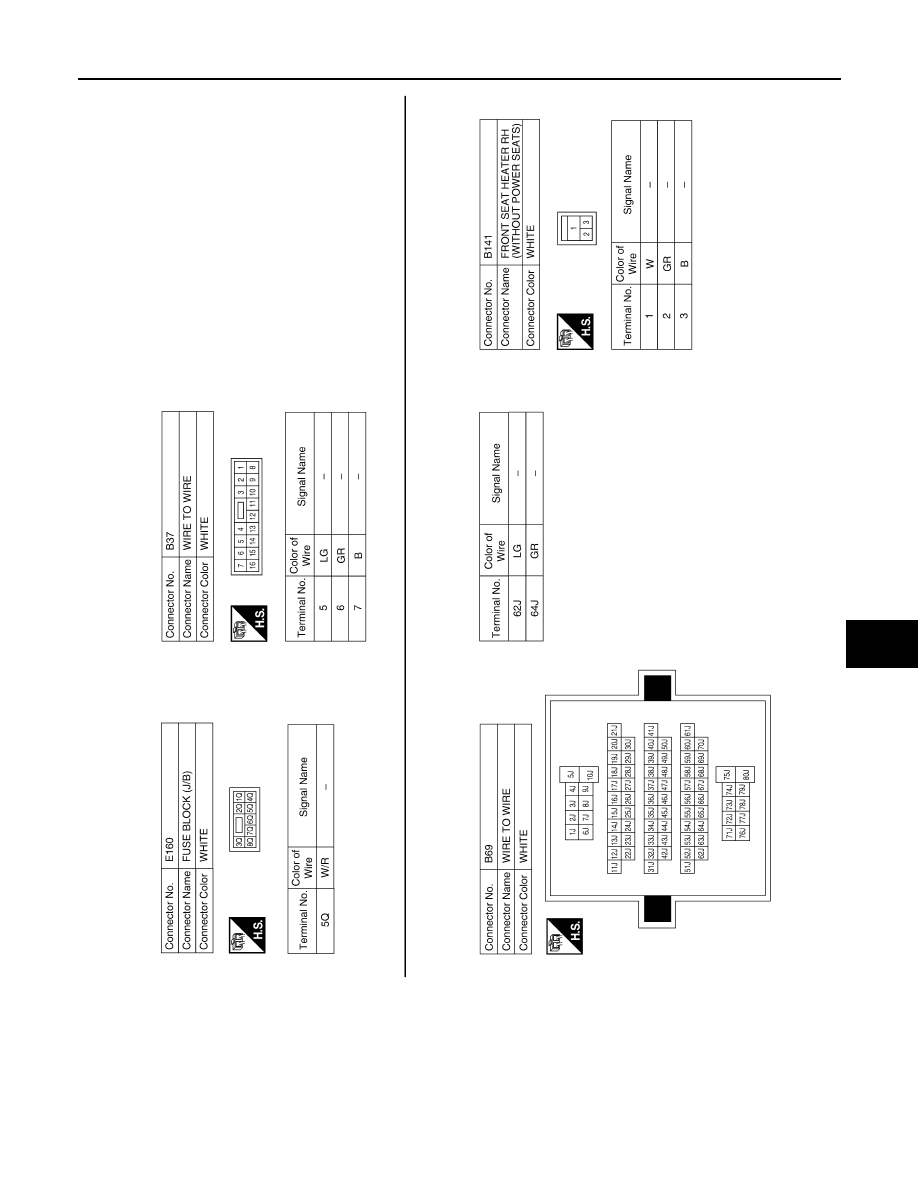

HEATED SEAT

SE-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0009GB

2009 Pathfinder

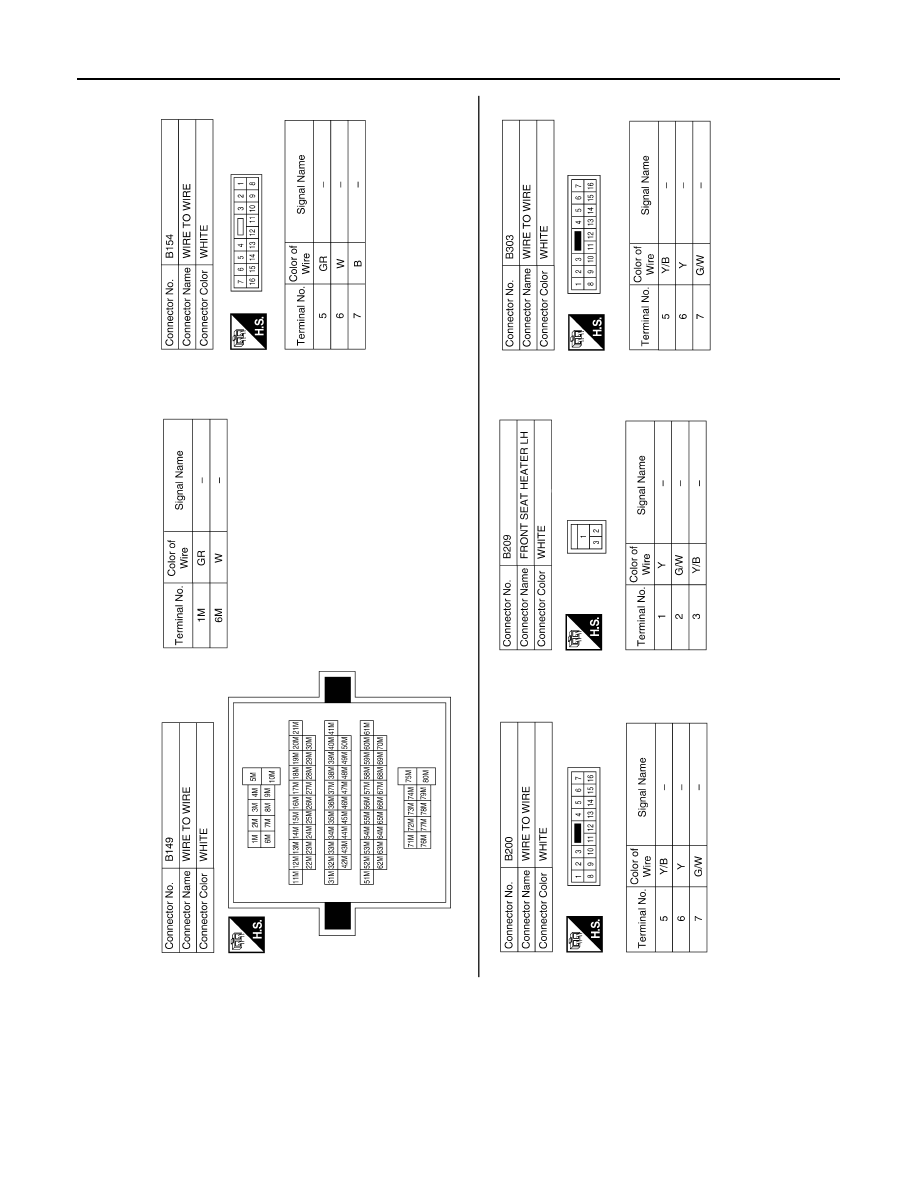

SE-20

< COMPONENT DIAGNOSIS >

HEATED SEAT

ABJIA0010GB

2009 Pathfinder
