Nissan Pathfinder (2009 year). Manual - part 552





PWC-96

< ON-VEHICLE REPAIR >

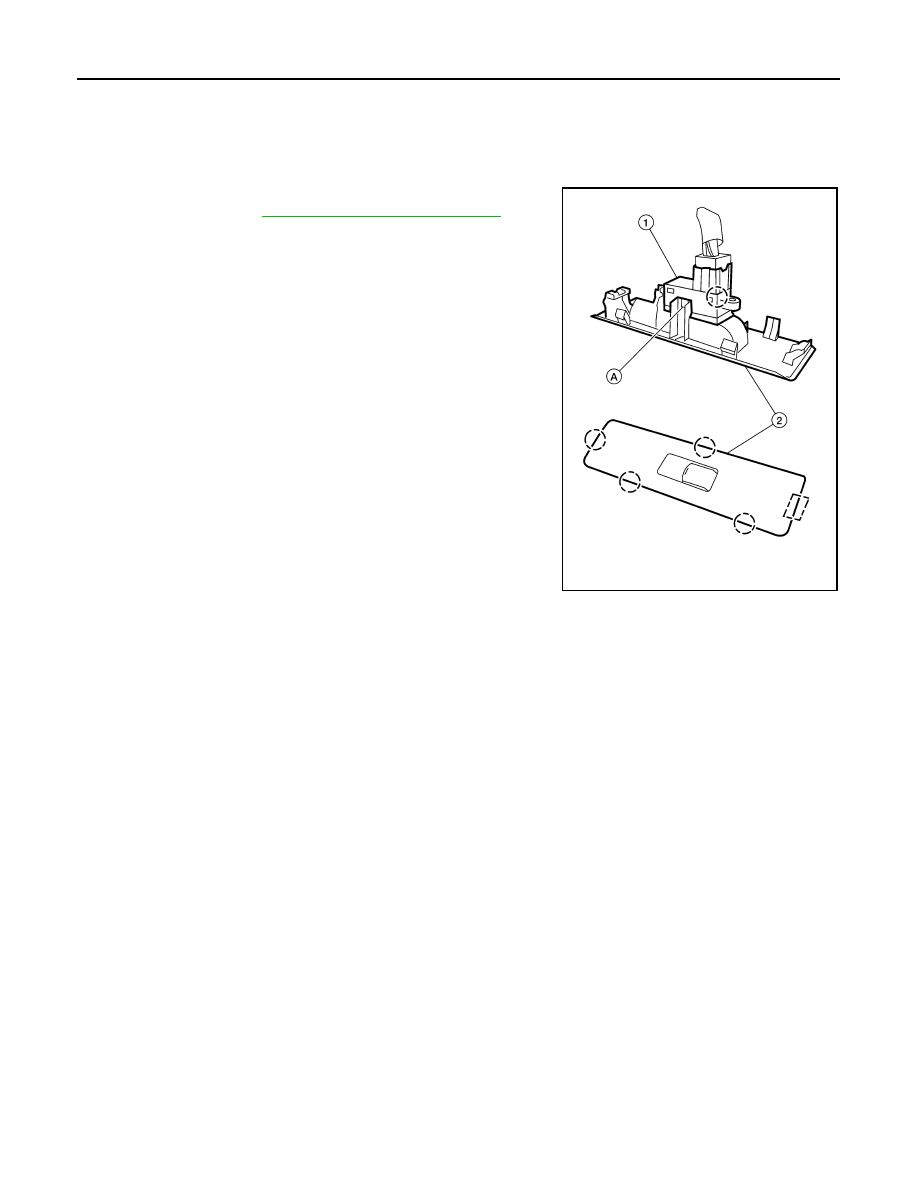

REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000003935810

REMOVAL

1.

Remove the rear power window switch finisher (2) from the rear
door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Release the two tabs (A), one on either side, then separate the
rear power window switch (1) from the finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1099ZZ

2009 Pathfinder

PWO-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003935239

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004414838

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

PWO

POWER SOCKET

PWO-3

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

POWER SOCKET

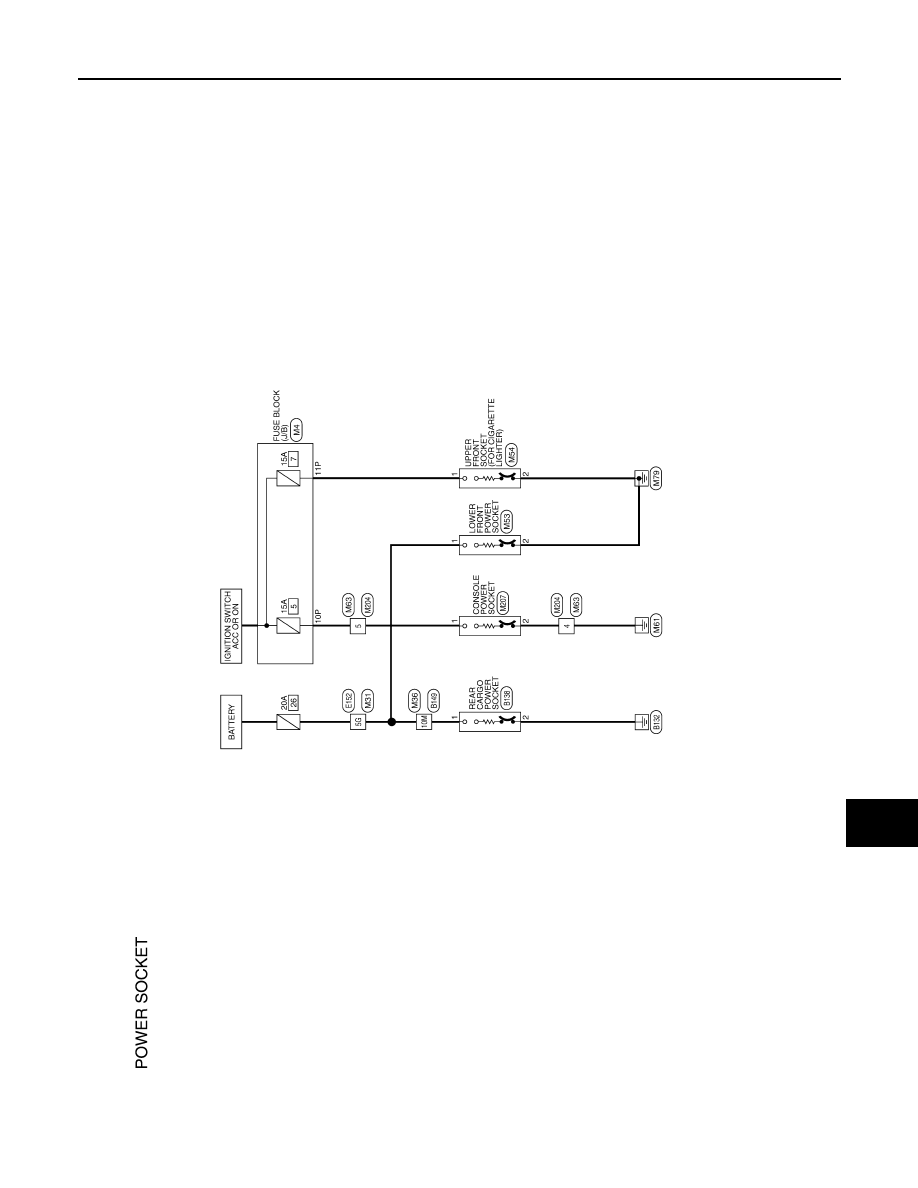

Wiring Diagram-Power Socket/Cigarette Lighter

INFOID:0000000003935240

ABMWA0007GB

2009 Pathfinder

PWO-4

< COMPONENT DIAGNOSIS >

POWER SOCKET

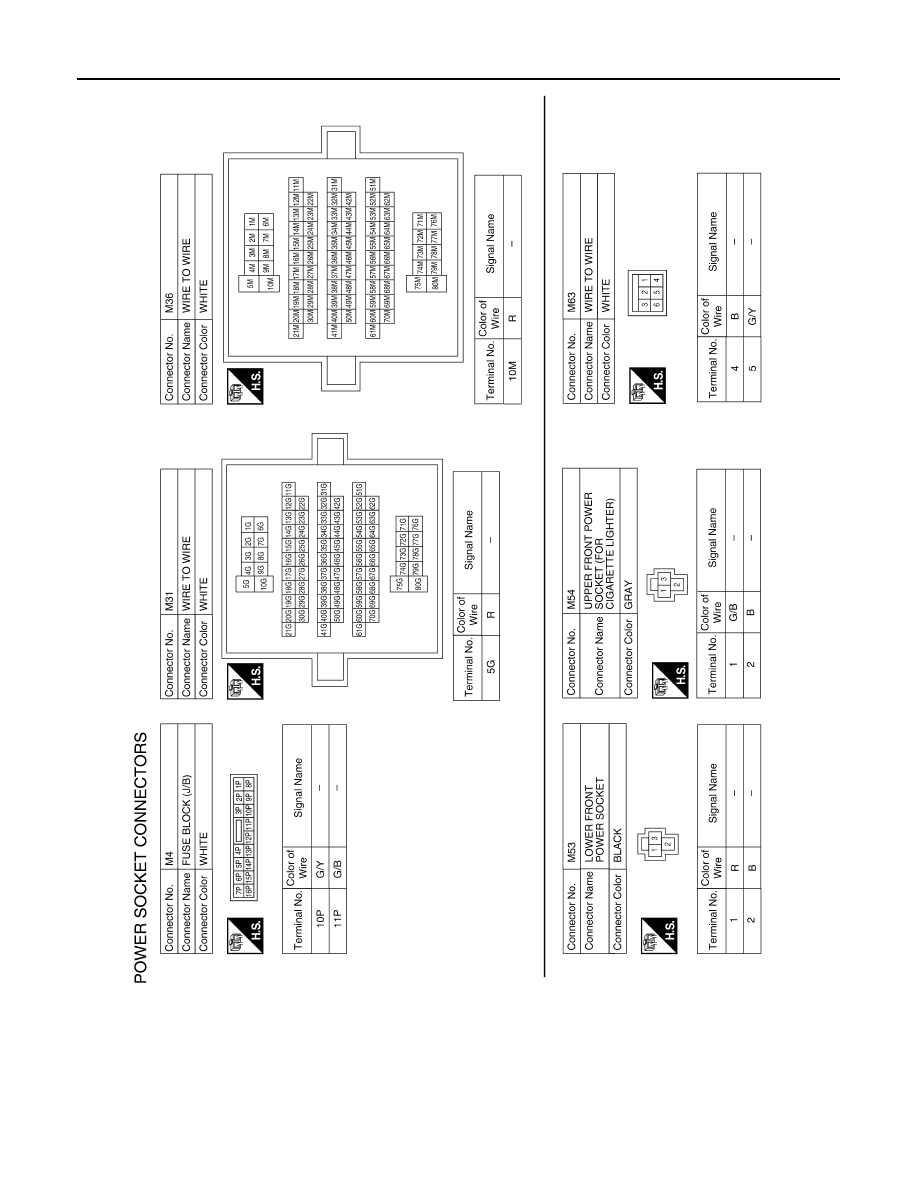

ABMIA0058GB

2009 Pathfinder

PWO

POWER SOCKET

PWO-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

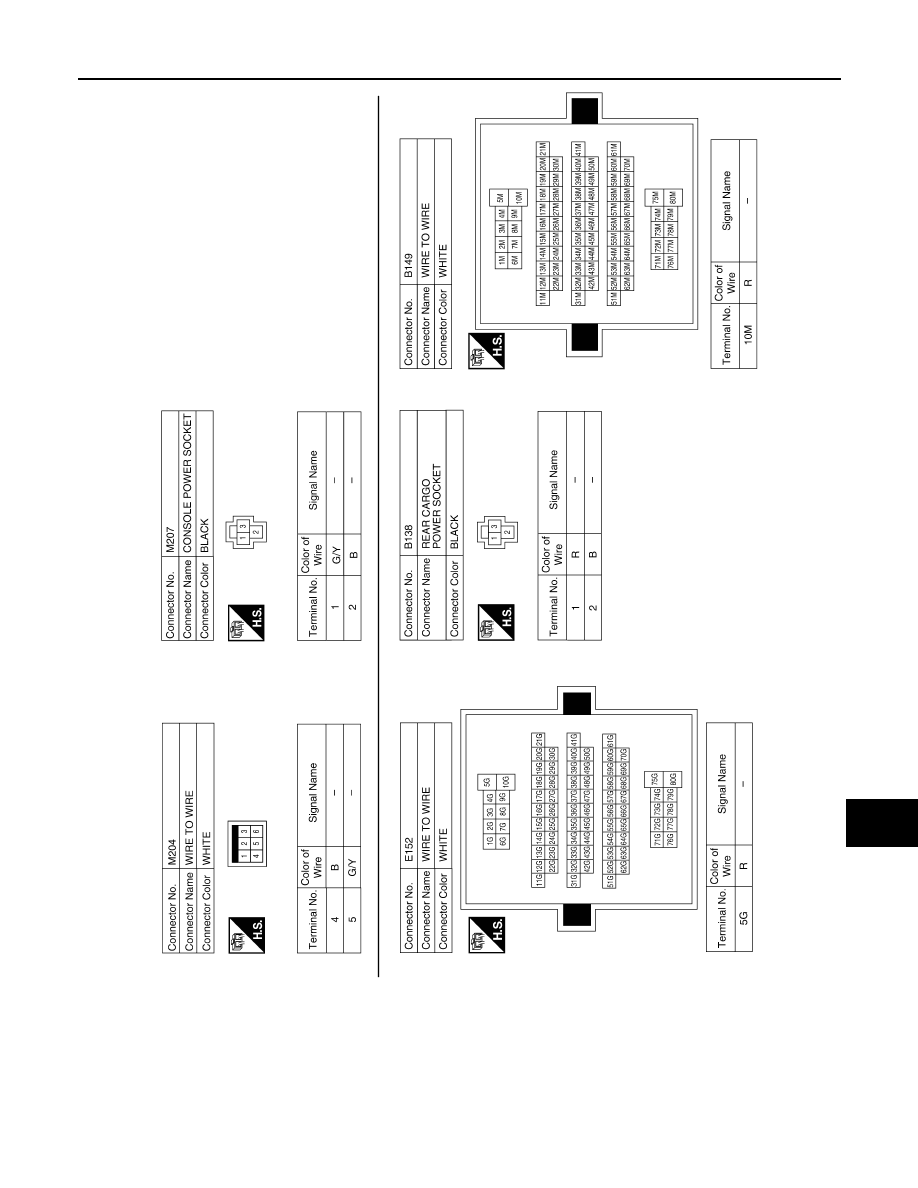

ABMIA0059GB

2009 Pathfinder

PWO-6

< ON-VEHICLE REPAIR >

POWER SOCKET

ON-VEHICLE REPAIR

POWER SOCKET

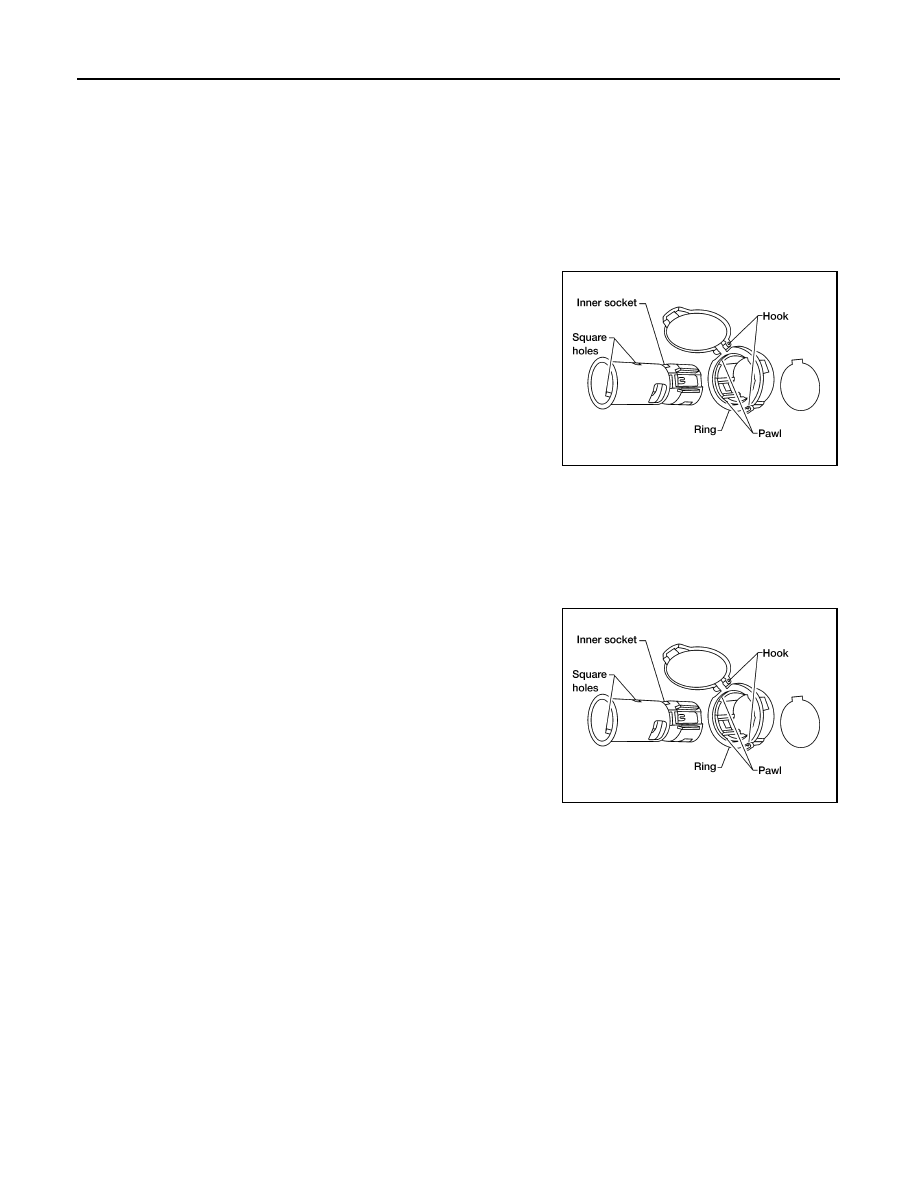

Removal and Installation

INFOID:0000000003935241

LOWER FRONT POWER SOCKET AND REAR CARGO POWER SOCKET

Removal

1.

Disconnect battery negative terminal.

2.

Remove inner socket from the ring, while pressing the hook on
the ring out from square hole.

3.

Disconnect power socket connector.

4.

Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

UPPER FRONT POWER SOCKET (FOR CIGARETTE LIGHTER) AND CONSOLE POWER SOCK-
ET

Removal

1.

Remove inner socket from the ring, while pressing the hook on
the ring out from square hole.

2.

Disconnect power socket connector.

3.

Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

WKIA1035E

WKIA1035E

2009 Pathfinder

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Caution ......................................................................

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

ON-VEHICLE MAINTENANCE .....................

5

WHEEL HUB  .......................................................

5

On-Vehicle Inspection and Service  ...........................

5

ON-VEHICLE REPAIR ..................................

6

WHEEL HUB  .......................................................

6

Component ...............................................................

6

REAR DRIVE SHAFT .........................................

7

Component ...............................................................

7

REMOVAL AND INSTALLATION  ................

8

WHEEL HUB  ......................................................

8

Removal and Installation  ..........................................

8

REAR DRIVE SHAFT .........................................

9

Removal and Installation  ..........................................

9

DISASSEMBLY AND ASSEMBLY ..............

10

REAR DRIVE SHAFT ........................................

10

Disassembly and Assembly .....................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

15

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

15

Wheel Bearing  .........................................................

15

Drive Shaft ...............................................................

15

Boot Bands  ..............................................................

15

2009 Pathfinder
