Nissan Pathfinder (2009 year). Manual - part 533

PG

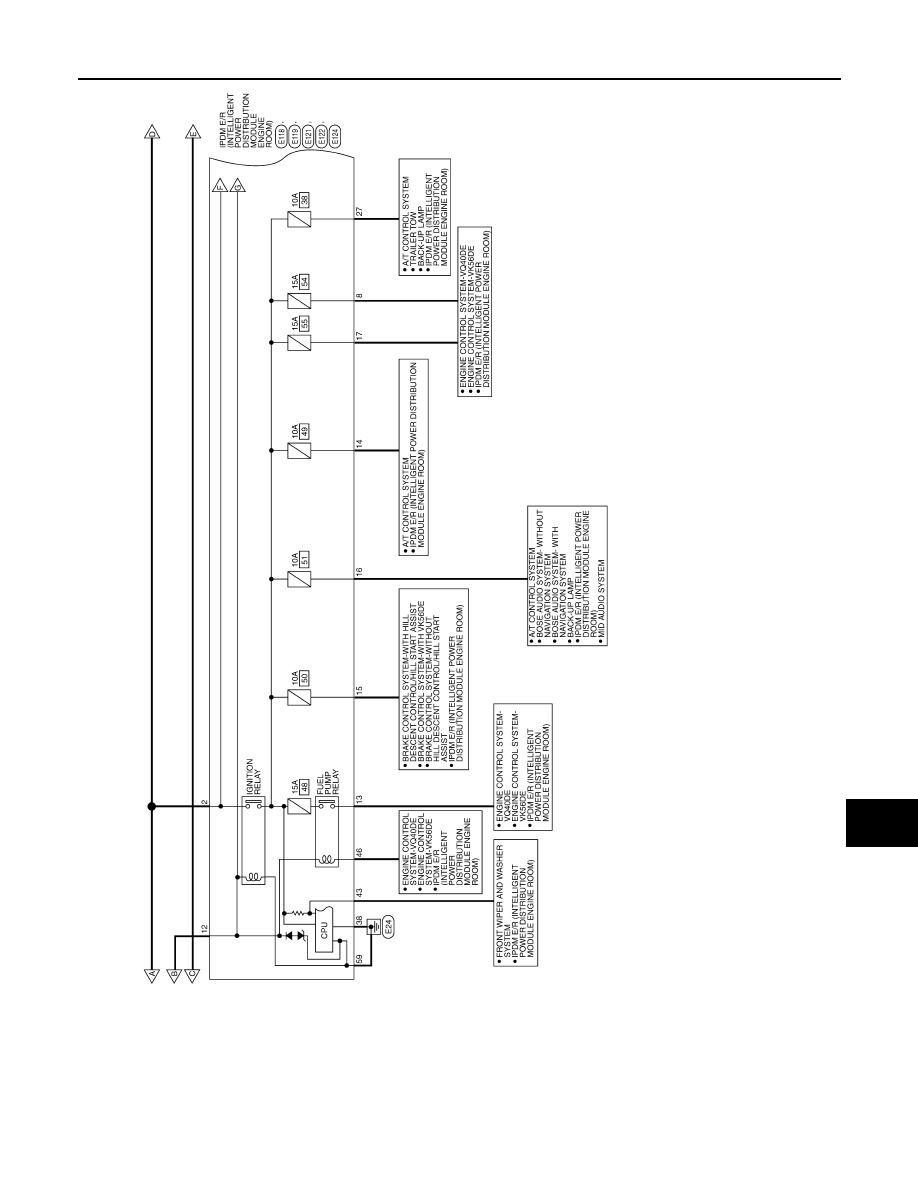

POWER SUPPLY ROUTING CIRCUIT

PG-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA0124GB

2009 Pathfinder

PG-22

< COMPONENT DIAGNOSIS >

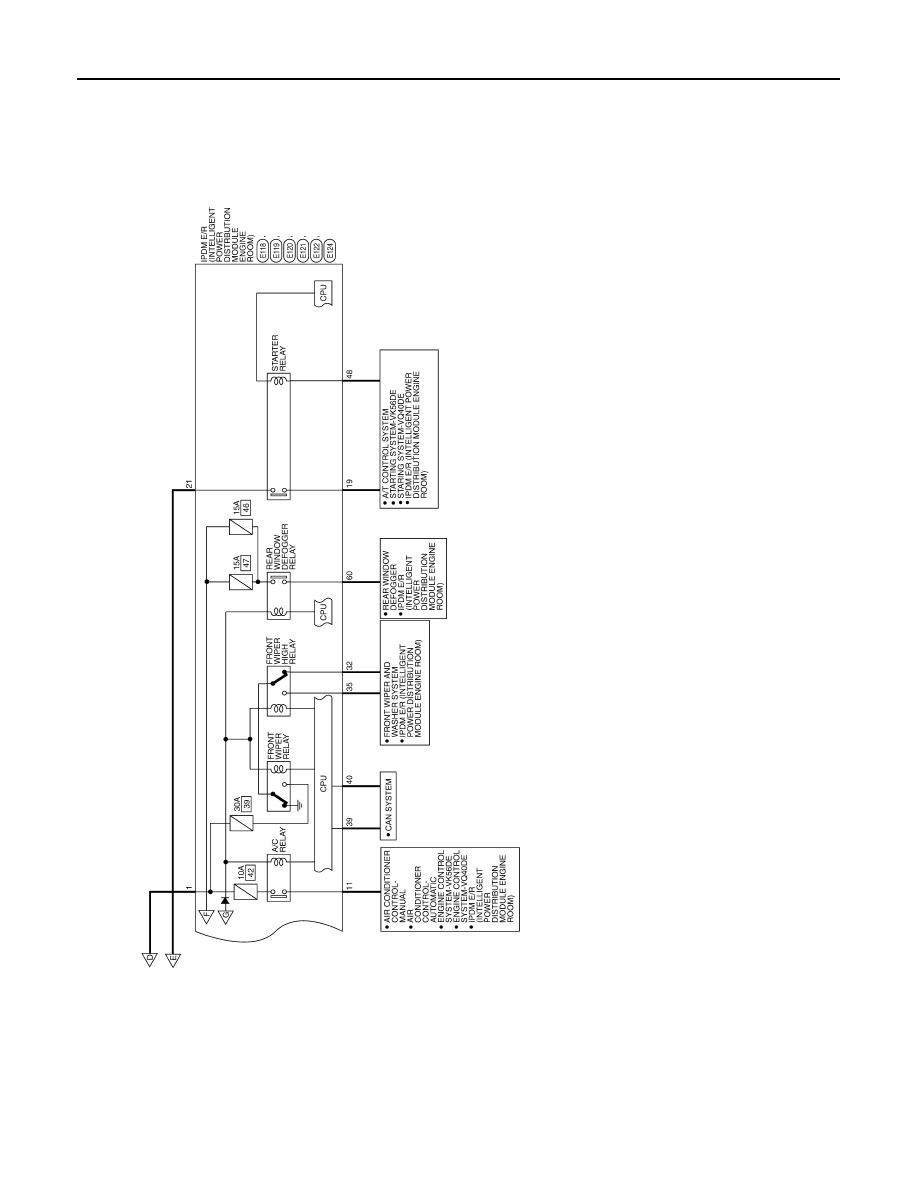

POWER SUPPLY ROUTING CIRCUIT

ABMWA0125GB

2009 Pathfinder

PG

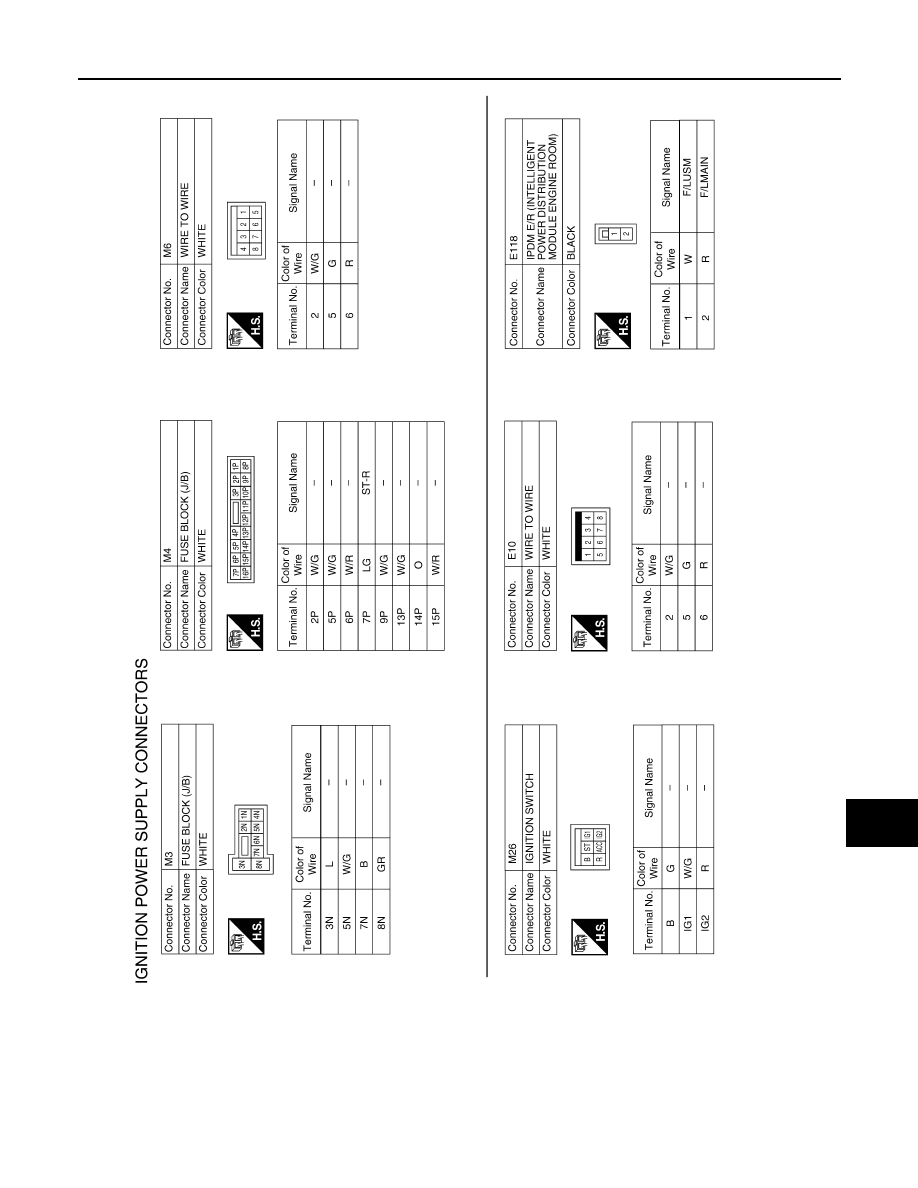

POWER SUPPLY ROUTING CIRCUIT

PG-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

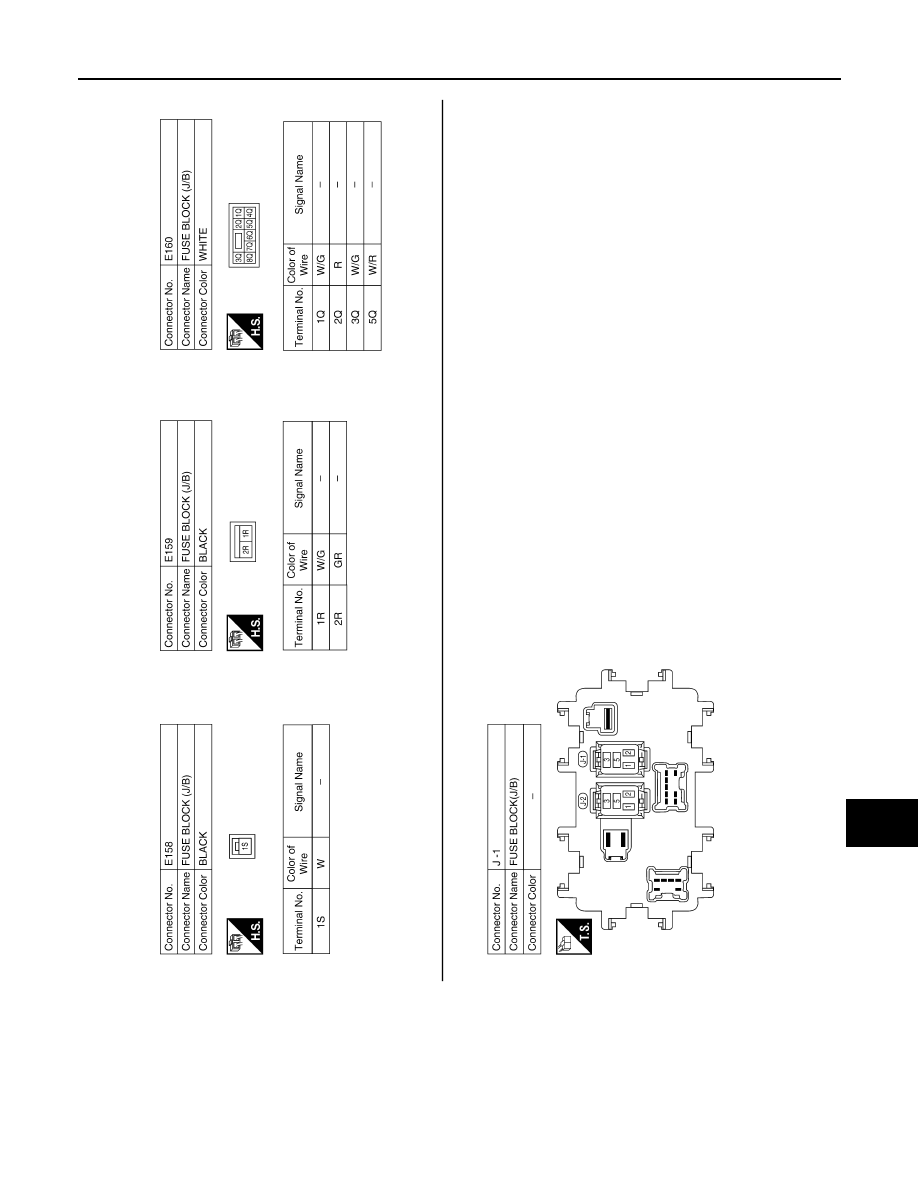

ABMIA0335GB

2009 Pathfinder

PG-24

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

ABMIA0336GB

2009 Pathfinder

PG

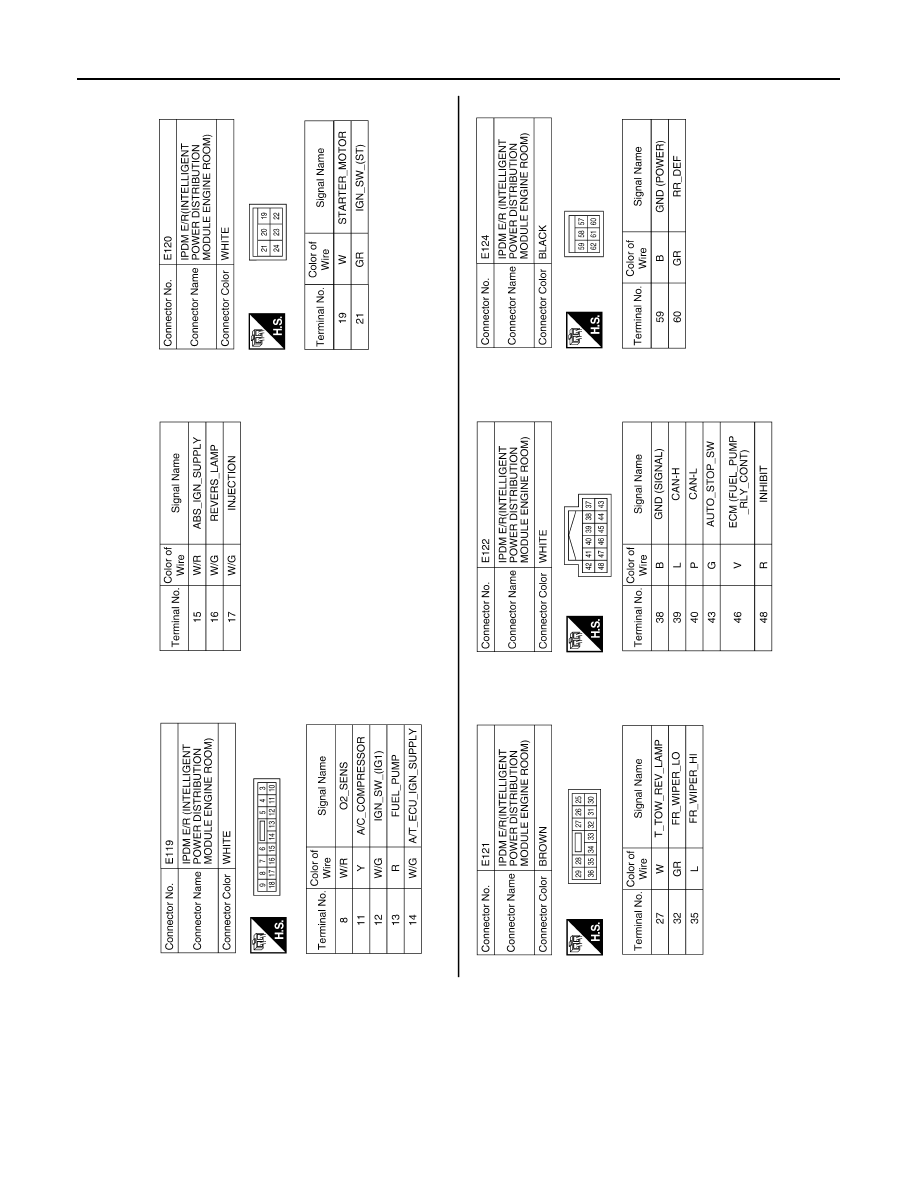

POWER SUPPLY ROUTING CIRCUIT

PG-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA0337GB

2009 Pathfinder

PG-26

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

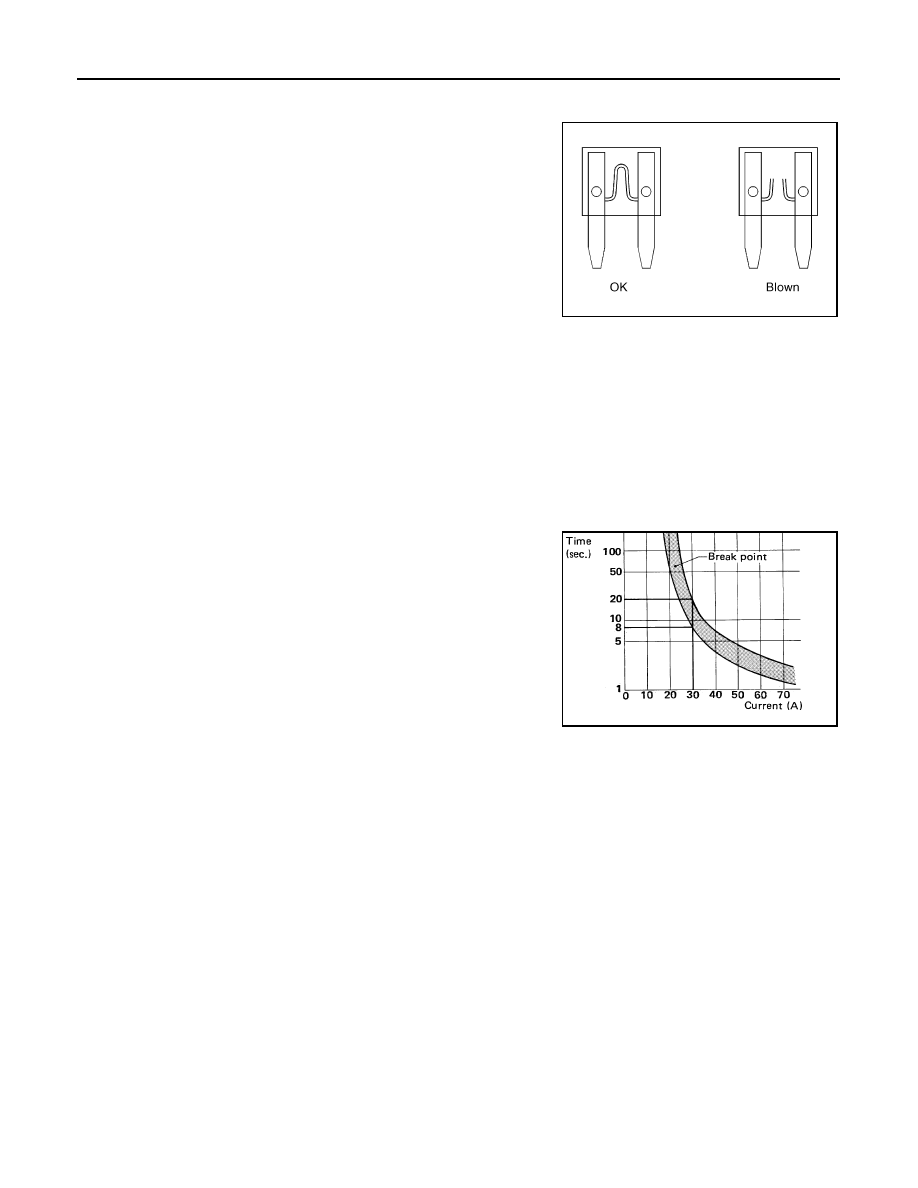

Fuse

INFOID:0000000003935675

• If fuse is blown, be sure to eliminate cause of incident before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

Fusible Link

INFOID:0000000003935676

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of incident.

• Never wrap outside of fusible link with vinyl tape.
• Never let fusible link touch any other wiring harness, vinyl or rubber parts.

Circuit Breaker (Built Into BCM)

INFOID:0000000003935677

For example, when current is 30A, the circuit is broken within 8 to 20
seconds.
A circuit breaker is used for the following systems:
• Power windows
• Power sunroof

CEL083

SBF284E

2009 Pathfinder

PG

GROUND CIRCUIT

PG-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

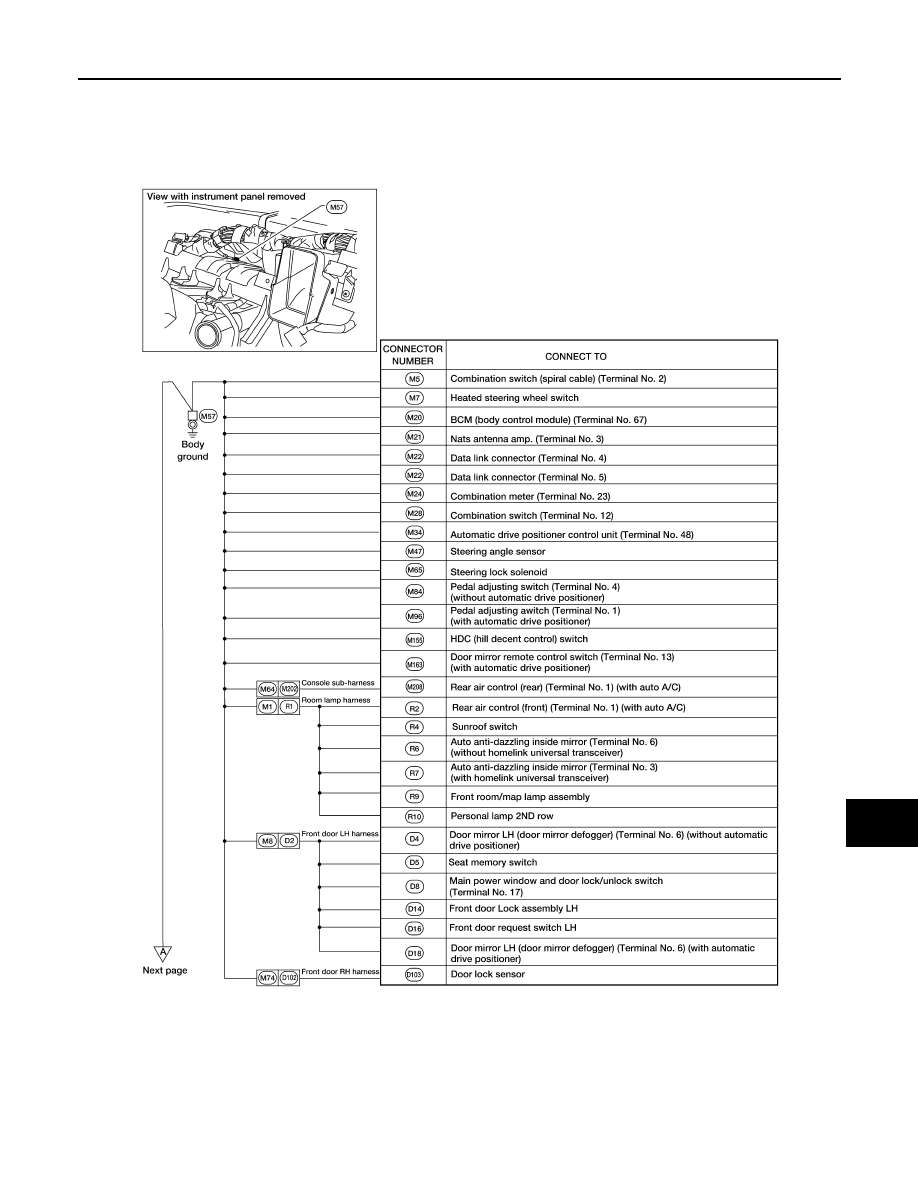

GROUND CIRCUIT

Ground Distribution

INFOID:0000000003935678

Main Harness

ABMIA0317GB

2009 Pathfinder

PG-28

< COMPONENT DIAGNOSIS >

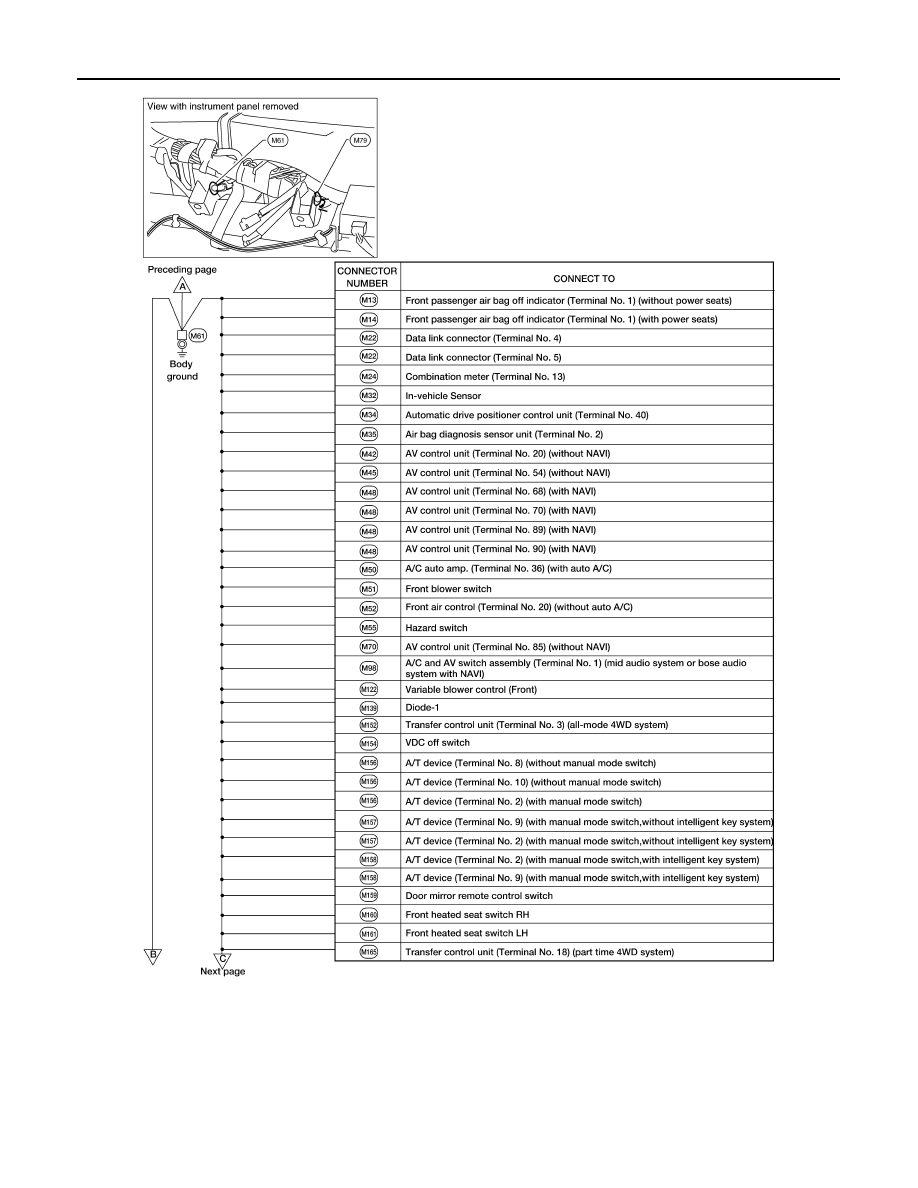

GROUND CIRCUIT

ABMIA0318GB

2009 Pathfinder
