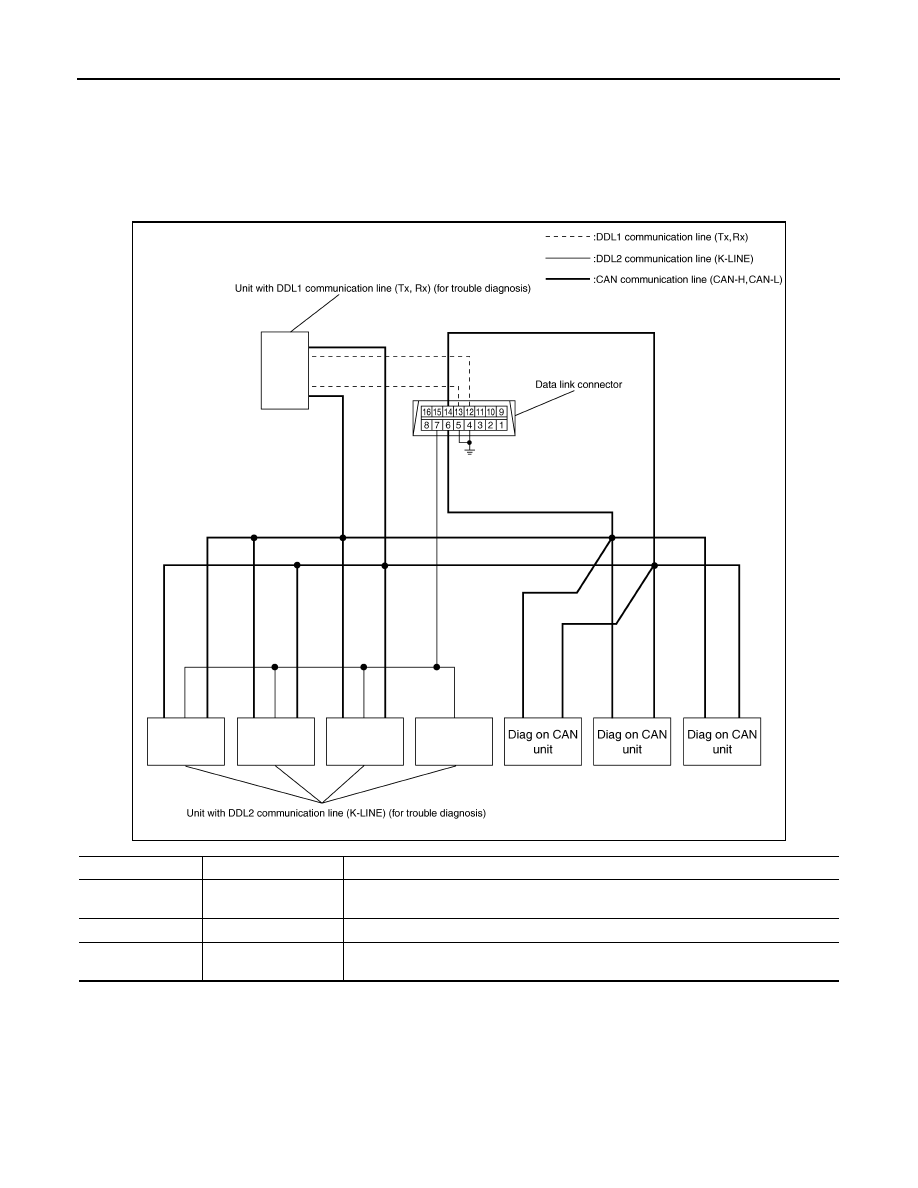

LAN-6 < FUNCTION DIAGNOSIS > [CAN FUNDAMENTAL] DIAG ON CAN DIAG ON CAN Description INFOID:0000000003938712 “Diag on CAN” is a diagnosis using CAN communication instead of previous DDL1 and DDL2 communication System Diagram INFOID:0000000003938713 SKIB8714E Name Harness Description DDL1 Tx It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) DDL2 K-LINE It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) Diag on CAN CAN-H It is used for trouble diagnosis and control. 2009 Pathfinder |
