PRECAUTIONS

INL-65

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSION-
ER"

INFOID:0000000003938867

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004399700

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

General precautions for service operations

INFOID:0000000003938868

• When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may

get in the way with cloth.

• When removing parts with a screw driver or other tool, protect parts by wrapping them with vinyl or tape.

2009 Pathfinder

INL-66

< PRECAUTION >

PRECAUTIONS

• Keep removed parts protected with cloth.
• If an non-reuseable part is removed, replace it with a new one.
• After re-assembly has been completed, make sure each part functions correctly.
• Never work with wet hands.
• Turn the lighting switch OFF before disconnecting and connecting the connector.
• Do not use organic solvent (paint thinner or gasoline) to clean lamps or remove sealant residue.

2009 Pathfinder

INTERIOR ROOM LAMP

INL-67

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ON-VEHICLE REPAIR

INTERIOR ROOM LAMP

Removal and Installation

INFOID:0000000003938869

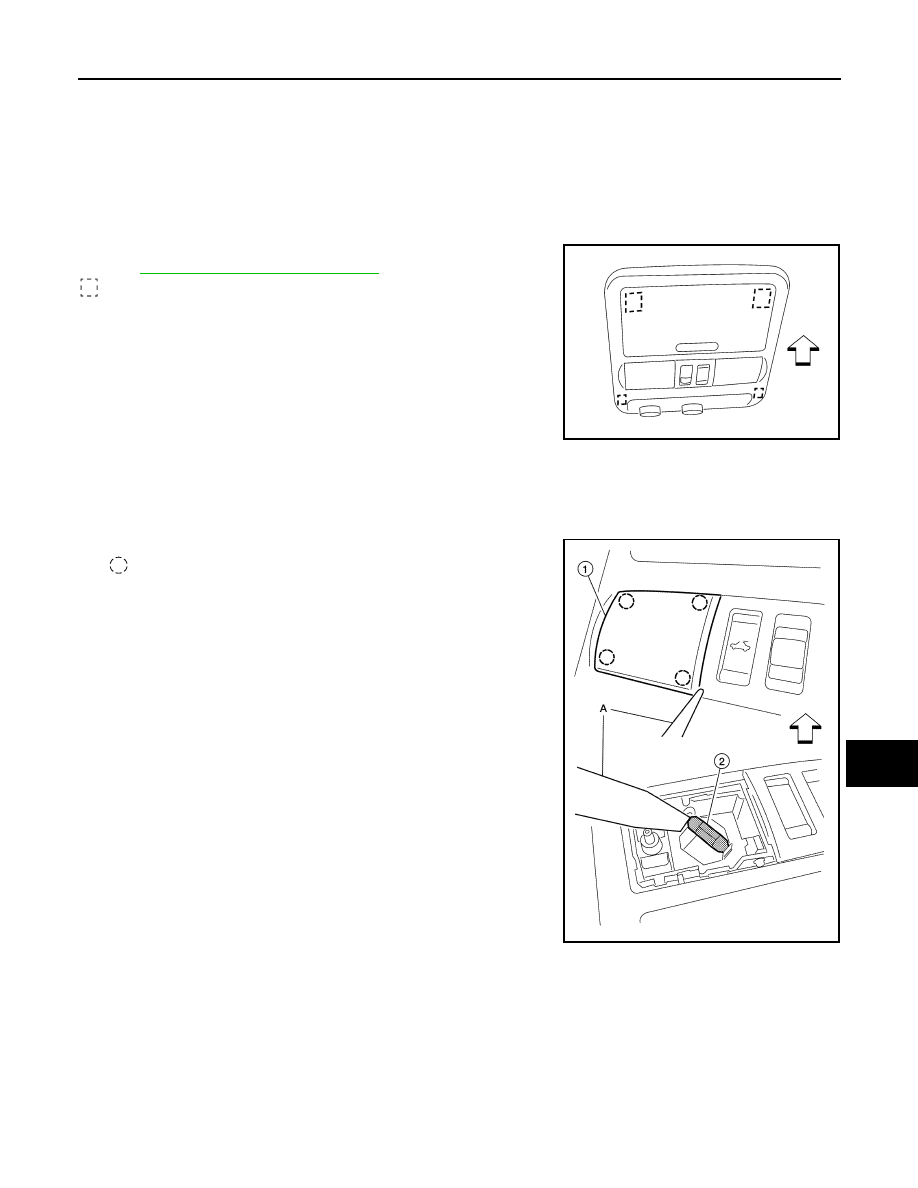

MAP LAMP

Removal

The map lamp is replaced as part of the overhead console assembly.
Refer to

INT-20, "Removal and Installation"

.

: Metal clip

⇐

: Vehicle front

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery terminal.

2.

Using a suitable tool (A), remove map lamp lens (1).

: Pawl

⇐

: Vehicle front

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

3.

Release one side of the bulb (2) from the tab, then pull straight
downward to remove.

VANITY MIRROR LAMP (if equipped)

Removal

ALLIA0581ZZ

Map lamp bulb

: 12V - 8W

AWLIA1667ZZ

2009 Pathfinder

INL-68

< ON-VEHICLE REPAIR >

INTERIOR ROOM LAMP

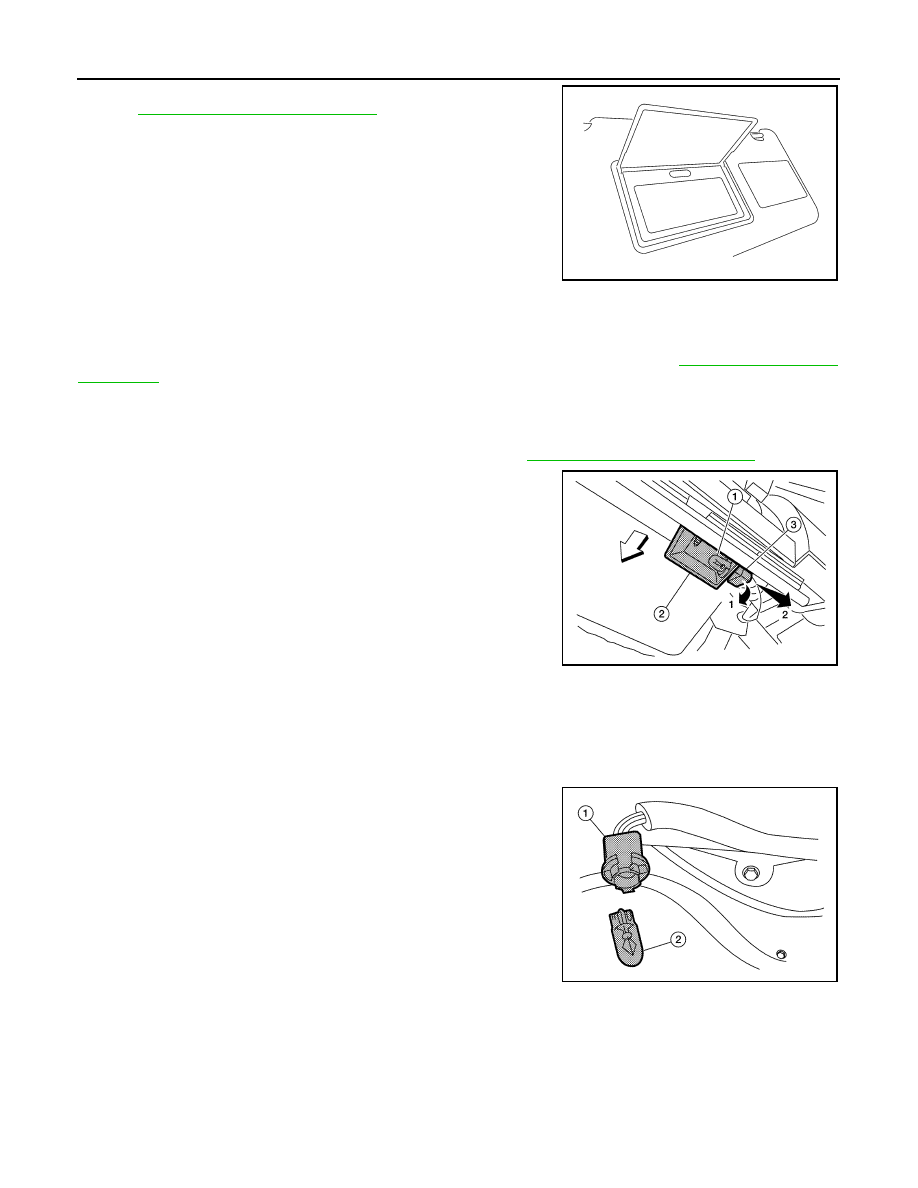

The vanity mirror lamp is replaced as part of the sunvisor assembly.
Refer to

INT-20, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

The vanity mirror lamp bulb is replaced as part of the sunvisor assembly. Refer to

INT-20, "Removal and

Installation"

.

GLOVE BOX LAMP

Removal

1.

Remove lower instrument panel RH and glove box. Refer to

IP-11, "Removal and Installation"

.

2.

Rotate glove box lamp socket (3) with bulb (1) counterclockwise,
then pull away from lamp shield (2) on steering member to
remove.

⇐

: Vehicle front

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery terminal.

2.

Remove glove box lamp.

3.

Pull bulb (2) straight out from glove box lamp socket (1) to
remove.

PERSONAL LAMP

Removal

1.

Disconnect the negative battery terminal.

ALLIA0583ZZ

AWLIA1668ZZ

Glove box lamp bulb

: 12V - 3.4W

ALLIA0321ZZ

2009 Pathfinder

INTERIOR ROOM LAMP

INL-69

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

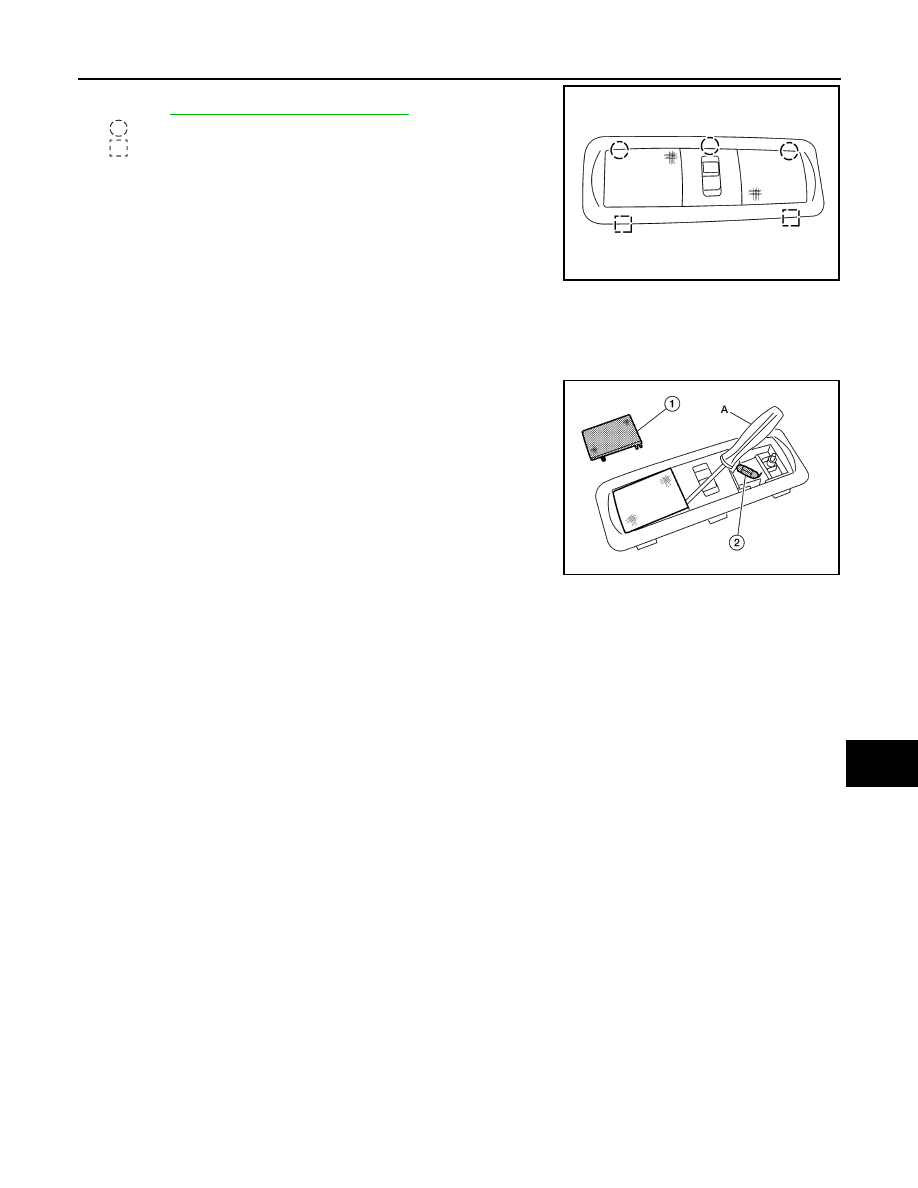

2.

Release the clips and remove personal lamp from headlining.
Refer to

INT-20, "Removal and Installation"

.

: Pawl
: Metal clip

3.

Disconnect personal lamp electrical connector, then remove
from overhead console.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Remove personal lamp.

2.

Using a suitable tool (A), release the pawls and remove per-
sonal lamp lens (1).

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

3.

Release one side of the bulb (2) from the tab, then pull straight
downward to remove.

ALLIA0588ZZ

Personal lamp bulb

: 12V - 8W

AWLIA1669ZZ

2009 Pathfinder

INL-70

< ON-VEHICLE REPAIR >

ILLUMINATION

ILLUMINATION

Removal and Installation

INFOID:0000000003938870

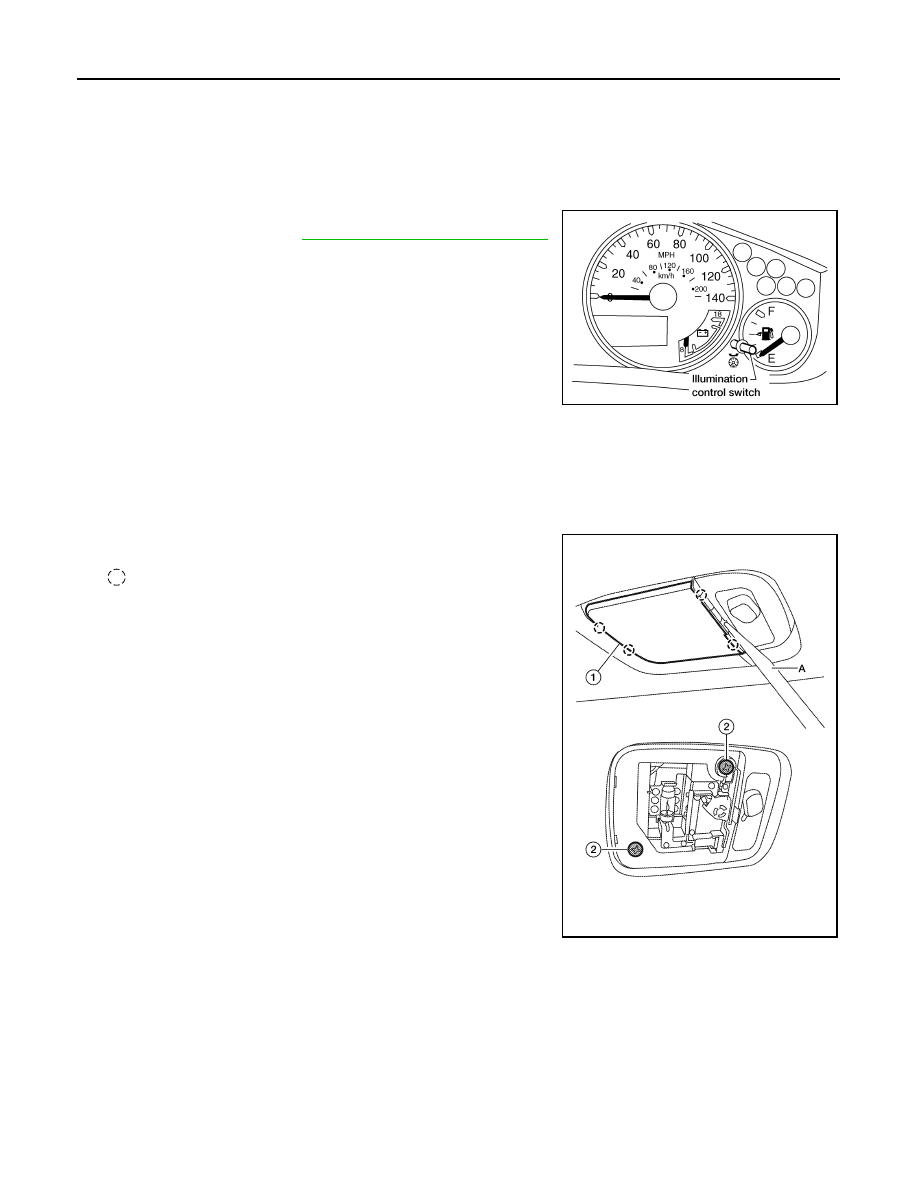

ILLUMINATION CONTROL SWITCH

Removal

The illumination control switch (1) is replaced as a part of the combi-
nation meter assembly. Refer to

MWI-94, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

CARGO LAMP

Removal

1.

Disconnect the negative battery terminal.

2.

Using a suitable tool (A), release the pawls and remove the
cargo lamp lens (1).

: Pawl

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

3.

Remove cargo lamp screws (2).

4.

Disconnect the connector, then remove cargo lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery terminal.

2.

Using a suitable tool, release the pawls and remove the cargo lamp lens.

LKIA0579E

AWLIA1670ZZ

2009 Pathfinder

ILLUMINATION

INL-71

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

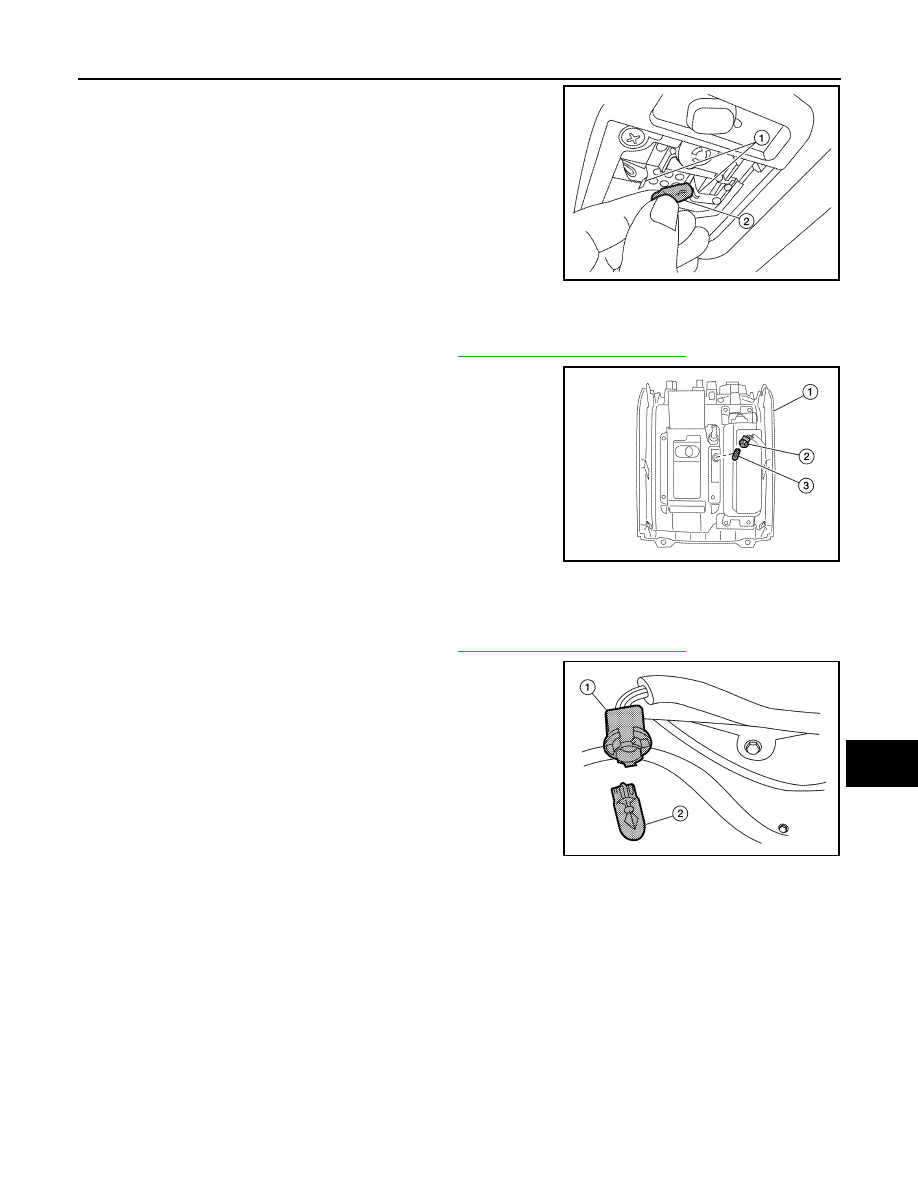

3.

Release the cargo lamp bulb retainers (1), then pull bulb (2)
straight out to remove.

AT FINISHER LAMP

Removal

1.

Remove AT finisher from center console. Refer to

IP-11, "Removal and Installation"

.

2.

Rotate AT finisher lamp socket (2) with bulb (3) counterclock-
wise, then pull away from finisher (1).

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Remove AT finisher from center console. Refer to

IP-11, "Removal and Installation"

.

2.

Remove AT finisher lamp socket (1), then pull bulb (2) straight
out from socket.

Cargo lamp bulb

: 12V - 8W

ALLIA0326ZZ

ALLIA0590ZZ

AT finisher lamp bulb

: 12V - 3W

ALLIA0321ZZ

2009 Pathfinder

INL-72

< SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Interior Lamp/Illumination

INFOID:0000000003938871

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Map lamp

8

Vanity lamp (if equipped)

*

Glove box lamp

3.4

Personal lamp

8

Cargo lamp

8

A/T finisher lamp

3
