REAR AIR CONTROL SYSTEM

HAC-67

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

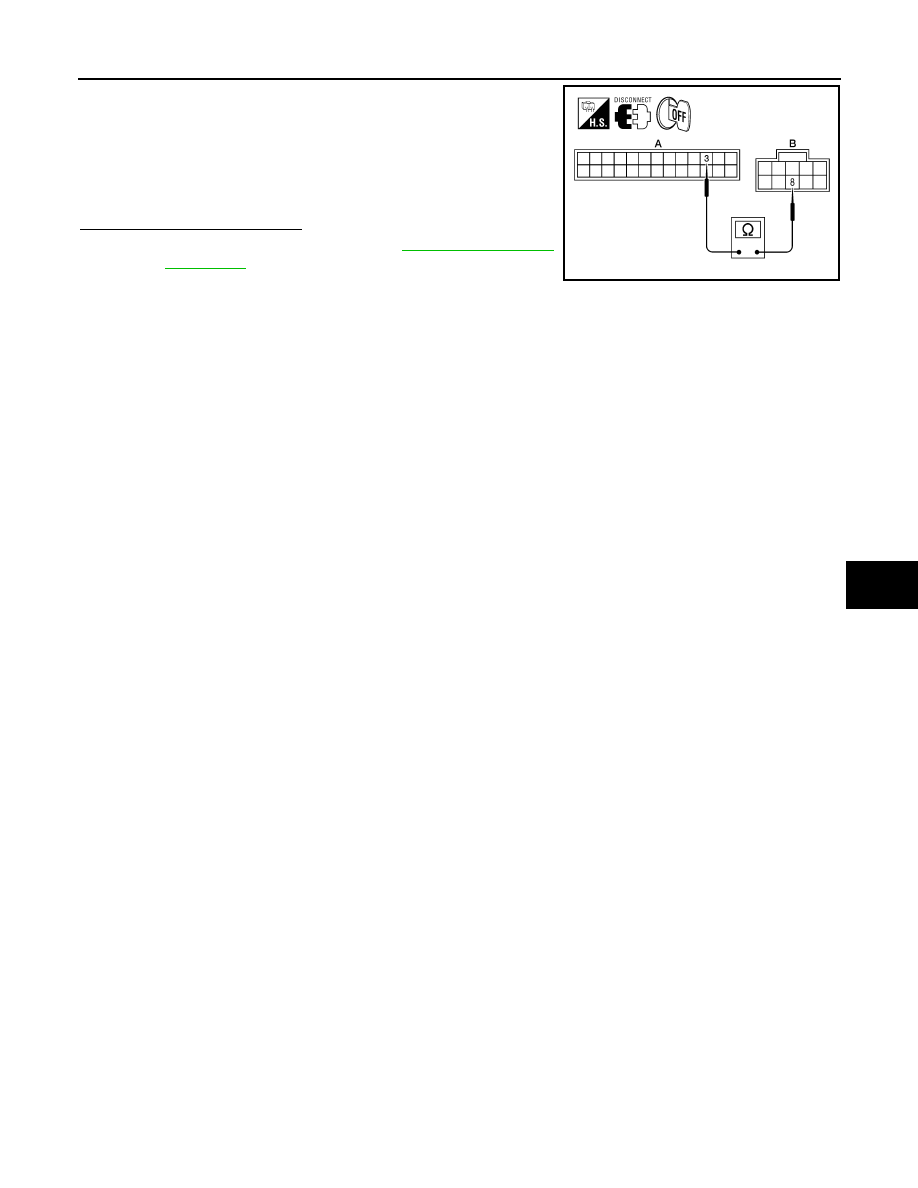

Check continuity between rear air control (rear) harness connec-
tor M49 (A) terminal 3 and rear air control (rear) harness con-
nector M208 (B) terminal 8.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and

Installation"

.

NO

>> Repair harness or connector.

Continuity should exist.

AWIIA0261ZZ

2009 Pathfinder

HAC-68

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

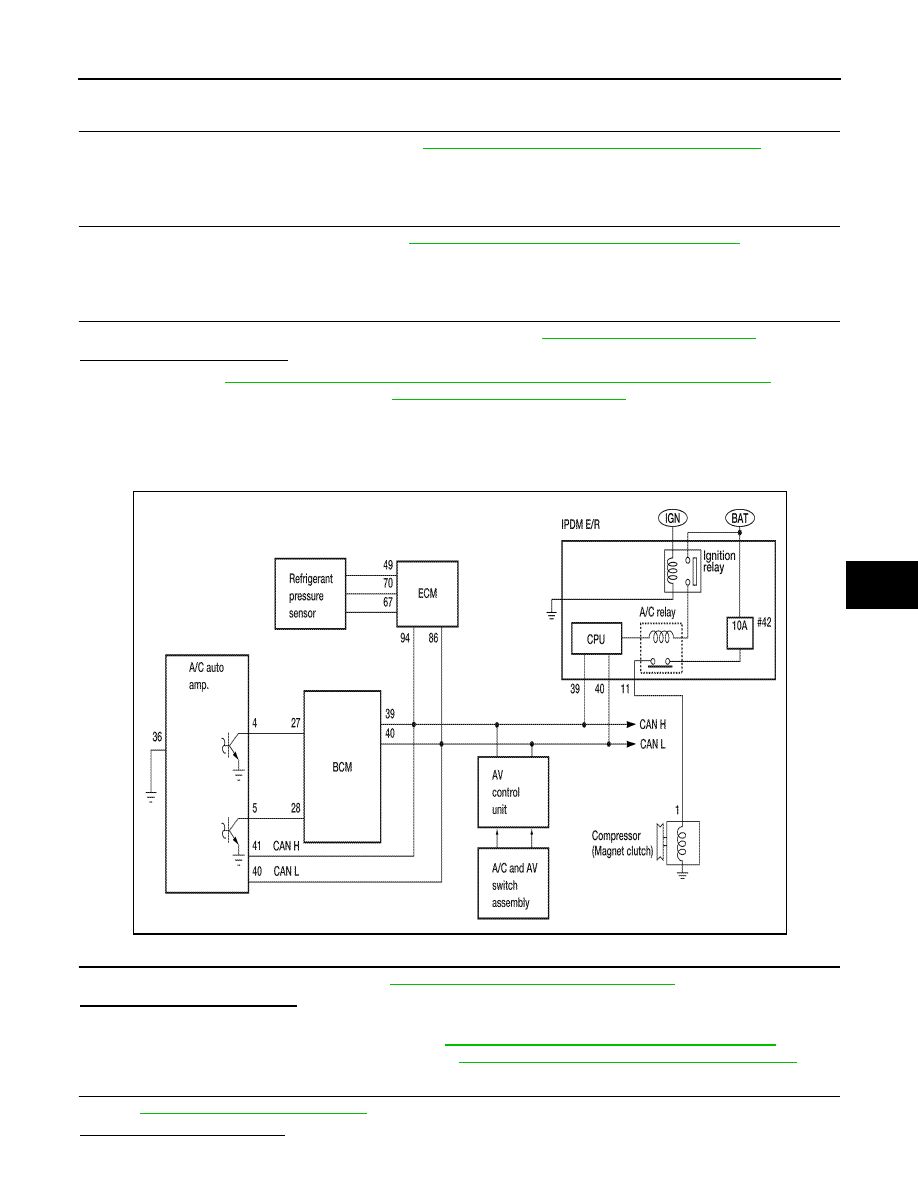

MAGNET CLUTCH

MAGNET CLUTCH

System Description

INFOID:0000000003935912

SYSTEM DESCRIPTION

The A/C auto amp. controls compressor operation based on ambient and intake temperature and a signal
from ECM.

Low Temperature Protection Control

The A/C auto amp. will turn the compressor ON or OFF as determined by a signal detected by the intake sen-
sor and the ambient sensor.
When intake air temperature is higher than the preset value, the compressor turns ON. The compressor turns
OFF when intake air temperature is lower than the preset value. That preset value is dependent on the ambi-
ent temperature, refer to the following table.

Magnet Clutch Component Function Check

INFOID:0000000003935913

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - MAGNET CLUTCH

1.

Turn ignition switch ON.

2.

Press the A/C switch.

3.

Press vent switch (

).

4.

Display shows

, A/C. Confirm that the compressor clutch engages (sound or visual inspection). (Dis-

charge air and blower speed will depend on ambient, in-vehicle and set temperatures.)

Can the symptom be duplicated?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK FOR ANY SYMPTOMS

Perform a complete operational check for any symptoms. Refer to

HAC-125, "Operational Check"

.

Does another symptom exist?

YES

>> Refer to

HAC-124, "How to Perform Trouble Diagnosis For Quick And Accurate Repair"

.

NO

>> System OK.

3.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 4.

4.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis to check for any codes. Refer to

HAC-24, "A/C Auto Amp. Self-Diagnosis"

.

Are any self-diagnosis codes present?

YES

>> Refer to

HAC-25, "A/C System Self-Diagnosis Code Chart"

.

Ambient temperature

°

C

(

°

F)

VK56DE Model

VQ40DE Model

Compressor ON

intake temperature

°

C

(

°

F)

Compressor OFF

intake temperature

°

C

(

°

F)

Compressor ON

intake temperature

°

C

(

°

F)

Compressor OFF

intake temperature

°

C

(

°

F)

0 (32)

6.0 (43)

5.5 (42)

5.5 (42)

5.0 (41)

10 (50)

5.0 (41)

5.0 (41)

4.5 (40)

4.5 (40)

20 (68)

3.5 (38)

3.0 (37)

3.0 (37)

2.5 (37)

30 (86)

3.0 (37)

2.5 (37)

2.5 (37)

1.5 (35)

40 (104)

3.0 (37)

2.5 (37)

2.0 (36)

1.0 (34)

50 (122)

3.0 (37)

2.5 (37)

2.0 (36)

1.0 (34)

2009 Pathfinder

MAGNET CLUTCH

HAC-69

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NO

>> GO TO 5.

5.

CHECK AMBIENT SENSOR

Check and verify ambient sensor circuit. Refer to

HAC-78, "Ambient Sensor Diagnosis Procedure"

.

>> GO TO 6.

6.

CHECK INTAKE SENSOR

Check and verify intake sensor circuit. Refer to

HAC-161, "Intake Sensor Diagnosis Procedure"

.

>> GO TO 7.

7.

RECHECK FOR ANY SYMPTOMS

Perform a complete operational check for any symptoms. Refer to

HAC-125, "Operational Check"

.

Does another symptom exist?

YES

>> Refer to

HAC-124, "How to Perform Trouble Diagnosis For Quick And Accurate Repair"

.

NO

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

Magnet Clutch Diagnosis Procedure

INFOID:0000000003935914

DIAGNOSTIC PROCEDURE FOR MAGNET CLUTCH

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.

1.

CHECK INTAKE AND AMBIENT SENSOR CIRCUITS

Check intake and ambient sensors. Refer to

HAC-24, "A/C Auto Amp. Self-Diagnosis"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> • Malfunctioning intake sensor. Refer to

HAC-161, "Intake Sensor Diagnosis Procedure"

.

• Malfunctioning ambient sensor. Refer to

HAC-78, "Ambient Sensor Diagnosis Procedure"

.

2.

PERFORM AUTO ACTIVE TEST

Refer to

PCS-12, "Diagnosis Description"

.

Does magnet clutch operate?

AWIIA0198GB

2009 Pathfinder

HAC-70

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

MAGNET CLUTCH

YES

>> •

WITH CONSULT-III

GO TO 5.

•

WITHOUT CONSULT-III

GO TO 6.

NO

>> Check 10A fuse (No. 42, located in IPDM E/R), and GO TO 3.

3.

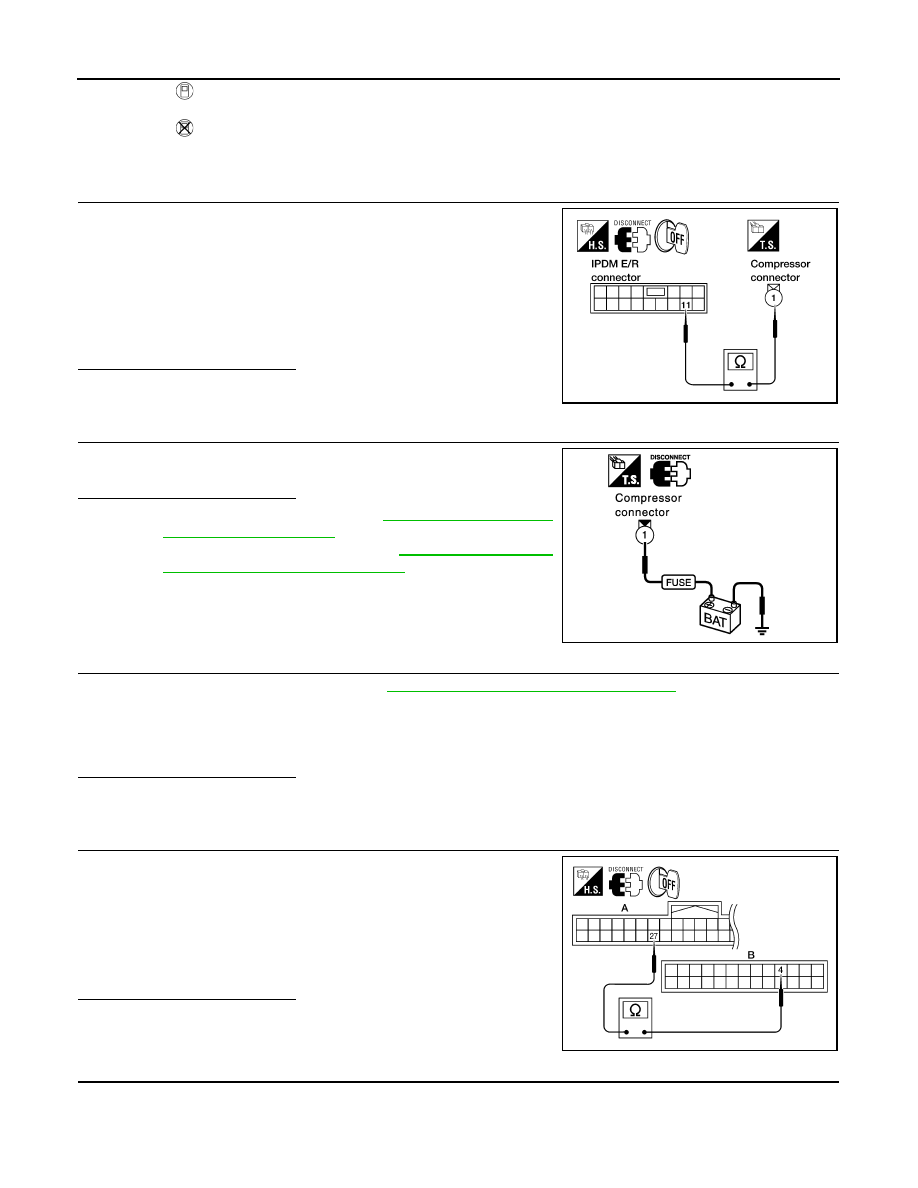

CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and compressor (magnet
clutch) connector.

3.

Check continuity between IPDM E/R harness connector E119
terminal 11 and A/C compressor harness connector F3 terminal
1.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK MAGNET CLUTCH CIRCUIT

Check for operation sound when applying battery voltage direct cur-
rent to terminal.
Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and

Installation of IPDM E/R"

.

NO

>> Replace magnet clutch. Refer to

HA-41, "Removal and

Installation for Compressor Clutch"

.

5.

CHECK BCM INPUT (COMPRESSOR ON) SIGNAL

Check compressor ON/OFF signal. Refer to

HAC-21, "CONSULT-III Function (HVAC)"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 6.

6.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and A/C auto amp. connector.

3.

Check continuity between BCM harness connector M18 (A) ter-
minal 27 and A/C auto amp. harness connector M49 (B) terminal
4.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair harness or connector.

7.

CHECK VOLTAGE FOR A/C AUTO AMP. (A/C COMPRESSOR ON SIGNAL)

11 – 1

: Continuity should exist.

WJIA0560E

SJIA0197E

A/C SW ON

: COMP ON SIG ON

A/C SW OFF

: COMP ON SIG OFF

27 - 4

Continuity should exist.

AWIIA0199ZZ

2009 Pathfinder

MAGNET CLUTCH

HAC-71

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

1.

Reconnect BCM connector and A/C auto amp. connector.

2.

Turn ignition switch ON.

3.

Check voltage between A/C auto amp. harness connector M49
terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO-1

>> If the voltage is approx. 5V when A/C switch is ON, replace A/C auto amp. Refer to

VTL-7,

"Removal and Installation"

.

NO-2

>> If the voltage is approx. 0V when A/C switch is OFF, replace BCM. Refer to

BCS-59, "Removal

and Installation"

.

8.

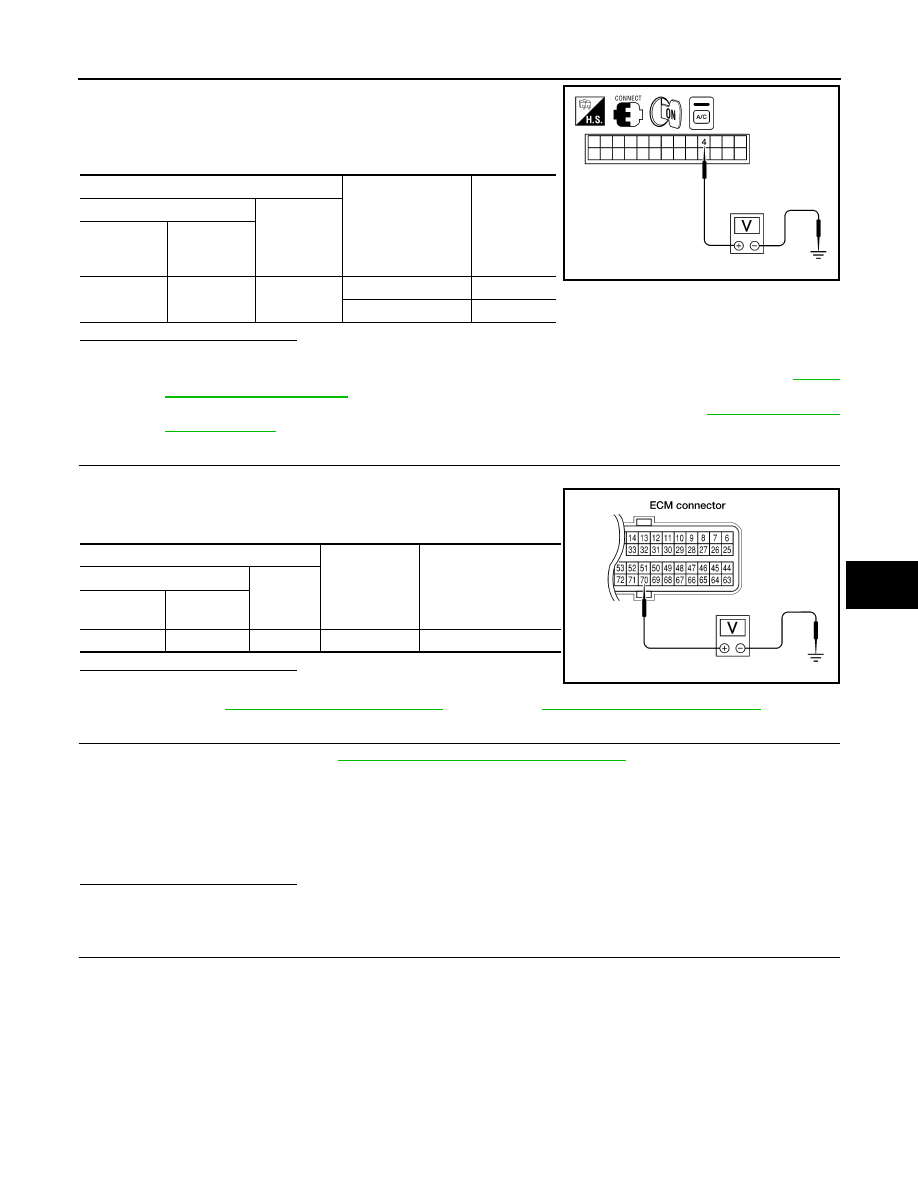

CHECK REFRIGERANT PRESSURE SENSOR

1.

Start engine.

2.

Check voltage between ECM harness connector F54 terminal
70 and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Refer to

EC-414, "Diagnosis Procedure"

 (VQ40DE) or

EC-884, "Diagnosis Procedure"

 (VK56DE).

9.

CHECK BCM INPUT (FAN ON) SIGNAL

Check FAN ON/OFF signal. Refer to

HAC-21, "CONSULT-III Function (HVAC)"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 10.

10.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND A/C AUTO AMP.

Terminals

Condition

Voltage

(+)

(-)

A/C auto

amp. con-

nector

Terminal No.

M49

4

Ground

A/C switch: ON

Approx. 0V

A/C switch: OFF

Approx. 5V

AWIIA0200ZZ

Terminals

Condition

Voltage

(+)

(-)

ECM con-

nector

Terminal No.

F54

70

Ground

A/C switch: ON

Approx. 0.36 - 3.88V

LJIA0124E

FRONT BLOWER CONTROL
DIAL ON

: FAN ON SIG ON

FRONT BLOWER CONTROL
DIAL OFF

: FAN ON SIG OFF

2009 Pathfinder

HAC-72

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

MAGNET CLUTCH

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and A/C auto amp. connector.

3.

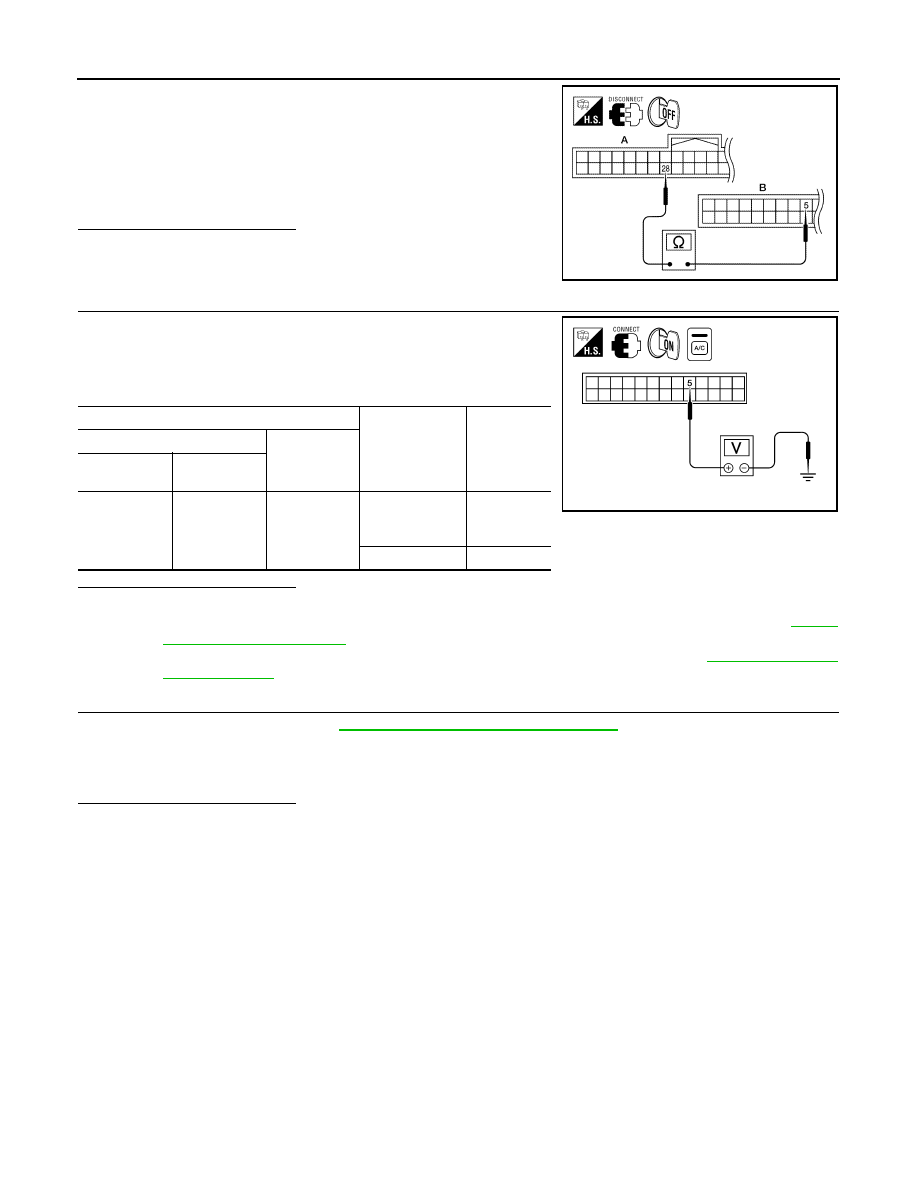

Check continuity between BCM harness connector M18 (A) ter-
minal 28 and A/C auto amp. harness connector M49 (B) terminal
5.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair harness or connector.

11.

CHECK VOLTAGE FOR A/C AUTO AMP. (FAN ON SIGNAL)

1.

Reconnect BCM connector and A/C auto amp. connector.

2.

Turn ignition switch ON.

3.

Check voltage between A/C auto amp. harness connector M49
terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 12.

NO-1

>> If the voltage is approx. 5V when blower motor is ON, replace A/C auto amp. Refer to

VTL-7,

"Removal and Installation"

.

NO-2

>> If the voltage is approx. 0V when blower motor is OFF, replace BCM. Refer to

BCS-59, "Removal

and Installation"

.

12.

CHECK CAN COMMUNICATION

Check CAN communication. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

• BCM  –  ECM
• ECM – IPDM E/R
• ECM – A/C auto amp.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace malfunctioning part(s).

28 - 5

Continuity should exist.

AWIIA0201ZZ

Terminals

Condition

Voltage

(+)

(-)

A/C auto amp.

connector

Terminal No.

M49

5

Ground

A/C switch: ON
Blower motor
operates

Approx. 0V

A/C switch: OFF

Approx. 5V

AWIIA0202ZZ

2009 Pathfinder

WATER VALVE CIRCUIT

HAC-73

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

WATER VALVE CIRCUIT

Water Valve Description (VK56DE)

INFOID:0000000003935915

COMPONENT DESCRIPTION

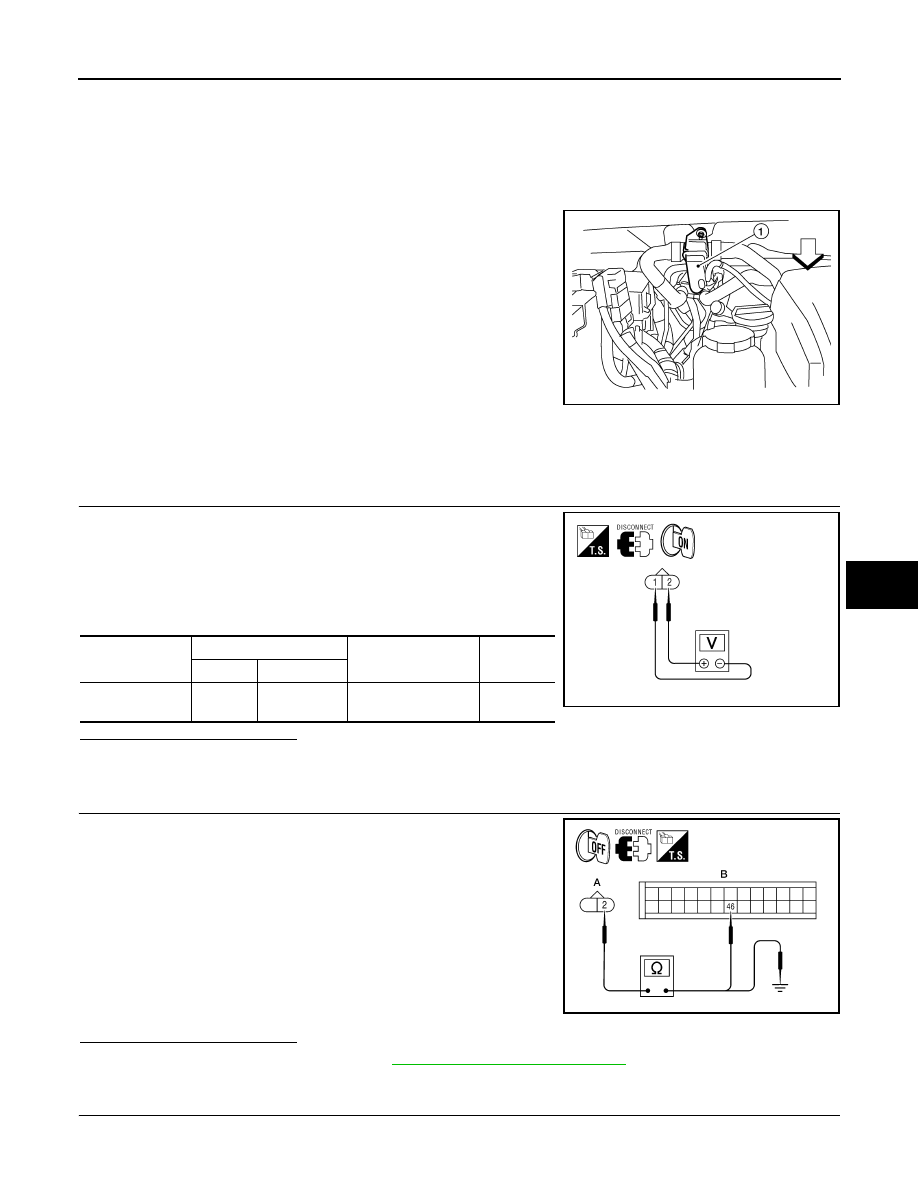

Water Valve

The water valve (1) cuts the flow of engine coolant to the front and
rear heater cores to allow for maximum cooling during A/C opera-
tion. It is controlled by the A/C auto amp.

Water Valve Diagnosis Procedure (VK56DE)

INFOID:0000000003935916

DIAGNOSTIC PROCEDURE FOR WATER VALVE

1.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1.

Disconnect water valve connector F68.

2.

Turn ignition switch ON.

3.

Rotate temperature control dial (driver) to 32

°

C (90

°

F).

4.

Check voltage between water valve harness connector F68 ter-
minal 1 and terminal 2 while rotating temperature control dial
(driver) to 18

°

C (60

°

F).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector M50.

3.

Check continuity between water valve harness connector F68
(A) terminal 2 and A/C auto amp. harness connector M50 (B)
terminal 46.

4.

Check continuity between water valve harness connector F68
(A) terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

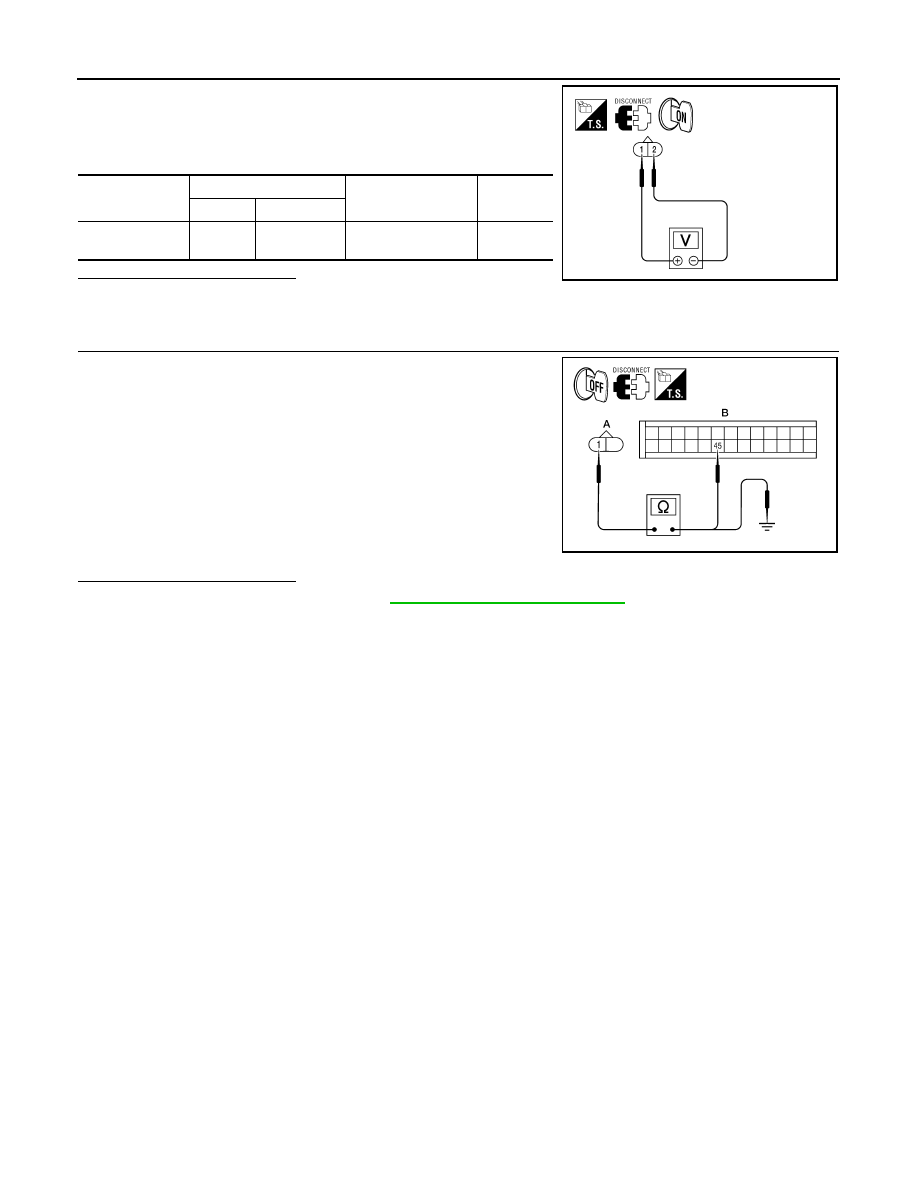

3.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

WJIA1791E

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

2

1

Rotate temperature

control dial

Battery
voltage

WJIA1794E

2 - 46

: Continuity should exist.

2 - Ground

: Continuity should not exist.

AWIIA0203ZZ

2009 Pathfinder

HAC-74

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

WATER VALVE CIRCUIT

1.

Rotate temperature control dial (driver) to 18

°

C (60

°

F).

2.

Check voltage between water valve harness connector F68 ter-
minal 1 and terminal 2 while rotating temperature control dial
(driver) to 32

°

C (90

°

F).

Is the inspection result normal?

YES

>>  Replace the water valve.

NO

>> GO TO 4.

4.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector M50.

3.

Check continuity between water valve harness connector F68
(A) terminal 1 and A/C auto amp. harness connector M50 (B)
terminal 45.

4.

Check continuity between water valve harness connector F68
(A) terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

1

2

Rotate temperature

control dial

Battery
voltage

WJIA1792E

1 - 45

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA0204ZZ

2009 Pathfinder
