Nissan Pathfinder (2009 year). Manual - part 370

SPARK PLUG

EM-17

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

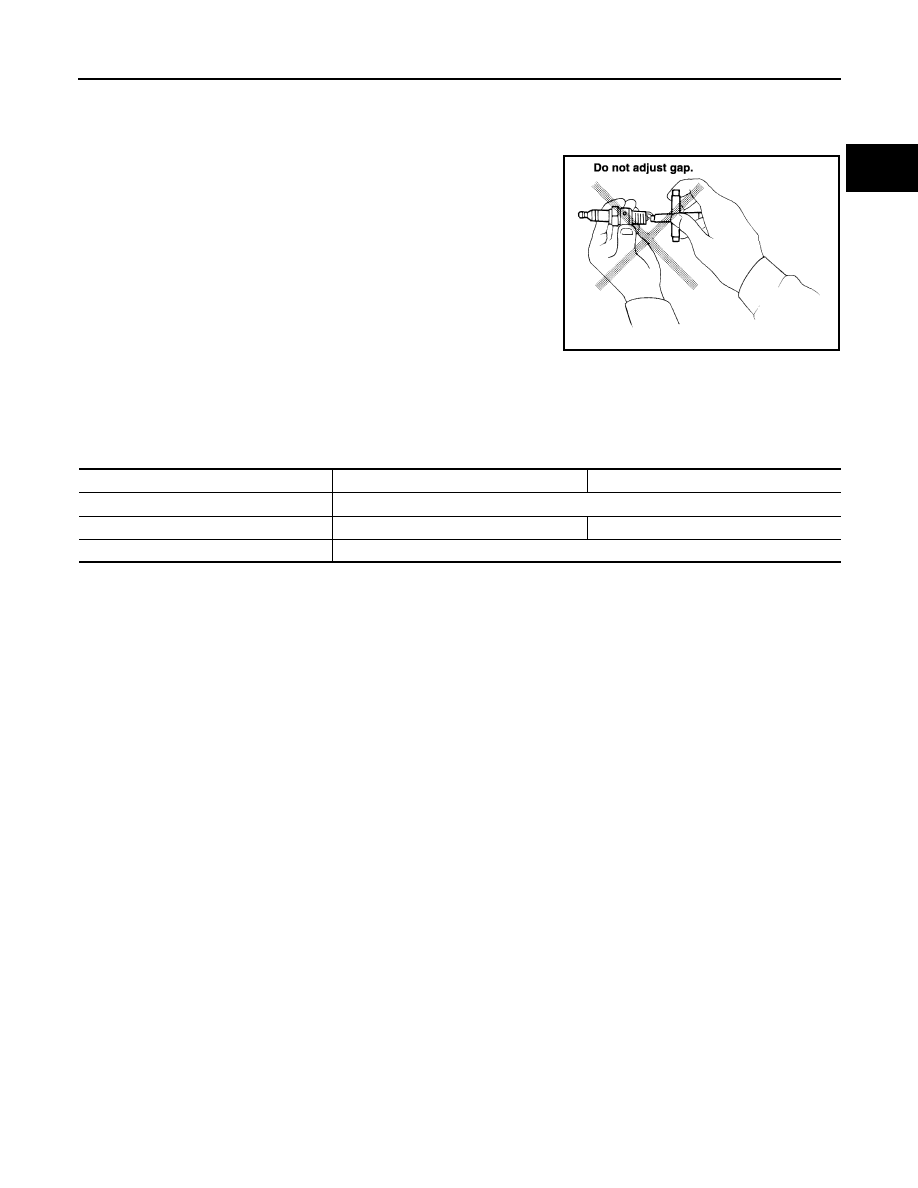

• Checking and adjusting spark plug gap is not required between

change intervals.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock spark plug.

Cleaner air pressure

: Less than 588 kPa (5.9 bar, 6 kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

SMA806CA

Application

United States and Canada

Mexico

Make

NGK

Standard type

DILFR5A-11

PLFR5A-11

Gap (nominal)

1.1 mm ().043 in)

2009 Pathfinder

EM-18

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

CAMSHAFT VALVE CLEARANCE

CAMSHAFT VALVE CLEARANCE

Valve Clearance

INFOID:0000000003939482

INSPECTION

NOTE:
Perform the following inspection after removal, installation or replacement of camshaft or valve-related parts,
or if there are unusual engine conditions due to changes in valve clearance over time (starting, idling, and/or
noise).
1.

Remove the engine room cover. Refer to

EM-24, "Removal and Installation"

.

2.

Remove the air cleaner and air duct assembly. Refer to

EM-25, "Exploded View"

.

3.

Remove rocker covers (RH and LH banks). Refer to

EM-41, "Removal and Installation"

.

4.

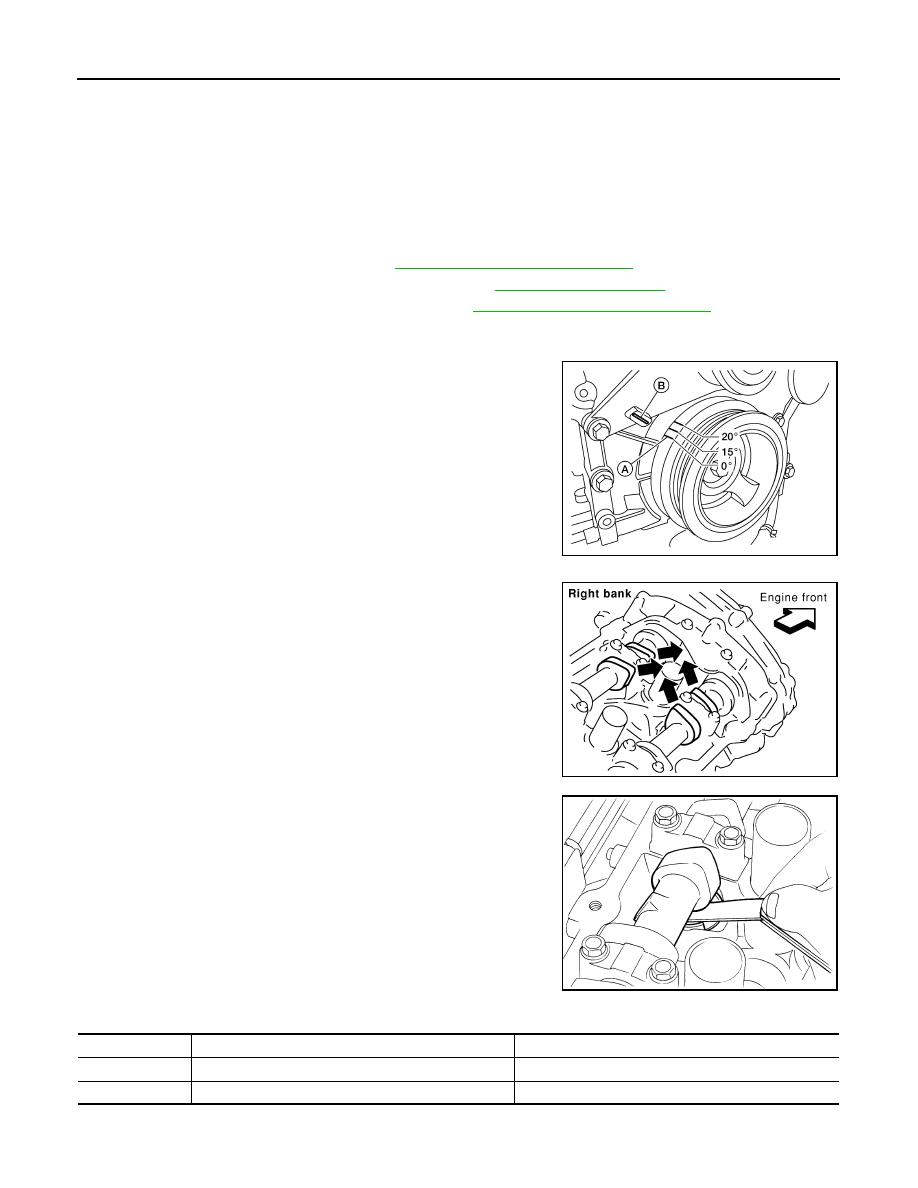

Measure the valve clearance as follows:

a.

Set No. 1 cylinder at TDC of its compression stroke.
• Rotate crankshaft pulley clockwise to align timing mark (A)

(grooved line without color) with timing indicator (B).

• Make sure that intake and exhaust cam noses on No. 1 cylin-

der (engine front side of RH bank) are located as shown.

• If not, rotate crankshaft one revolution (360

°

) and align as

shown.

b.

Use feeler gauge, measure the clearance between valve lifter
and camshaft.

Valve clearance:

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

AWBIA0719ZZ

SEM418G

SEM139D

Cold

Hot * (reference data)

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

2009 Pathfinder

CAMSHAFT VALVE CLEARANCE

EM-19

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

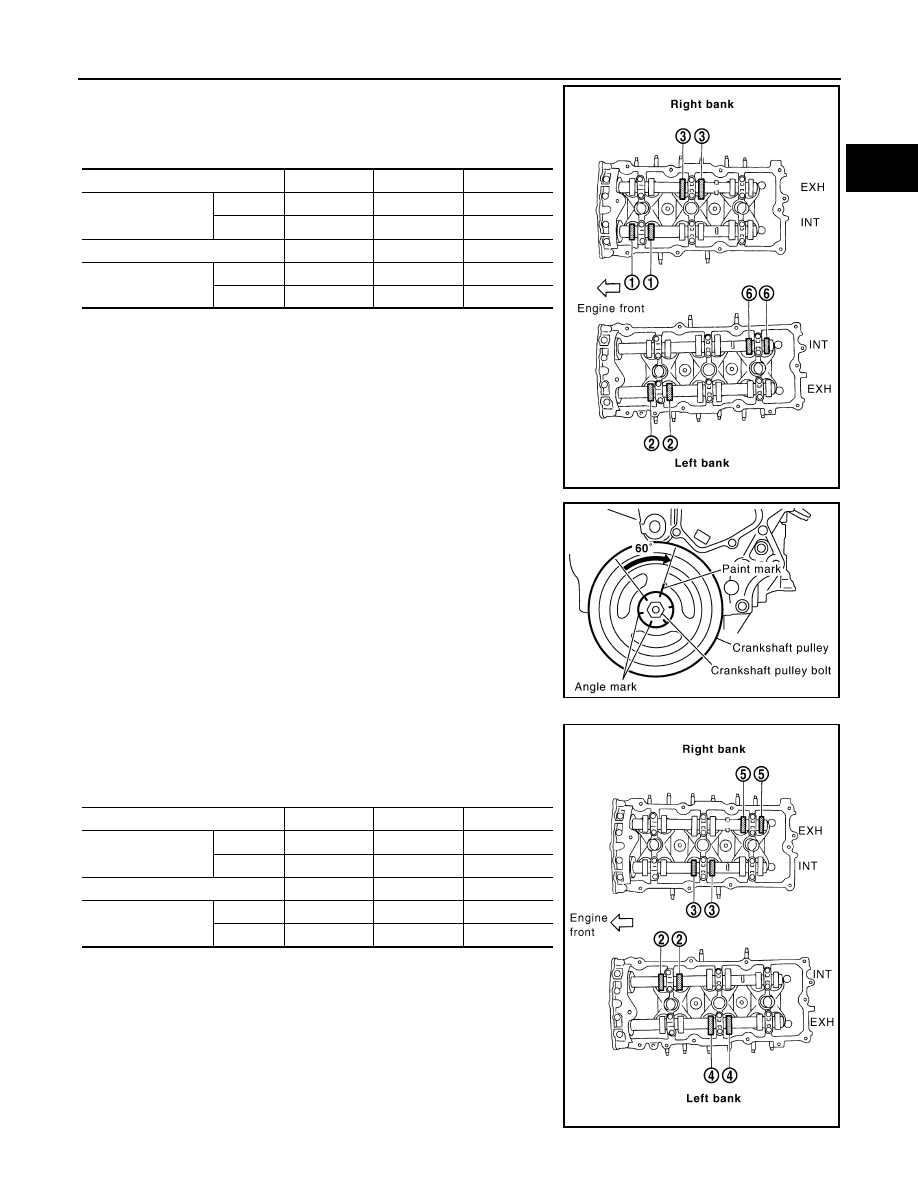

• Measure the valve clearances at locations marked “

×

” as

shown in the table below (locations indicated in the illustration)
with feeler gauge.

• No. 1 cylinder at compression TDC

c.

Rotate crankshaft by 240

°

 clockwise (when viewed from engine

front) to align No. 3 cylinder at TDC of its compression stroke.
NOTE:
Crankshaft pulley bolt flange has a stamped line every 60

°

. They

can be used as a guide to rotation angle.

• Measure the valve clearances at locations marked “

×

” as

shown in the table below (locations indicated in the illustration)
with feeler gauge.

• No. 3 cylinder at compression TDC

Measuring position (RH bank)

No. 1 CYL.

No. 3 CYL.

No. 5 CYL.

No. 1 cylinder at

compression TDC

EXH

×

INT

×

Measuring position (LH bank)

No. 2 CYL.

No. 4 CYL.

No. 6 CYL.

No. 1 cylinder at

compression TDC

INT

×



EXH

×



PBIC2054E

PBIC2916E

Measuring position (RH bank)

No. 1 CYL.

No. 3 CYL.

No. 5 CYL.

No. 3 cylinder at

compression TDC

EXH

×

INT

×

Measuring position (LH bank)

No. 2 CYL.

No. 4 CYL.

No. 6 CYL.

No. 3 cylinder at

compression TDC

INT

×



EXH



×

PBIC2055E

2009 Pathfinder

EM-20

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

CAMSHAFT VALVE CLEARANCE

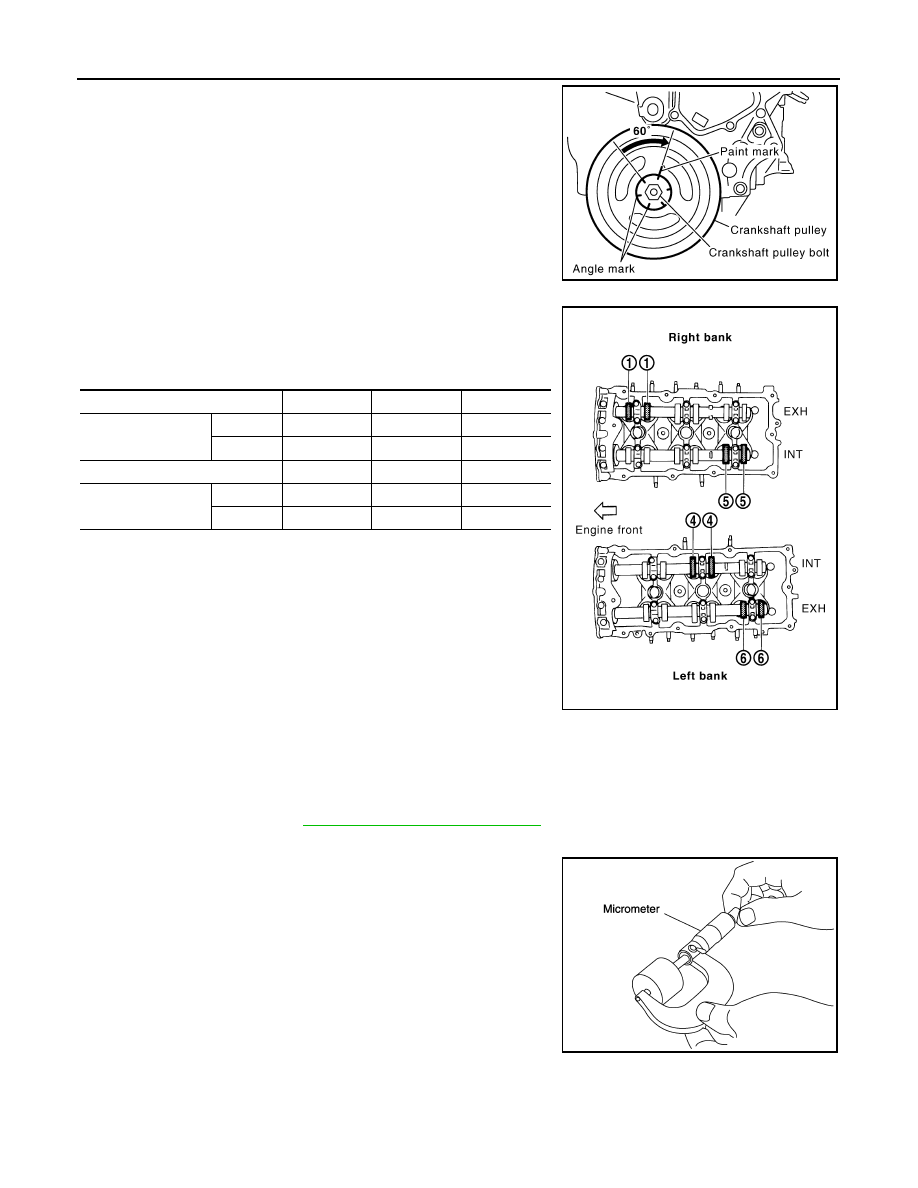

d.

Rotate crankshaft by 240

°

 clockwise (when viewed from engine

front) to align No. 5 cylinder at TDC of compression stroke.

• Measure the valve clearances at locations marked “

×

” as

shown in the table below (locations indicated in the illustration)
with feeler gauge.

• No. 5 cylinder at compression TDC

5.

For the measured value out of the standard, perform adjustment.

ADJUSTMENT

• Perform adjustment depending on selected head thickness of valve lifter.
1.

Measure the valve clearance.

2.

Remove camshaft. Refer to

EM-81, "Removal and Installation"

.

3.

Remove valve lifters at the locations that are out of the standard.

4.

Measure the center thickness of removed valve lifters with
micrometer.

5.

Use the equation below to calculate valve lifter thickness for replacement.

PBIC2916E

Measuring position (RH bank)

No. 1 CYL.

No. 3 CYL.

No. 5 CYL.

No. 5 cylinder at

compression TDC

EXH

×

INT

×

Measuring position (LH bank)

No. 2 CYL.

No. 4 CYL.

No. 6 CYL.

No. 5 cylinder at

compression TDC

INT

×



EXH



×

PBIC2056E

KBIA0057E

2009 Pathfinder

CAMSHAFT VALVE CLEARANCE

EM-21

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

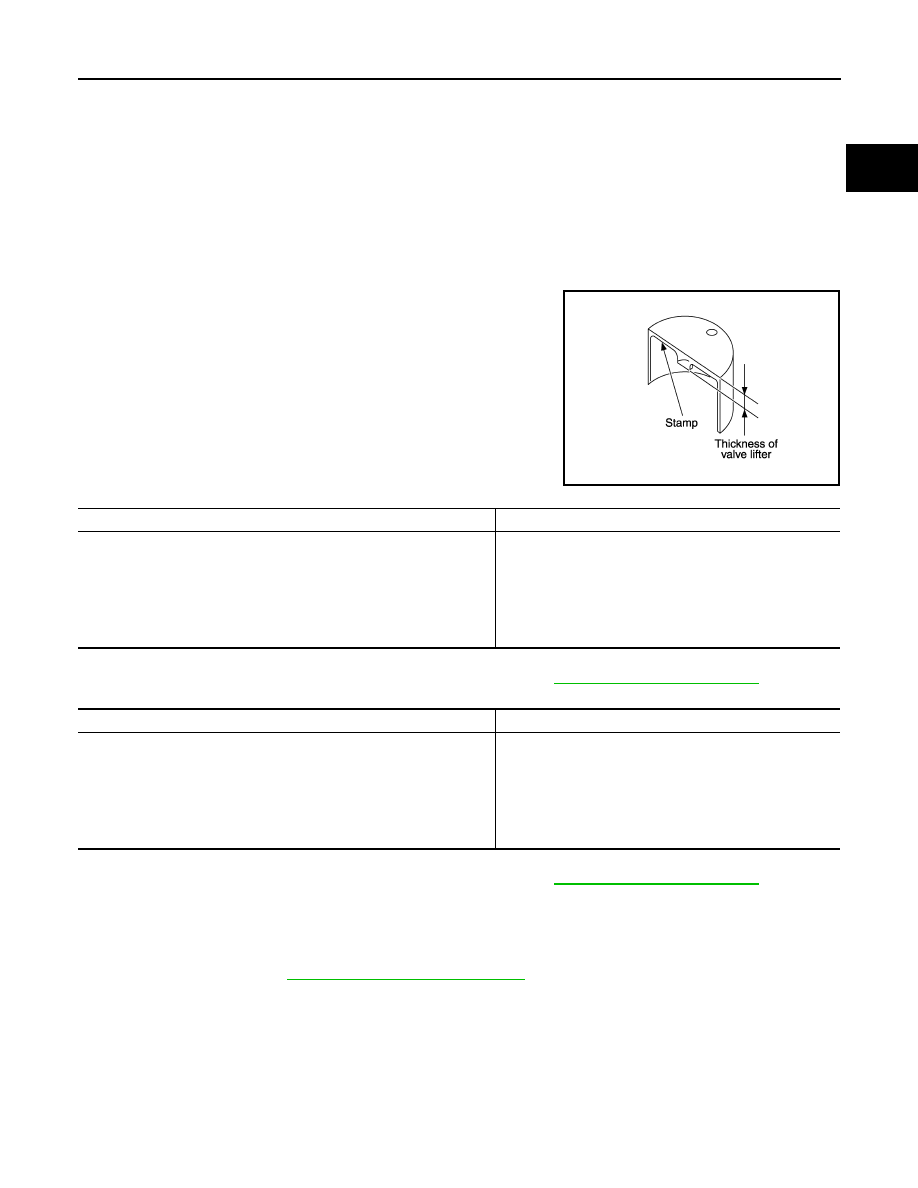

• Thickness of new valve lifter can be identified by stamp marks

on the reverse side (inside the cylinder).

Intake

Available thickness of valve lifter: 27 sizes with range 7.88 to 8.40 mm (0.3102 to 0.3307 in) in steps of
0.02 mm (0.0008 in) (when manufactured at factory). Refer to

EM-134, "Standard and Limit"

.

Exhaust

Available thickness of valve lifter: 25 sizes with range 7.88 to 8.36 mm (0.3102 to 0.3291 in) in steps of
0.02 mm (0.0008 in) (when manufactured at factory). Refer to

EM-134, "Standard and Limit"

.

CAUTION:

Install identification letter at the end and top, “U” and “N”, at each of proper positions. (Be care-
ful of mis-installation between intake and exhaust.)

6.

Install selected valve lifter.

7.

Install camshaft. Refer to

EM-81, "Removal and Installation"

.

8.

Manually turn crankshaft pulley a few turns.

9.

Make sure that the valve clearances for cold engine are within the specifications by referring to the speci-
fied values.

10. Installation of the remaining components is in the reverse order of removal.

11. Start the engine, and check for unusual noise and vibration.

Valve lifter thickness calculation:

t = t

1

+ (C

1

– C

2

)

t

= Valve lifter thickness to be replaced

t

1

= Removed valve lifter thickness

C

1

= Measured valve clearance

C

2

= Standard valve clearance:

Intake

: 0.26 - 0.34 mm (0.010 - 0.013 in)*

Exhaust

: 0.29 - 0.37 mm (0.011 - 0.015 in)*

*: Approximately 20

°

C (68

°

F)

KBIA0119E

Stamp mark

Thickness

788U

7.88 mm (0.3102 in)

790U

7.90 mm (0.3110 in)

·

·

·

·

840U

8.40 mm (0.3307 in)

Stamp mark

Thickness

N788

7.88 mm (0.3102 in)

N790

7.90 mm (0.3110 in)

·

·

·

·

N836

8.36 mm (0.3291 in)

2009 Pathfinder

EM-22

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

COMPRESSION PRESSURE

COMPRESSION PRESSURE

Compression Pressure

INFOID:0000000003939483

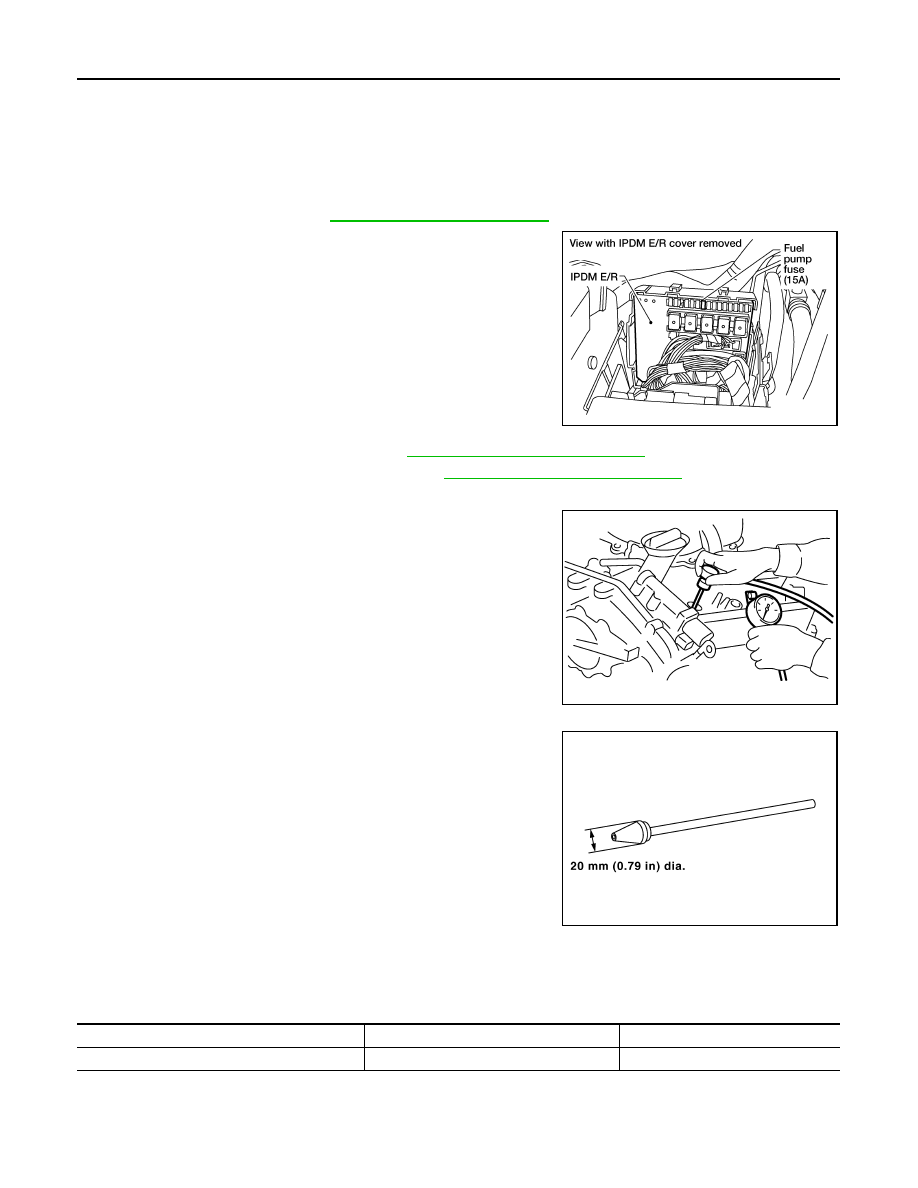

CHECKING COMPRESSION PRESSURE

1.

Warm up engine thoroughly.

2.

Release fuel pressure. Refer to

EC-484, "Fuel Pressure Check"

.

3.

Disconnect fuel pump fuse to avoid fuel injection during mea-
surement.

4.

Remove intake manifold collector. Refer to

EM-26, "Removal and Installation"

.

5.

Remove spark plug from each cylinder. Refer to

EM-16, "Removal and Installation"

.

6.

Connect engine tachometer (not required in use of CONSULT-III).

7.

Install compression tester with adapter onto spark plug hole.

• Use compression gauge whose pick up end inserted to spark

plug hole is smaller than 20 mm (0.79 in) in diameter. Other-
wise, it may be caught by cylinder head during removal.

8.

Turn ignition switch to “START” for cranking. When the gauge pointer stabilizes, read the compression
pressure and engine rpm. Perform these steps to check each cylinder.

Compression pressure:

Unit: kPa (kg/cm

2

, psi) /rpm

CAUTION:

Always use a fully charged battery to obtain specified engine speed.
• If the engine speed is out of the specified range, check the battery liquid for proper gravity. Check the

engine speed again with normal battery gravity.

BBIA0534E

PBIC0900E

SBIA0533E

Standard

Minimum

Differential limit between cylinders

 1,275 (13.0, 185) / 300

981 (10.0, 142) / 300

98 (1.0, 14) / 300

2009 Pathfinder

COMPRESSION PRESSURE

EM-23

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• If the compression pressure is below the minimum value, check the valve clearances and parts associ-

ated with the combustion chamber (valve, valve seat, piston, piston ring, cylinder bore, cylinder head,
cylinder head gasket). After checking, measure the compression pressure again.

• If some cylinders have low compression pressure, pour a small amount of engine oil into the spark plug

hole of the cylinder to re-check it for compression.

• If the added engine oil improves the compression, piston rings may be worn out or damaged. Check the

piston rings and replace if necessary.

• If the compression pressure remains at low level despite the addition of engine oil, the valves may be

malfunctioning. Check the valves for damage. Replace the valve or valve seat accordingly.

• If two adjacent cylinders have respectively low compression pressure and their compression remains

low even after the addition of engine oil, cylinder head gaskets may be leaking, or a valve in adjacent
cylinders may be damaged. Inspect and repair as required.

9.

Install the components in the reverse order of removal.

10. Start the engine, and confirm that it runs smoothly.

11. Perform trouble diagnosis. If DTC appears, erase it. Refer to

EC-84, "Description"

.

2009 Pathfinder

EM-24

< ON-VEHICLE REPAIR >

[VQ40DE]

ENGINE ROOM COVER

ON-VEHICLE REPAIR

ENGINE ROOM COVER

Removal and Installation

INFOID:0000000003939484

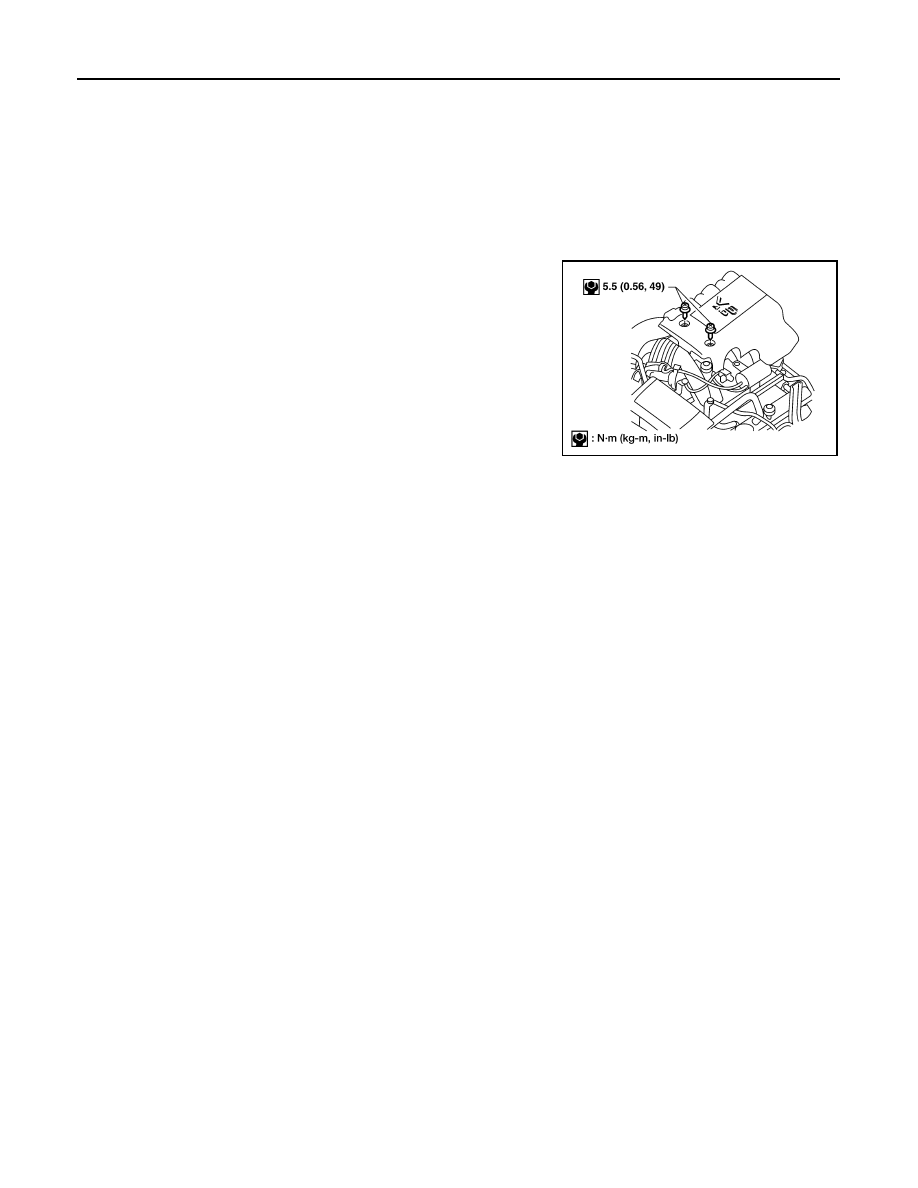

CAUTION:

Do not damage or scratch cover when installing or removing.

REMOVAL

1.

Remove the engine room cover bolts using power tool.

2.

Lift up on engine cover firmly to dislodge snap fit mounts.

INSTALLATION

Installation is in the reverse order of removal.

WBIA0622E

2009 Pathfinder
