Nissan Pathfinder (2009 year). Manual - part 316

EC-542

< FUNCTION DIAGNOSIS >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

• The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.

SUMMARY CHART

For details about patterns B and C under “Fuel injection system” and “Misfire”, see “EXPLANATION FOR DRIVING PATTERNS FOR
“MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”.

For details about patterns A and B under Other, see “EXPLANATION FOR DRIVING PATTERNS   FOR “MISFIRE <EXHAUST QUAL-
ITY DETERIORATION>”, “FUEL INJECTION SYSTEM”.

*1: Clear timing is at the moment OK is detected.

*2: Clear timing is when the same malfunction is detected in the 2nd trip.

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR “MISFIRE ”
<EXHAUST QUALITY DETERIORATION>, “FUEL INJECTION SYSTEM”

Items

Fuel injection system

Misfire

Other

MIL (turns off)

3 (pattern B)

3 (pattern B)

3 (pattern B)

DTC, Freeze Frame Data (no
display)

80 (pattern C)

80 (pattern C)

40 (pattern A)

1st Trip DTC (clear)

1 (pattern C), *

1

1 (pattern C), *

1

1 (pattern B)

1st Trip Freeze Frame Data
(clear)

*1, *2

*1, *2

1 (pattern B)

2009 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-543

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE <EXHAUST QUALITY DETERIORA-
TION>”, “FUEL INJECTION SYSTEM”

<Driving Pattern B>

Driving pattern B means operating vehicle as per the following:

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (pattern B) without any mal-
functions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: The 1st trip DTC and the 1st trip

freeze frame data will be cleared at
the moment OK is detected.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

*8: 1st trip DTC will be cleared when ve-

hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.

JMBIA1417GB

2009 Pathfinder

EC-544

< FUNCTION DIAGNOSIS >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunction.
• The MIL will turn off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)

<Driving Pattern C>

Driving pattern C means operating vehicle as per the following:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data)

±

 375 rpm

Calculated load value: (Calculated load value in the freeze frame data) x (1

±

 0.1) [%]

Engine coolant temperature (T) condition:
• When the freeze frame data shows lower than 70

°

C (158

°

F), T should be lower than 70

°

C (158

°

F).

• When the freeze frame data shows higher than or equal to 70

°

C (158

°

F), T should be higher than or equal to

70

°

C (158

°

F).

Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80

°

C (176

°

F)

To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70

°

C

(158

°

F)

• The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.
• The C counter will be counted up when vehicle conditions above are satisfied without the same malfunction.
• The DTC will not be displayed after C counter reaches 80.
• The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is

stored in ECM.

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”

2009 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-545

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

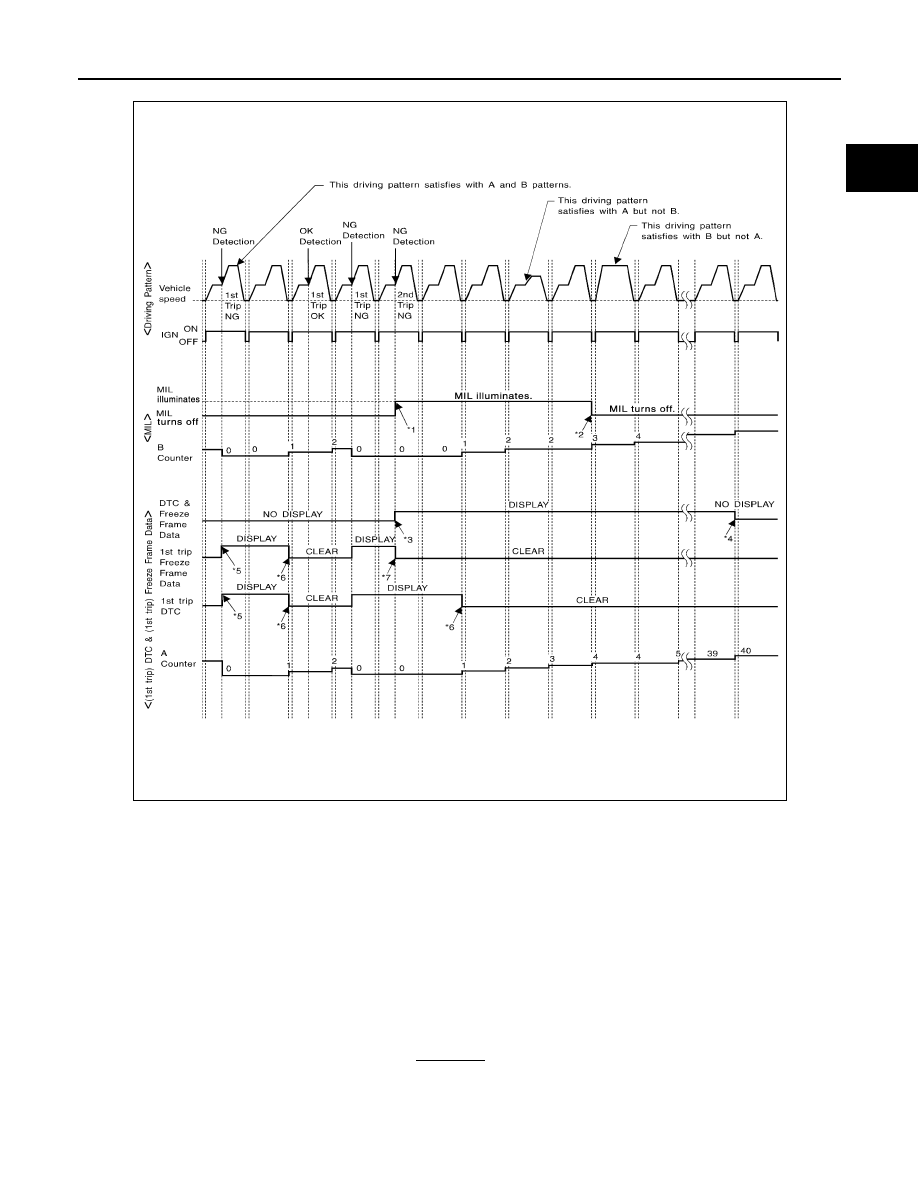

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY DETE-
RIORATION>”, “FUEL INJECTION SYSTEM”

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (pattern B) without any mal-
functions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: 1st trip DTC will be cleared after vehi-

cle is driven once (pattern B) without
the same malfunction.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

JMBIA1418GB

2009 Pathfinder

EC-546

< FUNCTION DIAGNOSIS >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

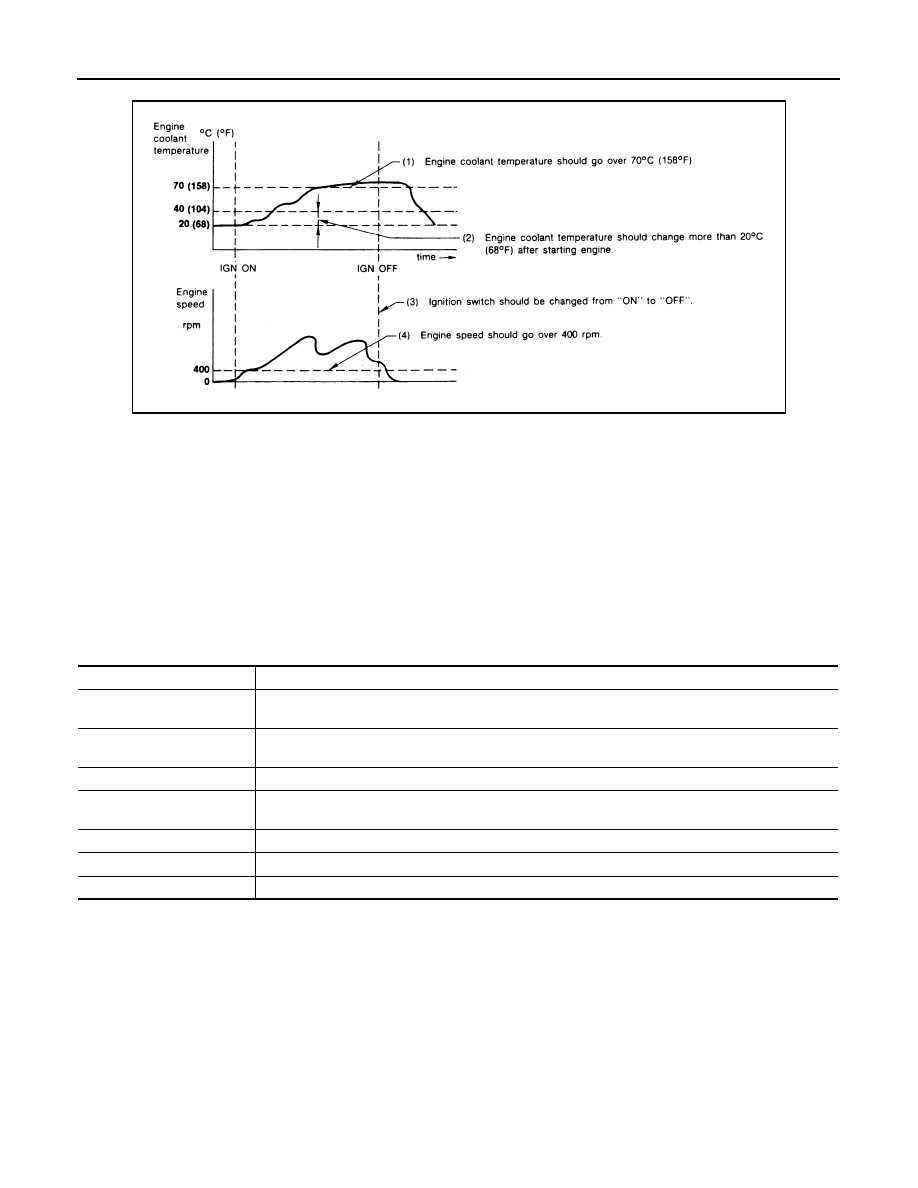

<Driving Pattern A>

• The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
• The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
• The DTC will not be displayed after the A counter reaches 40.

<Driving Pattern B>

Driving pattern B means operating vehicle as per the following:
All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
• The MIL will turn off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).

CONSULT-III Function (ENGINE)

INFOID:0000000003936477

FUNCTION

*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

• Diagnostic trouble codes

• 1st trip diagnostic trouble codes

• Freeze frame data

• 1st trip freeze frame data

• System readiness test (SRT) codes

• Test  values

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION

AEC574

Diagnostic test mode

Function

Work Support

This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT-III unit.

Self Diagnostic Result

Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*

Data Monitor

Input/Output data in the ECM can be read.

Active Test

Diagnostic Test Mode in which CONSULT-III drives some actuators apart from the ECMs and also shifts
some parameters in a specified range.

Function Test

This mode is used to inform customers when the vehicle requires periodic maintenance.

DTC & SRT Confirmation

The status of system monitoring tests and the self-diagnosis status/results can be confirmed.

ECU Identification

ECM part number can be read.

2009 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-547

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Item

DIAGNOSTIC TEST MODE

WORK

SUPPORT

SELF DIAGNOSTIC

RESULT

DATA

MONITOR

ACTIVE

TEST

DTC & SRT

CONFIRMATION

DTC*1

FREEZE

FRAME
DATA*2

SRT

STATUS

DTC

WORK

SUPPORT

ENGINE CONTROL

C

O

MPONENT P

ARTS

INP

U

T

Crankshaft position sensor (POS)

×

×

×

Camshaft position sensor (PHASE)

×

×

×

Mass air flow sensor

×

×

Engine coolant temperature sensor

×

×

×

×

Air fuel ratio (A/F) sensor 1

×

×

×

×

Heated oxygen sensor 2

×

×

×

×

Vehicle speed signal

×

×

×

Accelerator pedal position sensor

×

×

Throttle position sensor

×

×

×

Fuel tank temperature sensor

×

×

×

EVAP control system pressure sen-
sor

×

×

Intake air temperature sensor

×

×

×

Knock sensor

×

Refrigerant pressure sensor

×

Closed throttle position switch (ac-
celerator pedal position sensor sig-
nal)

×

Air conditioner switch

×

Park/neutral position (PNP) signal

×

×

Stop lamp switch

×

×

Power steering pressure sensor

×

×

Battery voltage

×

Load signal

×

Intake valve timing control position
sensor

×

×

Fuel level sensor

×

×

Battery current sensor

×

×

ASCD steering switch

×

×

ASCD brake switch

×

×

2009 Pathfinder

EC-548

< FUNCTION DIAGNOSIS >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

X: Applicable

*1: This item includes 1st trip DTCs.

*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-III screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to

EC-525, "Emission-related Diagnostic Information"

.

*3: Always “CMPLT” is displayed.

WORK SUPPORT MODE

Work Item

E

N

GIN

E

 CON

T

RO

L COMPONENT

P

ARTS

OUTPUT

Fuel injector

×

×

Power transistor (Ignition timing)

×

×

Throttle control motor relay

×

×

Throttle control motor

×

EVAP canister purge volume con-
trol solenoid valve

×

×

×

×

Air conditioner relay

×

Fuel pump relay

×

×

×

Cooling fan relay

×

×

×

Air fuel ratio (A/F) sensor 1 heater

×

×

×

*

3

Heated oxygen sensor 2 heater

×

×

×

*

3

EVAP canister vent control valve

×

×

×

×

Intake valve timing control solenoid
valve

×

×

×

Alternator

×

×

Calculated load value

×

×

Item

DIAGNOSTIC TEST MODE

WORK

SUPPORT

SELF DIAGNOSTIC

RESULT

DATA

MONITOR

ACTIVE

TEST

DTC & SRT

CONFIRMATION

DTC*1

FREEZE

FRAME
DATA*2

SRT

STATUS

DTC

WORK

SUPPORT

WORK ITEM

CONDITION

USAGE

FUEL PRESSURE RELEASE

• FUEL PUMP WILL STOP BY TOUCHING “START” DUR-

ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.

When releasing fuel pressure from
fuel line

IDLE AIR VOL LEARN

• THE IDLE AIR VOLUME THAT KEEPS THE ENGINE

WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.

When learning the idle air volume

SELF-LEARNING CONT

• THE COEFFICIENT OF SELF-LEARNING CONTROL

MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.

When clearing the coefficient of
self-learning control value

2009 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-549

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*1: This function is not necessary in the usual service procedure.

SELF-DIAG RESULTS MODE

Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to

EC-921, "DTC Index"

.

Freeze Frame Data and 1st Trip Freeze Frame Data

EVAP SYSTEM CLOSE

CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.
• IGN  SW  ON
• ENGINE NOT RUNNING
• AMBIENT TEMPERATURE IS ABOVE 0

°

C (32

°

F).

• NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS-

TEM

• FUEL TANK TEMP. IS MORE THAN 0

°

C (32

°

F).

• WITHIN 10 MINUTES AFTER STARTING “EVAP SYS-

TEM CLOSE”

• WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”

UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
III WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.
NOTE:
WHEN STARTING ENGINE, CONSULT-III MAY DIS-
PLAY “BATTERY VOLTAGE IS LOW. CHARGE BAT-
TERY”, EVEN IN USING CHARGED BATTERY.

When detecting EVAP vapor leak
of EVAP system

VIN REGISTRATION

• IN THIS MODE, VIN IS REGISTERED IN ECM

When registering VIN in ECM

TARGET IDLE RPM ADJ*

1

• IDLE CONDITION

When setting target idle speed

TARGET IGN TIM ADJ*

1

• IDLE CONDITION

When adjusting target ignition tim-
ing

WORK ITEM

CONDITION

USAGE

Freeze frame data item*

Description

DIAG TROUBLE CODE
[PXXXX]

• The engine control component part/control system has a trouble code, that is displayed as PXXXX.

(Refer to

EC-921, "DTC Index"

.)

FUEL SYS-B1

• “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One of the following mode is displayed.

Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop

FUEL SYS-B2

CAL/LD VALUE [%]

• The calculated load value at the moment a malfunction is detected is displayed.

COOLANT TEMP
[

°

C] or [

°

F]

• The engine coolant temperature at the moment a malfunction is detected is displayed.

L-FUEL TRM-B1 [%]

• “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The “long-term fuel trim” indicates much more gradual feedback compensation to the base fuel schedule

than “short-term fuel trim”.

L-FUEL TRM-B2 [%]

S-FUEL TRM-B1 [%]

• “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The “short-term fuel trim” indicates dynamic or instantaneous feedback compensation to the base fuel

schedule.

S-FUEL TRM-B2 [%]

ENGINE SPEED [rpm]

• The engine speed at the moment a malfunction is detected is displayed.

VEHICL SPEED
[km/h] or [mph]

• The vehicle speed at the moment a malfunction is detected is displayed.

ABSOL TH-P/S [%]

• The throttle valve opening at the moment a malfunction is detected is displayed.

B/FUEL SCHDL [msec]

• The base fuel schedule at the moment a malfunction is detected is displayed.

INT/A TEMP SE
[

°

C] or [

°

F]

• The intake air temperature at the moment a malfunction is detected is displayed.

2009 Pathfinder
