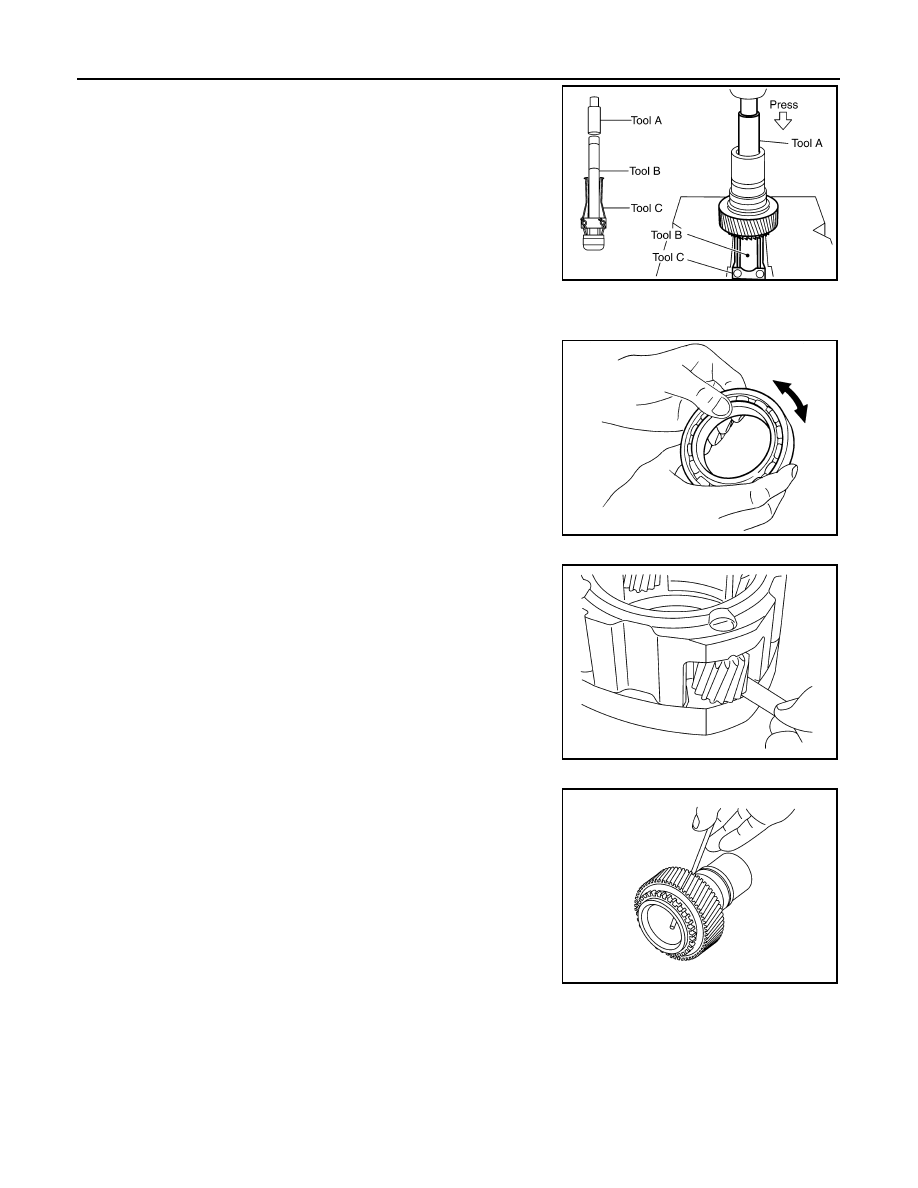

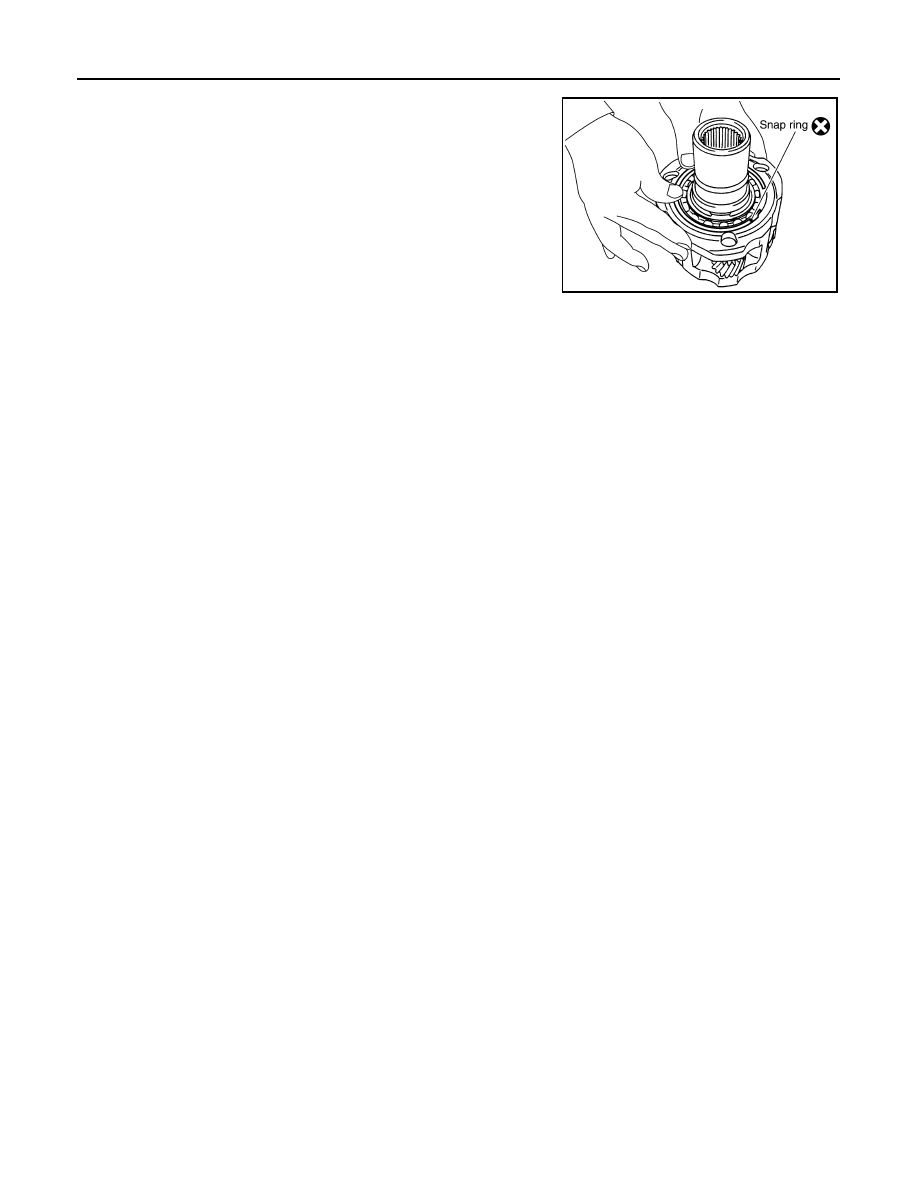

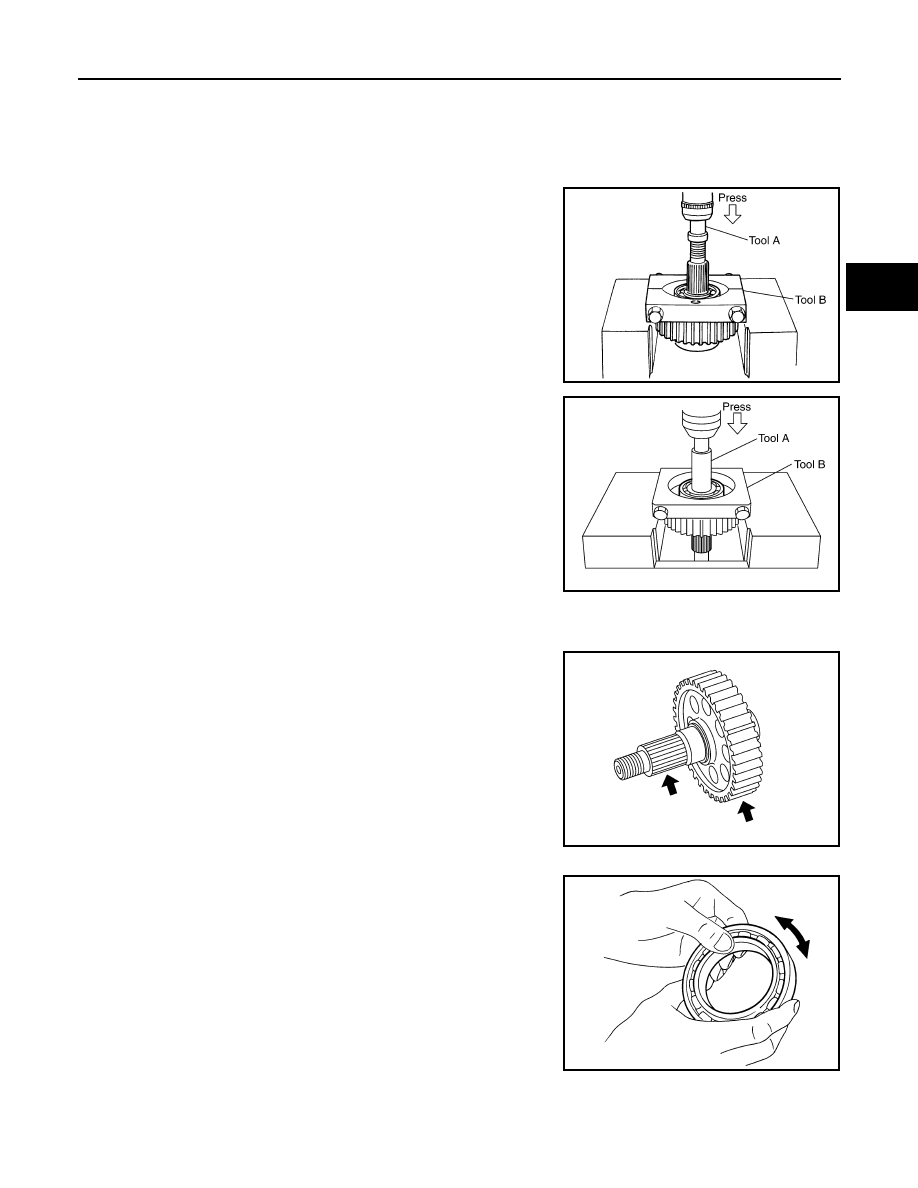

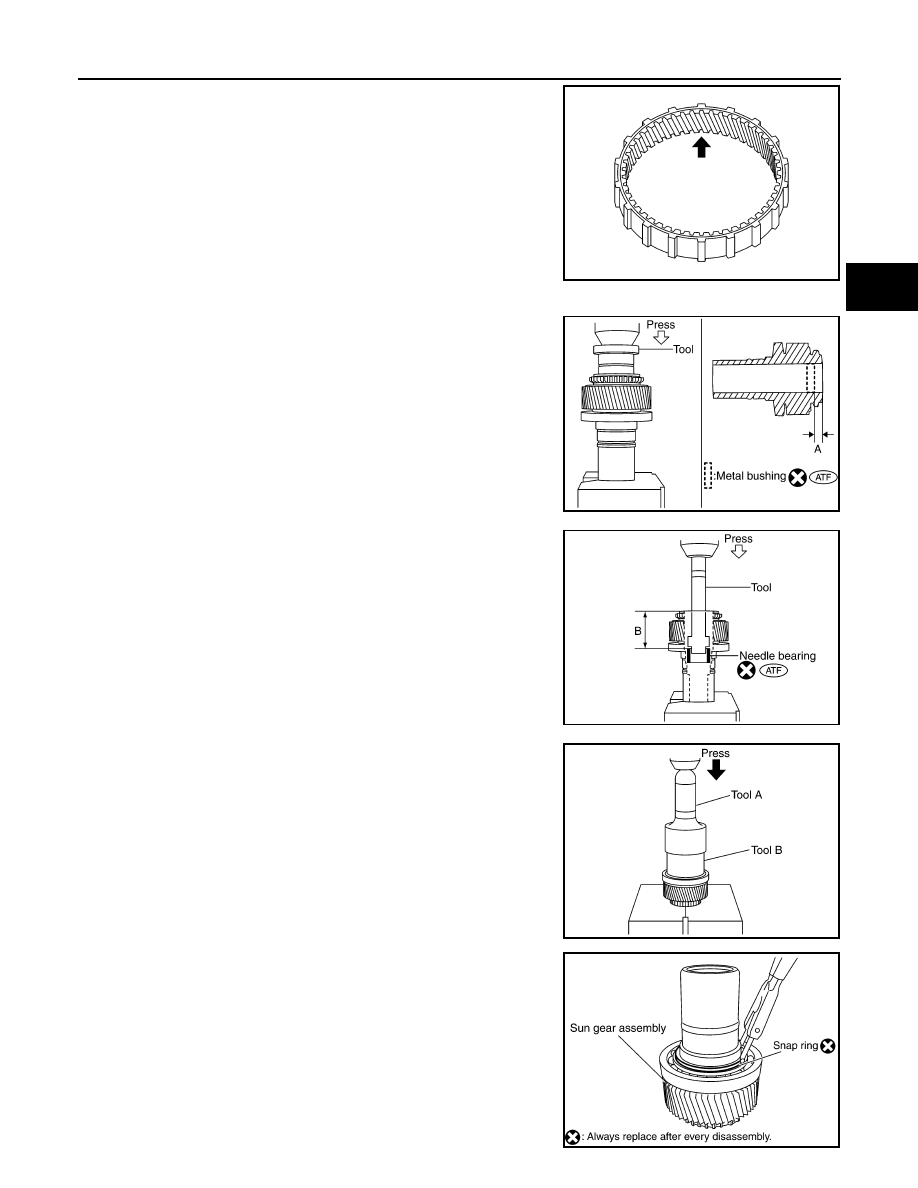

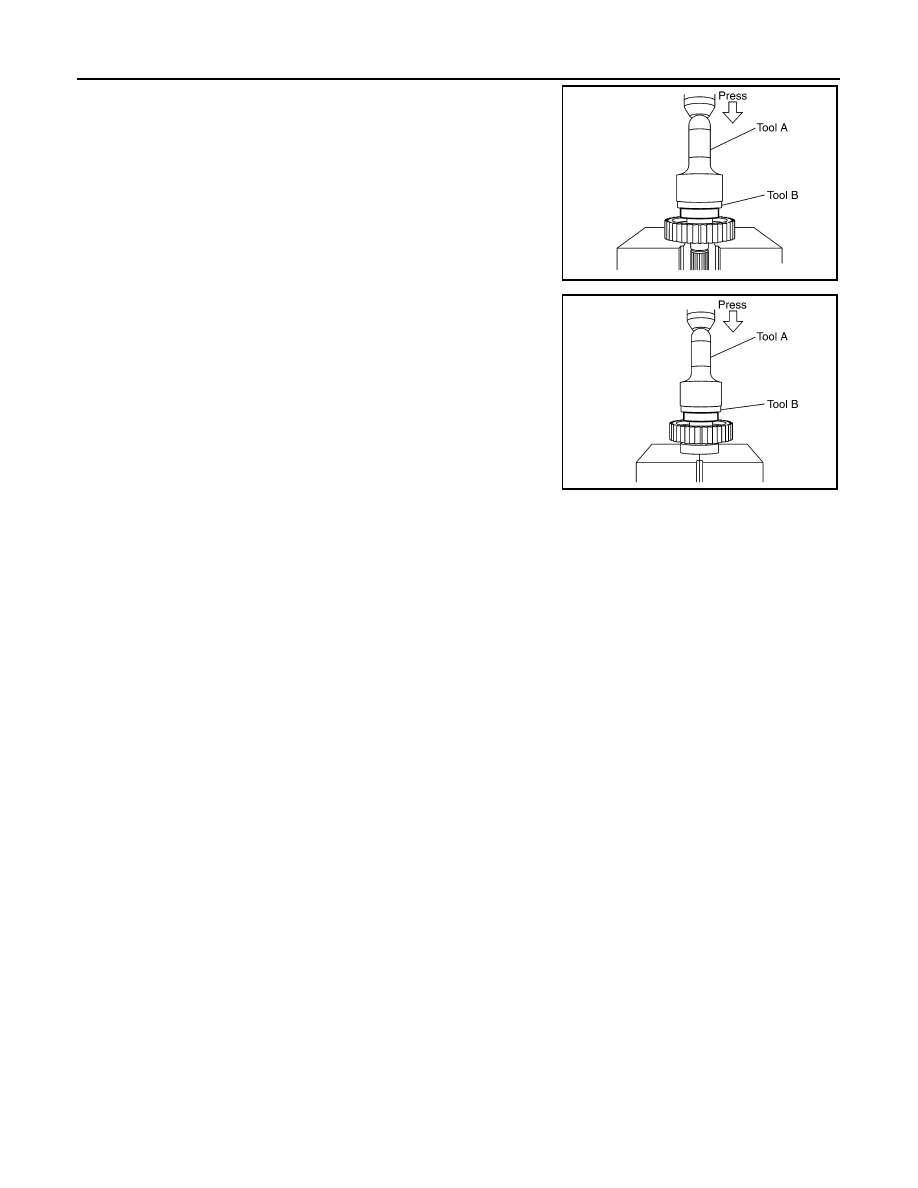

DLN-298 < DISASSEMBLY AND ASSEMBLY > [TRANSFER: TX15B] PLANETARY CARRIER 6. Remove the metal bushing from the sun gear using Tools. INSPECTION AFTER DISASSEMBLY Bearing Check the bearing for damage and rough rotation. If necessary, Planetary Carrier • Measure the end play of each pinion gear. If it is out of specifica- tion, replace the planetary carrier assembly with new one. • Check the working face of each gear and bearing for damage, burrs, partial wear, dents and other abnormality. If any is found, Sun Gear • Check if the oil passage of the sun gear assembly is clogged. For this, try to pass a 3.6 mm (0.142 in) dia. wire through the oil pas- • Check the sliding and contact surface of each gear and bearing for damage, burrs, partial wear, dents and other abnormality. If any is Internal Gear Tool number A: ST33710000 ( — ) B: ST35325000 ( — ) C: ST33290001 (J-34286) SDIA2168E MTF0041D Pinion gear end play : 0.1 - 0.7 mm (0.004 - 0.028 in) PDIA0146E PDIA0147E 2009 Pathfinder |
