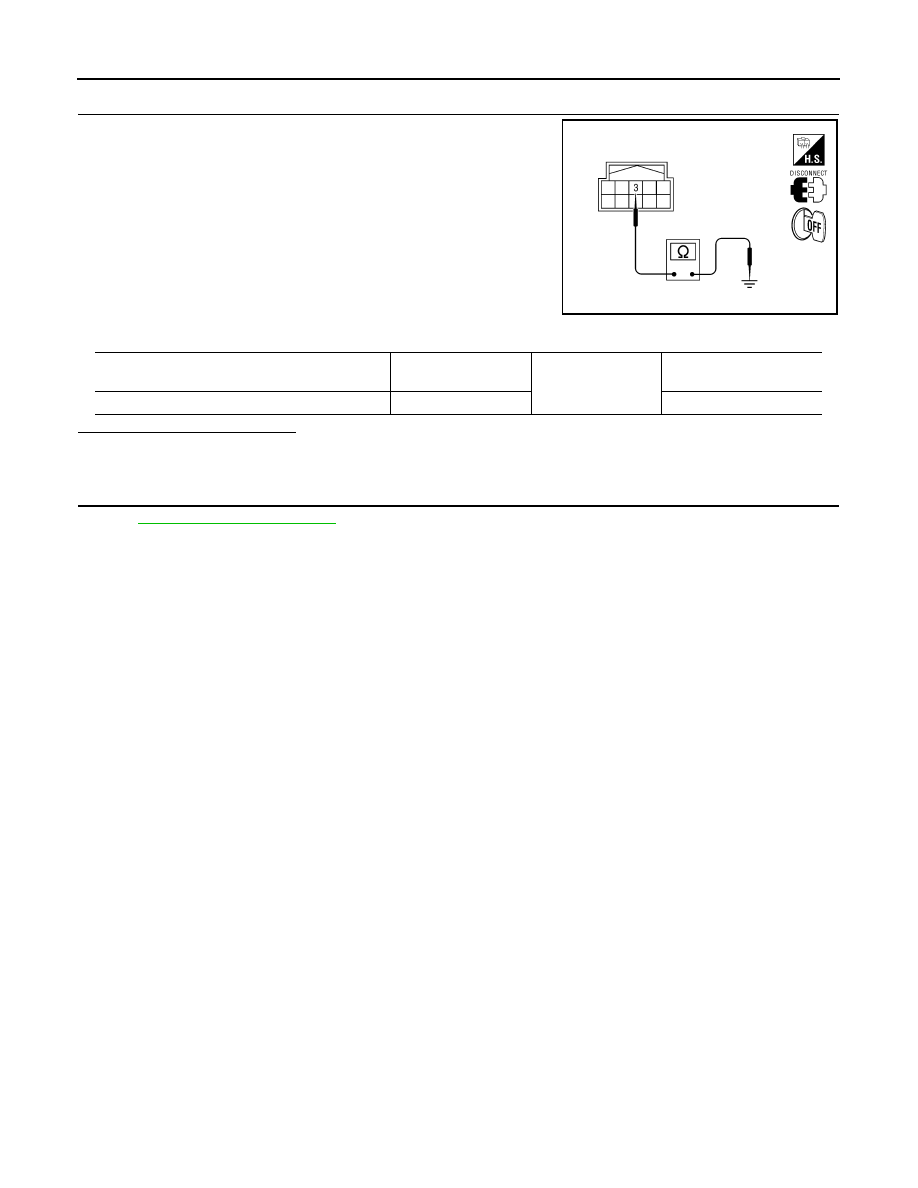

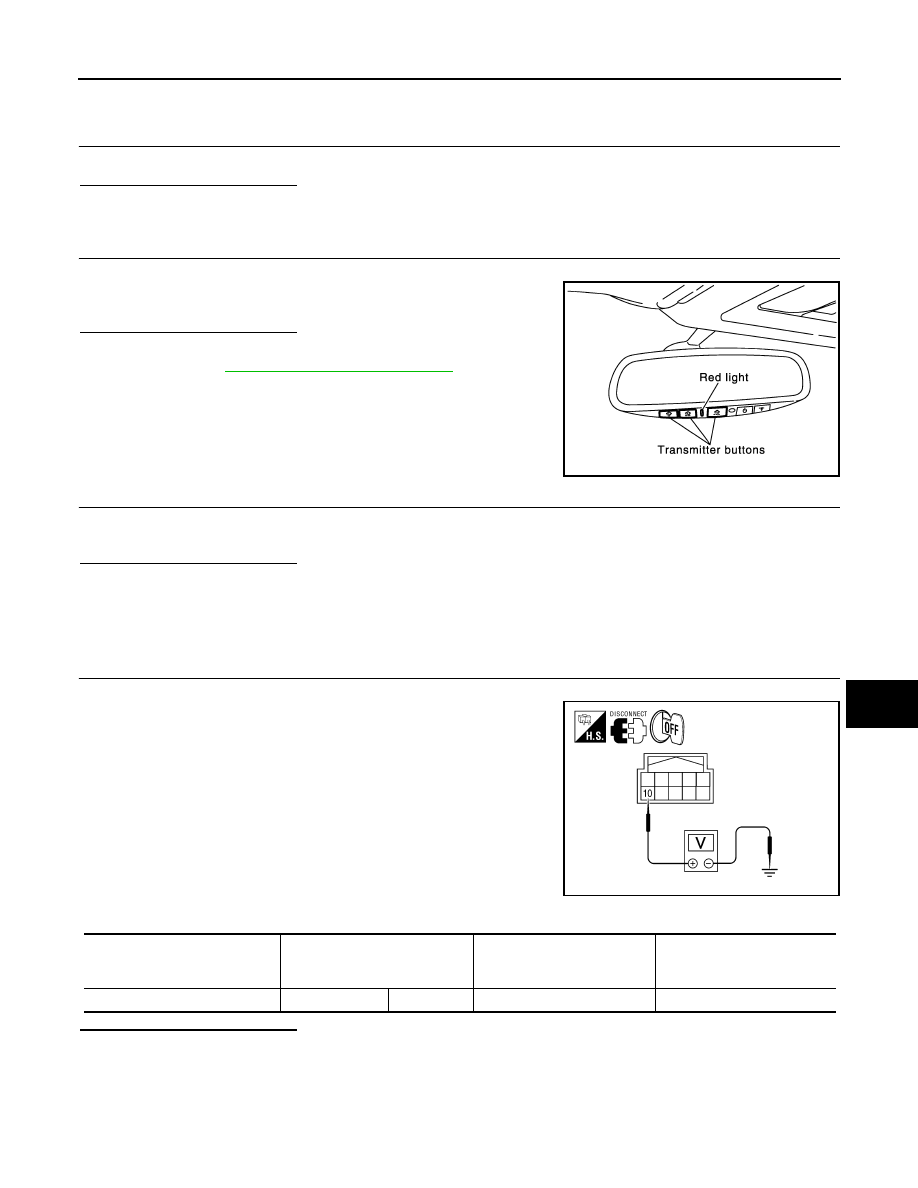

HOMELINK UNIVERSAL TRANSCEIVER DLK-265 < COMPONENT DIAGNOSIS > [WITHOUT INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P Component Function Check INFOID:0000000003938379 1. CHECK FUNCTION Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter. Is the inspection result normal? YES >> GO TO 2. NO >> Receiver or hand-held transmitter is malfunctioning. 2. CHECK ILLUMINATION 1. Turn ignition switch “OFF”. 2. Press each of the transmitter buttons and watch for the red light Is the inspection result normal? YES >> GO TO 3. NO >> Refer to DLK-265, "Diagnosis Procedure" 3. CHECK TRANSMITTER Check transmitter with Tool*. Is the inspection result normal? YES >> Receiver or hand-held transmitter malfunction, not vehicle related. NO >> Replace auto anti-dazzling inside mirror (homelink universal transceiver). Diagnosis Procedure INFOID:0000000003938380 1. CHECK POWER SUPPLY 1. Disconnect auto anti-dazzling inside mirror (homelink universal transceiver) connector. 2. Check voltage between auto anti-dazzling inside mirror Is the inspection result normal? YES >> GO TO 2 NO >> Check the following. • 10A fuse [No. 19 located in the fuse block (J/B)] transceiver). PIIA4815E ALKIA0426ZZ Auto anti-dazzling inside mirror (Homelink universal transceiver) connector Terminal Condition Voltage (V) (Approx.) R7 10 Ground Ignition switch position: LOCK Battery voltage 2009 Pathfinder |
