BRM-42

< SERVICE INFORMATION >

BODY REPAIR

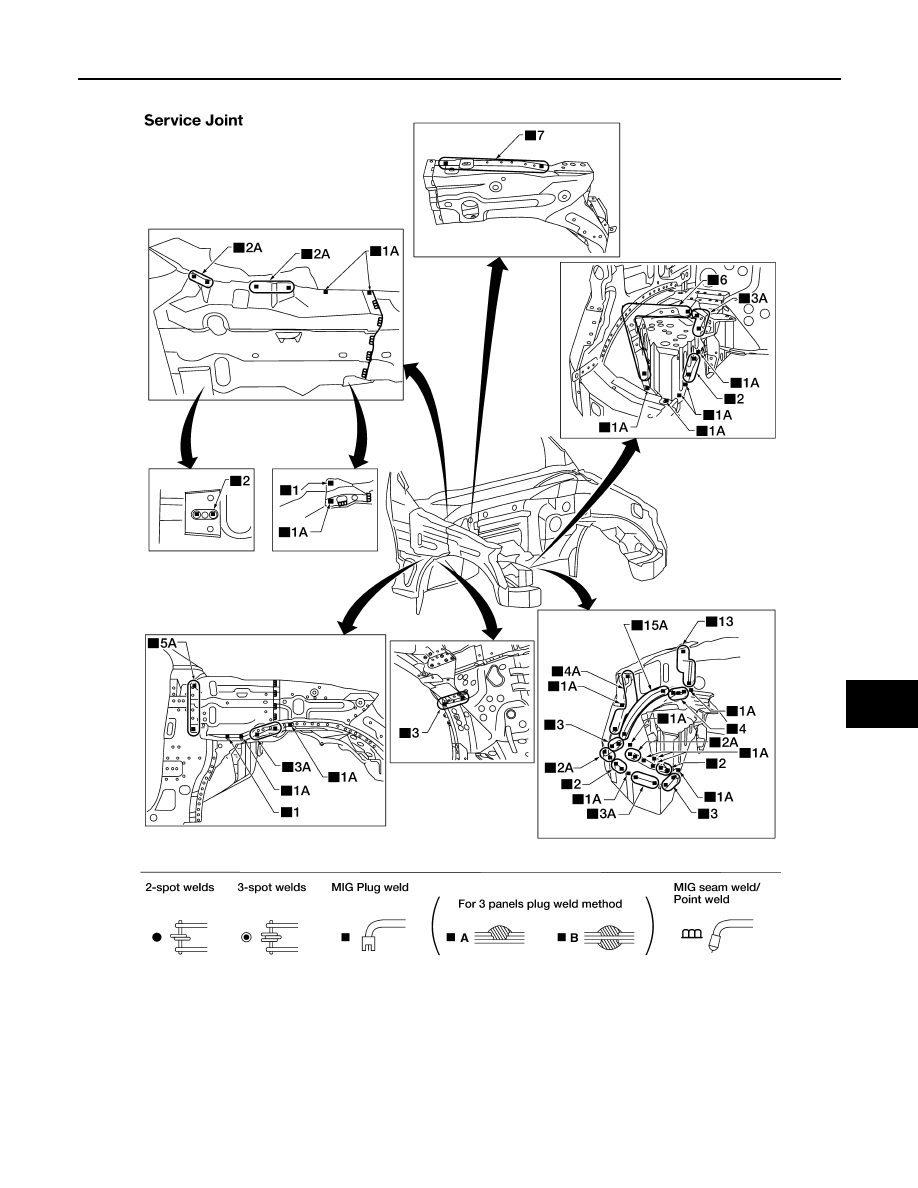

• Work after radiator core support has been removed.

RH

LIIA1808E

2009 Pathfinder

BODY REPAIR

BRM-43

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

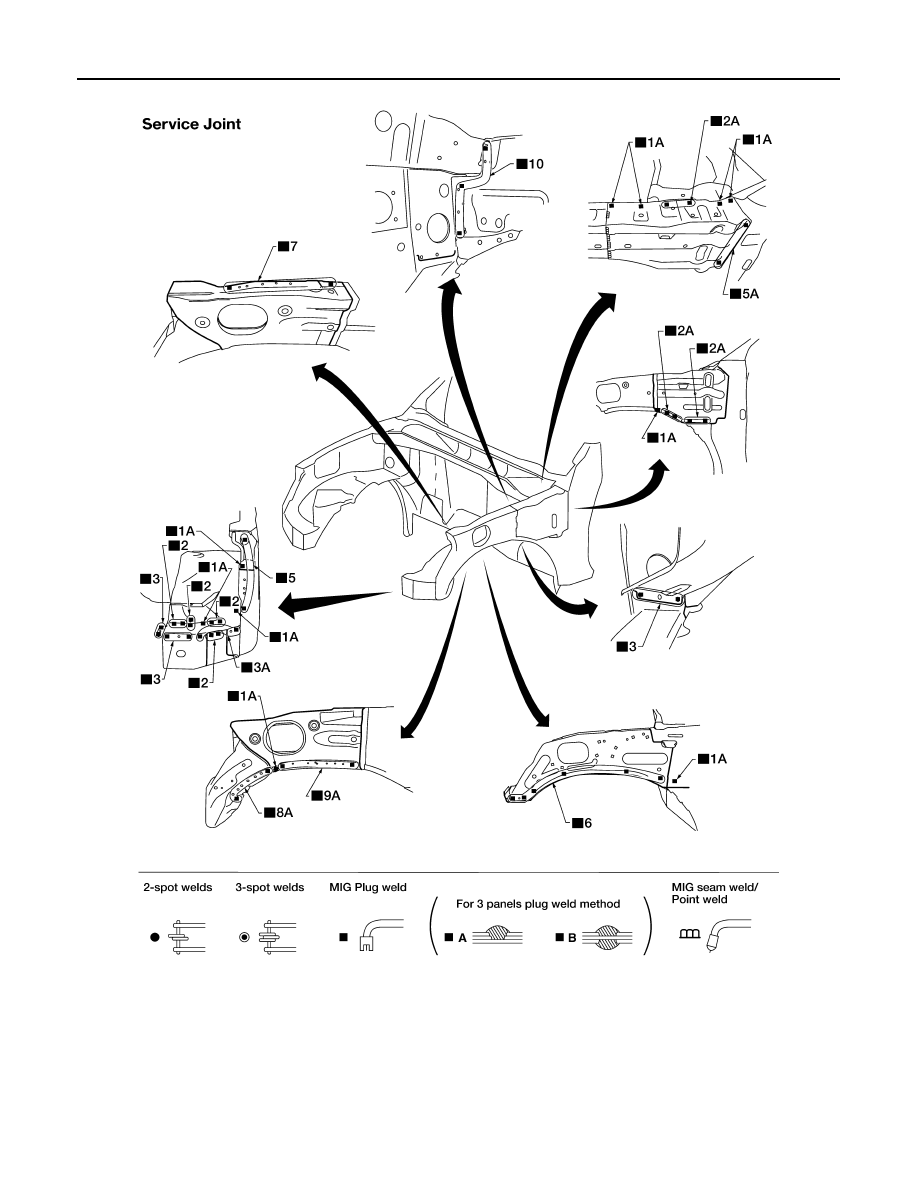

• Work after radiator core support has been removed.

FRONT PILLAR

LIIA1809E

2009 Pathfinder

BRM-44

< SERVICE INFORMATION >

BODY REPAIR

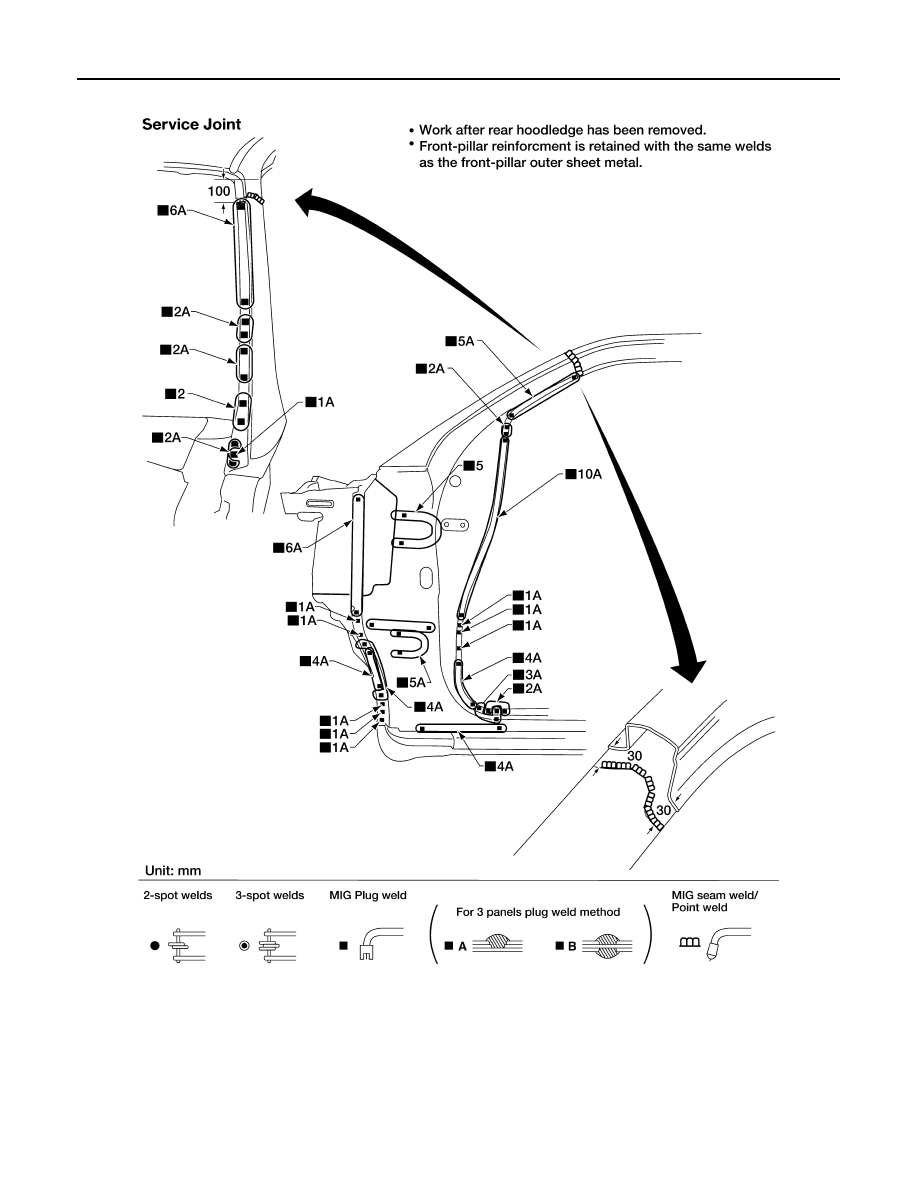

• Work after rear hoodledge reinforcement has been removed.

LIIA1810E

2009 Pathfinder

BODY REPAIR

BRM-45

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

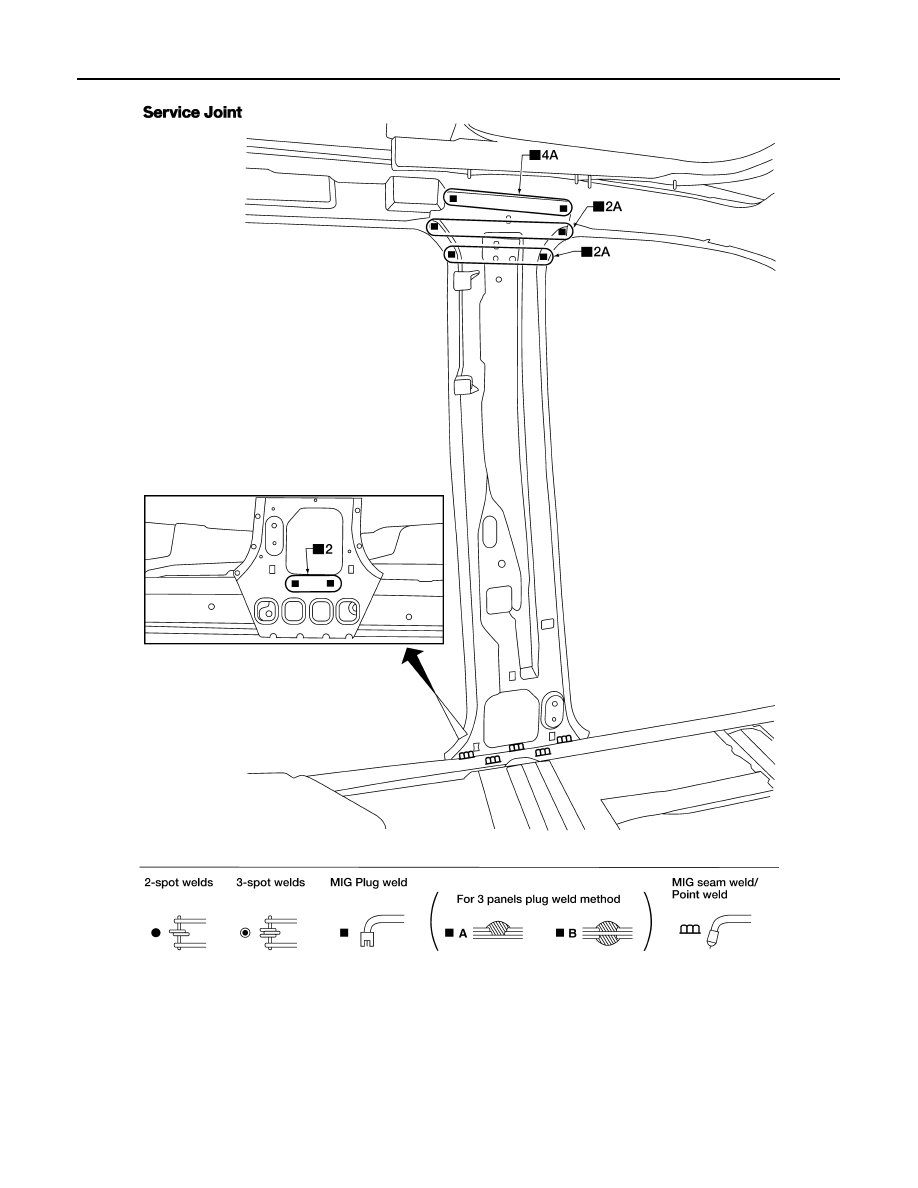

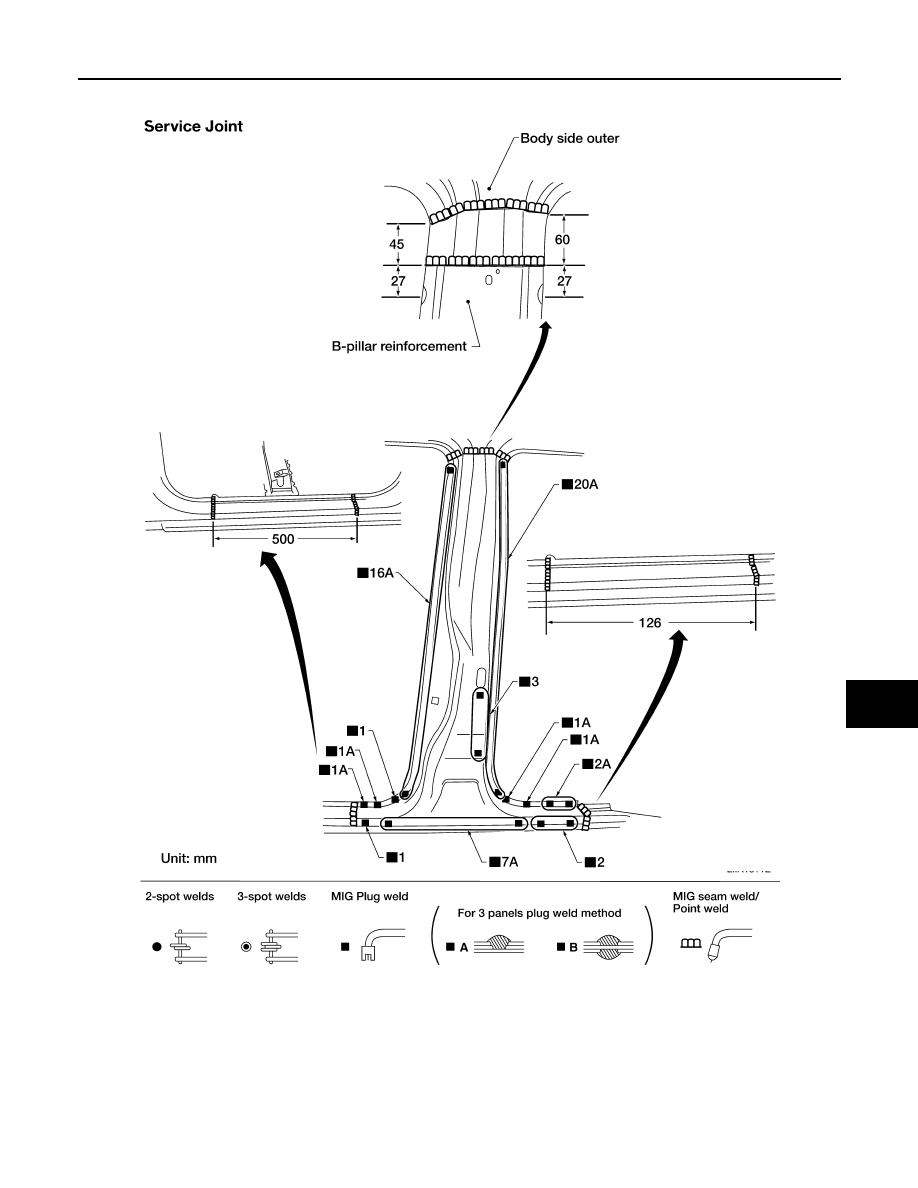

CENTER PILLAR

LIIA1811E

2009 Pathfinder

BRM-46

< SERVICE INFORMATION >

BODY REPAIR

LIIA1812E

2009 Pathfinder

BODY REPAIR

BRM-47

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

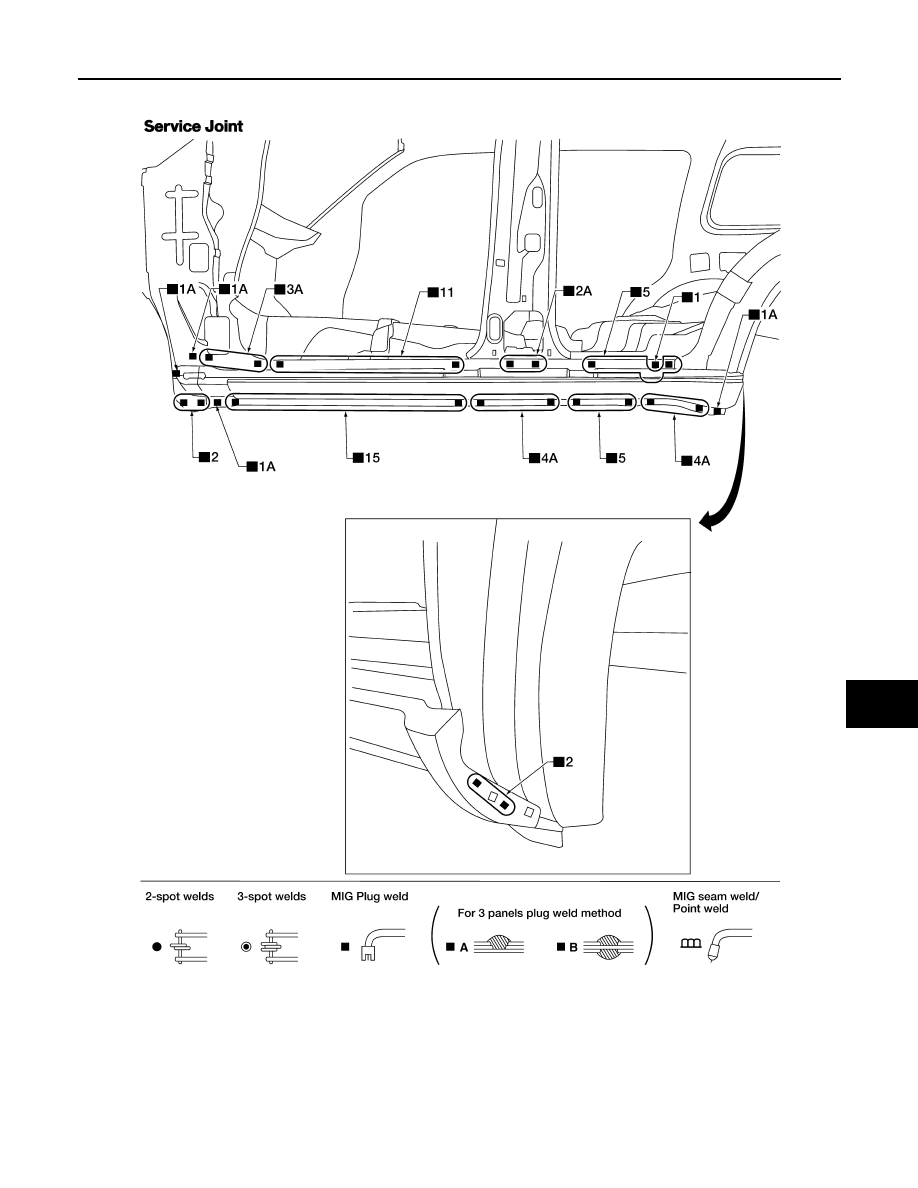

OUTER SILL

LIIA1813E

2009 Pathfinder

BRM-48

< SERVICE INFORMATION >

BODY REPAIR

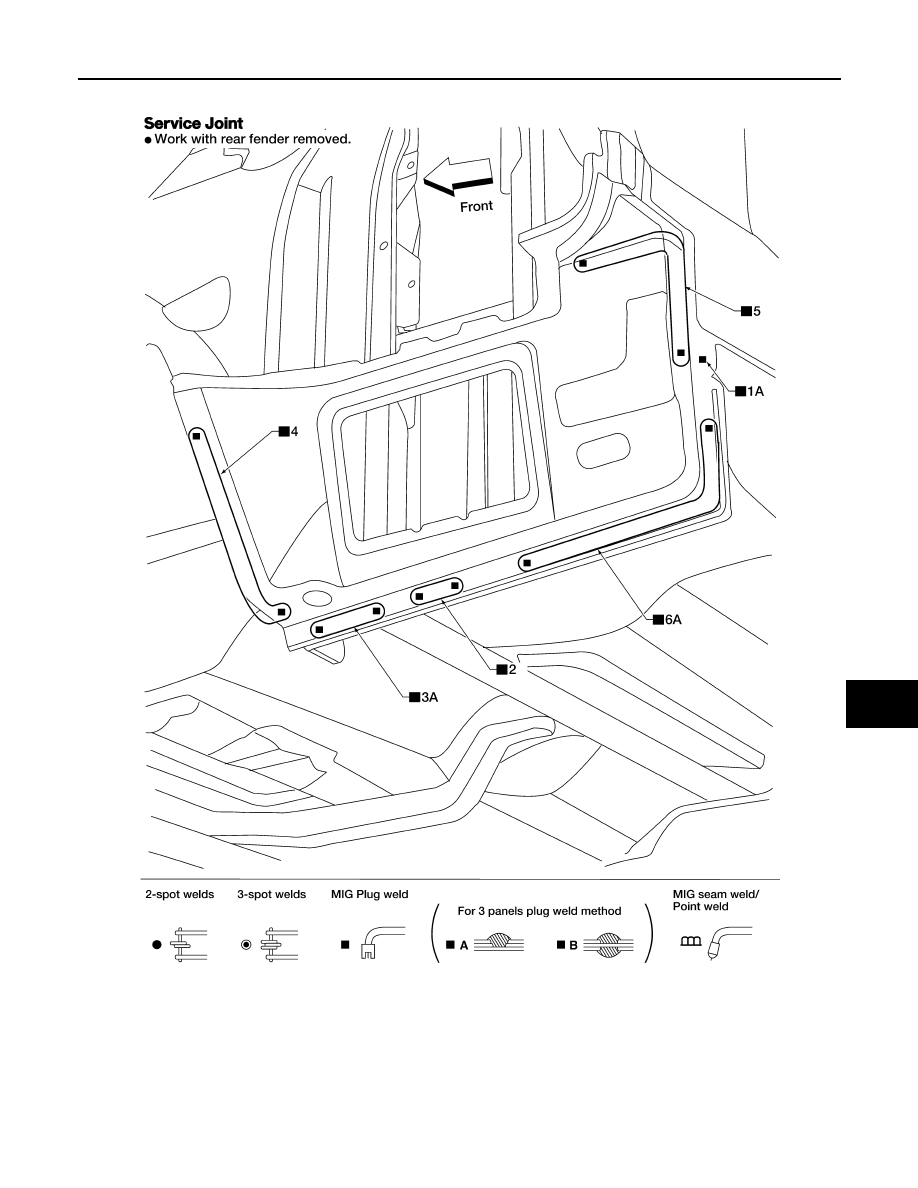

REAR FENDER

REAR FENDER EXTENSION

LIIA1814E

2009 Pathfinder

BODY REPAIR

BRM-49

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

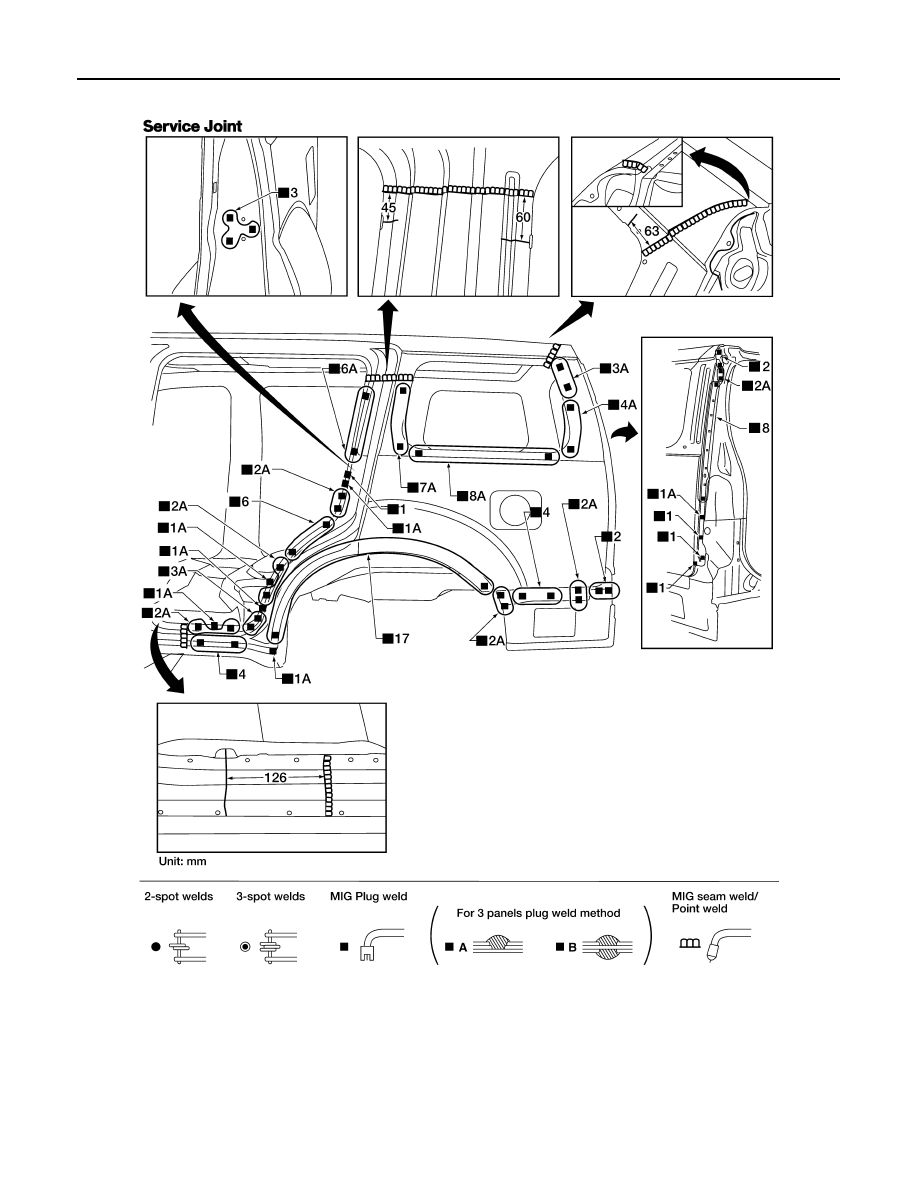

LH

LIIA1818E

2009 Pathfinder
