BRM-18

< SERVICE INFORMATION >

BODY REPAIR

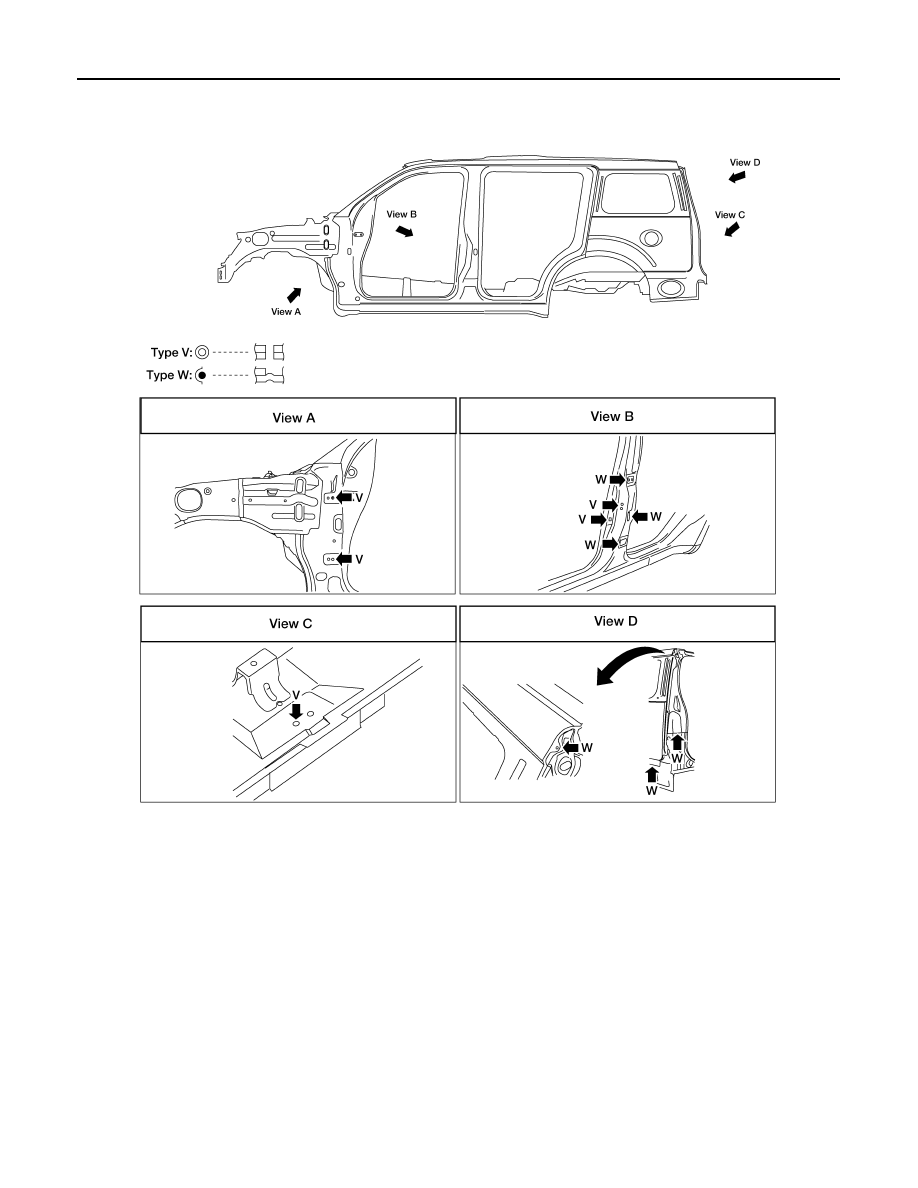

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

DESCRIPTION

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

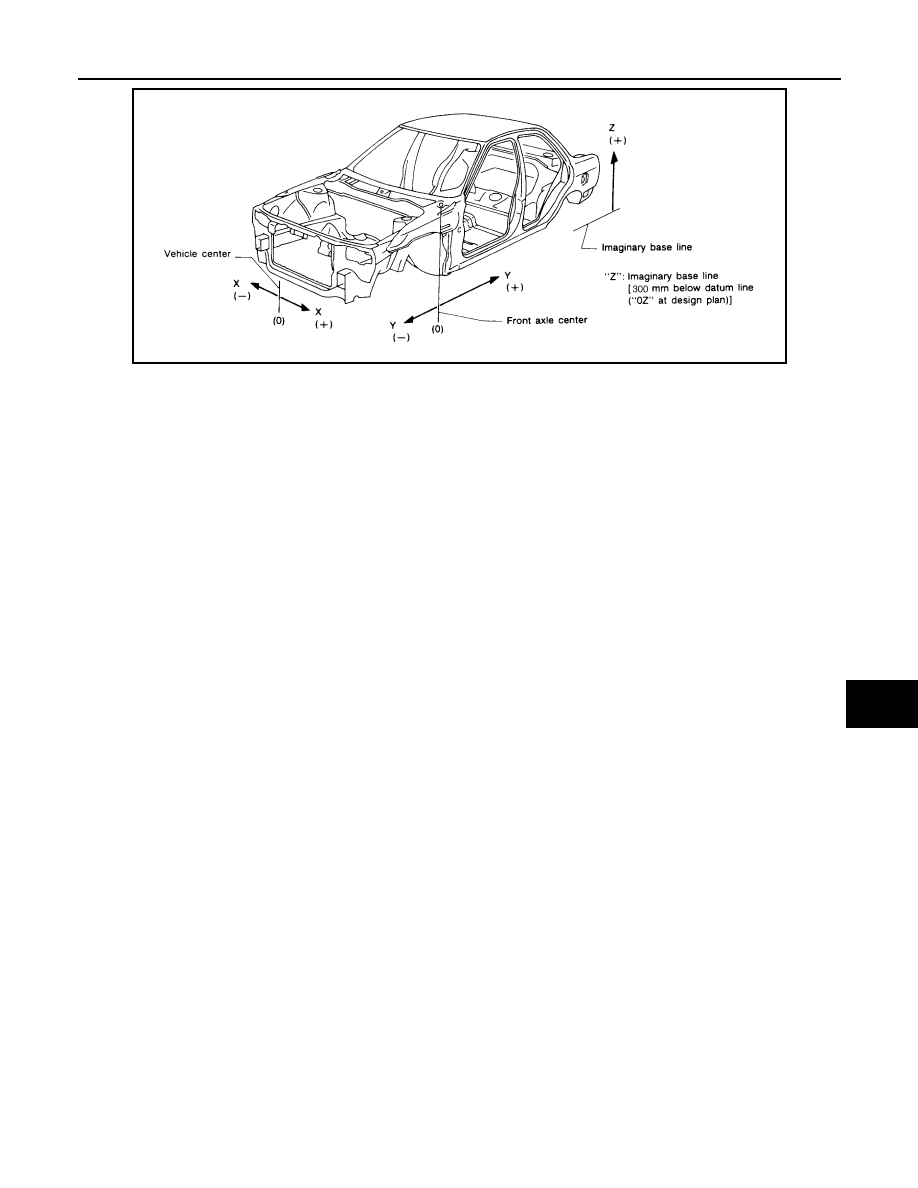

• The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"

and "Z".

LIIA1791E

2009 Pathfinder

BODY REPAIR

BRM-19

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

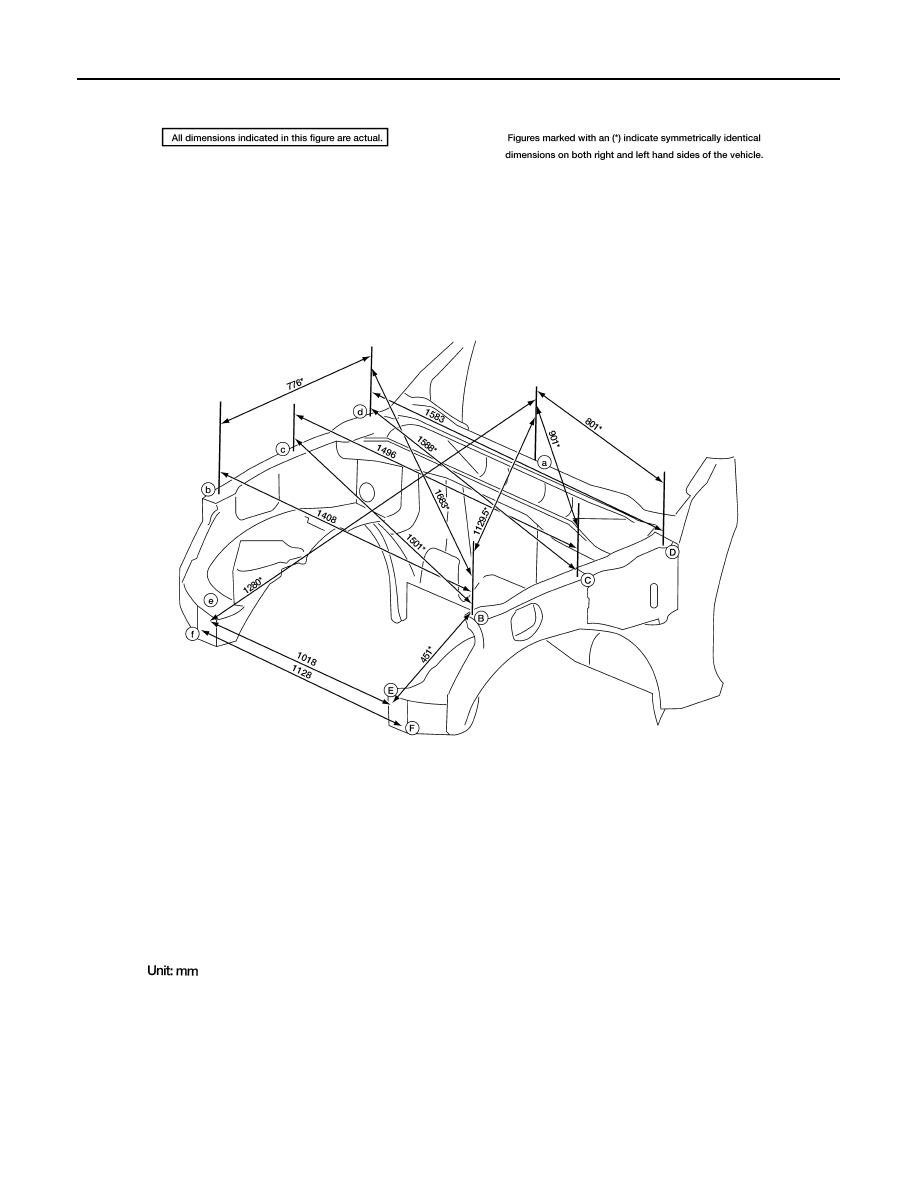

Engine Compartment

LIIA1506E

2009 Pathfinder

BRM-20

< SERVICE INFORMATION >

BODY REPAIR

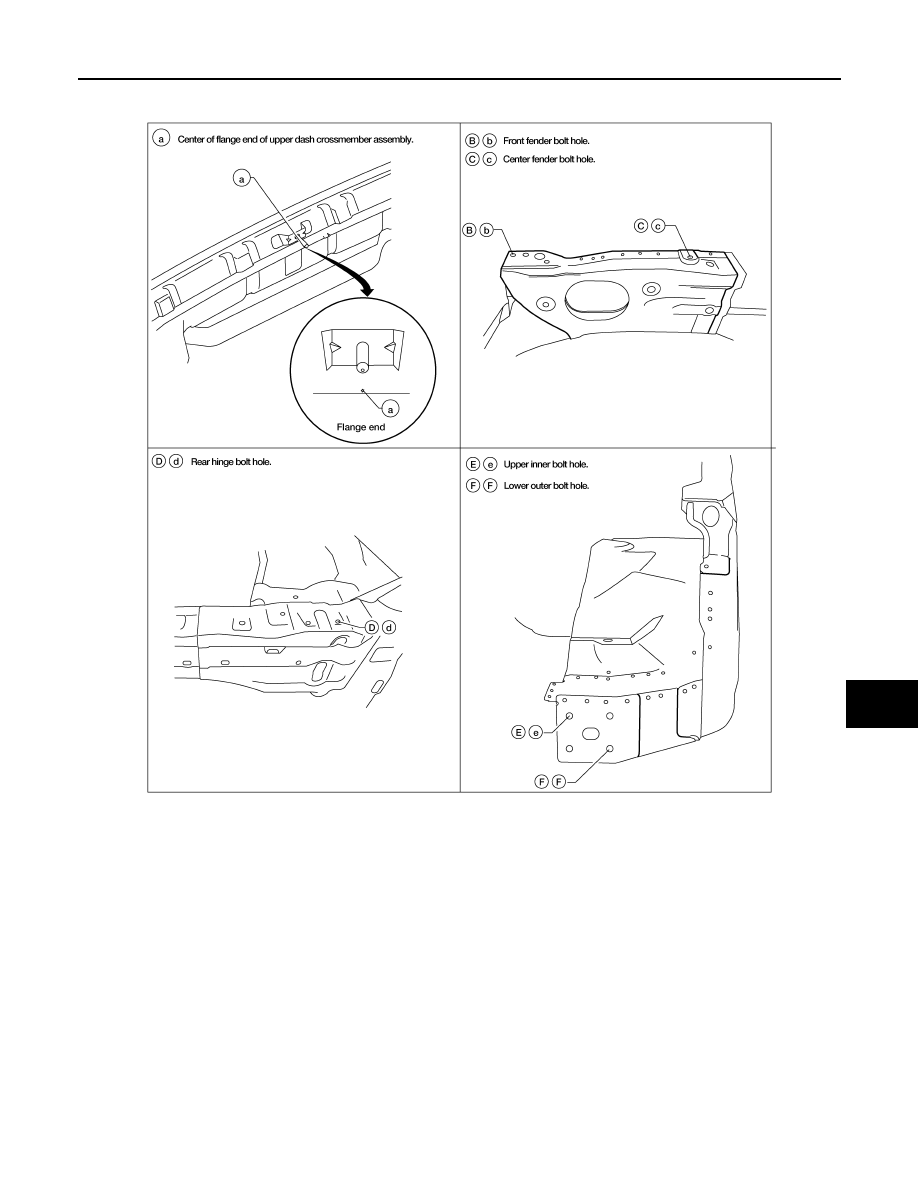

MEASUREMENT

WIIA0729E

2009 Pathfinder

BODY REPAIR

BRM-21

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

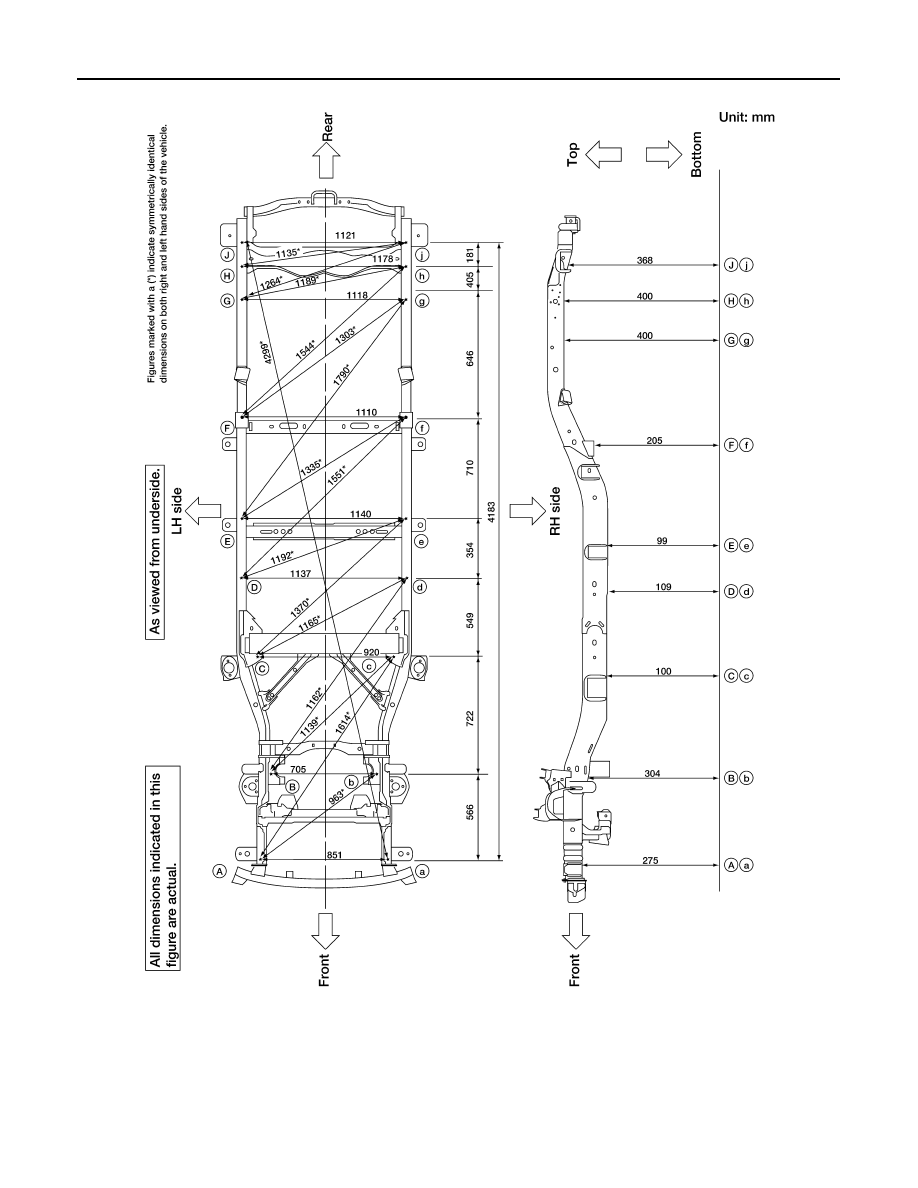

MEASUREMENT POINTS

Underbody

LIIA1793E

2009 Pathfinder

BRM-22

< SERVICE INFORMATION >

BODY REPAIR

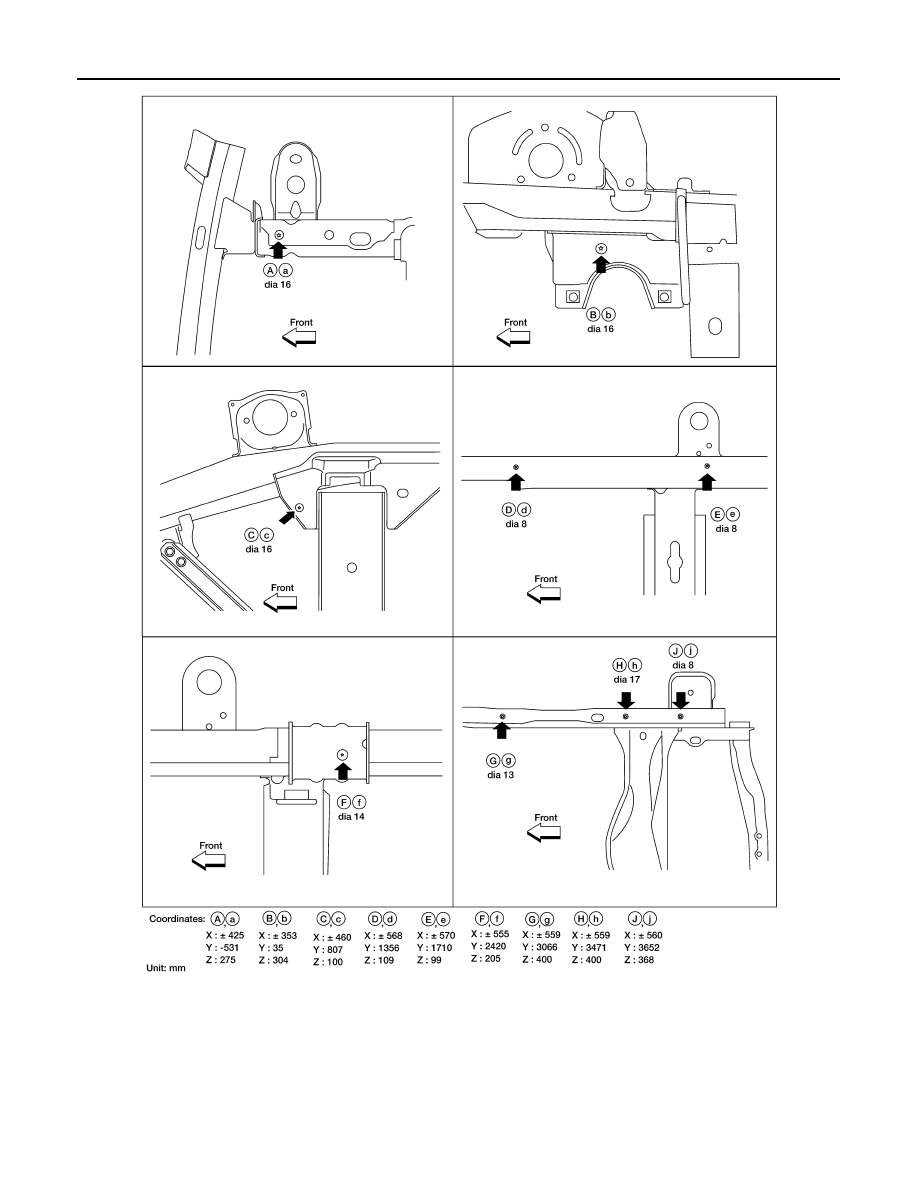

MEASUREMENT

LIIA1794E

2009 Pathfinder

BODY REPAIR

BRM-23

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

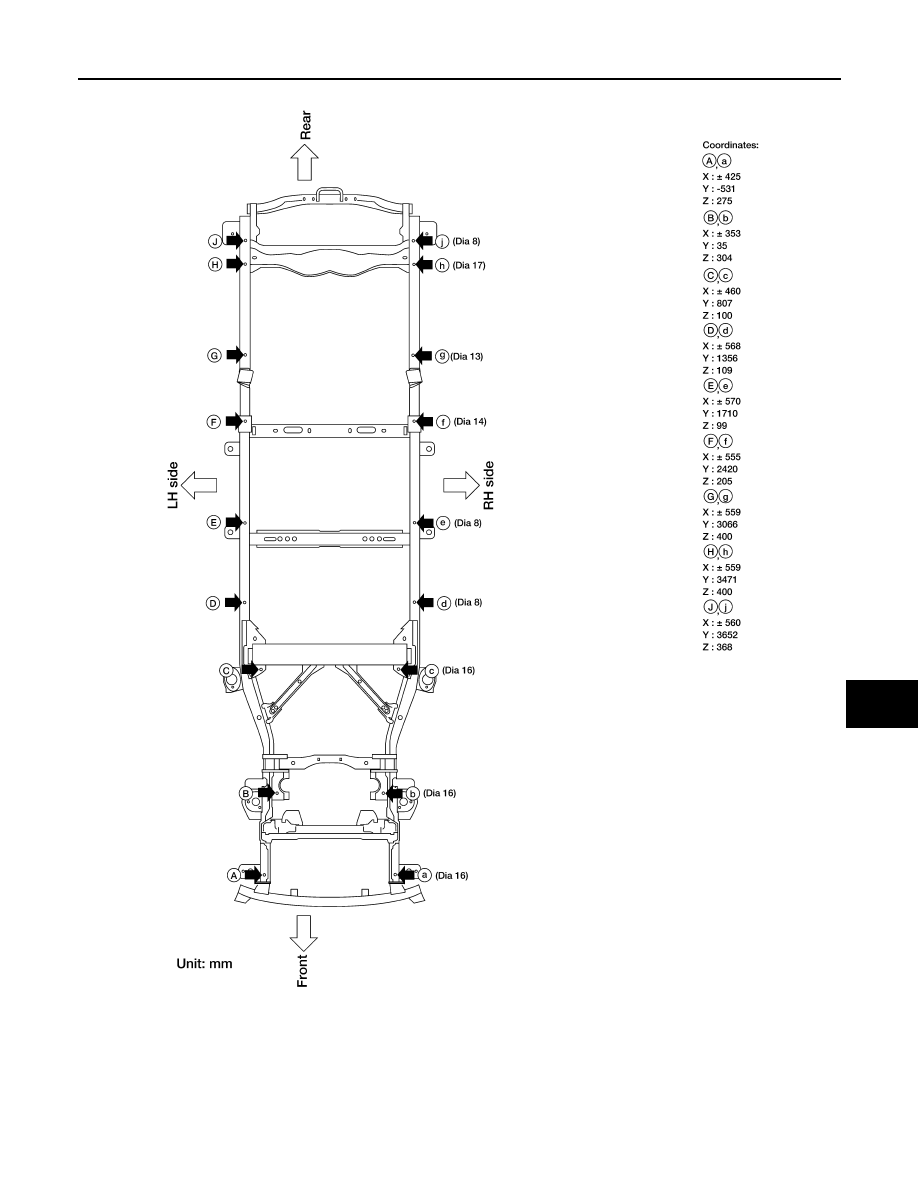

MEASUREMENT POINTS

LIIA1795E

2009 Pathfinder

BRM-24

< SERVICE INFORMATION >

BODY REPAIR

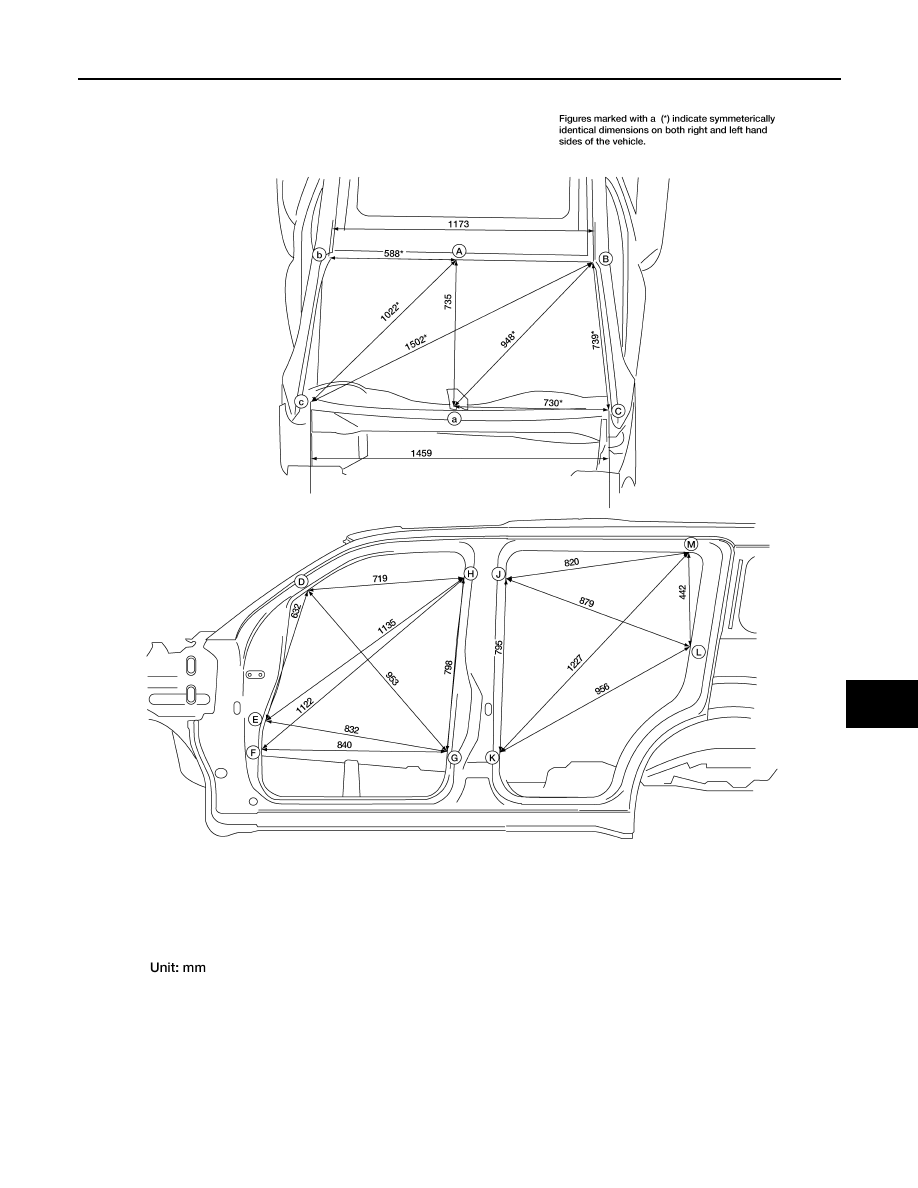

Passenger Compartment

LIIA1796E

2009 Pathfinder

BODY REPAIR

BRM-25

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

MEASUREMENT

LIIA1798E

2009 Pathfinder
