BRAKE TUBE AND HOSE

BRAKE TUBE AND HOSE

Hydraulic Circuit

INFOID:0000000004391467

Brake Tube and Hose Connections

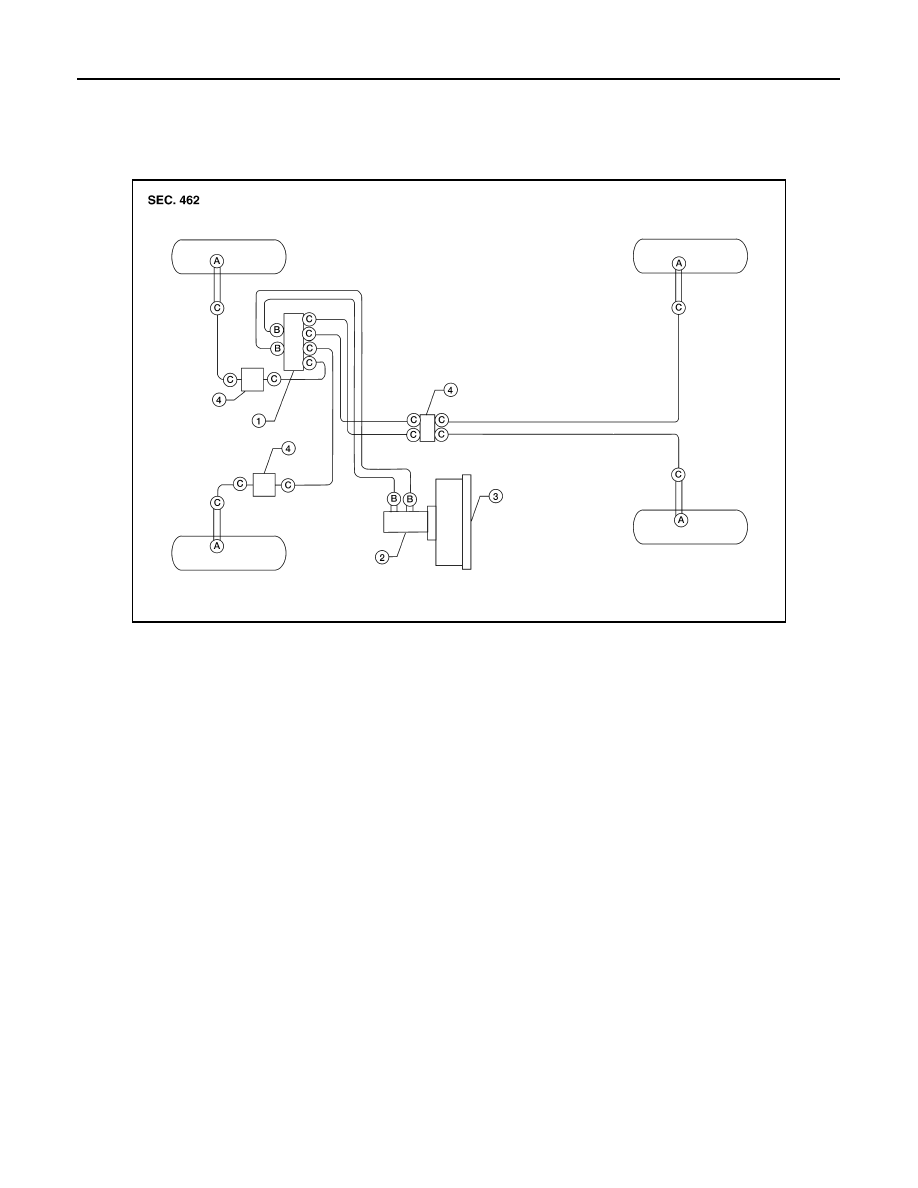

AWFIA0411ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

A.

Union bolt
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

2009 Pathfinder

BRAKE TUBE AND HOSE

BR-27

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ABS Actuator and Electric Unit Brake Pipe Connections for VK56DE

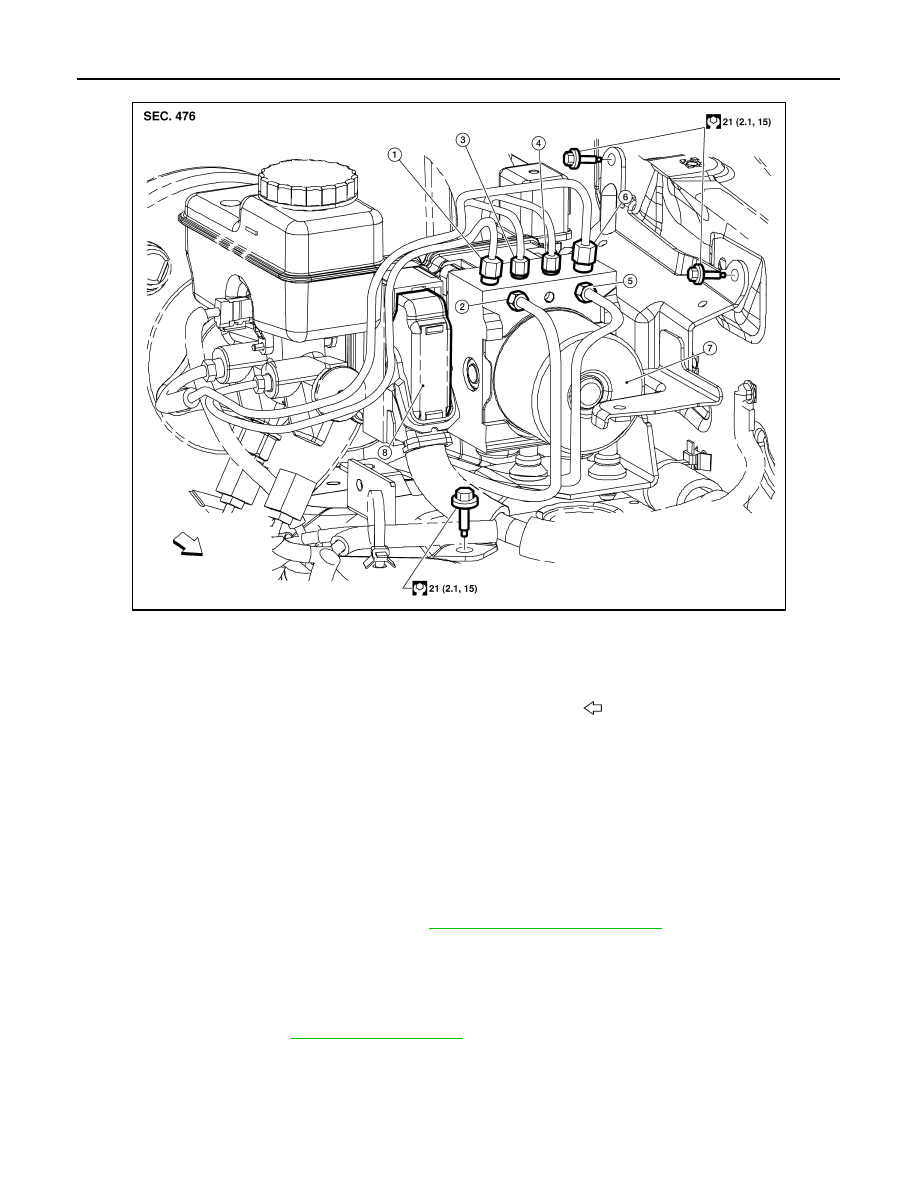

WFIA0389E

1.

To rear left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

2.

To rear right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

5.

From the master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

6.

From the master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

7.

ABS actuator and electric unit
(control unit)

8.

Harness connector

9.

Grommet

10. Collar

2009 Pathfinder

BR-28

< ON-VEHICLE REPAIR >

BRAKE TUBE AND HOSE

ABS Actuator and Electric Unit Brake Pipe Connections for VQ40DE

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.
• Make sure there is no interference with other parts when turning the steering wheel both clockwise

and counterclockwise.

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.
• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.
• Refill with new specified brake fluid. Refer to

MA-12, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.

Removal and Installation of Front Brake Piping and Brake Hose

INFOID:0000000003937506

REMOVAL

1.

Drain brake fluid. Refer to

BR-20, "Drain and Refill"

.

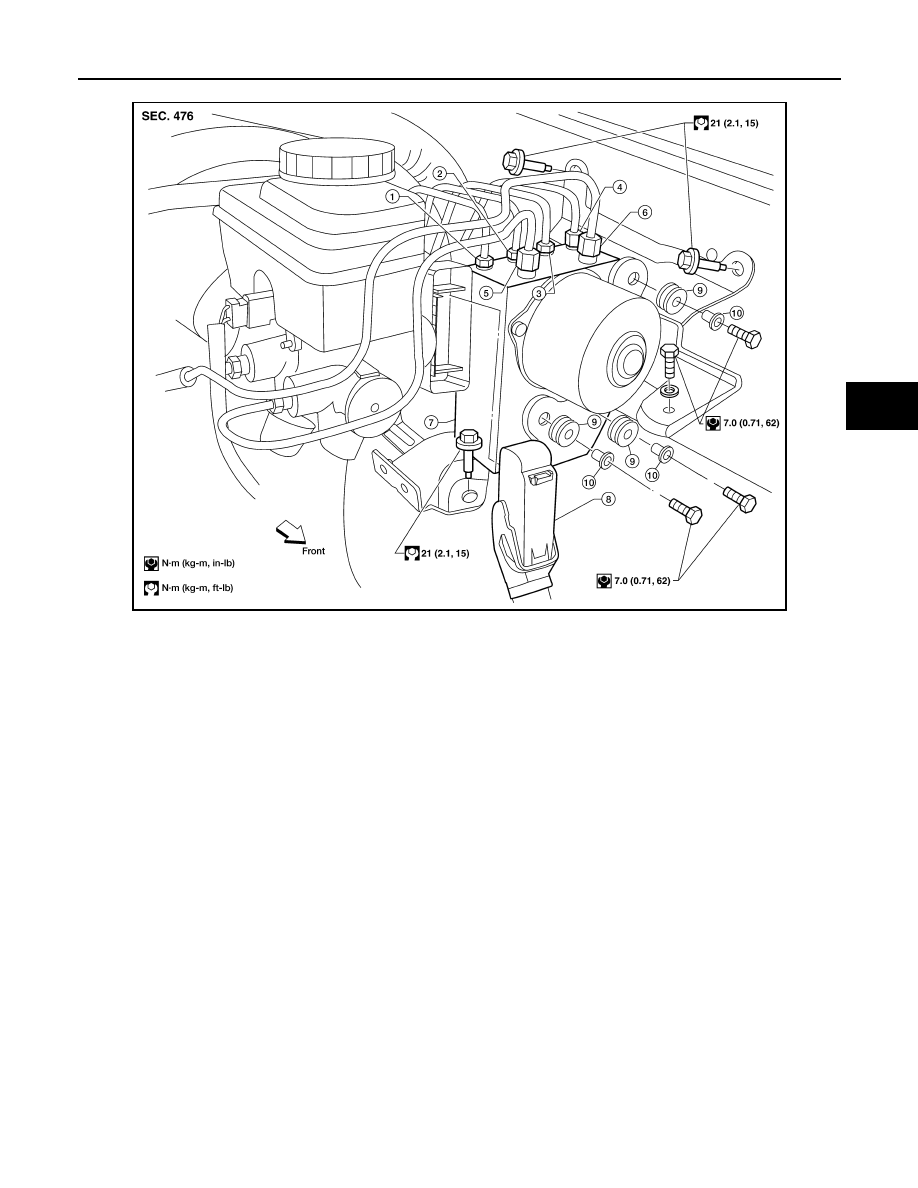

ALFIA0146ZZ

1.

From master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

2.

To rear right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

3.

To rear left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

4.

To front right disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

5.

To front left disc brake
13.0 N·m (1.3 kg-m, 10 ft-lb)

6.

From master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)

7.

ABS actuator and electric unit (control
unit)

8.

Harness connector

Front

2009 Pathfinder

BRAKE TUBE AND HOSE

BR-29

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

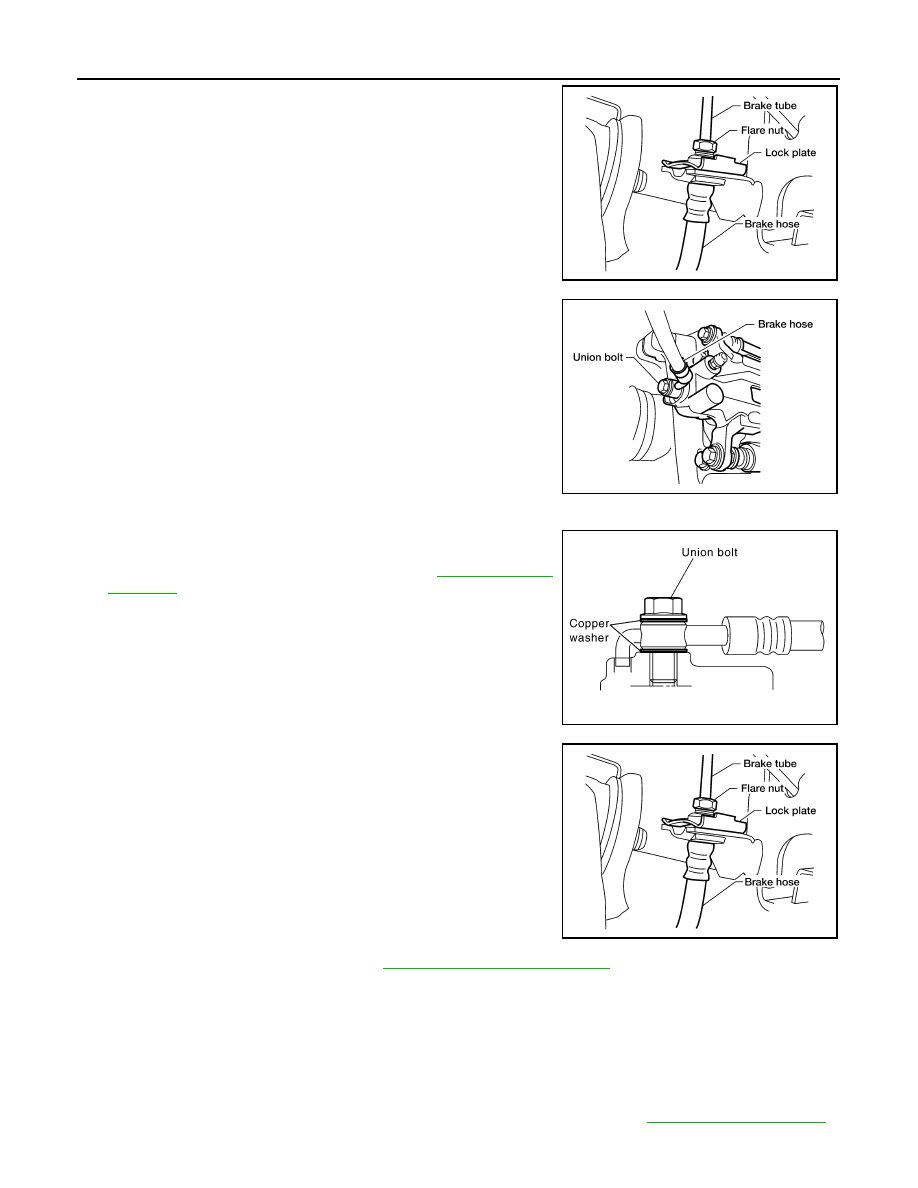

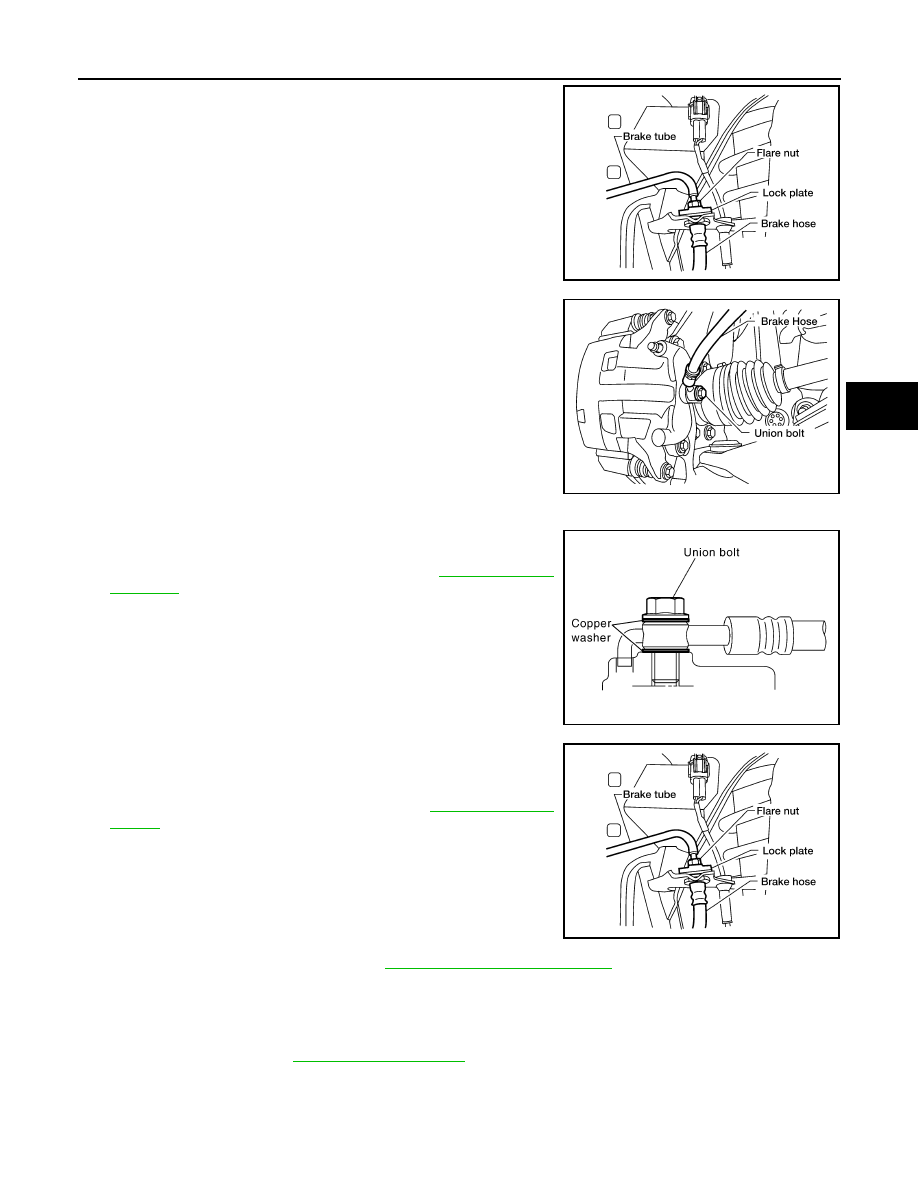

2.

Remove brake tube from brake hose, using a suitable tool.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt and copper washers, then remove brake
hose from caliper assembly.

CAUTION:

Do not reuse copper washers.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, then install new copper washers and union bolt.
Tighten union bolt to specified torque. Refer to

BR-26, "Hydrau-

lic Circuit"

.

CAUTION:

Use new copper washers for installation.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a suitable tool. Refer to

BR-26, "Hydraulic

Circuit"

.

4.

Refill brake fluid and bleed air. Refer to

BR-20, "Bleeding Brake System"

.

Removal and Installation of Rear Brake Piping and Brake Hose

INFOID:0000000003937507

REMOVAL

1.

Drain brake fluid. Refer to

BR-20, "Drain and Refill"

.

LFIA0236E

LFIA0235E

SFIA1137E

LFIA0236E

2009 Pathfinder

BR-30

< ON-VEHICLE REPAIR >

BRAKE TUBE AND HOSE

2.

Remove brake tube from brake hose, using a suitable tool.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt and copper washers, then remove brake
hose from caliper assembly.

CAUTION:

Do not reuse copper washer.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, then install new copper washers and union bolt.
Tighten union bolt to specified torque. Refer to

BR-26, "Hydrau-

lic Circuit"

.

CAUTION:

Do not reuse copper washers.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a suitable tool.

4.

Refill brake fluid and bleed air. Refer to

BR-20, "Bleeding Brake System"

.

Inspection After Installation

INFOID:0000000003937508

CAUTION:

Brake pies and hoses are important safety parts. Always disassemble the parts and retighten their fit-
tings if a brake fluid leak is detected. Replace applicable part with a new one, if a damaged part is
detected.

1.

Check brake pipes and hoses, and connections for fluid leaks, damage, twist, deformation, contact with
other parts, and loose connections. Replace any parts as necessary. Refer to

BR-26, "Hydraulic Circuit"

.

LFIA0238E

LFIA0237E

SFIA1137E

LFIA0238E

2009 Pathfinder

BRAKE TUBE AND HOSE

BR-31

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2.

While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-
mately 5 seconds, check each part for fluid leaks.

2009 Pathfinder

BR-32

< ON-VEHICLE REPAIR >

BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

Removal and Installation

INFOID:0000000003937509

Brake Master Cylinder

CAUTION:

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

REMOVAL

1.

Drain the brake fluid. Refer to

BR-20, "Drain and Refill"

.

2.

Disconnect the harness connectors for the fluid level sensor and fluid pressure sensor.

3.

Disconnect the brake pipes from the master cylinder assembly.

4.

Remove the master cylinder assembly nuts and discard.

CAUTION:

Discard the nuts, do not reuse.

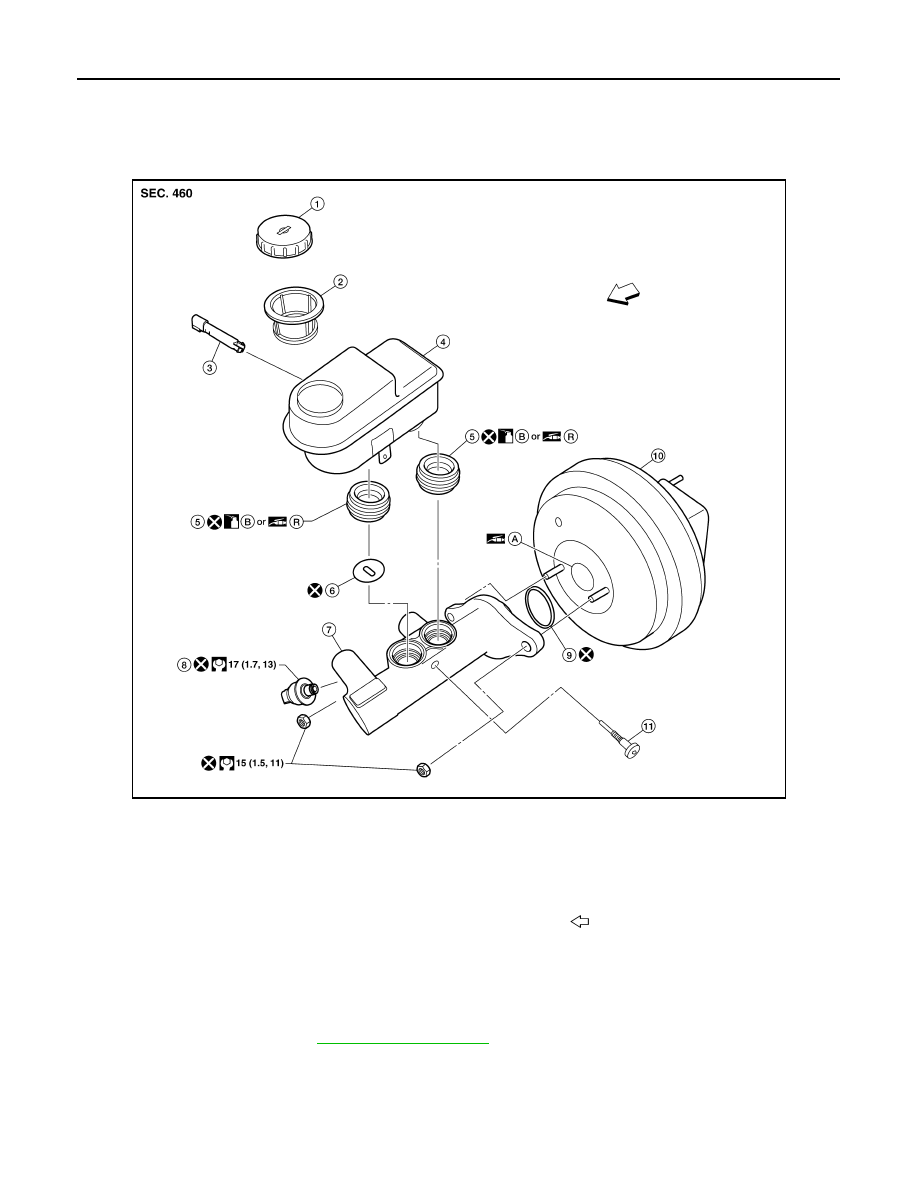

AWFIA0462GB

1.

Reservoir cap

2.

Strainer

3.

Fluid level sensor

4.

Reservoir tank

5.

Grommet

6.

Restriction washer

7.

Master cylinder sub-assembly

8.

Fluid pressure sensor

9.

O-ring

10. Brake booster

11.

Pin

A.

PBC (Poly Butyl Cuprysil) grease
or silicone based grease

B.

Brake fluid

R.

Rubber grease

Front

2009 Pathfinder

BRAKE MASTER CYLINDER

BR-33

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

5.

Remove the master cylinder assembly.

INSTALLATION

Installation is in the reverse order of removal.
• Use new master cylinder assembly nuts for installation.

CAUTION:

Do not reuse the master cylinder assembly nuts.

• Refill the brake fluid and bleed the air. Refer to

BR-20, "Bleeding Brake System"

.

CAUTION:

• Refill using recommended brake fluid. Refer to

BR-20, "Drain and Refill"

.

• Do not reuse drained brake fluid.

• Adjust the brake pedal. Refer to

BR-17, "Inspection and Adjustment - Standard Pedal"

,

BR-18, "Inspection

and Adjustment - Adjustable Pedal"

.

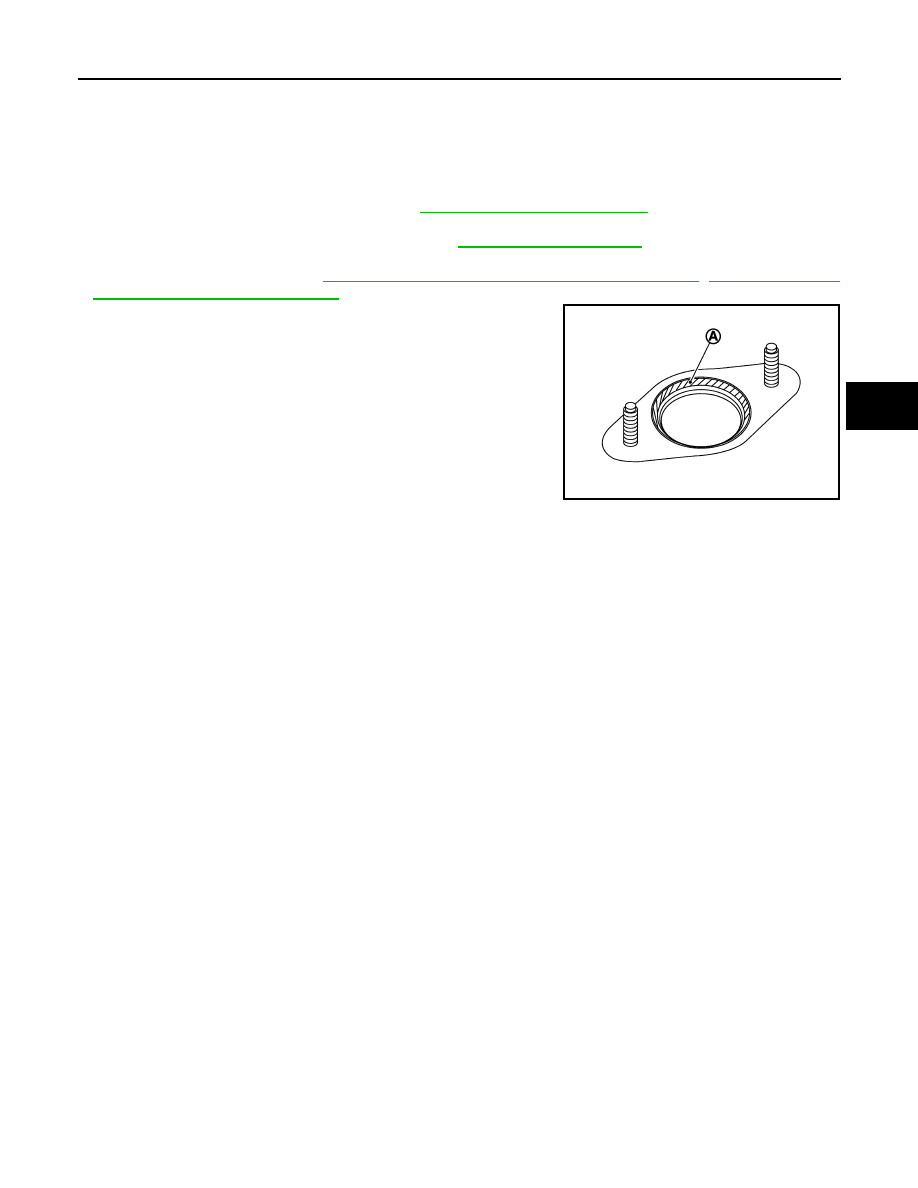

• Apply silicon grease to the brake booster at position (A) as shown

when installing the master cylinder assembly to the brake booster.

JPFIA0013ZZ
